RETROSUN Replacement Remote for INFOMIR MAG IPTV Boxes

This RETROSUN replacement remote control fully replaces original INFOMIR MAG series remotes for MAG 250/256/322/324/424/520/524/524W3/544 set-top IPTV boxes, offering IR learning, easy programming, and full control over your Linux STB.

If your INFOMIR MAG box remote is lost, broken, or unresponsive, this RETROSUN replacement is built to restore full functionality quickly. Designed to match button layout and infrared behavior of official remotes, it works as a direct hardware replacement and includes an IR learning feature so you can copy TV commands into the STB remote. The package contains one remote and clear instructions for programming, copying buttons, and performing a factory reset.

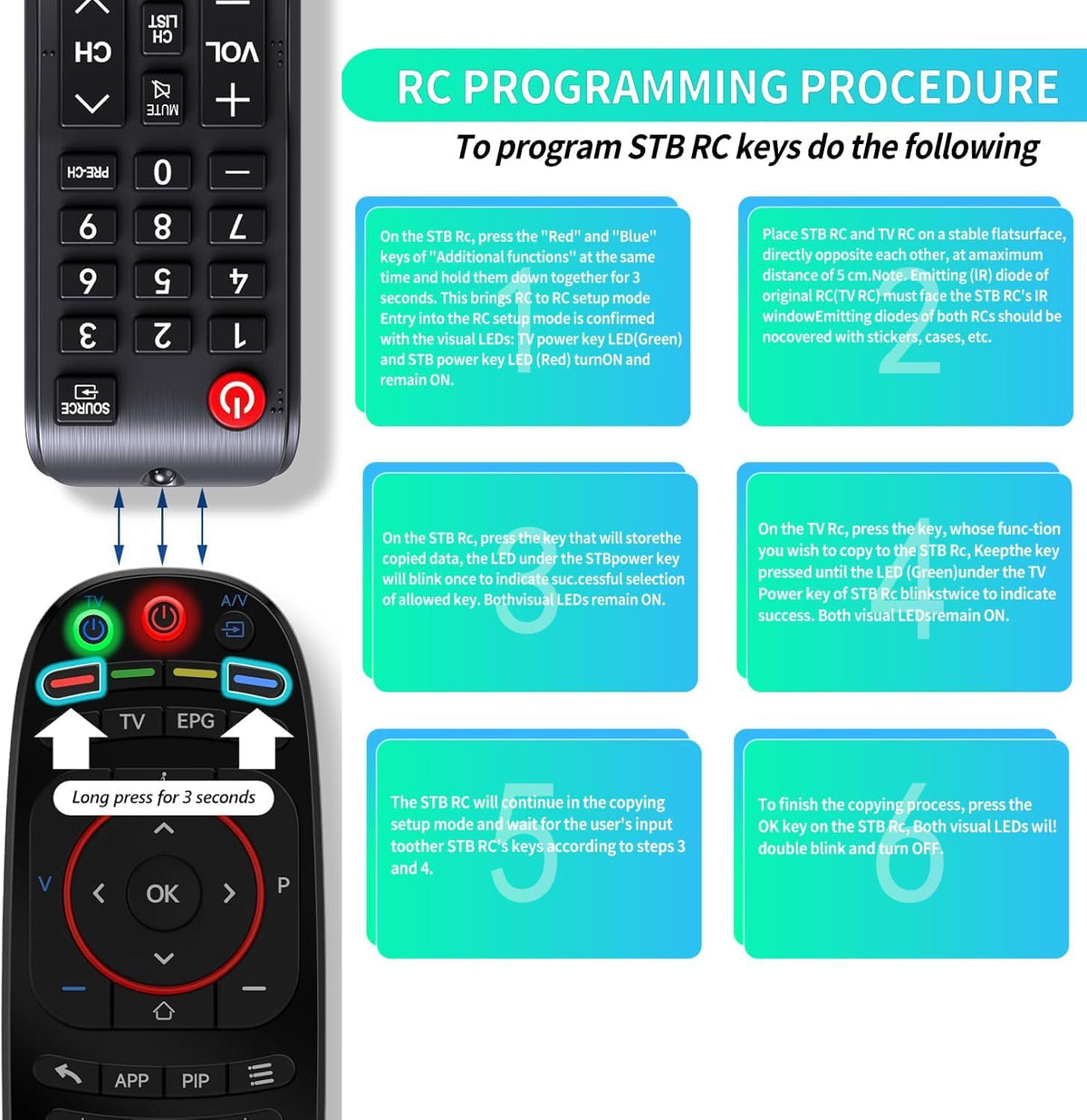

How do I pair or program this remote with my MAG set-top box?

Pairing the RETROSUN remote to your INFOMIR MAG box uses the remote’s built-in infrared learning and setup sequence. You’ll place the donor remote and the STB remote facing each other, then follow a simple button sequence to copy functions.

• Place infrared LEDs of both remotes up to 5 cm apart, facing each other.
• Press and hold the remote’s 'Red' and 'Blue' Additional Functions buttons for about 3 seconds.
• Watch for the STB LED indicators: 'TV power' green and 'STB power' red to confirm entry into setup mode.
• Press the store button on the STB remote, then press the corresponding button on the donor remote until the LED blinks, confirming the copied command.

What steps finish copying and how do I reset the remote?

Completing the copying process and resetting the remote are separate quick procedures that let you finalize programming or restore factory defaults if needed.

• Finish copying by pressing the 'OK' button; both LEDs will double-blink and then turn off.

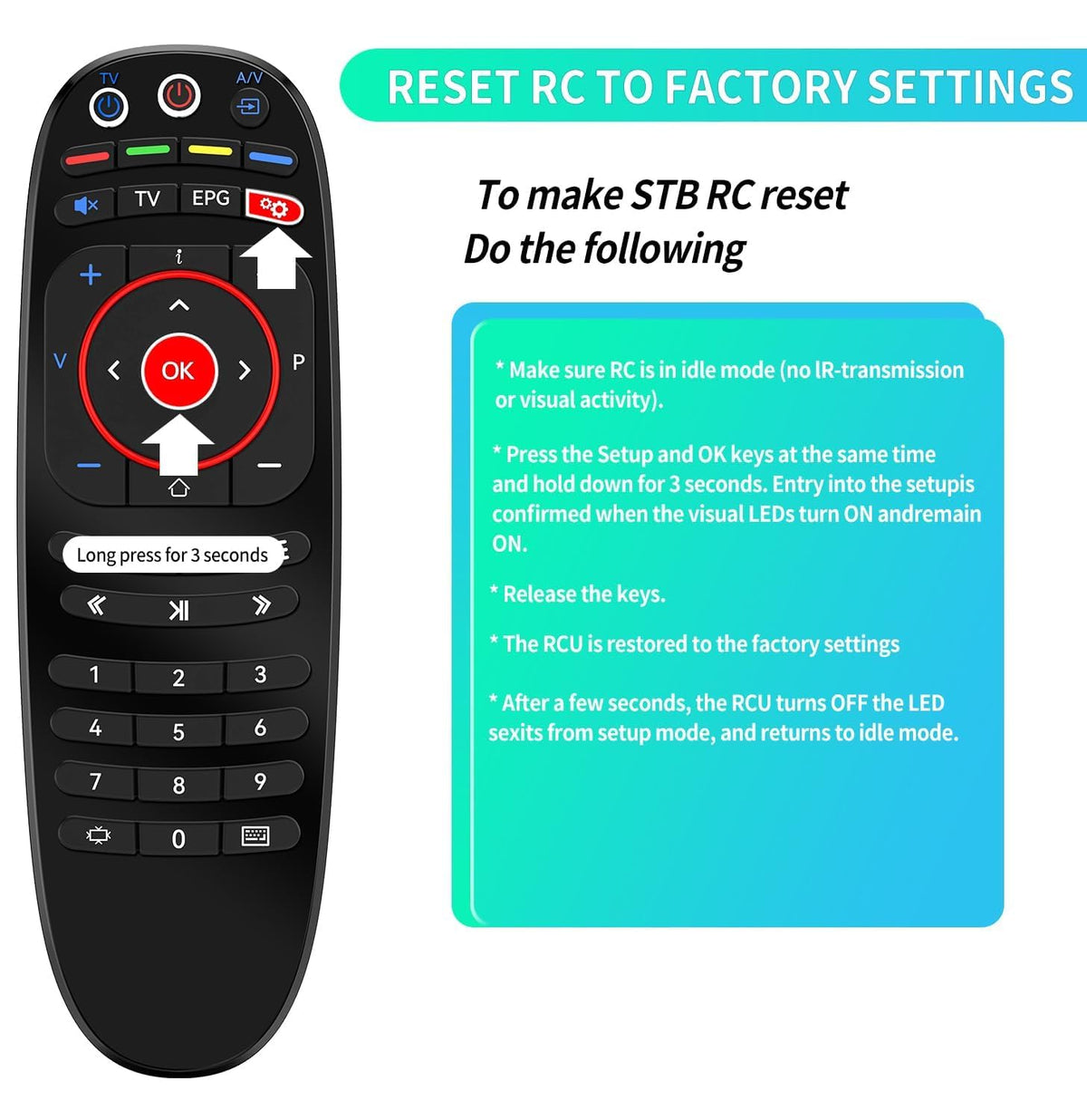

• To reset: ensure the remote is idle, then press and hold 'SETUP' and 'OK' together for about 2 seconds until LEDs light, then release — LEDs will turn off after one second.
• Reset returns stored IR mappings to default, ready for a fresh programming session.

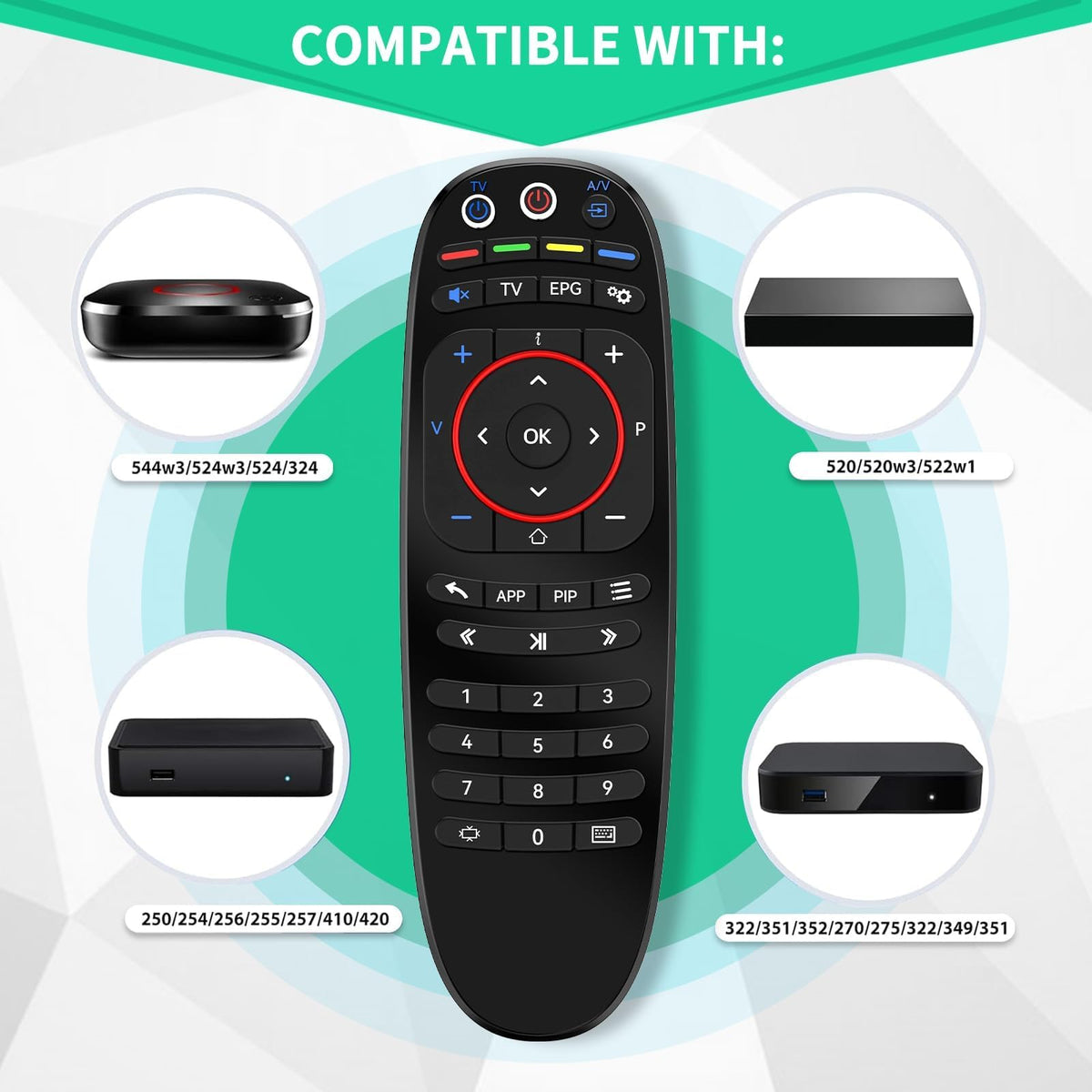

Which INFOMIR MAG models are compatible with this remote?

The remote is designed for a wide range of INFOMIR MAG Linux IPTV set-top boxes, matching common button layouts and infrared signals used across these models.

• Compatible models: MAG 250, MAG 256, MAG 322, MAG 324, MAG 324w2, MAG 420, MAG 424, MAG 520, MAG 524, MAG 524W3, MAG 544, MAG 322 (duplicate listing in compatibility notes included).
• If your MAG model is not listed, contact seller support so compatibility can be checked before purchase.
• Works with standard IR learning procedures to transfer TV commands to the STB remote.

What comes in the box and what after-sales support is provided?

The package contains the replacement remote and access to seller support should you need assistance. The inclusion is straightforward so you can replace your remote immediately.

• Included: 1 x RETROSUN replacement remote for INFOMIR MAG series set-top boxes.
• Documentation includes step-by-step programming, copying, and reset instructions.
• After-sales: contact the seller via the platform messaging tool for compatibility checks or troubleshooting.

Who is this for? This RETROSUN replacement remote is intended for INFOMIR MAG set-top box owners who need a reliable hardware replacement or a remote that supports IR learning and button copying. It's ideal for households, small commercial IPTV deployments, or anyone who prefers restoring familiar remote layout and functions without buying a new box. If you depend on your MAG device for streaming and want a quick, cost-effective way to regain full control, this remote provides the practical features and seller support to get you back up and running.
