RED WOLF 12V to 3.3V/5V/6V/9V Step-Down Voltage Regulator

When installing or troubleshooting electronics in a car, truck, RV or boat, supplying the correct voltage is essential to performance and longevity. The RED WOLF voltage regulator is a compact, inline DC converter designed to step the vehicle’s 12–16V supply down to one of four stable output voltages. It’s meant for accessory power tasks such as dash cams, backup cameras, CB radios, and aftermarket stereo units where a specific lower voltage and reliable current protection are required.

How does this regulator protect my vehicle electronics?

The unit includes built-in overload protection that shuts down output if draw exceeds the 2A limit, preventing damage from sustained overcurrent. It’s constructed with quality copper wiring and solid connections to minimize voltage drop and heat build-up in typical automotive environments. Note that after an overload event the converter remains in shutdown until power is cycled, which prevents repeat stress on connected devices.

• 2A maximum output with automatic shutdown on overcurrent

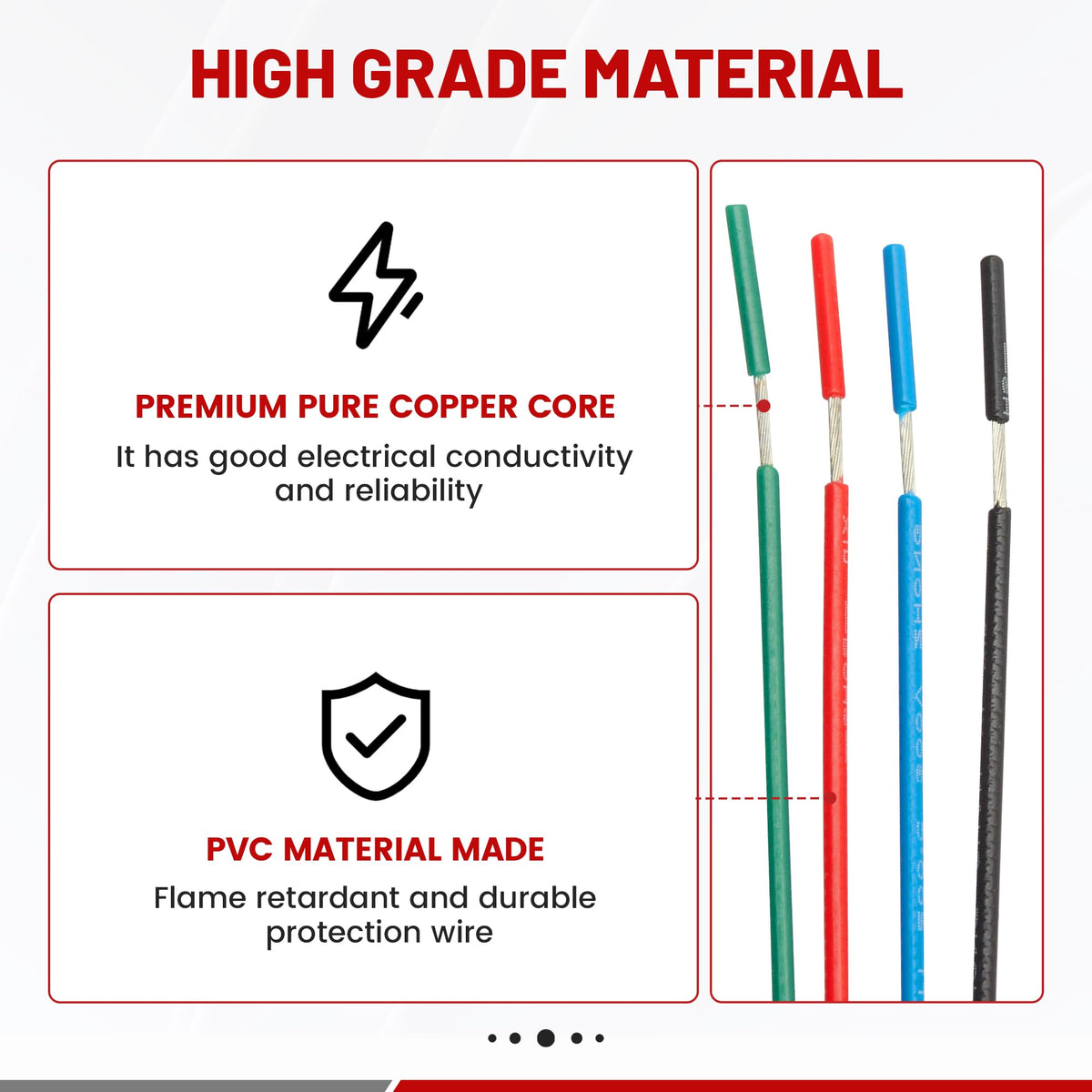

• Durable copper wiring for stable conductivity and heat resistance
• Requires power off/on to reset after overload, avoiding automatic restart

Which voltages can I select and how do I choose the right one?

The RED WOLF harness offers four fixed output options — 3.3V, 5V, 6V and 9V — accessible via three available voltage slots. Match the converter output to the voltage rating of the accessory you are powering, and ensure the device’s current requirement stays within the 2A limit. This product is not a universal bypass; it only accepts a 12–16V input range and must be used within its specified ratings.

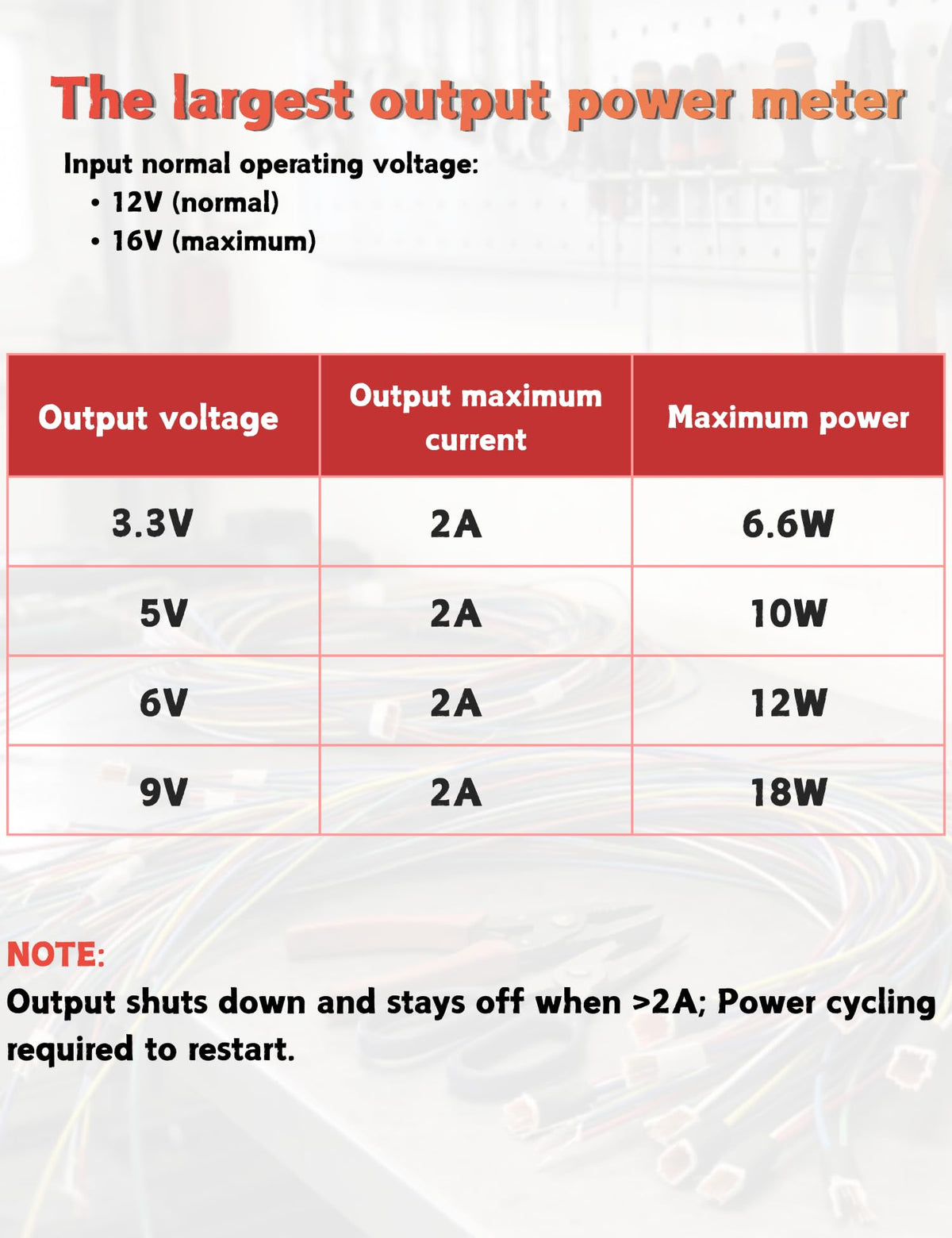

• Output options: 3.3V, 5V, 6V, 9V

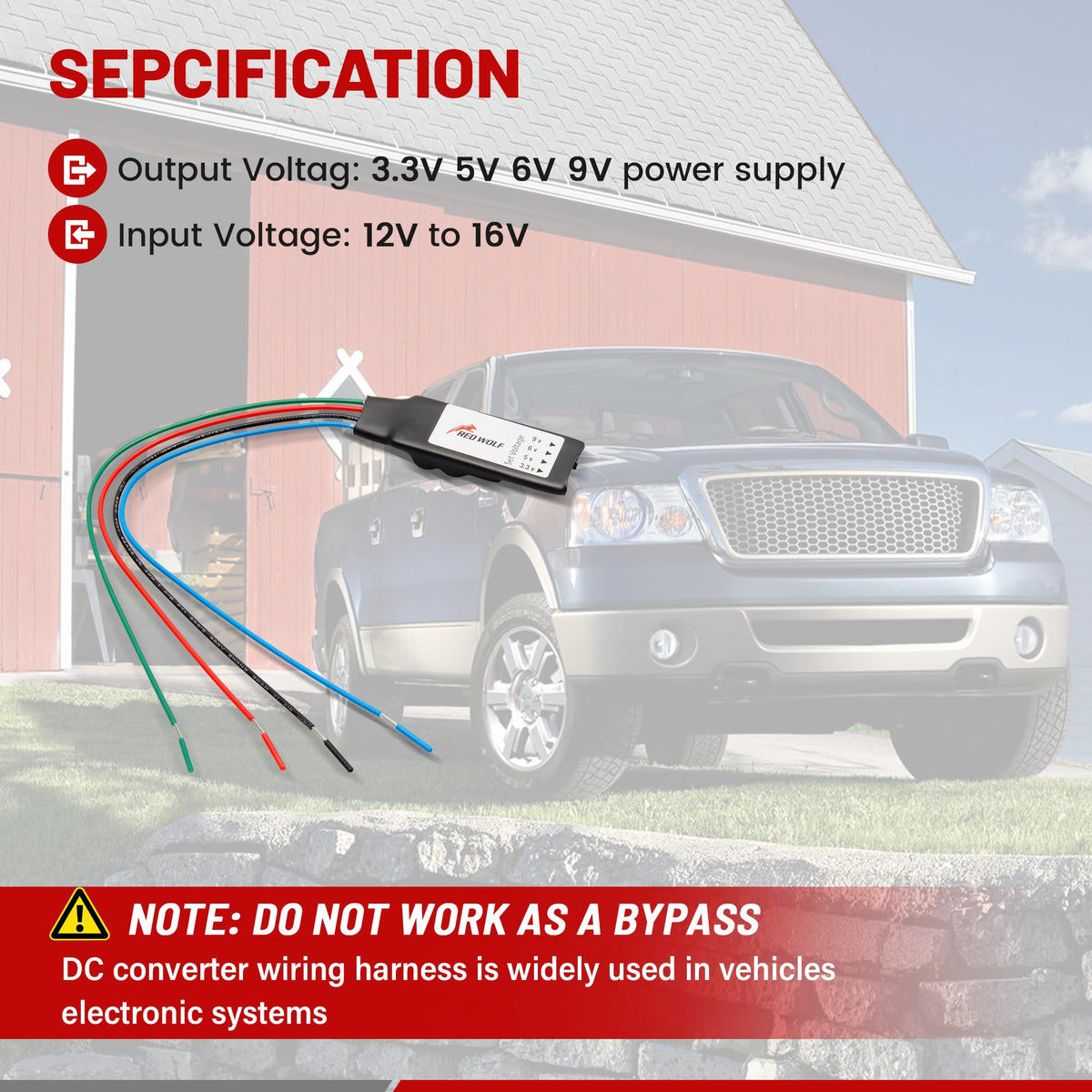

• Input range: 12V to 16V vehicle DC systems only
• Confirm accessory current draw does not exceed 2A for safe operation

How easy is installation in a vehicle harness or aftermarket stereo project?

Installation is straightforward: the harness uses four wires and is designed to integrate without cutting factory wiring. That makes it suitable for quick hook-ups to power sources and accessories while preserving the vehicle’s original harness. The inline design is compact, making it simple to tuck under dash panels or behind radio cages.

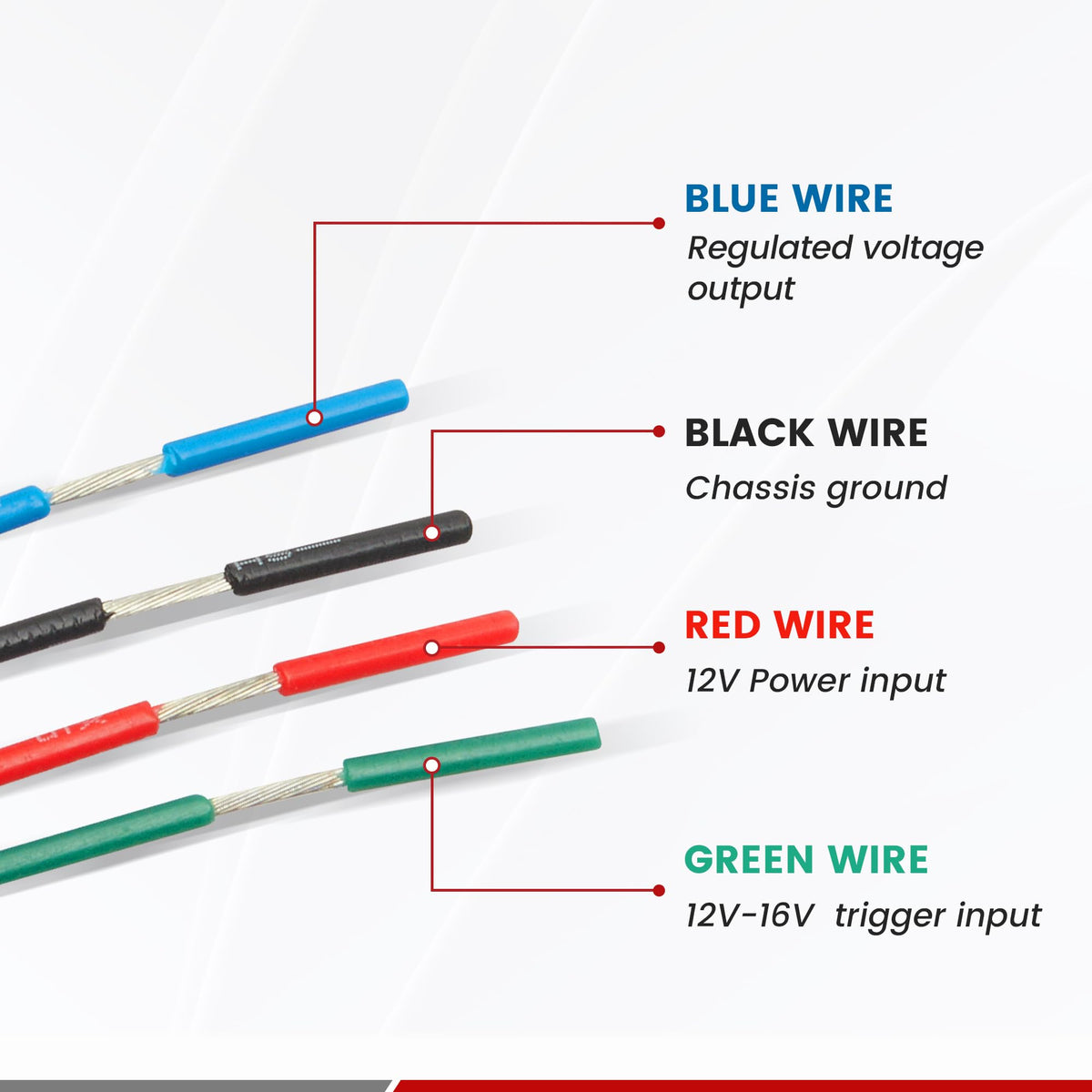

• Only four wires to connect — no factory wire cutting required

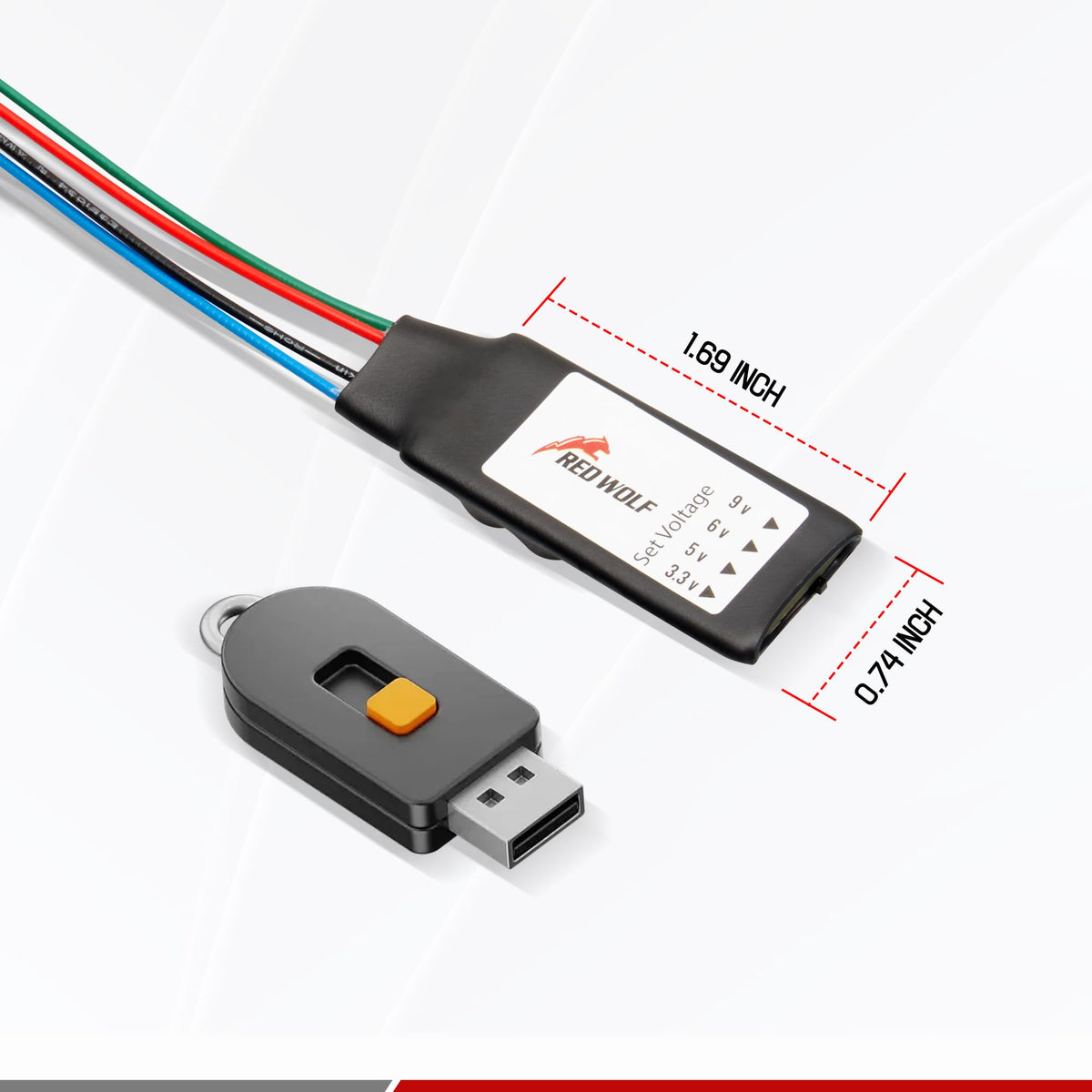

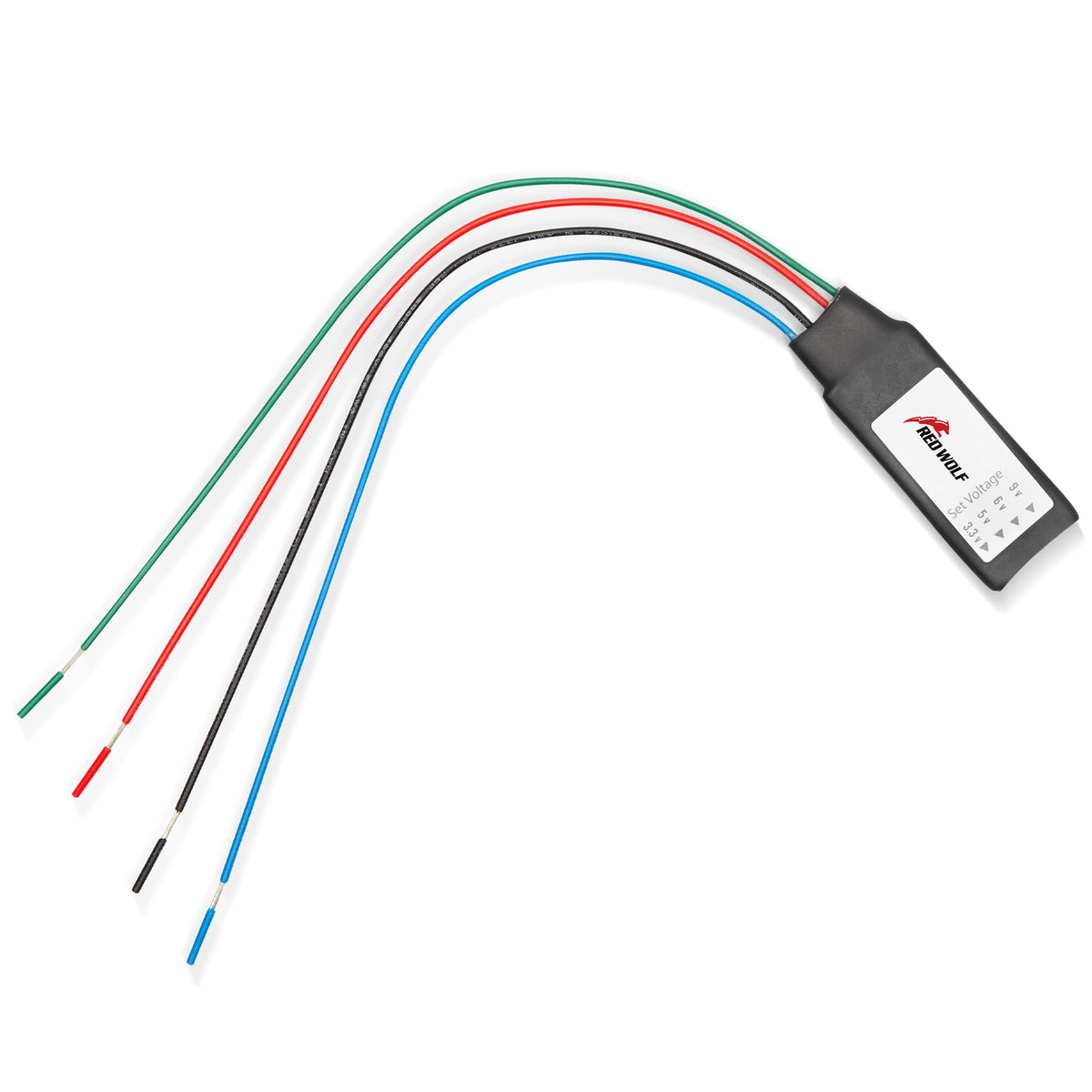

• Compact inline module fits behind dash panels or under trim
• Suitable for dash cams, reverse cameras, radios, and similar accessories

What limitations and safety notes should I be aware of?

Observe the rated input and output ranges: this converter does not accept voltages outside 12–16V and will not operate as a bypass. Avoid exceeding the 2A maximum draw; repeated overloads can force shutdown and require power cycling. The device is intended for powering electronics only and should be installed following vehicle wiring best practices.

• Do not use outside 12–16V input range
• Do not exceed 2A output continuous current
• Reset by toggling vehicle power after an overload shutdown

Who is this for: Technicians, DIY installers and vehicle owners who need a reliable, compact way to supply lower DC voltages from a 12V vehicle system. It’s ideal for people fitting backup cameras, dashcams, aftermarket stereos, CB radios or other accessories that require a stable 3.3V, 5V, 6V or 9V feed and up to 2A of current. If you need a heavy-duty converter for higher currents or wide input ranges, choose a higher-rated unit.
