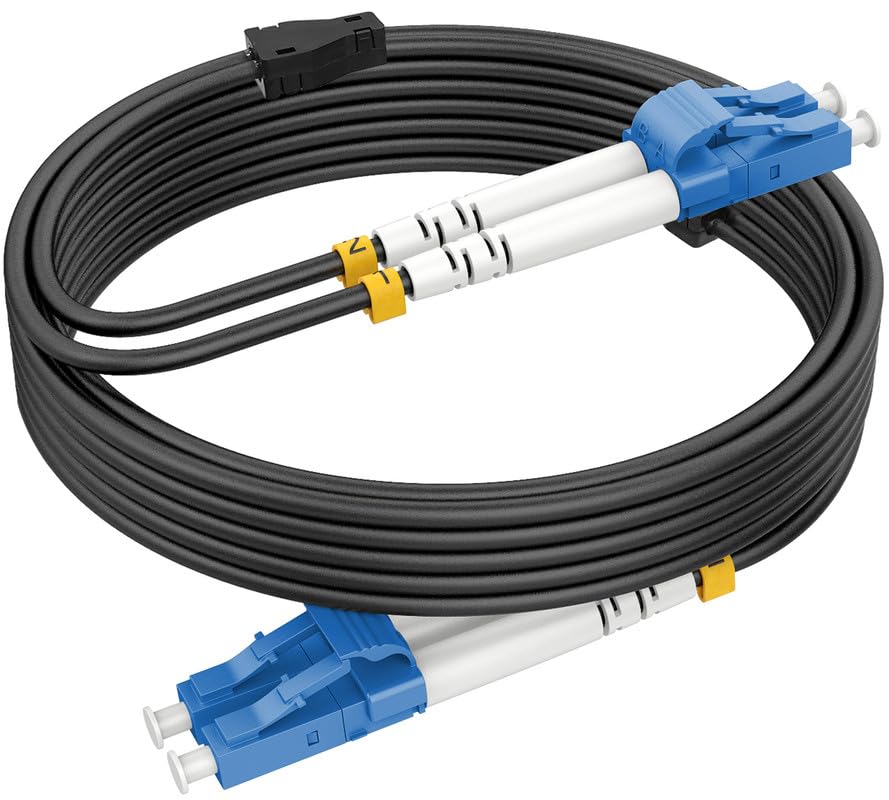

RamboCables 100ft Armored LC-LC Single-Mode Fiber Cable

RamboCables 100ft armored LC-to-LC single-mode fiber patch cable delivers weatherproof, rodent-resistant 10G connectivity for outdoor and harsh-environment networks.

This 100-foot (30 m) RamboCables fiber optic assembly is an OS1/OS2-compatible, duplex LC-to-LC single-mode patch cord with a 9/125 µm core and low-smoke zero-halogen (LSZH) jacket. Built with a spiral stainless-steel armor beneath the jacket, the cable is engineered to resist crushing and rodent damage while maintaining low attenuation for long-distance links. It is optimized for campus backbones, telecom, data center demarcation points, and outdoor runs where durability and high bandwidth matter.

How does this cable support high-speed networks?

The cable uses single-mode 9/125 µm fiber and LC duplex terminations to support bandwidths required by modern networks. It is specified for Ethernet speeds up to 10G and compatible with higher-rate systems, while offering low insertion loss across common wavelengths.

• Core/cladding: 9/125 µm single-mode fiber (OS1/OS2 compatible)
• Bandwidth support: optimized for 1310 nm and 1550 nm wavelengths
• Data rates: suitable for 10G Ethernet and higher network equipment
• Low attenuation: typical loss 0.36 dB/km at 1310 nm, 0.22 dB/km at 1550 nm

What protective features keep the cable reliable outdoors?

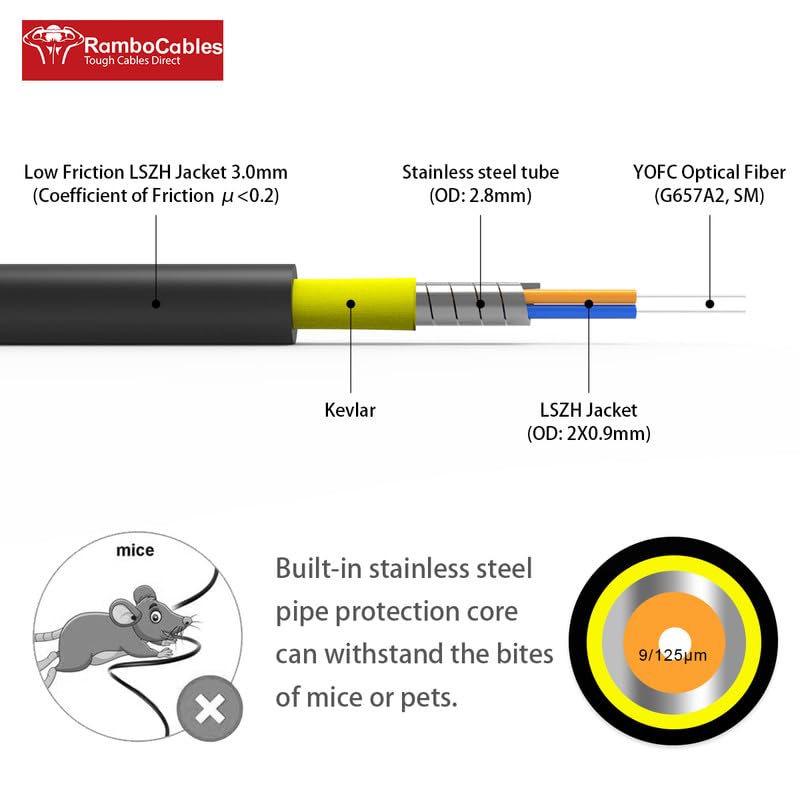

This patch cable combines an LSZH outer jacket with a spiral stainless-steel armored layer to protect the fragile glass fiber within. The armor reduces the risk of rodent chew-through and mechanical damage while the jacket resists UV exposure and harsh weather conditions.

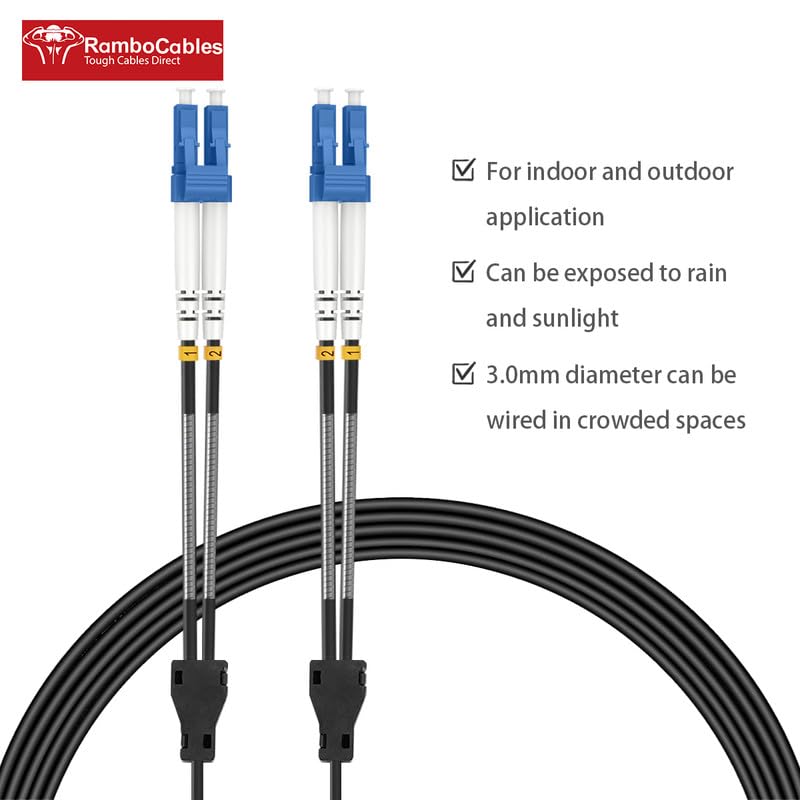

• Spiral stainless-steel armor for rodent and crush resistance
• LSZH jacket reducing smoke and halogen in case of fire
• UV- and weather-resistant outer layer for extended outdoor use
• 3.0 mm OD balances flexibility with mechanical protection

How far can this single-mode cable transmit signals?

Single-mode fiber is designed for long-distance transmission; this cable supports multi-kilometer links with minimal loss. Actual reach depends on wavelength, transceiver power, and network margin, but the fiber’s low attenuation enables tens of kilometers under normal conditions.

• Up to ~10 km at 1310 nm under standard conditions
• Up to ~40 km at 1550 nm with appropriate transceivers
• Attenuation range: approximately 0.36–0.22 dB/km across 1310–1550 nm

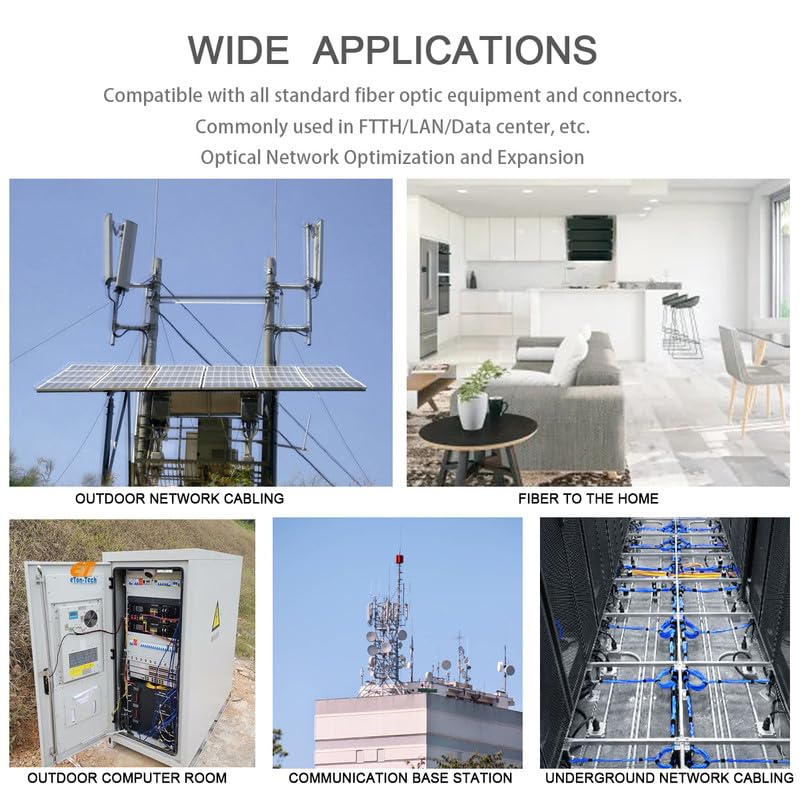

• Ideal for campus links, between buildings, and long indoor/outdoor runs

How easy is it to install and integrate with existing equipment?

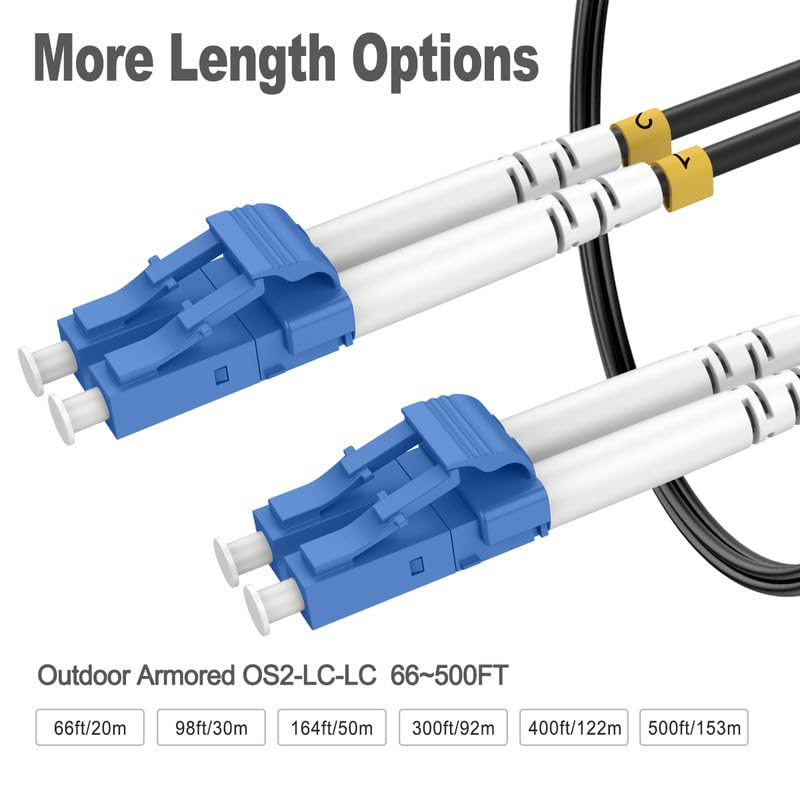

LC duplex connectors are a common choice for network gear, making this cord straightforward to plug into patch panels, transceivers, and switches. The 100 ft length provides flexible routing options while the 3.0 mm diameter remains manageable in trays and conduits.

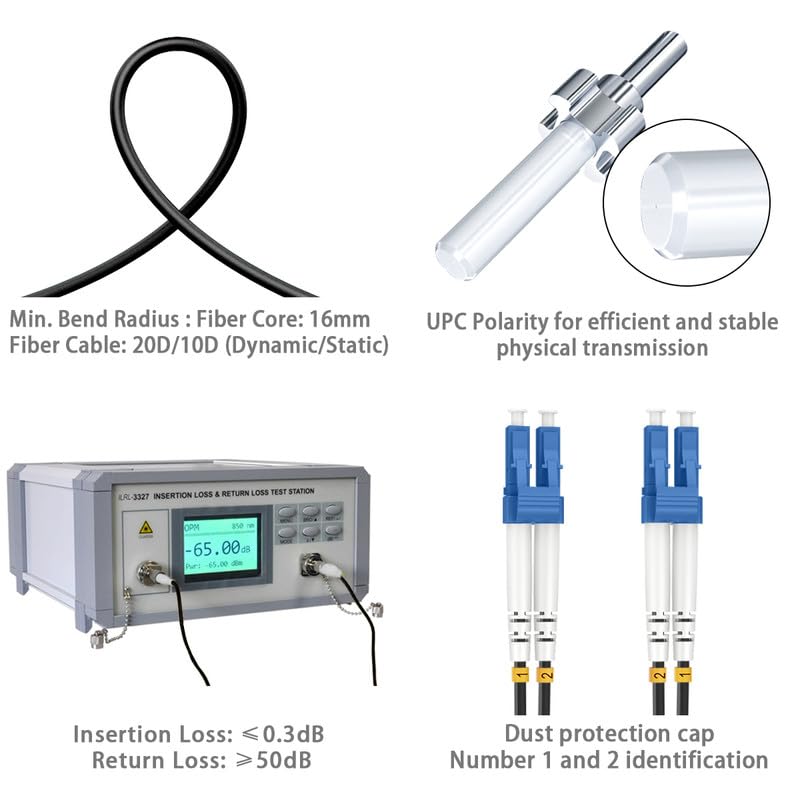

• Standard LC-to-LC duplex terminations compatible with most transceivers
• 3.0 mm outer diameter suits conduits and cable trays without excessive bulk
• Pre-terminated, factory-polished connectors reduce field termination work
• Available in black to blend with outdoor and telecom installations

Who is this for? Network engineers, AV integrators, telecom technicians, and facilities teams who need a ruggedized, pre-terminated single-mode patch cable for outdoor or harsh environments will find this RamboCables product suitable. It’s intended for installations needing reliable 10G-capable links, protection from mechanical and animal damage, and predictable optical performance over long runs without field splicing.
