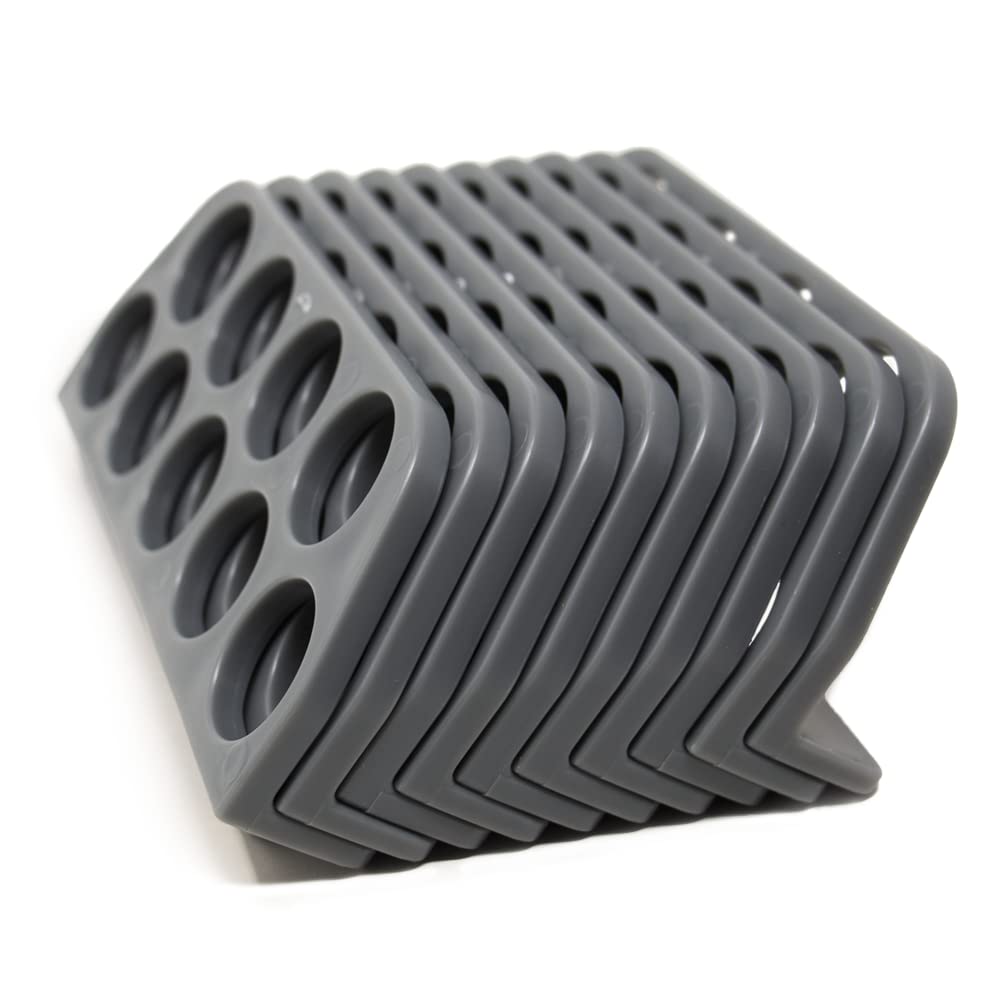

Rack-A-Tiers Cable Chase Wire Bracket 10-Pack

Rack-A-Tiers Cable Chase Wire Bracket (10 pack) is a patented, ETL-listed hanger that creates a straight, low-friction path for NM and electrical cables while protecting joists and simplifying wire pulls.

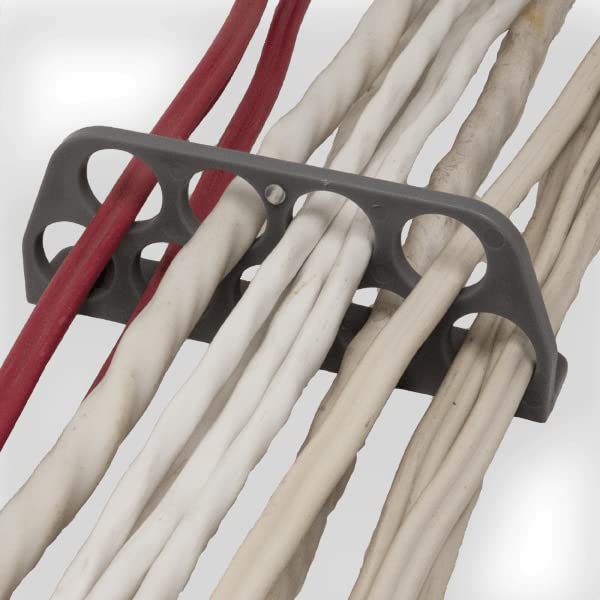

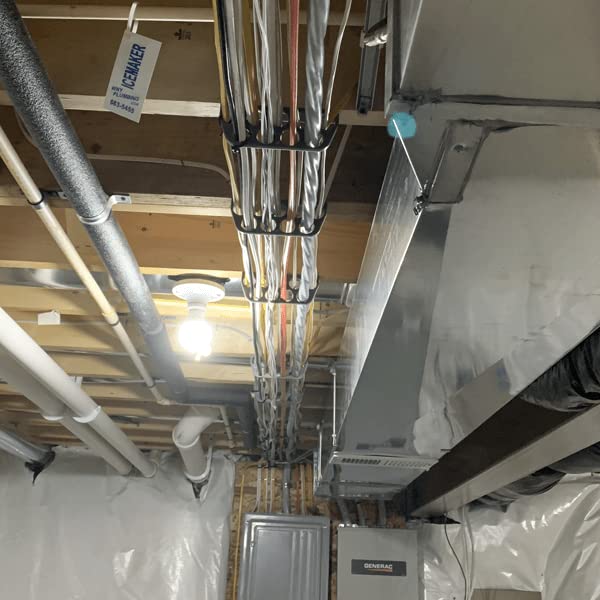

When routing electrical and low-voltage wiring through floor or ceiling spaces, neat, repeatable paths save time and reduce damage to both wires and structure. These Cable Chase brackets mount under floor joists or on framing to guide multiple cables through nine smooth 1-inch holes, keeping bundles organized, easing pulls, and leaving room for future wiring needs without drilling holes that weaken joists.

How does this bracket protect wires and structural members?

The design uses smooth, consistent openings to minimize friction, sharp edges, and splinters that typically occur with drilled holes. By placing cables through the molded holes instead of boring into joists, you avoid notching and preserve the strength of floor members.

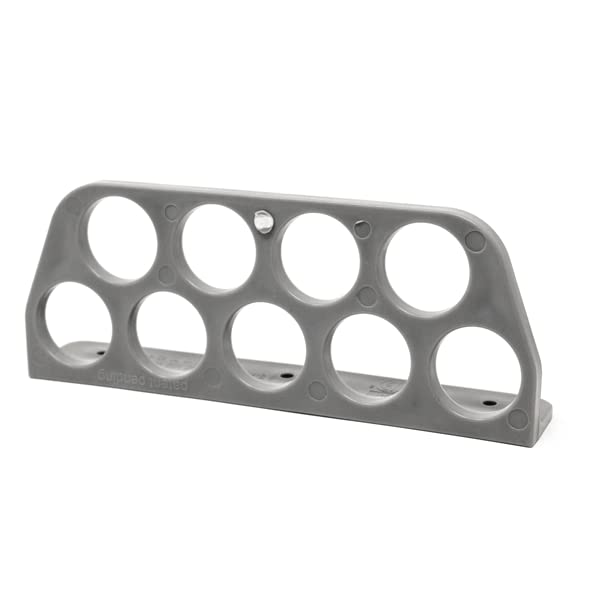

• Nine 1-inch holes for controlled, smooth cable passage
• Rounded edges reduce abrasion and pulling resistance
• Eliminates need for drill-through holes that can weaken joists

What load and code credentials does it meet?

These brackets are ETL listed and conform to relevant UL and CSA standards, providing an industry-accepted mounting solution for electrical cable routing. They follow standard wire-fill guidelines so installers can plan bundle sizes and leave space for future expansion.

• ETL listed, meets UL STD 2239 and CSA C22.2 No. 18.4
• Designed to follow typical wire fill calculations for safety
• Accepted by IEAI for use in electrical installations

How do I install and space these brackets for best results?

Installation is straightforward: fasten the bracket’s plate to framing under joists or against studs and feed cables through the designated holes. Maintain recommended spacing to ensure support and compliance with installation guidance.

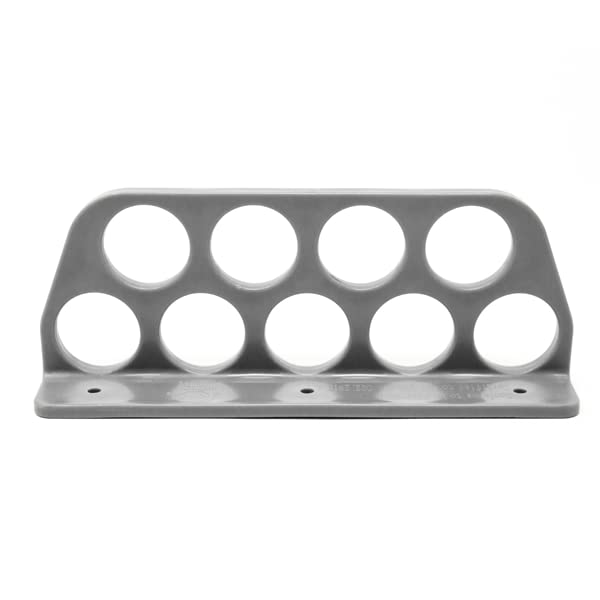

• Bracket main body: 2.5" x 6-3/8"; mounting plate: 1-1/8" x 6-3/8"

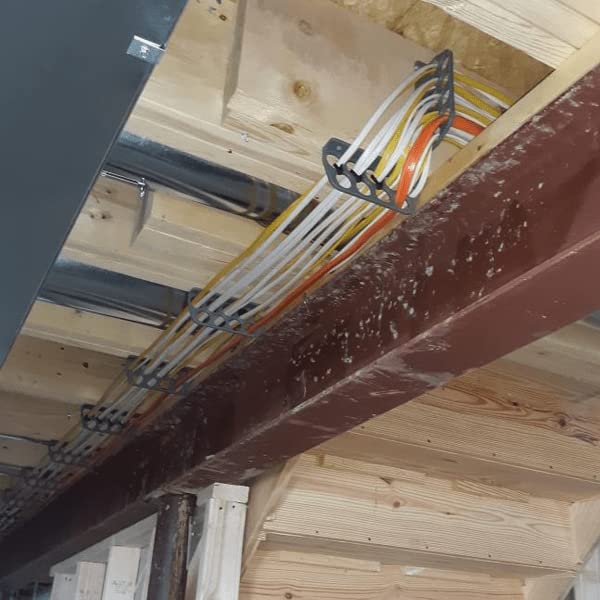

• Maximum spacing under floor joists: 16" between brackets
• Keep maximum distance from walls, pipes, or ductwork to 12" on one side

How many cables can one bracket handle and how future-proof is it?

Each bracket has nine holes sized to accept up to 27 individual conductors when planned according to wire-fill rules, giving room for current installations and later additions. The layout keeps wires separated and accessible, so bundles can be expanded without major rework.

• Nine 1-inch holes accommodate multiple cable runs
• Supports up to 27 wires when using correct conductor sizing
• Leaves space for additional runs, reducing future labor

Who this product is for: Electricians, electrical contractors, builders, and savvy remodelers who want a code-conscious, time-saving method to route NM and other cables through framed spaces. If you need a reliable way to protect wiring, avoid structural damage from drilled holes, and keep runs tidy and expandable, this Rack-A-Tiers Cable Chase 10-pack is a practical choice for residential and light commercial installations.
