QINIZX 21S 5A Capacitor Active Equalizer Balancer Board for Li-ion, LiFePO4 & LTO

Overview

Meet the QINIZX 21S Balancer Board, a compact solution designed to harmonize energy across lithium packs. The unit enables active energy transfer throughout the entire battery, promoting balanced voltages across cells without waiting for a single-string balance. It supports Li-ion, LiFePO4, and LTO chemistries within a working voltage range of 1.8V to 4.5V, making it a versatile choice for diverse pack configurations.

How it works

The balance process uses a flycap-capacitor charge transfer mechanism. When connected, the balancer begins active equalization with ultra-low impedance MOSFETs on a 2 oz copper PCB, delivering a balance current from 0 to 5.5A. The approach favors gentler balancing for small voltage gaps and stronger current when larger gaps exist, helping the whole pack move toward uniformity.

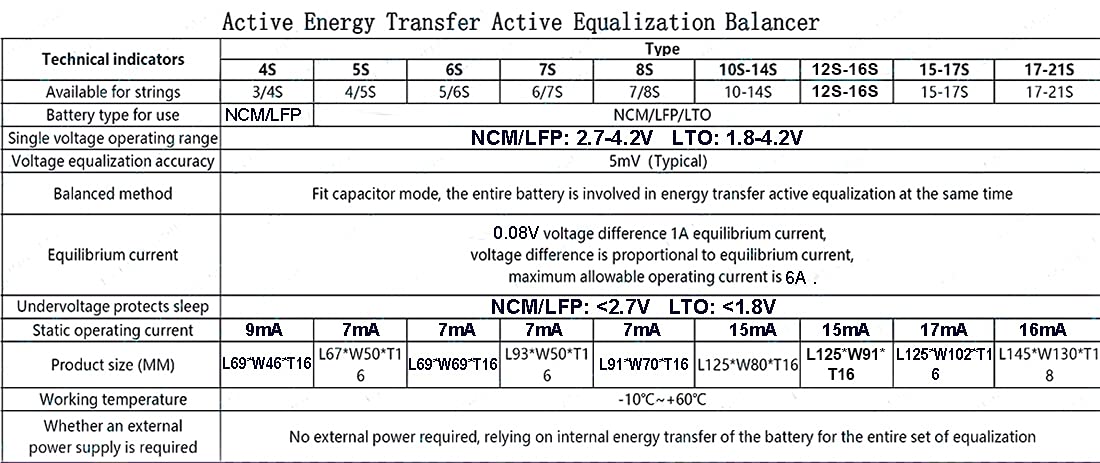

Key specifications and behavior

• Balance current: 0–5.5A (the wider the voltage gap, the more current used).
• Quiescent current: ~12–16mA, suitable for mid-to-large packs.
• Standby power: < 0.1mA with under-voltage sleep protection.
• Recommended battery size: 30–200Ah per balancer.
• Voltage accuracy: balance within 5 mV for precise leveling.
• Compatibility: Li-ion, LiFePO4, and LTO chemistries; 1.8–4.5V working range.

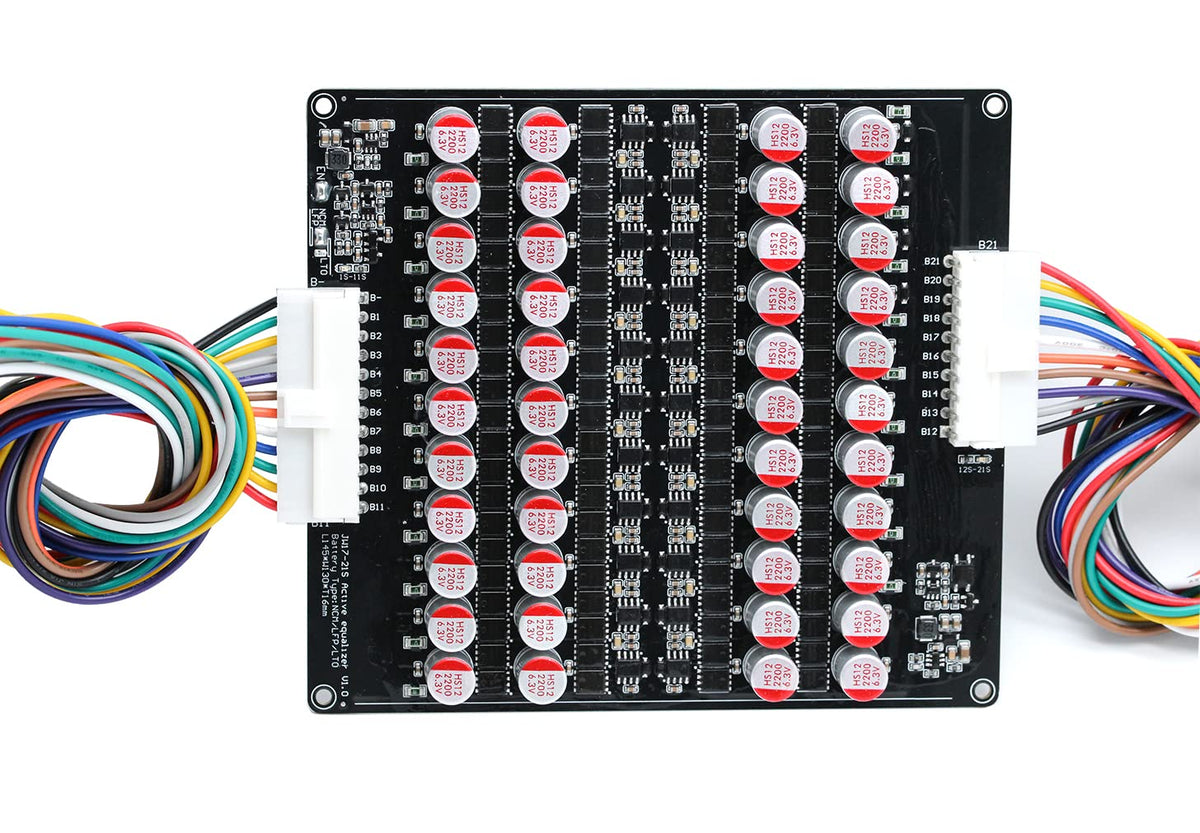

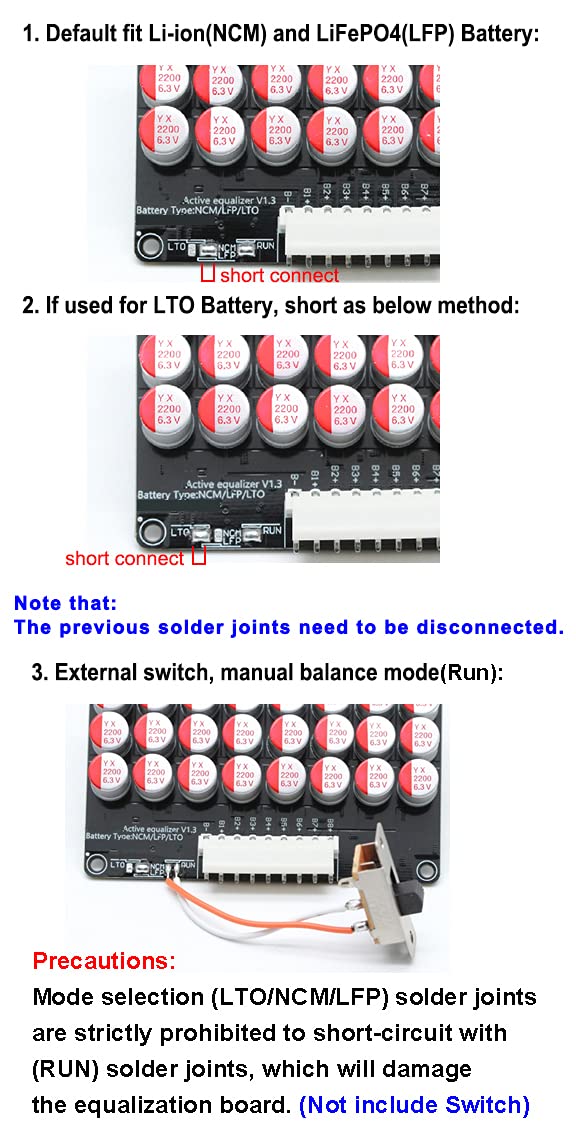

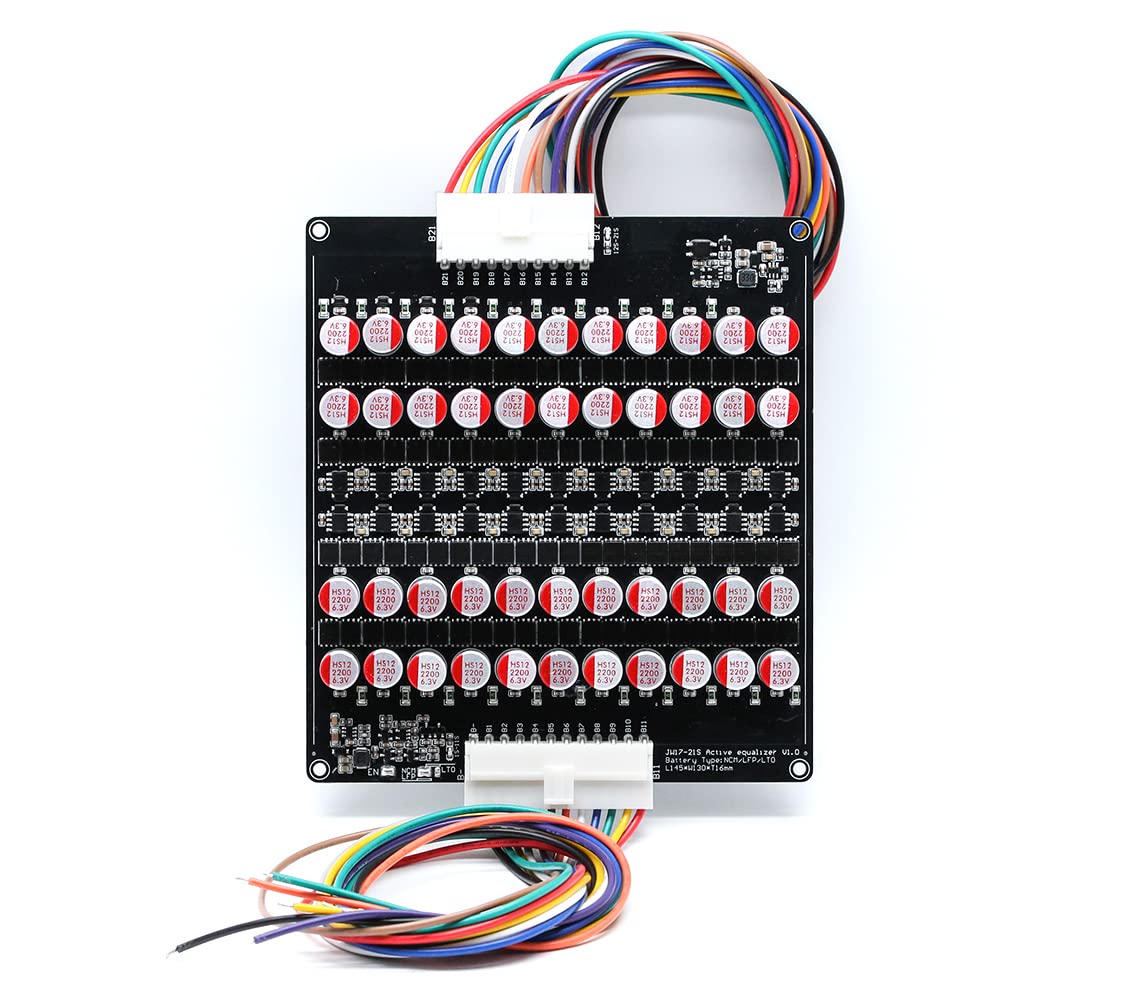

The entire battery participates in active equalization, which can help achieve a more uniform state of charge across the pack. A dedicated RUN pad allows optional control, and a single LED indicator shows normal operation while signaling problems when present.

Physicals and setup

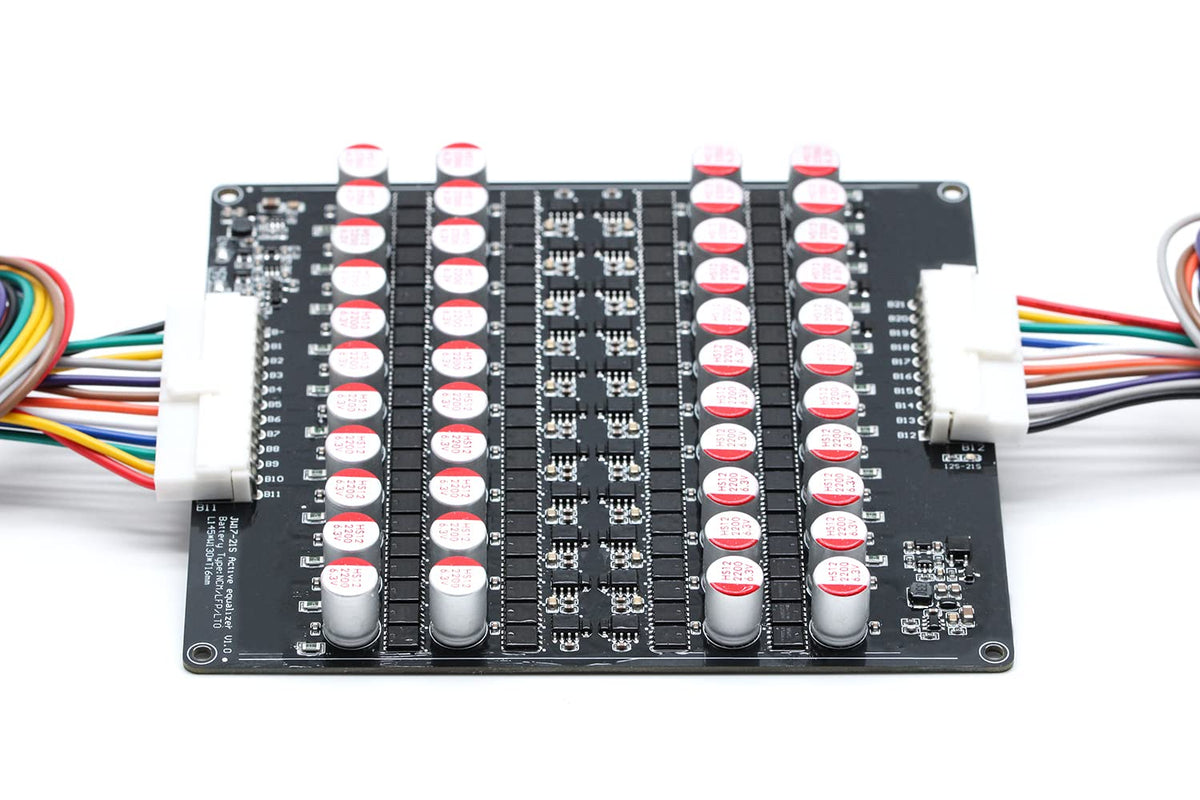

• Board size: 145 × 130 × 16 mm; balancing cable length: 400 mm.

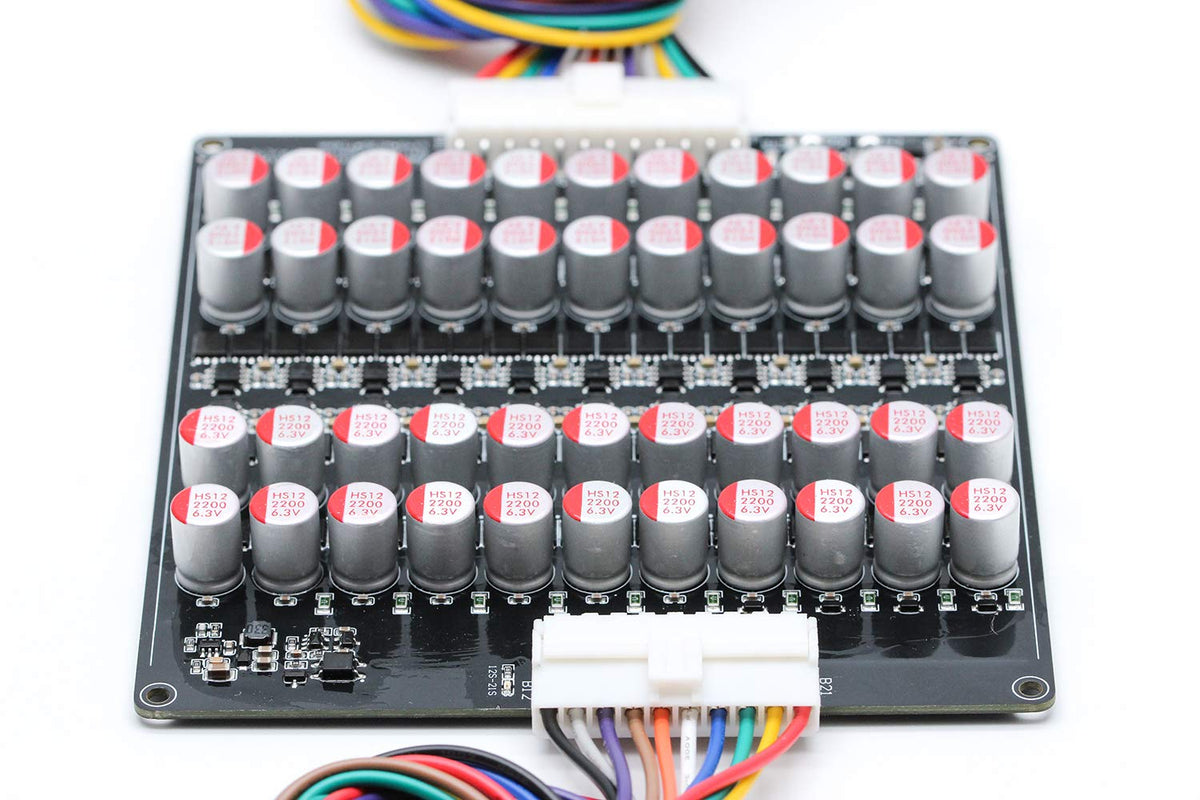

• Includes: 1× 21S Balancer Board, 1× 10-Pin Cable, 1× 11-Pin Cable.

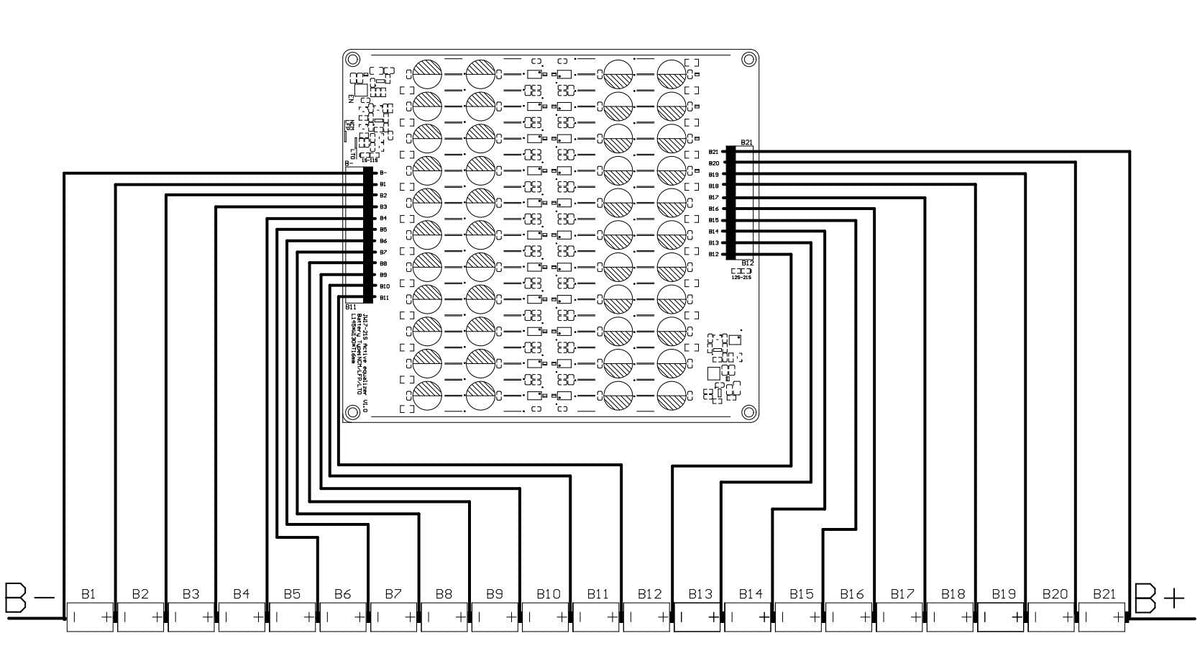

• Wiring tip: start from the total negative pole (B−) and verify each string before connect.

Usage notes

• When the voltage gap is small (<0.1V), the balance indicator may flicker; re-plugging cables can help stabilize readings.
• Under-voltage sleep stops balancing when B1 voltage falls below the set thresholds (NCM/LFP < 2.7V or LTO < 1.8V); standby current remains under 0.1mA.
• Ensure proper insulation and correct terminal connections to avoid short circuits. This balancer is backward-compatible for various PDF-guided configurations (e.g., 20S with last line B21+ empty).

What you get and potential benefits

Designed to improve consistency across a pack, the QINIZX balancer offers an active, full-pack approach that can help maintain balance even in larger or mixed-chemistry setups. While results vary with usage, users may see smoother voltage distribution, easier pack management, and better sleep-mode performance in compatible systems.
