QINIZX 10S–14S Active Capacitor Battery Equalizer

The QINIZX 10S–14S active capacitor equalizer is a high-current balance module that actively evens cell voltages across 10 to 14-series Li-ion, LiFePO4, LTO, or LiPo battery banks.

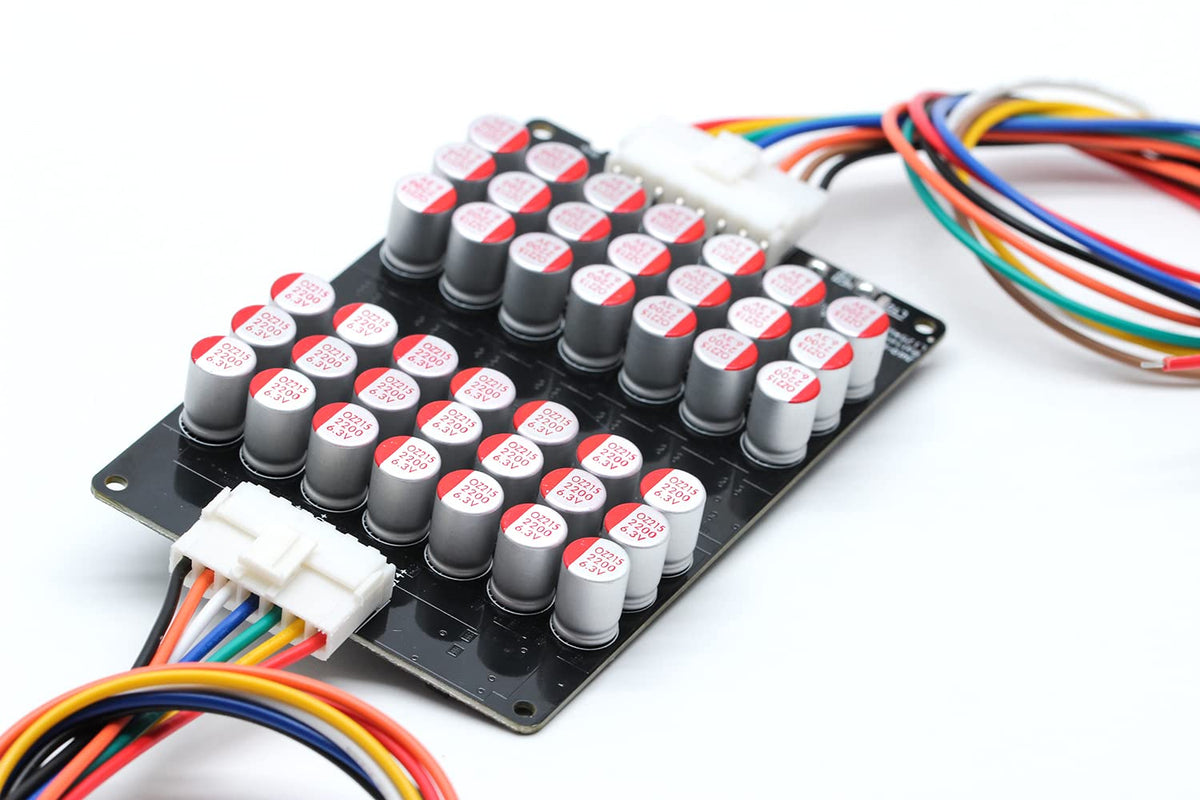

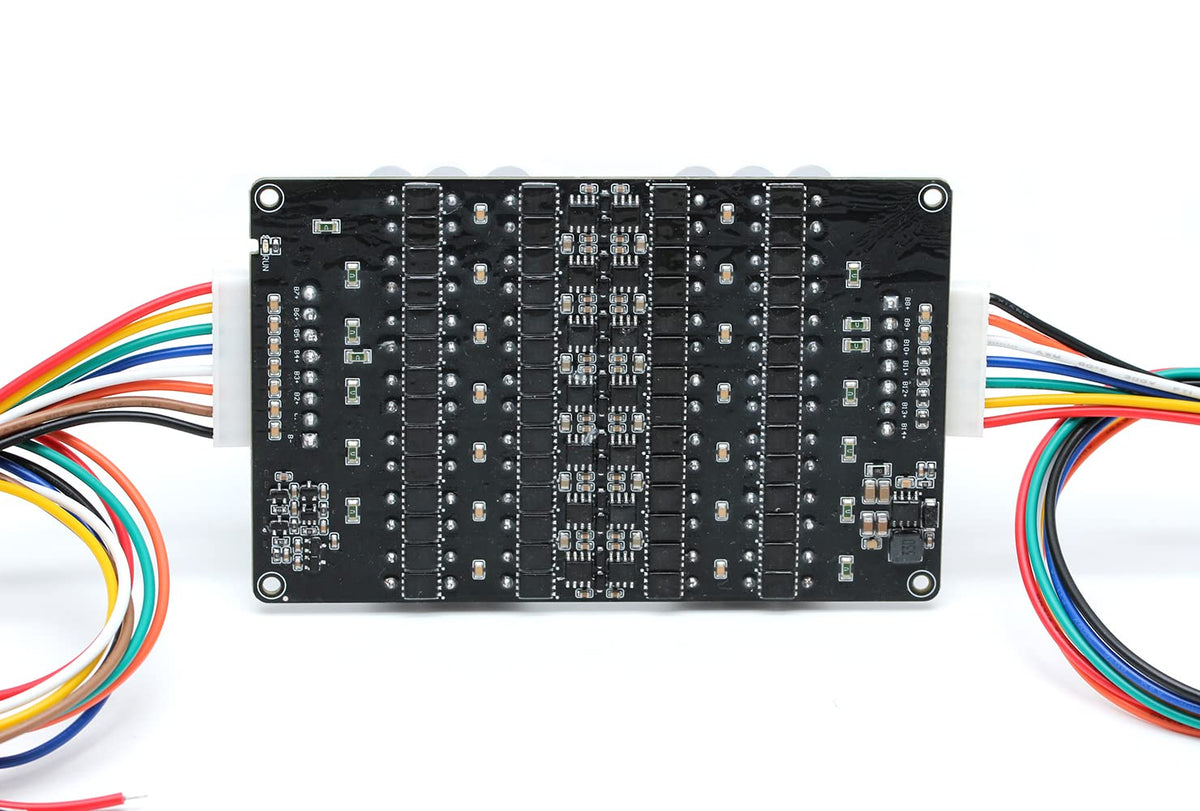

This active balancing board uses flying-capacitor charge transfer and ultra-low Rds(on) MOSFETs on a 2oz copper PCB to move charge between cells, reducing voltage spread and improving pack performance over time. It supports 10S through 14S strings (backward compatible), offers up to 5.5A balance current, and includes undervoltage sleep protection and very low standby drain for long-term installations. The module is intended for battery packs in energy storage, EV conversions, UPS systems, and other multi-cell setups where maintaining matched cell voltages matters.

How does this balancer manage different battery chemistries?

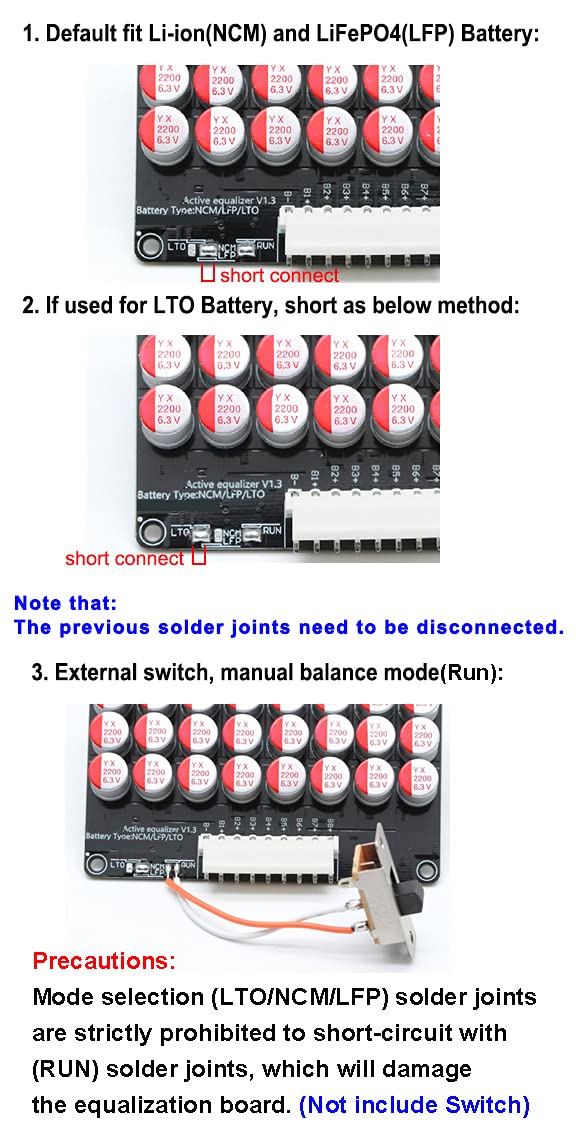

The QINIZX equalizer operates between 1.8V and 4.5V per cell, so it is compatible with common chemistries such as ternary Li-ion, LiFePO4, and lithium titanate (LTO). It identifies cell voltages and transfers charge via the flying capacitor method rather than dissipating excess energy as heat, making it efficient for multiple chemistries when voltages fall into the supported range.

• Working voltage range: 1.8V–4.5V per cell.
• Chemistry compatibility: Li-ion (NCM), LiFePO4, LTO.
• Automatic undervoltage stop for B1 to protect low-voltage cells.

What safety and installation steps should I follow?

Correct wiring and insulation are essential: confirm each cell connection before plugging the balance cable into the board and insulate the PCB base and terminals. The board is sensitive to wiring errors that can cause short circuits or damage, so double-check polarity and cell order, and use appropriate insulation materials.

• Verify battery string section connections before attaching the cable.
• Insulate the board underside and terminal regions to prevent shorts.

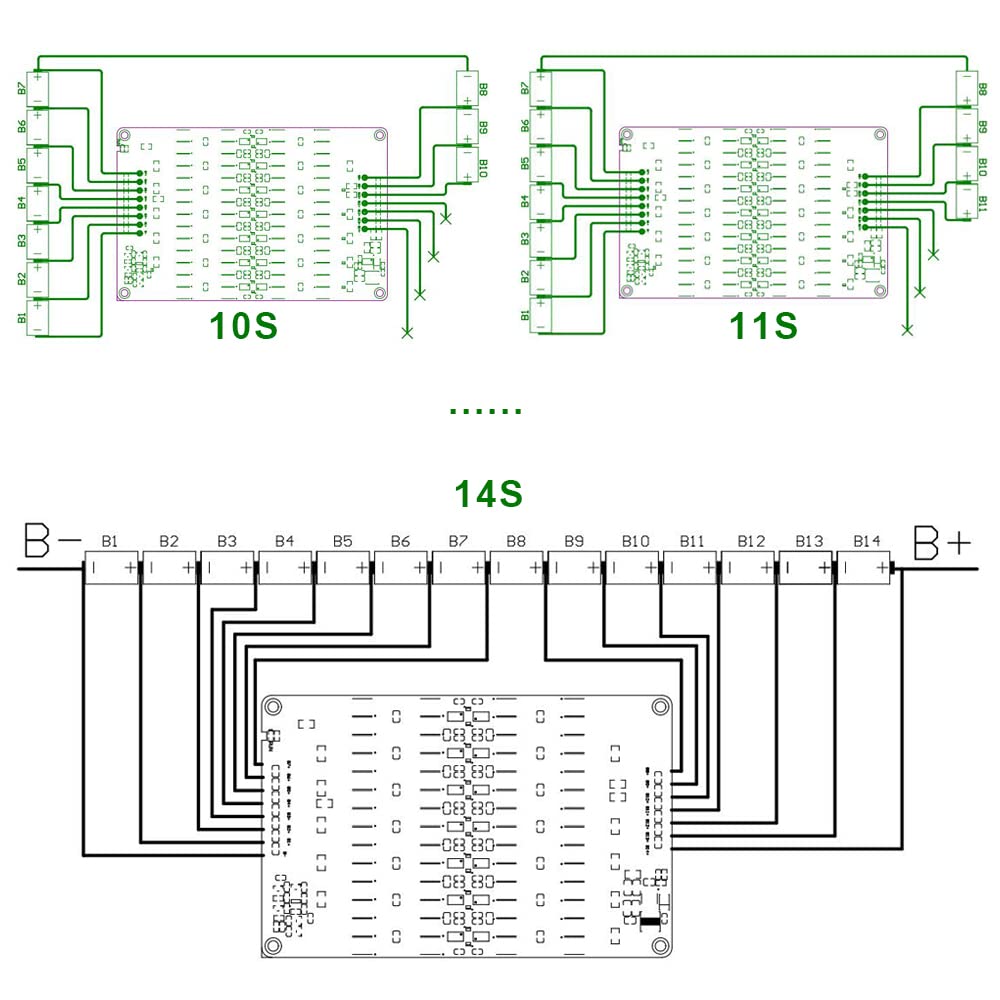

• Use the backward-compatible wiring scheme for shorter series counts (leave end pads vacant).

How long and how strongly will the module balance my pack?

Balance current varies with voltage difference; the board can supply up to about 5.5A when needed, but current falls as cells approach equal voltage. Equalization takes time — it does not instantly equalize cells — and the board may feel warm during operation, which is normal for the charge-transfer process.

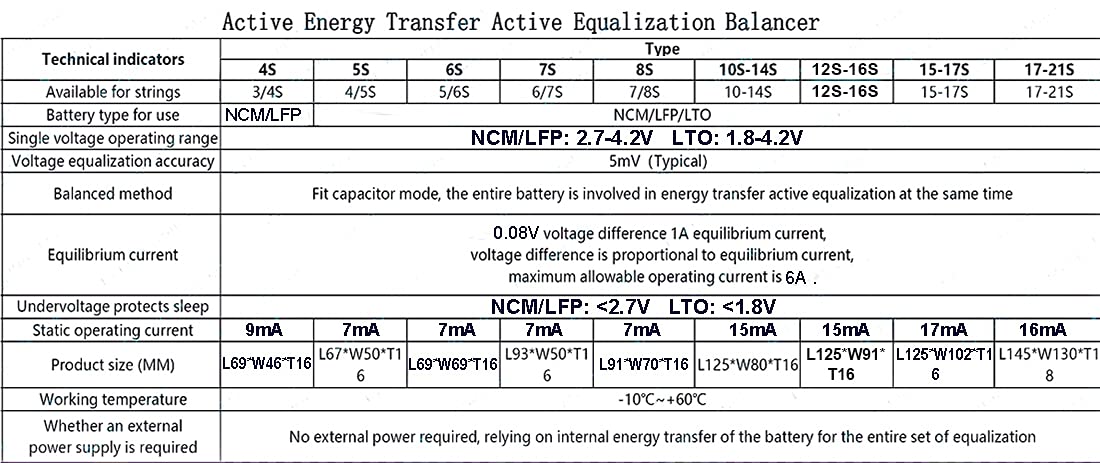

• Maximum balance current up to 5.5A; typical quiescent current ~7mA.
• Recommended battery capacity per balancer: 30–300Ah; parallel multiple balancers for larger banks.
• Balance accuracy within ~5mV; full equalization requires extended connection time.

What practical tips help avoid false indicators and improve performance?

The indicator LED can sometimes light when the voltage gap is below ~0.1V without delivering balance current; this is a known behavior and often resolved by re-plugging the cable. Also allow an appropriate equalization period after connecting the module and expect the module to run warm as it transfers charge.

• Avoid >0.5V initial cell gaps for best results; <0.1V can trigger false LED activation.
• If LED behavior seems incorrect, disconnect and re-plug the balance cable.
• Do not expect immediate results — balancing often takes hours to days depending on imbalance.

Who is this for? The QINIZX 10S–14S active equalizer suits technicians, hobbyists, and system integrators building or maintaining multi-series battery packs for energy storage, EV or e-bike packs, solar hybrid systems, and industrial UPS setups. It is designed for users who need active, efficient cell-to-cell charge transfer in packs using Li-ion, LiFePO4, or LTO chemistries and are comfortable performing careful wiring and insulation. Note: the module ships without batteries — follow safety best practices and contact the seller if you encounter issues.
