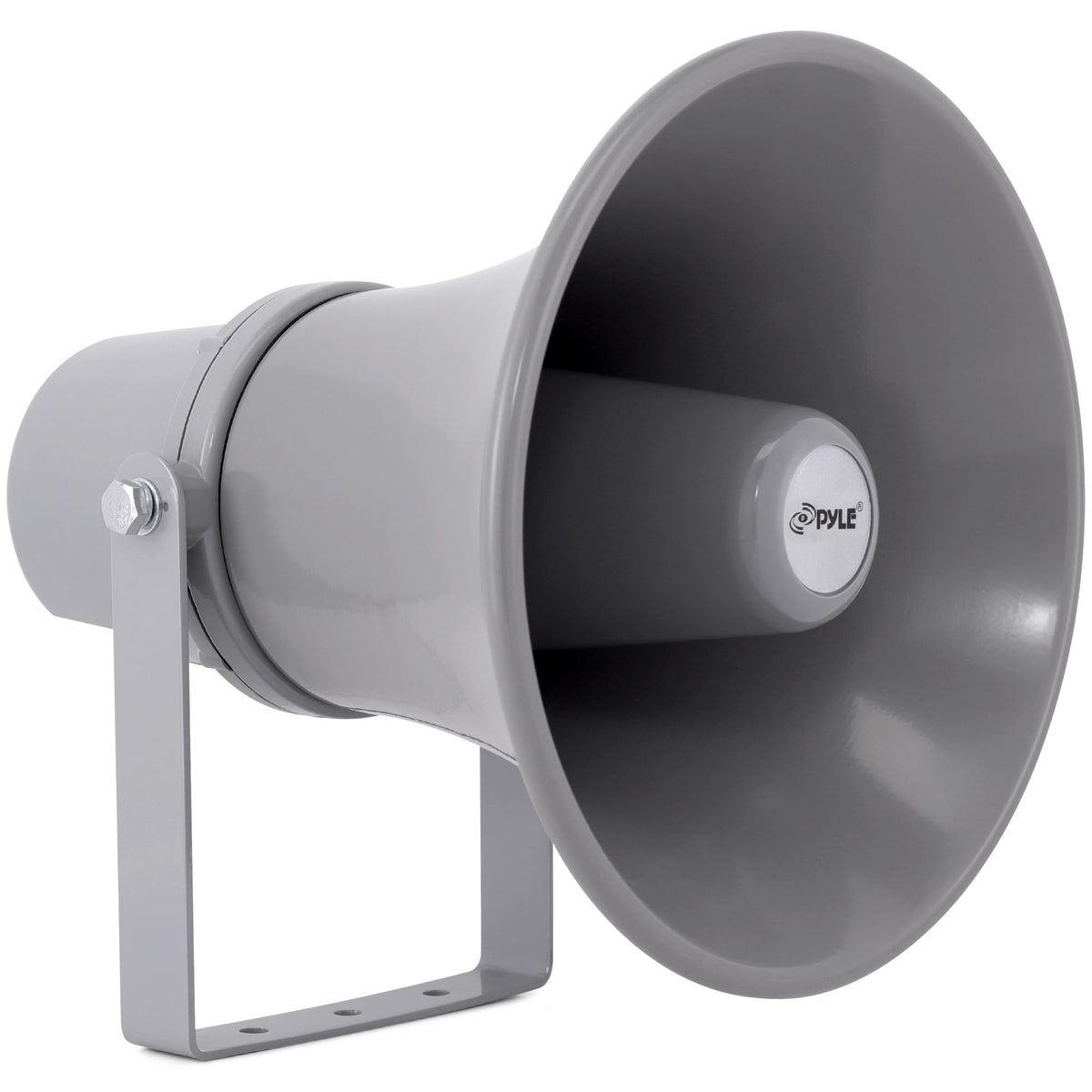

Pyle PA Horn Speaker 9.7" 20W 70V Indoor/Outdoor

Pyle PHSP101T is a compact 9.7-inch indoor/outdoor PA horn speaker delivering clear, directional 20-watt sound with a built-in 70V transformer for flexible public-address use.

This weather-ready aluminum-housed horn is designed for places that need focused, intelligible audio without bulky equipment. It combines a high-efficiency compression driver, 8-ohm nominal impedance, and a tapped 70V transformer so you can use it with common commercial paging lines or a standard amplifier. The horn’s 400 Hz–5 kHz frequency range emphasizes midrange clarity for voice and alerts while the 102 dB SPL sensitivity produces strong output from a small footprint.

How loud and clear will this Pyle horn speaker be in outdoor environments?

The PHSP101T produces a high-efficiency 102 dB SPL at its rated power, letting it project announcements and music across yards, parking lots, or building perimeters. With a 20-watt maximum tap on the transformer and defined midrange response, it prioritizes intelligibility over bass-heavy reproduction.

• 20-watt power handling with 70V taps at 20, 10, and 5 watts
• 102 dB sensitivity for effective long-distance projection
• 400 Hz–5 kHz frequency focus keeps speech and tones clear

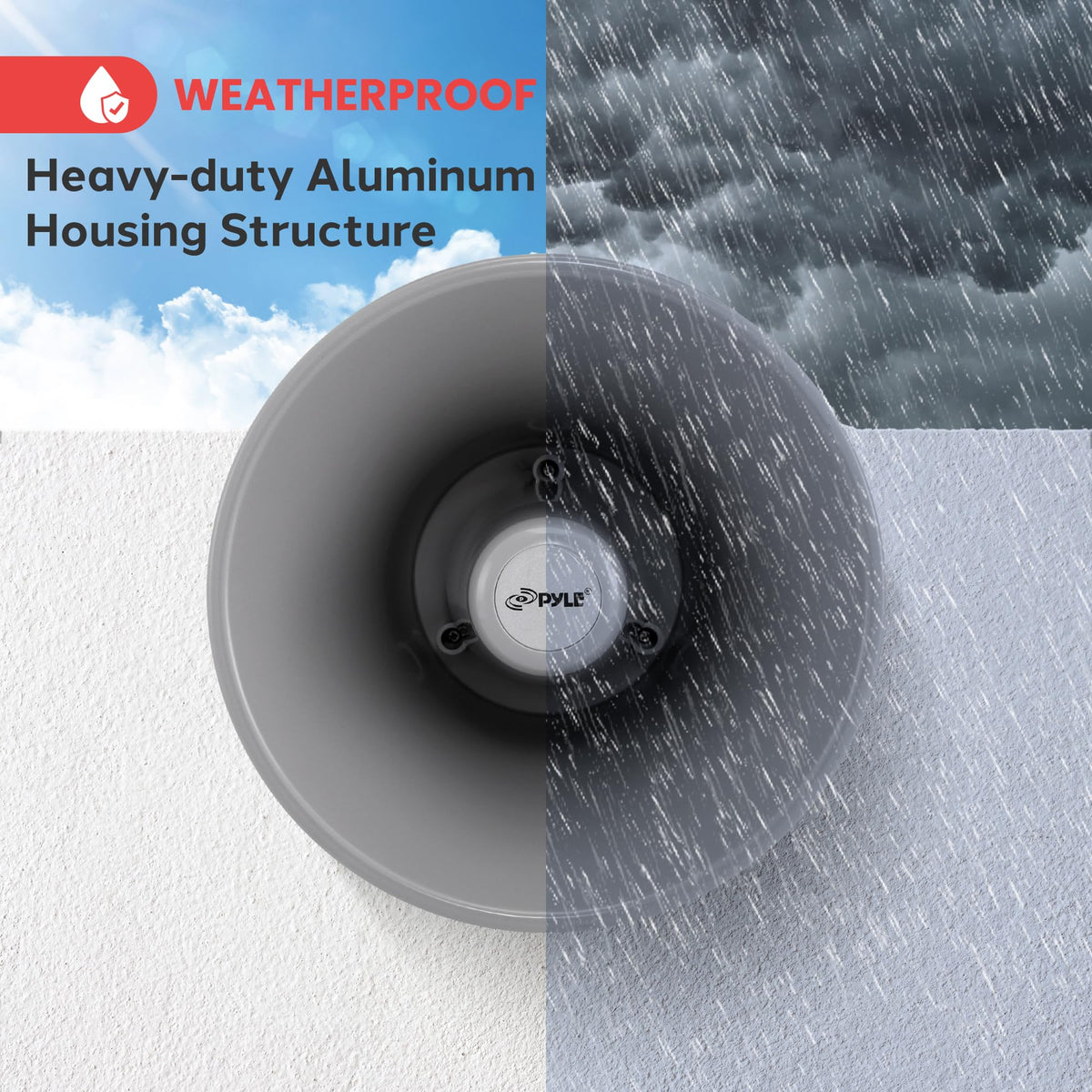

• Aluminum horn resists weather and provides directional sound

Can I use this speaker on a 70V commercial audio system?

Yes — the speaker includes an internal 70V transformer with selectable wattage taps for easy integration into commercial paging or distributed audio systems. You can balance volume and the number of speakers on the same line by selecting the appropriate wattage tap.

• Built-in 70V transformer with 20/10/5 W taps
• Compatible with standard 70V paging amplifiers and matrixes
• Tapping allows multiple units on one circuit without load issues

What are the mounting and installation details I should know?

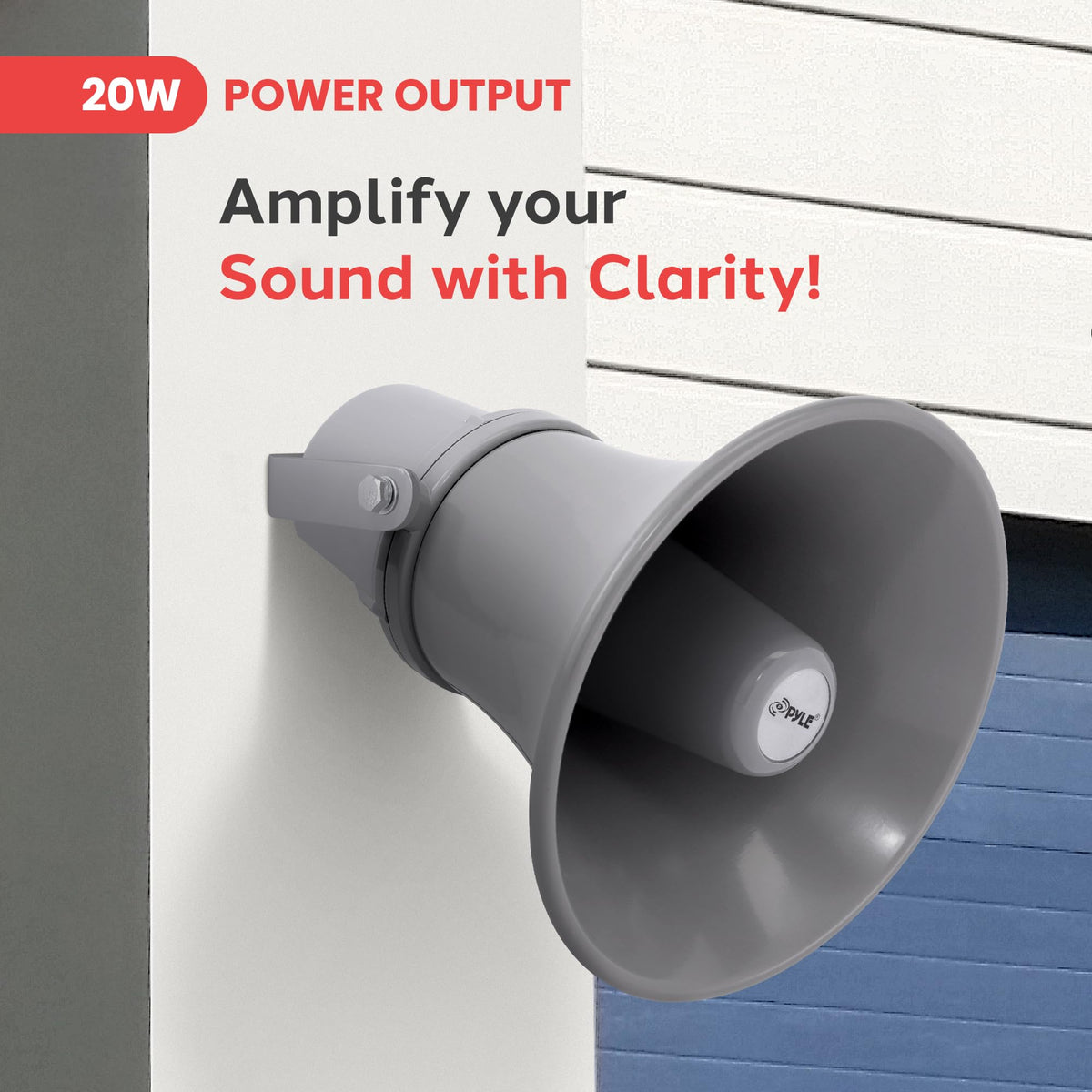

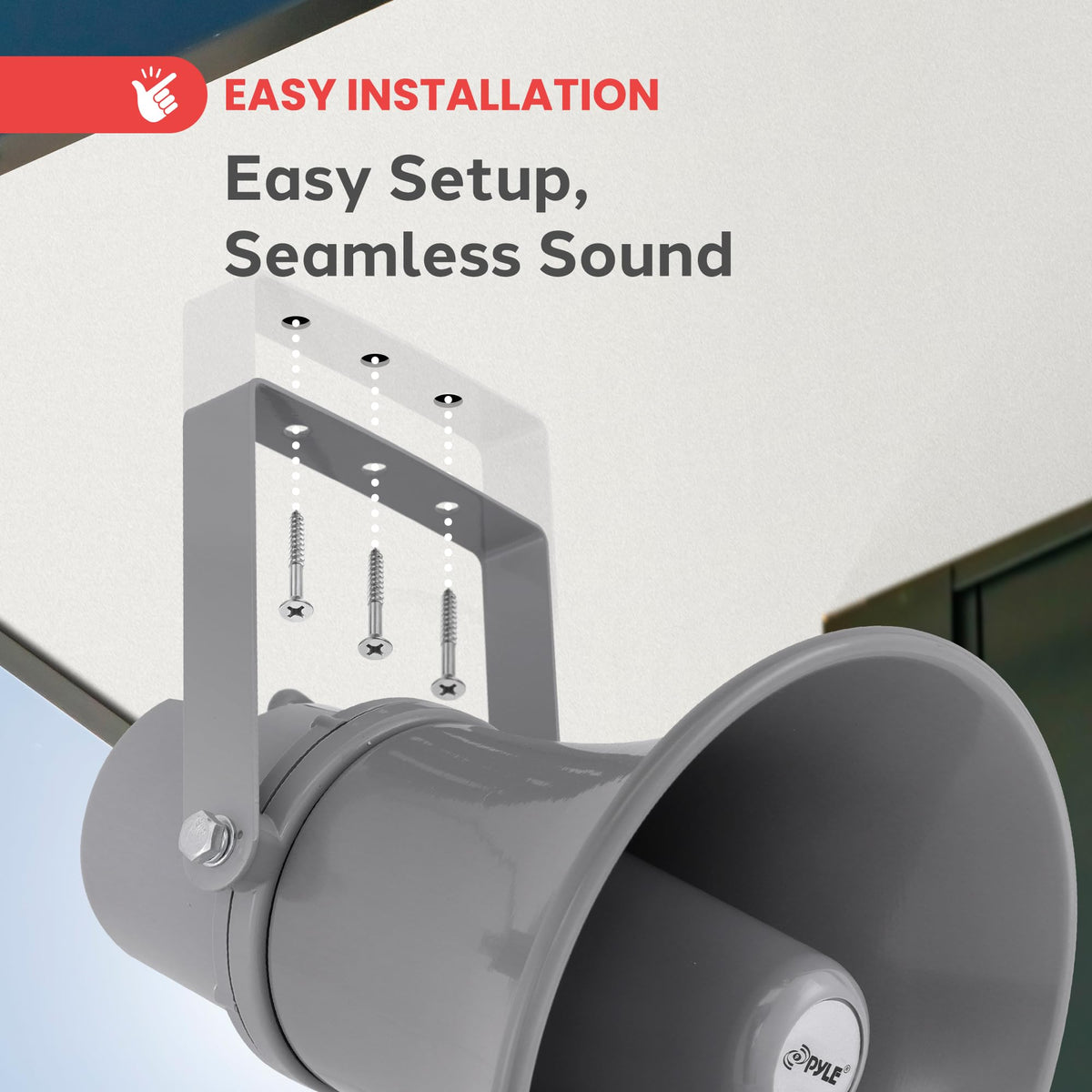

The PHSP101T is lightweight and ships with a mounting bracket and hardware to simplify setup on walls, poles, or eaves. At under 6 pounds and roughly 9.7" square by 11.3" deep, it’s compact enough for tight spaces yet sturdy enough for permanent outdoor use.

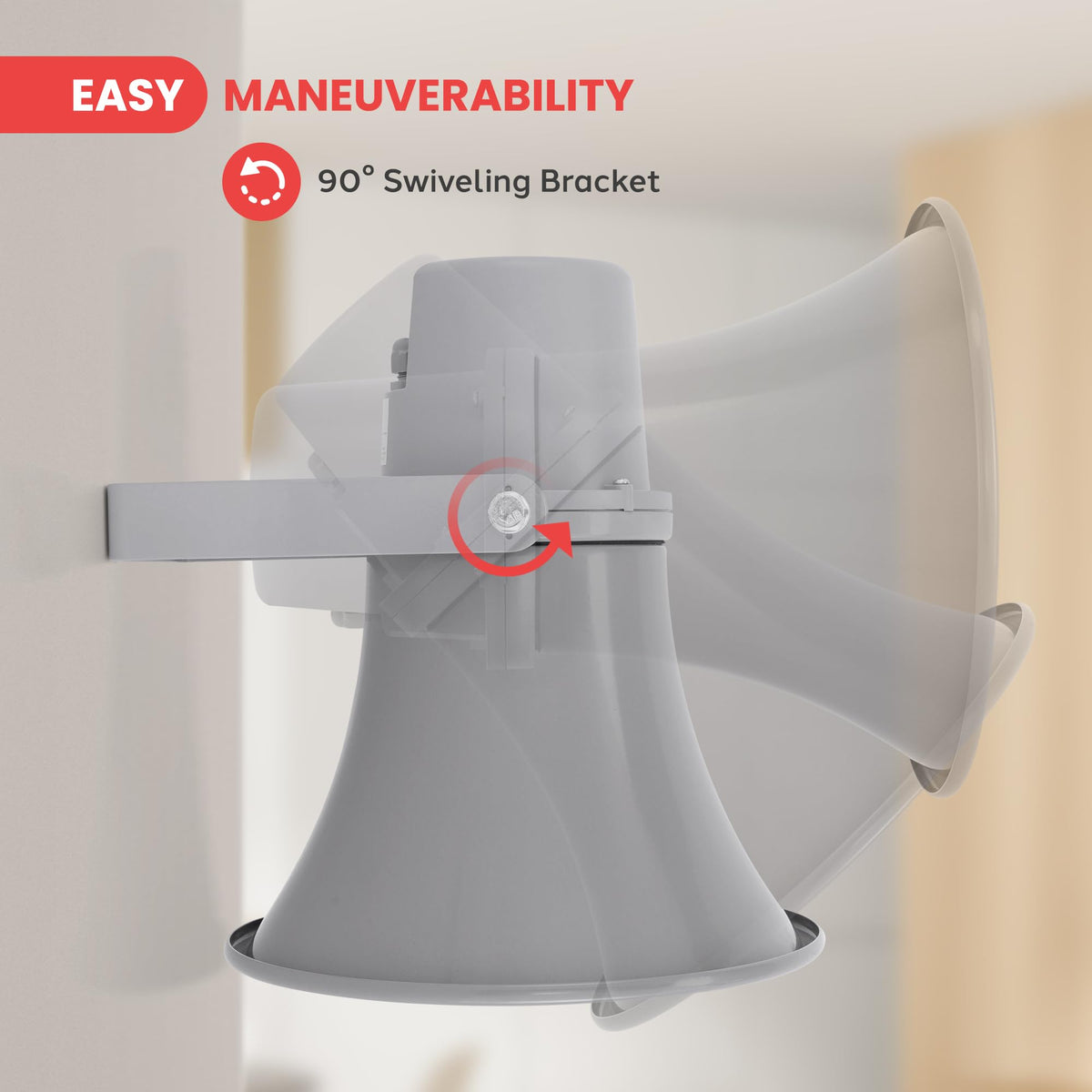

• Includes adjustable mounting bracket and installation hardware

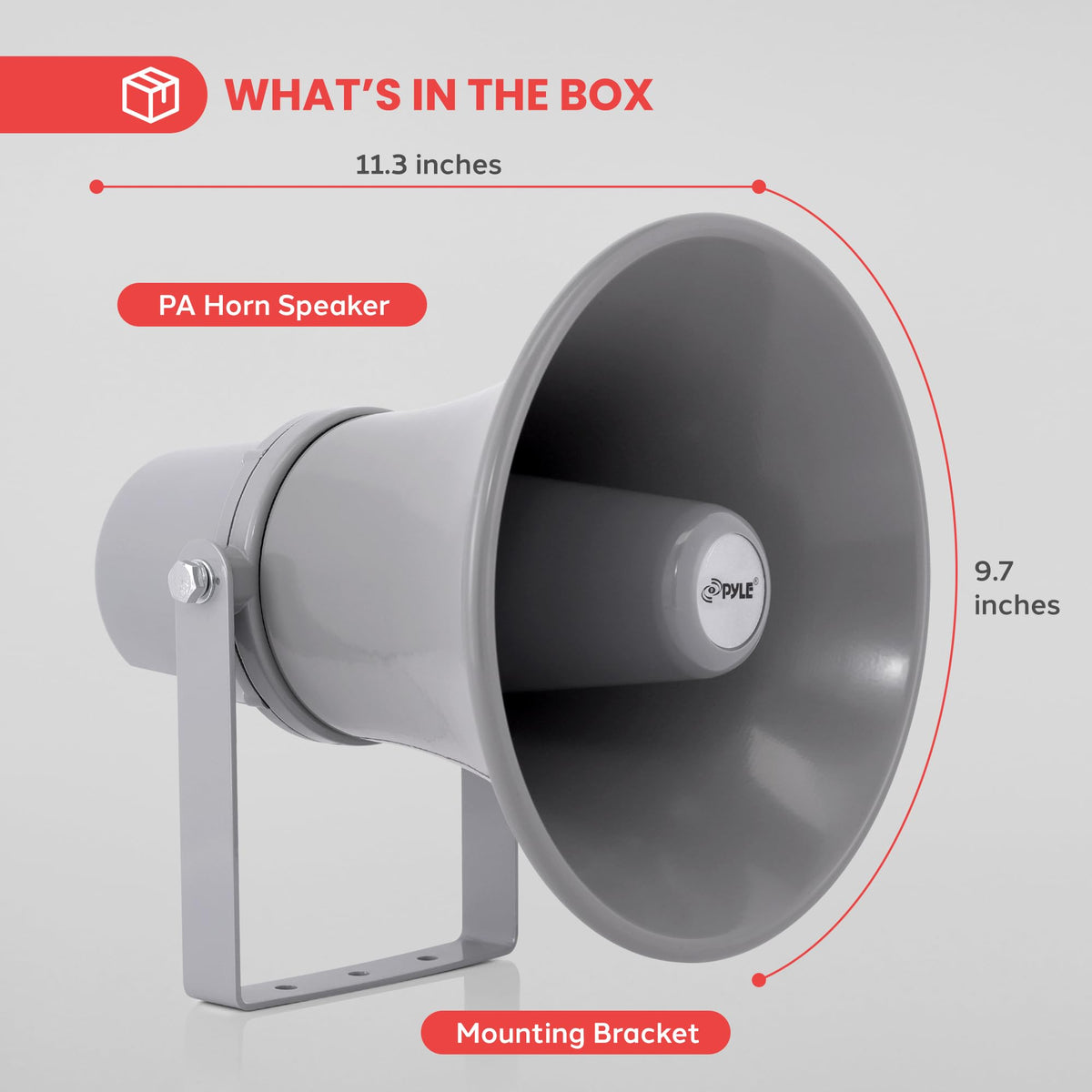

Compact dimensions: 9.7" H x 9.7" W x 11.3" D; weight ~5.97 lbs
• Aluminum housing provides corrosion resistance and stable mounting

What kind of audio performance can I expect for music and paging?

This horn favors midrange frequencies, making it excellent for spoken announcements, alarms, and simple background music. It won’t reproduce deep bass like a woofer, but its efficiency and directional pattern make it ideal where clarity and reach are required.

• Focused midrange reproduction ideal for speech and tones
• Not intended as a full-range hi-fi speaker for deep bass
• Best used for paging, alerts, outdoor music, and public address

Who is this for: The Pyle PHSP101T suits facility managers, schools, churches, retail campuses, and homeowners who need a compact, durable horn for clear outdoor paging or distributed 70V audio. It’s a practical choice when intelligibility, easy mounting, and transformer-tap flexibility matter more than low-frequency extension.
