Pyle Hydra Marine 4-Channel 240W Waterproof Amplifier

The Pyle Hydra Marine PLMRA120 is a waterproof 4-channel amplifier delivering up to 240 watts of marine-grade audio power for boats and outdoor vehicles.

Designed for demanding marine environments, the PLMRA120 combines a compact aluminum heatsink chassis, multiple input options, and protection circuitry to drive paired 4- or 8-ohm speakers. It accepts low‑level RCA signals or high‑level speaker inputs and offers dual gain controls for fine-tuning. Built with corrosion-resistant gold-plated connectors and an IP-01 marine rating, this unit balances durability with versatile installation options.

How does the PLMRA120 connect to my marine stereo system?

The amplifier accepts standard RCA stereo inputs for easy hookup to aftermarket head units. If your receiver lacks RCA outputs, you can use the high-level speaker input terminals instead. A remote turn-on lead simplifies power control when linked to a compatible source unit.

• Gold-plated RCA low-level inputs for clean signal transfer
• High-level terminal input for speaker-output conversion
• Remote turn-on/off connector for coordinated power control

What power and speaker configurations does it support?

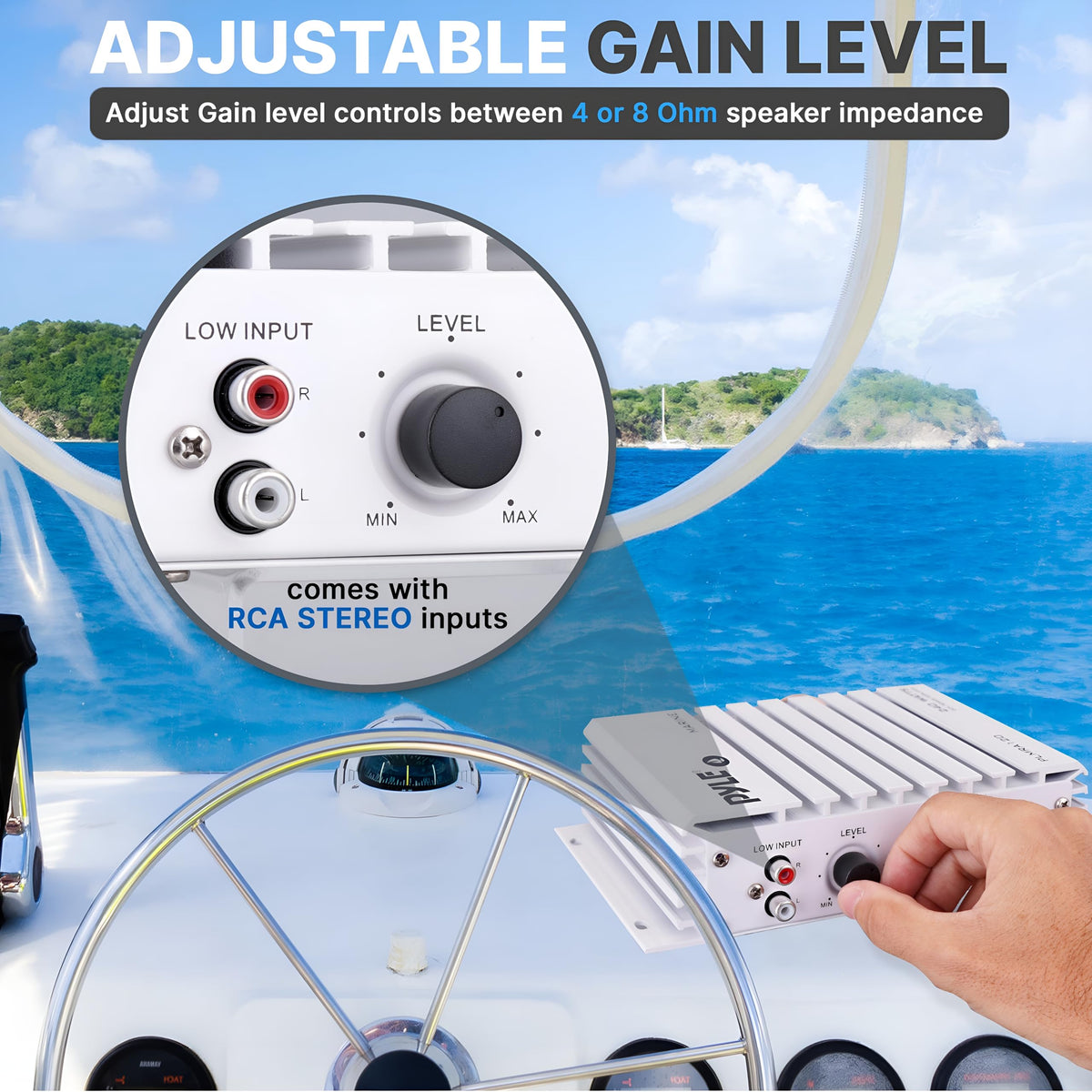

The PLMRA120 is rated for a combined maximum of 240 watts (2 x 120 W) and can drive speakers wired at either 4 or 8 ohms. Dual adjustable gain controls help match input sensitivity to your source and speakers, improving headroom and minimizing distortion. Use it to power a pair of component speakers or to bridge channels per wiring requirements.

• IC power: 120 watts x 2 output capability
• Compatible with 4-ohm and 8-ohm speaker loads
• Independent gain controls for each channel pair

What protections and marine features are included?

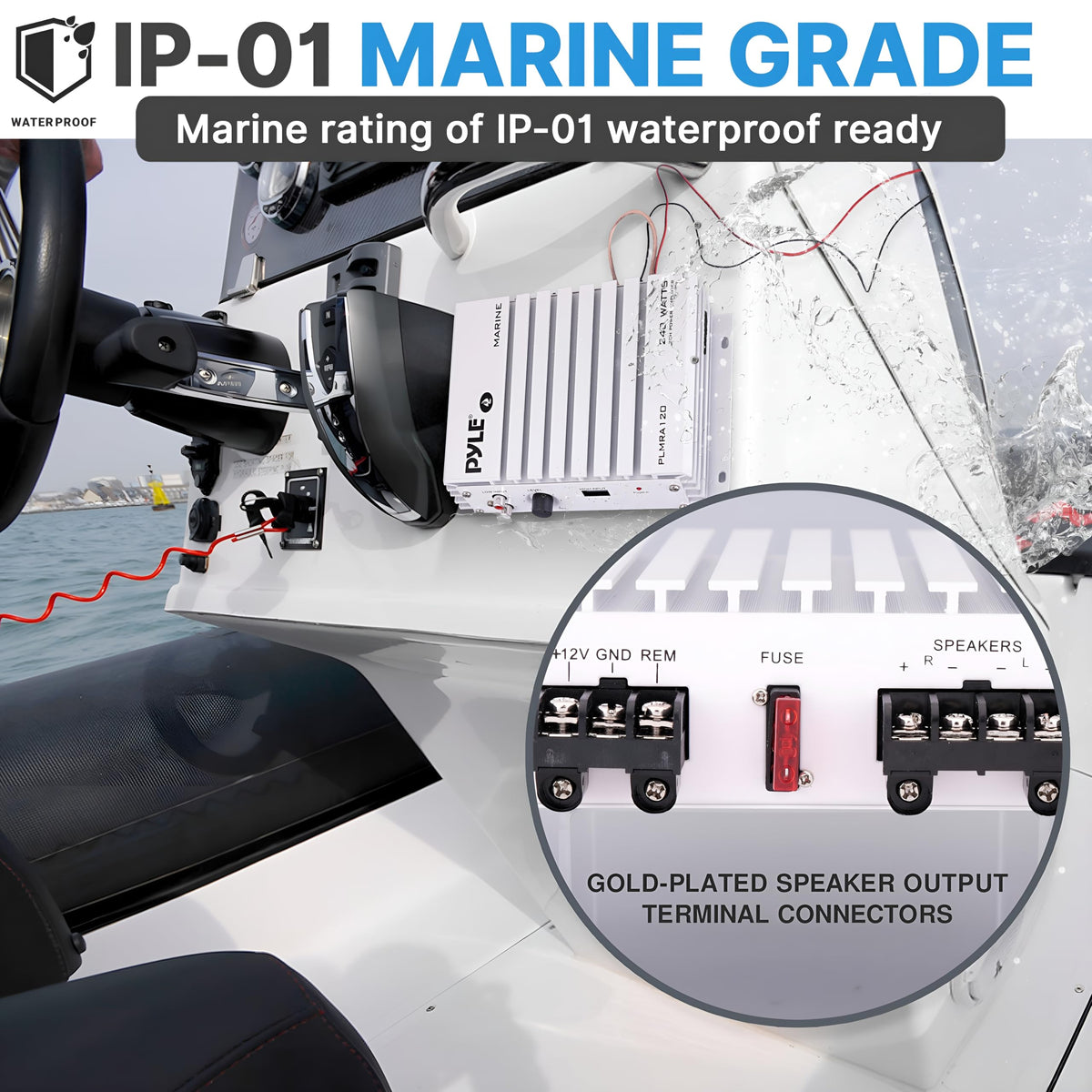

The amp includes thermal overload, short-circuit, and overload protection to guard the amplifier and vehicle electrical system during fault conditions. Its heavy-duty aluminum alloy heatsink dissipates heat efficiently while gold-plated speaker terminals resist corrosion in salty or humid conditions. The IP-01 marine rating indicates added readiness for wet environments when installed correctly.

• Thermal and short-circuit protection with LED indicator
• Aluminum alloy heatsink for improved heat management
• Gold-plated output terminals to combat corrosion

How easy is installation and setup on a boat or ATV?

Installation is straightforward for anyone familiar with car or marine audio wiring: secure power and ground, connect RCA or high-level inputs, and hook up speakers with the correct impedance. The compact chassis and mounting points make it simple to find a sheltered location, while clear terminal labeling reduces wiring errors. Always verify voltage/amperage and speaker load compatibility before powering up.

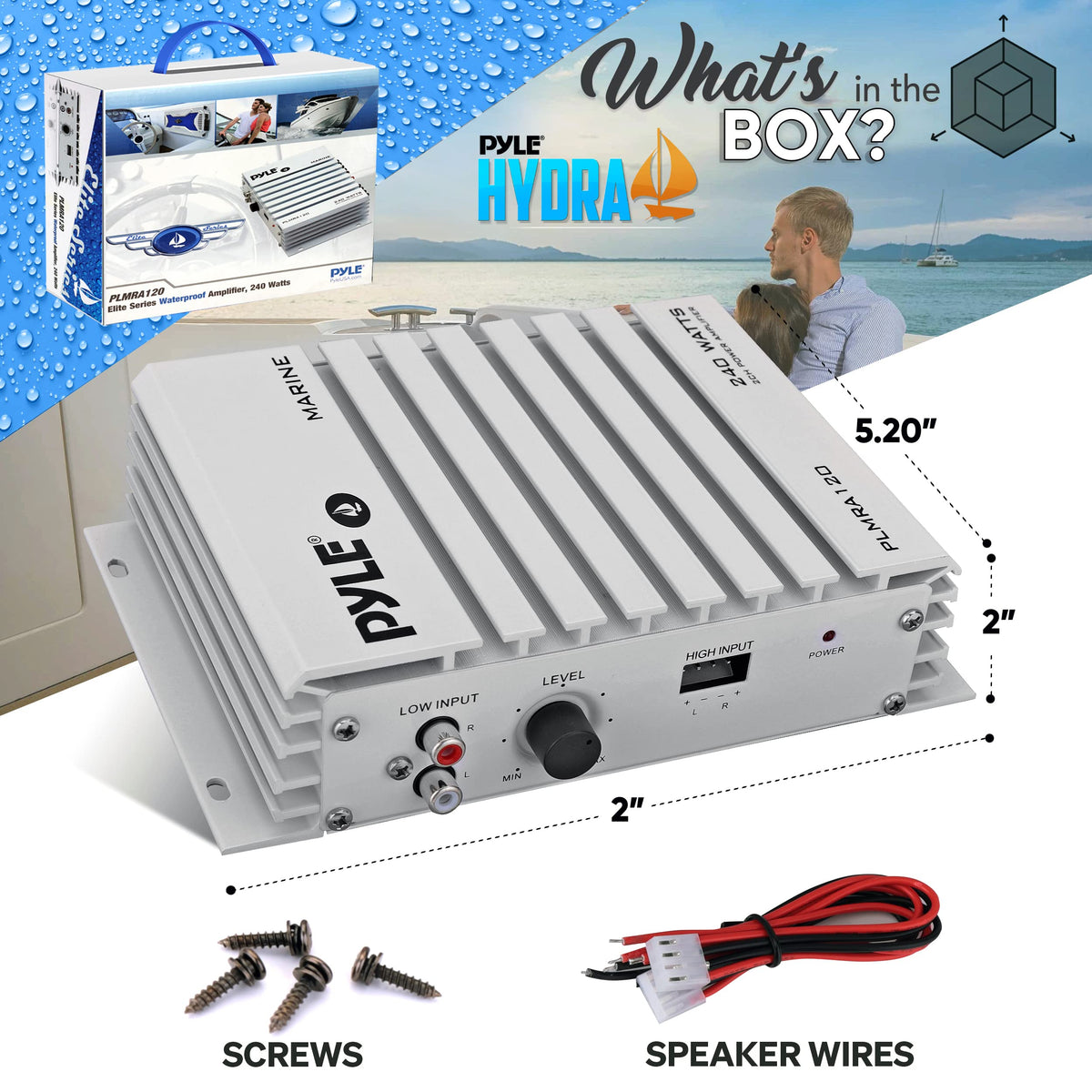

• Compact form factor and mounting holes for flexible placement

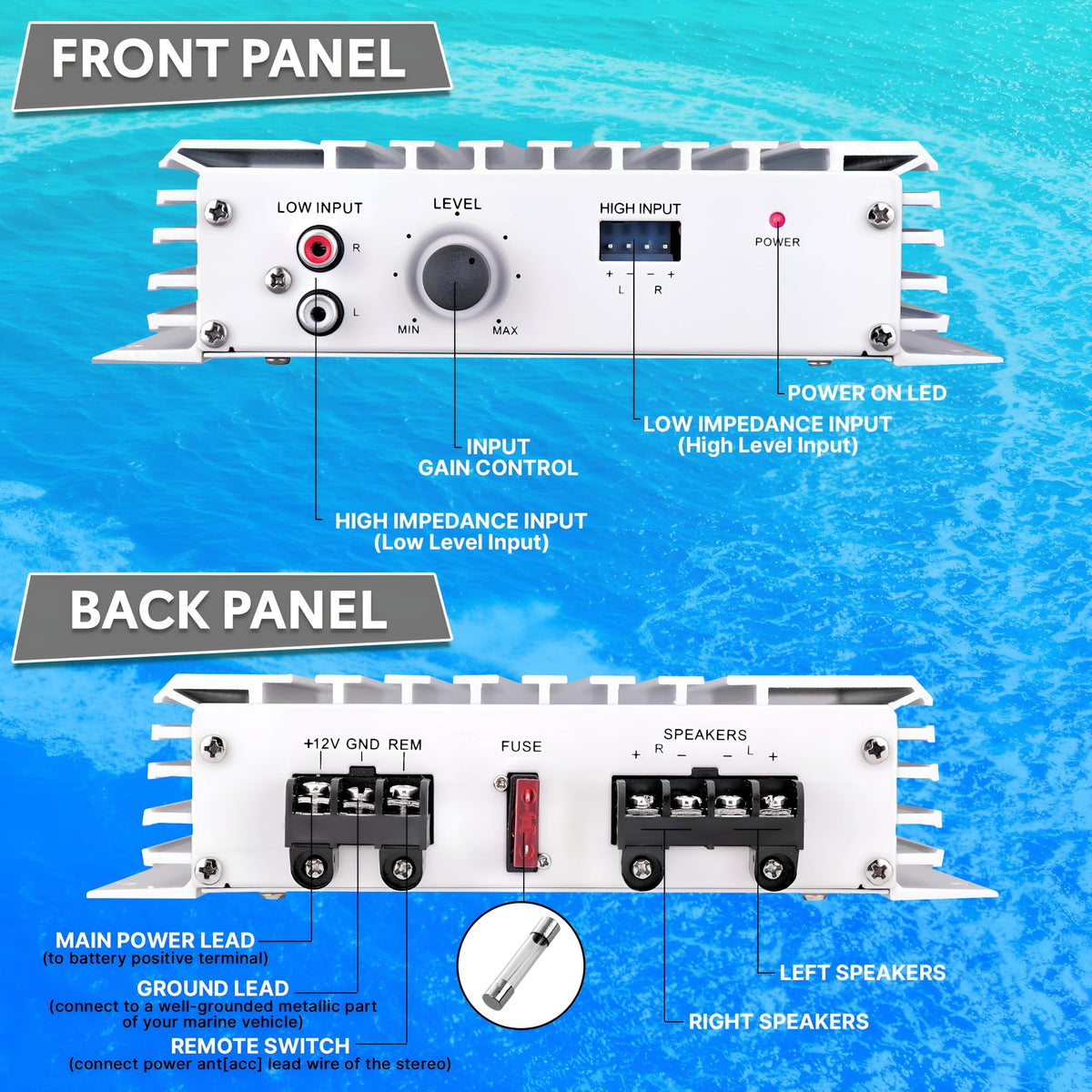

• Clear terminal layout for power, input, and speaker connections
• LED status indicator simplifies troubleshooting during setup

Who is this for? The Pyle Hydra PLMRA120 is geared toward boat owners, personal watercraft users, and outdoor-vehicle enthusiasts who want a rugged, compact amplifier to upgrade onboard audio. It suits installers needing flexible input options (RCA or high-level), reliable protection features, and corrosion-resistant connections for salty or humid conditions. If you require a straightforward 4-channel marine amp with adjustable gain controls and robust cooling, this model offers a practical balance of power and weather-ready construction.
