Pyle 5.25" In-Wall/In-Ceiling Two-Way Speaker PDIC53T

Pyle PDIC53T is a slim 5.25-inch in-wall and in-ceiling two-way speaker that delivers full-range stereo sound with a dome tweeter and selectable 70V/100V transformer or 8Ω bypass for residential and commercial audio installations.

This low-profile flush-mount speaker combines a poly-mica cone midbass and a 1/2" high-compliance dome tweeter to produce clear music and intelligible background audio. Designed for both wall and ceiling mounting, the PDIC53T includes a line-matching transformer for 70V/100V public address systems plus an 8-ohm bypass so it works with conventional home receivers. The enclosure is constructed from durable ABS, and the unit ships with a cutout template for quick installation.

How does the transformer option help in commercial installations?

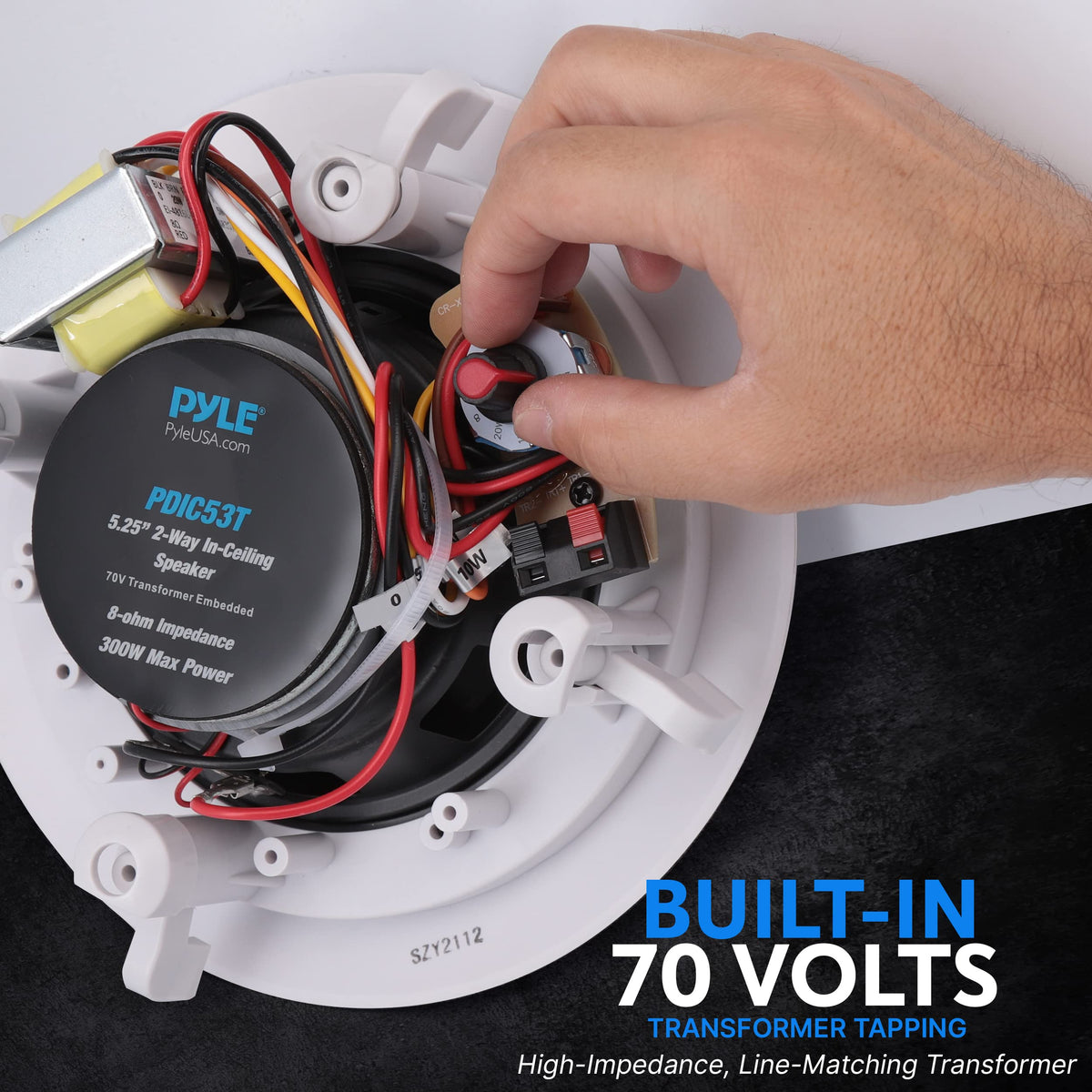

The built-in 100V/70V transformer lets installers connect multiple speakers over long distances without overloading the amplifier. It also makes zoning and speaker balancing easier across larger spaces where many speakers are required.

• Selectable taps support common commercial voltages for easy system matching.
• Reduces power loss over long cable runs compared to low-impedance setups.
• Enables multiple-speaker parallel wiring for public address and background music.

What kind of sound performance can I expect in a home theater or living room?

The PDIC53T reproduces a broad frequency range from 85Hz to 20kHz, providing clear highs from the dome tweeter and solid midbass from the poly-mica cone. With a 300-watt peak handling rating and a sensitive design, it’s suited for both background music and more dynamic stereo playback when paired with an appropriate amplifier.

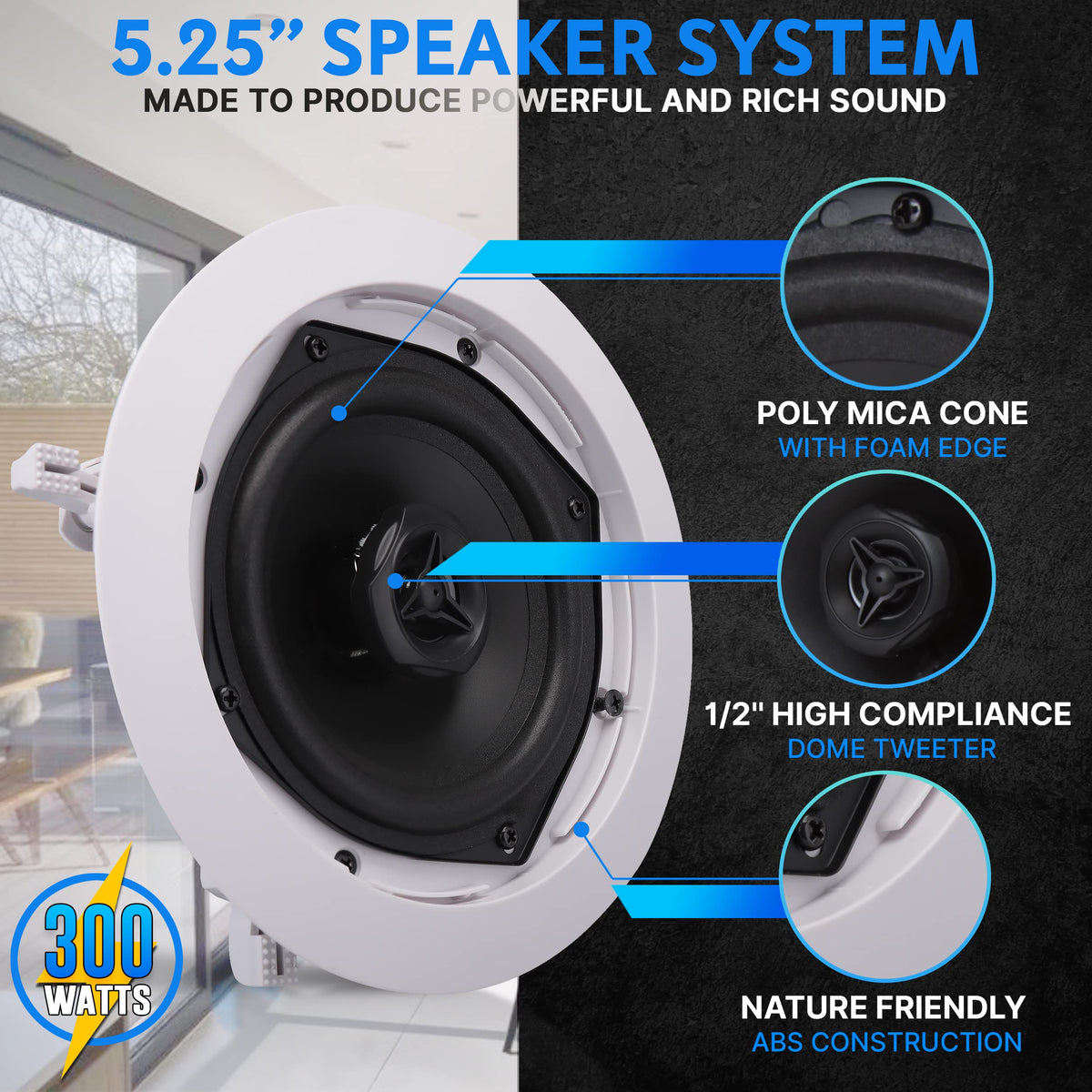

• 1/2" high-compliance dome tweeter for detailed high frequencies and vocal clarity.
• 5.25" poly-mica cone for balanced midrange and punchy midbass response.
• 300W peak rating for brief dynamic passages without distortion when properly powered.

How easy is installation and what are the mounting requirements?

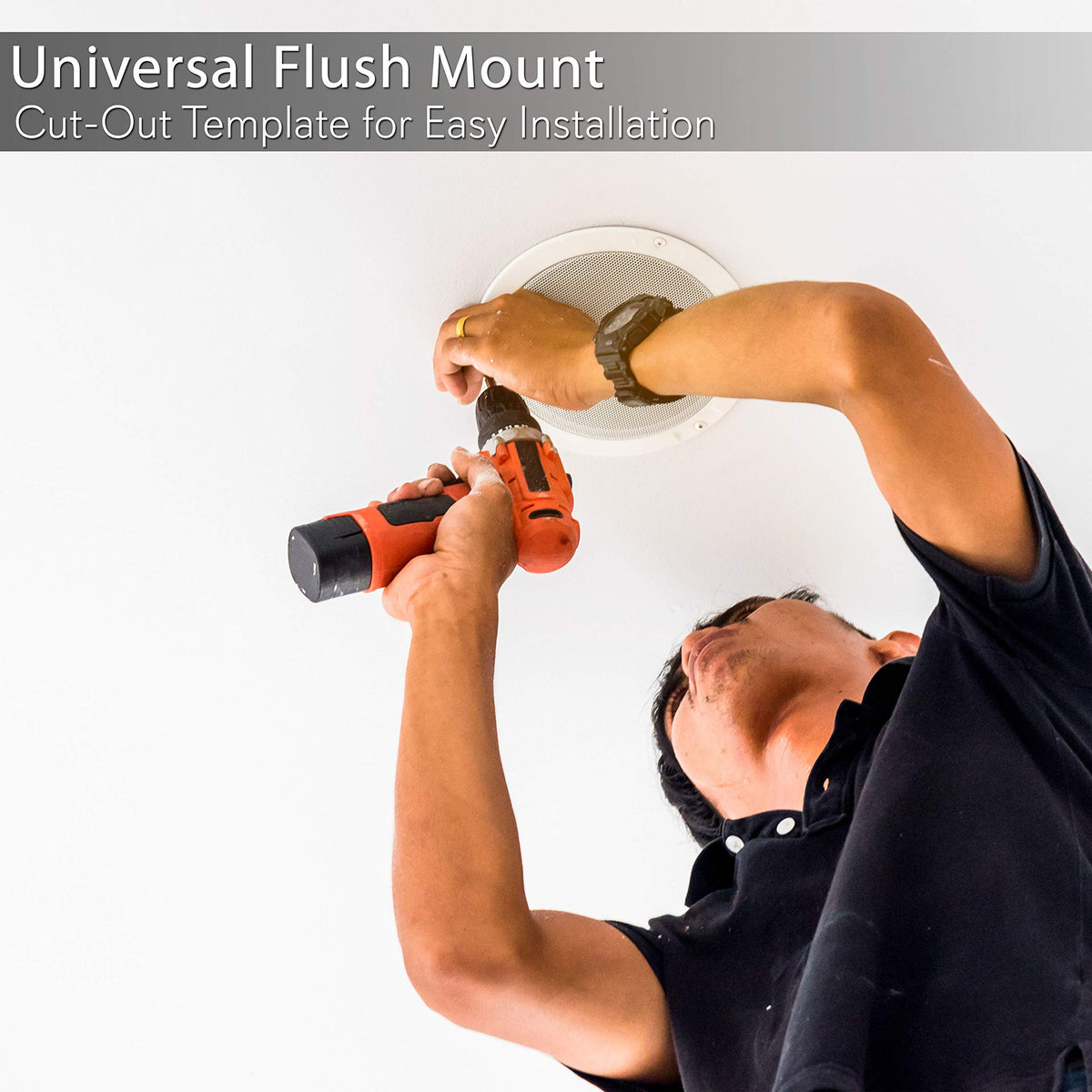

The PDIC53T is built for flush in-wall or in-ceiling mounting with a slim profile and included cutout template for precise openings. Spring clamps and clear terminals streamline wiring so most experienced DIYers or professional installers can mount the speaker quickly.

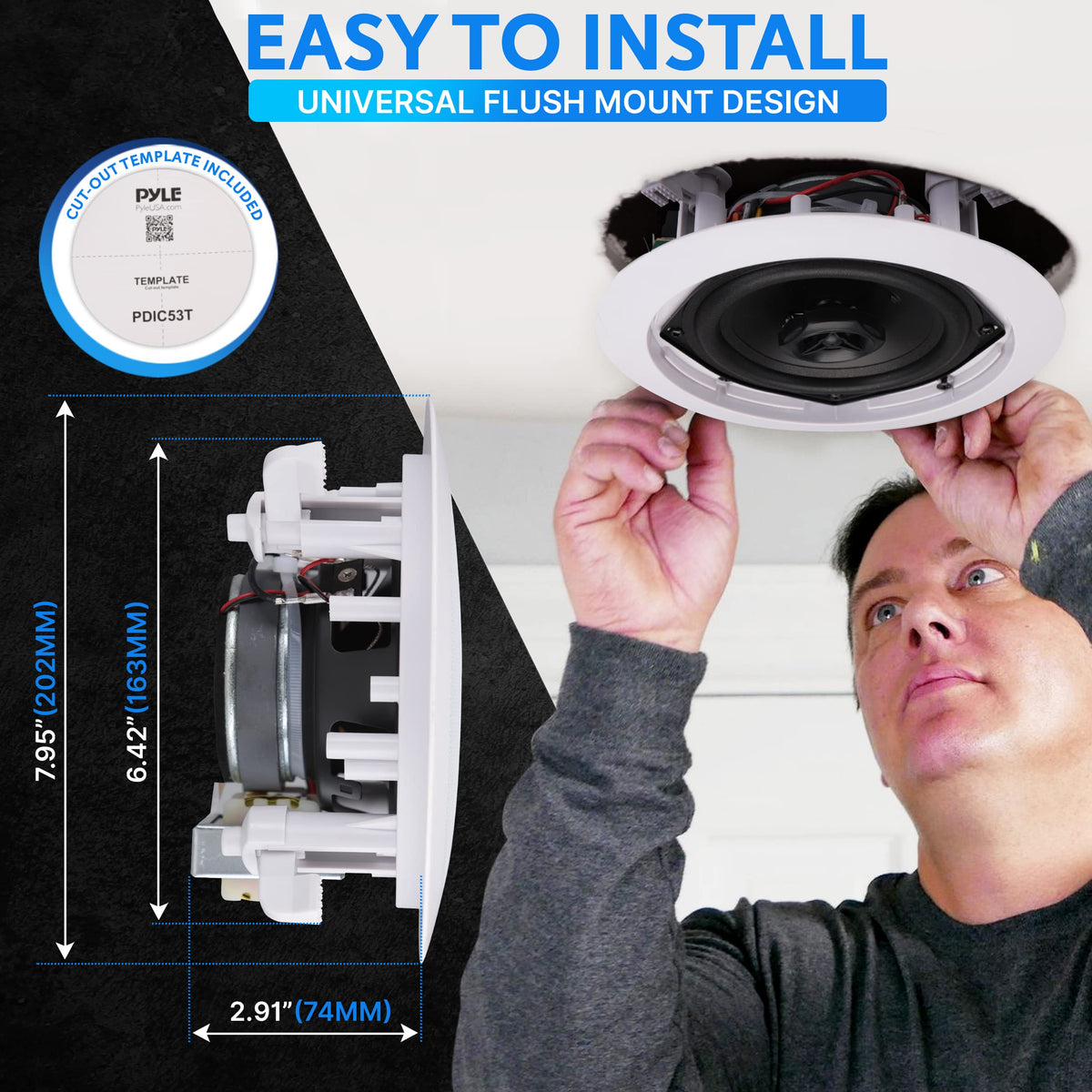

• Cutout diameter: 6.42" and mounting depth: 2.91" for fitting between studs or joists.
• Flush-mount grill and ABS construction for a low visual profile and long-term durability.

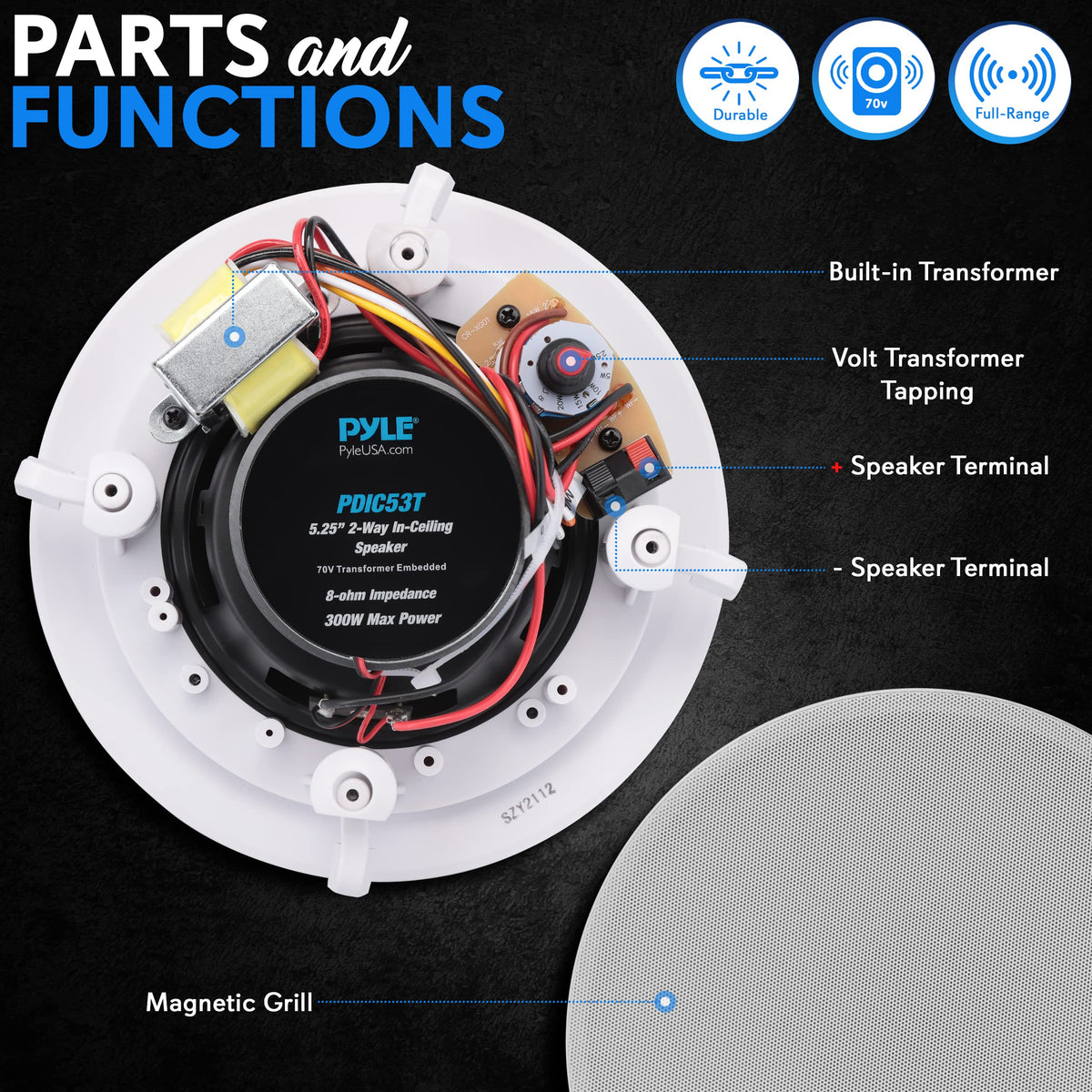

• Accessible speaker terminals for fast wire connections and transformer tapping selection.

Can I use this speaker with a standard home receiver?

Yes — switching the unit to its 8-ohm bypass allows connection to conventional home receivers and amplifiers, bypassing the high-voltage transformer. This makes the PDIC53T versatile for mixed residential and commercial use without additional equipment.

• 8-ohm bypass mode for direct connection to consumer stereo equipment.
• Transformer mode for professional 70V/100V systems when running many speakers.
• Simple switch or terminal tap to change between modes depending on installation needs.

Who is this for: The Pyle PDIC53T is ideal for homeowners upgrading built-in audio, integrators building multi-room background music, and businesses wiring public address or retail sound systems. It fits installations where a discreet, flush-mounted speaker with flexible wiring options and clear vocal reproduction is required, whether you need a single in-room pair or a distributed commercial array.
