Pyle 11" Horn PA Speaker 30W for 70V Systems

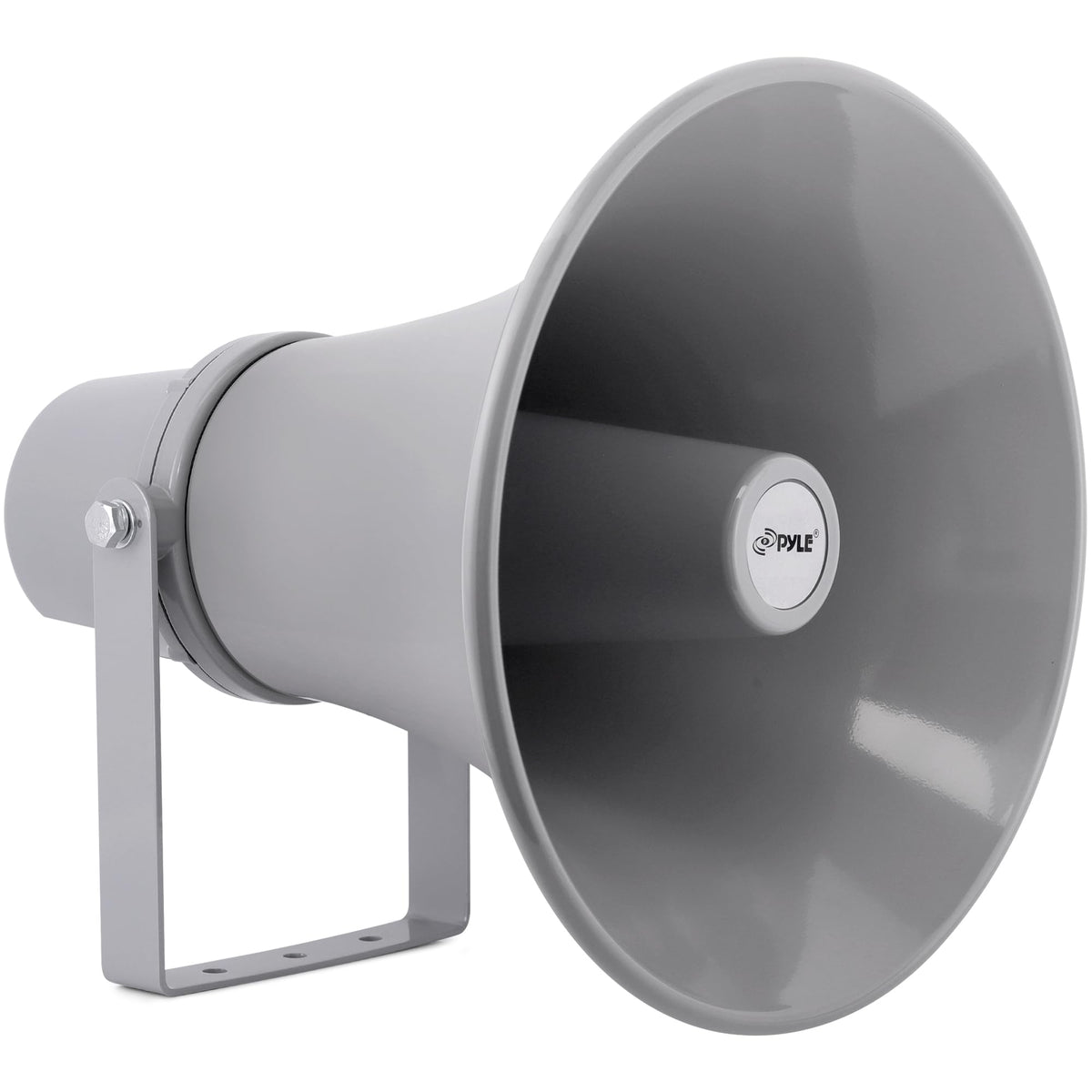

The Pyle PHSP121T is a compact 11-inch horn PA speaker delivering 30 watts of clear, projected sound for indoor or outdoor 70V public address use.

Built with an aluminum housing and a mountable bracket, this Pyle horn speaker is made to extend voice announcements and music across parking lots, warehouses, schoolyards and event spaces. Its 400Hz–5kHz frequency range and 8-ohm design give focused midrange clarity, while the included 70V transformer taps (30 / 15 / 7.5W) make it easy to integrate into distributed audio systems.

How loud and clear will this horn speaker be?

The PHSP121T produces 30 watts of power and a sensitivity suited to public address use, offering intelligible speech and prominent midrange for outdoor and semi-outdoor environments. Its specified SPL and frequency response are tuned to project voices and lead instruments rather than deliver deep bass.

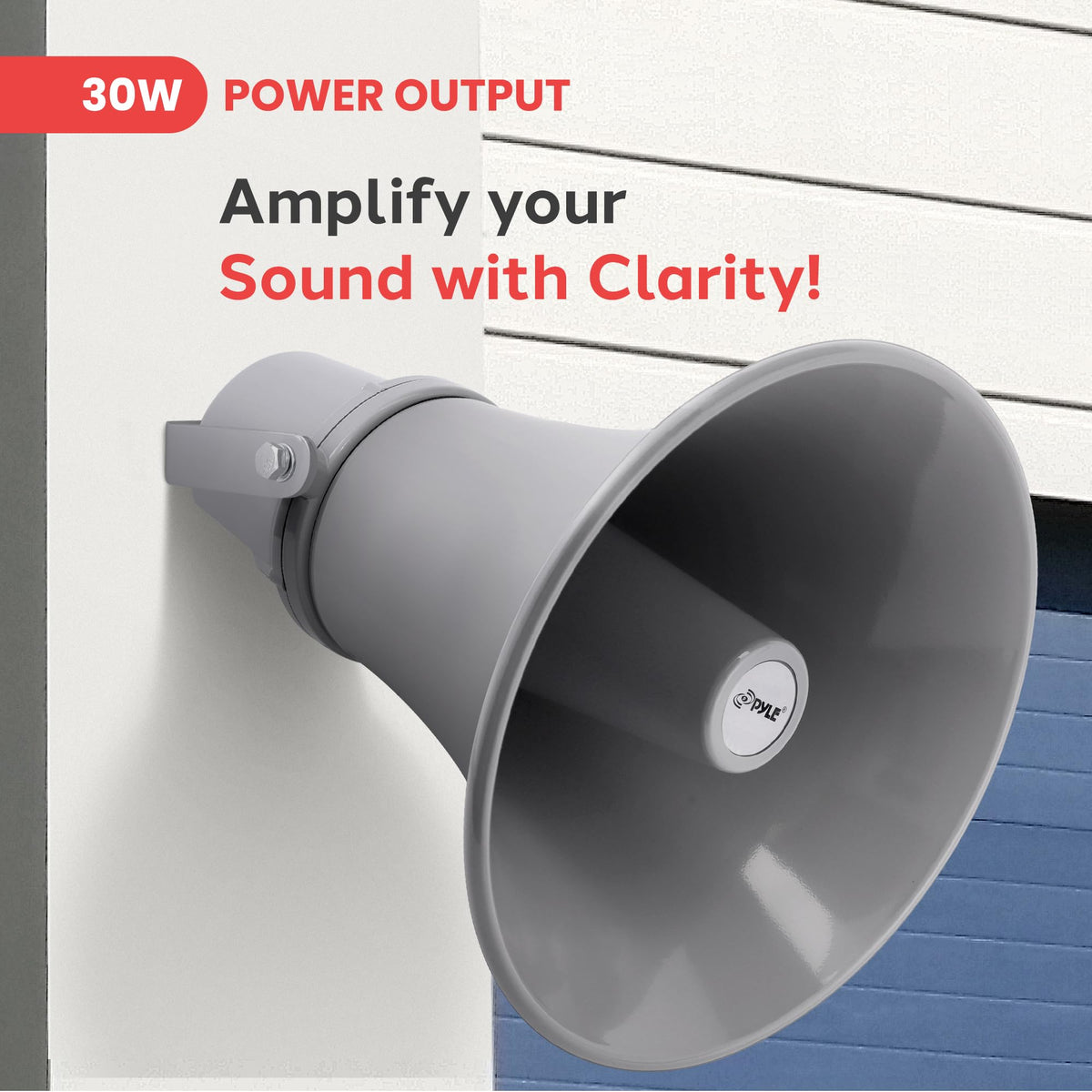

• 30 watts continuous power handling for steady output
• 400Hz–5kHz frequency range optimized for speech clarity
• 8-ohm impedance with 103 dB SPL rating for efficient projection

Can I use this with a 70V distributed audio system?

Yes — the speaker includes a 70V transformer with selectable tap settings so it integrates seamlessly with commercial paging and background music systems. Selectable wattage taps let you balance volume across zones while protecting transformers and amplifiers.

• Built-in 70V transformer with 30 / 15 / 7.5 watt taps
• Easy wiring to common PA/70V amplifier outputs
• Suitable for zoned audio installations and large-area coverage

How easy is installation and where can I mount it?

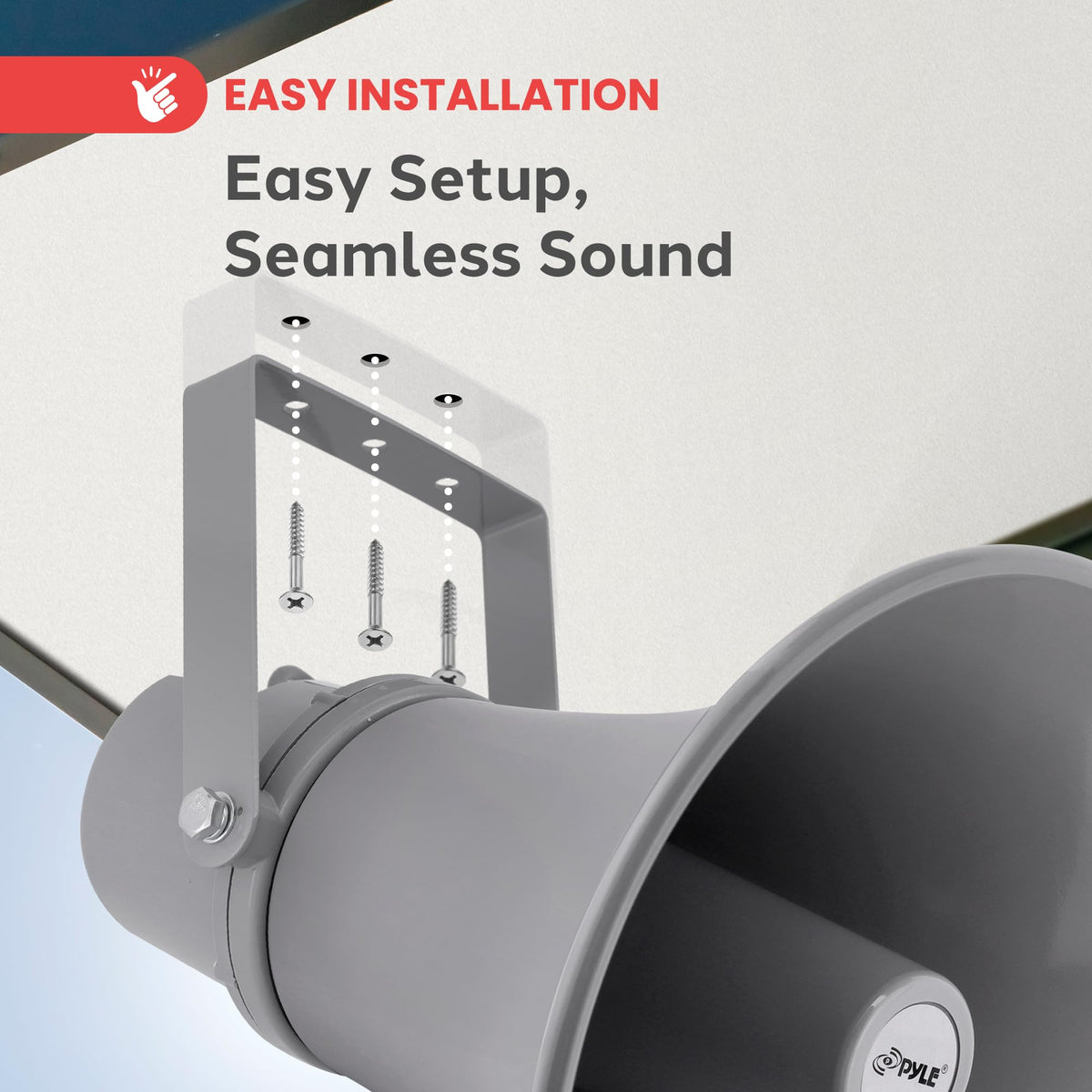

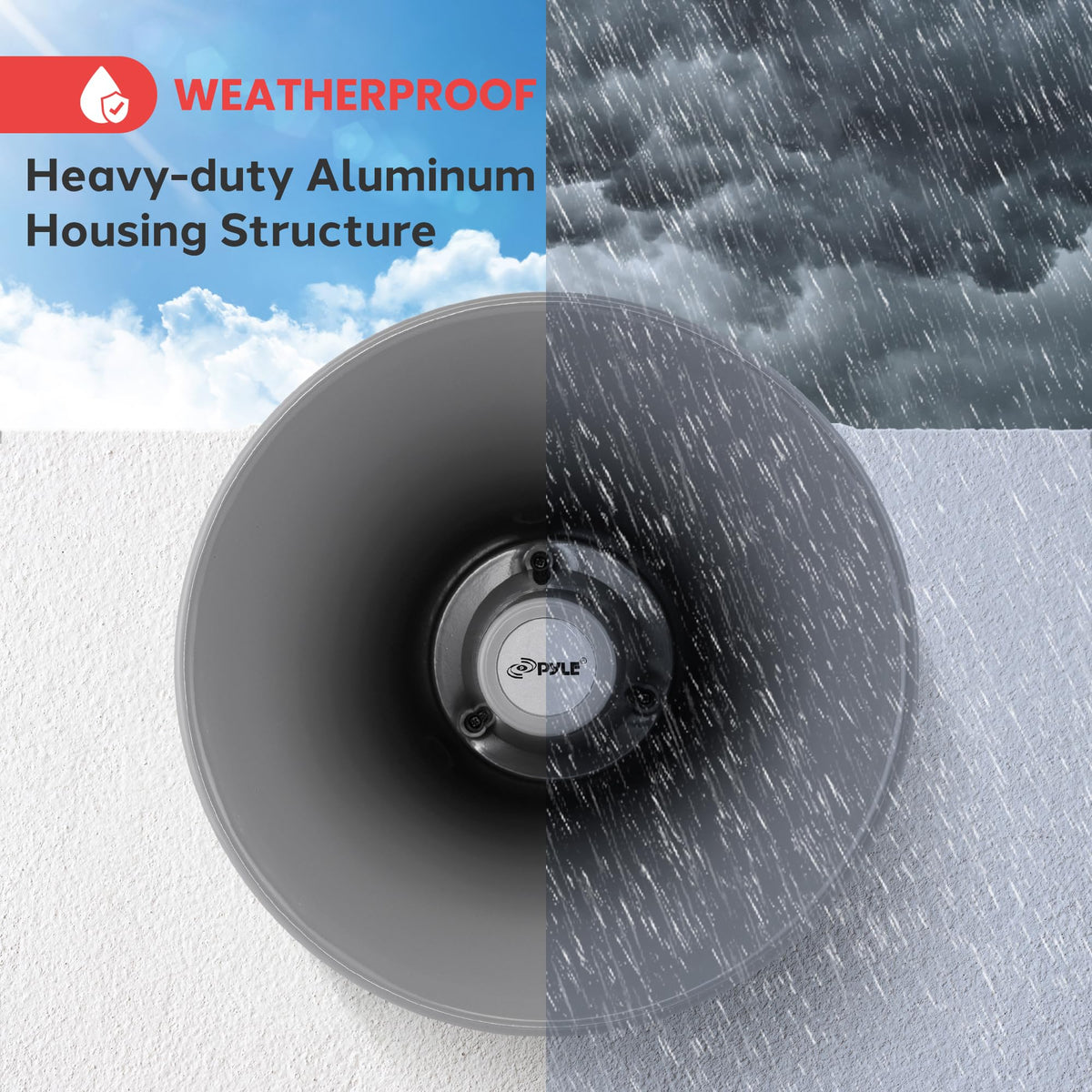

The PHSP121T is made for quick mounting: it ships with a mounting bracket and hardware and weighs just over five pounds, making it suitable for walls, poles, or rafters. The aluminum housing adds weather-resistant durability for covered outdoor locations and high-traffic indoor areas.

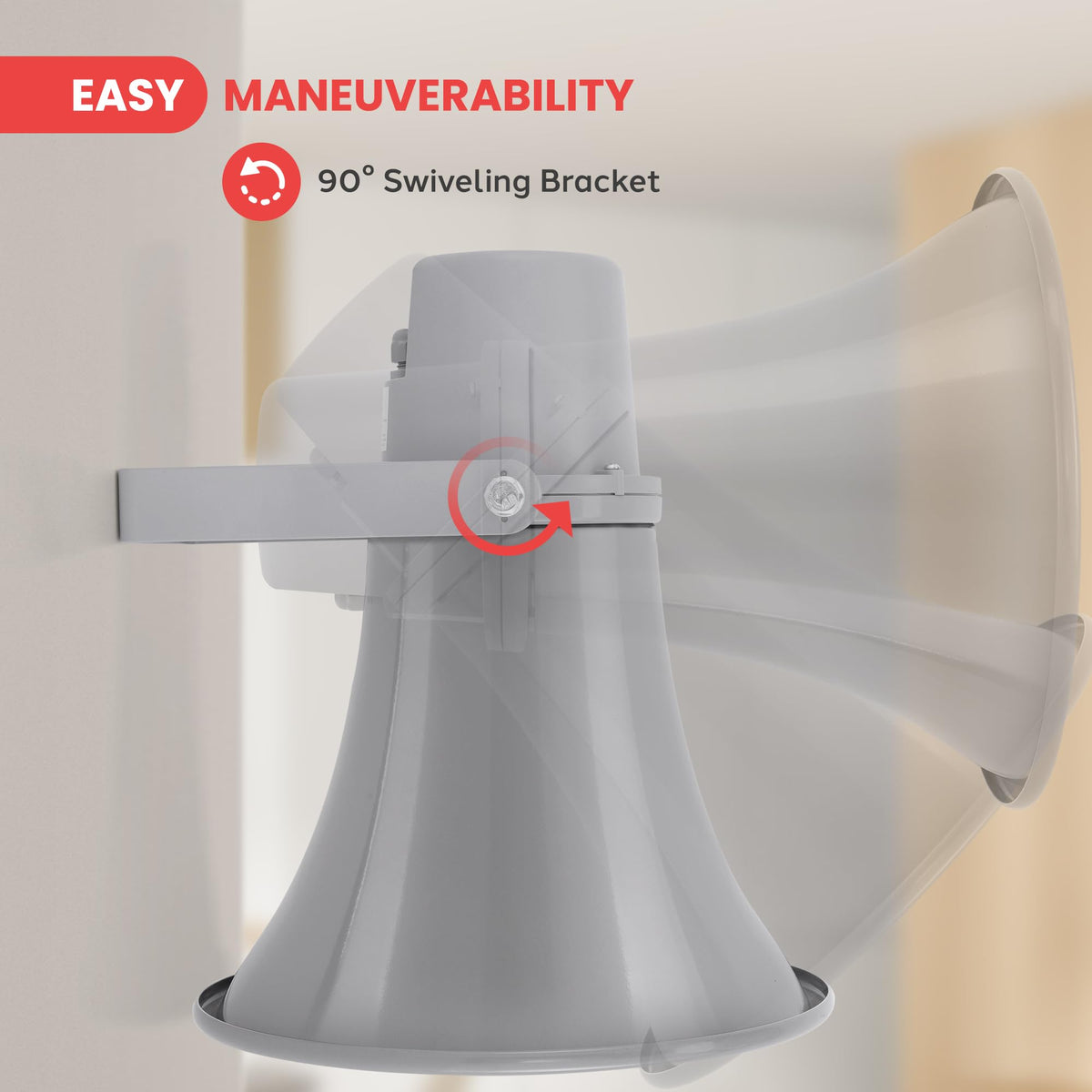

• Includes adjustable mounting bracket and installation hardware

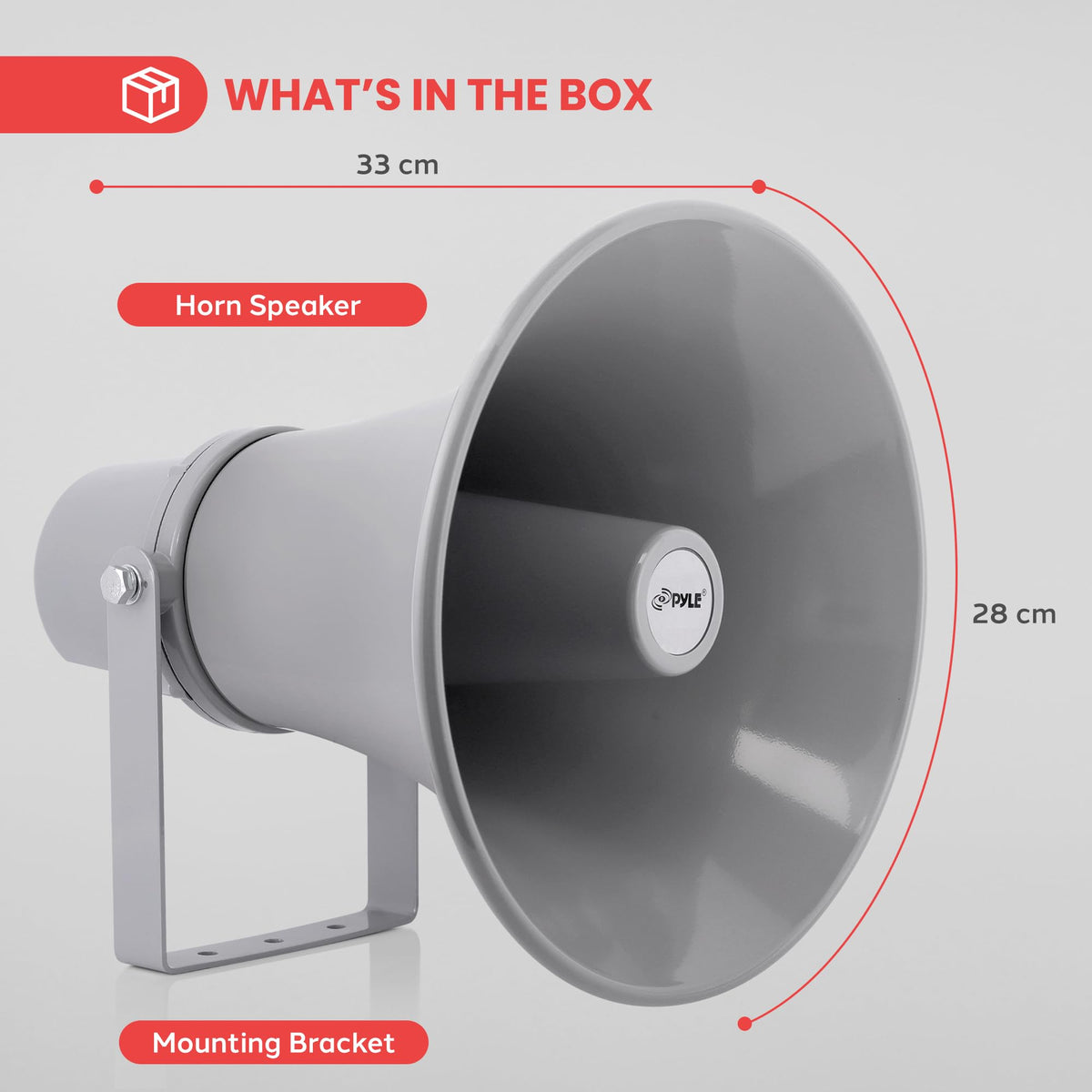

• Compact dimensions: approximately 11" H x 11" W x 13.1" D
• Lightweight aluminum enclosure for easy placement and corrosion resistance

What sound sources and environments is it best for?

This horn speaker favors spoken announcements, paging, and focused playback of midrange-heavy audio. It's ideal for environments that need long-throw intelligibility more than full-range fidelity, such as sports fields, factories, retail exteriors, and school grounds.

• Public address, paging, and voice announcements
• Outdoor event areas, warehouses, parking lots, schoolyards
• Integration with mixers, PA amplifiers, or 70V systems

Who this is for: Installers, facility managers, and small-event organizers who need a rugged, mountable horn speaker that focuses on vocal clarity and reliable coverage. If you require projection across wide, noisy spaces or multiple zones via a 70V network, the Pyle PHSP121T provides a compact, cost-effective solution without the weight and footprint of larger PA cabinets.
