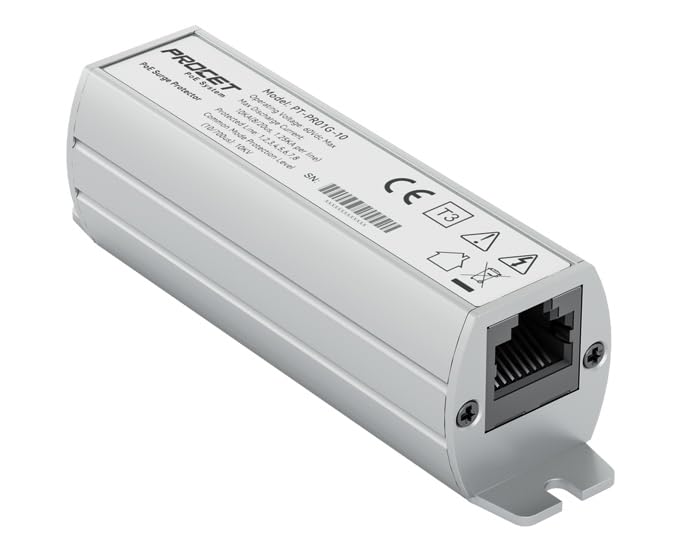

PROCET PoE System Ethernet Surge Protector PoE++ 10Gbps

The PROCET PT-PR01G-10 is an industrial-grade RJ45 surge protector that defends PoE and Ethernet links up to 10Gbps from lightning and transient spikes while supporting PoE++ power delivery.

Designed for network installations that demand both high data throughput and robust electrical protection, the PROCET Ethernet Surge Protector combines a gas discharge tube (GDT) with multi-mode surge suppression to handle common-mode surges above 20kV and differential surges to 1.5kV. It supports IEEE 802.3af/at/bt standards and can pass up to 120W at 60V DC, making it suitable for modern high-power PoE devices and non-standard Ethernet equipment alike. Built to work in harsh environments, it operates from -40°F to 185°F and preserves signal integrity across 10/100/1000Mbps and multi-gigabit NBase-T links up to 10GbE.

How does this protector safeguard PoE-powered devices?

The PT-PR01G-10 blocks destructive voltage transients from reaching connected PoE devices by shunting surge energy away from sensitive electronics. It uses a gas discharge tube for high-energy events and supplemental circuitry for differential suppression, limiting damage during lightning or switching surges.

• Common-mode surge capability >20kV (10/700 µs) for extreme transient events
• Differential surge protection to 1.5kV (10/700 µs)
• GDT technology provides high-energy absorption for lightning strikes
• Passes surge energy without interrupting network operation

Will it carry enough power for PoE++ devices?

Yes — this protector supports up to 120W at 60V DC, compatible with PoE++ (IEEE 802.3bt) and can protect high-power endpoints such as PTZ cameras, access points, and industrial IoT units. Power delivery continues uninterrupted while surge protection remains active.

• Supports PoE standards: 802.3af/at/bt and PoE++
• 120W maximum power handling at 60V DC
• Maintains power while protecting data pairs
• Works with non-standard Ethernet power implementations

Does it preserve network speeds for multi-gig installations?

The PT-PR01G-10 is engineered for modern network speeds, transparently passing signals from legacy 10/100/1000Mbps up through 2.5GbE, 5GbE, and full 10GbE NBase-T links. Its design minimizes insertion loss and maintains impedance matching to avoid signal degradation on high-speed links.

• Compatible with 10/100/1000Mbps and 2.5/5/10GbE NBase-T
• Low insertion loss to preserve signal quality
• Suitable for fiber-to-Ethernet demarcation or outdoor PoE runs
• Works inline with switches, injectors, and powered devices

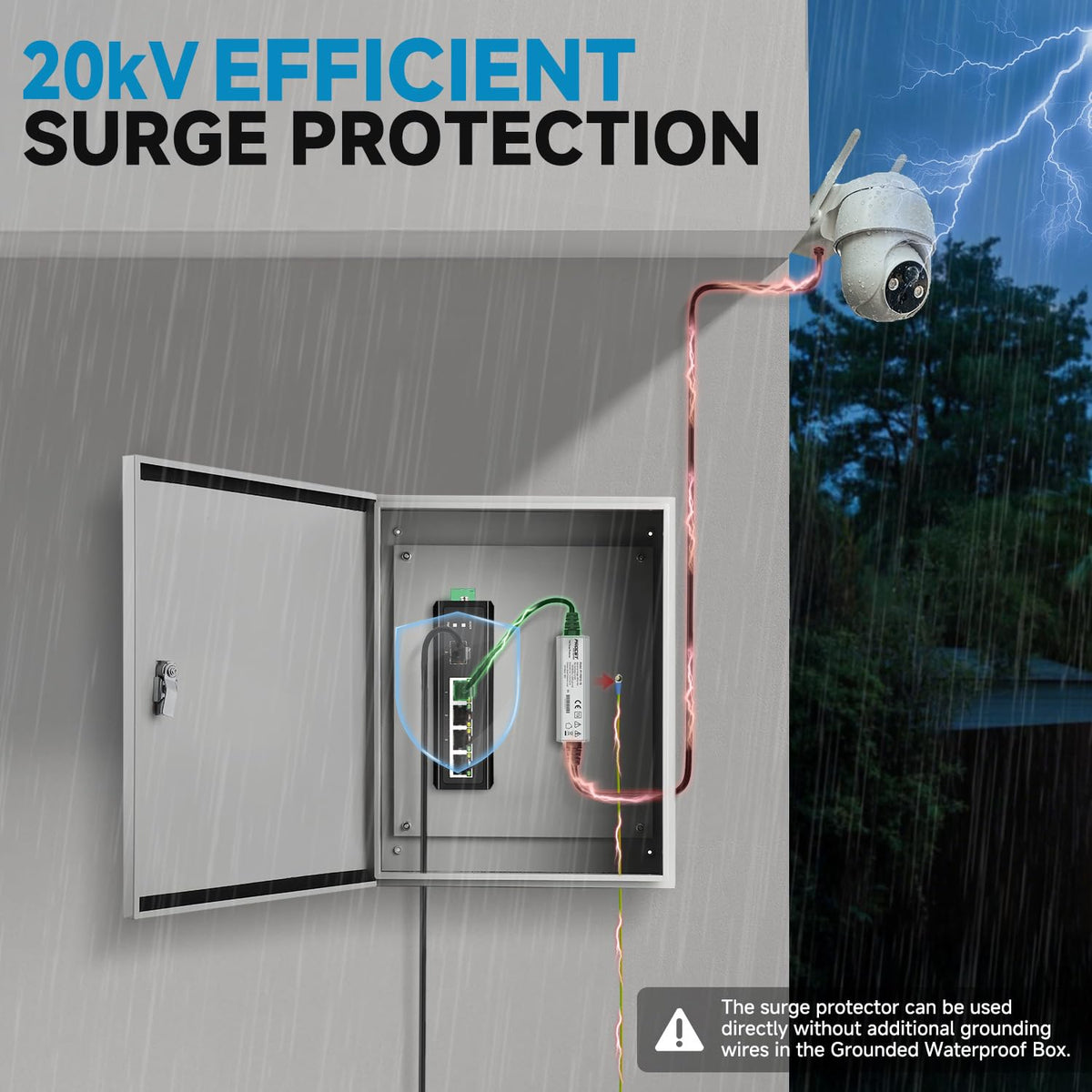

Can it operate in extreme outdoor and industrial environments?

Yes — this unit is specified for a wide operating range from -40°F to 185°F, making it appropriate for indoor and outdoor enclosures, rooftop network gear, and factory floors. The rugged design ensures steady protection where temperature and environmental stresses are a concern.

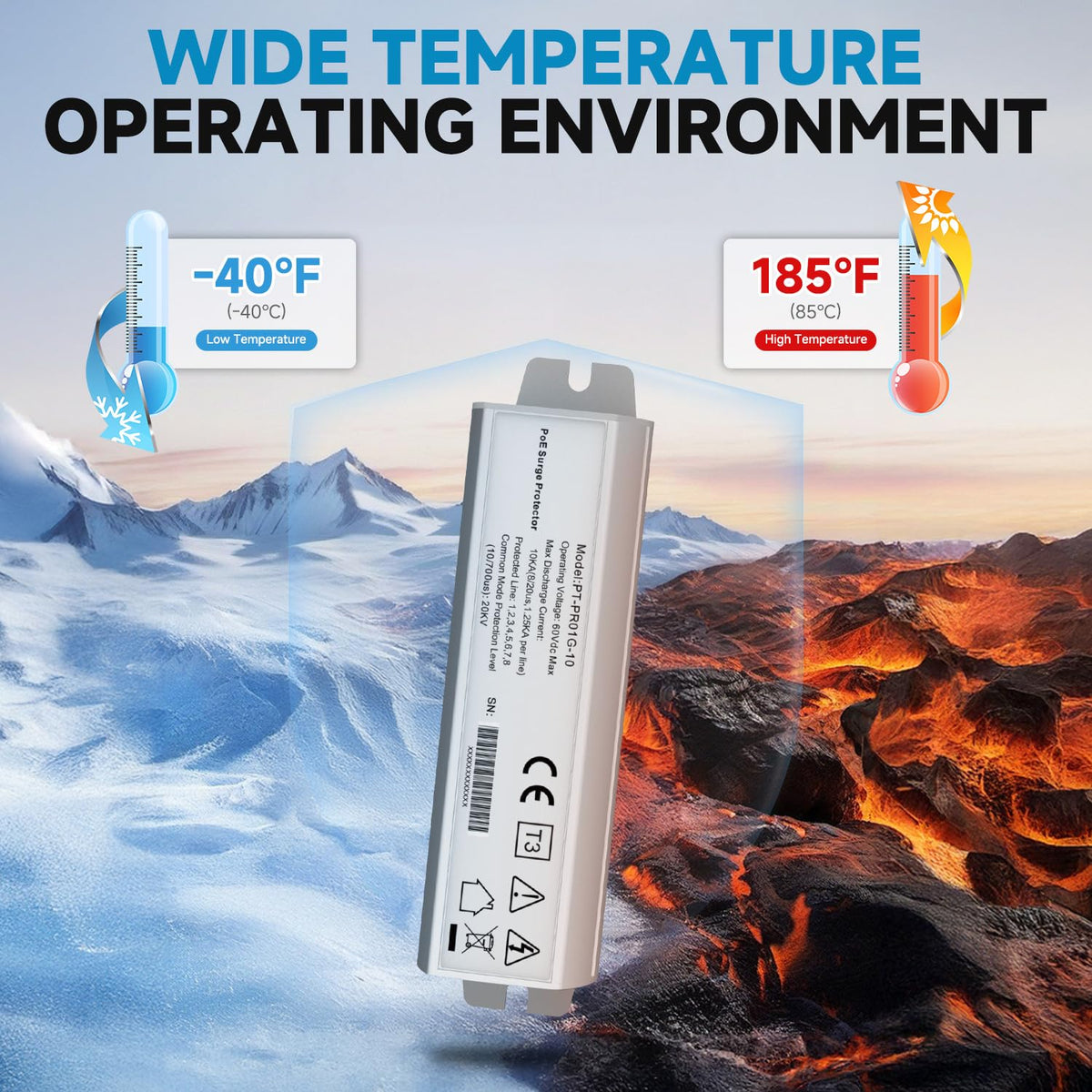

• Operating temperature range: -40°F to 185°F
• Suitable for harsh, unconditioned environments and sheltered outdoor use

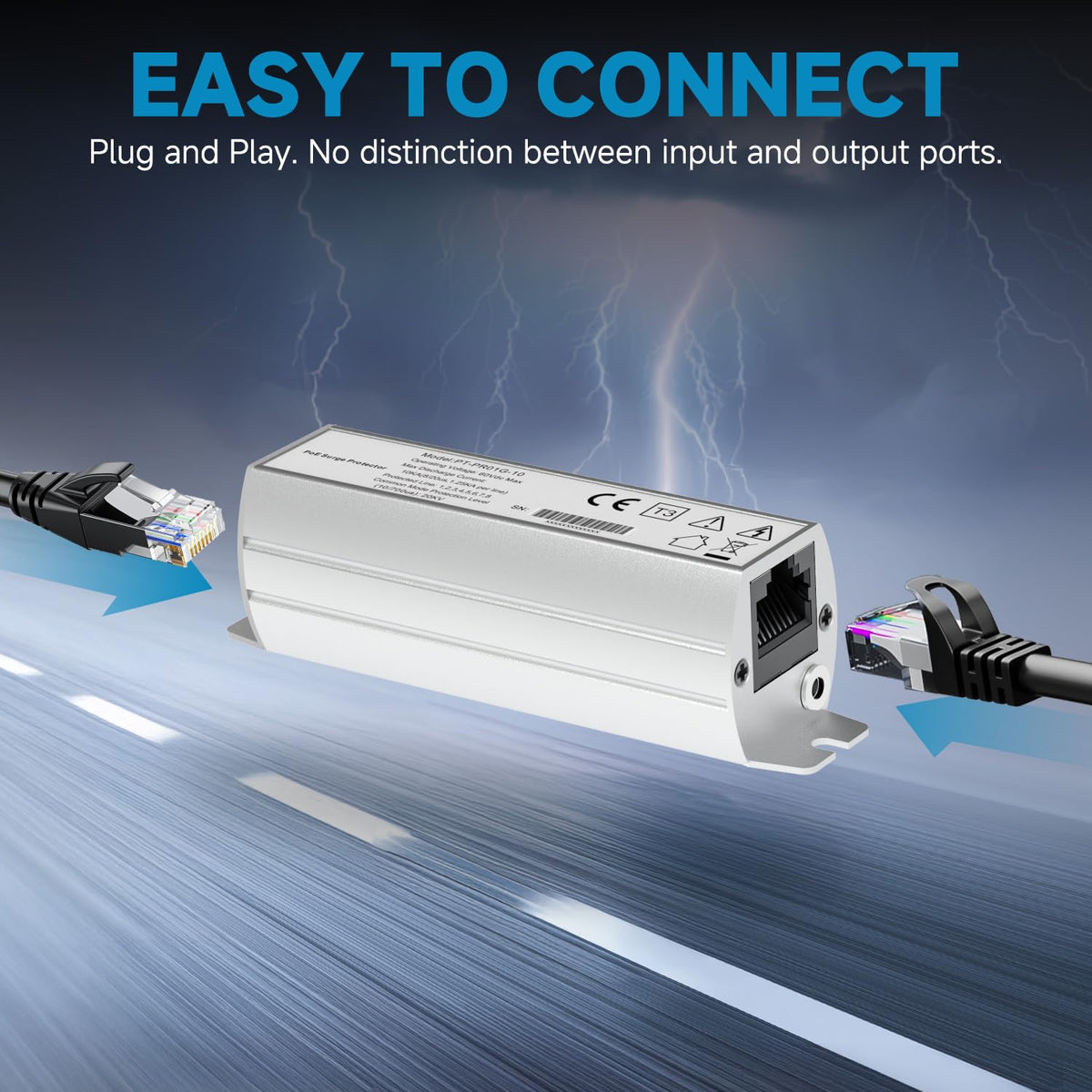

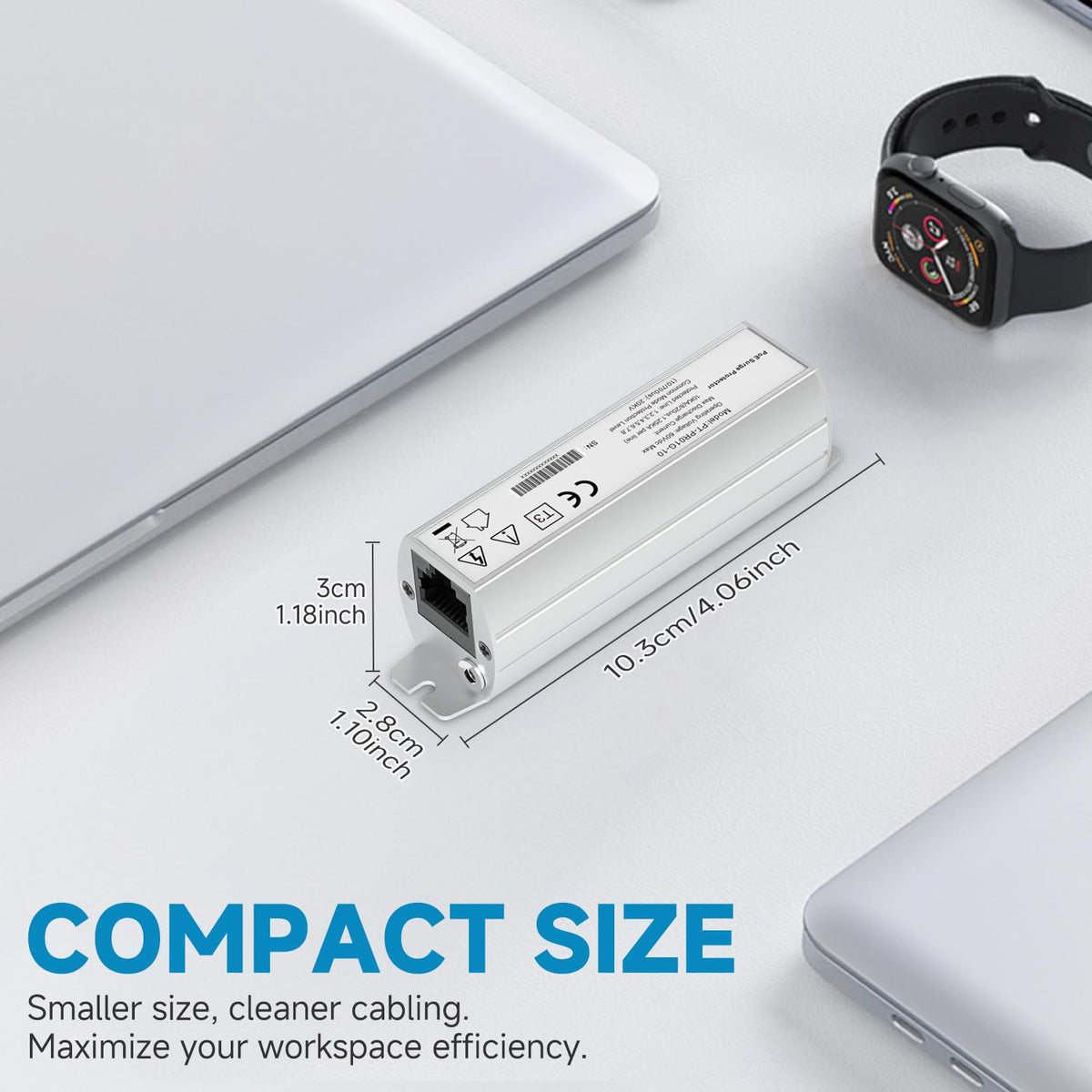

• Compact RJ45 inline form factor for easy field installation
• Compatible with both standard and non-standard Ethernet installations

Who is this for? The PROCET PT-PR01G-10 is ideal for network engineers, security integrators, and facilities managers who need to protect high-power PoE endpoints and multi-gigabit Ethernet links from lightning and transient events. Choose this protector for rooftop cameras, outdoor wireless APs, industrial IoT nodes, and any installation where preserving both high-speed data and PoE power during electrical disturbances is essential. It is not a replacement for grounding best practices; use it as part of a comprehensive surge protection strategy.
