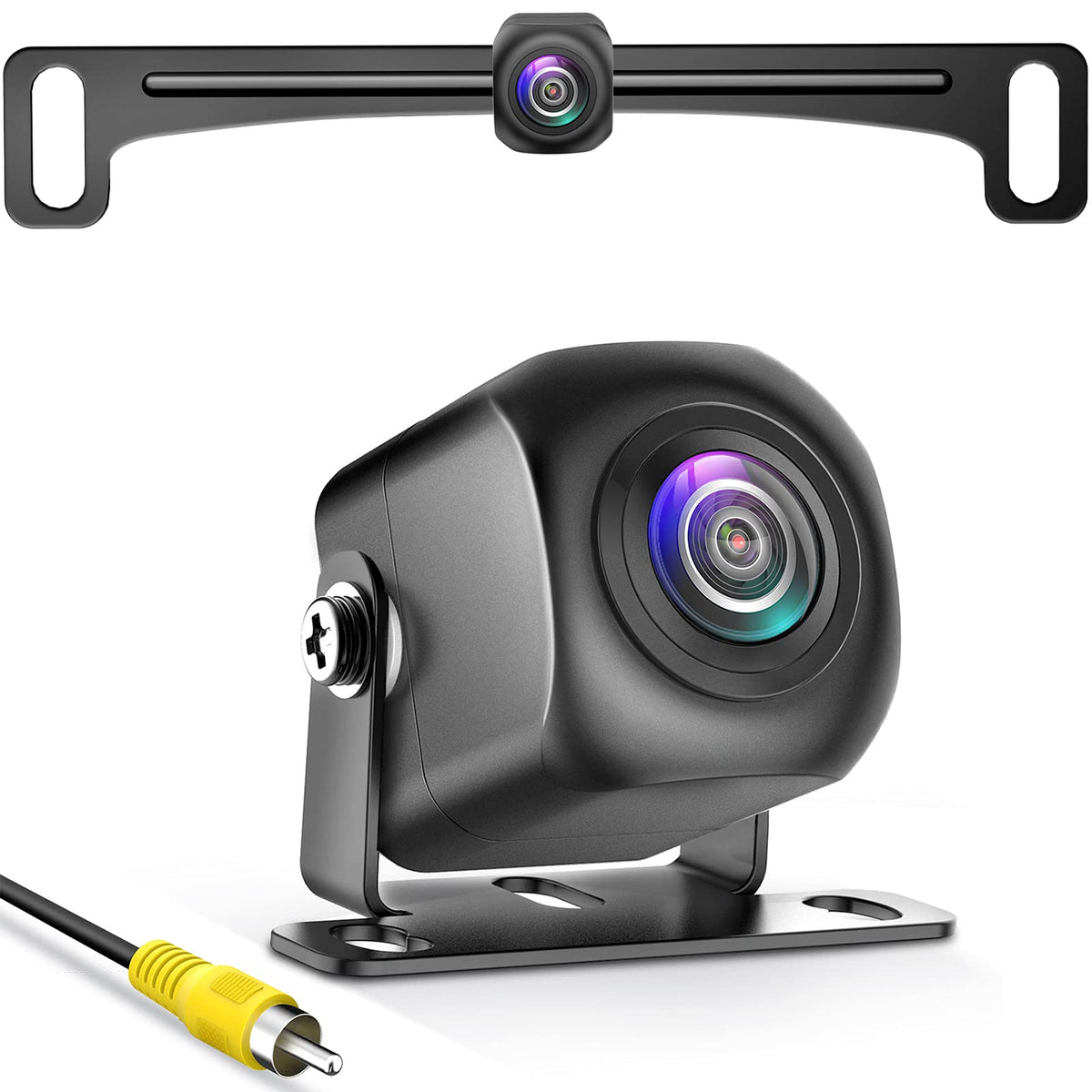

Pixelman 1080P AHD Backup Camera 170° Wide Angle

PixelMan PMD2A-S is a metal-housed 1080P AHD rearview camera with a 170° glass lens, enhanced low-light performance, and IP69 waterproofing for reliable reversing day or night.

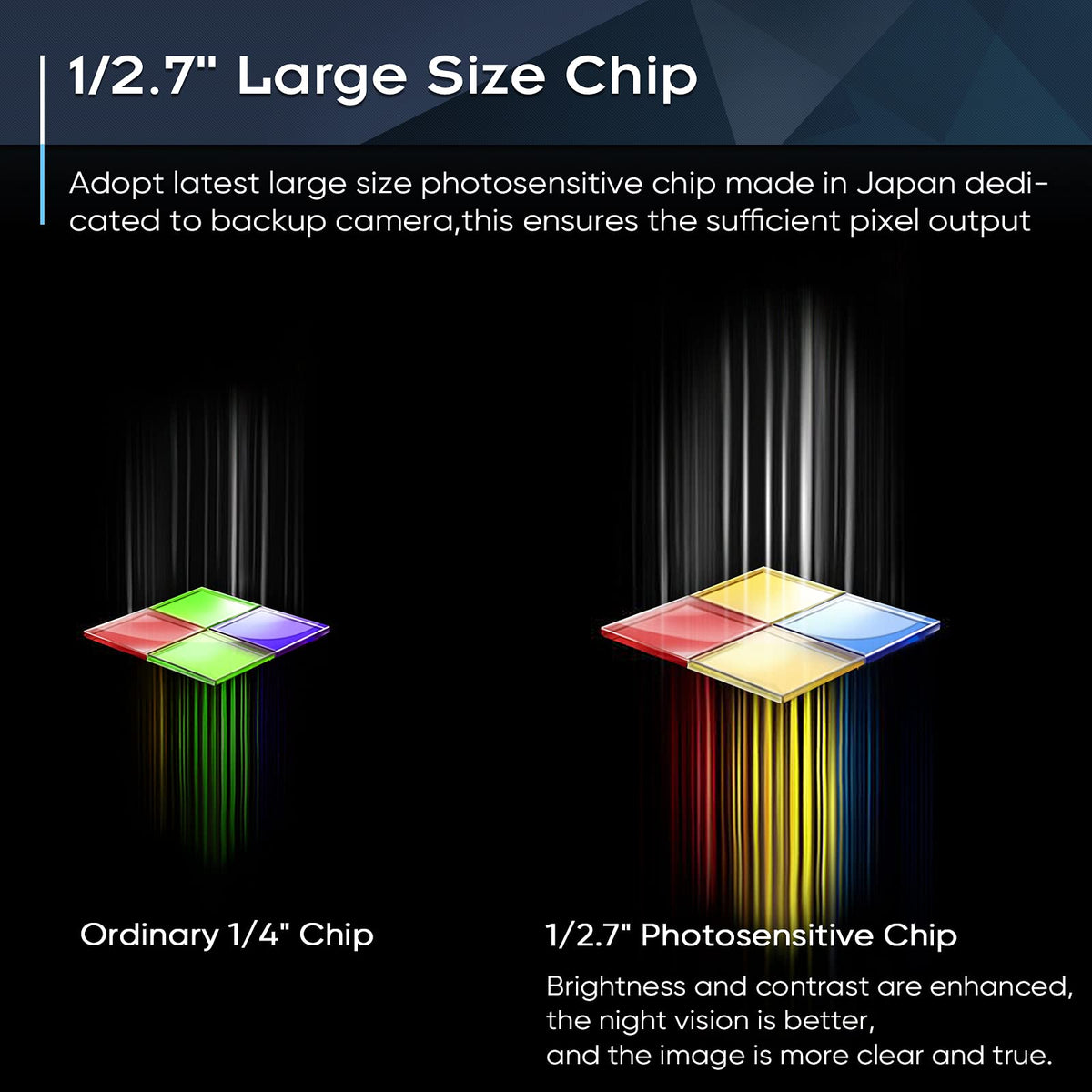

This compact reverse camera is engineered to deliver clearer, truer color images and dependable weather resistance for cars, SUVs, RVs and light commercial vehicles. It uses a larger 1/2.7-inch imaging chip and a high-transmittance F1.4 optical glass lens to increase brightness and color fidelity compared with typical 1/4-inch backup cameras. The PMD2A-S also supports switching between HD and AHD outputs, so it can output a native 1080P signal when paired with an AHD-compatible monitor.

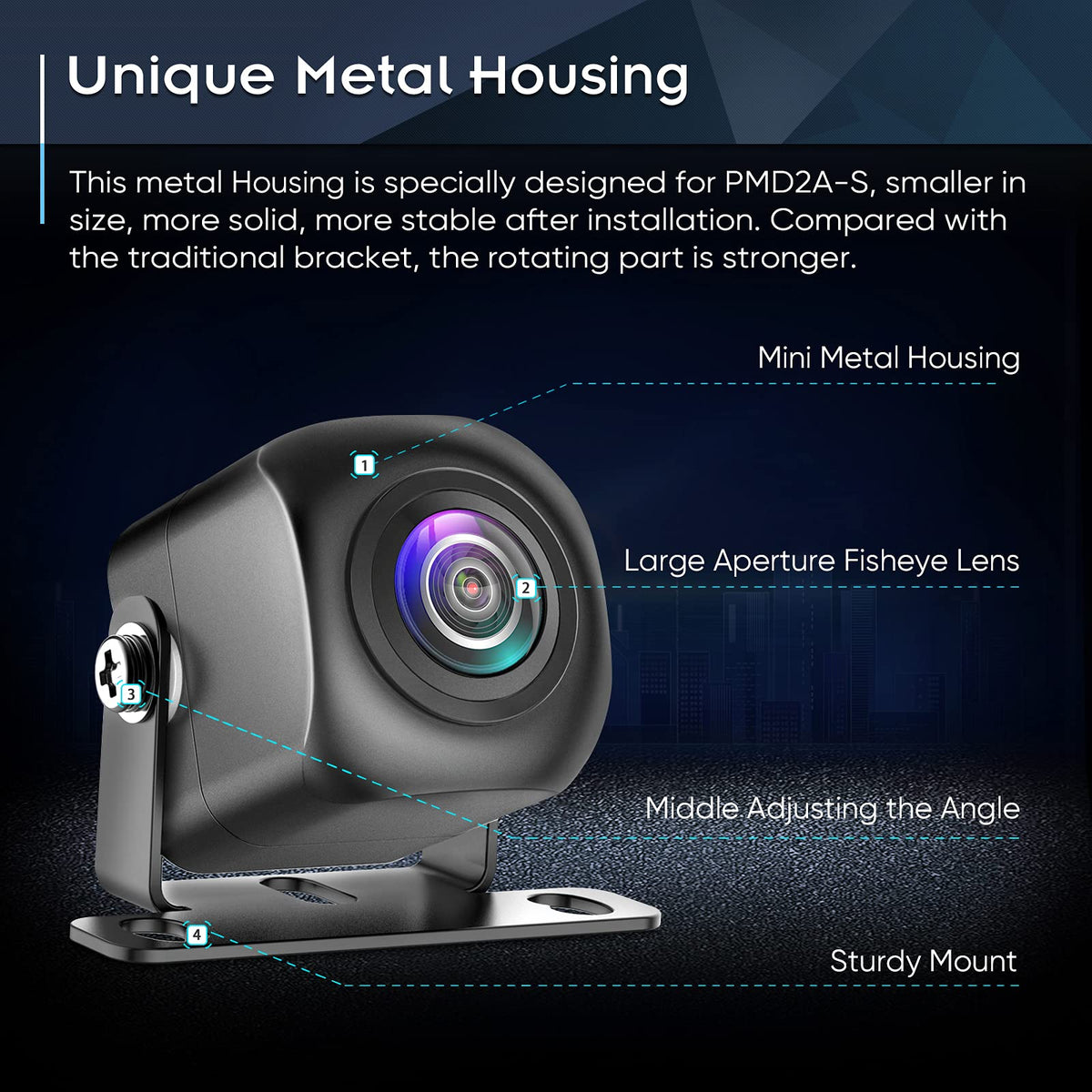

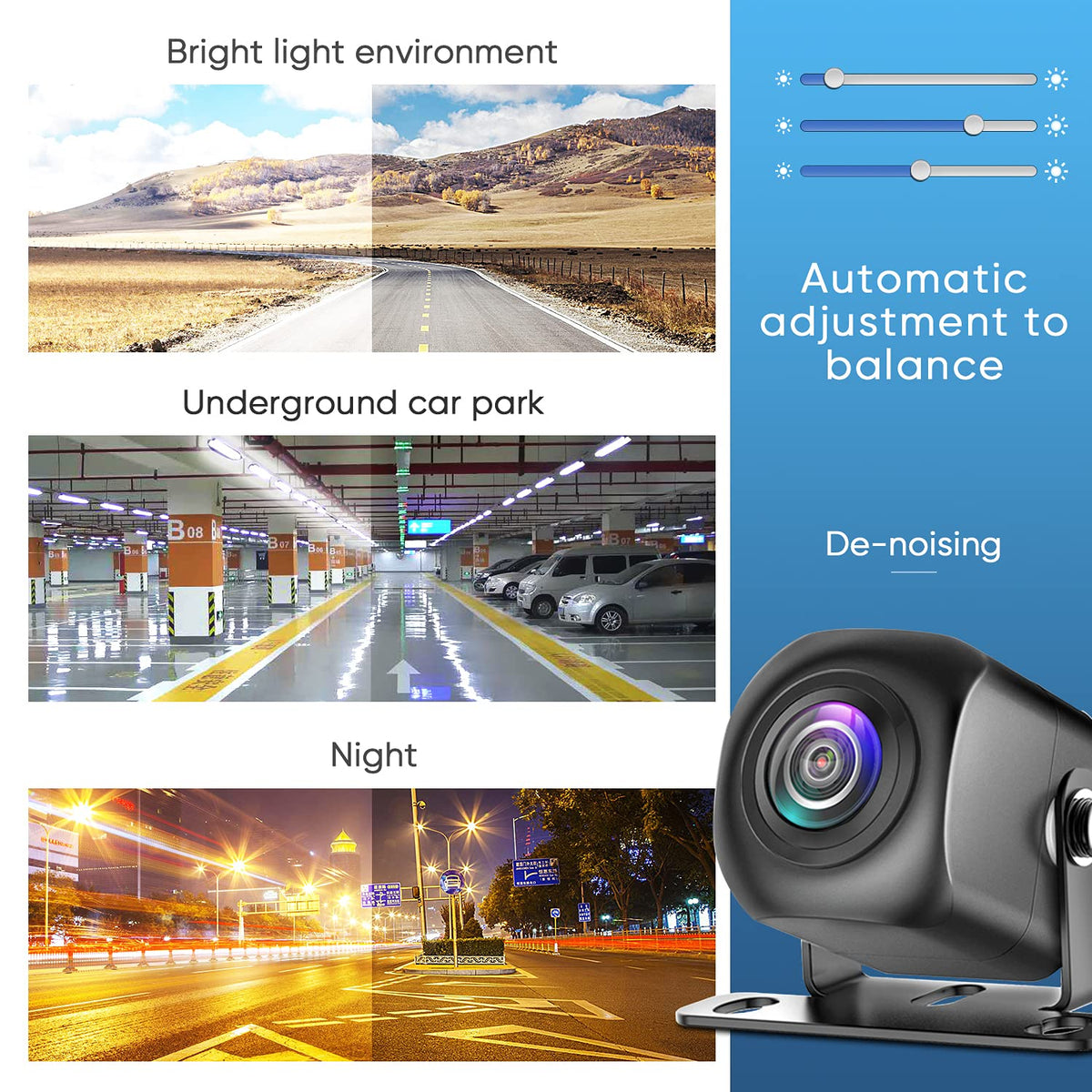

How does the PMD2A-S improve night and low-light reversing?

The camera combines a larger imaging sensor with a wide-aperture F1.4 lens that admits more light, producing brighter, more natural nighttime images without extra illumination. The upgraded Japanese-made chip enhances image processing under both intense and dim lighting to reduce glare and preserve detail.

• 1/2.7" AHD 1080P chip for higher pixel output and better low-light sensitivity
• F1.4 optical glass lens increases light capture and color saturation
• Improved signal processing minimizes bloom from headlights and sun
• Works night and day without auxiliary lights for clearer reversing

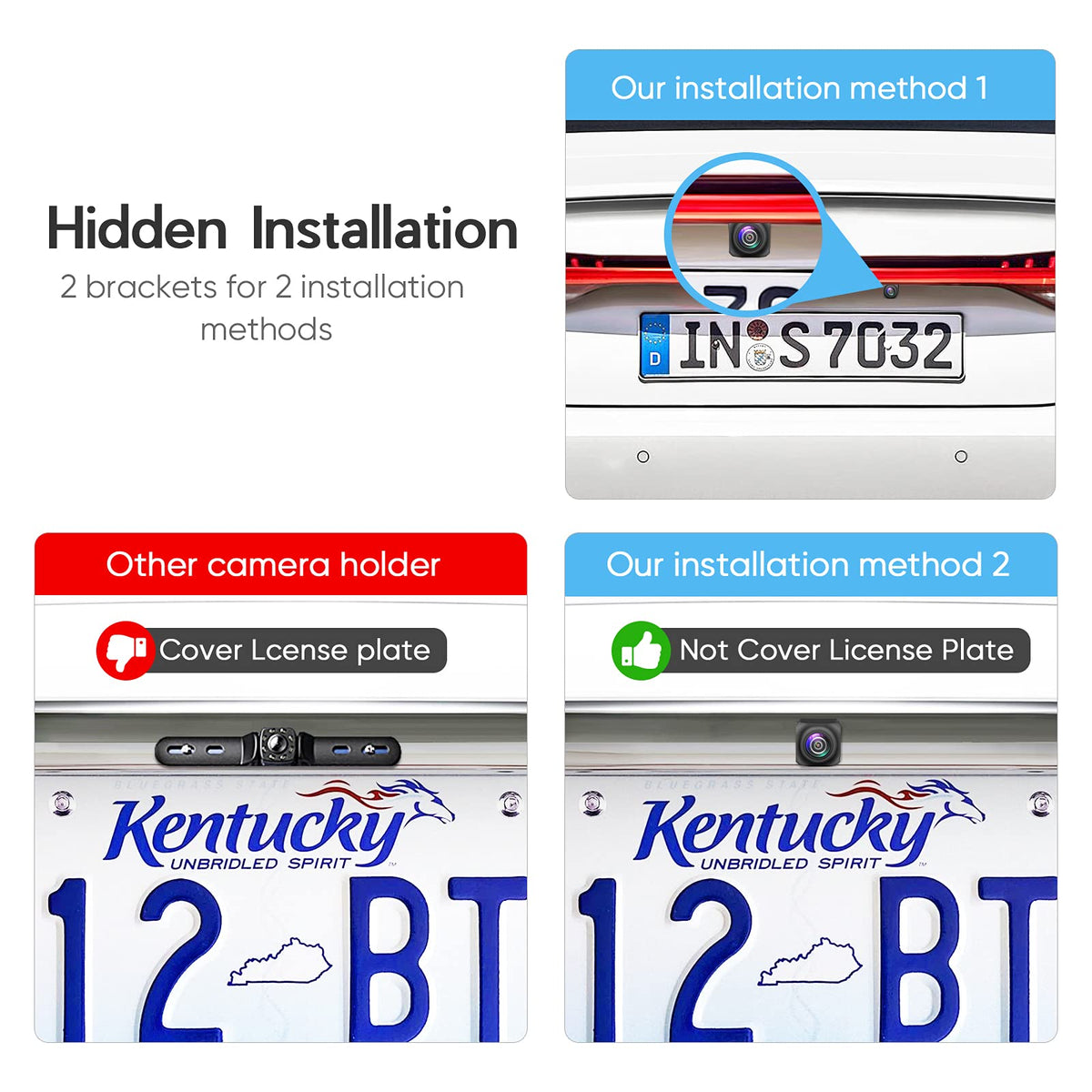

What mounting and installation options does this rear camera offer?

PixelMan designed the PMD2A-S with two mounting brackets for flexible placement: a license-plate bracket for concealed installs and a separate bracket for exposed mounting. The camera ships with thick copper-core power wiring and installation accessories to simplify connection and secure attachment.

• Two sturdy brackets: license-plate mount and exposed mount for choice of installation
• Hidden-install option leaves only the camera exposed for a clean look
• Premium thick copper-core cable for reliable power and easier wiring
• Includes necessary mounting hardware and instructions for faster setup

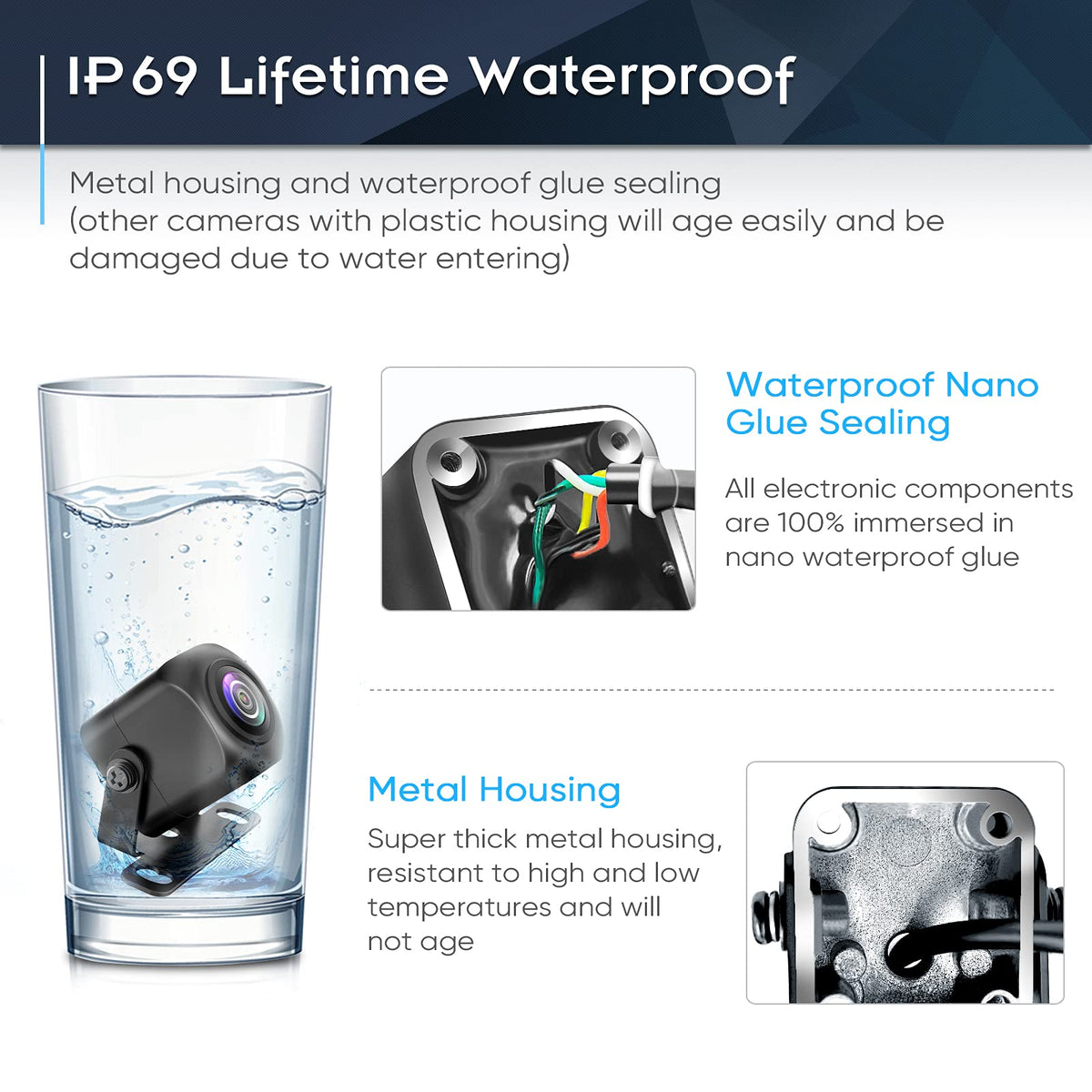

How durable and weatherproof is the PixelMan backup camera?

The PMD2A-S uses an alloy housing and a Nano waterproof sealant to protect internal components from expansion, contraction and water ingress—common failure causes in cheaper units. It meets IP69-level protection for resistance to high-pressure wash and extreme weather, and PixelMan backs the build with a replacement policy for water damage scenarios.

• Alloy housing limits seasonal expansion and aging that invites leaks
• Nano waterproof glue seals lens and PCB for long-term moisture resistance
• IP69-rated protection against high-pressure water and dust
• Manufacturer replacement support if water penetration occurs

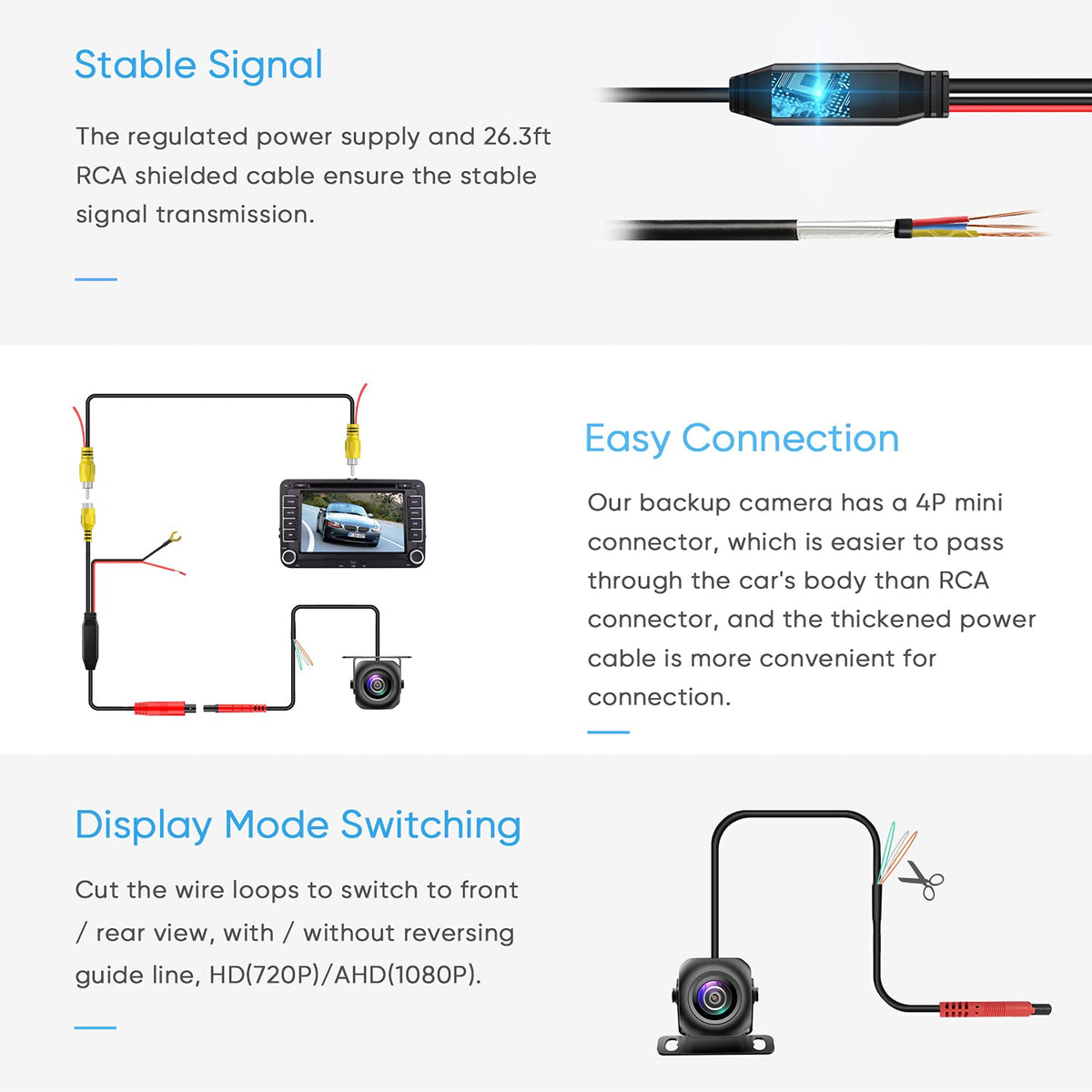

Will this camera work with my vehicle monitor or recorder?

The PMD2A-S outputs standard HD and switchable AHD signals; when paired with an AHD-capable display it can provide a full 1080P image. Confirm your head unit or monitor accepts AHD input to take advantage of the higher resolution; it remains compatible with many universal monitors that accept composite HD signals.

• Supports HD and AHD switching for compatibility and 1080P output
• Use with AHD-compatible screens to unlock full 1080P clarity
• Works with most universal reversing displays and recorders via supplied wiring
• Simple power and video connections using the included cables

Who is this for? The PixelMan PMD2A-S is ideal for drivers who want a robust, higher-resolution reversing camera with stronger low-light performance and professional-grade weather resistance. It fits owners of cars, SUVs, RVs and light commercial vehicles who prefer a discreet installation, crave clearer color and night images, and expect durable, maintenance-free operation in varied climates.
