Pipishell Full Motion TV Wall Mount 26-65"

The Pipishell Full Motion TV Wall Mount securely holds 26–65-inch TVs up to 99 lbs and offers swivel, tilt, and extension for flexible viewing.

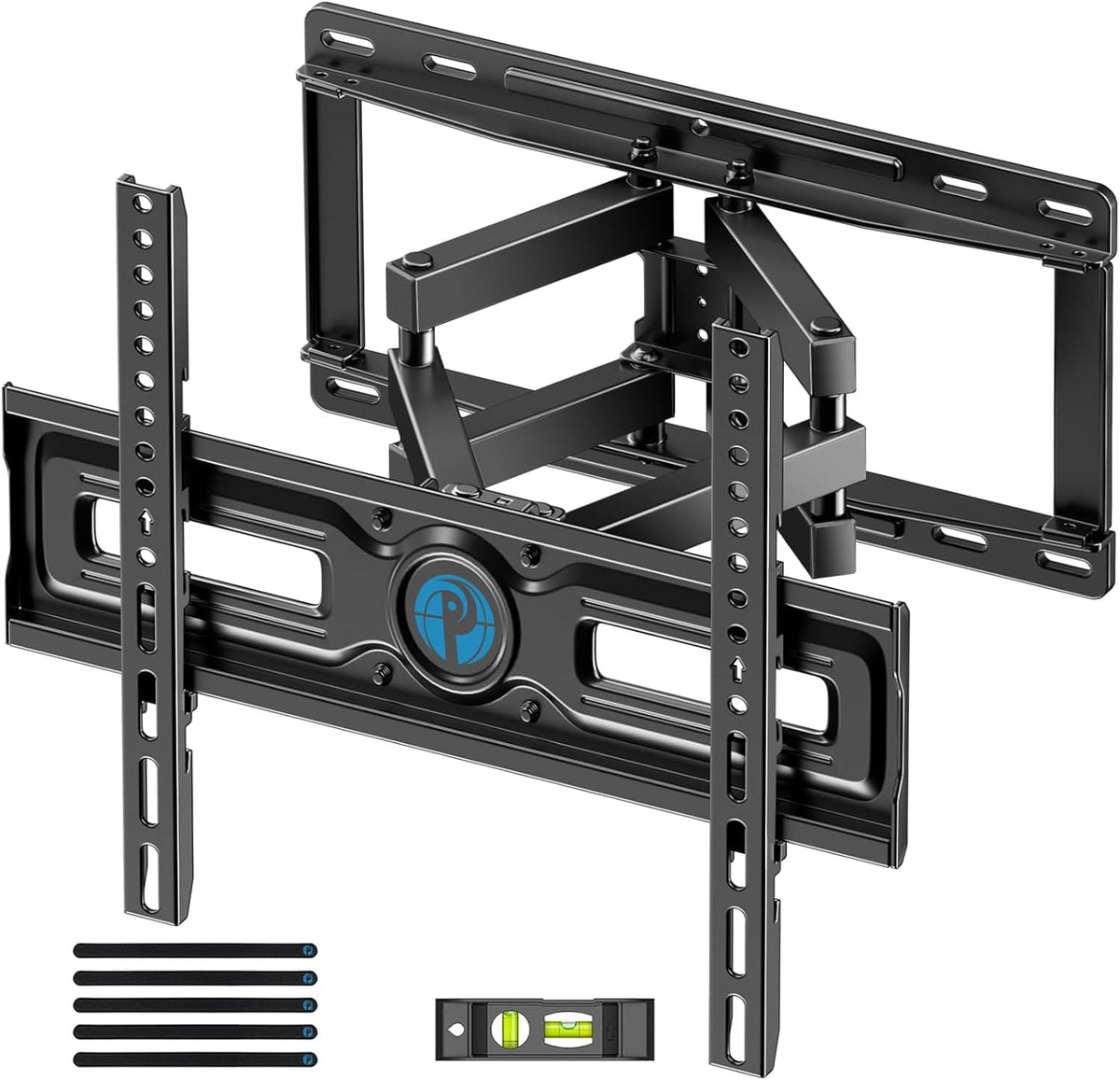

If you want a reliable full-motion bracket that fits most modern TVs while keeping options for tilt, swivel and leveling, the Pipishell PIMF4 is built to do that. It supports VESA patterns from 100x100mm to 400x400mm, mounts to 12" or 16" wood studs (and masonry), and uses dual articulated arms and heavy-duty welding to reduce wobble when you reposition the screen. The mount includes labeled hardware and instructions for quicker installation and three bracket height settings so you can fine-tune placement after the rails are attached.

How much weight and what TV sizes will this mount support?

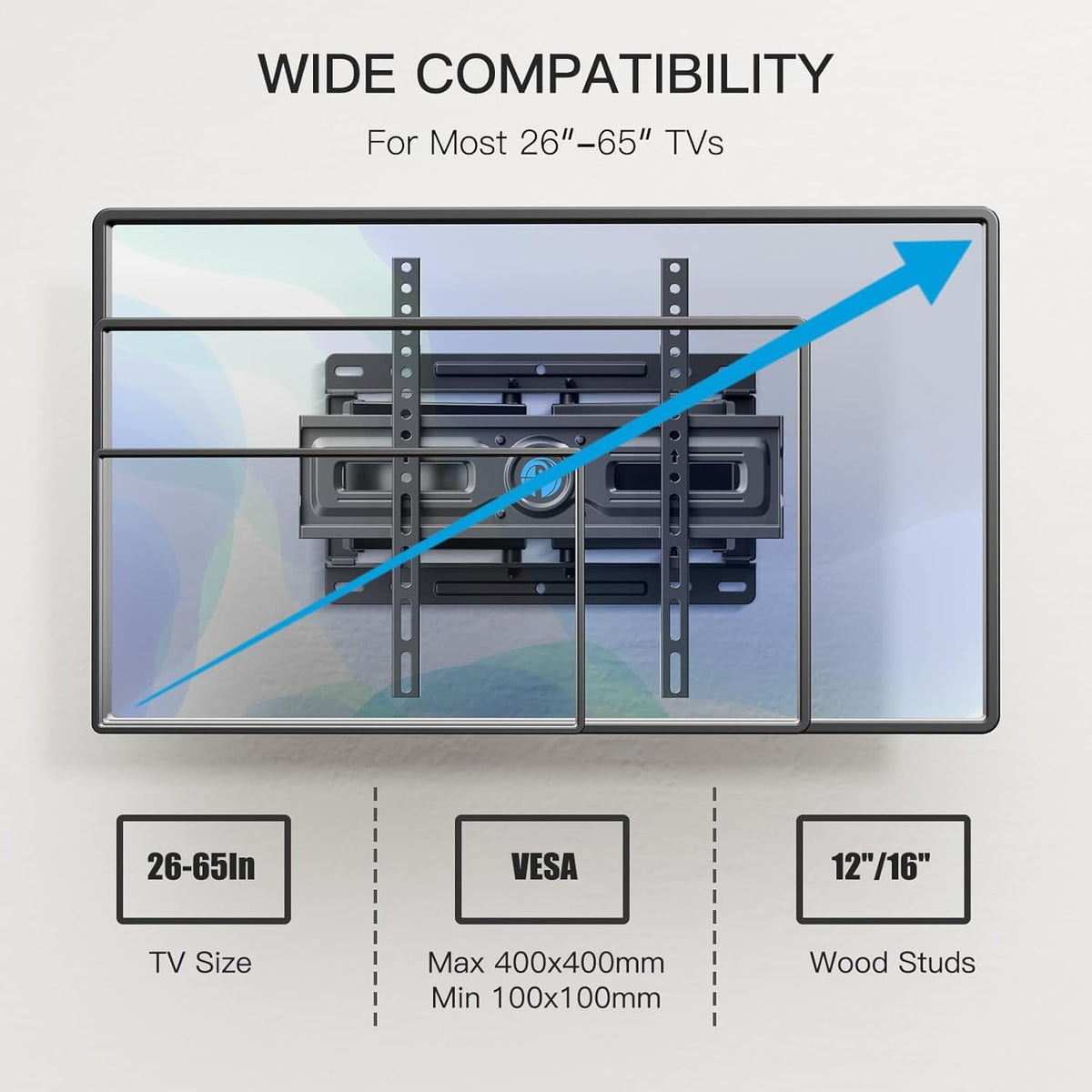

The Pipishell PIMF4 is rated to hold TVs weighing up to 99 pounds and fits screens from 26" to 65". It accommodates common VESA hole patterns between 100x100mm and 400x400mm, making it compatible with a wide range of LED, LCD and plasma models.

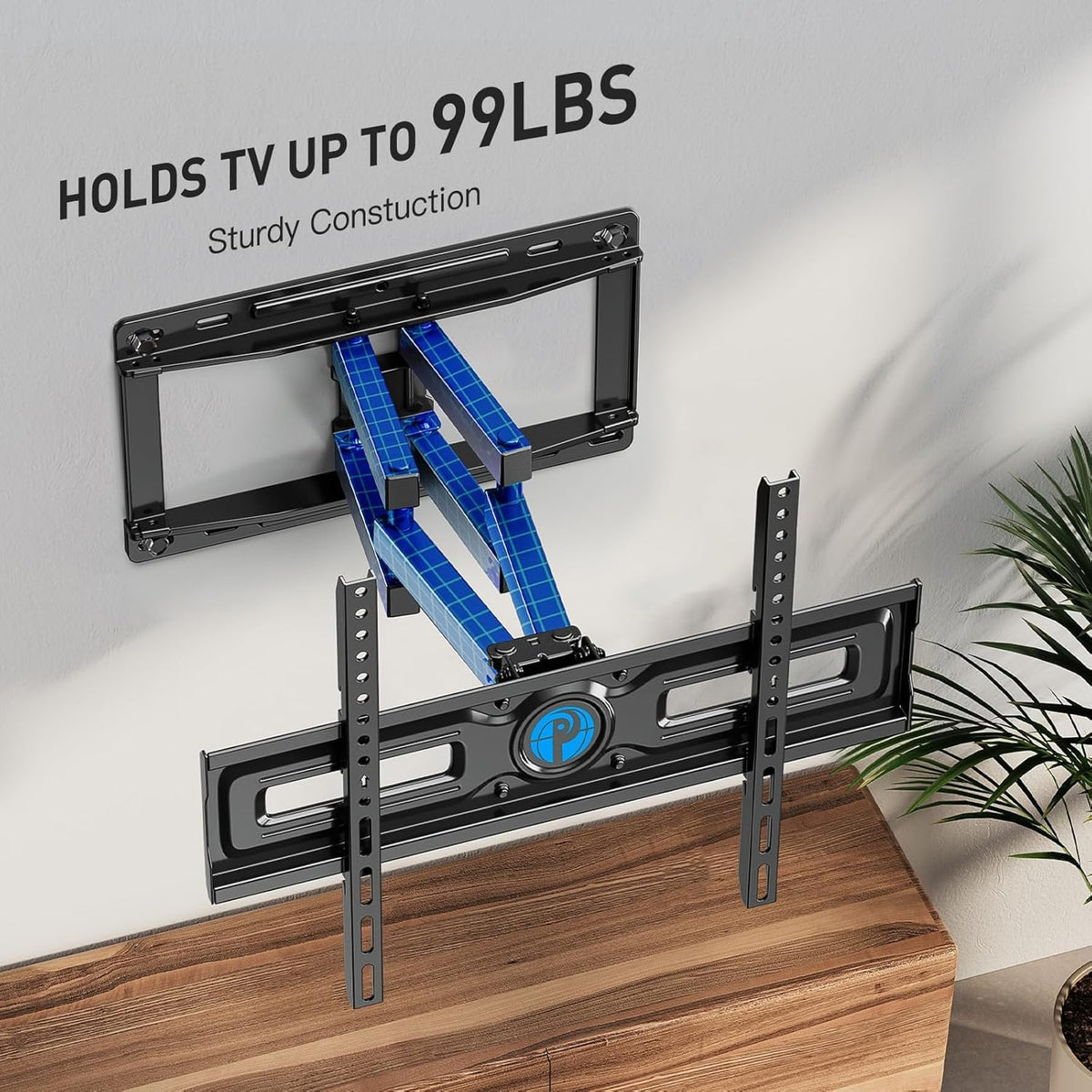

• Max weight: 99 lbs (45 kg).
• Screen range: 26"–65" diagonal.
• VESA compatibility: 100x100mm to 400x400mm.

What movement and adjustments can I make after installation?

This full-motion bracket gives you tilt, swivel and a small amount of post-install leveling so you can dial in viewing angles. It extends to bring the TV forward and retracts close to the wall when not in use.

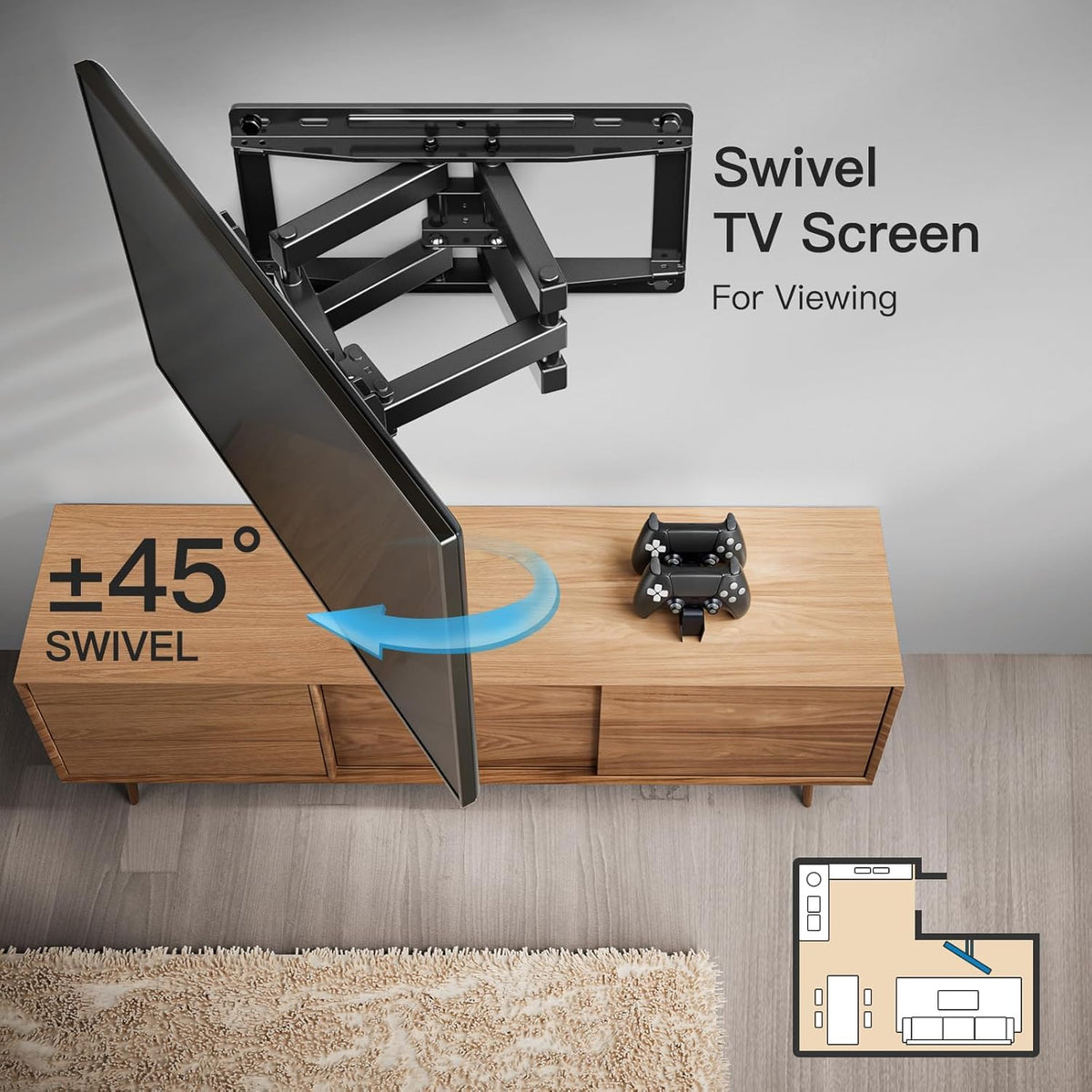

• Swivel: ±45° for left/right viewing adjustments.
• Tilt: +5° / -15° to reduce glare or raise the viewing angle.

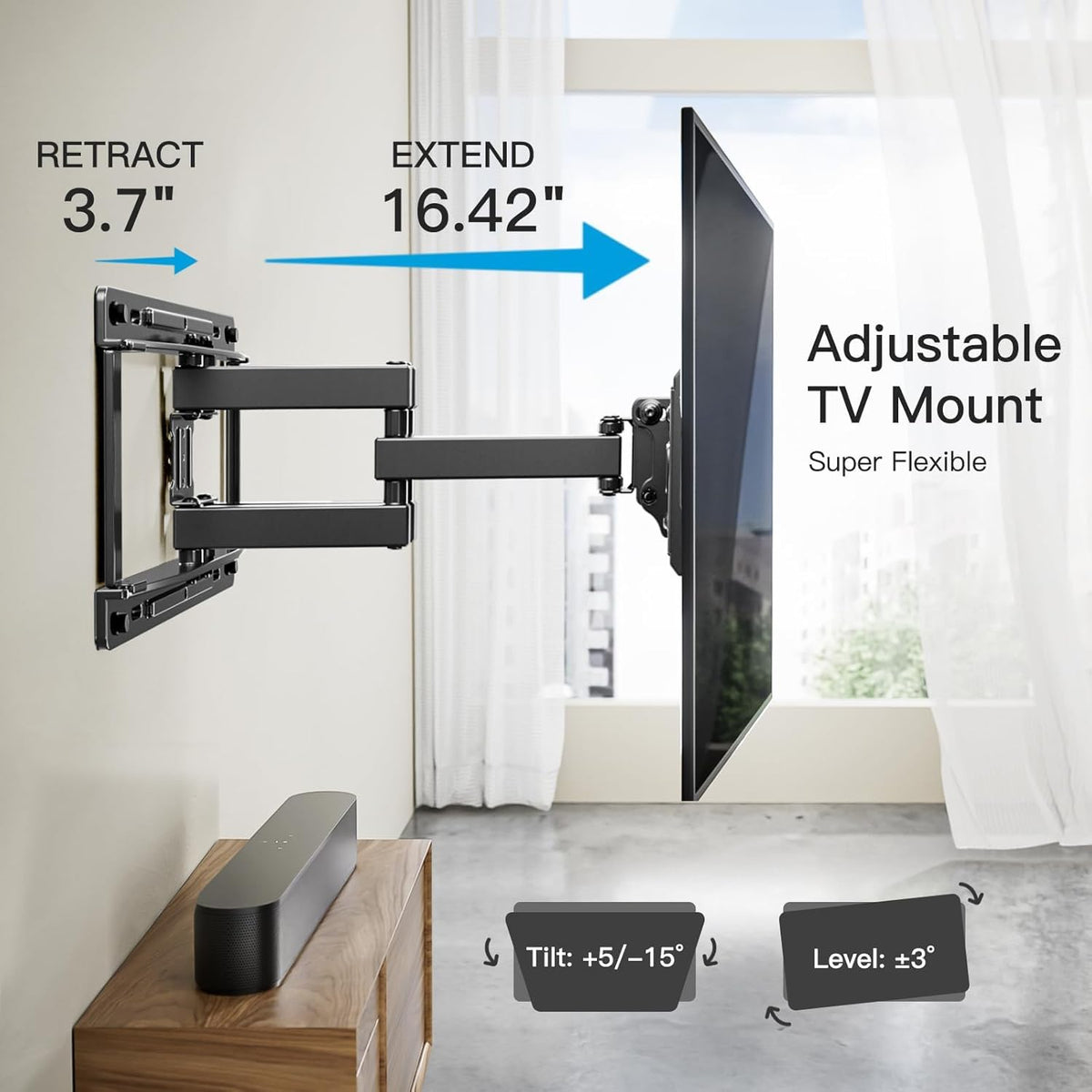

• Extension: up to 16.42" from wall; retracts to 3.7" to save space.
• Micro-leveling: ±3° to correct small alignment issues.

Which wall types and studs will it attach to, and is installation straightforward?

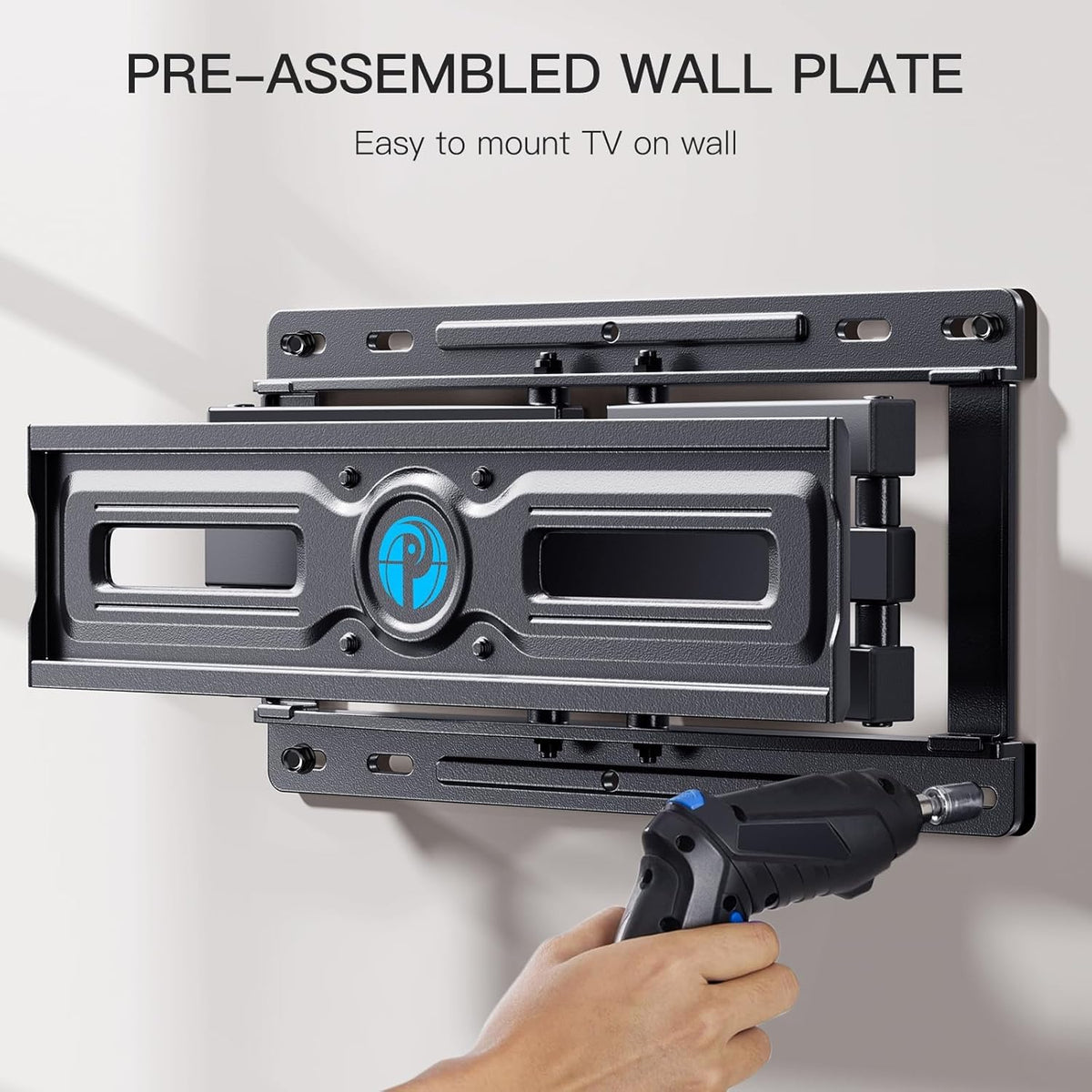

The mount is designed for 12" and 16" wood stud installations and can also be anchored to solid concrete or brick. Packaged hardware is labeled for clarity and instructions guide you through the process; three bracket height positions help with final placement without removing the full assembly.

• Compatible with 12" and 16" wood stud spacing.
• Includes masonry anchors for concrete or brick walls.
• Labeled bolts and a step-by-step guide reduce guesswork.
• Three bracket heights let you tweak final screen elevation.

How strong and stable is the Pipishell dual-arm design?

Pipishell uses a six-part dual-arm structure and seamless welding to provide solid support and reduce sag when the TV is moved. Security locks on the mounting brackets help keep the screen securely in place after adjustment.

• Dual-arm construction minimizes wobble during motion.
• Seamless welding for increased frame rigidity and durability.
• Safety locks prevent slippage once the TV is seated.

Who this is for: Choose the Pipishell PIMF4 if you need a versatile, heavy-duty full-motion mount for a mid-size TV — ideal for living rooms, bedrooms, or home offices where you want flexible viewing angles and a low-profile look when retracted. It’s a good fit for DIY installers comfortable with basic tools, anyone mounting to standard wood studs or masonry, and buyers who value post-install adjustment and reliable customer support from Pipishell.
