Parco Scientific PA-5FLX-IFR07 Trinocular Lockable Zoom Stereo Microscope | 10x Eyepiece, 0.7x–4.5x Zoom, 144-LED Ring Light

Product Overview

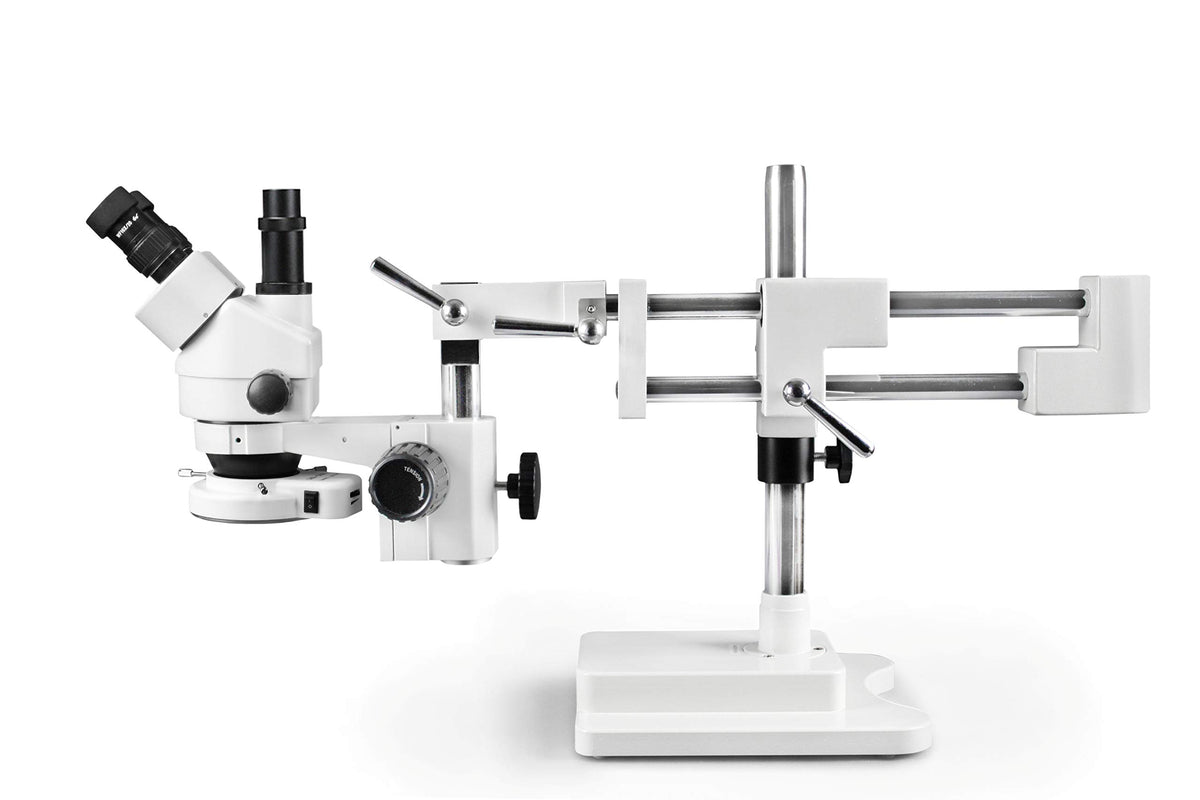

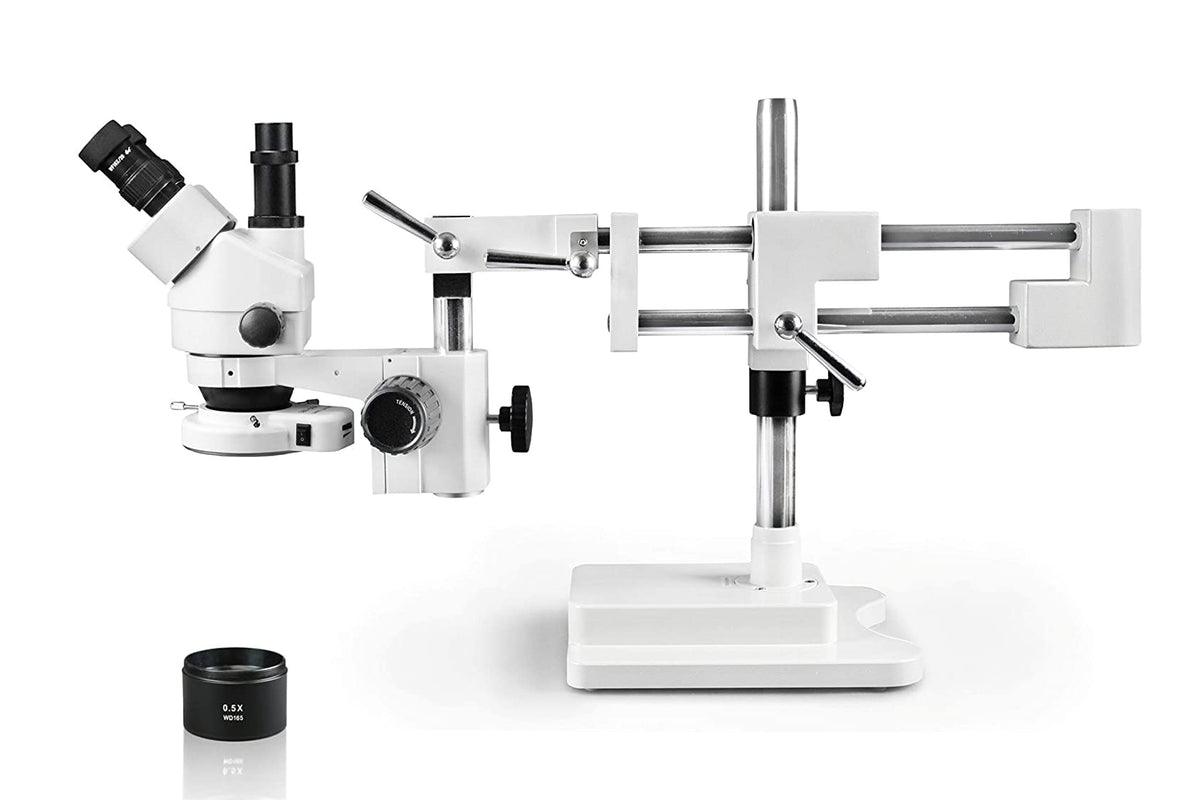

The Parco Scientific PA-5FLX-IFR07 trinocular lockable zoom stereo microscope is designed for both laboratory and industrial settings. It delivers high-resolution imaging with strong depth perception and a wide field of view, making it suitable for observing three-dimensional specimens or larger objects. A zoom lock helps maintain a fixed magnification when calibration is needed, supporting consistent workflows across sessions.

Intended for flexible observation, the device features a rotating, tilting, and swiveling head that responds to a range of working angles. Combined with a solid double-arm boom stand and a robust table base, it supports extended viewing distance while remaining stable during tasks that require precise alignment.

Key Optical and Mechanical Benefits

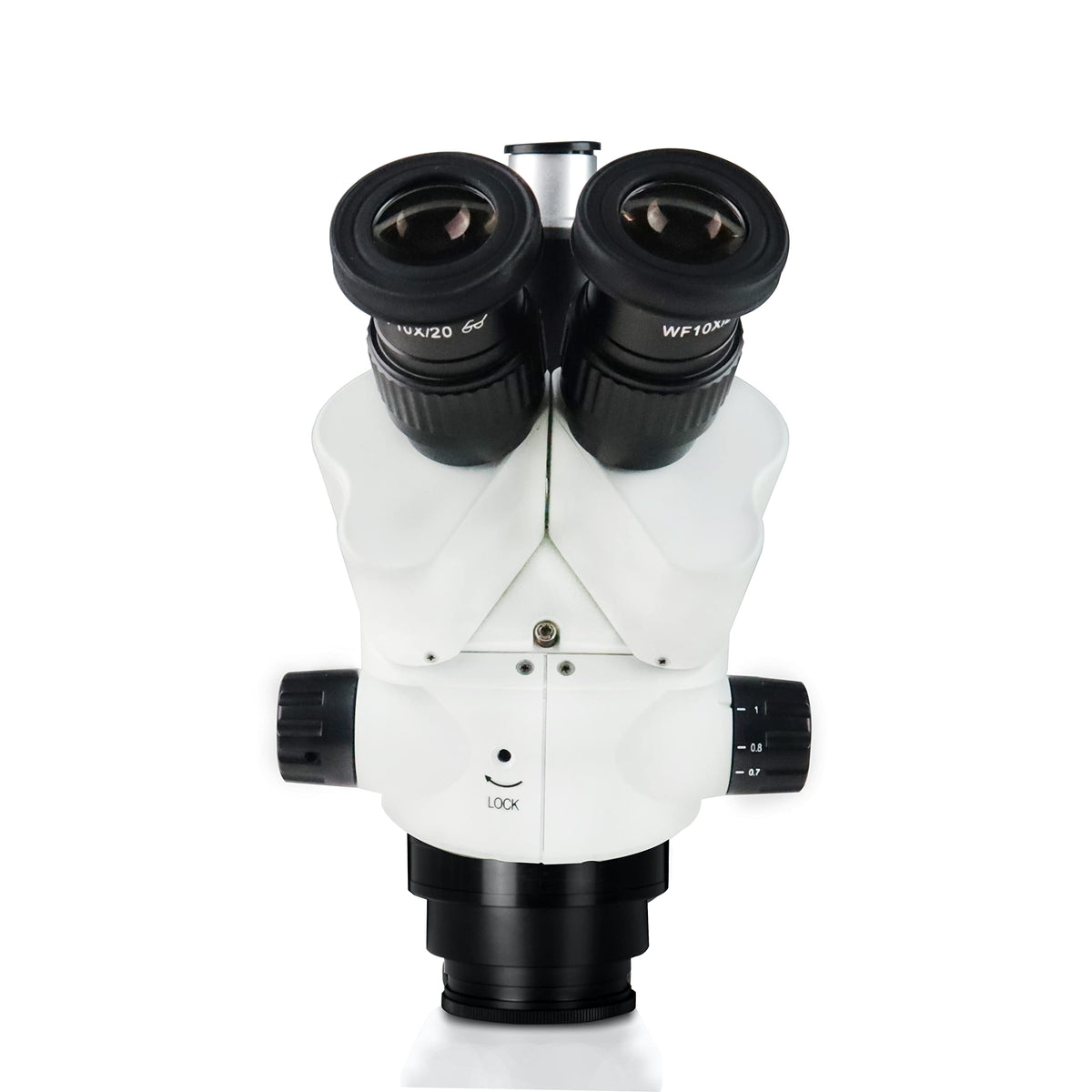

• 45° inclined trinocular head rotates a full 360°, with a digital port for cameras or HD touch screens and eye-point adjustments to accommodate different users.

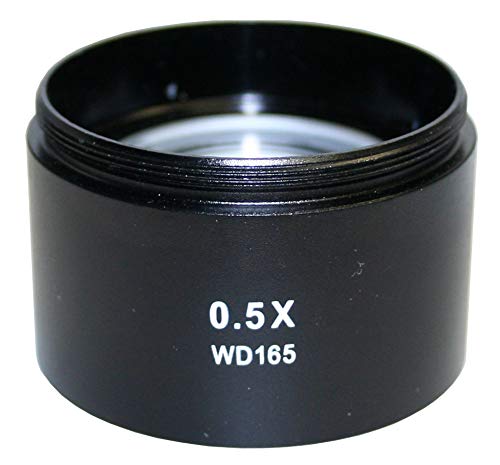

• Zoom range spans 0.7x–4.5x; with the included 0.5x auxiliary lens, magnification expands to 3.5x–45x, offering a broad viewing spectrum.
• Parfocal optics maintain focus across magnification steps, and a 2.5-inch (65 mm) field of view supports viewing of larger samples without frequent refocusing.

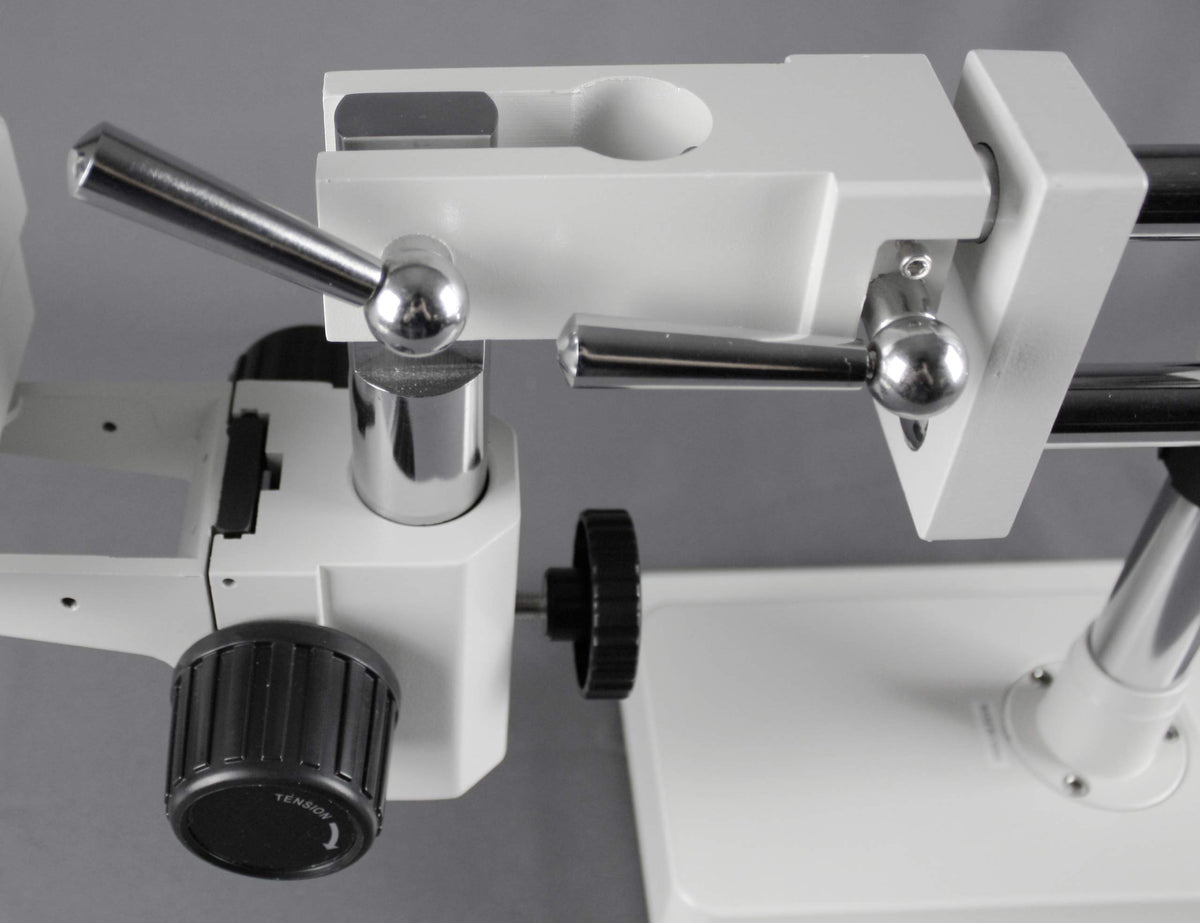

• The double-arm boom stand uses advanced ball-bearing movement for smooth, low-resistance positioning and a solid base for stability.
• Heavy-duty rack-and-pinion focusing with adjustable tension provides precise, controlled focusing even with textured or heavier specimens.

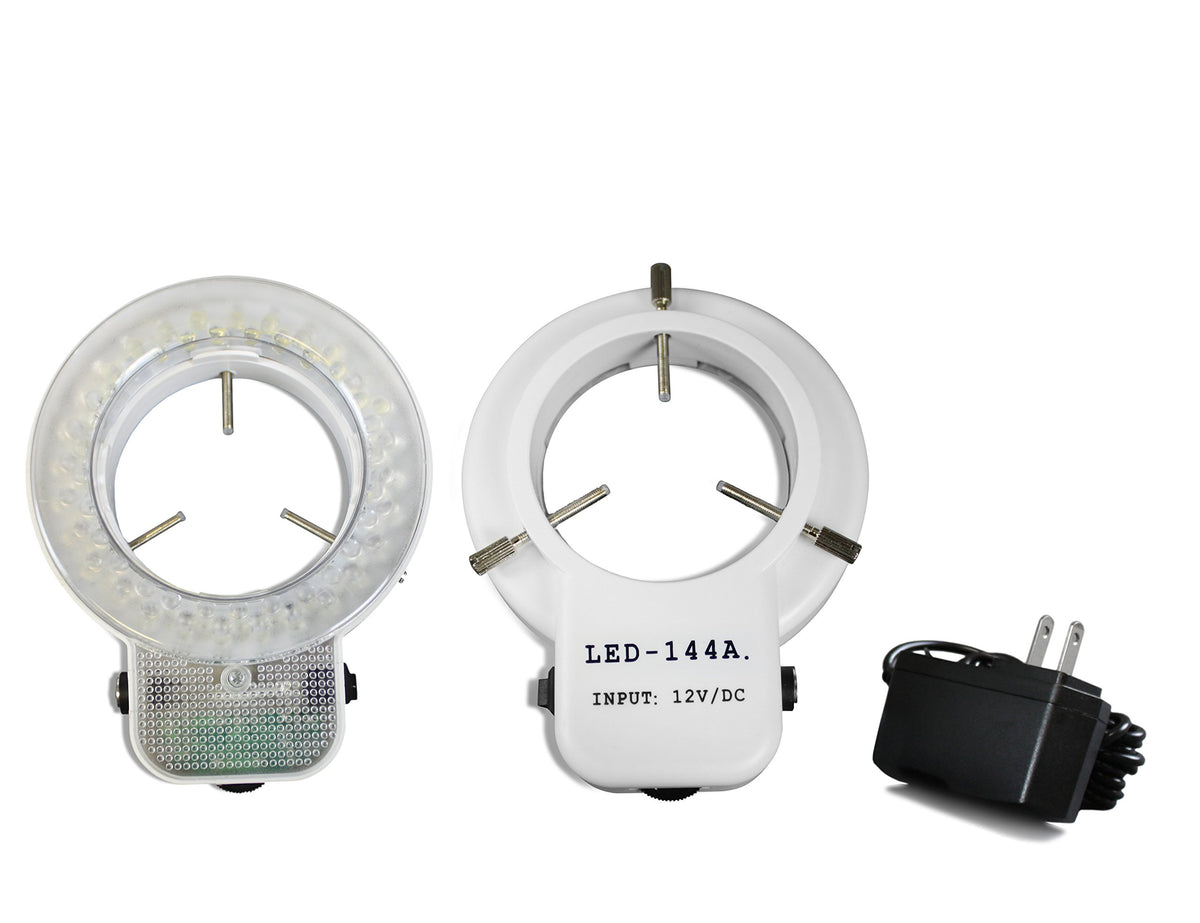

• 144-LED ring light with adjustable intensity delivers bright, cool illumination that lasts significantly longer than traditional bulbs.

Specifications at a Glance

• Working distance: 100 mm standard (increases to 165 mm with 0.5x lens)
• Magnification range: 7x–45x standard; 3.5x–45x with 0.5x auxiliary lens
• Zoom ratio: 1:6.4 with 0.7x–4.5x zoom
• Interpupillary adjustment: 54–76 mm; diopter correction ±6
• Includes: trinocular lockable head, two 10x WF eyepieces, double arm boom stand, focusing arm, eye guards, dust cover, manual, 144-LED ring light, 0.5x lens, power adaptor

What You’ll Experience in Use

This microscope is well-suited for inspecting electronics components, mechanical parts, or other sizable objects that benefit from depth perception and a clear, stable image. The ability to rotate the head and adjust viewing angles facilitates group discussions or demonstrations, while the zoom lock supports calibration tasks by keeping magnification steady when needed.

What’s Included and Packaging

• Trinocular lockable zoom stereo microscope head
• Pair of 10x WF eyepieces
• Double arm boom stand
• Focusing arm
• Eye guards, one dust cover
• User manual
• 144-LED ring light
• 0.5x auxiliary lens
• Power adaptor

Summary

Designed to deliver clear, detailed visuals across a range of magnifications, the PA-5FLX-IFR07 supports flexible workflows and careful observation. The combination of a robust stand, precise focusing, and adaptable lighting makes it a compelling option for teams handling diverse inspection tasks. Actual results will depend on your specific samples and setup.
