Parco Scientific PA-5F Simul-Focal Trinocular Zoom Stereo Microscope | 0.7x–4.5x Zoom, 7x–45x Magnification, 10x WF Eyepieces

Overview

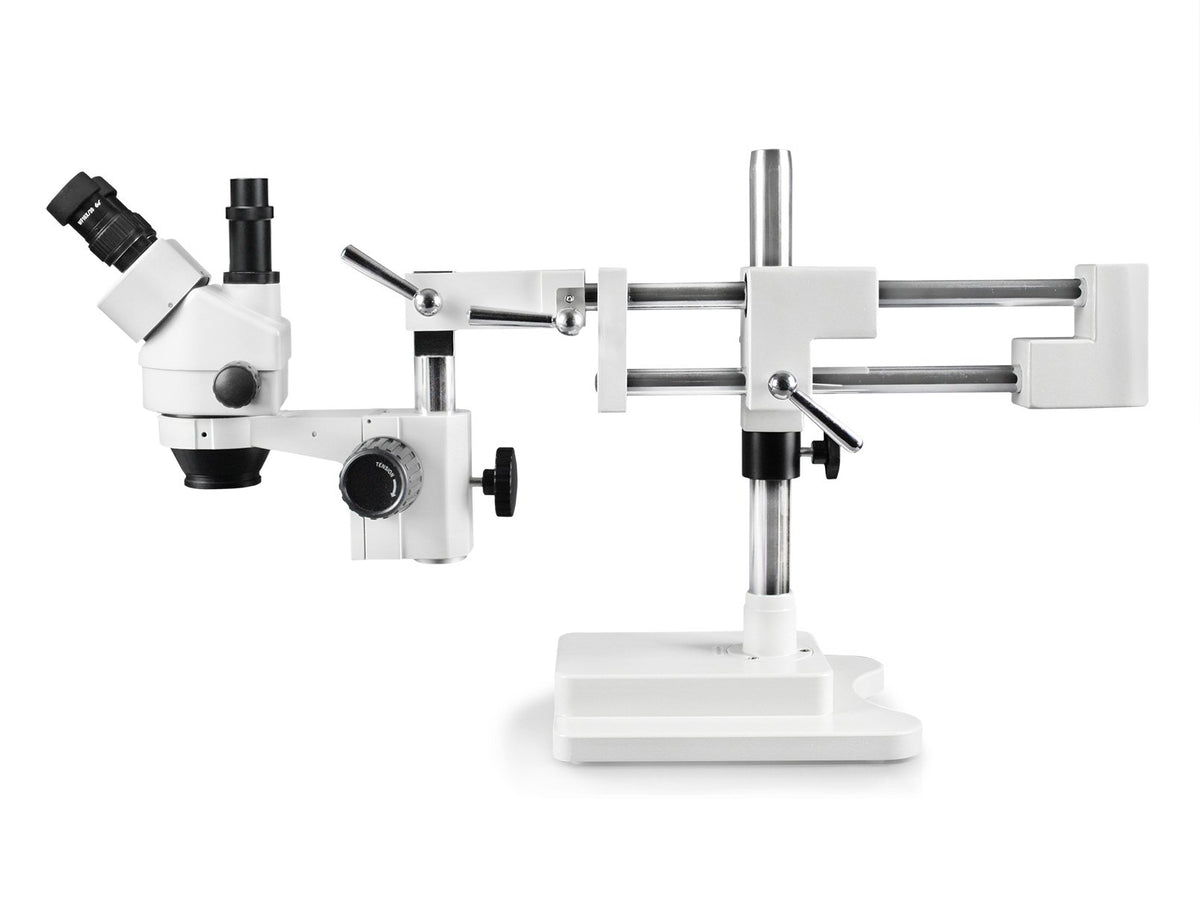

The Parco Scientific PA-5F Simul-Focal Trinocular Zoom Stereo Microscope blends precision optics with ergonomic design, making it well suited for both laboratory and industrial observation of three‑dimensional specimens and larger objects. Its 45° inclined trinocular head rotates a full 360°, promoting comfortable use from different angles, while the Simul-Focal port enables straightforward connection to a digital camera or HD display to capture or share images with ease.

Key benefits

• 360° rotation and 45° incline offer flexible viewing angles for long sessions.
• 7x–45x magnification range with parfocal optics helps maintain sharp focus across the zoom range.
• 0.7x–4.5x zoom (1:6.4) provides versatile perspective from context to detail.
• Large 65 mm field of view supports context while examining intricate features.
• Long working distance up to 8 inches vertically and 4 inches optically accommodates larger samples.

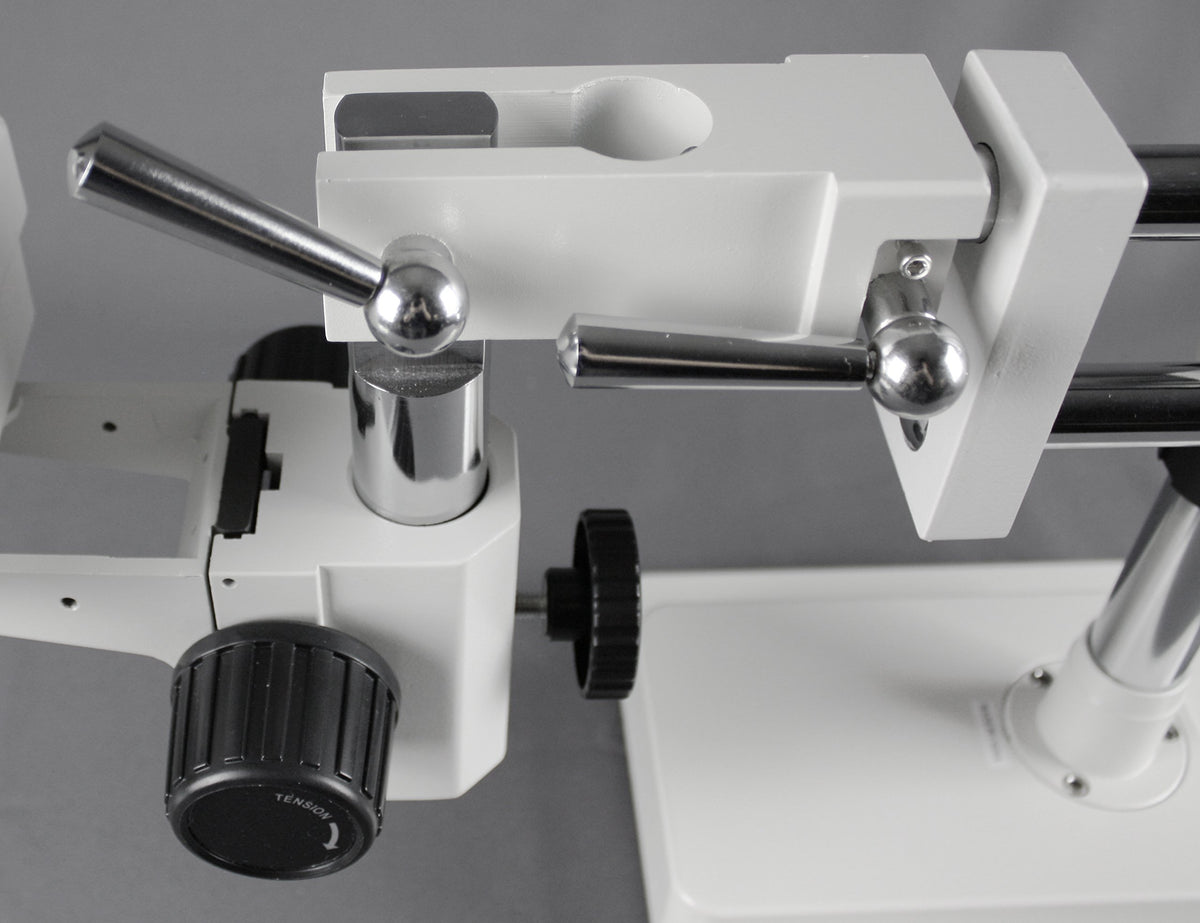

• Heavy-duty rack-and-pinion focusing with adjustable tension for smooth, controlled focusing.

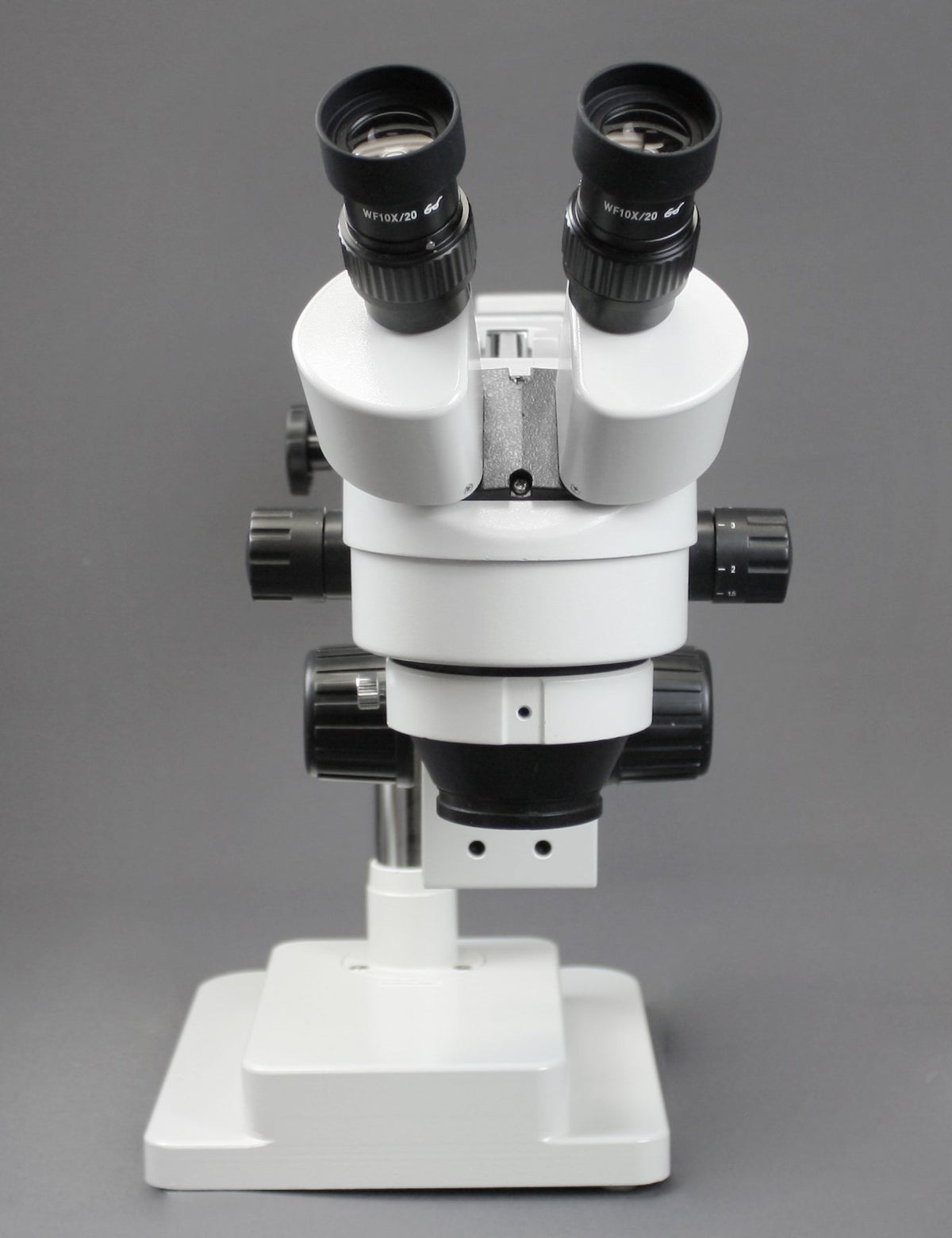

• Robust double arm boom stand with ball-bearing glide delivers stability and reach for diverse tasks.
• Interpupillary adjustment (54–76 mm) and +/-6 diopter per ocular tube tailor viewing to individual vision.
• Optional illumination and accessory options expand the system’s capabilities to fit your workflow.

What you get

• Trinocular zoom microscope head
• Pair of 10x widefield eyepieces
• Double arm boom stand
• Focusing arm
• Pair of eye guards
• Dust cover
• User manual

Specifications at a glance

• Head: Trinocular, 45° inclined, rotates 360°
• Eyepiece: 10x WF / 20 mm high eye point
• Zoom Range: 0.7x–4.5x (1:6.4)
• Magnification Range: 7x–45x
• Working Distance: Up to 8" vertical; up to 4" optical; 20" boom arm
• Focusing: Heavy-duty rack and pinion with tension adjustment
• Stand: Double arm boom stand with ball-bearing glide
• Light Source: Optional
• Warranty: 5 year limited (excluding bulbs)

Why it fits your workflow

Designed to deliver crisp imagery across a wide zoom range, the PA-5F supports both broad context and close-up inspection. The rotating head and adjustable diopters empower multiple observers to use the same instrument comfortably, while the sturdy stand and long working distance help accommodate larger samples without compromising stability. The packaging includes a dust cover and manual for straightforward setup and storage, and the optional illumination lets you adapt to varying sample types. This configuration aims to offer dependable value for labs and industry settings that value versatility and durability, without making guarantees about outcomes.
