PANMILED 14-Piece LED Backlight Strips for 75" TV

PANMILED 14-piece LED backlight strip set replaces the factory lighting in compatible 75-inch TVs to restore even screen illumination.

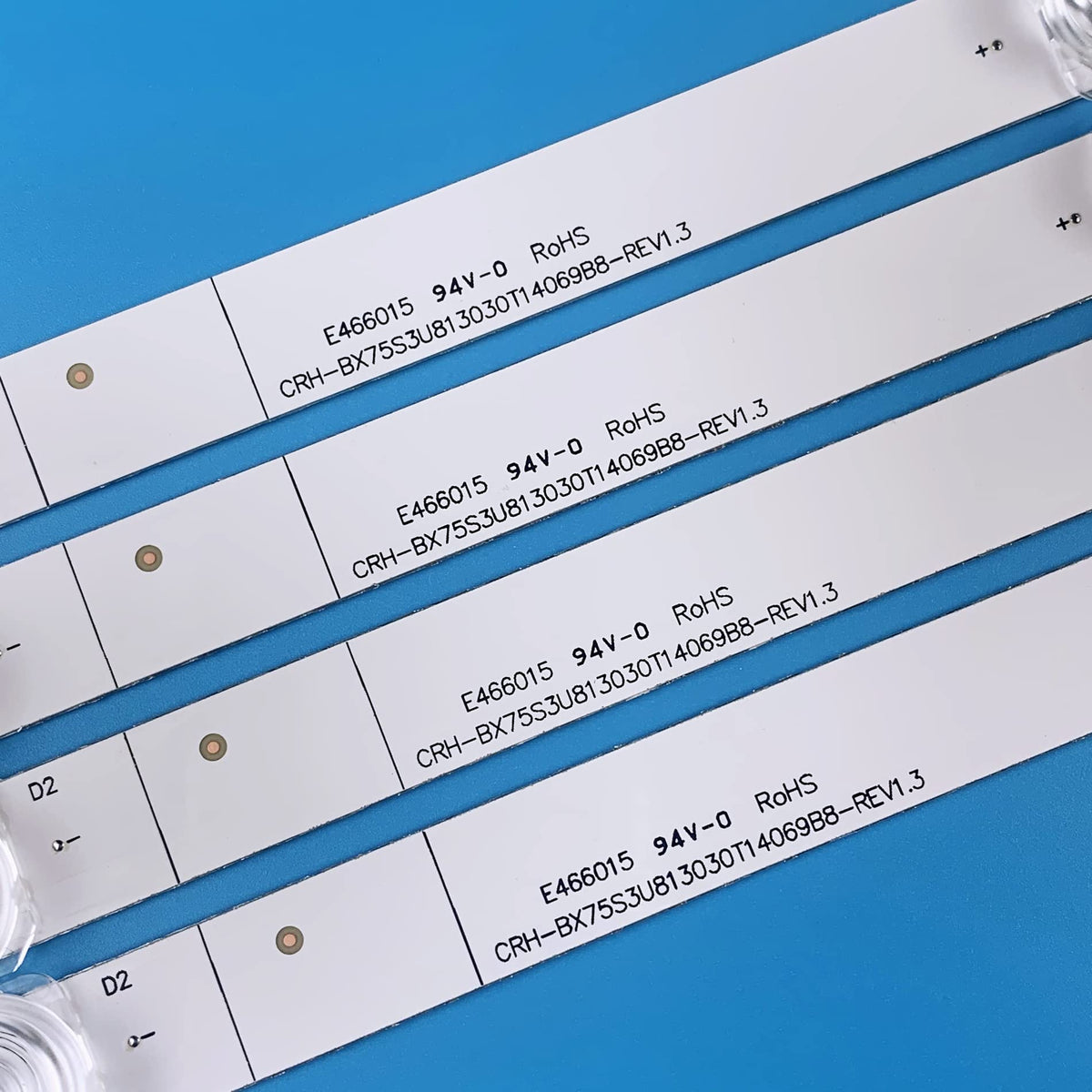

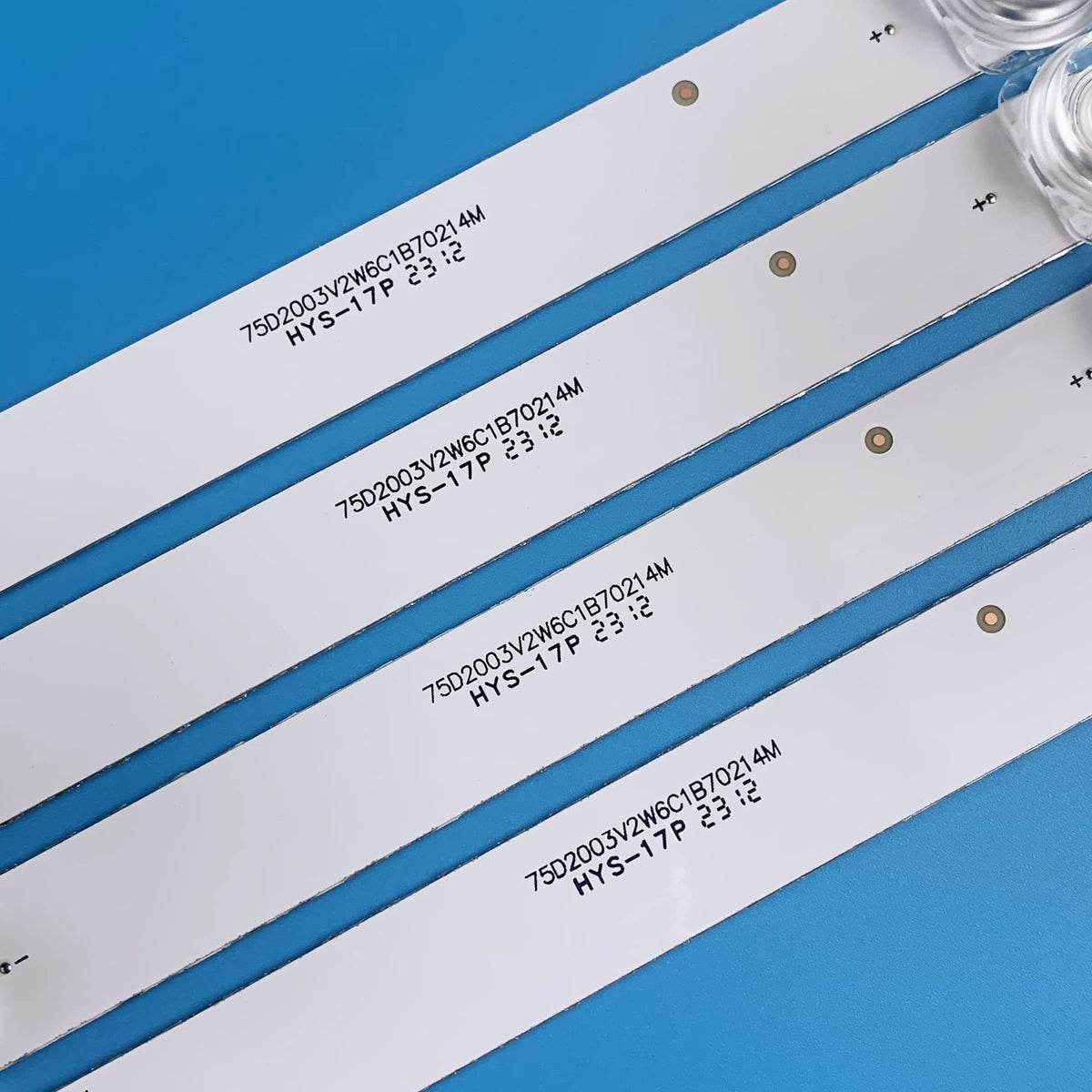

These PANMILED LED backlight strips are a direct replacement kit designed for several 75" TV models (including SVH750A76, 75A6G, 75R6E3, 75E3D, 75H78G, 75H6570G, 75H6510G, HD750S3U81-TAB1). The set includes 14 individual strips, each about 27.63 inches long and featuring six LED beads per strip. Each LED bead operates at 3V and strips arrive with double-sided adhesive backing already applied to make installation straightforward for experienced DIYers or technicians.

How do I confirm these strips match my TV before buying?

Always compare the physical layout and connector positions of your TV's existing strips with the photos and measurements of the PANMILED kit. If you can safely power on the TV and peek inside, matching the LED bead count and strip length helps prevent ordering the wrong part.

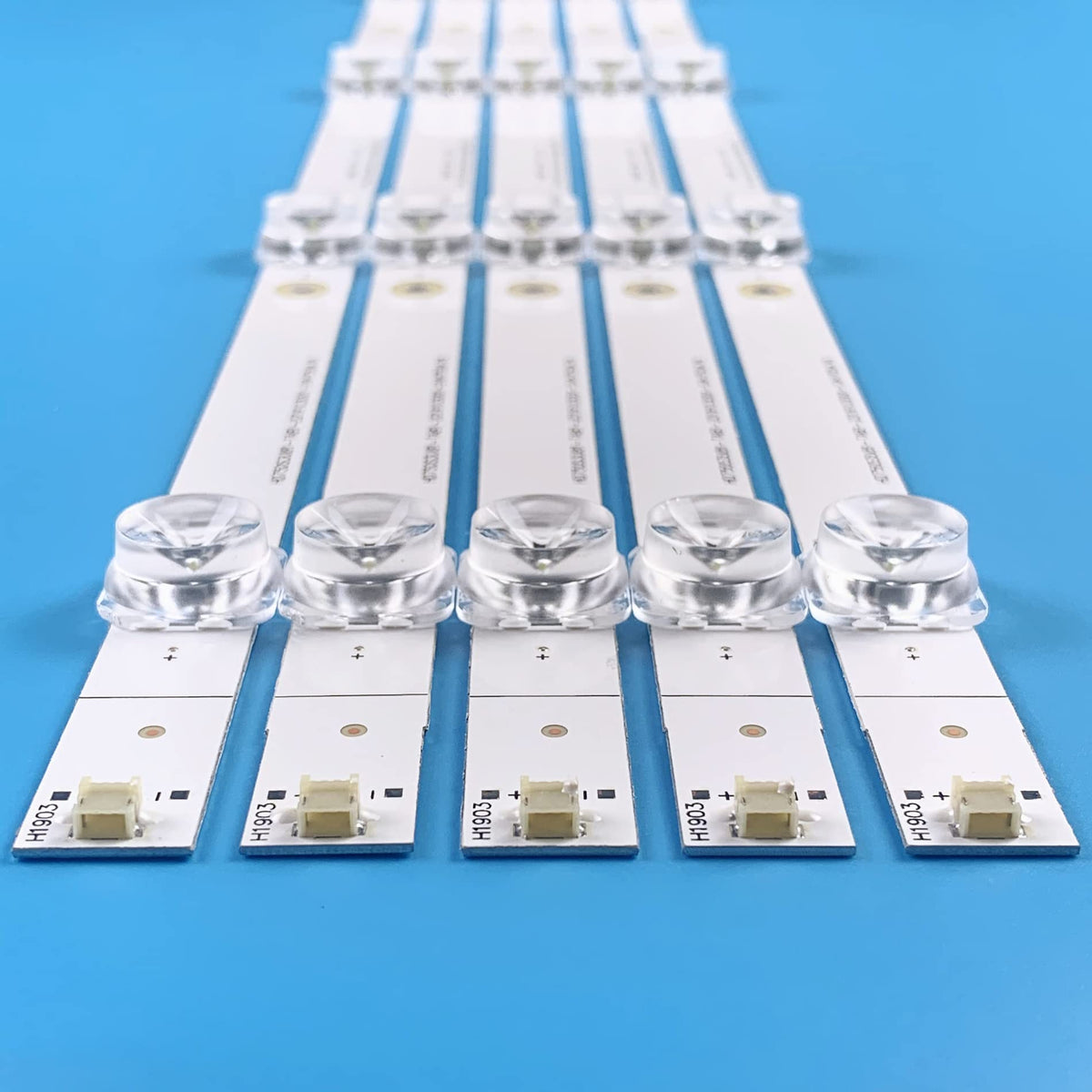

• Strip length: 27.63 inches each.

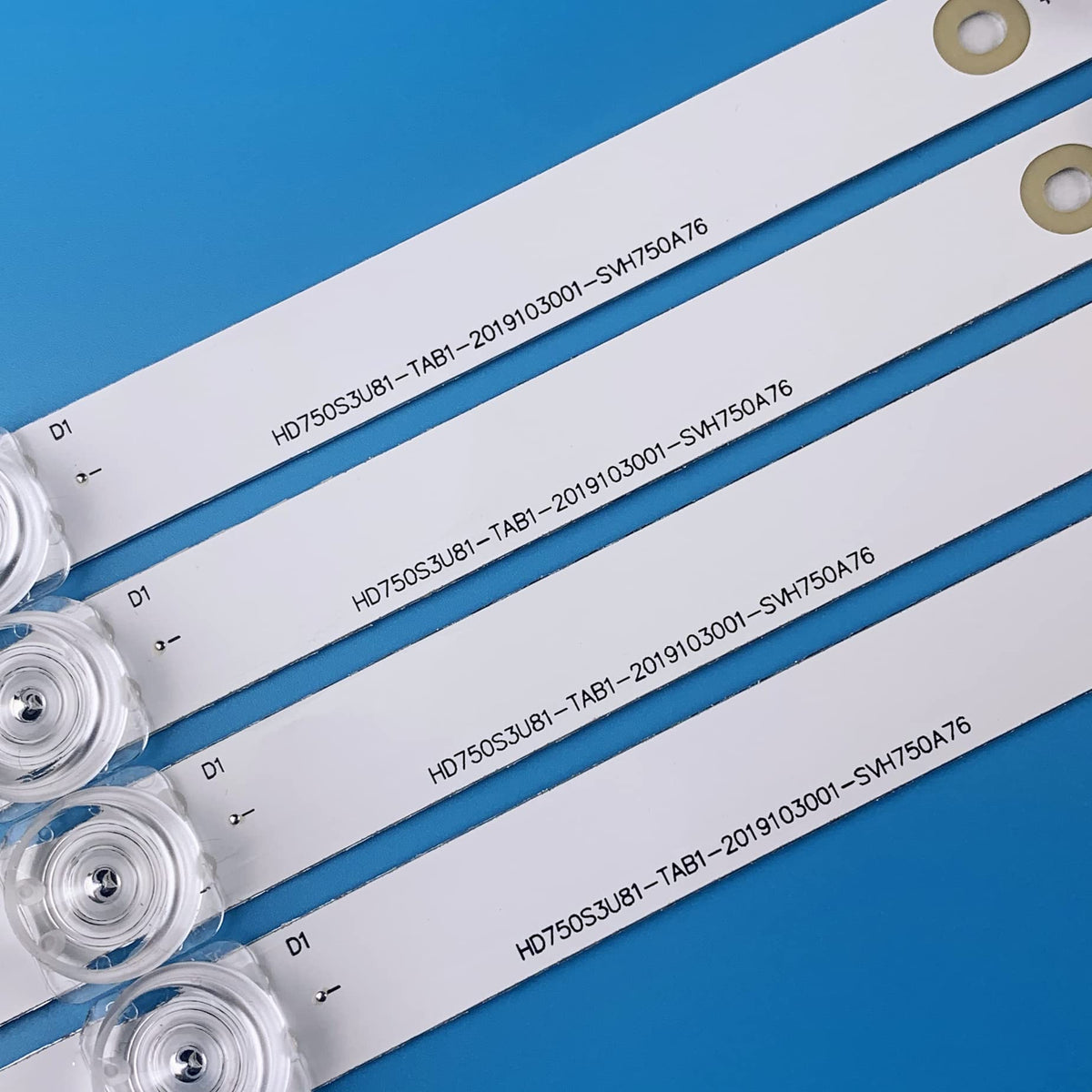

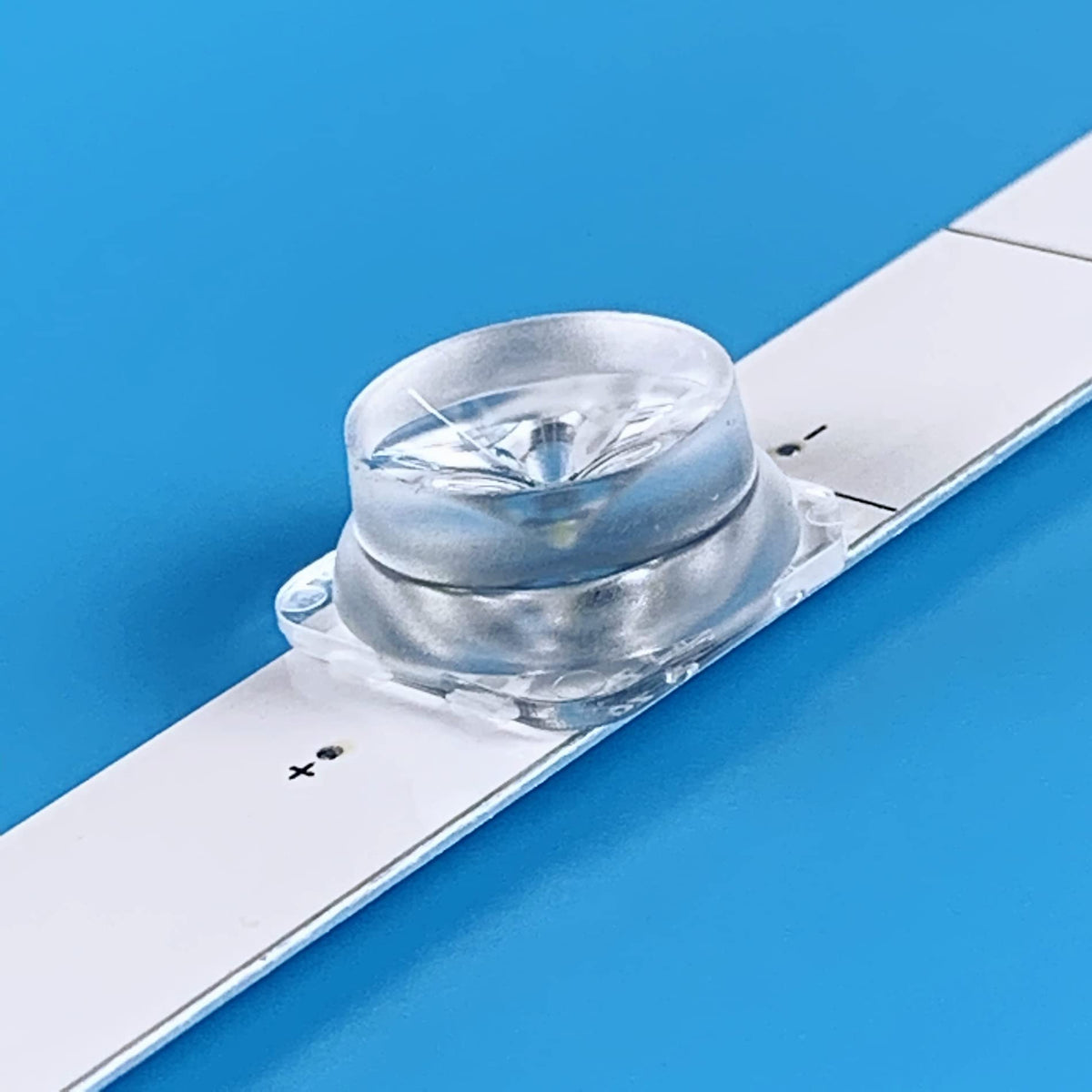

• LED beads per strip: 6 beads, 3V per bead.

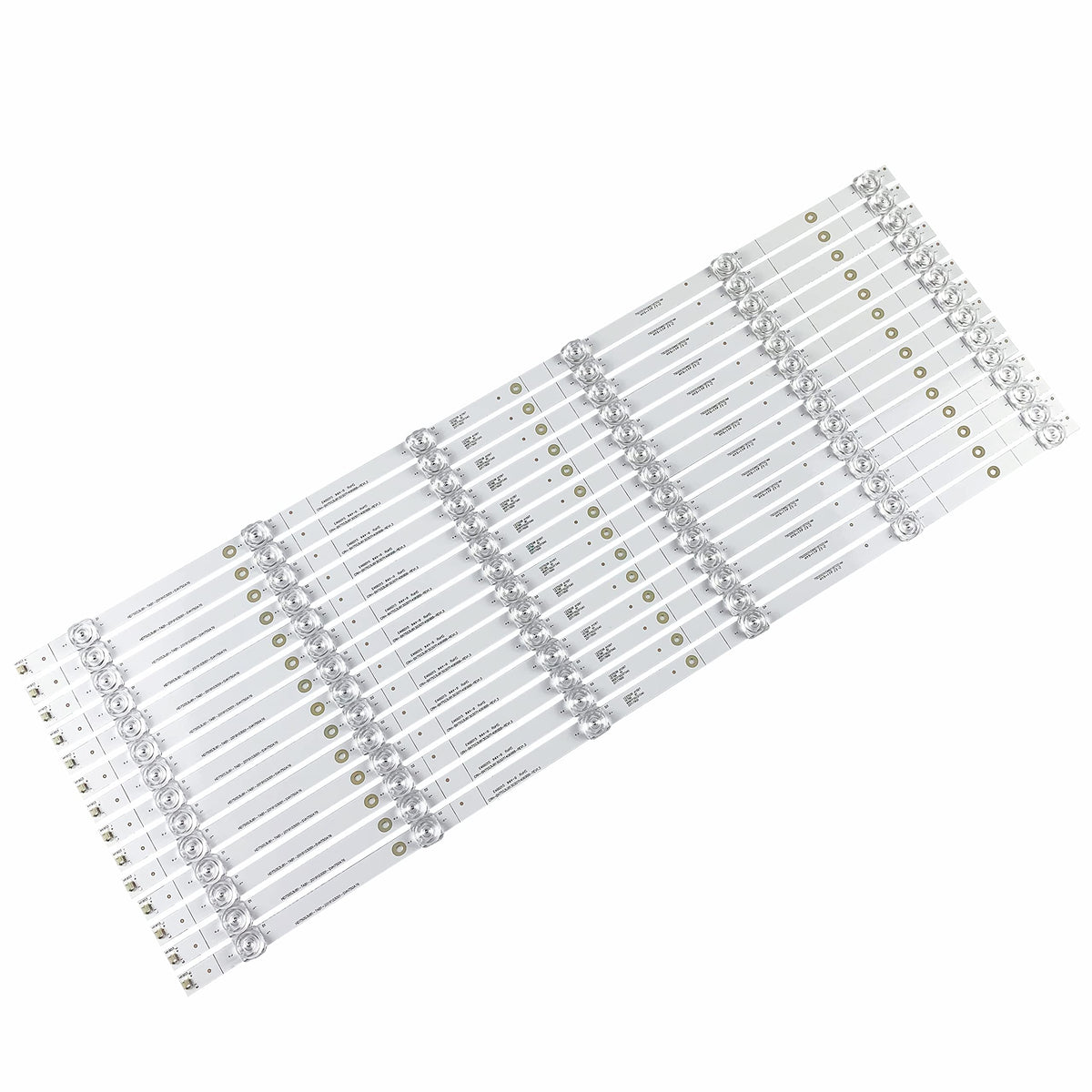

• Total pieces: 14 strips in the set.
• Check connector type and adhesive pad locations against your originals.

What tools and steps are required to replace the TV backlight strips?

Replacing backlight strips usually requires basic tools and careful handling: a screwdriver set, plastic pry tools, and static-safe workspace. Remove the TV panel and diffuser layers to expose the strips, peel off the old strips, and affix the new PANMILED strips using the factory-like double-sided adhesive.

• Tools: screwdrivers, plastic spudger, tweezers, anti-static mat.
• Work: remove bezel, detach panel, replace strips, reassemble carefully.
• Tip: photograph disassembly steps to guide reassembly.
• Safety: unplug TV and discharge capacitors before opening.

Will these LED strips restore uniform brightness and color on my screen?

When the correct strips are used and installed properly, they can bring back consistent backlighting and reduce dark patches or uneven glow. The result depends on matching strip placement, LED count, and ensuring power/connector compatibility with the TV's driver board.

• Even illumination returns when strip layout mirrors factory placement.
• Replace damaged or dim strips rather than mixing old and new for best results.
• Verify voltage and connector alignment to avoid flicker or failure.

What support and warranty come with the PANMILED kit?

PANMILED provides a 180-day after-sales guarantee and responsive customer service to address fitment or functional questions. Contact the seller with model details and photos if you need help identifying compatibility or troubleshooting installation issues.

• 180-day after-sales service from the shop.
• Customer support response typically within 24 hours.
• Instructions: compare product photos with your original strips before ordering.

Who is this for: This 14-piece PANMILED backlight strip kit is intended for technicians, experienced DIYers, and repair shops replacing the LED backlighting in specified 75" TV models. If you are comfortable opening a TV and handling small connectors and adhesive-backed strips, this kit offers a cost-effective alternative to buying a new panel or TV. If you are unsure about compatibility, use the TV’s internal photos and match bead count, strip length, and connector locations before purchasing, or contact PANMILED customer support for help.
