OSD Audio SPW-8 8-Zone Stereo Speaker Distribution Panel

The OSD Audio SPW-8 is an eight-zone stereo distribution hub that lets one stereo amplifier feed up to eight pairs of speakers with labeled, screw-down terminals for tidy, reliable whole-house audio wiring.

The SPW-8 simplifies multi-room audio installations by routing a single left/right amplifier feed to eight separate speaker outputs while preserving clean signal transfer across a wide audible frequency range. Built for custom installs, this compact module accepts standard stranded speaker wire, pairs with impedance-matching volume controls, and is rated for high-power systems so integrators and DIYers can expand coverage without complicated wiring runs.

How does the SPW-8 connect a single receiver to many rooms?

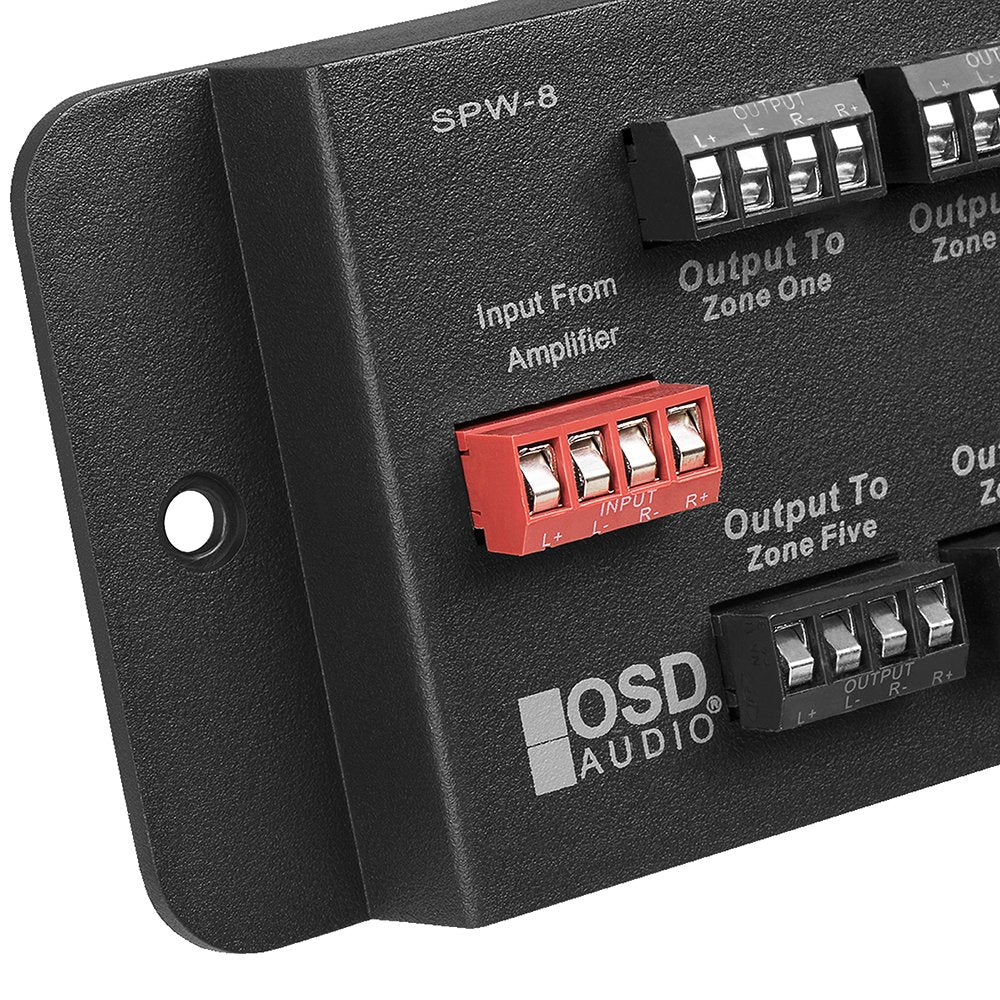

Installers attach the stereo amplifier output to the removable input connector, then run speaker pairs from each labeled output terminal to wall volume controls or speaker locations. The SPW-8’s screw-down terminals and clear labeling streamline wiring, reduce errors, and make future troubleshooting straightforward.

• Single stereo input splits to eight stereo outputs for up to eight speaker pairs.
• Removable input/output connectors speed installation and replacement.

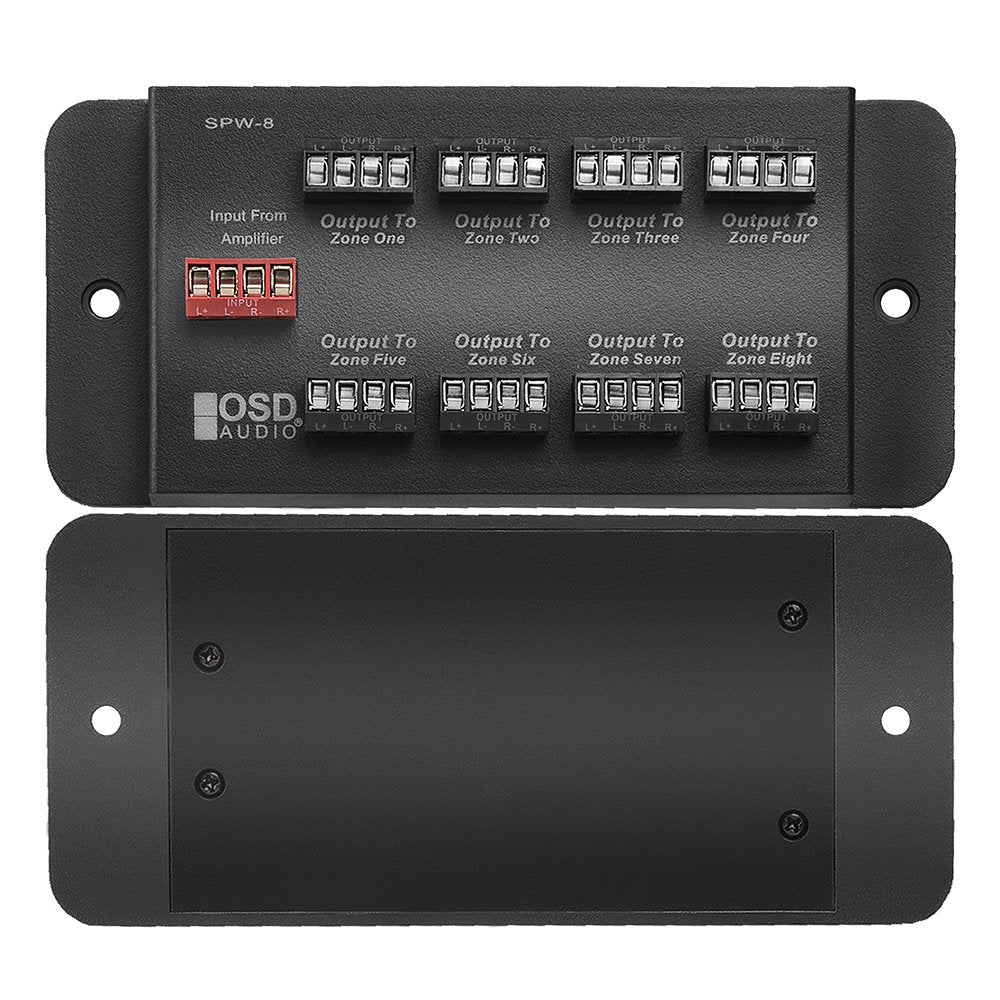

• Screw-down terminals secure 16–14 AWG stranded wire to prevent loose connections.

What power and frequency handling can I expect?

This distribution panel is specified for 150 watts RMS per channel and is compatible with amplifiers rated up to 300 watts per channel, offering headroom for high-volume use. Its broad frequency response covers the full audible band so source material remains clear and natural through distributed speakers.

• 150W RMS per channel continuous handling for dependable performance.
• Works with amplifiers up to 300W per channel when using impedance-matching controls.
• Frequency response from 20 Hz to 22 kHz to preserve bass and clarity.

Will the SPW-8 work with my existing volume controls and wiring?

The unit requires impedance-matching volume controls on each zone to keep load and amplifier stability within design limits. It accepts 16–14 AWG stranded two- or four-conductor speaker wire, so most in-wall cables used in residential and light-commercial installs are compatible.

• Designed to be used with impedance-matching volume controls per zone.
• Accepts 2- or 4-conductor stranded wire, 16 AWG to 14 AWG, for common speaker cables.

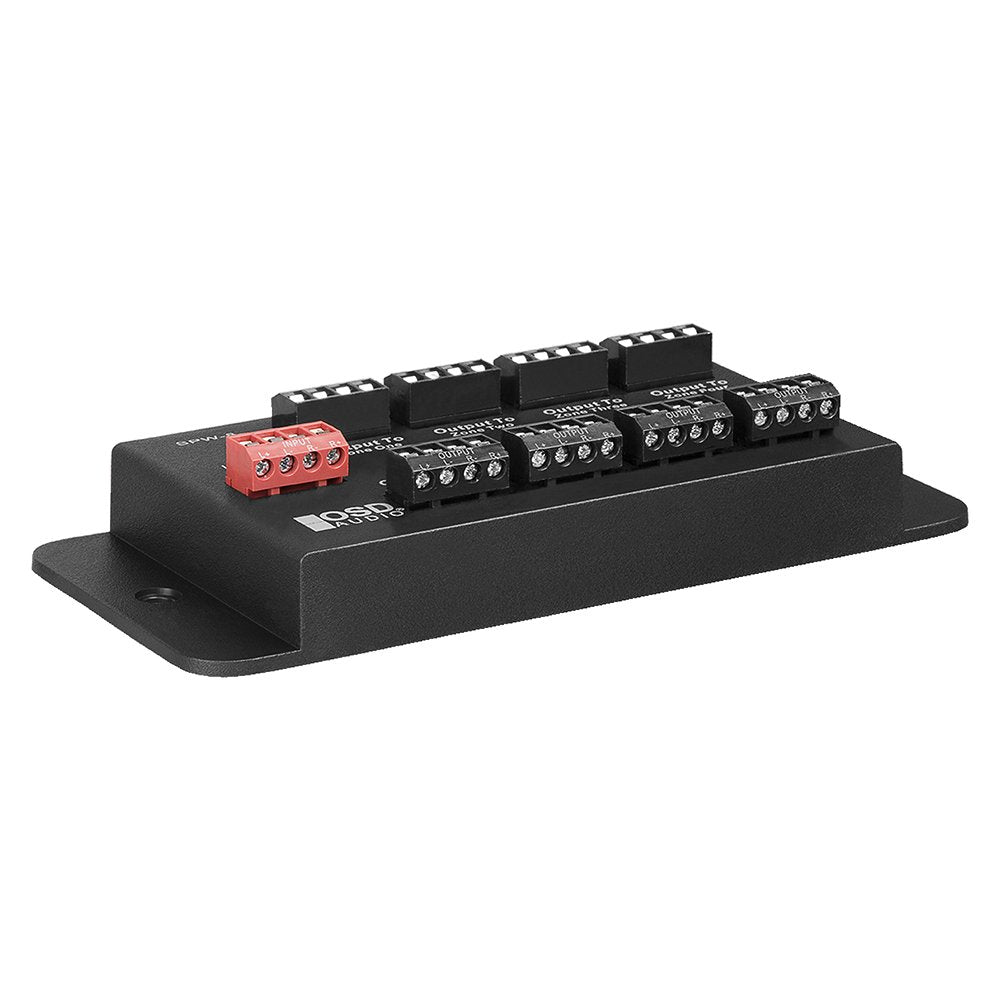

• Compact footprint fits structured wiring cabinets and AV racks easily.

How does the SPW-8 help during installation and maintenance?

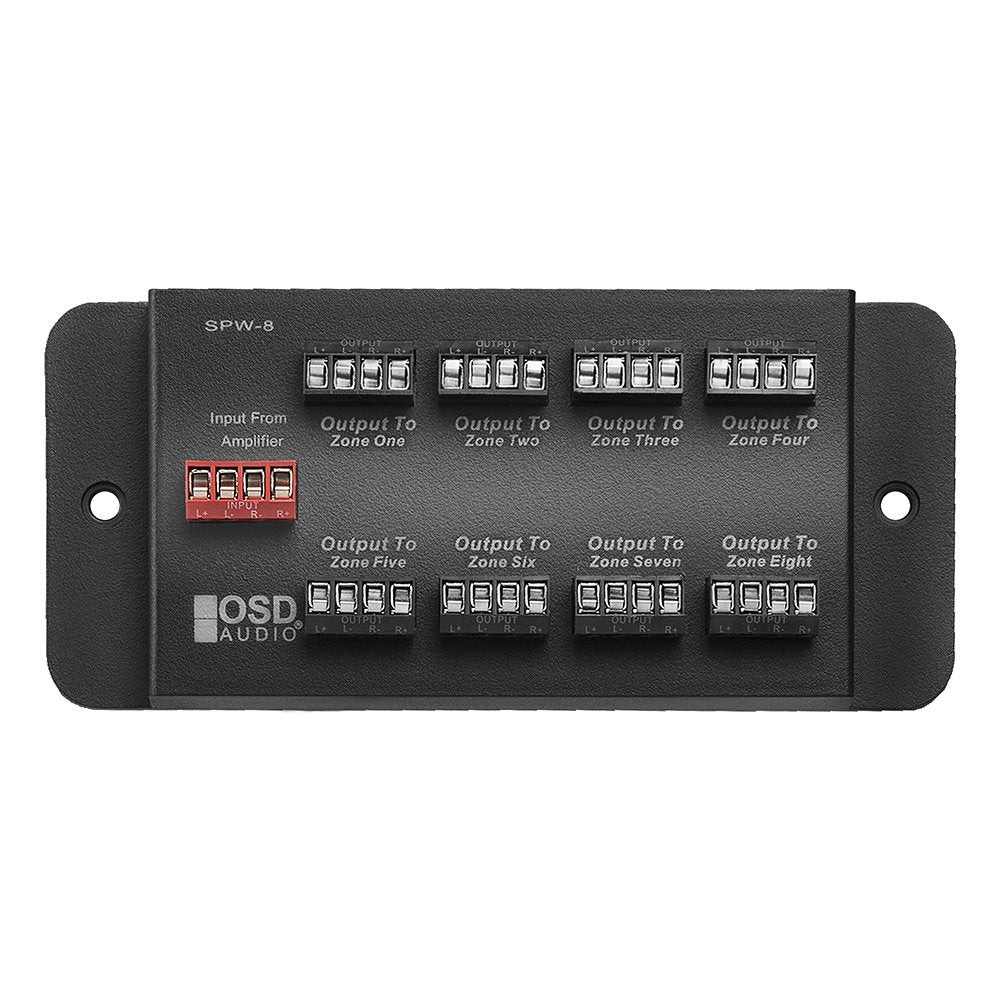

• Clear zone labeling speeds identification and troubleshooting.
• Removable connectors permit quick replacement or bench testing of the module.
• Small dimensions (3.4" x 1.7" x 7") fit behind panels or inside cabinets for tidy installations.

Who is this for? The OSD Audio SPW-8 is aimed at installers, integrators, and advanced DIYers building multi-room audio systems who need a reliable, high-power distribution solution. It’s well suited for whole-house audio, restaurants, offices, or any environment where a single stereo source must feed multiple controlled listening zones while maintaining signal integrity and serviceability.
