OSD Audio SLS100 100W In-Wall Slider Volume Control

The SLS100 from OSD Audio is a low-profile, white wall-mounted volume control engineered for homeowners and installers who want neat, reliable control over distributed audio. It combines 100 watts of peak handling with an impedance protection circuit and a 12-step linear slider for smooth adjustments. The unit fits standard wall boxes, accepts up to 14-gauge wire, and includes trim plates and mounting screws, making it straightforward to integrate into fresh builds or retrofit projects.

How does the SLS100 protect my amplifier when wiring multiple speakers?

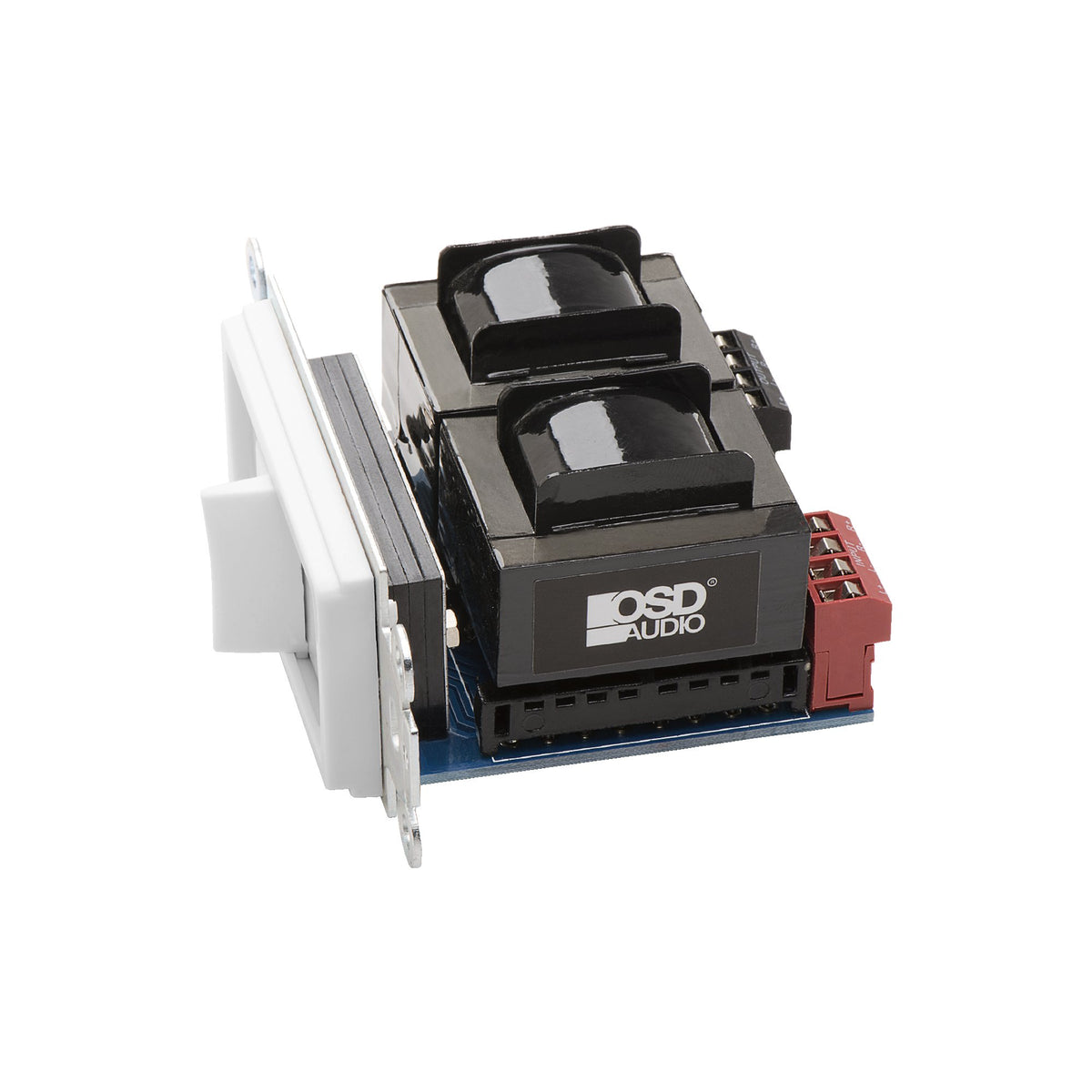

The SLS100 includes an impedance-matching feature that helps stabilize the overall ohm load seen by your amplifier when multiple speakers are connected in parallel. This minimizes the risk of amplifier overheating or damage caused by too-low impedance. Installers can select jumper settings to manage speaker pairs and match the amplifier’s capabilities.

• Built-in impedance protection to balance load going back to the amp
• Adjustable jumpers allow support for up to eight pairs of 8 Ω speakers depending on amp capacity
• Reduces strain on receivers and power amplifiers in distributed systems

What kind of volume control and sound quality should I expect?

The SLS100 uses a 12-step linear slider for accurate, audible-free adjustments across a broad listening range. Its precision electronics aim for low distortion and a flat frequency response so that tonal balance remains consistent at different volume settings. During setup, set your source to the desired operating level, then use the wall control to reduce audio to near-silent output when needed.

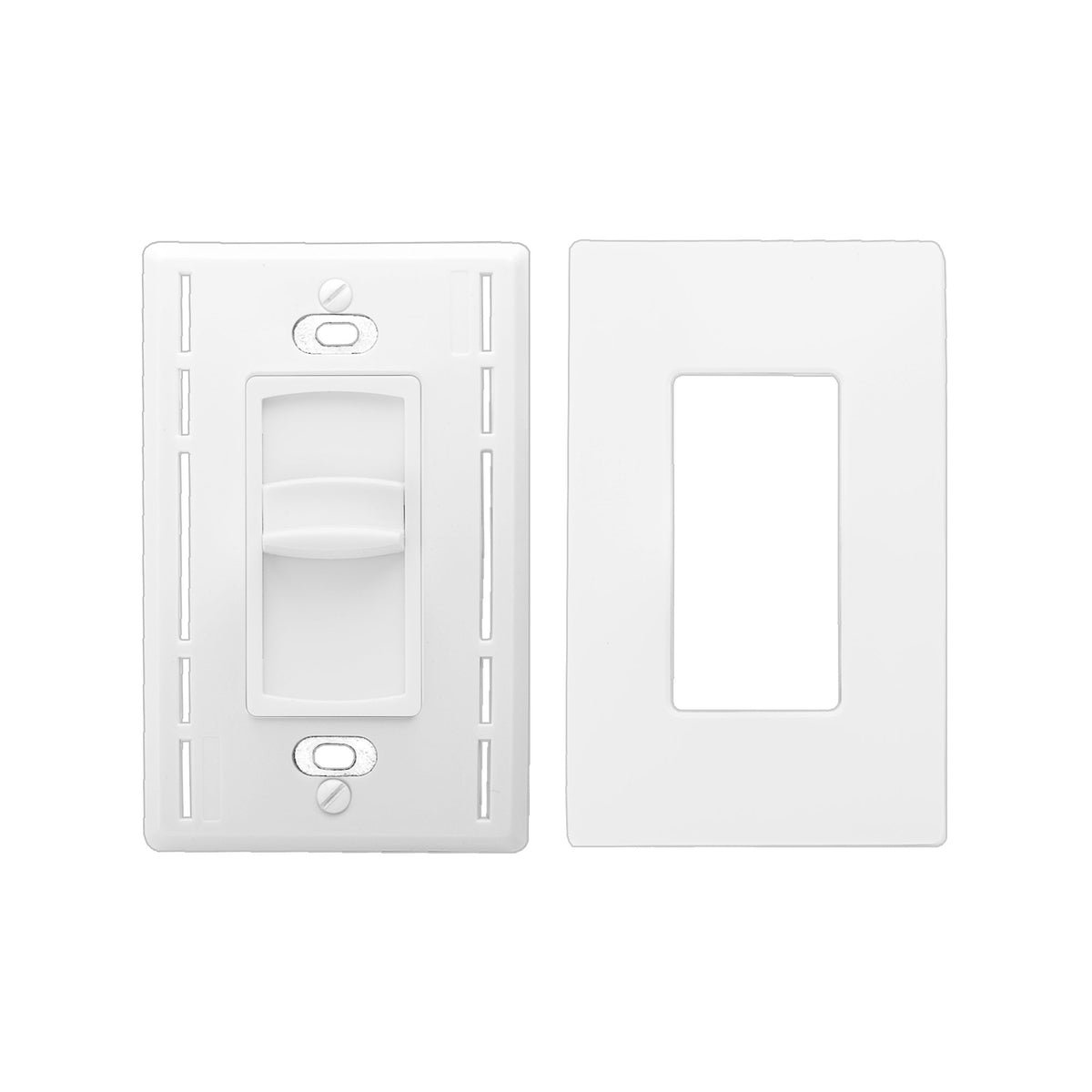

• 12-step linear slider knob for smooth, pop-free control
• Low distortion circuitry for cleaner playback at varied volumes
• Wide range of usable listening levels without tonal shift

What installation features and hardware are included?

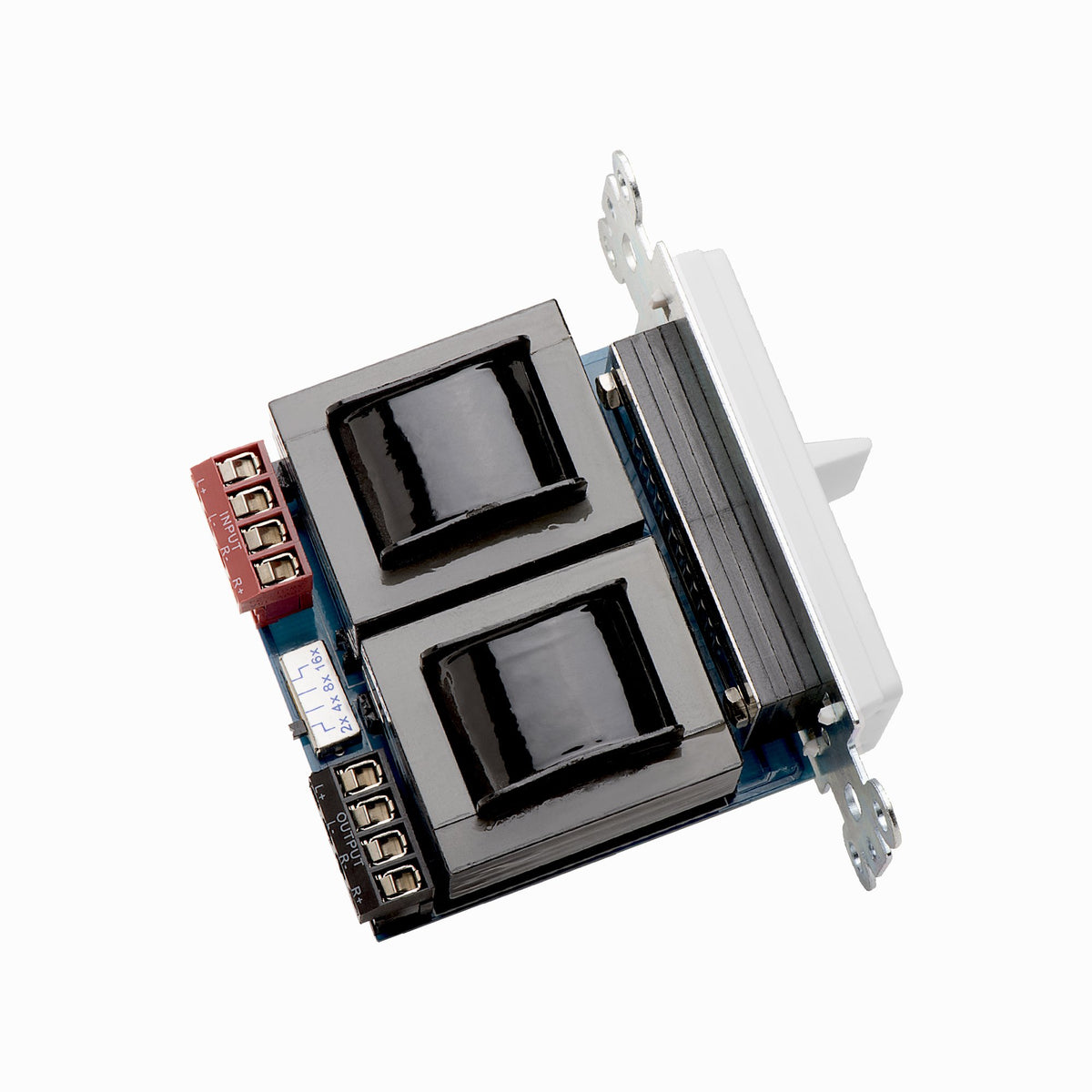

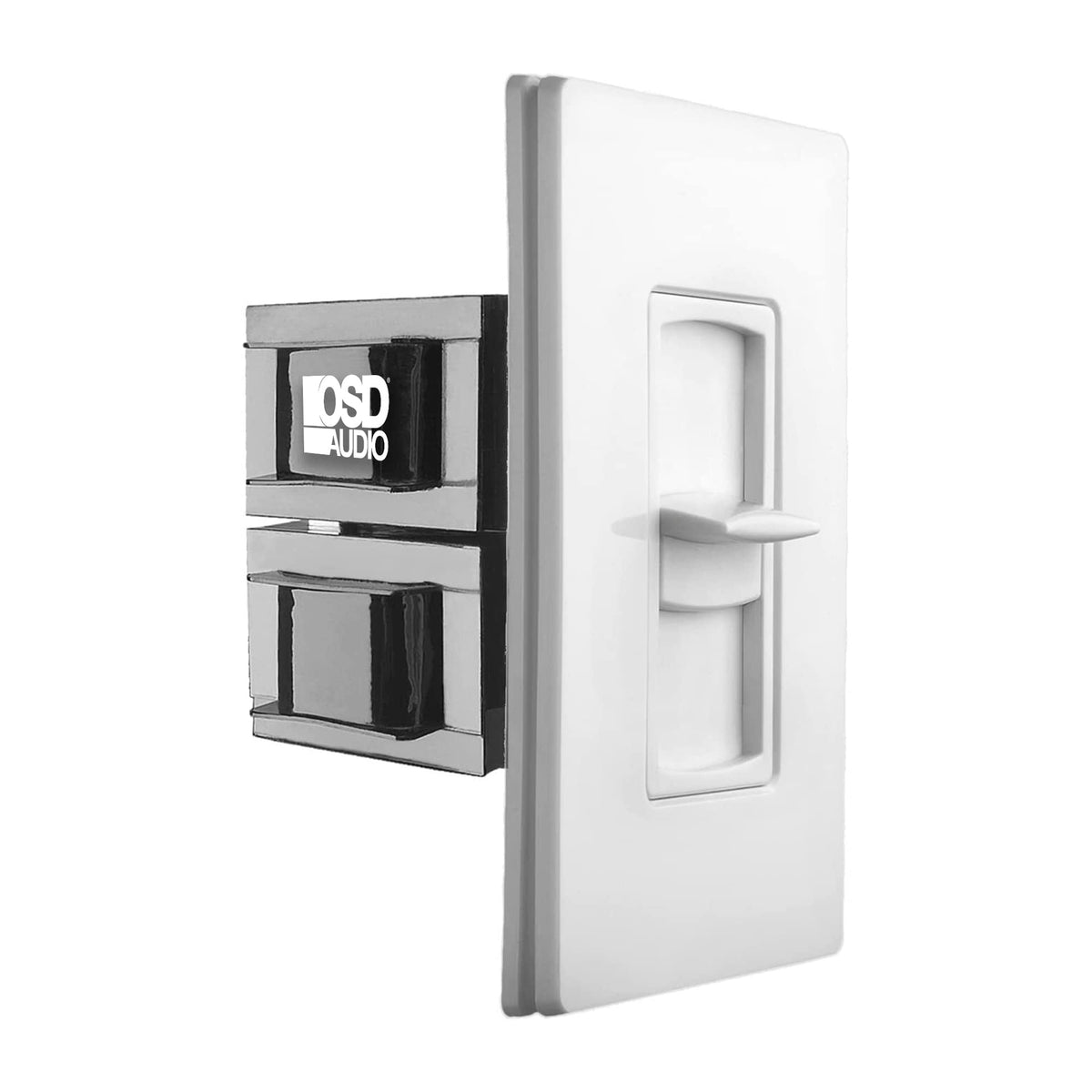

The SLS100 is designed to be installer-friendly: it fits standard electrical boxes, accepts 14-gauge speaker wire, and ships with mounting screws and decorative trim plates for a finished look. Its minimalist white finish blends with most décors and audio zones, while internal jumpers let you configure impedance matching during setup. The faceplate and slider maintain a low-profile appearance suitable for whole-house systems.

• Fits standard wall boxes and accepts up to 14 AWG wiring
• Includes screws and trim plates for tidy installation
• Minimalist white design for unobtrusive in-room appearance

What is the power rating and speaker support of the SLS100?

The control is rated for 100 watts peak and engineered to minimize bass roll-off so that low frequencies remain balanced. Depending on amplifier headroom and jumper configuration, the SLS100 can be configured to work with multiple speaker pairs in parallel, making it suited for distributed audio setups. Always match the load recommendations to your amplifier’s specifications to avoid overload.

• 100 watts peak power handling with minimal bass roll-off
• Configurable jumper settings for multiple speaker pairs
• Ideal for dedicated audio zones and distributed speaker systems

Who is this for: The OSD Audio SLS100 is aimed at homeowners, custom installers, and AV professionals who need a compact, reliable wall-mounted volume control for whole-house or multi-room audio. It suits new construction and retrofit projects where impedance protection, clean volume control, and an unobtrusive aesthetic are priorities.
