OSD Audio 8" In-Wall Subwoofer IWS8 150W

The OSD Audio IWS8 is an 8-inch in-wall passive subwoofer that delivers deep low-frequency extension with a slim, paintable grille for a discreet, room-saving bass solution.

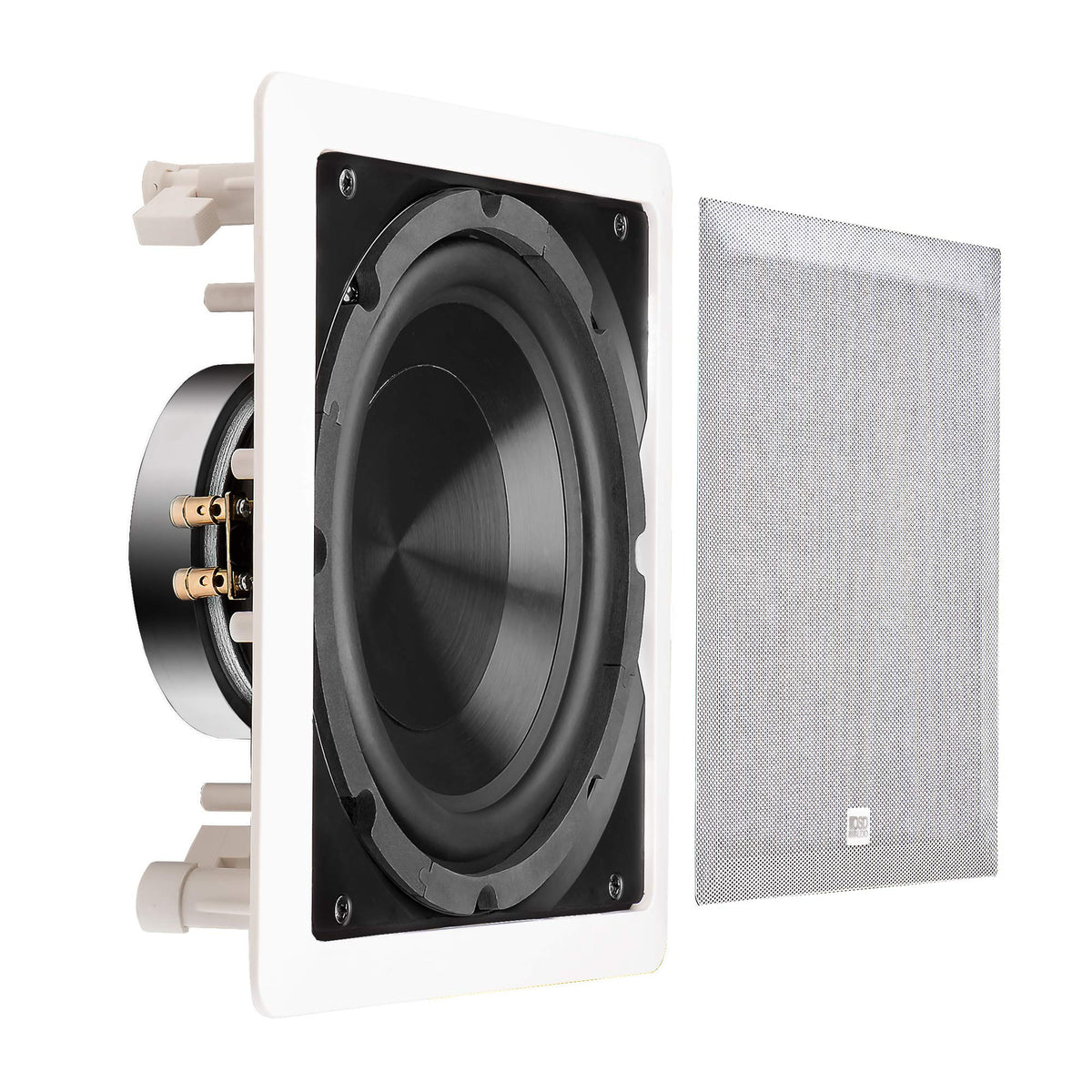

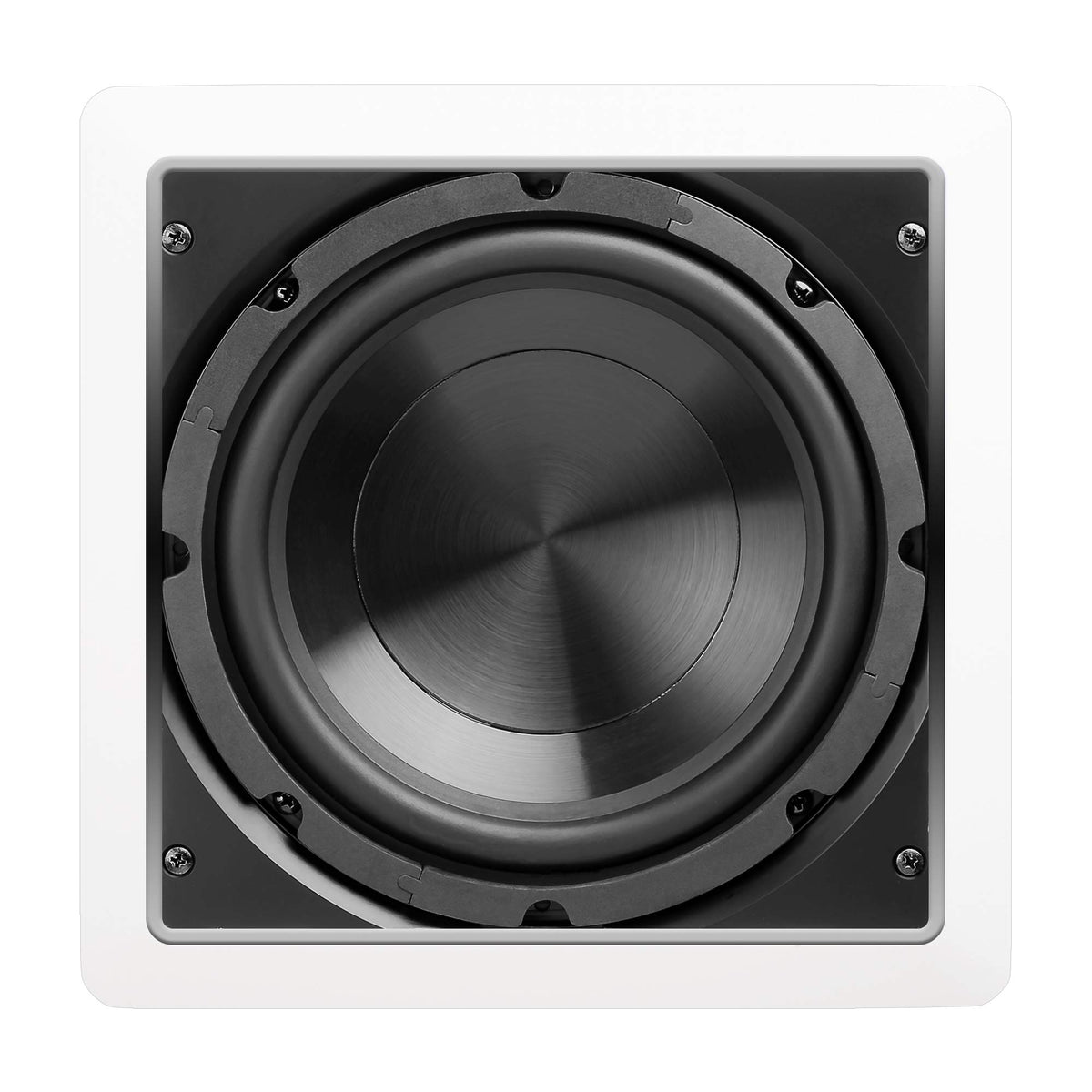

The IWS8 brings powerful, low-end impact into home theater and music systems without taking up floor or shelf space. Built with an 8" polypropylene driver, butyl rubber surround, and an integrated rear dust shield, this in-wall driver is designed for reliable performance and clean installation. Because it is a passive subwoofer, it pairs with an external subwoofer amplifier (OSD recommends the SMP200) so you can match power and crossover settings to your room and system preferences.

How much bass can this in-wall subwoofer deliver?

The IWS8 is rated for 150 watts handling and reproduces extended low frequencies that reinforce movie effects and the lower range of music. Its polypropylene cone and butyl surround are tuned to provide authoritative, controlled bass rather than boomy, uncontrolled rumble.

• 8-inch driver optimized for low-frequency output
• 150 watts nominal power handling for solid dynamics
• Butyl rubber surround for tighter cone control
• Rear dust shield to reduce turbulence and improve clarity

What does installation look like, and how discreet is the design?

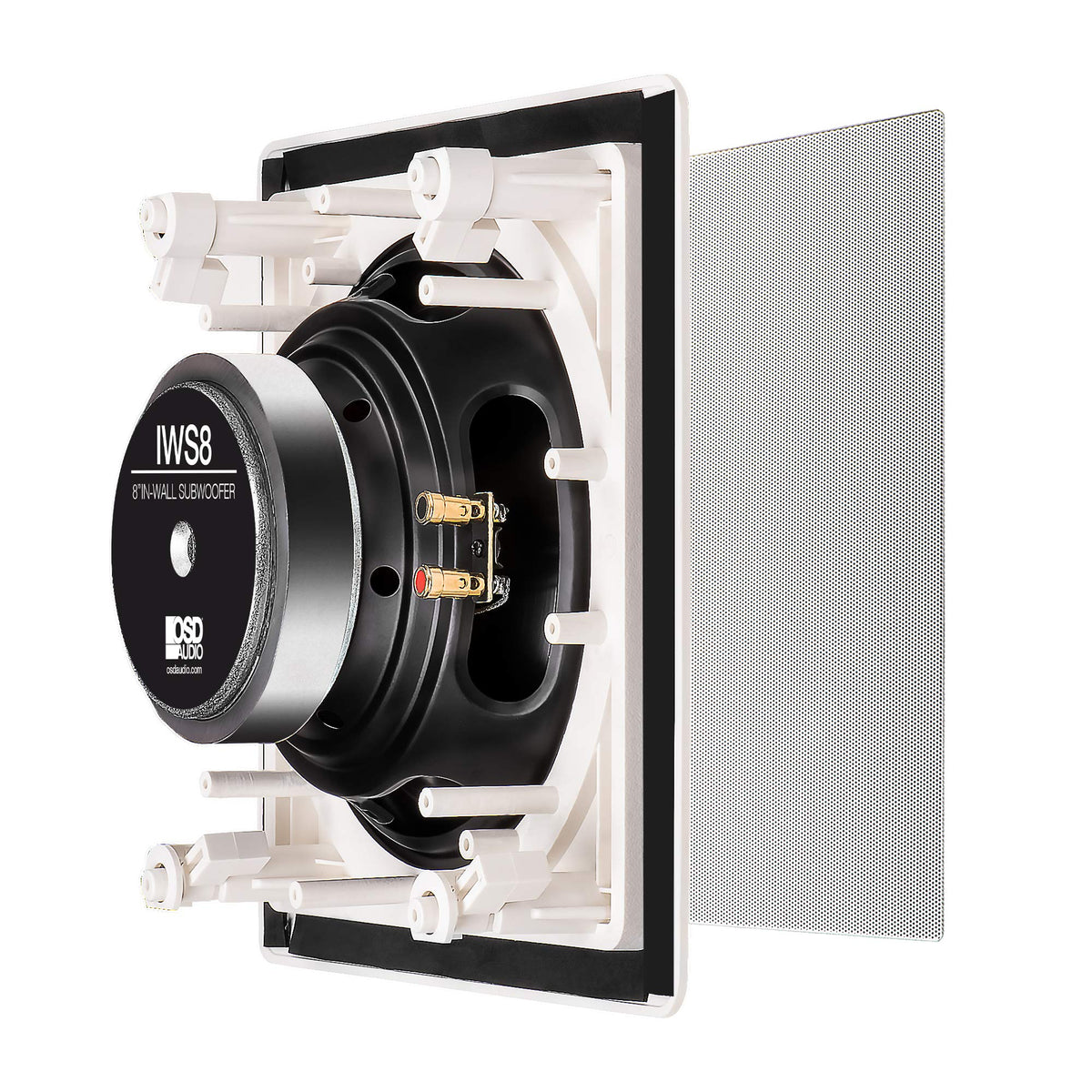

The IWS8 installs flush into standard drywall using a dog-ear bracket system that secures to the sheetrock from behind. The frame and grille are paintable, letting the speaker blend into walls and ceilings for an unobtrusive appearance that won’t alter your room layout.

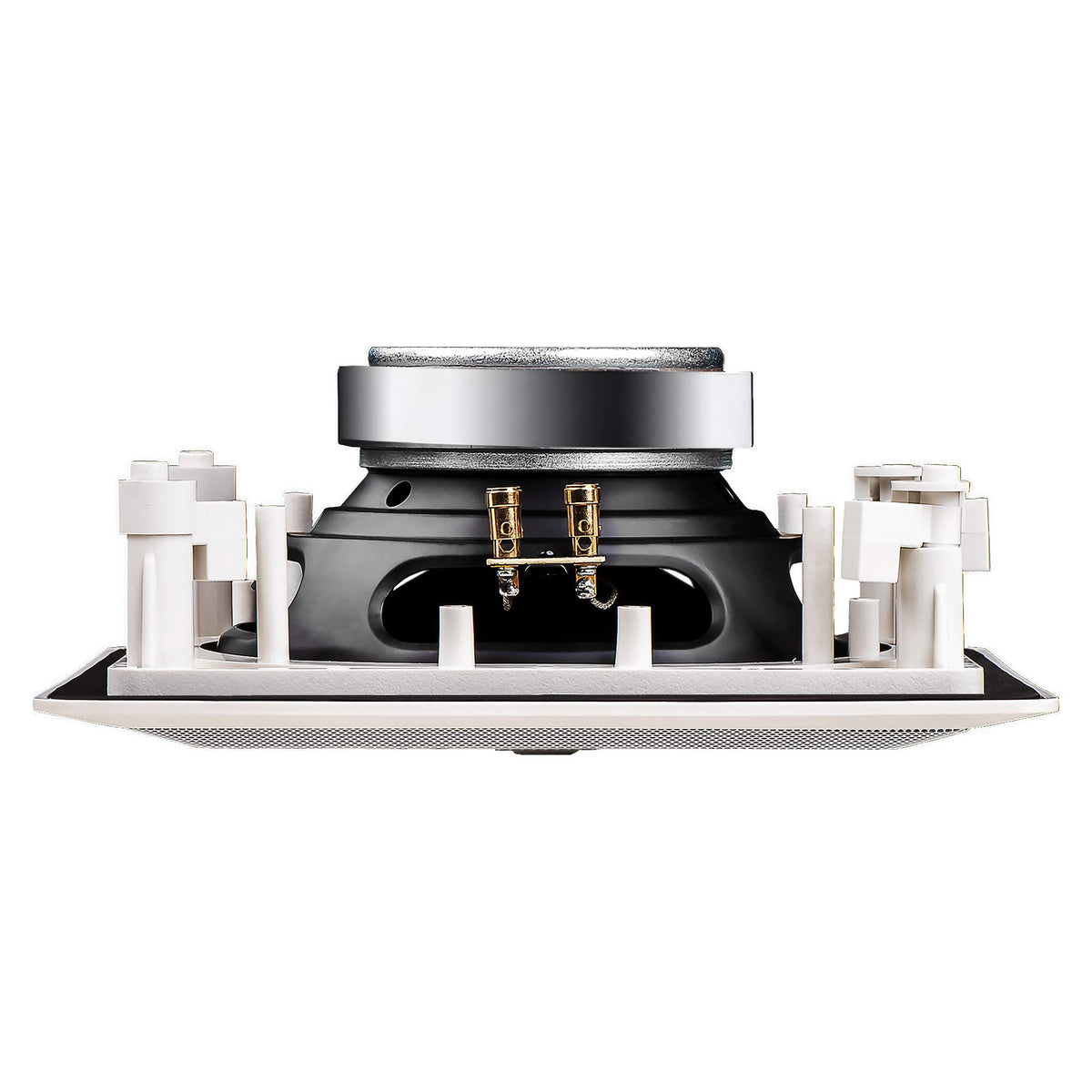

• Low-profile mounting depth for common wall cavities
• Dog-ear brackets secure the unit without external trim

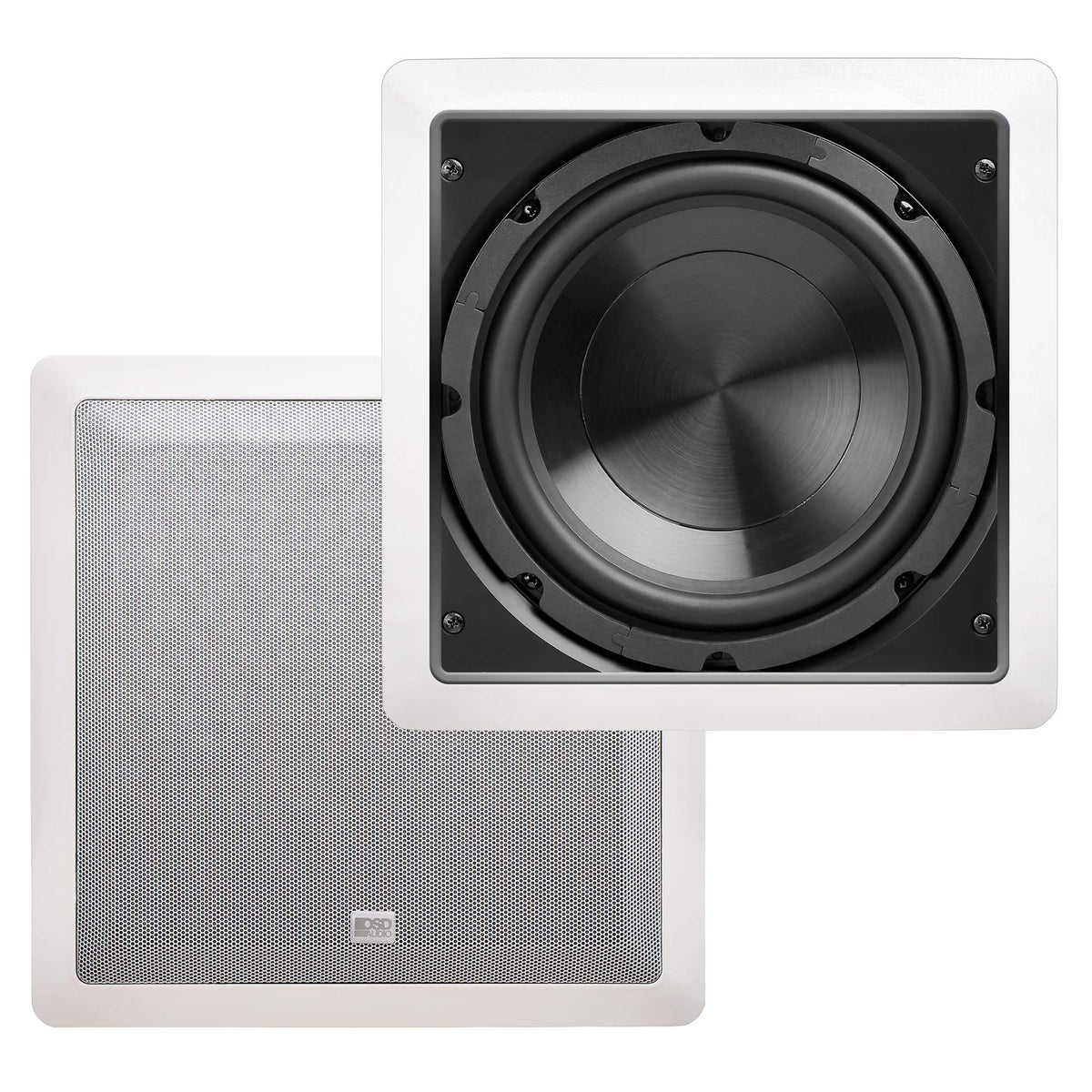

• Paintable grille and frame for visual integration
• Flush-mounted aesthetic preserves room design

Do I need an amplifier or crossover to use it?

Yes — the IWS8 is a passive subwoofer and requires an external subwoofer amplifier. Pairing it with a dedicated amp like the OSD SMP200 lets you set the gain and crossover frequency optimally for your seating position and main speakers.

• Passive design requires separate subwoofer amplifier
• Recommended partner: OSD SMP200 200W class D amplifier
• External crossover control allows room-tuning and blending
• Amplifier choice affects headroom and low-frequency extension

How does the IWS8 improve my home theater or music system?

By filling in the missing low-frequency energy, the IWS8 increases impact, sense of scale, and realism in both films and music. Properly placed and powered, it reduces strain on main speakers so they perform more transparently for mids and highs.

• Restores bass content that small speakers can’t reproduce
• Provides tactile low-end for movie effects and rhythm instruments
• Allows main speakers to focus on mid/high clarity
• Produces room-filling bass without floor-standing speakers

Who is this for: The OSD Audio IWS8 is aimed at homeowners, installers, and DIYers who want high-quality low-frequency performance without visible freestanding subwoofers. It suits compact living rooms, dedicated home theaters, multi-room audio systems, and renovation projects where preserving floor space and a clean aesthetic are priorities. If you have an external sub amp or plan to add one, and you want controlled, room-friendly bass that integrates seamlessly into wall surfaces, the IWS8 is a practical choice.
