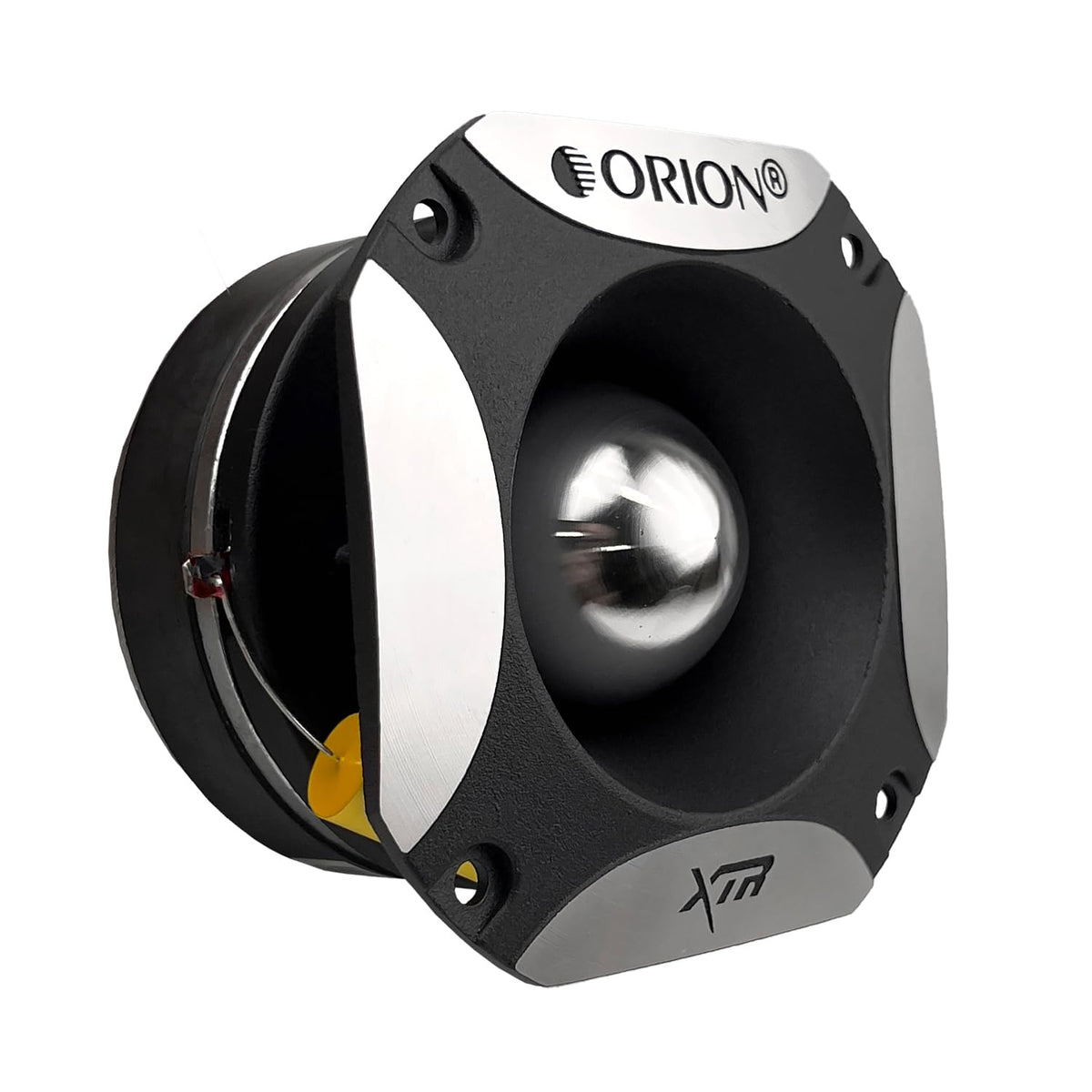

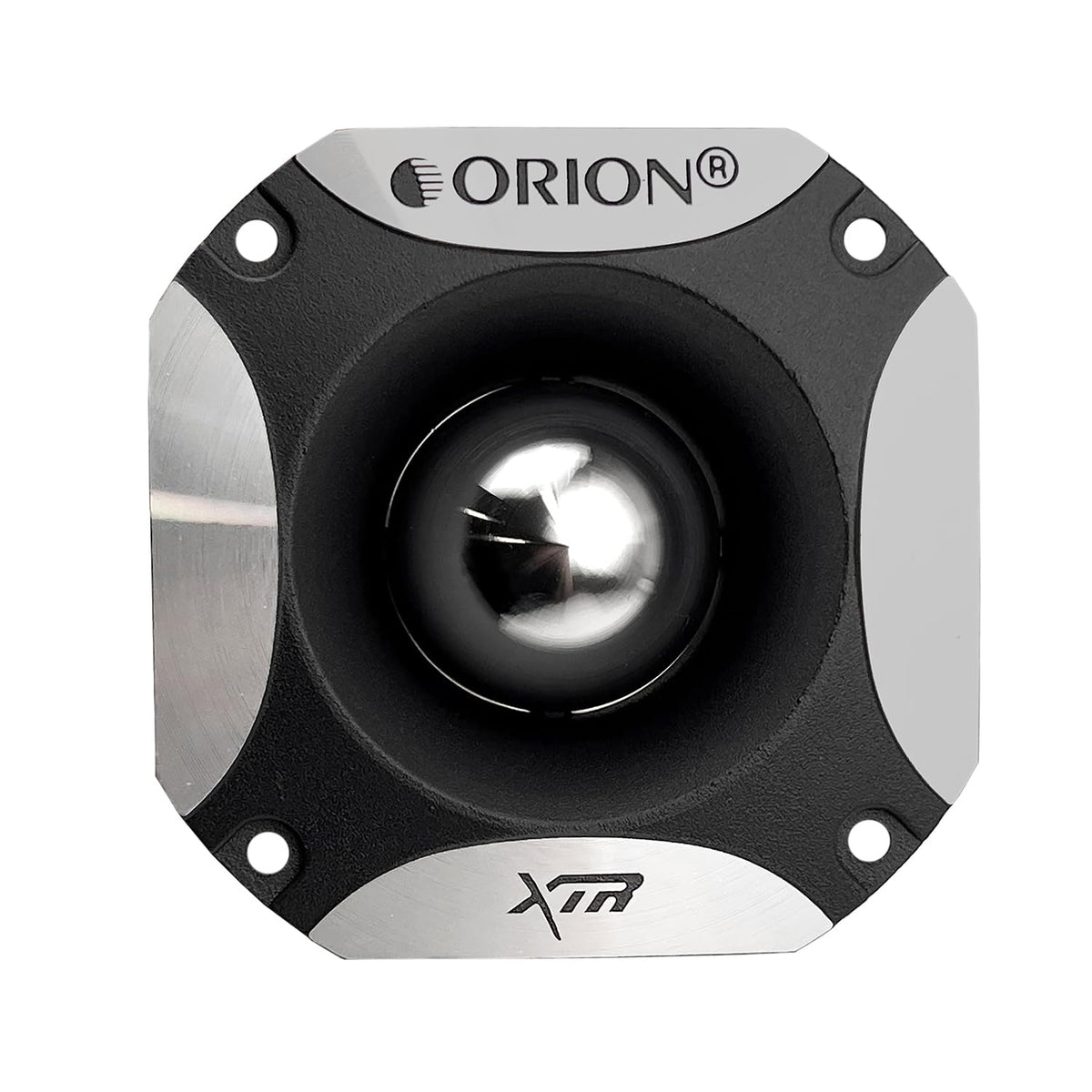

ORION XTW750FD 4.5" Super Tweeter 140W RMS

The ORION XTR Series XTW750FD is a 4.5" super tweeter built for loud, detailed high frequencies with an aluminum diaphragm, 1.75" voice coil and a 140W RMS rating.

Designed to extend and refine the top end of car audio systems, the XTW750FD focuses on clear, articulate highs from 1.5 kHz up to 25 kHz. It blends a lightweight aluminum diaphragm and a large 1.75" voice coil to handle power and transient detail while a built-in crossover simplifies integration into existing speaker setups. Sold individually, this high-sensitivity tweeter (109.9 dB) operates at 4 ohms and accepts up to 560W peak power for dynamic peaks.

How does the XTW750FD improve clarity and detail in my car audio?

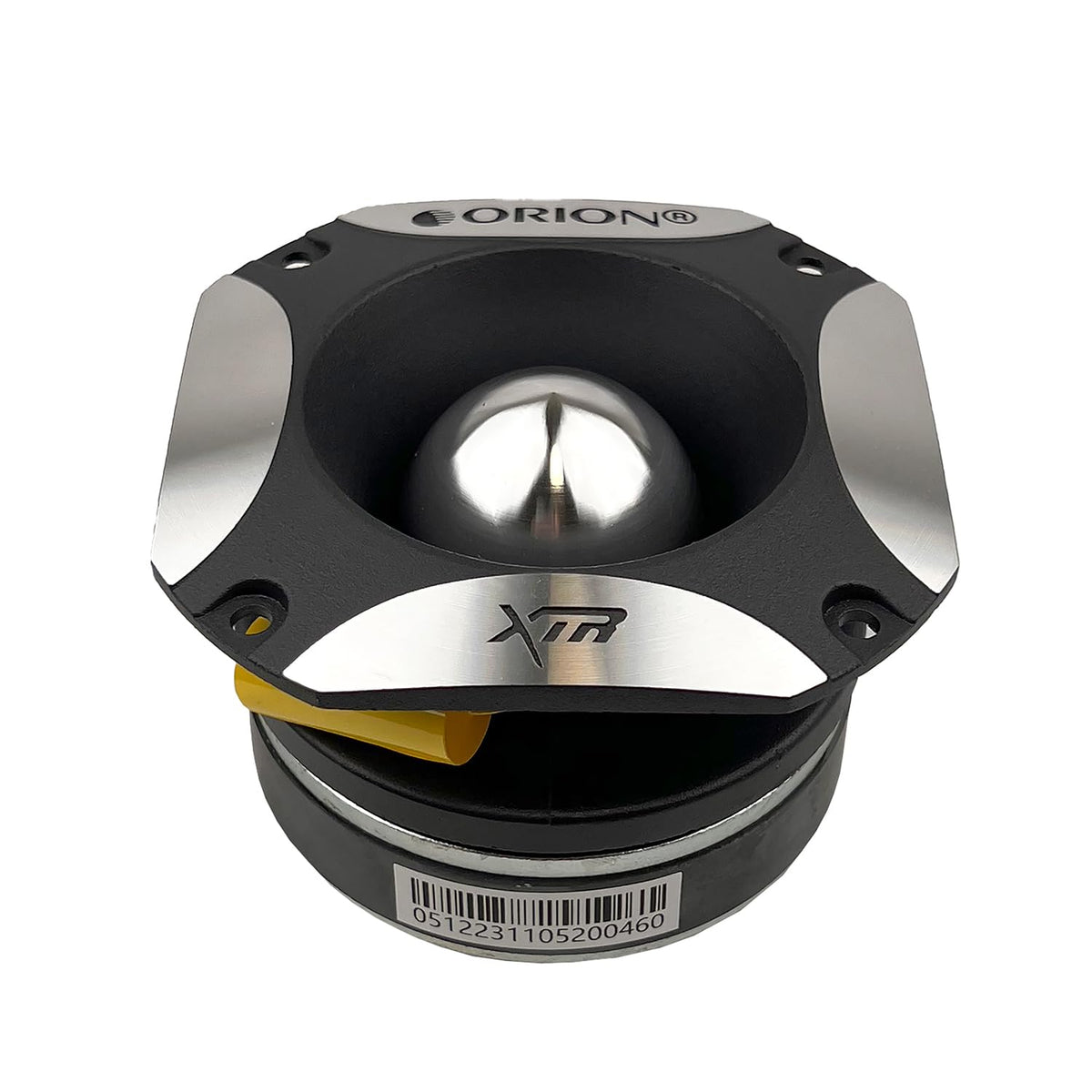

The aluminum diaphragm offers fast, precise response for high frequencies, reducing smear and revealing micro-detail in vocals, cymbals and ambient cues. Its high sensitivity means it produces louder output with less amplifier drive, making high-frequency detail more noticeable even in noisy cabin environments.

• Aluminum diaphragm for quick transient response and crisp highs
• 109.9 dB sensitivity for louder playback with minimal power
• Frequency extension to 25 kHz for natural, airy treble
• Large voice coil to maintain control at higher volumes

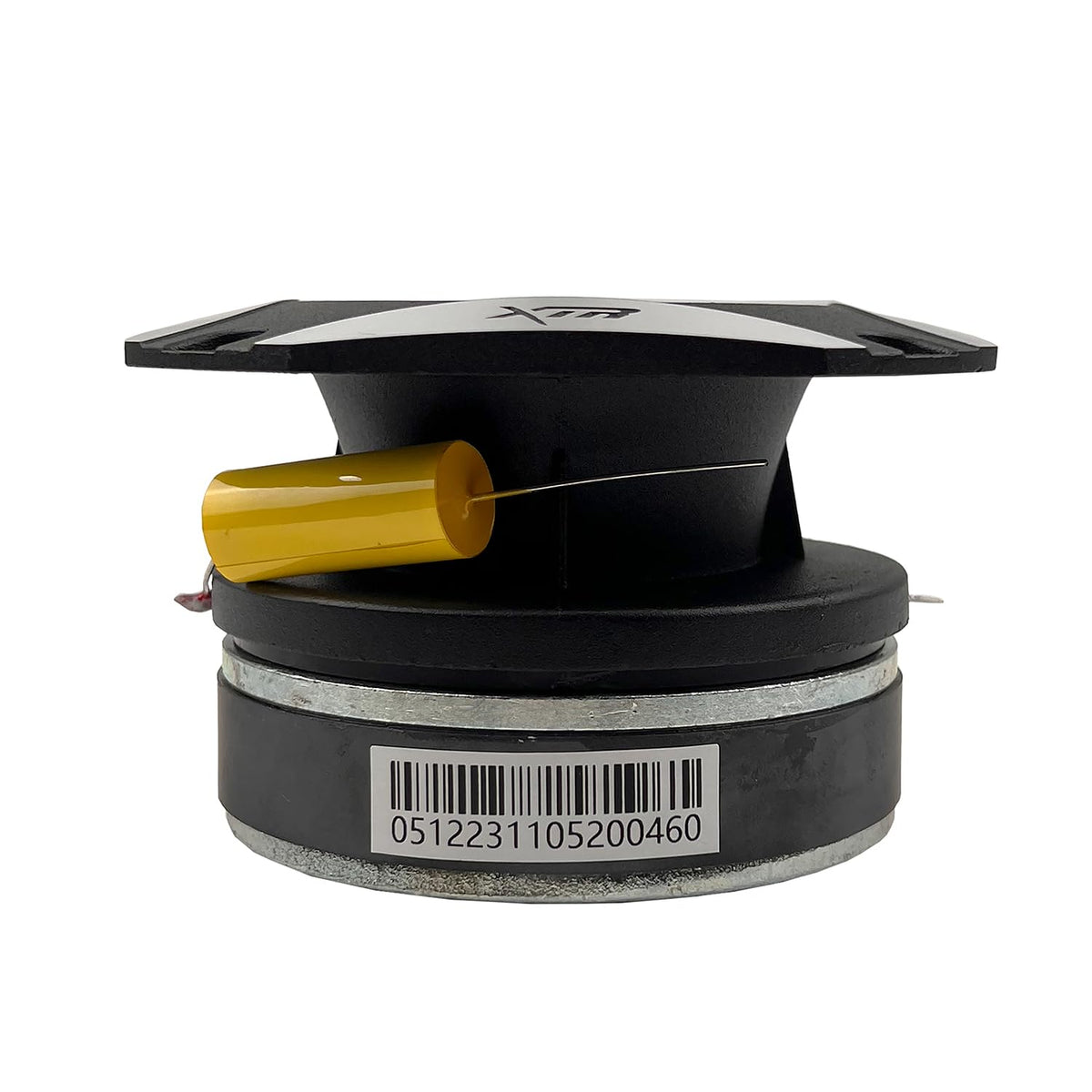

Will the built-in crossover make installation easier and safer?

Yes — the integrated crossover protects the tweeter from low-frequency energy that could cause distortion or damage and simplifies wiring by removing the need for an external high-pass network. This helps preserve the tweeter's clarity and keeps its output balanced with midrange drivers when tuned correctly.

• Factory-installed high-pass crossover reduces low-frequency strain
• Simplified wiring for faster integration into existing systems
• Protects the diaphragm and voice coil from damaging bass signals

How much power can the XTW750FD handle, and what amp should I pair it with?

The XTW750FD is rated at 140W RMS and 560W peak into 4 ohms, giving it headroom for dynamic peaks while sustaining clean output at high levels. Pair it with a compatible amplifier or crossover channel that supplies clean, controlled power and avoids excessive low-frequency content to keep distortion low and longevity high.

• 140W continuous handling for sustained loud playback
• 560W peak capacity for short dynamic bursts
• Best with an amp/channel that includes dedicated high-pass filtering or use the internal crossover

Where will the XTW750FD fit best in my vehicle and how does placement affect sound?

Super tweeters like the XTW750FD are ideal mounted on dash, A-pillar or sail panels to improve high-frequency imaging and stage width. Placement affects perceived air and presence: higher dash or near the windshield emphasizes sparkle and ambience, while closer to ear level increases detail and localization.

• Dash or A-pillar mounts widen the soundstage and add air
• Sail panel placement increases stereo imaging precision
• Adjust angle toward listening position for optimal clarity

Who is this for? The ORION XTW750FD targets car audio enthusiasts and installers seeking a robust, high-output super tweeter to lift the top end of a system. It suits builds that demand clear, high-frequency detail and can support higher power levels, whether upgrading factory speakers or complementing aftermarket component sets. Because it includes a built-in crossover and a large voice coil, it’s a practical choice for those who want powerful treble performance without adding external filters. Sold as a single tweeter, it’s also useful for custom installations where individual channel tuning and placement matter.

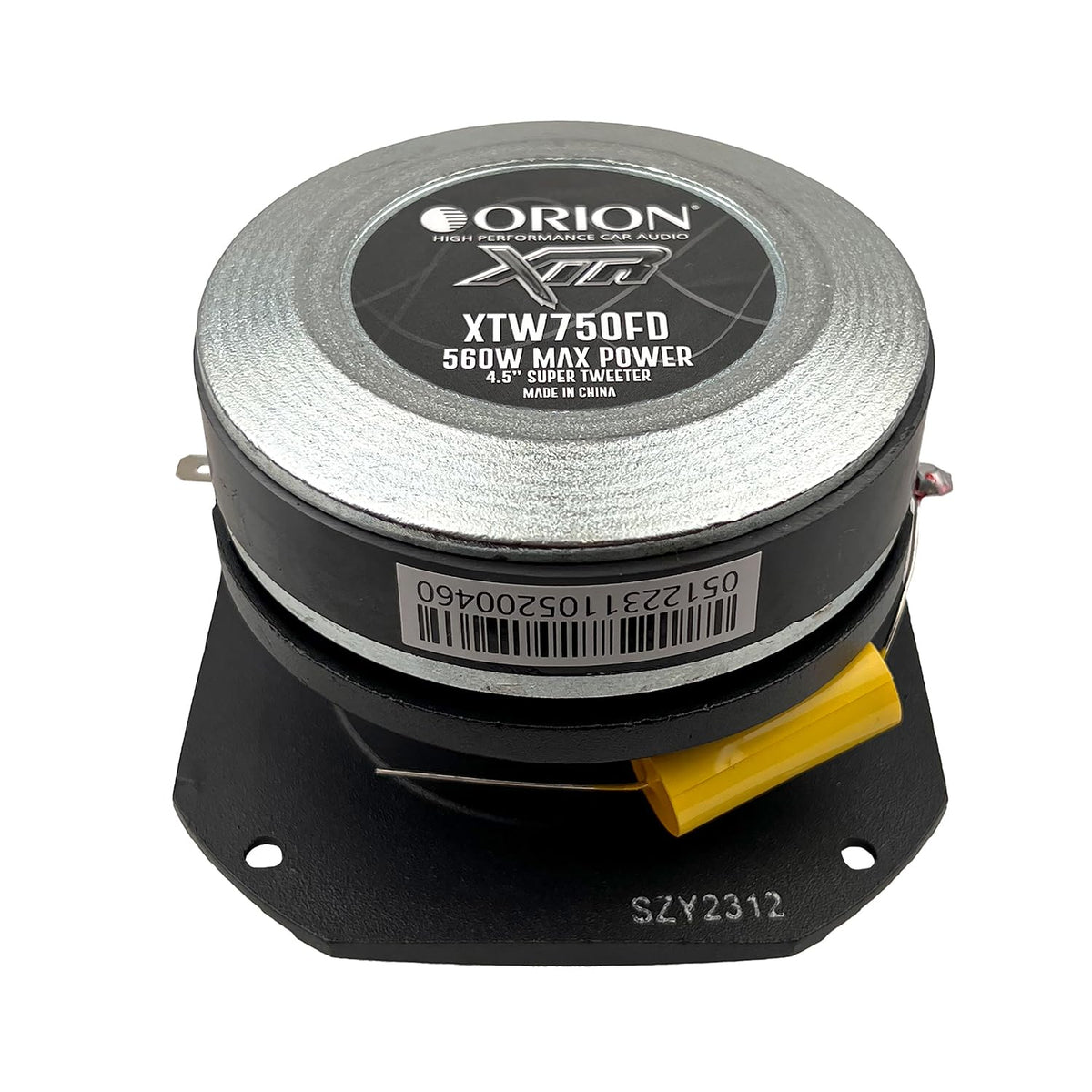

Key specifications at a glance: 4.5" super tweeter, aluminum diaphragm, 1.75" voice coil, 140W RMS / 560W peak, 4 ohm nominal impedance, 1.5 kHz–25 kHz frequency response, 109.9 dB sensitivity, single-piece package.
