ORION XTR XTW950FD 4.5" Super Bullet Tweeter — Aluminum Diaphragm, 150W RMS

The ORION XTR Series XTW950FD is a high-output 4.5" super bullet car tweeter built with an aluminum diaphragm, 1.5" voice coil and a built-in crossover to deliver clear, powerful high frequencies up to 150W RMS (600W peak).

Engineered for drivers who want crisp, detailed highs without sacrificing headroom, the XTW950FD sits at the top of ORION's XTR lineup. It combines a lightweight aluminum diaphragm with a large 1.5" voice coil and a compact bullet waveguide to extend high-frequency response and improve dispersion. The integrated crossover simplifies installation and protects the tweeter while helping it blend with midrange drivers.

How does the XTW950FD improve my car stereo's treble?

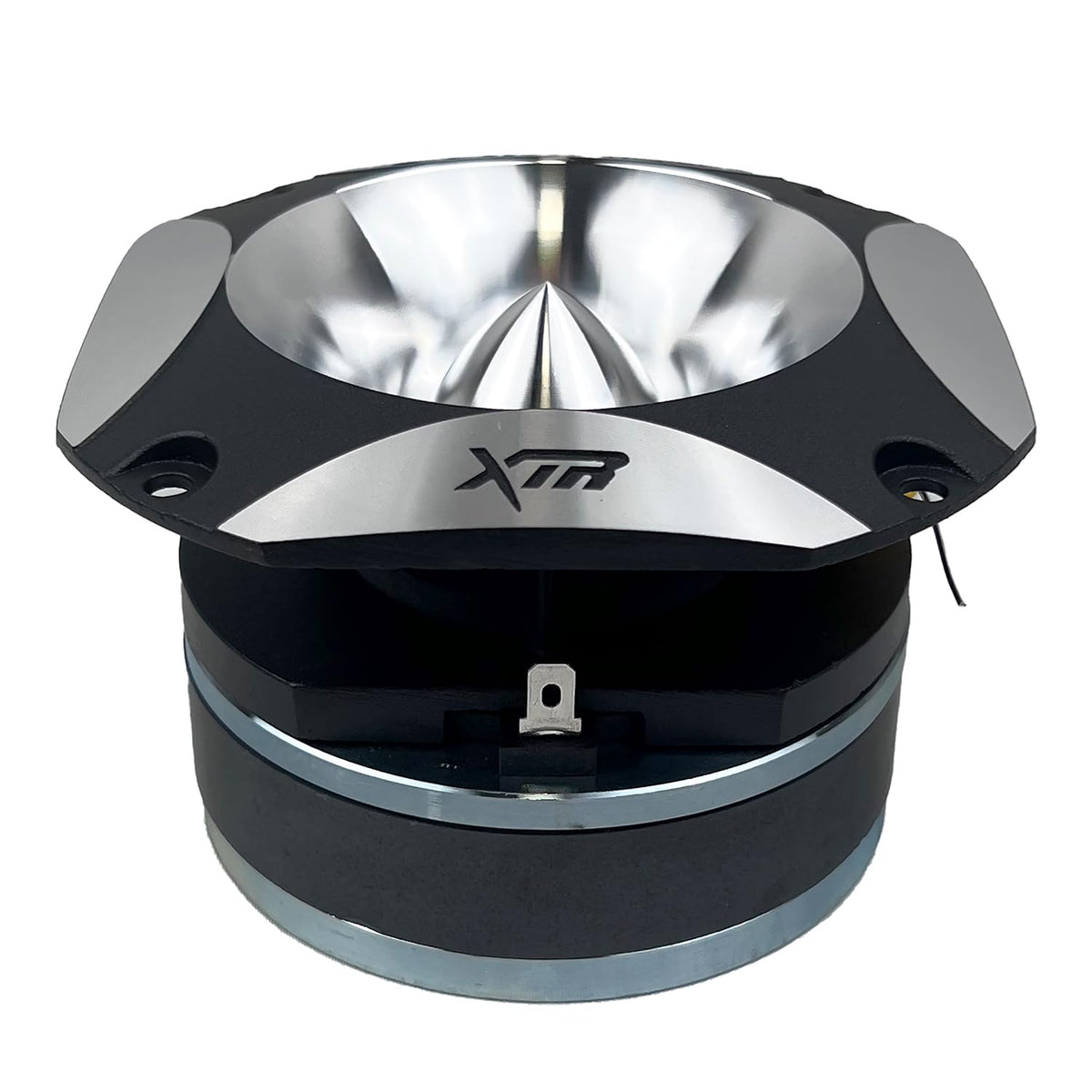

The aluminum diaphragm reproduces high frequencies with reduced distortion and faster transient response compared with many polymer domes. The bullet-style waveguide focuses sound, increasing perceived loudness and clarity at the listening position.

• Aluminum diaphragm for clean, detailed highs
• 1.5" voice coil for better power handling and control

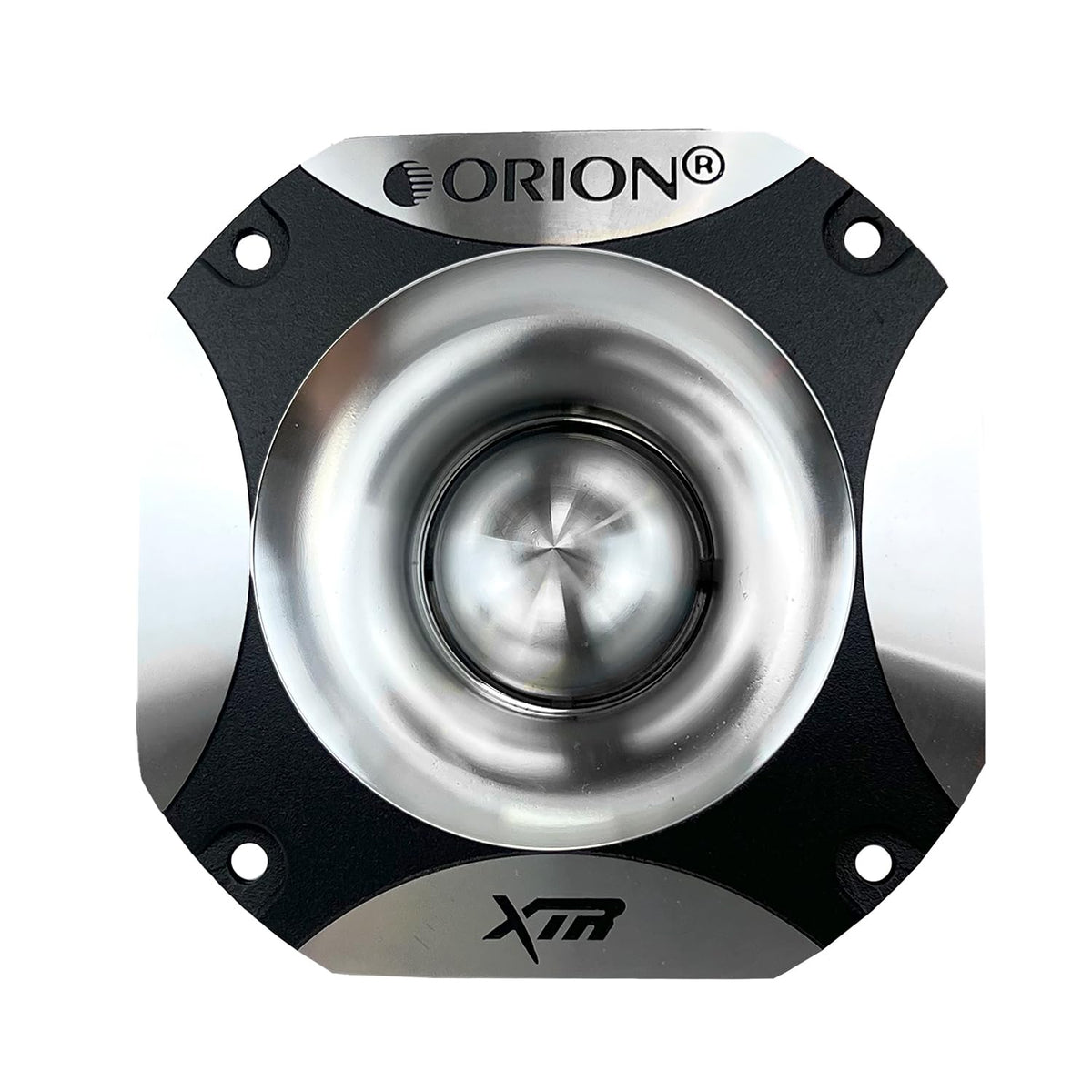

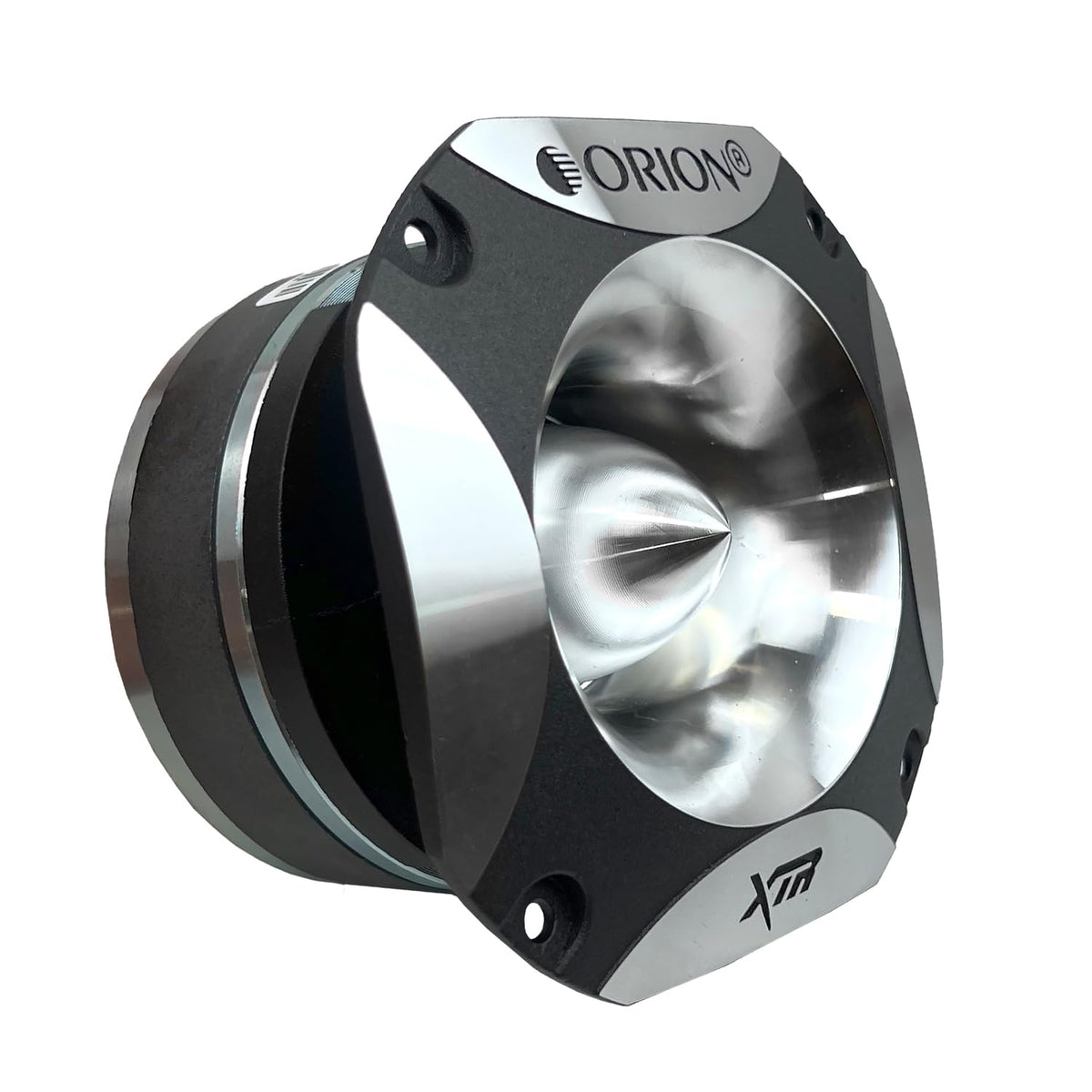

• Bullet waveguide improves directivity and imaging

What power and impedance should I match with this tweeter?

The XTW950FD is rated at 150W RMS and 600W peak at 4 ohms, so pair it with an amplifier or component set capable of stable 4-ohm operation. Because it includes a built-in crossover, you can safely connect it with typical car amplifier outputs, but always set gain conservatively to avoid clipping.

• 150W RMS / 600W peak power handling (4 ohm)
• Use with stable 4-ohm amplifier channels or a compatible component system
• Built-in crossover provides basic frequency protection and integration

How easy is installation and integration with existing speakers?

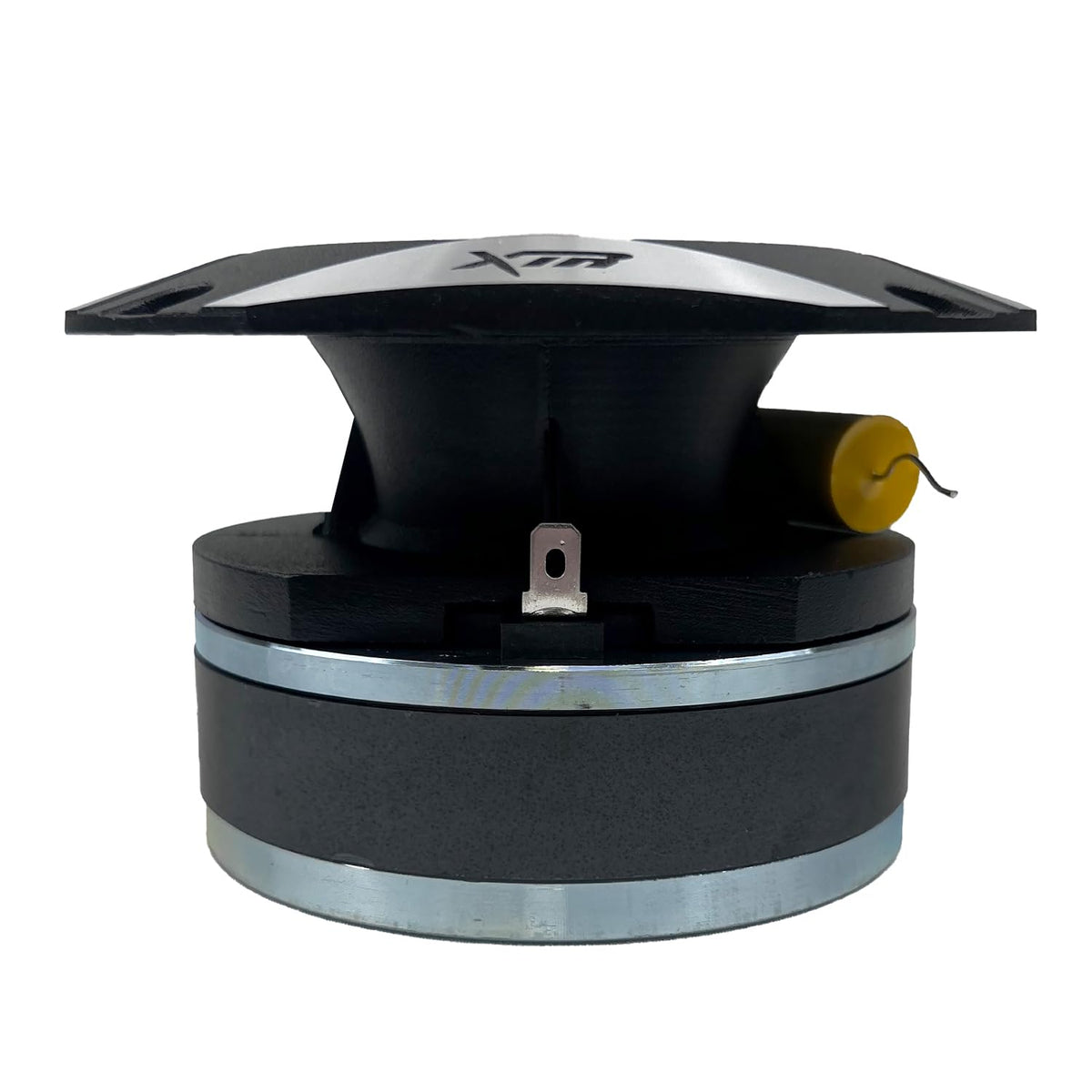

The compact super bullet housing and included crossover make the XTW950FD straightforward to mount in door pillars, dash pods, or custom locations. The crossover reduces installation complexity by providing a simple high-pass function; wire it in-line between the amp/speaker output and the tweeter for immediate protection and tuning.

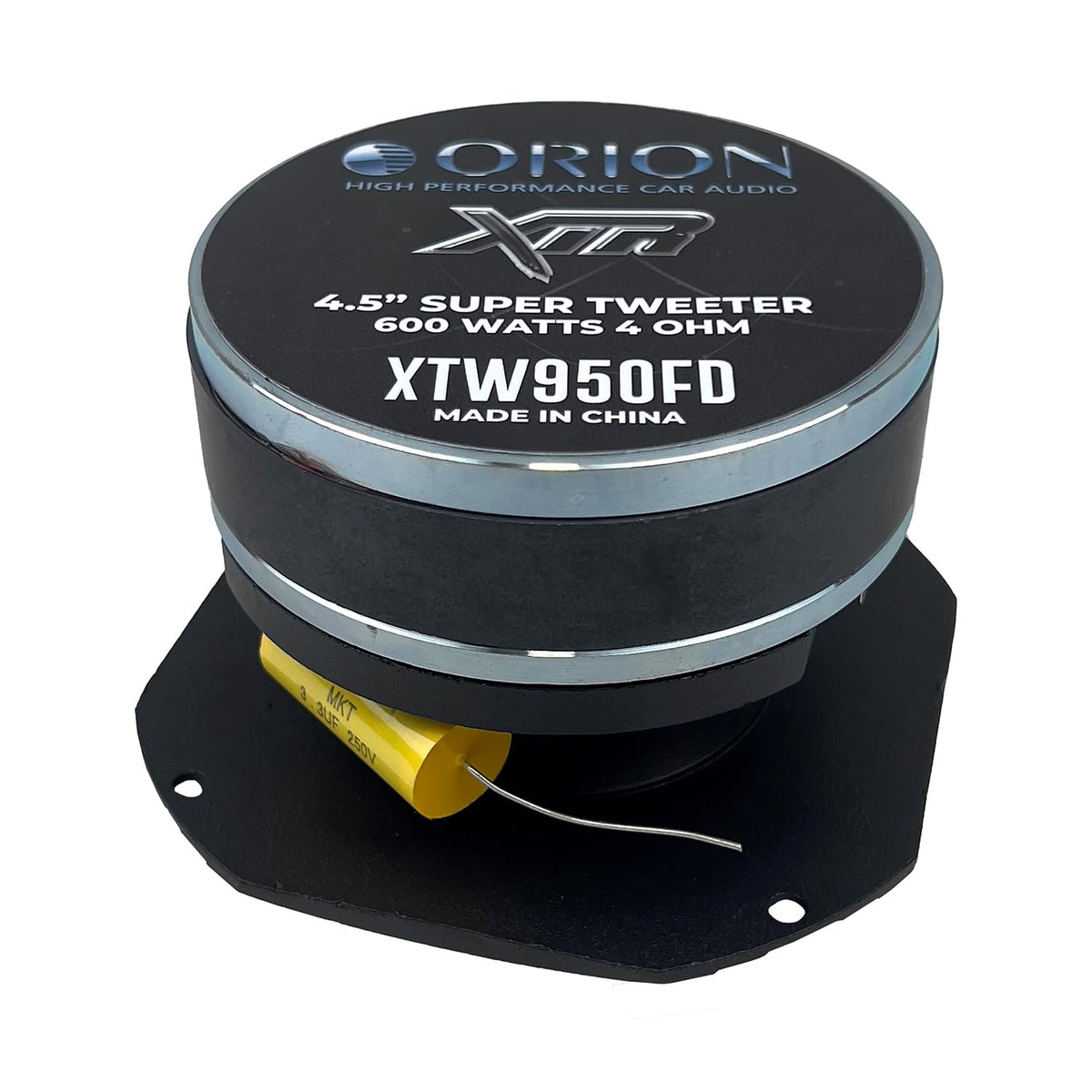

• Compact bullet form factor fits tight mounting spaces
• Integrated crossover reduces extra components and wiring
• Suitable for dash pods, A-pillars, or custom enclosures

What sonic characteristics can I expect on the road?

Expect crisp, airy highs with pronounced detail and minimal sibilance when crossed properly. The tweeter emphasizes clarity and imaging—helpful for vocal articulation and instrument definition—while the waveguide helps maintain consistent on-axis performance in common car seating positions.

• Airy, detailed treble with fast transient response
• Improved stereo imaging and vocal presence
• Waveguide helps maintain clarity across listening positions

Who is this for? The ORION XTW950FD is aimed at car audio enthusiasts, professional installers, and anyone upgrading a factory system who wants high-performance highs without bulky components. It suits builds where space is limited but demanding treble accuracy and power handling are required—ideal for component speaker systems, two-way setups, or custom sound restoration projects.
