OREI 1x2 HDMI Extender Splitter — 4K over CAT6/7, IR Remote, EDID, 115 ft

One-source, two-displays: a clean 4K HDMI extension solution

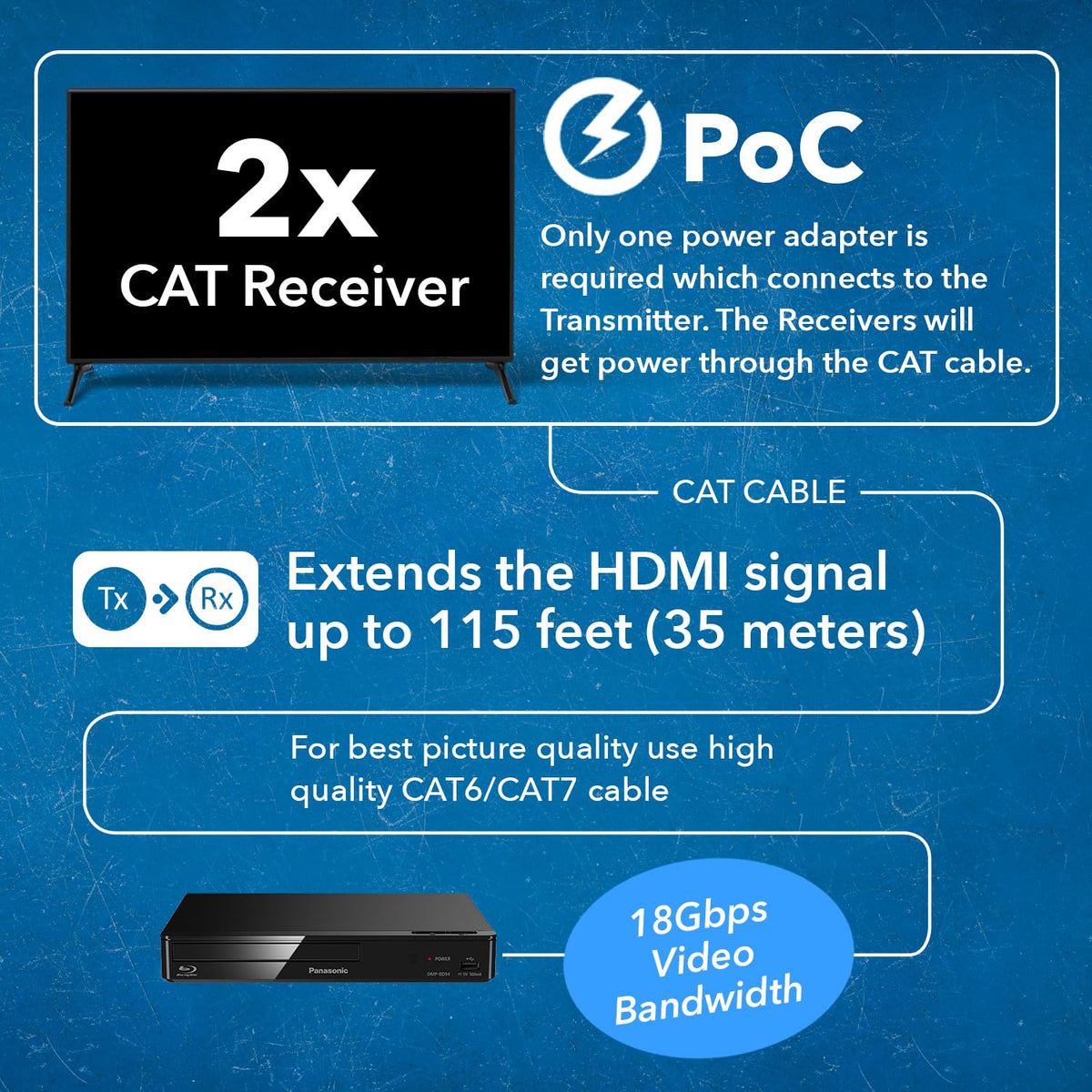

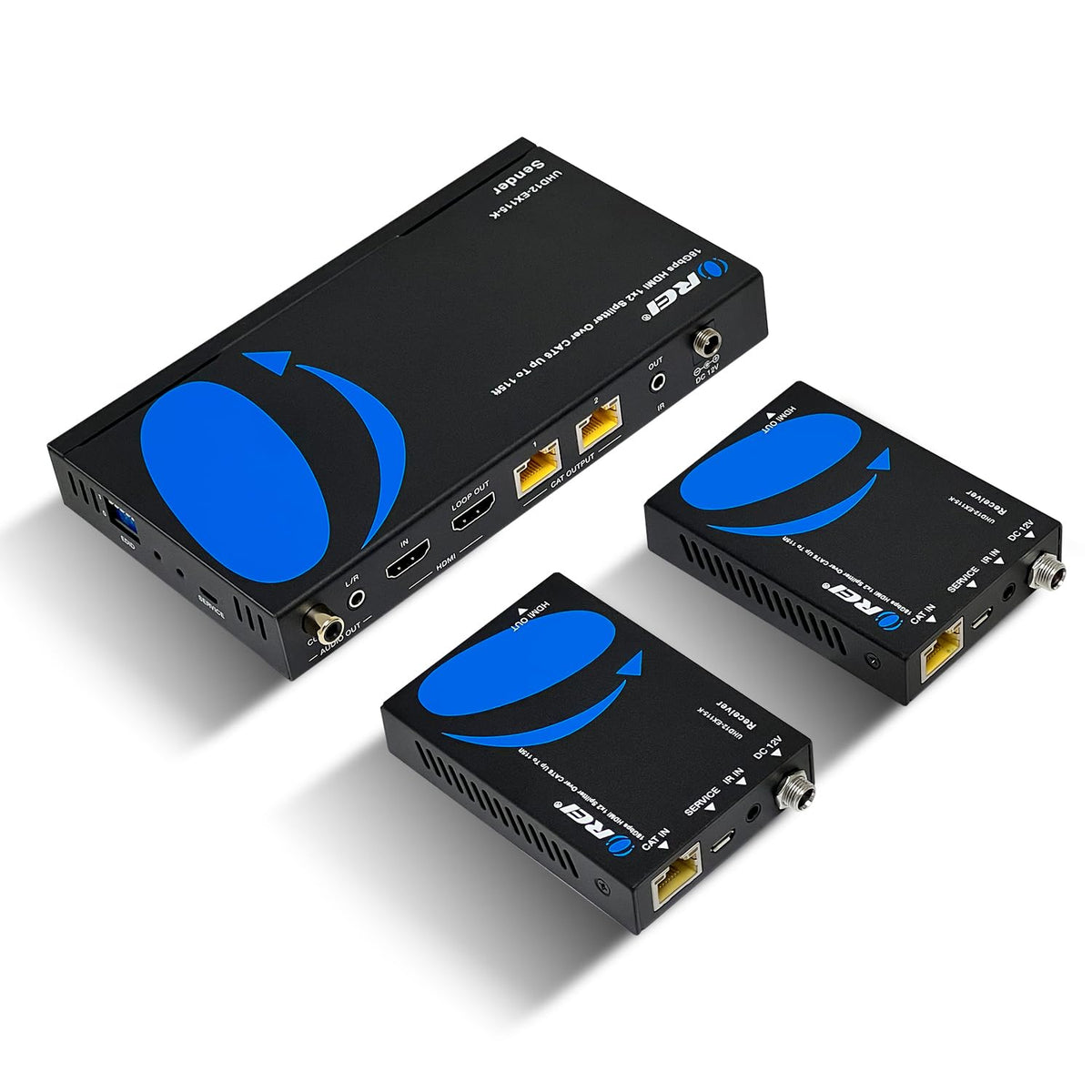

Turn a single HDMI source into a dual-display setup over a single Cat6/7/8 cable. The OREI 1x2 HDMI Extender Splitter arrives as a compact transmitter plus two receivers, delivering a streamlined, cable-friendly extension without the need for a separate switcher. Power is centralized at the transmitter via Power over LAN, so receivers stay simple, and a US plug is included with an international adapter for use around the world.

Vivid visuals and modern compatibility

With a high-speed 18 Gbps bandwidth, the kit supports up to 3840×2140 at 60 Hz and 2K at 60 Hz, along with HDR formats such as HDR10, HDR10+, Dolby Vision, and HLG. The setup remains plug-and-play with no software required, and it stays compatible with CAT6/6a/7 networks while meeting HDCP 2.2 standards for broad content compatibility.

Flexible range and display options

Enjoy a long reach: 4K signals can travel up to 115 feet over Cat6/7, while 1080p signals reach about 165 feet. The transmitter includes a 4-port Cat6 output plus an extra HDMI output for a local monitor, giving you generous placement options without sacrificing on-display flexibility.

Control, monitoring, and ease of use

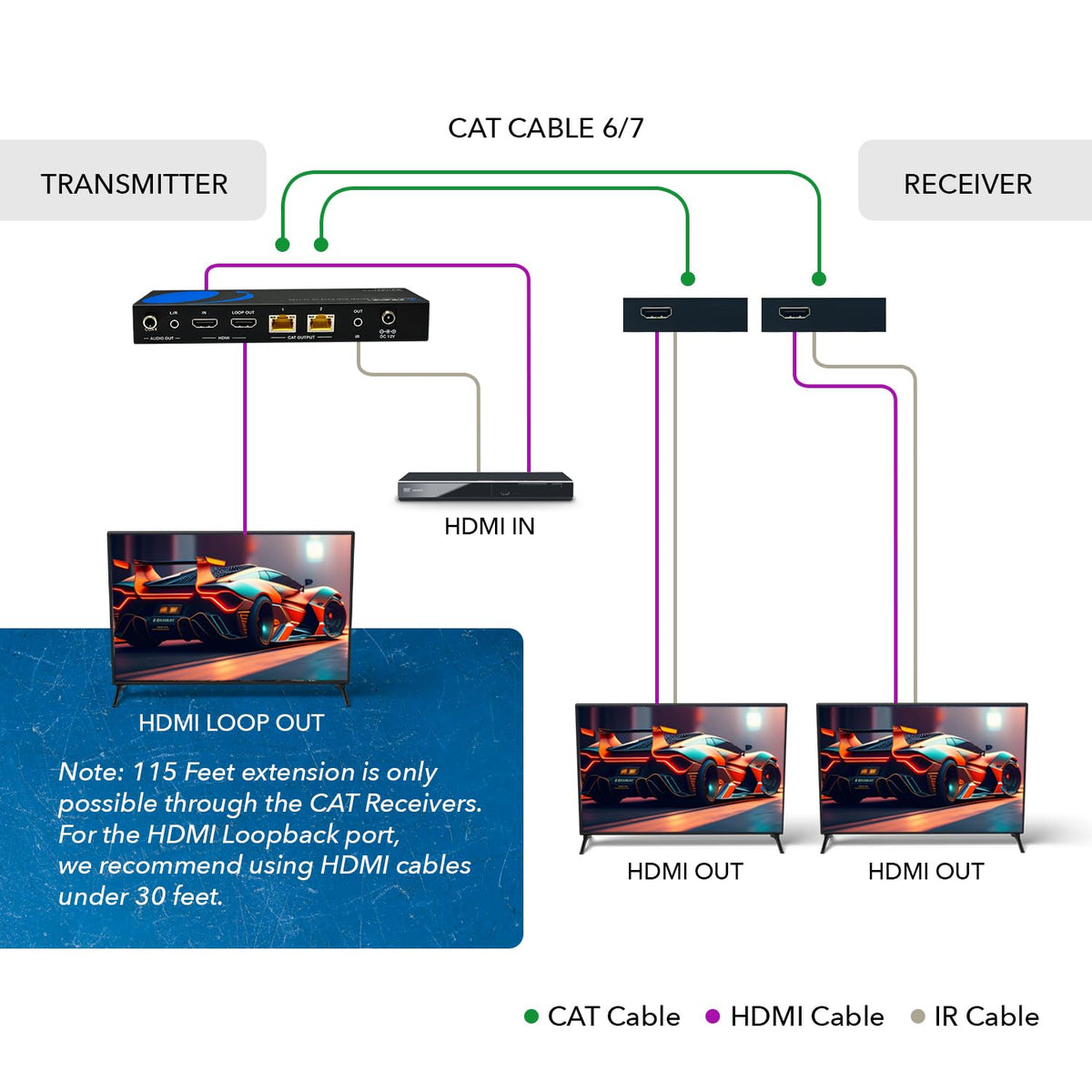

• IR pass-back enables remote control of the source from the display side via a dedicated DDC channel.
• Loop-out on the sender provides local monitoring of the source for quick checks.

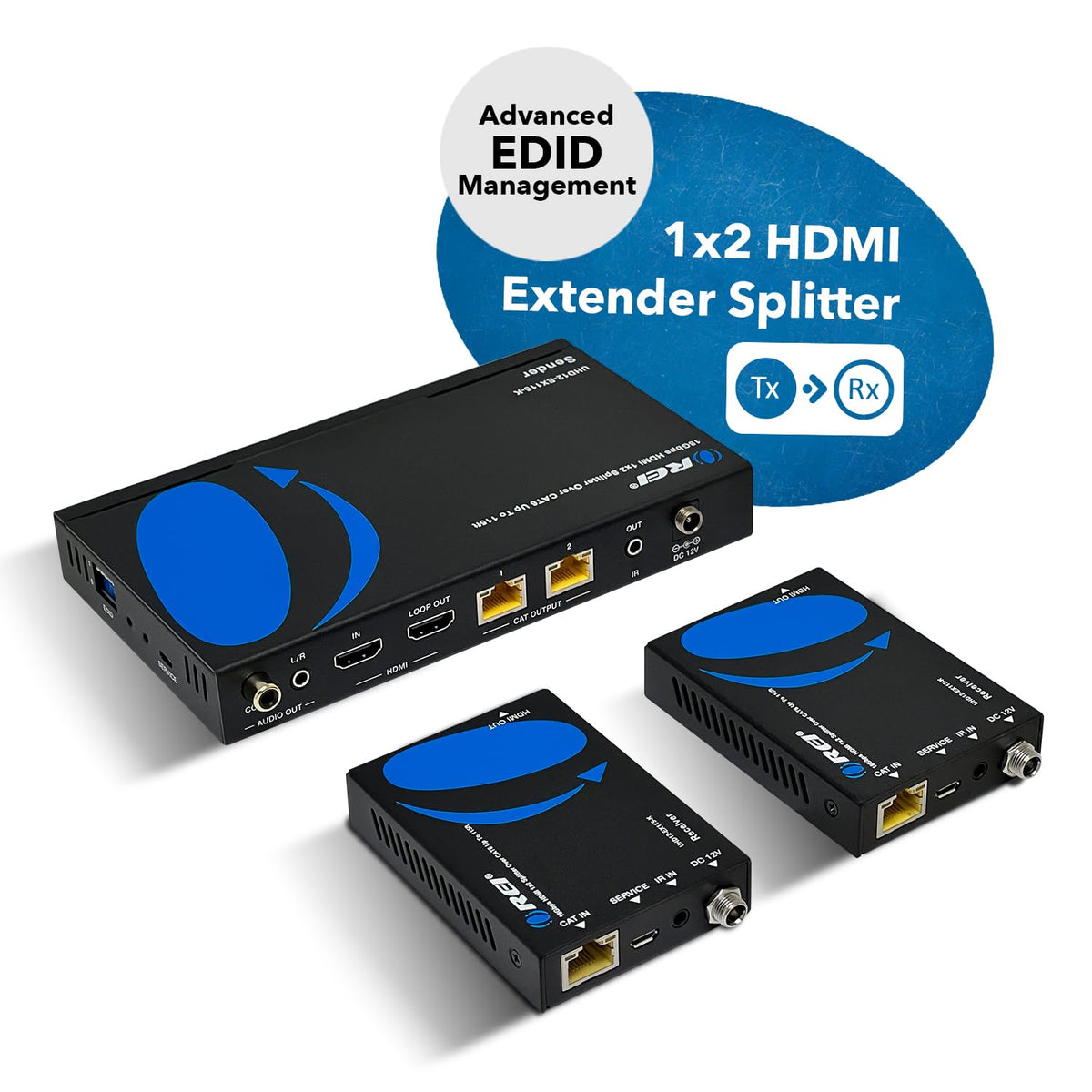

• EDID management helps maintain stable, compatible resolutions across two displays.

What’s included and how it fits your setup

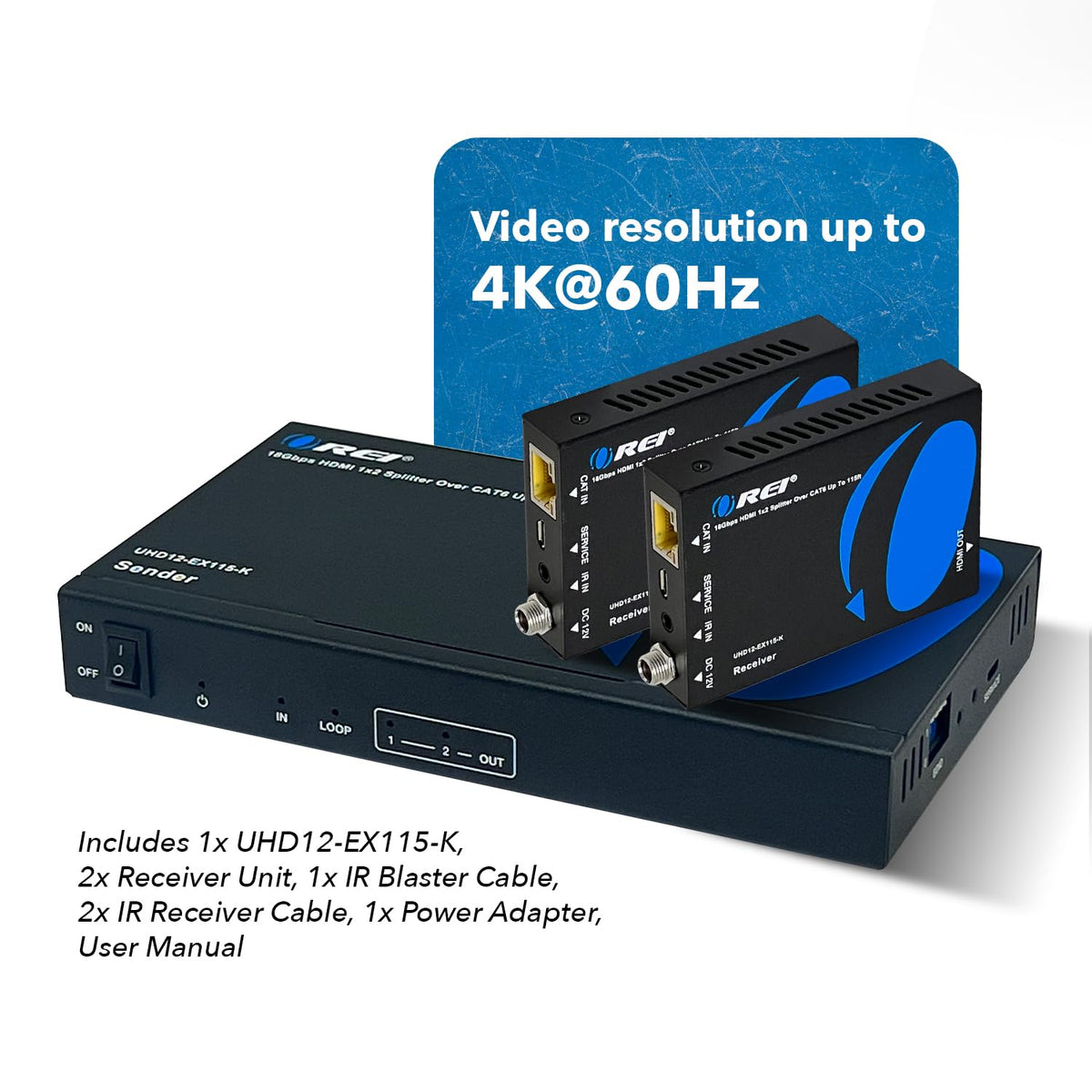

The kit comprises 1 transmitter, 2 receivers, 1 power adapter, IR blaster cable, 2 IR receiver cables, and a user manual. The system is designed to be plug-and-play, so you can set up quickly in living rooms, classrooms, or meeting spaces. A single power solution powers the entire system, and an international adapter makes global use straightforward.

Usage notes

Actual performance depends on cable quality and environmental factors. For best results at longer distances, use a high-quality CAT6/CAT7 cable. This extender is designed to distribute a single source to two displays and is not intended to replace a full matrix switch in highly complex installations.
