OpticBuilds.com Opti Tap 0.3M SC/APC Fiber Patch Cable

The OpticBuilds.com Opti Tap 0.3M (1ft) SC/APC to SC/APC simplex test patch cable is a rugged, field-ready singlemode G.657.A2 lead designed for outdoor FTTx and outside-plant test connections.

This OpticBuilds.com Test Connect Opti Tap is built to withstand harsh outdoor conditions while providing a compact, easy-to-use test link between field devices and permanent plant terminations. The cable pairs a G.657.A2 singlemode fiber with an integrated mini IP-style SC/APC end and a single SC/APC on the other end, all sheathed in a 5.0mm LSZH jacket engineered for durability, low smoke, and simplified handling during installs and troubleshooting.

How does this cable make outdoor testing simpler?

The Opti Tap is purpose-built for field technicians who need fast, reliable test access without complex splicing. Its compact, weatherproof connector and one-handed blind mate guide let you connect quickly on aerial spans, pedestals, or wall ports.

• Mini IP-style SC/APC interface for easy blind connection in tight spaces
• Spiral clamping mechanism for a secure, long-term hold
• Through-the-wall seal design to reduce the need for additional welding or sealing

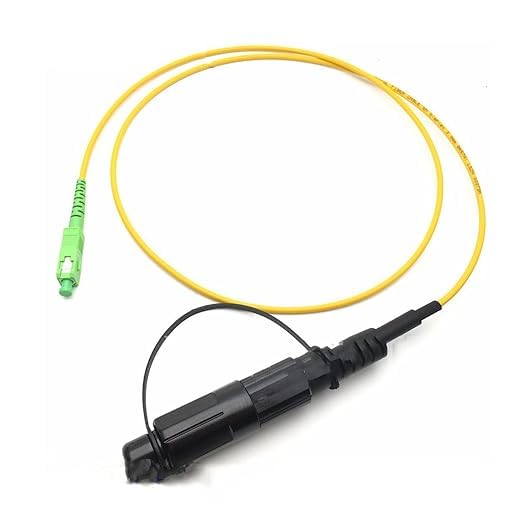

• 5.0mm LSZH jacket resists abrasion and limits smoke in enclosed areas

What performance and fiber type is inside this patch cord?

This 0.3M (1ft) lead uses singlemode G.657.A2 fiber optimized for bend insensitivity and fiber routing in confined or angled duct pathways. It provides standard singlemode optical characteristics suitable for test and temporary interconnect scenarios in modern FTTx deployments.

• Singlemode G.657.A2 core for improved bend performance
• Simplex fiber construction for single-fiber testing tasks
• SC/APC connectors to minimize back-reflection during measurements
• Engineered tolerances for repeatable test results

Is the cable durable enough for outside-plant conditions?

Yes — the Opti Tap series is made with environmental protections and mechanical features that resist water, dust, and corrosion common in outside-plant and aerial environments. The compact design also simplifies handling during installation and removal.

• Waterproof and dust-proof sealing to protect the ferrule interface
• Anti-corrosion materials in connector assemblies for long life
• Compact, durable housing that withstands field handling
• Spiral clamp improves retention under vibration or movement

What connector and jacket details should I expect?

This test cable comes with an Opti-Tap mini IP-style SC/APC on one end and a standard SC/APC on the other, both terminated to a 2.0mm single-ended breakout where applicable and sheathed in a 5.0mm LSZH outer jacket for flexibility and safety in enclosed spaces.

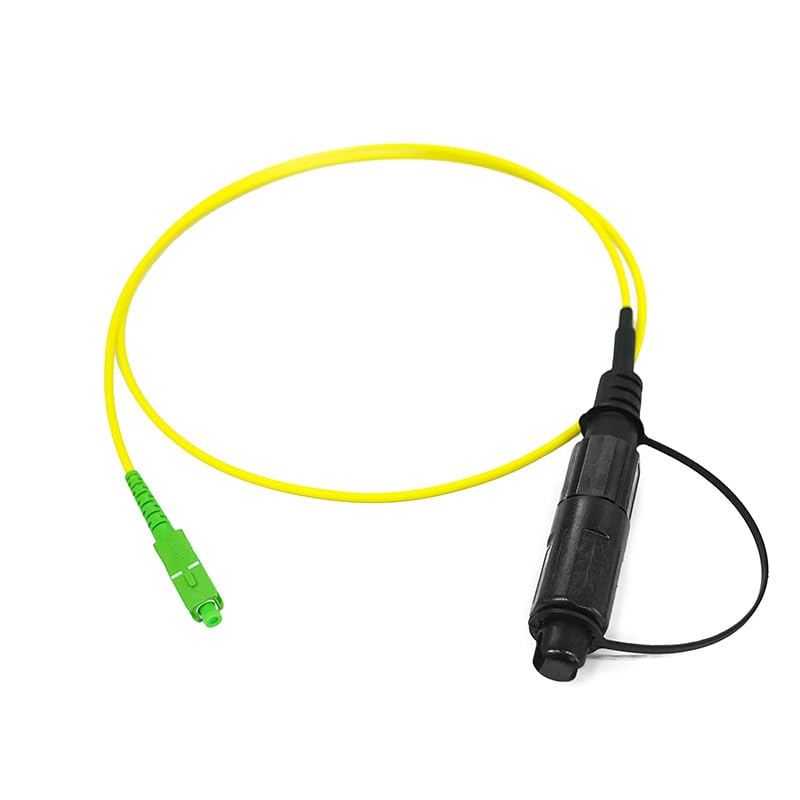

• Opti-Tap SC/APC mini-IP style connector for blind-mate scenarios
• Standard SC/APC on the opposite end for compatibility with test instruments
• 5.0mm LSZH jacket for reduced smoke and better fire safety in buildings
• Breakout options (0.5M breakout, 2.0mm single-ended) for diverse test setups

Who is this for? Field technicians, FTTx installers, and maintenance crews who need a short, reliable singlemode test lead for outside-plant environments will find this OpticBuilds.com Opti Tap ideal. It’s tailored for rapid connection and disconnection during testing, fault isolation, and temporary bridging of SC/APC-terminated circuits in aerial, underground, or premise applications. If you require a compact, bend-tolerant simplex test cable with weather-resistant sealing and industry-standard SC/APC terminations, this Opti Tap meets those needs while minimizing setup time and mechanical risk.
