On-Q Cat6A 6-Port Home Theater Patch Panel AC106A6

The On-Q Legrand AC106A6 is a six-port Cat6A home theater patch panel that terminates up to six data lines for reliable, high-speed wired Ethernet connections.

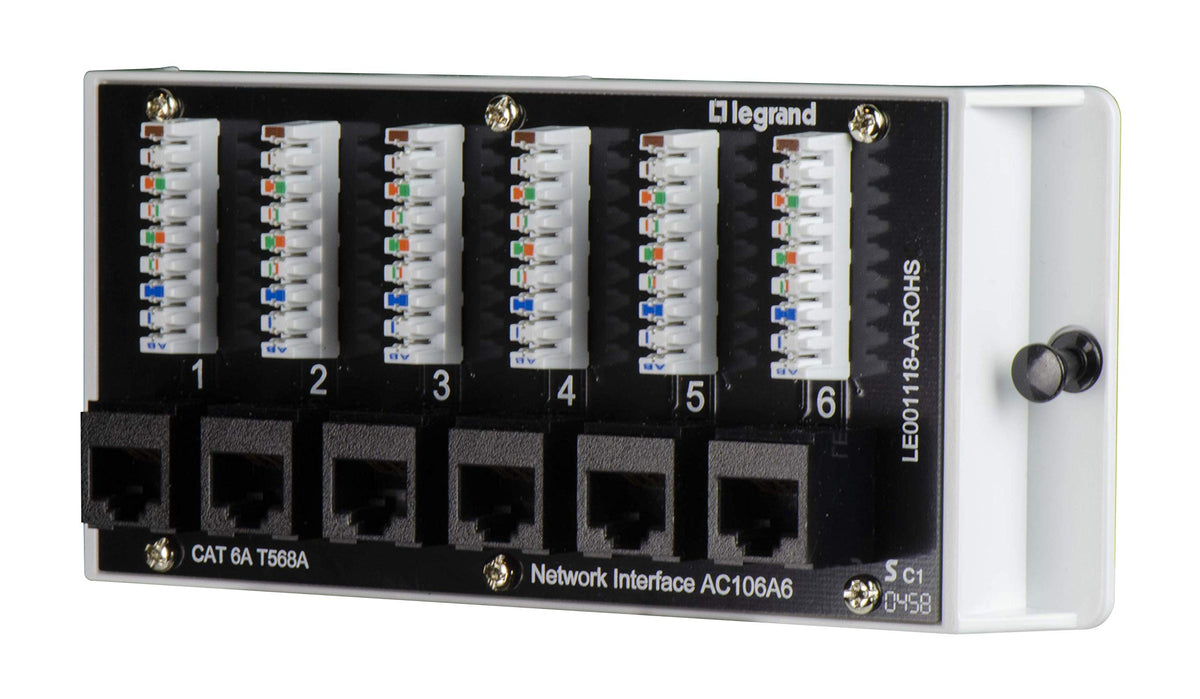

Built to integrate cleanly into On-Q plastic structured wiring enclosures, this compact module gives you front-access RJ45 jacks and 110-IDC punch-down terminals so installers and DIYers can route devices such as smart TVs, gaming consoles, streaming boxes, and PCs to a central network hub. Engineered to exceed industry standards and UL listed, the AC106A6 is designed for simple termination, durable support, and backward-compatible Cat6a performance.

How does the AC106A6 improve home network reliability?

The AC106A6 centralizes wired connections, reducing cable clutter and signal path variability that can cause inconsistent network performance. By providing dedicated Cat6A terminations for high-bandwidth devices, it helps preserve link integrity and minimizes interference when properly installed.

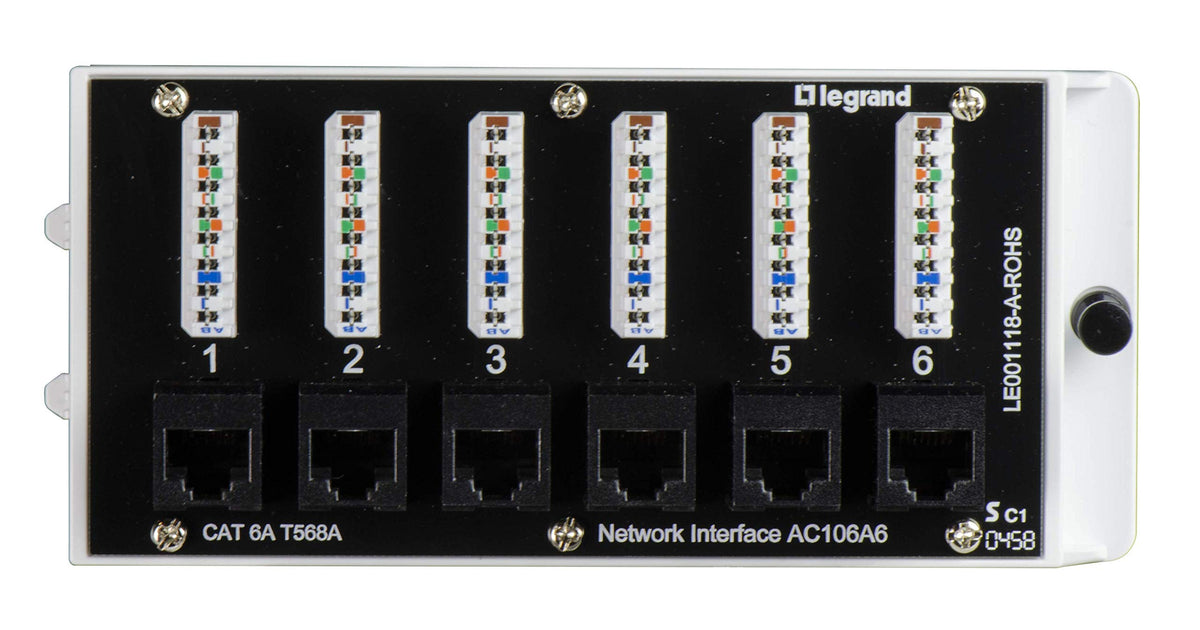

• Six front-mounted RJ45 ports for direct device patching.

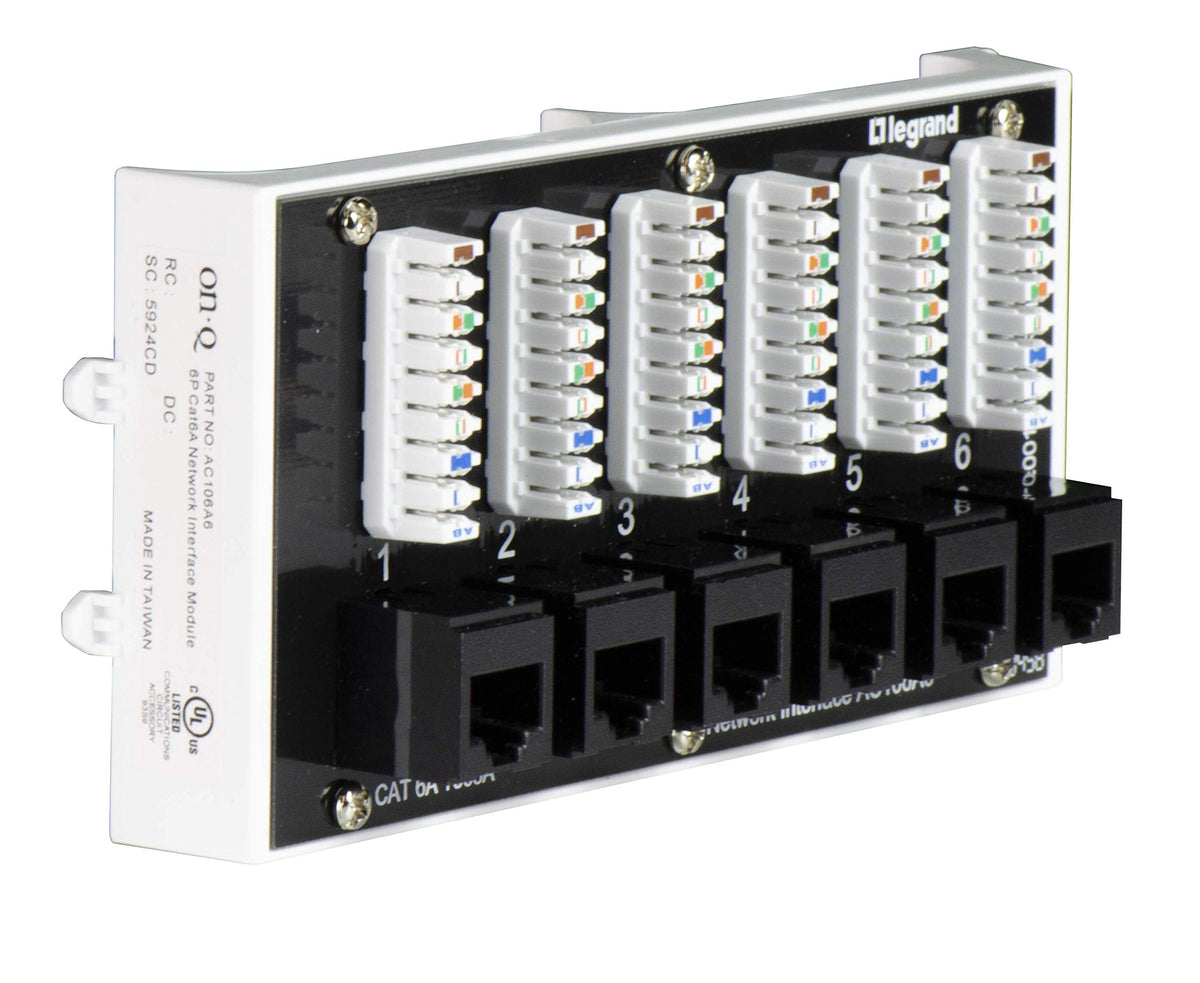

• 110-IDC punch-downs for secure, low-loss terminations.
• Designed to exceed TIA/EIA-568-C.2 performance requirements.
• Reinforced plastic brackets to maintain punch-down stability.

What installation options and standards does this module support?

The AC106A6 snaps into On-Q enclosures and accepts standard punch-down tools, making it straightforward to add to an existing structured wiring setup. It supports the T568A wiring standard and is UL listed, providing a compliant option for residential networking installs.

• Fits all On-Q structured wiring plastic enclosures.
• Front-access 110-IDC terminals for easy punch-down termination.
• Compatible with Cat6a cable, backward compatible with Cat6/Cat5e devices.
• UL-listed and tested beyond TIA/EIA 568-C.2 benchmarks.

Which devices and use cases work best with this patch panel?

Use the AC106A6 wherever you need stable, high-bandwidth wired connections: home theater systems, gaming setups, streaming devices, and desktop or server connections. Its Cat6A capability supports higher frequencies and better crosstalk performance, so it’s ideal for bandwidth-hungry applications in a multi-device household.

• Smart TVs and UHD streaming boxes for consistent video playback.
• Gaming consoles and PCs for low-latency, high-throughput networking.
• Network-attached storage and home servers that need sustained data rates.
• Centralized home automation hubs requiring reliable wired links.

How does the AC106A6 make maintenance and upgrades easier?

Front-mounted jacks and accessible punch-down points let installers trace and change connections without opening an enclosure or re-routing wall cabling. The module’s standardized ports simplify future upgrades — swap patch cables or replace the module without touching in-wall runs.

• Front-facing RJ45 ports for quick patch-cable changes.
• Punch-down design reduces the chance of loose crimps over time.
• Modular form factor for easy replacement or expansion.
• Clear labeling and ID zones help with cable management and troubleshooting.

Who is this for? The On-Q Legrand AC106A6 is aimed at homeowners, installers, and integrators who want a tidy, standards-compliant way to terminate multiple Cat6A runs inside an On-Q enclosure. If you’re outfitting a home theater rack, creating a multi-room wired network, or upgrading an existing system for higher throughput, this panel provides a compact, professional-grade interface for reliable Ethernet connections.
