Mounting Dream TV Wall Mount Extension Bracket 16-24in

The Mounting Dream MD5232 is an adjustable extension bracket that lets you center and secure flat-panel TVs on 16"–24" wood studs with a 154 lb load rating.

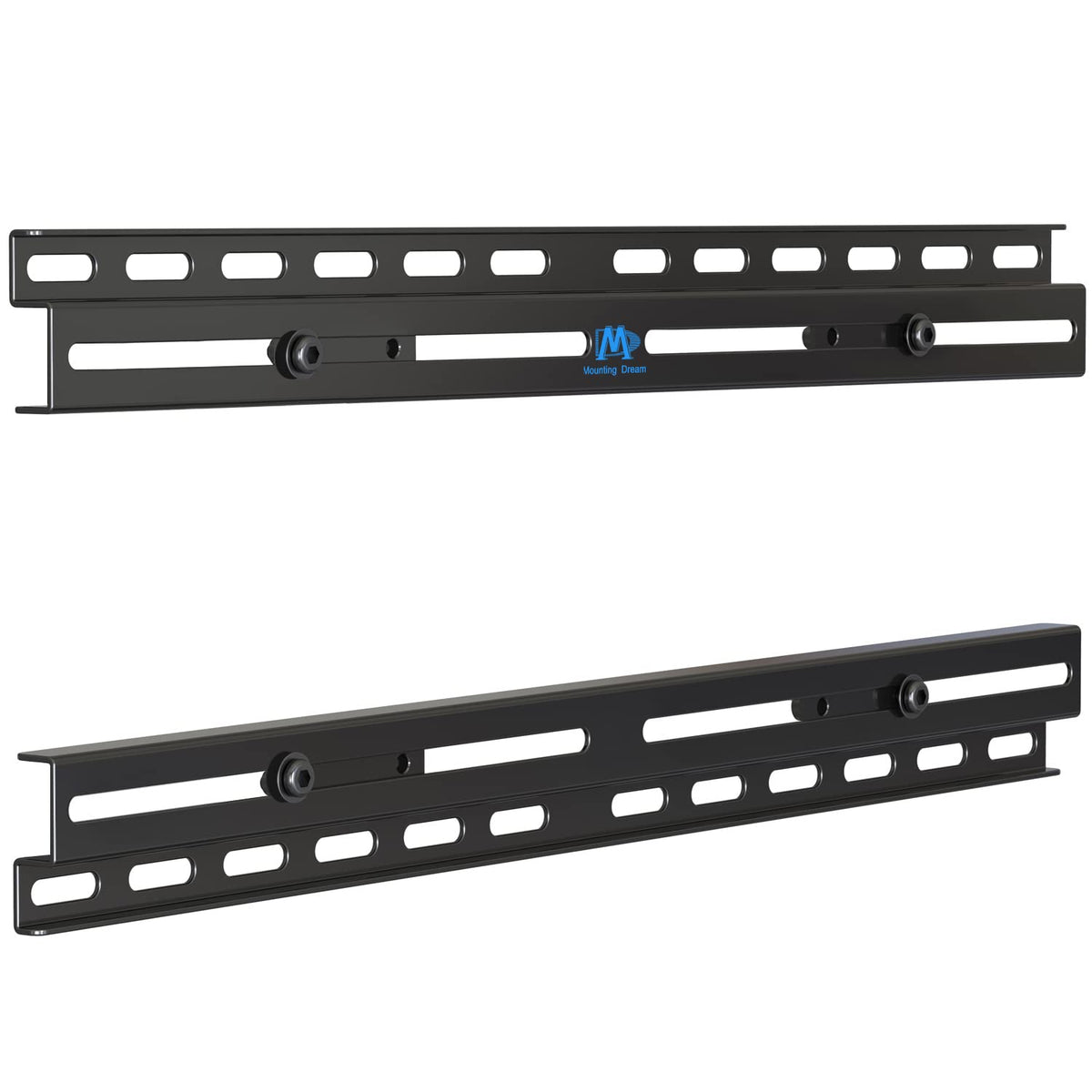

When a TV plate doesn’t line up with your studs, the MD5232 extension bracket bridges the gap so you can mount your set safely and position it exactly where you want. Engineered from thick cold-rolled steel, this extender expands the effective mounting range and provides several inches of side-to-side adjustment so you can achieve a balanced, professional installation without relocating studs or cutting new holes.

How does this bracket help when studs don’t match the TV plate?

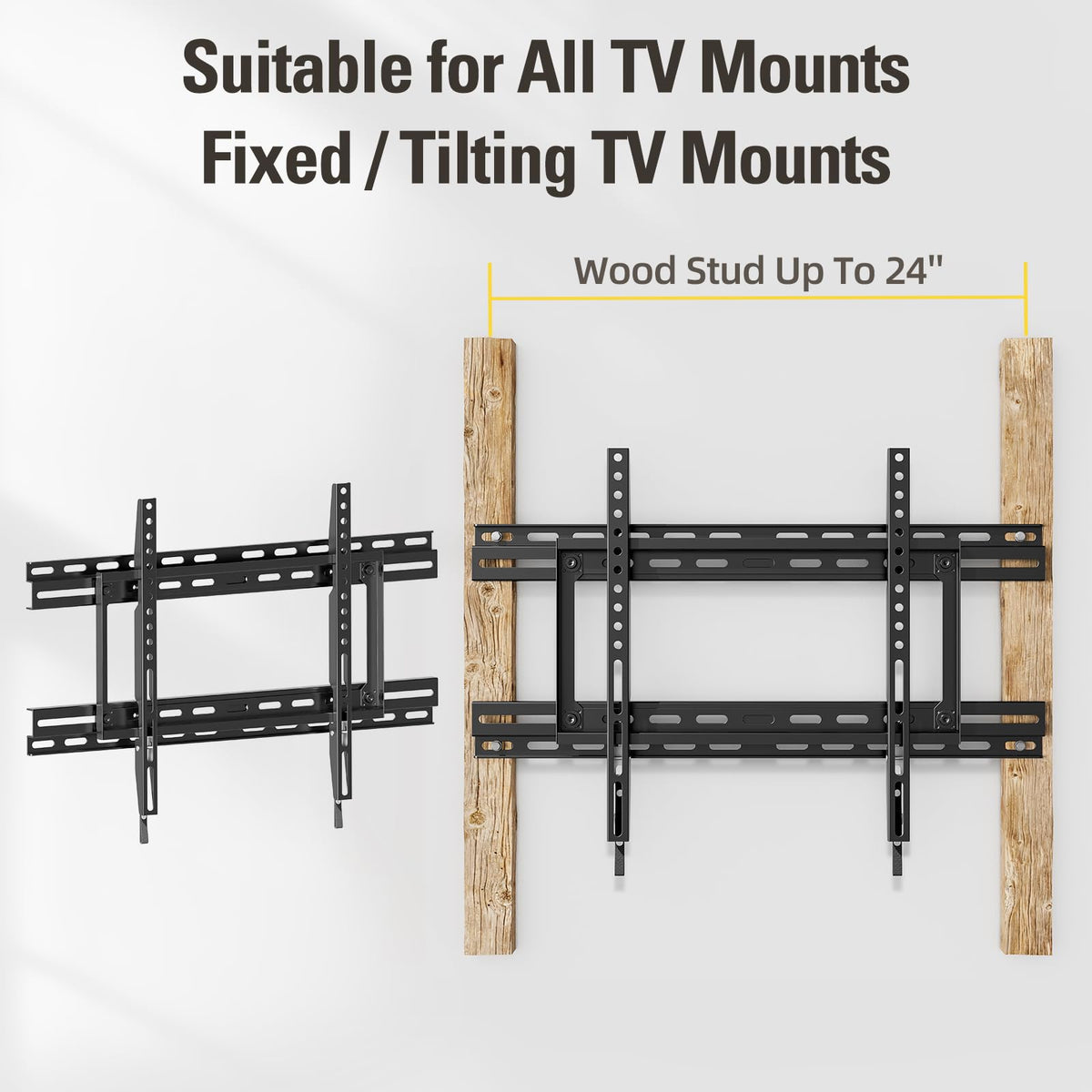

The MD5232 extends the contact points so the TV’s wall plate can attach securely to wood studs spaced between 16" and 24". Instead of reconfiguring the plate or wall, you attach the extension to the plate and then fasten the assembly into the studs.

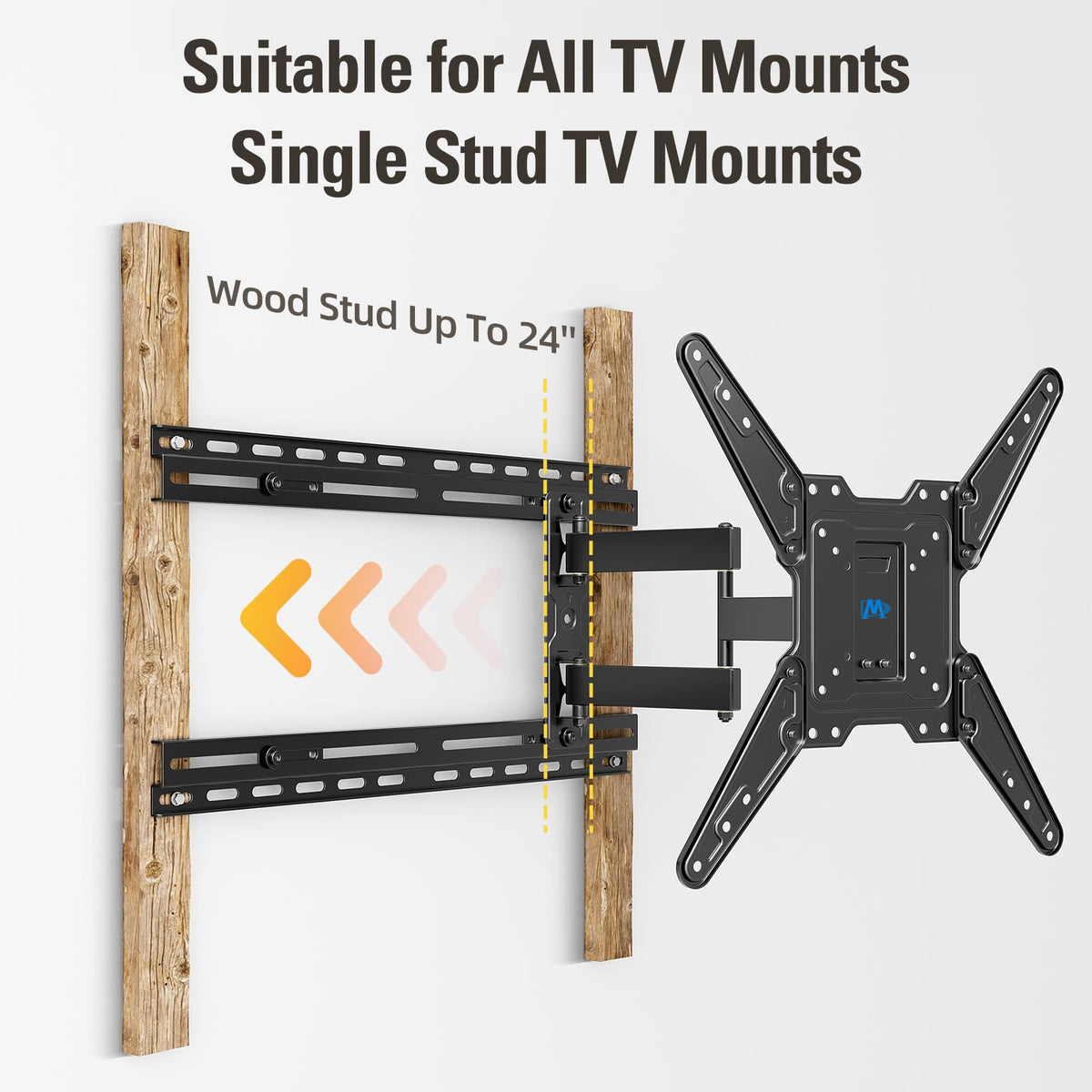

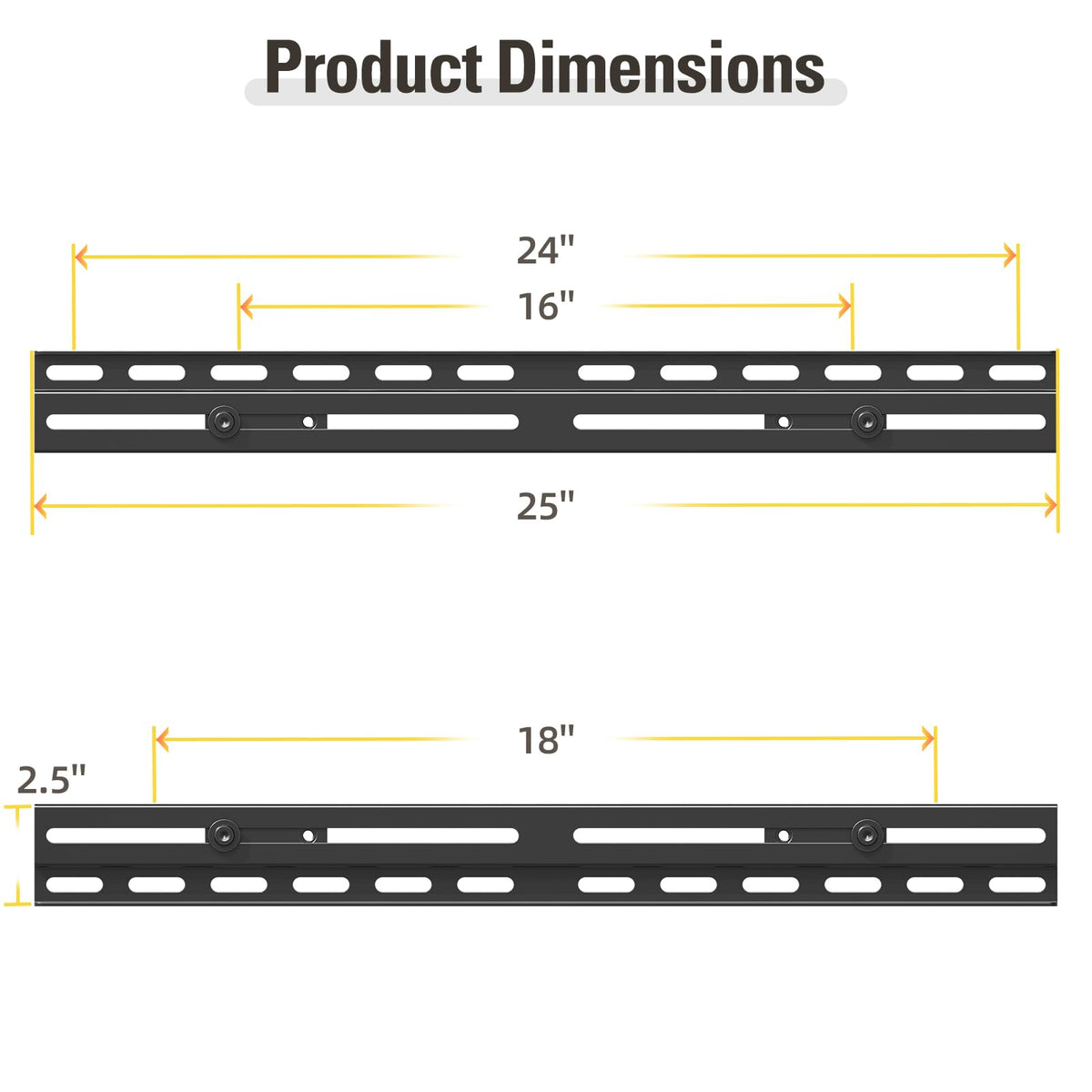

• Fits studs at 16" up to 24" spacing, covering uncommon gaps (17"–23").

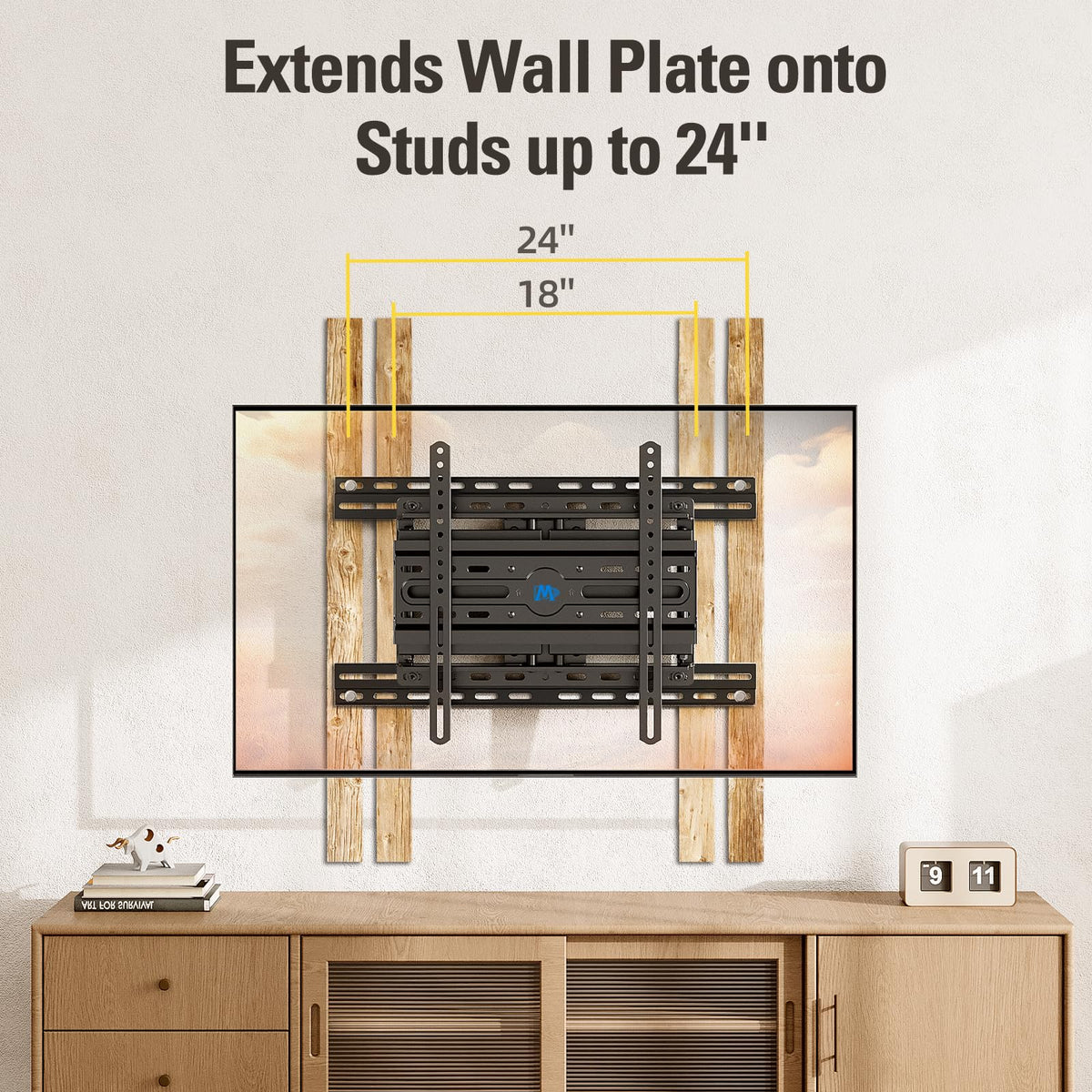

• Provides 8" of lateral travel to center the TV after mounting.
• Allows the TV plate to remain fixed while the extension aligns with studs.

Will the MD5232 keep a large TV stable and safe?

Yes — the bracket is built from 2.5mm cold-rolled steel and tested for a maximum static load of 154 pounds, giving a solid mounting point for most modern flat-panel TVs. The robust construction minimizes flex and wobble when properly installed into wood studs.

• 2.5mm cold-rolled steel construction resists bending under load.
• Designed to meet typical home AV load requirements up to 154 lbs.
• Multiple fastener points distribute weight across studs for stability.

How easy is installation and adjustment once it’s on the wall?

Installation is straightforward for anyone comfortable with basic wall mounts and tools. Mounting hardware is organized and labeled, and a sliding block lets you fine-tune the TV’s lateral position without removing the entire assembly.

• Pre-labeled hardware kit reduces guesswork during setup.

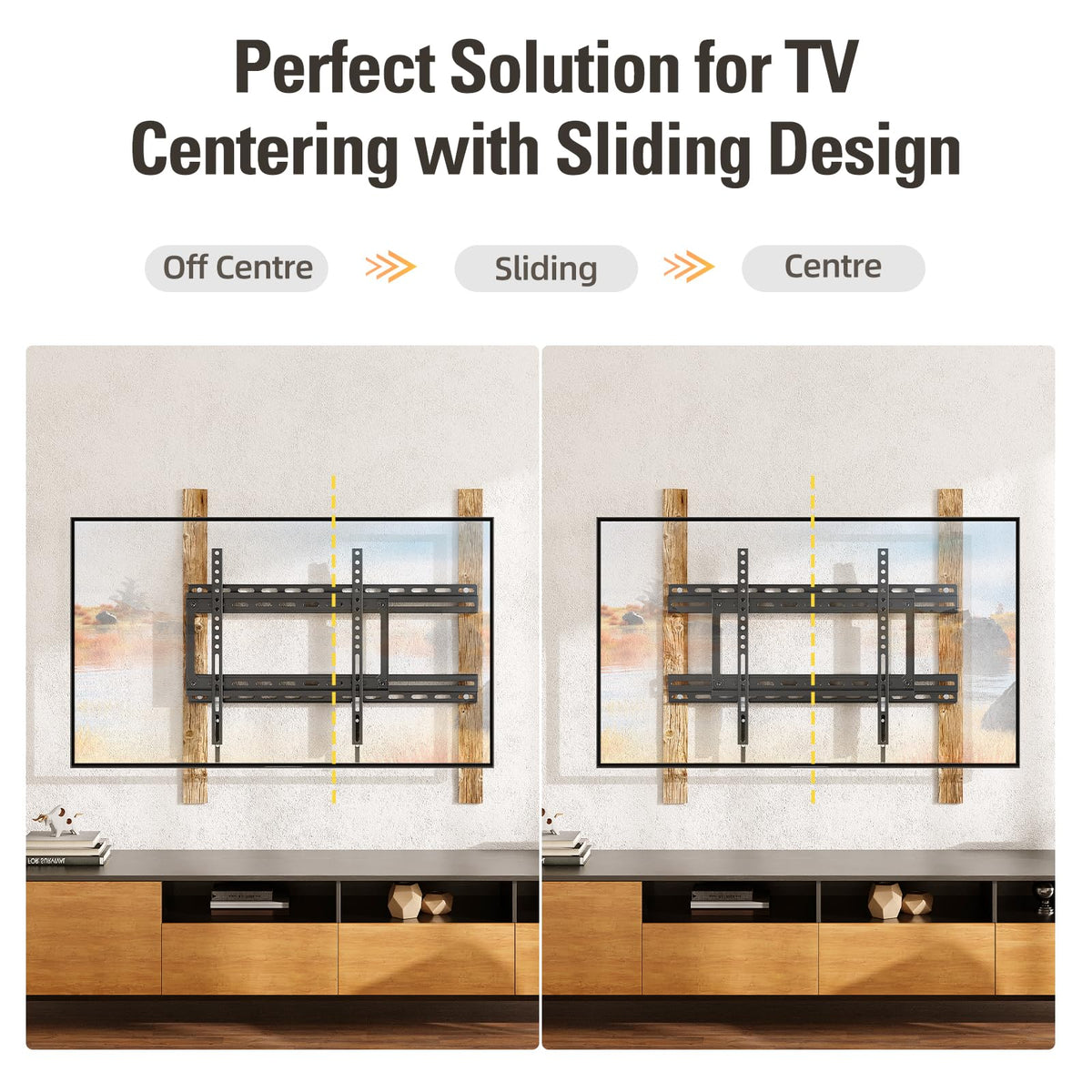

• Sliding adjustment block offers quick centering after fastening.
• Clear screw points and standard bracket geometry for compatibility with most plates.

Are there any installation limits or warnings I should know?

The MD5232 is specifically intended for installation into wood studs and is not a solution for unsupported drywall or concrete without an appropriate backing. Using correct lag screws and mounting into solid wood studs is necessary to achieve rated capacity and safe performance.

• Only for wood-stud installations — not for drywall-only mounting.
• Follow stud-finding and fastener instructions to meet load rating.
• Use recommended hardware and tightening sequence for safety.

Who this product is for: The Mounting Dream MD5232 is ideal for homeowners, AV installers, and renters who need to center a TV when the existing wall plate and studs don’t align. It’s especially useful for mid- to large-size flat-panel sets that require a sturdy, load-rated solution without reframing the wall. Choose this extension if you want a durable steel bracket with simple sliding adjustments and clear hardware labeling for a tidy, reliable installation.
