Mount Plus VESA Adapter Bracket 100x100 to 200x200

The Mount Plus 201P adapter bracket converts a VESA 100x100 or 75x75 mount to support VESA 200x100 and 200x200 patterns, allowing most 23"–42" flat-panel TVs to fit existing wall mounts.

If you have a TV whose mounting holes don’t match your wall bracket, this compact steel adapter bridges the gap without needing a new mount. The Mount Plus 201P is a set of four powder-coated brackets with standard hardware, designed to extend a 100x100mm or 75x75mm mount to larger VESA patterns commonly found on small to medium flat-panel displays. Built for straightforward installation and a discreet appearance, it saves time and expense when upgrading or changing screens.

How does the 201P adapter change my mount pattern?

The adapter repositions the attachment points so your wall plate that has 100x100mm (or 75x75mm) holes can accept a TV with 200x100mm or 200x200mm VESA spacing. Each pack includes four brackets that bolt to the TV and then to the existing mount, creating the wider hole pattern needed.

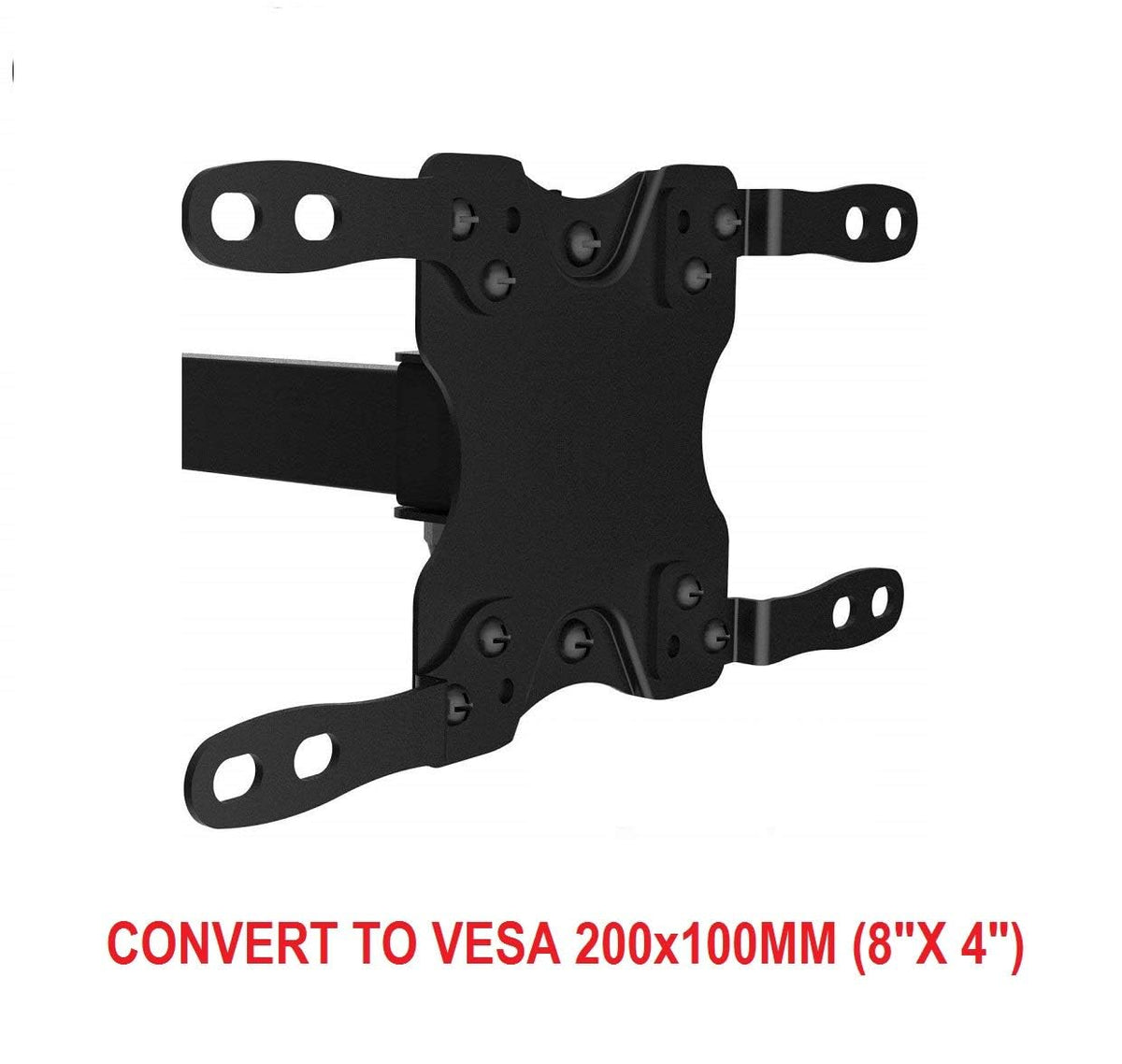

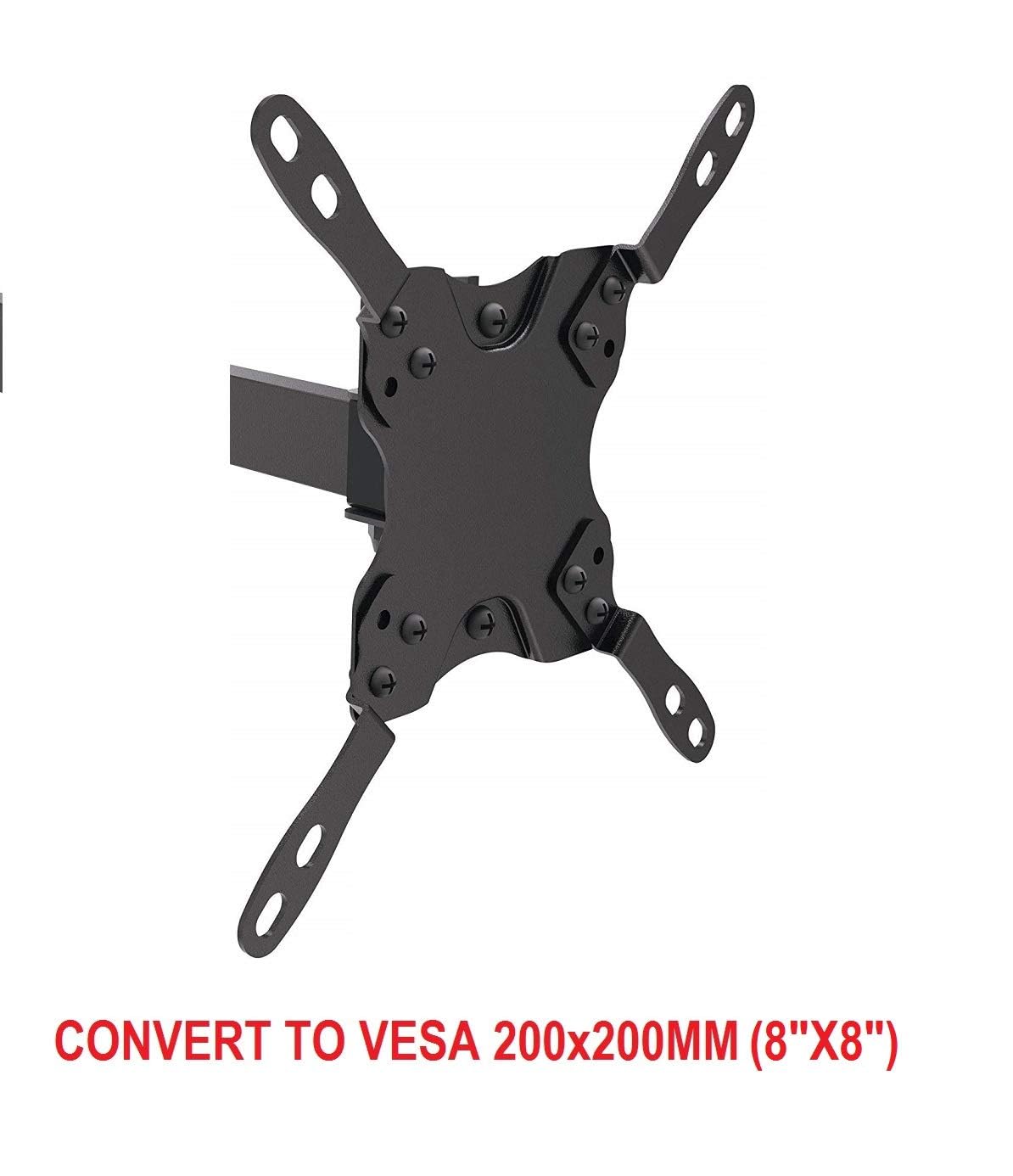

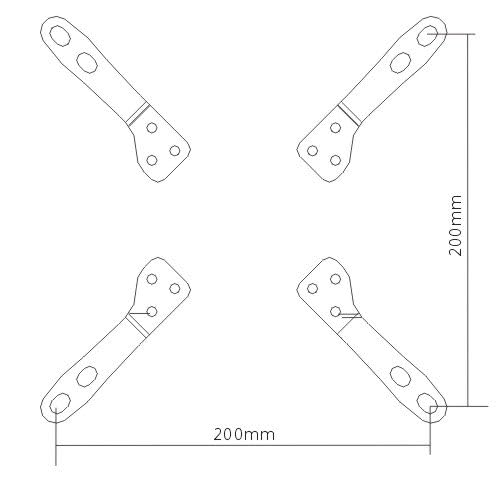

• Converts VESA 100x100mm and 75x75mm to 200x100mm and 200x200mm

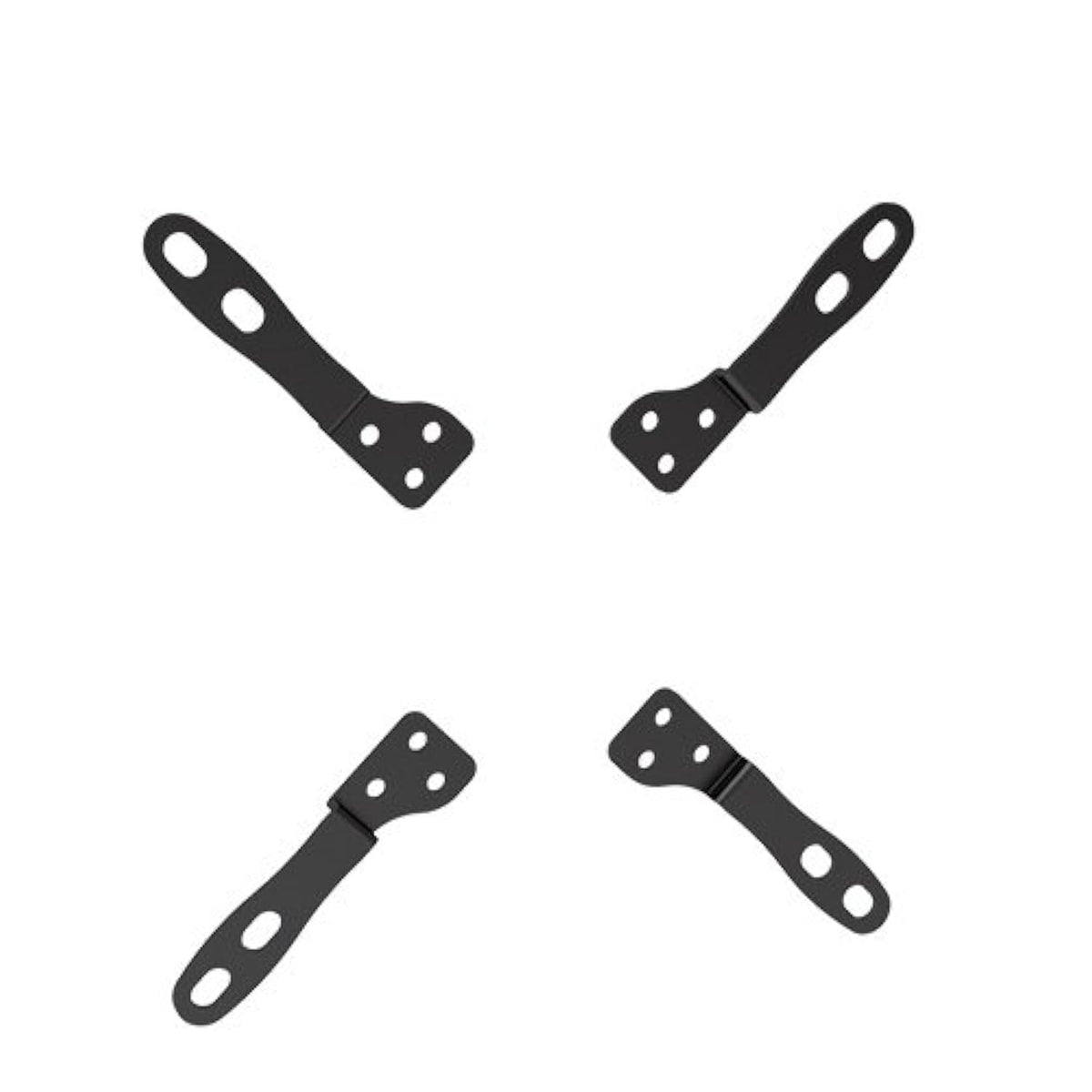

• Four brackets per pack for full support
• Includes standard mounting hardware for fast setup

Will this fit my 23"–42" flat panel TV and wall mount?

The 201P was designed for TVs in the 23"–42" size range that use common VESA patterns. It works when the TV’s screw pattern is 200x100 or 200x200 and your wall mount only offers 100x100 or 75x75. Always confirm your TV’s VESA measurements and screw sizes before installation.

• Compatible with most 23"–42" flat-panel TVs
• Supports both 200x100mm and 200x200mm TV patterns
• Works only with mounts that have 100x100mm or 75x75mm holes

What materials and finish does it have, and how durable is it?

The brackets are steel with a powder-coated black finish that resists scratches and blends with most mounts and TVs. The sturdy construction is intended to hold the TV securely when installed per the included hardware and instructions; follow weight and size guidelines for safe use.

• Heavy-gauge steel construction for reliable support
• Powder-coated black surface for scratch resistance and low glare

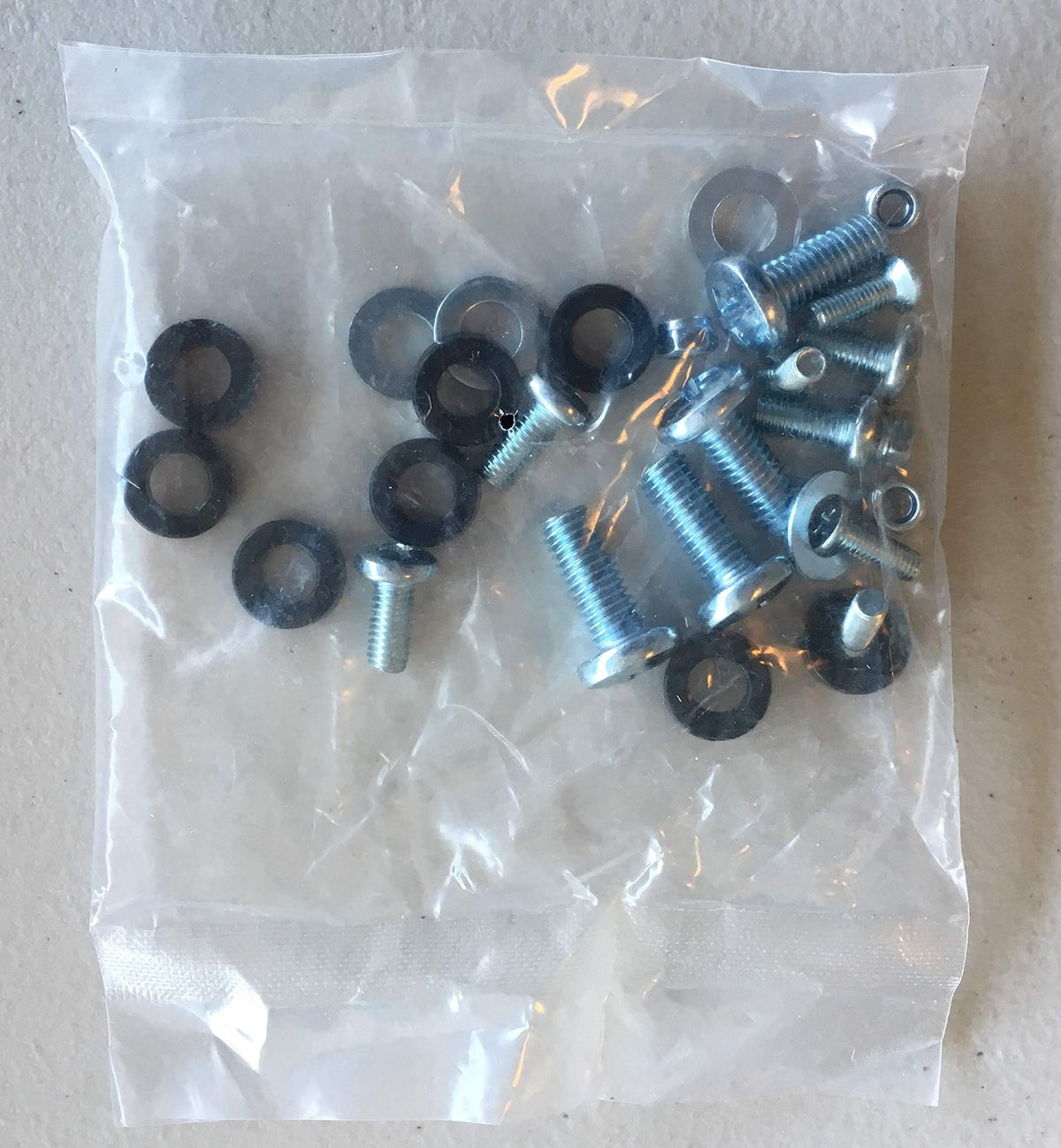

• Comes with standard mounting bolts and washers

How easy is installation, and what hardware is included?

Installation is straightforward for anyone comfortable with basic TV mounting: attach the adapter brackets to the TV, then secure them to the existing mount. The package contains the mounting screws and washers you’ll typically need, but it’s wise to check for any TV-specific screw requirements in advance.

• Standard mounting hardware included for most TVs
• Simple bolt-on installation — no welding or drilling required
• Recommended for installers familiar with VESA mounting procedures

Who is this for: The Mount Plus 201P is ideal for homeowners, small offices, retail displays, or AV installers who need to adapt an existing 100x100mm or 75x75mm wall mount to a TV with 200x100mm or 200x200mm VESA holes. If you want a cost-effective, minimal-change solution to fit a 23"–42" screen without replacing your wall plate, this adapter set provides a clean, durable conversion.
