Minn Kota Dual Spectrum CHIRP Adapter Lowrance 9-Pin

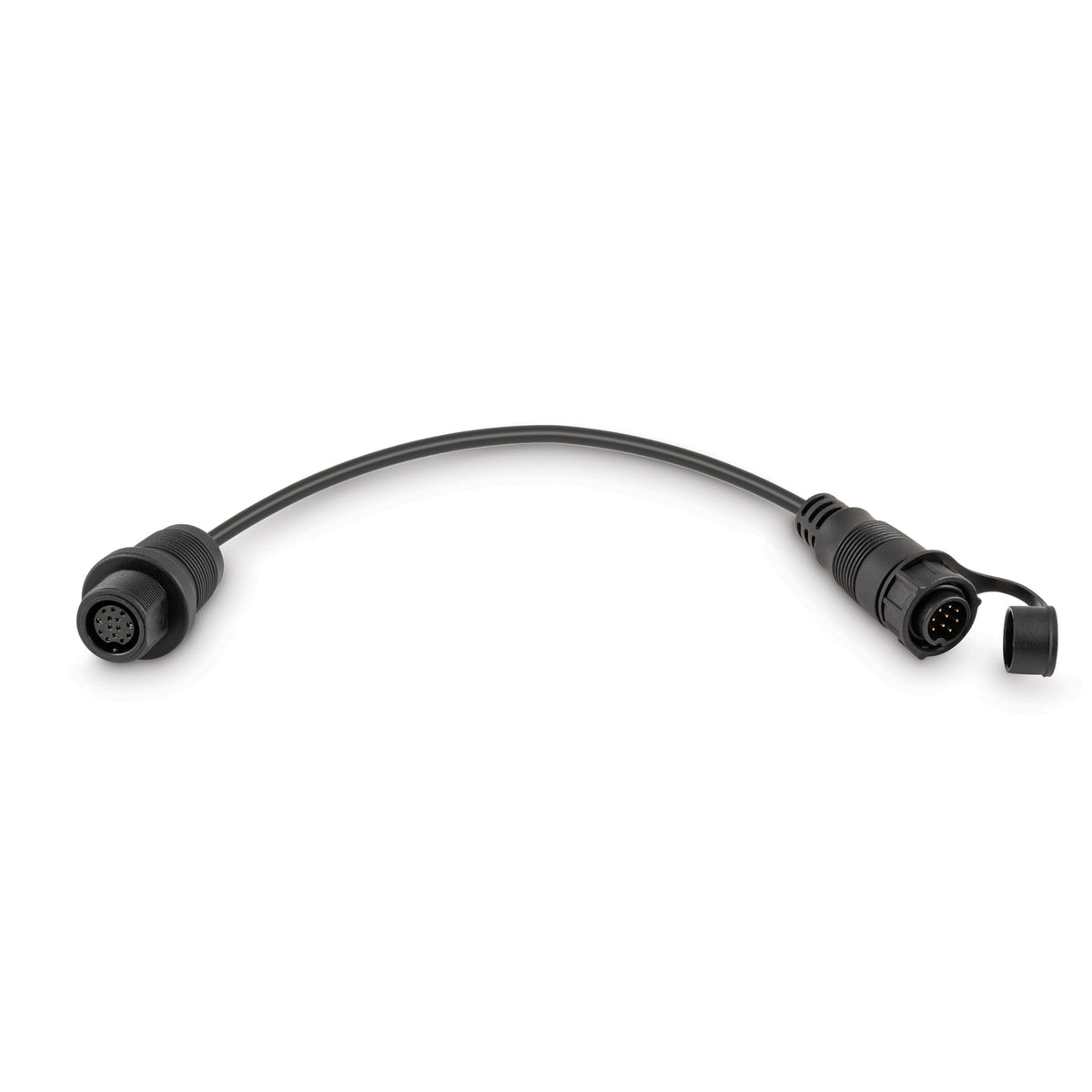

The Minn Kota MKR-DSC-16 Dual Spectrum CHIRP adapter cable links select Lowrance 9-pin fishfinders to Minn Kota trolling motors with built‑in Dual Spectrum CHIRP transducers for reliable 2D sonar.

When you want to use Minn Kota’s factory-installed Dual Spectrum CHIRP transducer with a Lowrance display, this adapter cable provides the physical and electrical bridge. It is designed to preserve signal quality with shielded wiring and metal-tipped, IP68-rated connectors that reduce interference and keep water out. The MKR-DSC-16 delivers traditional 2D sonar data quickly and installs without complicated modifications.

How does this adapter keep sonar signals clear on the water?

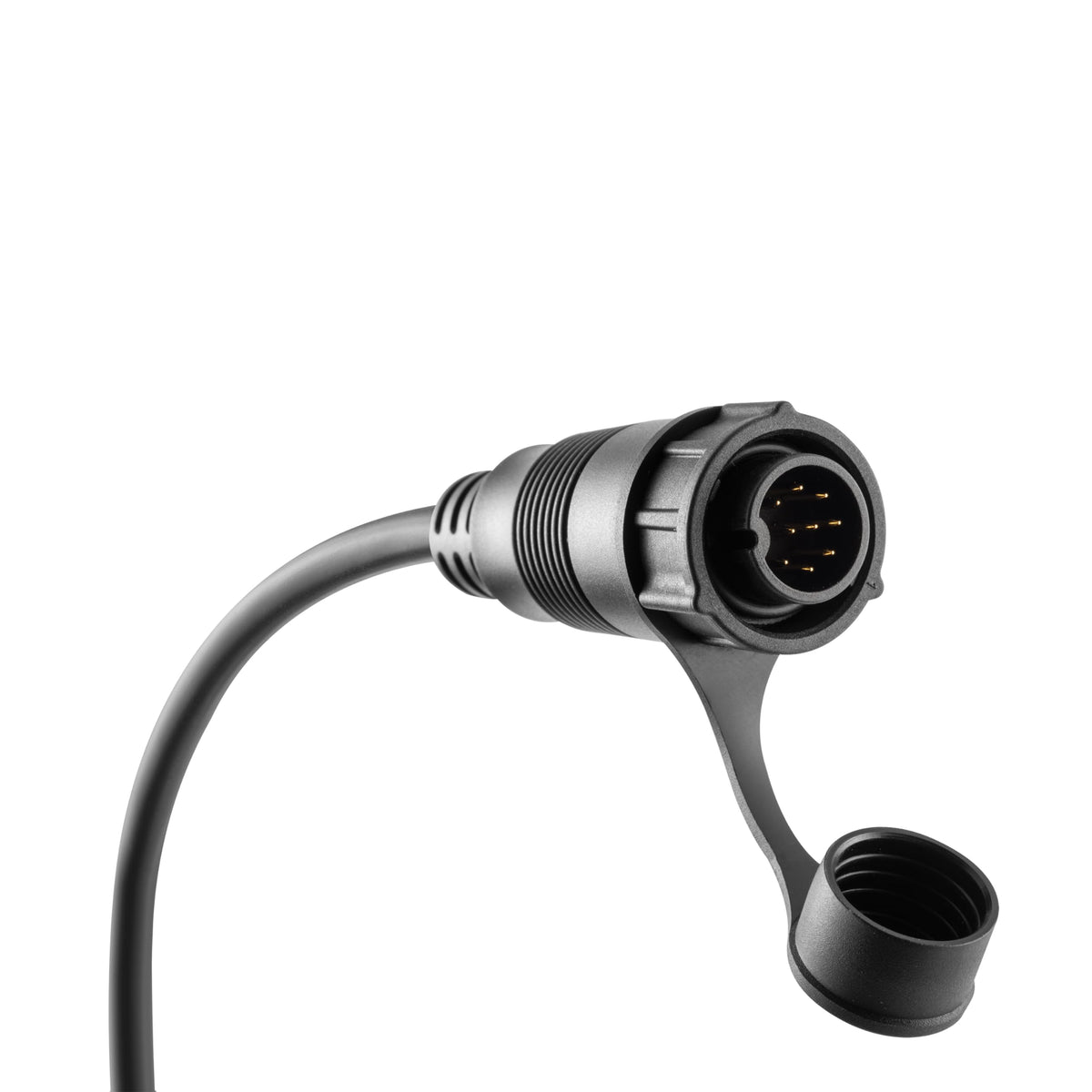

The cable uses a shielded construction and metal-tipped contacts to minimize electrical noise and maintain strong signal integrity between the transducer and Lowrance unit. Its robust connector design resists corrosion and keeps contact resistance low.

• Shielded cable jacket reduces electromagnetic interference from motor and electronics.
• Metal-tipped connector pins retain consistent contact and limit signal loss.
• IP68-rated waterproofing prevents moisture intrusion that can degrade sonar returns.
• Engineered for plug-and-play use to avoid splices or signal-weakening adapters.

Which Lowrance units and sonar modes work with this cable?

The MKR-DSC-16 was created to connect Minn Kota Dual Spectrum CHIRP transducers to select Lowrance fishfinders that accept a 9‑pin sonar input. It supports traditional 2D CHIRP sonar only and does not enable side-scan or down-imaging features.

• Compatible with Lowrance models that accept a 9‑pin transducer input—check your unit’s manual for compatibility.
• Provides Dual Spectrum CHIRP returns in 2D sonar view for clearer target separation and depth detail.
• Not compatible with SideScan or DownScan Imaging; those modes require dedicated transducers or different interfaces.
• Designed for direct connection—no additional converters needed for 2D CHIRP operation.

How durable and weatherproof is the MKR-DSC-16 for marine use?

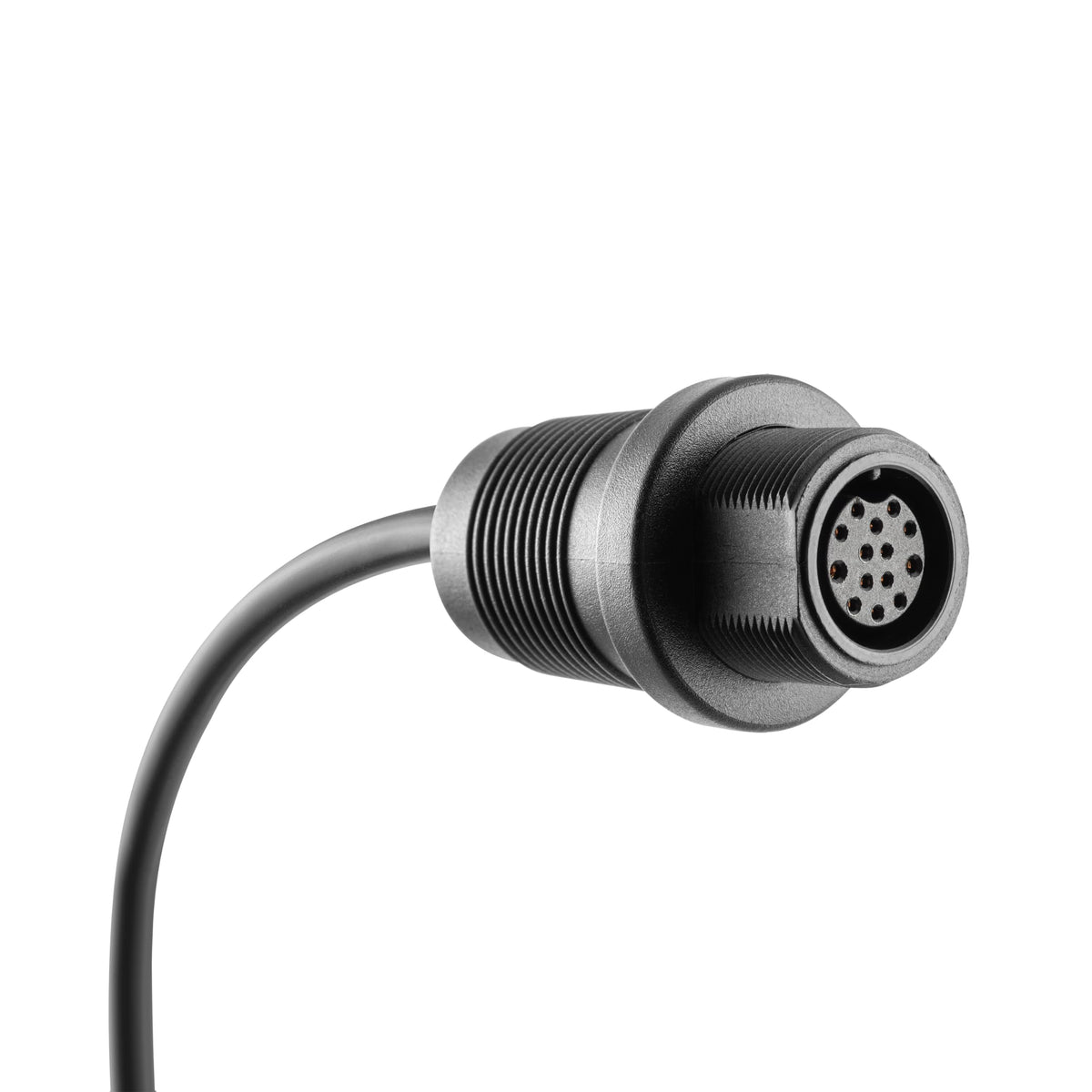

Built for the harsh conditions of boating, the adapter features heavy-duty composite housing and an IP68-rated seal to withstand submersion and spray. The construction helps protect against corrosion and wear from repeated hookups and exposure.

• IP68 water ingress rating for reliable performance in wet environments.
• Composite connector shell resists corrosion better than bare metal in marine settings.
• Rugged cable jacket resists abrasion where wiring routes through compartments and bilges.
• Precision terminals minimize loosening from vibration and repeated use.

How straightforward is installation and setup?

Installation is intended to be quick and simple: plug the adapter into the Minn Kota motor’s built-in transducer connection and the 9‑pin socket on a compatible Lowrance display. No splicing or soldering is required for immediate operation of 2D CHIRP sonar.

• Plug-and-play design connects directly between motor transducer and Lowrance 9‑pin port.
• No special tools or configuration changes required for most supported Lowrance units.
• Secure locking connector prevents accidental disconnects while underway.
• Works with factory wiring harnesses—preserves original equipment routing and strain relief.

Who is this for? The Minn Kota MKR-DSC-16 is ideal for anglers who own a Minn Kota trolling motor with a built-in Dual Spectrum CHIRP transducer and a compatible Lowrance 9‑pin fishfinder, and who want a clean, reliable 2D sonar connection without modifying factory components. It suits boaters who value straightforward installation, durable marine-grade connectors, and interference-resistant sonar performance during long days on the water.
