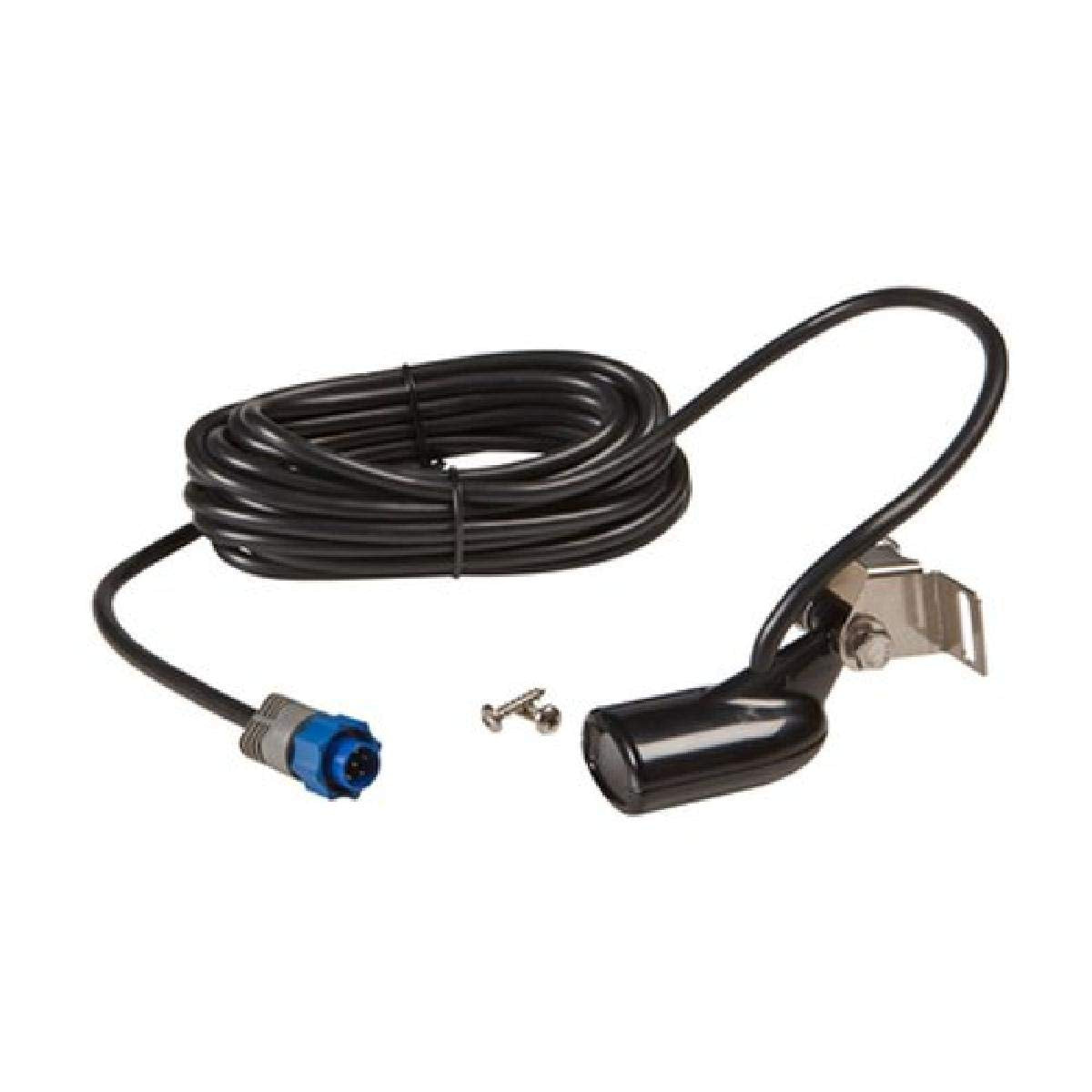

Lowrance HST-WSBL Transom Skimmer Transducer 83/200 kHz

The Lowrance HST-WSBL is a transom-mount skimmer transducer that delivers dual-frequency (83/200 kHz) depth and fish detection plus a built-in temperature sensor for accurate water readings.

Compact and rugged, this Lowrance transducer is designed to mount on the transom of most boat hulls and feed depth, fish-echo and temperature data to compatible Lowrance displays via a 7-pin connector. With a 20-foot cable and a skimmer-style 20° beam, it balances shallow-water target detail and deep-water penetration so anglers and cruisers can rely on consistent sonar returns across a wide range of conditions.

How does the HST-WSBL improve sonar performance on different water depths?

The HST-WSBL uses dual-frequency operation — 200 kHz for higher-resolution returns in shallow water and 83 kHz for extended depth reach. That combination helps you spot small targets near the surface while still tracking bottom structure and fish in deeper water.

• 200 kHz: clearer, high-detail images in shallow and mid-depths
• 83 kHz: longer-range penetration up to about 300 meters (1000 feet)
• 20° skimmer beam: balanced coverage for versatile mounting angles
• Consistent returns across varied seabed types and water conditions

What mounting and wiring options does it offer for my boat?

Designed as a transom-mount skimmer, the transducer installs easily on most outboard and inboard/outboard hulls without specialized hull-drilling tools. The supplied 20-foot cable gives flexibility in routing to the display while the standard 7-pin connector plugs into a wide range of Lowrance units for straightforward integration.

• Transom-mount design: no thru-hull fitting required
• 20-foot cable: room to position and route to dash electronics
• 7-pin connector: compatible with many Lowrance chartplotters and fishfinders
• Durable housing: built for exposure to saltwater and freshwater use

How accurate is the built-in temperature sensor and why does it matter?

The onboard temperature sensor provides real-time water temperature reporting to your Lowrance display, helping you interpret fish behavior and thermocline presence without a separate gauge. While not a laboratory instrument, it gives practical, on-the-water readings that are useful for fishing strategy and general water monitoring.

• Integrated sensor: no extra probes or connections needed
• Live temperature readouts on compatible Lowrance units
• Useful for identifying temperature breaks and seasonal patterns
• Works continuously while the transducer is powered and submerged

Which Lowrance units and boating setups is this transducer compatible with?

The HST-WSBL supports a broad list of Lowrance models that accept a 7-pin transducer input, including legacy and current displays across the X, HDS, LCX and LMS product lines. It pairs well with boats that need a reliable skimmer-style transducer without a through-hull installation.

• Compatible with many X100/X125/X135, HDS and LCX series displays
• Ideal for small to medium powerboats and fishing boats
• Works across most hull materials when mounted on the transom
• Plug-and-play connection reduces installation complexity

Who is this for? The Lowrance HST-WSBL is aimed at recreational anglers, charter operators and boat owners who want an affordable, reliable transducer that combines shallow-water detail and deep-water reach with built-in temperature sensing. If you run compatible Lowrance displays and prefer a transom-mounted skimmer for easy installation and flexible placement, this unit provides a practical sonar upgrade without the need for a thru-hull fitting.
