Leadsign Emblem Backup Camera for Ford F-Series (2004–2016) — RCA Output, IP69K Waterproof Night Vision

LEADSIGN Emblem Backup Camera replaces the OEM badge assembly on 2004–2016 Ford F150/F250/F350/F450/F550 trucks to provide a high‑resolution, weatherproof reverse camera with RCA output and night vision.

This aftermarket emblem camera is built to fit the rear tailgate of compatible Ford F‑Series trucks and connects via a standard yellow RCA socket to most aftermarket monitors and head units (not compatible with factory integrated monitors). The unit ships preassembled in a durable housing, includes a 26‑foot extension cable, and delivers a wide field of view with improved low‑light sensitivity so you can see obstacles behind your truck in varied conditions.

Will this camera fit my 2004–2016 Ford F‑Series tailgate?

The camera is designed as a direct emblem replacement for many 2004–2016 Ford F150, F250, F350, F450 and F550 tailgates that use an emblem‑mounted camera housing. Fitment depends on your tailgate model and emblem shape—measure and compare before ordering.

• Compatible with emblem‑style rear camera cutouts on specified F‑Series years
• Replaces the entire emblem camera assembly for a straightforward swap
• Check that your monitor has a yellow RCA video input—this unit uses RCA
• Not compatible with original factory monitors that require proprietary connections

How does the image quality perform day and night?

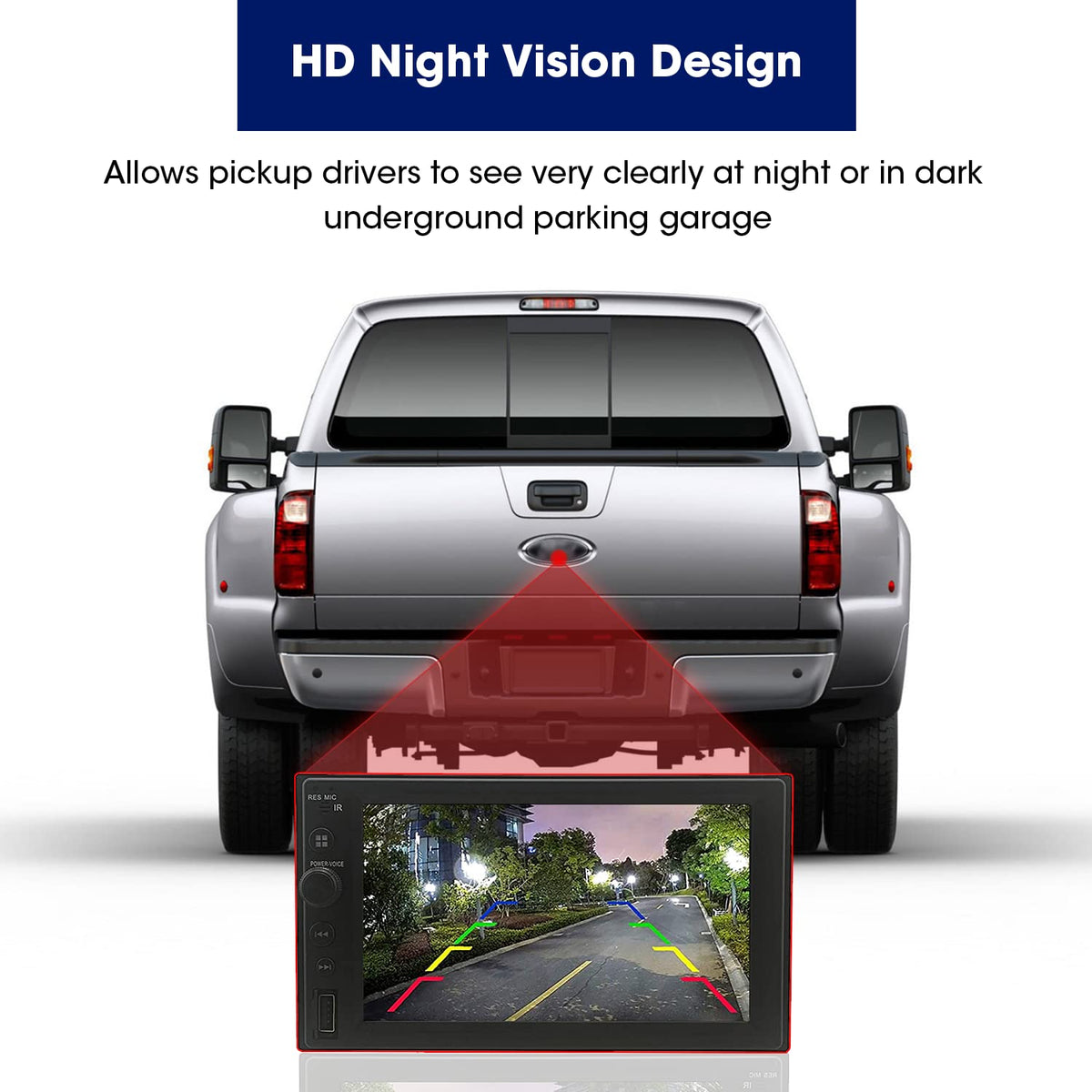

The camera uses a 1/3" CMOS sensor with 700 TV lines (960×576) resolution and a 0.05 Lux sensitivity rating, so it captures a clear picture in daylight and improves visibility in low light. Night vision capabilities help make backup maneuvers safer in dim conditions, though performance depends on surrounding ambient light.

• 700 TVL resolution for sharper edges and clearer detail
• 0.05 Lux light sensitivity for better low‑light viewing

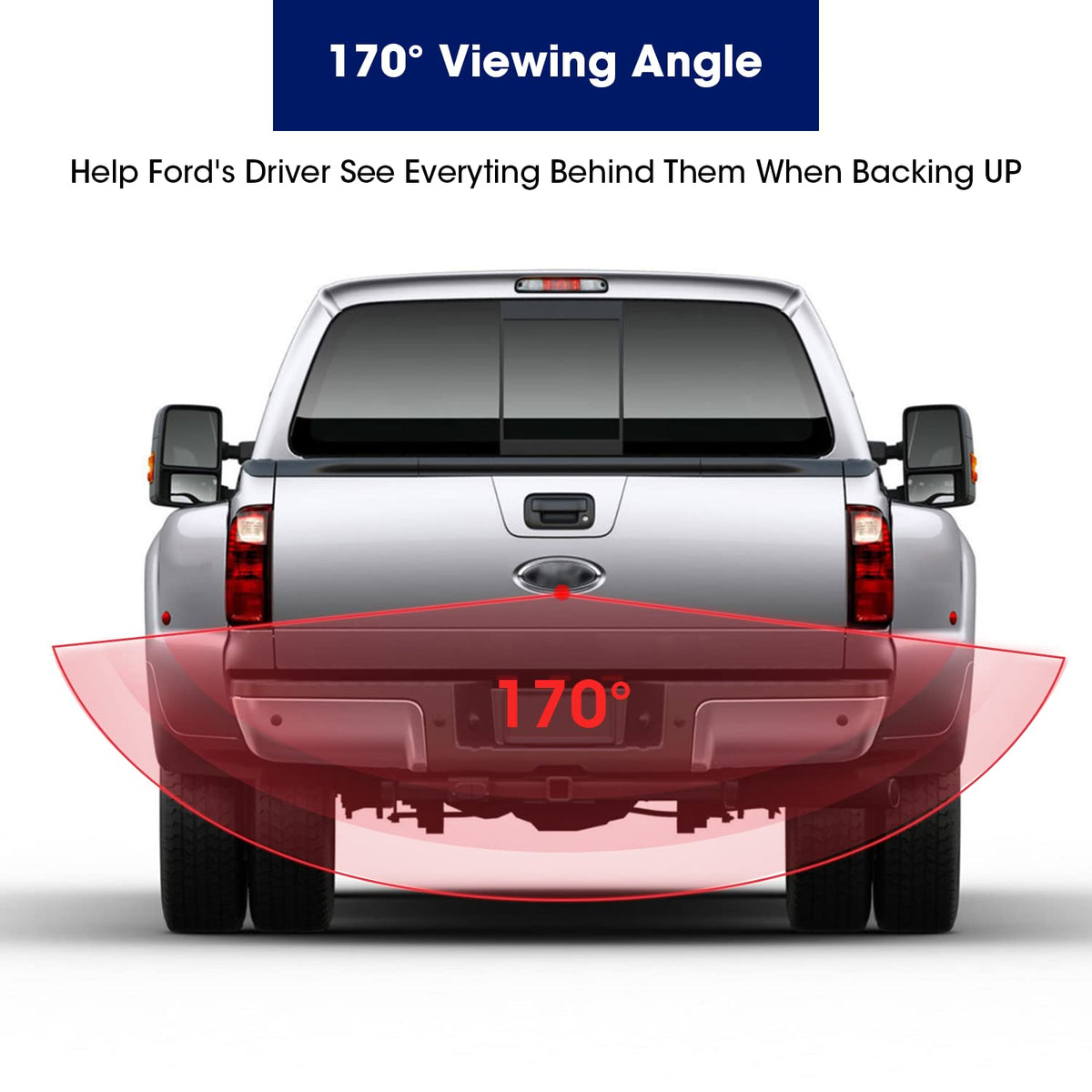

• Wide 170° diagonal view reduces blind spots behind the truck
• Image mirror/gridline control by cutting the nearby loop if needed

Is the unit durable and weather resistant for truck use?

Yes — the housing is engineered for outdoor use and rated IP69K, meaning it resists high‑pressure, high‑temperature washdowns and heavy exposure to water. That makes it suitable for trucks that face rain, mud, and frequent cleaning.

• IP69K waterproofing for high‑pressure washdowns and harsh weather
• Robust housing protects electronics from dust and moisture

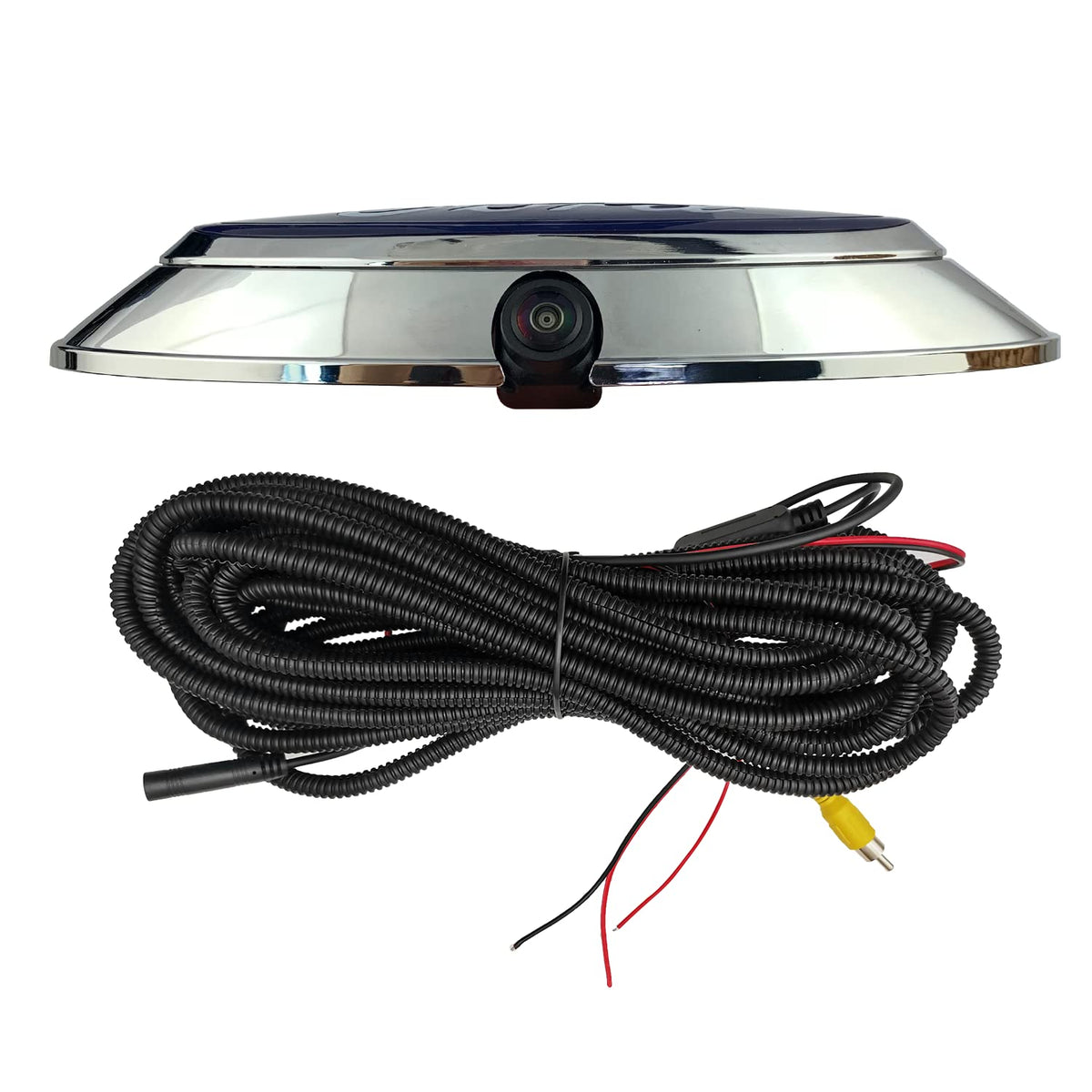

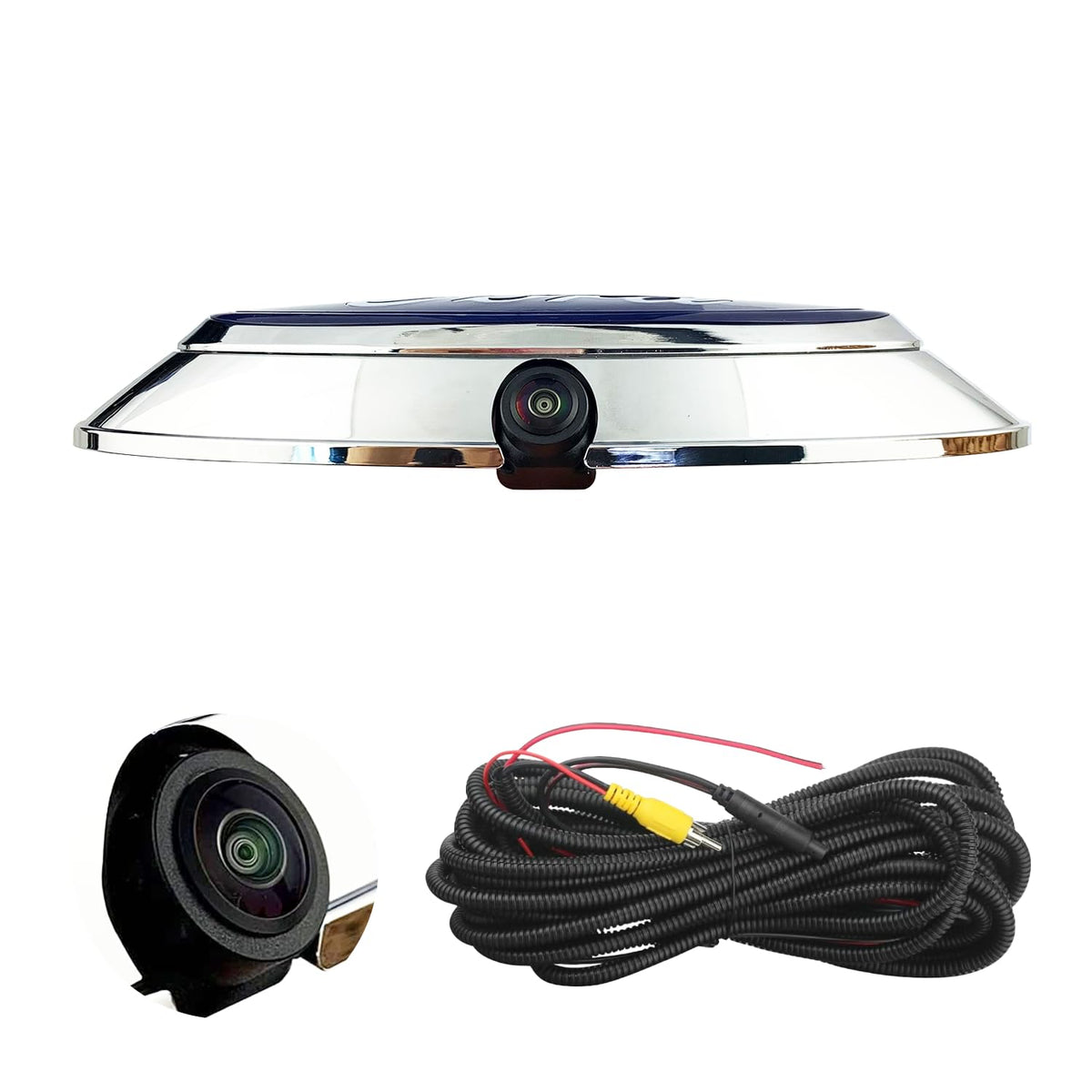

• Preloaded camera in emblem housing simplifies installation

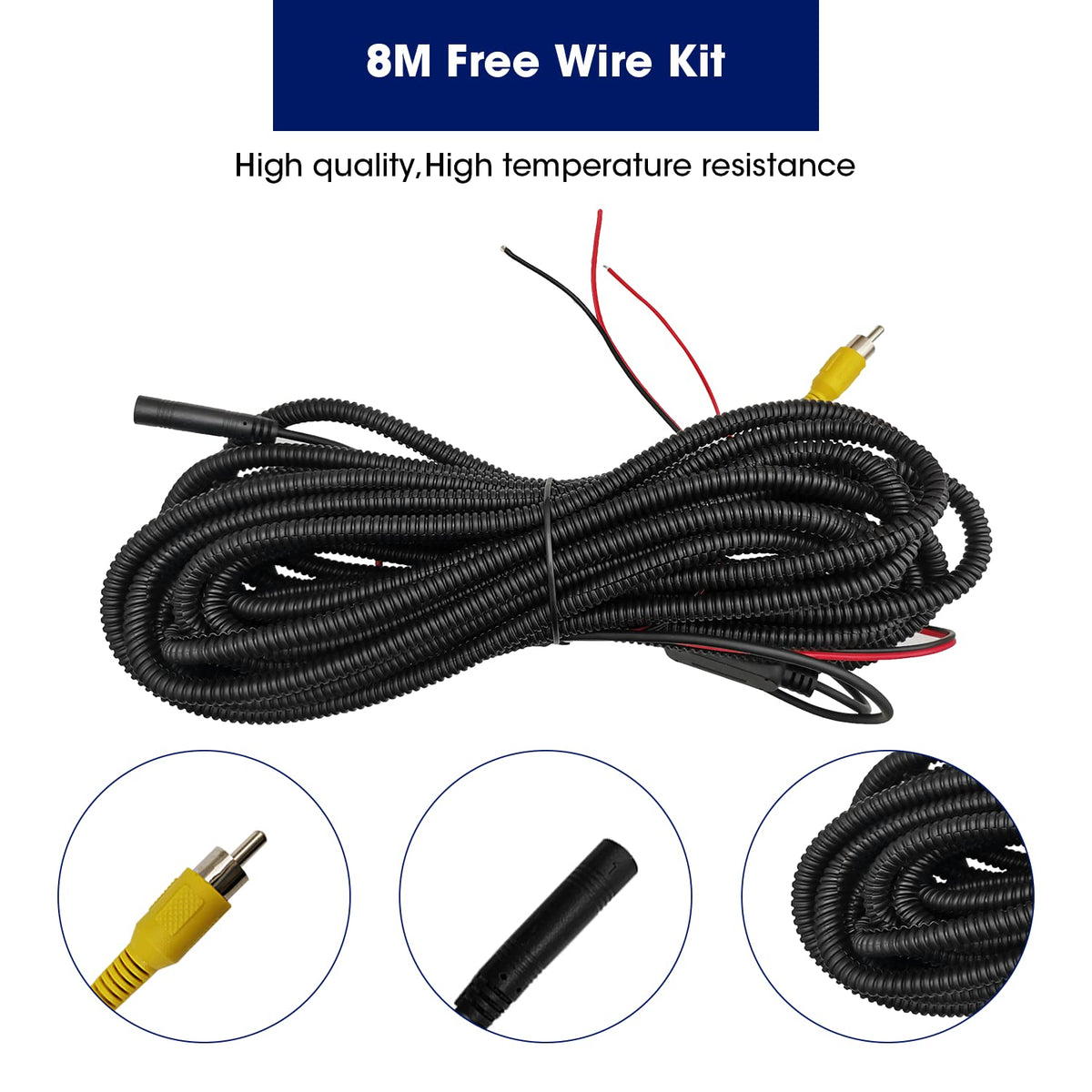

• RCA cable with 26ft extension gives flexible routing options

What do I need to install and use this camera properly?

Installation is simplified by the camera arriving preinstalled in the emblem housing, but you should confirm cable routing, power and video connections before starting. This unit uses a yellow RCA video connector and requires an aftermarket monitor or head unit with RCA video input.

• Monitor with yellow RCA video input required (not for factory monitor)
• 26‑foot extension cable included for rear‑to‑cabin routing
• May require basic tools to remove the old emblem and secure the new housing
• Cut the control loop near the camera to toggle mirror image or gridlines

Who is this for? This LEADSIGN emblem backup camera is intended for Ford F‑Series owners (2004–2016) who need an affordable, durable aftermarket reverse camera that connects to standard RCA displays. It’s a good match for drivers who want a wide field of view, enhanced low‑light performance, and a weatherproof assembly that replaces a damaged or missing emblem camera housing. If your vehicle uses a proprietary factory camera interface, or your monitor lacks a yellow RCA port, this product will not be compatible.
