Lavamatic WS-10521 Washer Voltage & Surge Protector

Lavamatic WS-10521 is a dedicated electronic voltage and surge protector that prevents damage to front and top-load washing machines from high/low voltage, brownouts and spikes.

Power fluctuations are a common cause of premature appliance failure. The Lavamatic WS-10521 monitors incoming voltage and cuts power when readings exceed safe thresholds, then delays restart to protect motors and electronics. This two-piece set provides visible status indicators, an angled outlet to save space behind the washer, and a timed delay after outages or high-voltage events.

How does this protector respond to high and low voltage events?

The WS-10521 continuously measures mains voltage and disconnects power if levels become unsafe. It trips at a defined high voltage and at a defined low voltage to prevent stress on the washer's electrical components, then restores power only after conditions normalize and a protective delay has elapsed.

• High voltage shutoff at 140 VAC
• Low voltage shutoff at 90 VAC
• Automatic reconnection after stable voltage
• Protects against spikes, brownouts, and instant surges

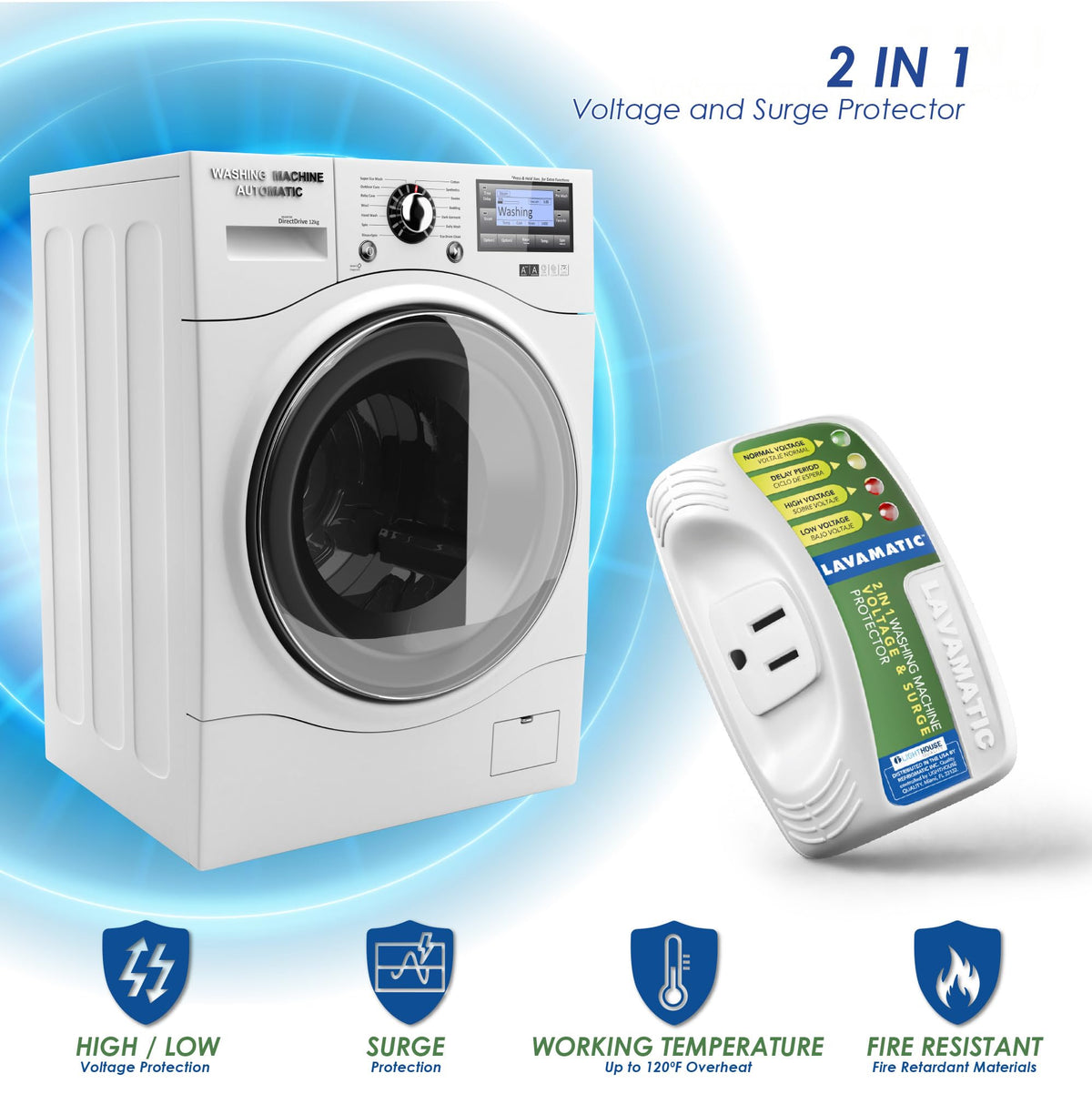

What do the lights and delay indicator tell me?

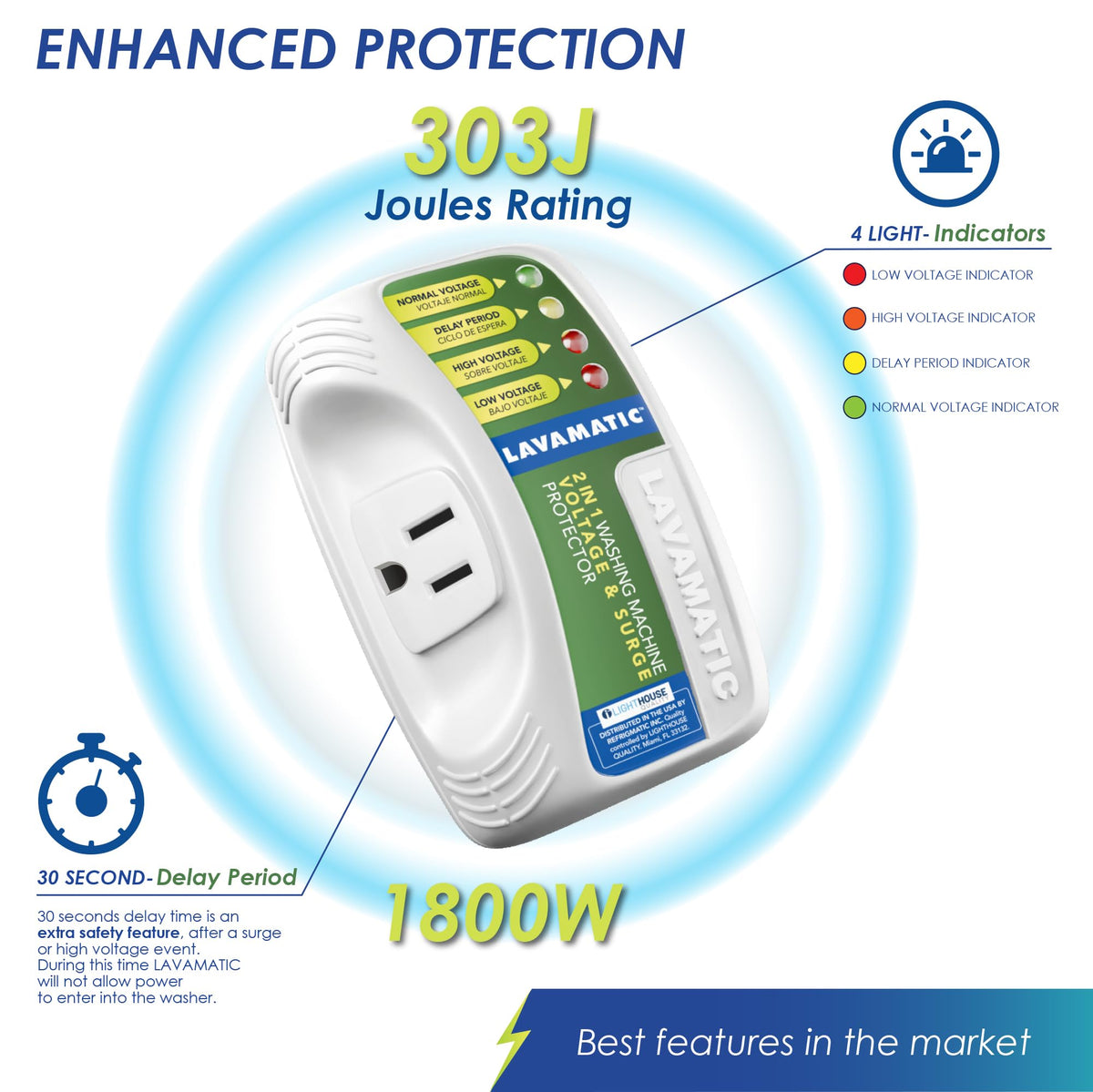

Built-in LEDs display the unit's operating status so you can quickly see whether the protector is in normal mode, has detected high or low voltage, or is in its timed delay. After plugging in or after a power disturbance, a delay light illuminates while the device waits before supplying power to your washer.

• Normal, High, Low Voltage, and Time Delay status lights
• Delay lamp activates on initial plug-in and after outages
• 30-second cutoff after a high-voltage event to reduce risk
• User-visible feedback for troubleshooting and peace of mind

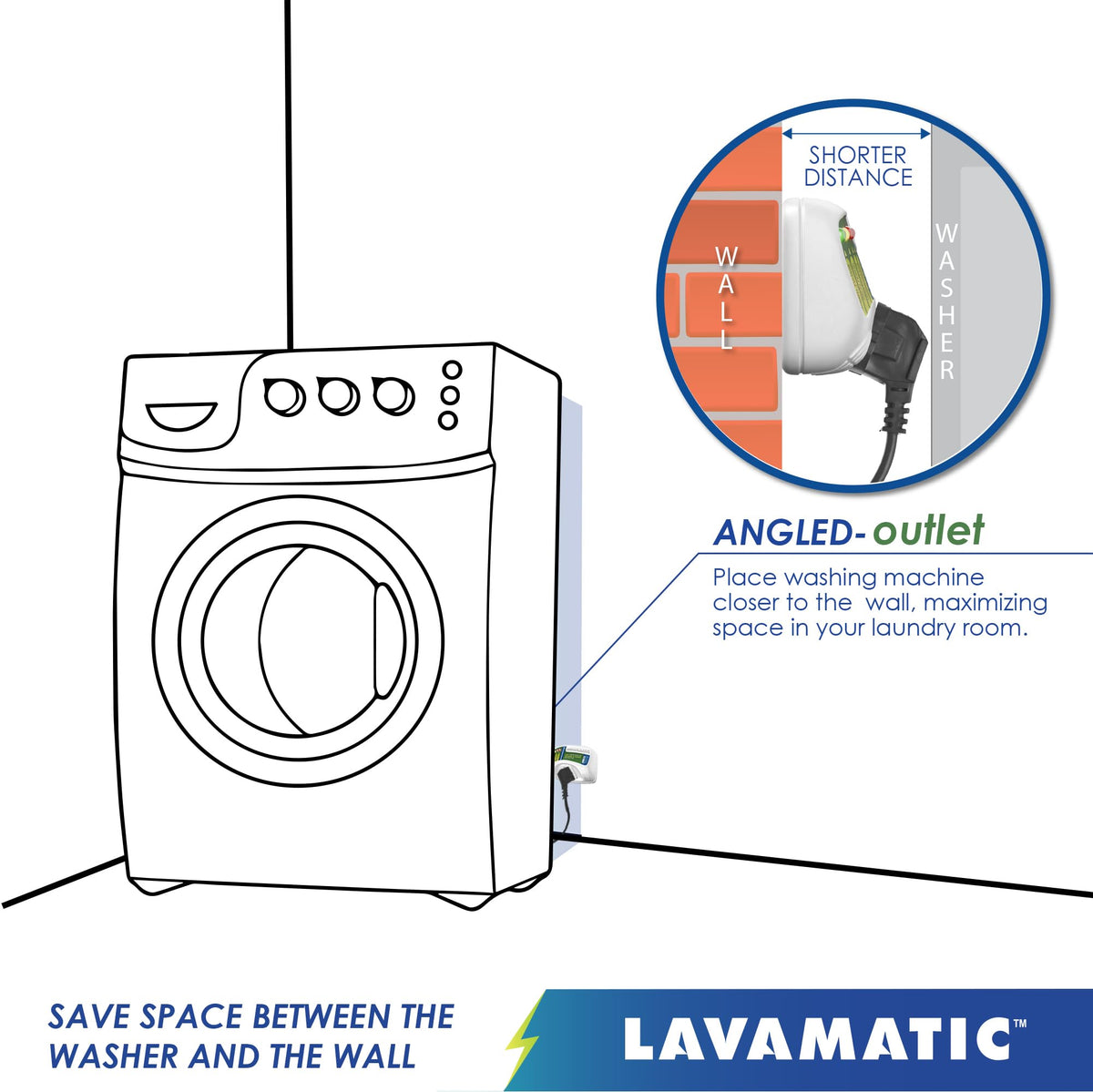

Will this fit my laundry setup and save space behind the machine?

The WS-10521 is designed with an angled outlet to allow washers to sit closer to the wall while still plugged in. It is appropriate for both front- and top-load washers and intended for dedicated use with the appliance rather than general household loads.

• Angled outlet reduces gap between washer and wall
• Recommended specifically for front and top load washing machines

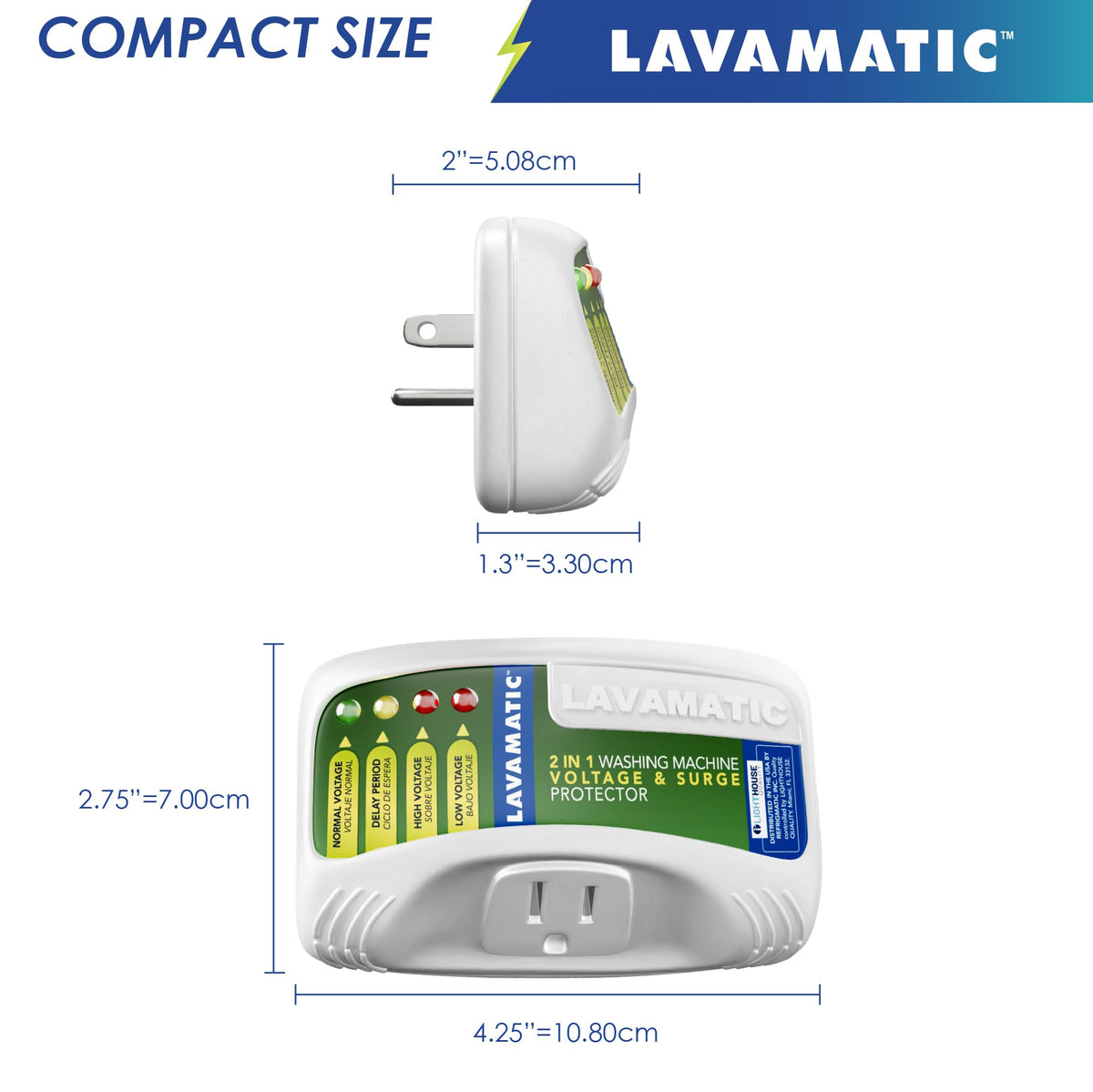

• Compact housing suitable for laundry room installations

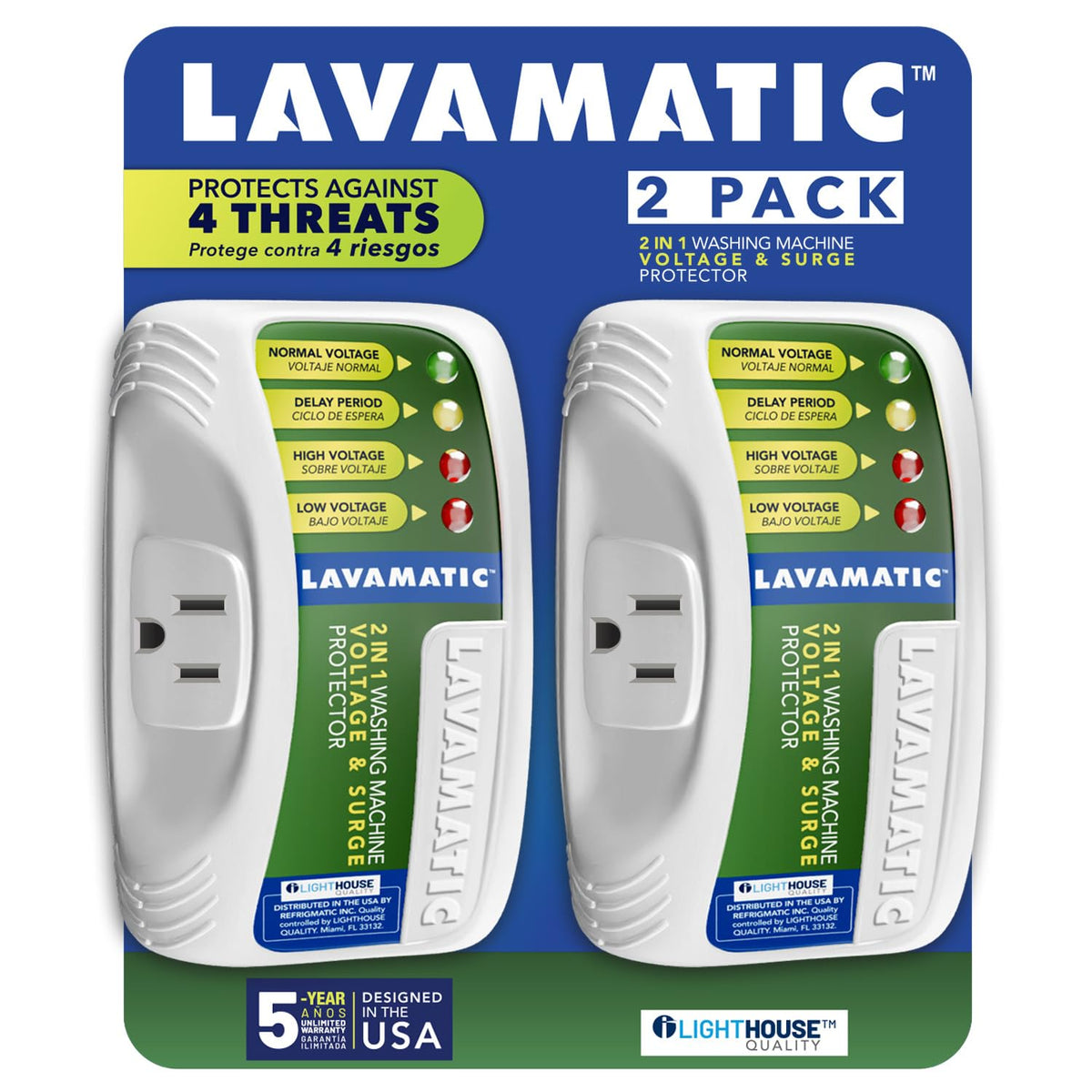

• Sold as a convenient two-piece set for multiple machines or backup

How should I use and maintain the Lavamatic WS-10521?

Installation is plug-and-play: insert the protector into a grounded outlet and plug your washer into the unit. Observe the waiting time on first use and after any protective trip, and periodically check the indicator lights to confirm proper operation.

• Wait three minutes before first plugging the appliance into the protector
• After a high-voltage event, unit cuts power and waits 30 seconds before resetting
• Check LEDs regularly; replace if indicators show persistent faults
• Use on a dedicated circuit for best protection

Who is this for: The Lavamatic WS-10521 is aimed at homeowners and property managers who want straightforward electrical protection for washing machines in areas prone to voltage variation, brownouts, or frequent power disturbances. It suits anyone seeking a compact, easy-to-install safeguard to reduce the risk of motor and control board damage, while keeping the washer positioned close to the wall.
