JHK JIEHONGKE 15.6" 1366x768 eDP 30-pin Matte LCD

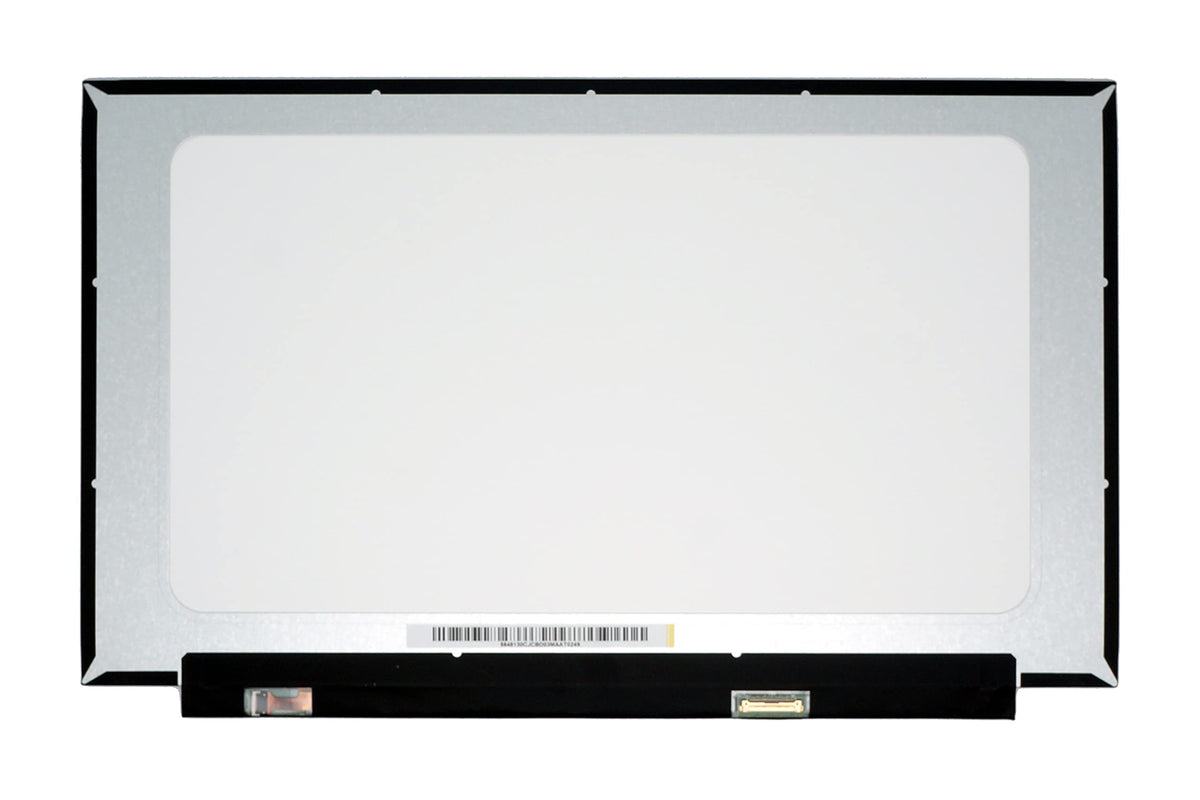

JHK JIEHONGKE 15.6-inch Grade A replacement LCD — 1366×768 (WXGA), matte finish, eDP 30-pin, non-touch.

This JHK JIEHONGKE replacement panel is a direct-fit 15.6" LCD designed to substitute failing or damaged laptop displays that share the same physical dimensions and electrical interface. It is a non-touch, matte-surface screen with a WXGA (1366×768) resolution and an eDP 30-pin connector. The part supports models that list B156XTN08.1, N156BGA-EA3, NT156WHM-N34/N44/N49/N40 and similar LCD part numbers when the specs match exactly.

How do I confirm this screen fits my laptop?

Matching three key specs avoids incompatibility: diagonal size, pixel resolution, and connector type. Confirm your existing panel’s label or check the current display’s part number before ordering. If any of these differ, the screen will not function properly with your device.

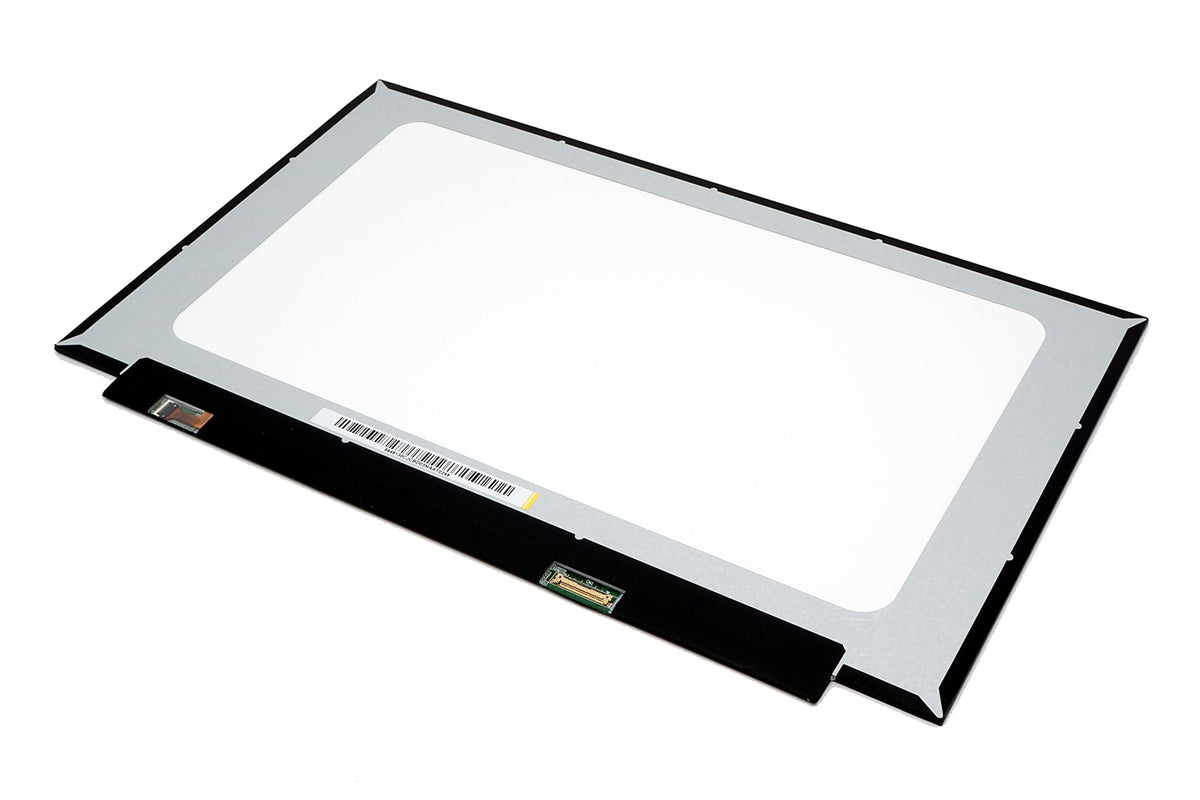

• Diagonal size: 15.6 inches (measure corner-to-corner).
• Resolution: 1366(RGB) × 768 (WXGA).

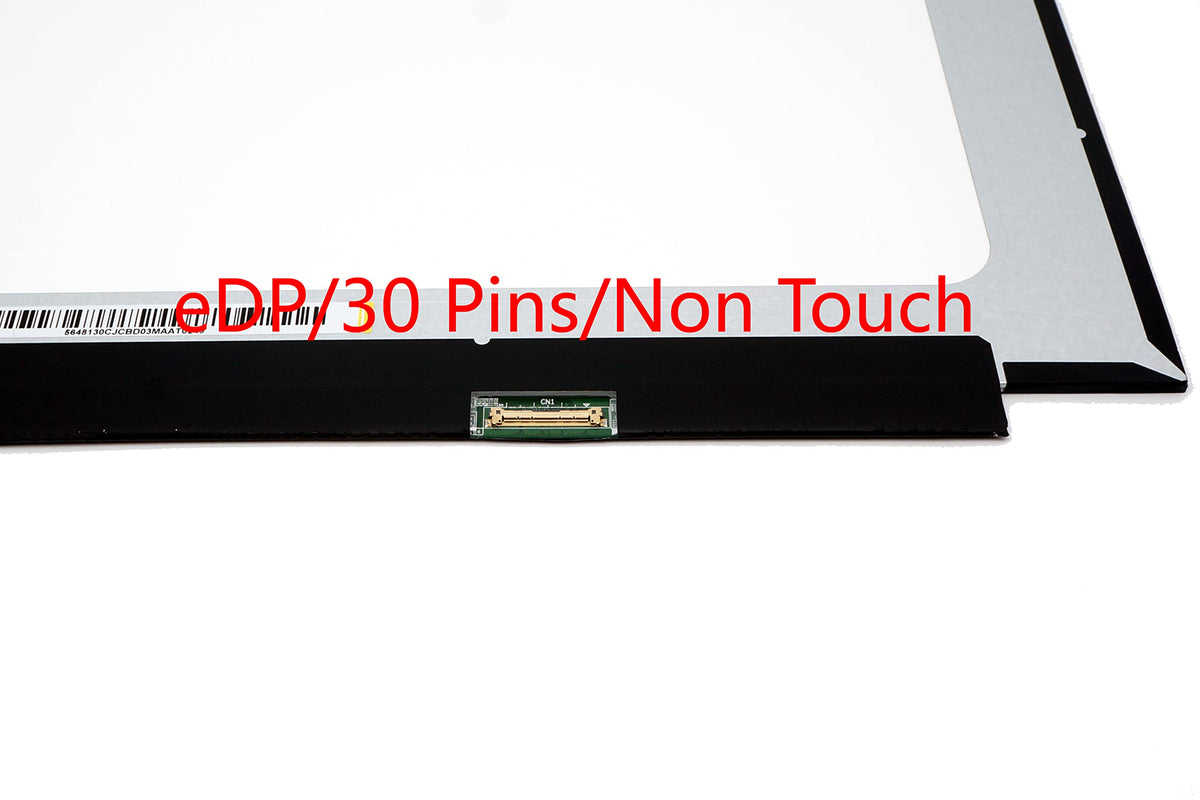

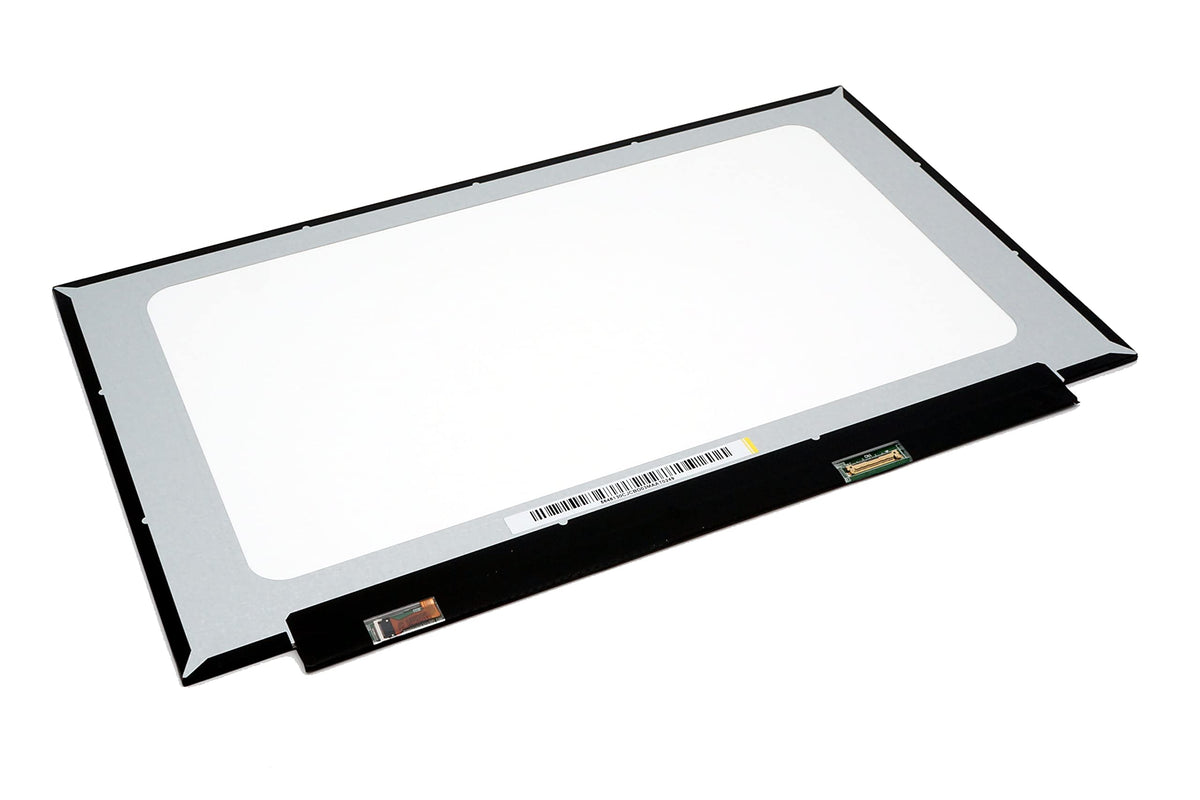

• Interface: eDP 30-pin connector (not LVDS).

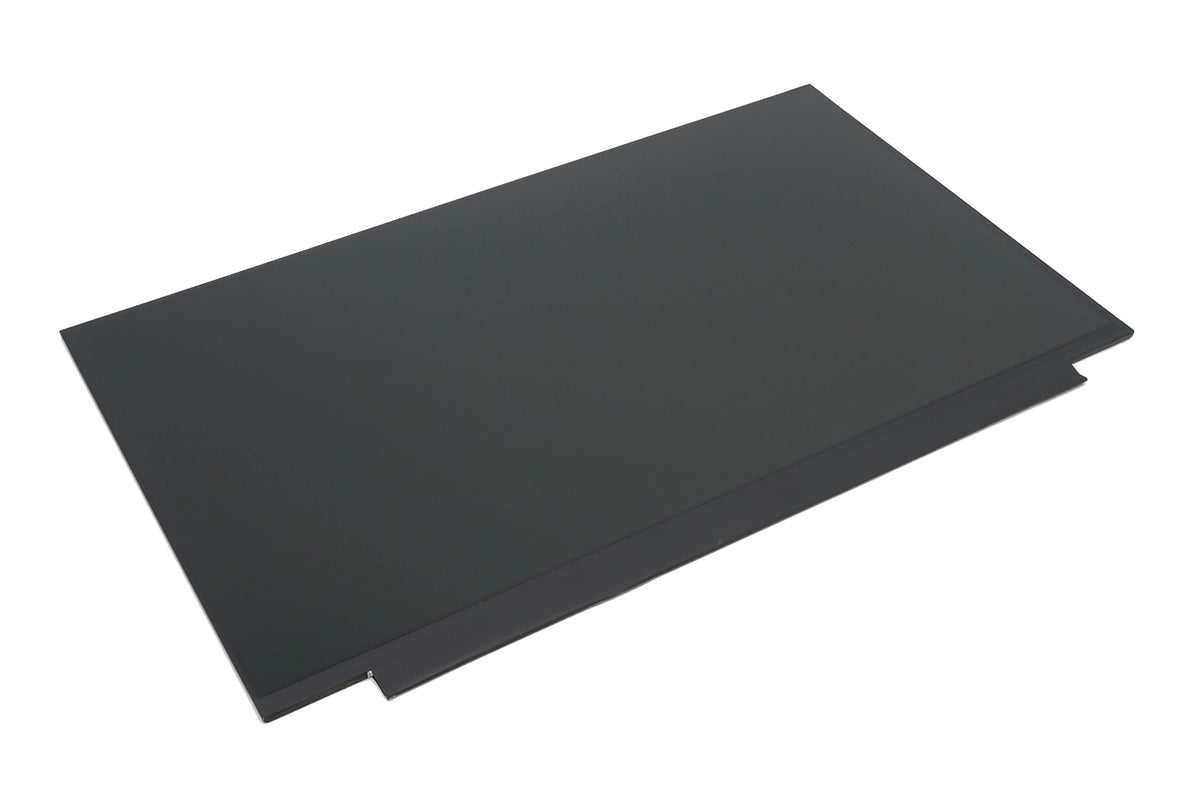

• Surface: matte (anti-glare) and non-touch panel.

What arrives in the package and what extra parts do I need?

The shipment contains only the brand-new JHK JIEHONGKE LCD panel — no bezel, inverter, controller board, or installation tools are included. Keep your laptop’s existing frame, screw set, webcam assembly and cabling for reassembly. If your device previously used special mounts or adhesive, plan to reuse them or acquire replacements.

• Included: new LCD panel only.
• Not included: bezel, back cover, control board, tools, or instructions.
• Recommendation: retain original mounting hardware and connectors.
• Contact support if unsure which parts are required for fitment.

Are there any installation precautions I should follow?

Protect the laptop’s electronics by disconnecting power and removing the battery (or unplugging battery cable) before starting. Handle the panel at the edges to avoid pressure marks, and ground yourself to prevent static discharge. If you’re unfamiliar with laptop disassembly, seek a qualified technician to avoid damaging delicate ribbons and connectors.

• Power off and remove battery or disconnect battery cable first.
• Work on a soft, static-free surface and use ESD protection if available.
• Gently seat the eDP 30-pin connector and secure all screws evenly.
• Test the screen before reassembling the bezel and trim pieces.

What warranty and support come with this replacement screen?

JHK JIEHONGKE provides a 3-month limited warranty covering manufacturing defects in the LCD panel. The seller recommends verifying compatibility prior to installation; they will assist with product-identification questions. Warranty does not extend to damage caused by improper installation or physical impact.

• Warranty length: 3 months from purchase.
• Coverage: manufacturing defects only, not installation damage.
• Pre-purchase help: contact support to confirm your panel specs.
• Return guidance: retain original parts and take photos if reporting issues.

Who this is for: This JHK JIEHONGKE replacement is aimed at technicians, repair shops, and DIY laptop owners who need a like-for-like 15.6" WXGA matte panel with an eDP 30-pin connector. Choose this screen only if your current display matches the listed size, resolution, connector type, and touch/no-touch configuration. If you are uncertain about any spec, contact customer support before ordering to avoid incompatibility.
