JFJDSM 24V 40VA Control Transformer — 120/208/240V to 24V, Foot Mount

Overview

Meet the JFJDSM 24V 40VA control transformer, a compact, multi‑tap isolation solution designed for reliable low‑voltage power in HVAC, furnace panels, and other control circuits. It converts common mains voltages of 120, 208, or 240 VAC into a stable 24 VAC secondary, delivering steady current to relays, contactors, and small loads. Its thoughtful design emphasizes easy installation, compact fit, and robust isolation to help keep control systems running smoothly in demanding environments.

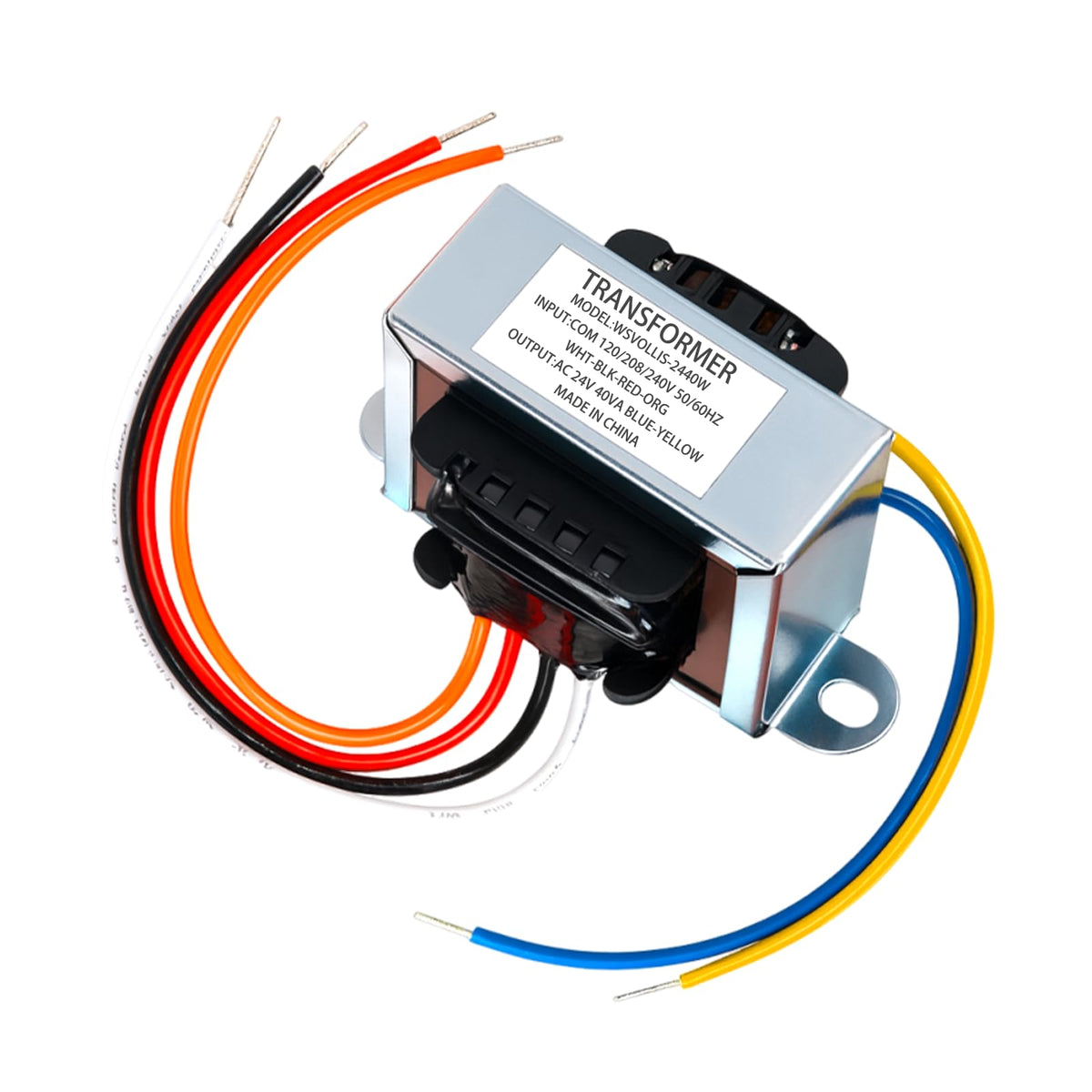

With a compact footprint of roughly 4.1 x 2.8 x 2.7 inches, this transformer is well suited for tight enclosures and crowded control panels. The EI‑type isolation construction helps separate input and output circuits, aiding interference reduction and safer operation in everyday equipment spaces. The unit ships with clear wiring instructions and a practical foot mount, making setup straightforward without requiring advanced wiring procedures.

Key Capabilities

• Primary voltages: 120, 208, or 240 VAC; Secondary: 24 VAC
• Power rating: 40 VA, suitable for relays, contactors, and low‑load control circuits
• Foot mount design for secure, visible installation in panels or on housings
• EI‑type isolation for stable output and dependable safety margins
• Replacement compatibility for common models: 4031F, GT446, PF42440

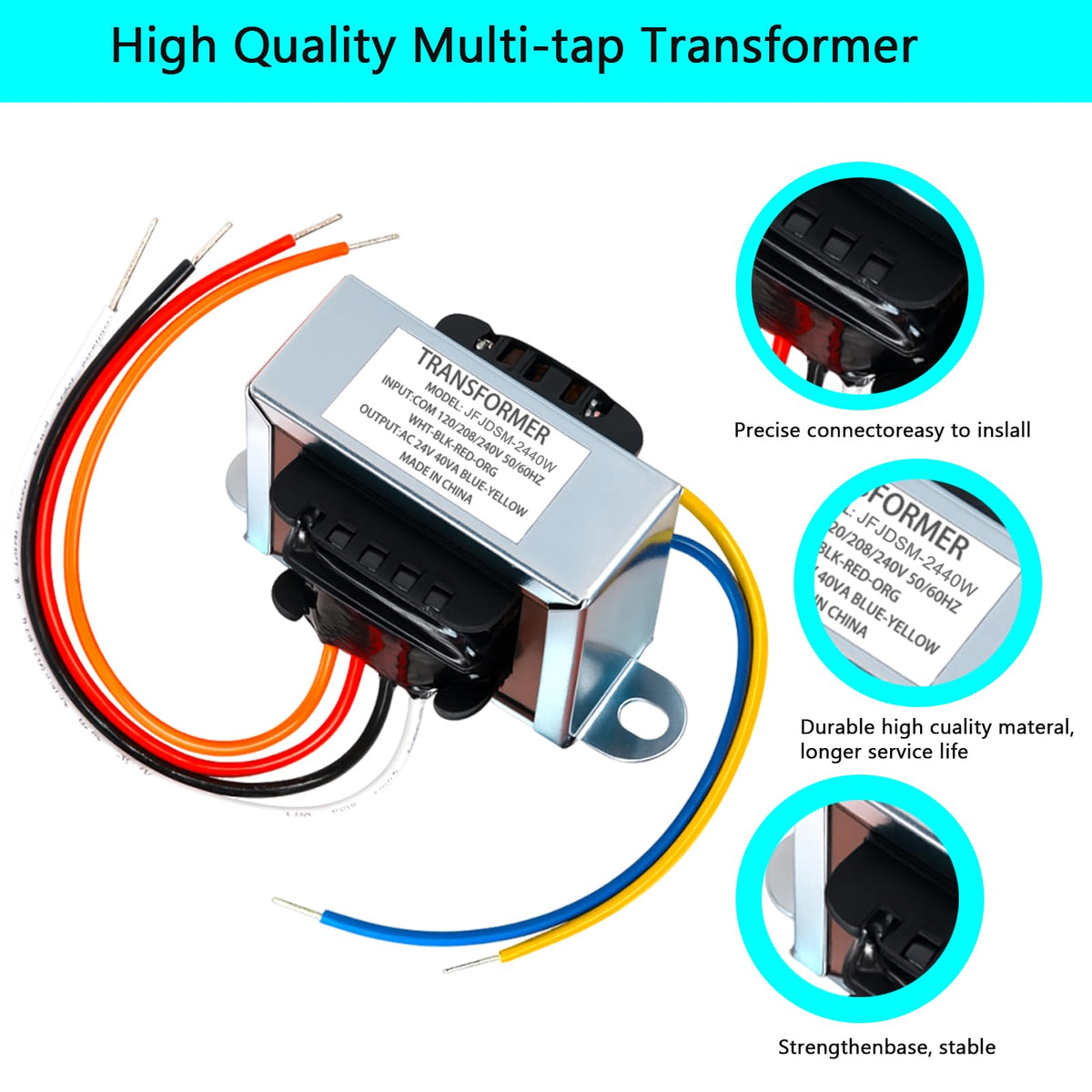

Compact Design and Easy Installation

The compact size helps installers wedge the transformer into tight spaces inside furnace enclosures or HVAC panels, while the foot mount keeps the unit stable and accessible for servicing. Clear wiring guidance reduces guesswork during setup, helping field technicians connect the device quickly and confidently.

Versatility and Reliability

Designed for flexibility, this transformer powers 24 V control circuits across a range of applications, from heating and cooling systems to gas valve actuations and other control panels. The reliable 24 V output supports small relays and low‑load components, providing a practical power solution in both residential and commercial settings. A two‑year warranty offers added peace of mind as you plan maintenance or future upgrades.

What You Get

• Versatile 24 V output for a variety of control applications
• Compact, space‑saving footprint for crowded panels
• Clear wiring instructions and straightforward mounting
• Dependable isolation and solid overall build quality
