IWORKBOARD Full Motion TV Wall Mount 40-90" 132lb

IWORKBOARD full motion TV wall mount securely holds 40–90" TVs with a heavy-duty articulating bracket that tilts, swivels, extends, and levels for optimal viewing.

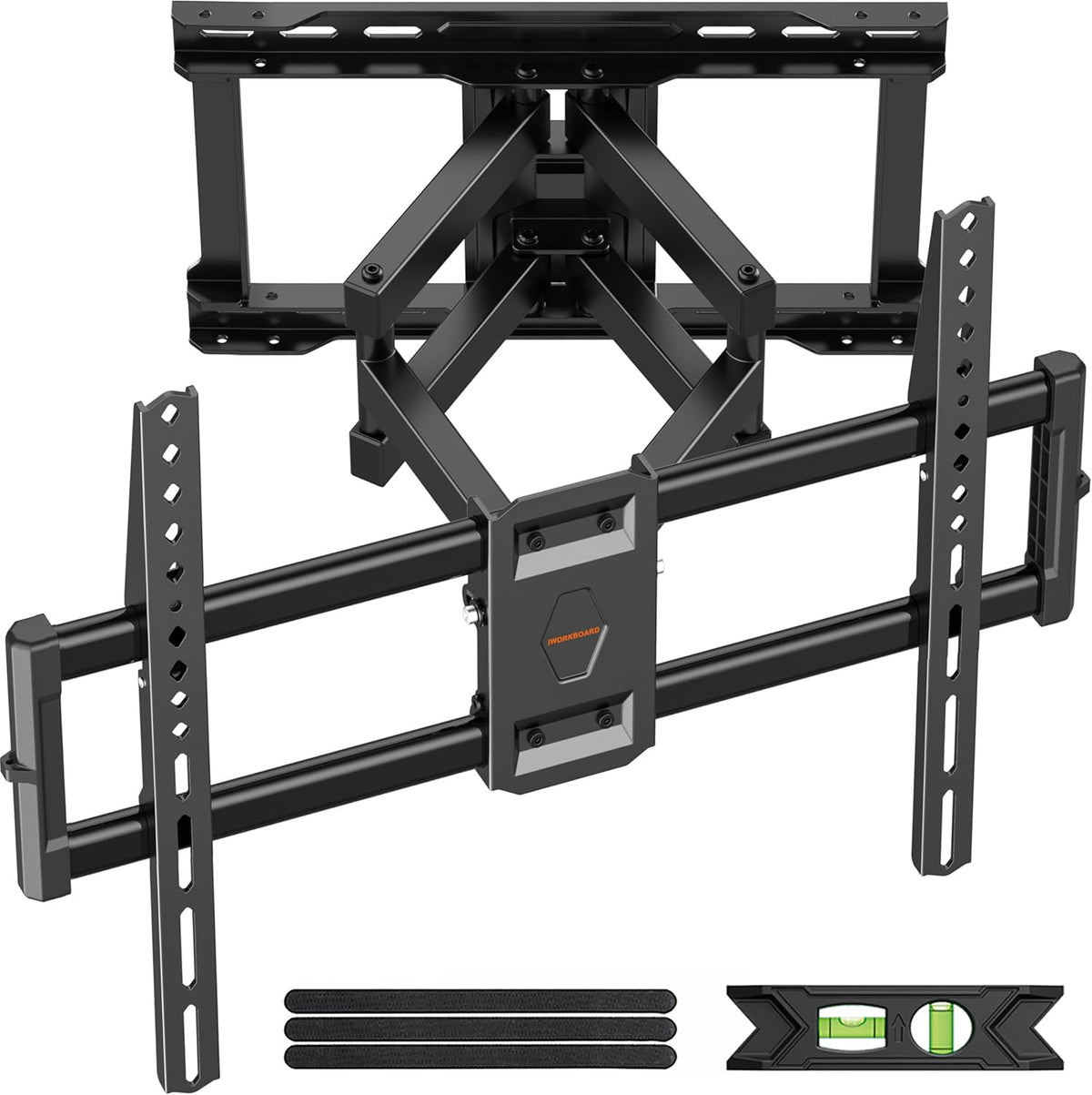

This heavy-duty wall mount is built for larger flat and curved televisions and designed to fit common VESA patterns up to 600x400mm. Constructed from thick steel with dual articulating arms, the bracket supports up to 132 lbs and installs on wood studs, concrete, or brick. The combination of a low-profile fit and long extension range gives you flexibility to save room while still angling the screen for glare reduction or group viewing.

How much weight and what TV sizes will this mount handle?

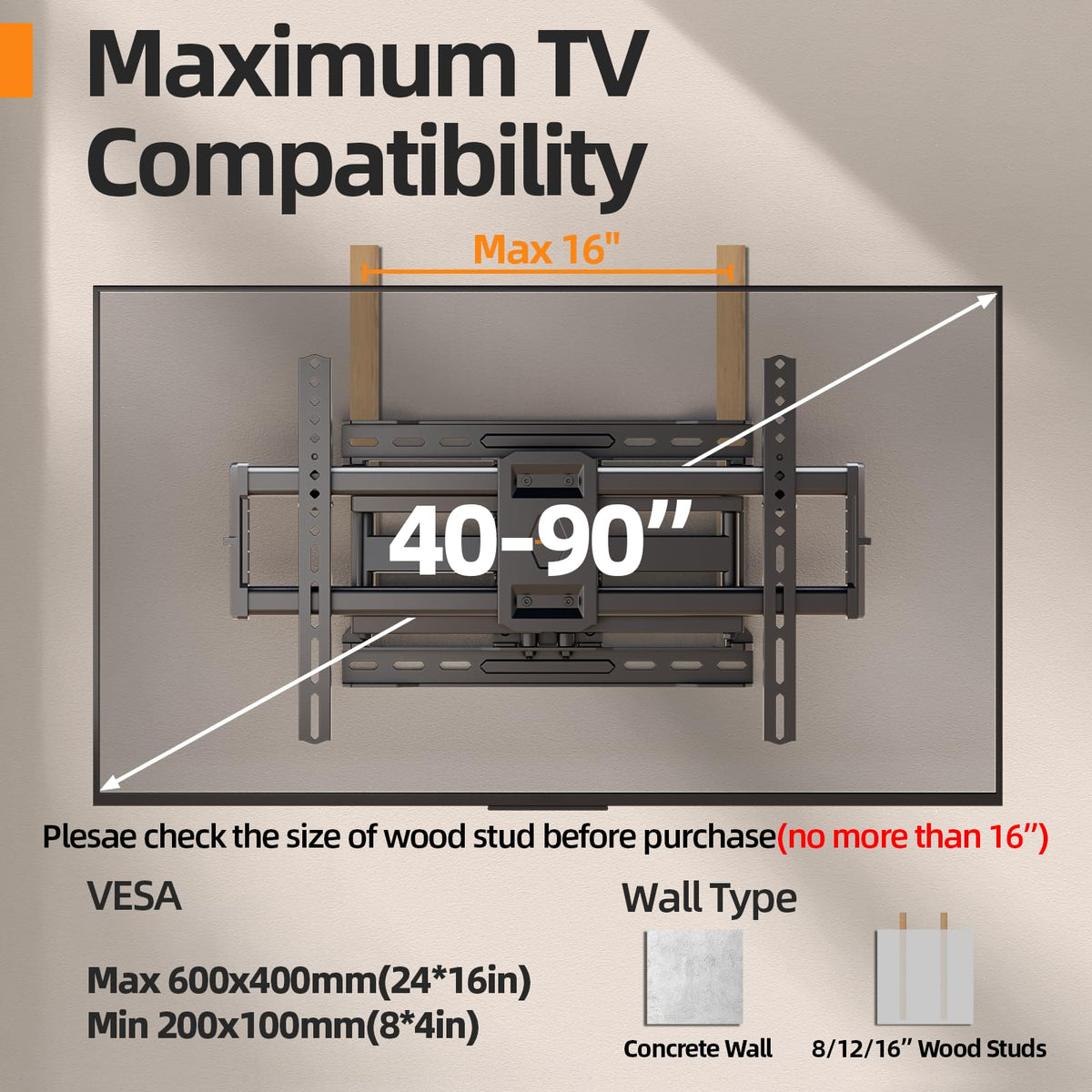

The mount supports televisions from 40 to 90 inches and a maximum load of 132 pounds, covering most modern large-screen models. Check your TV’s VESA pattern; this bracket accommodates patterns from 200x100 up to 600x400mm.

• Compatible TV sizes: 40"–90"
• Maximum weight capacity: 132 lbs (60 kg)
• VESA compatibility: 200x100 to 600x400mm
• Designed for flat and curved screens

What range of motion and adjustments does it offer?

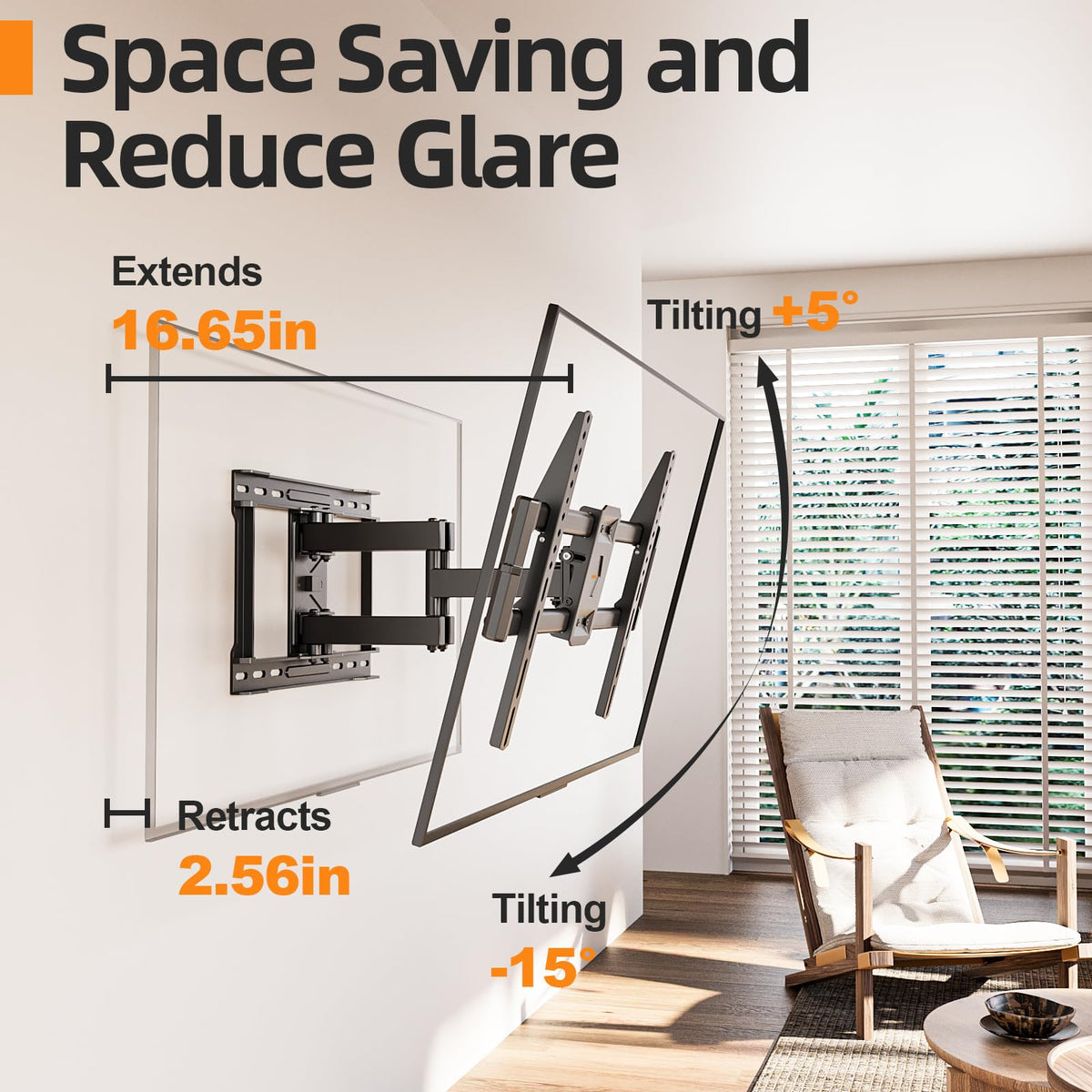

The bracket offers full-motion adjustment: tilt, swivel, extension, and post-install leveling so you can fine-tune angles for comfort and reduced glare. Tilt range is +5° to -15°, swivel is ±45°, and the mount levels by ±3° after installation.

• Tilt: +5° / -15° for glare control
• Swivel: up to ±45° for side viewing
• Extension: from 2.56" flush to 16.65" extended
• Post-install leveling: ±3° to square the screen

How stable and durable is the construction?

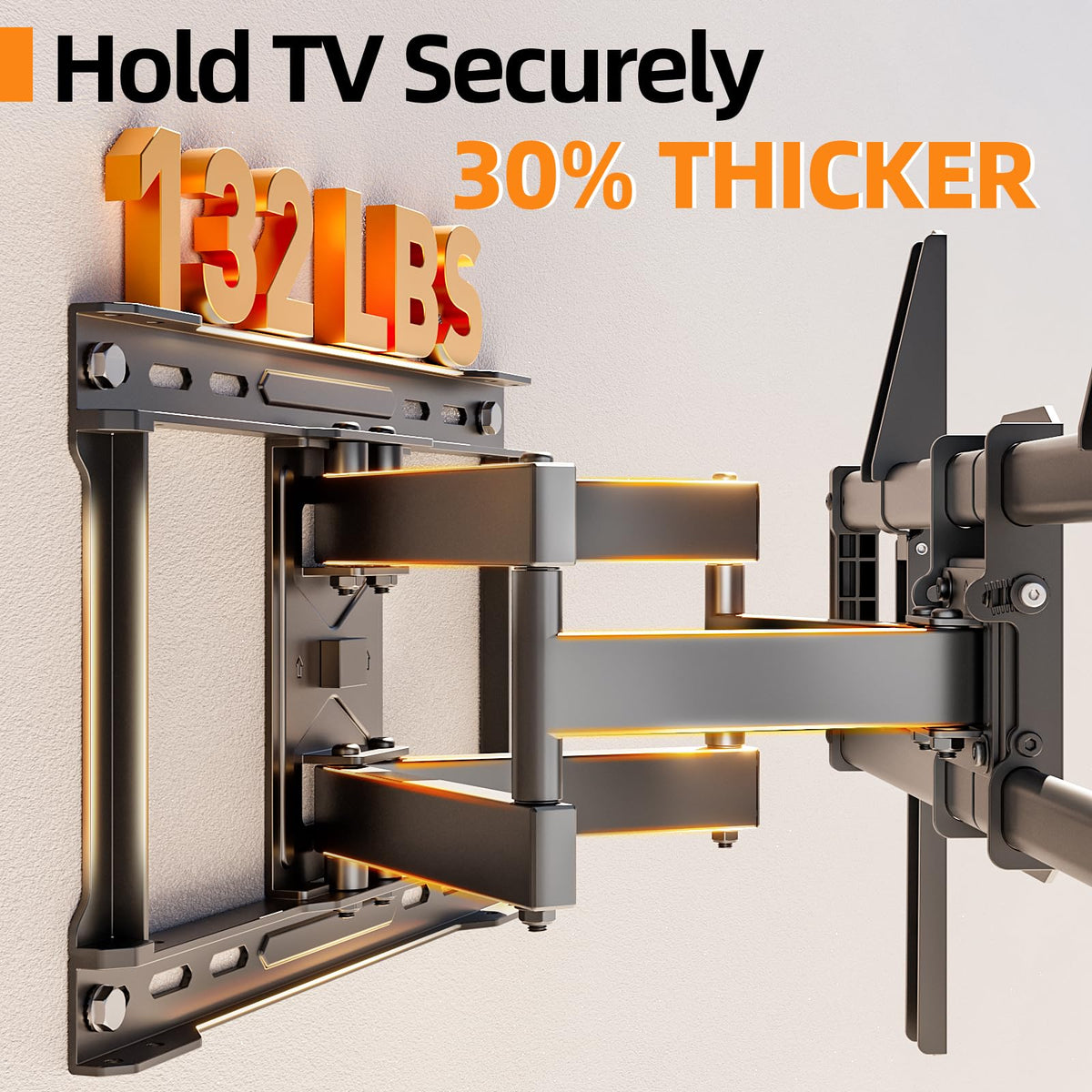

Built from heavy-gauge steel with dual articulating arms that are 30% thicker than standard, the mount minimizes wobble and keeps larger TVs steady. The robust design and quality hardware make it suitable for long-term use, and the manufacturer offers extended support for product confidence.

• Heavy-duty steel construction for rigidity
• Dual articulating arms for balanced movement
• Reduced wobble and secure hold for heavy TVs
• 10 years of manufacturer support

What should I know about installation and wall compatibility?

Installation requires anchoring into solid structures: 8", 12", or 16" wood studs, concrete, or brick. The package includes the necessary hardware and instructions, though a hole-marking template is not provided. Do not mount solely into drywall; use proper anchors or consult a professional when needed.

• Mounts to wood studs (8"/12"/16"), concrete, and brick
• Hardware and instruction guide included
• No paper drill template provided—measure carefully
• Use proper anchors or professional help for concrete or brick

Who is this for? This IWORKBOARD full motion mount is aimed at homeowners, renters with stud-secured walls, and small businesses that need a reliable, heavy-duty bracket for large TVs. It's a good choice if you want a low-profile look most of the time but need full articulation for connecting devices or adjusting viewing angles for different seating arrangements. It’s especially well suited for living rooms, conference rooms, classrooms, and hospitality spaces where large displays require secure installation and flexible positioning.
