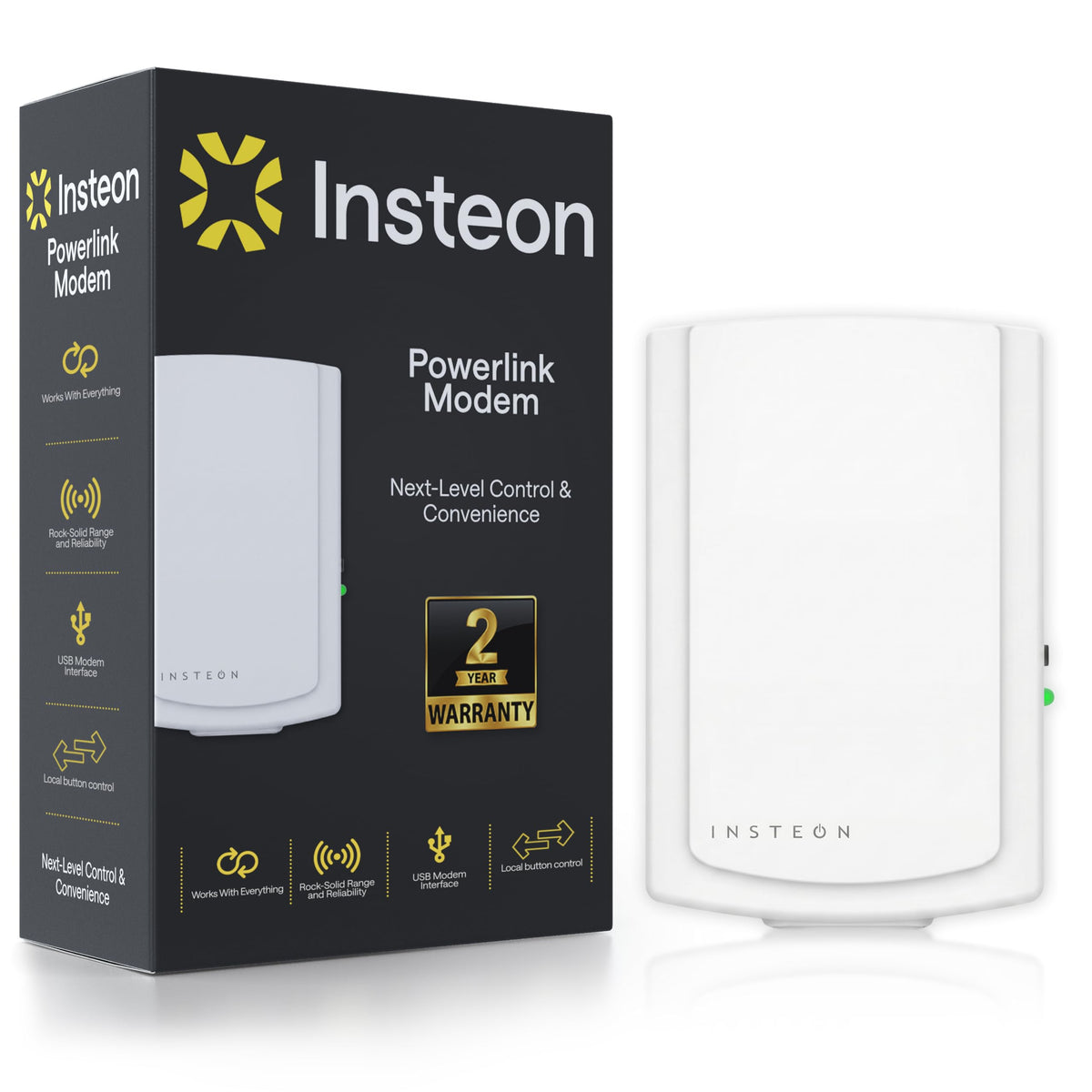

Insteon USB PowerLinc Modem Dual-Band Smart Bridge

The Insteon USB PowerLinc Modem (2413U) is a USB-connected dual-band bridge that lets a PC or compatible controller send and receive both powerline and RF Insteon signals to manage lights, outlets, sensors and other Insteon devices.

This compact USB interface acts as the gateway between your computer-based automation software (Home Assistant, HomeSeer, Indigo, EISY, etc.) and an Insteon device network. Because it supports both powerline and radio-frequency (RF) communications, the PowerLinc Modem works as an access point and repeater, helping reduce dead zones and enabling larger installations. It requires a host computer to stay powered on with compatible controller software running to operate continuously.

How does the PowerLinc Modem connect my automation software to Insteon devices?

Connect the modem to a USB Type-A port on a PC or Mac running supported controller software. The controller software communicates through the modem to issue commands, read device states, and manage scene or automation setups over the Insteon network.

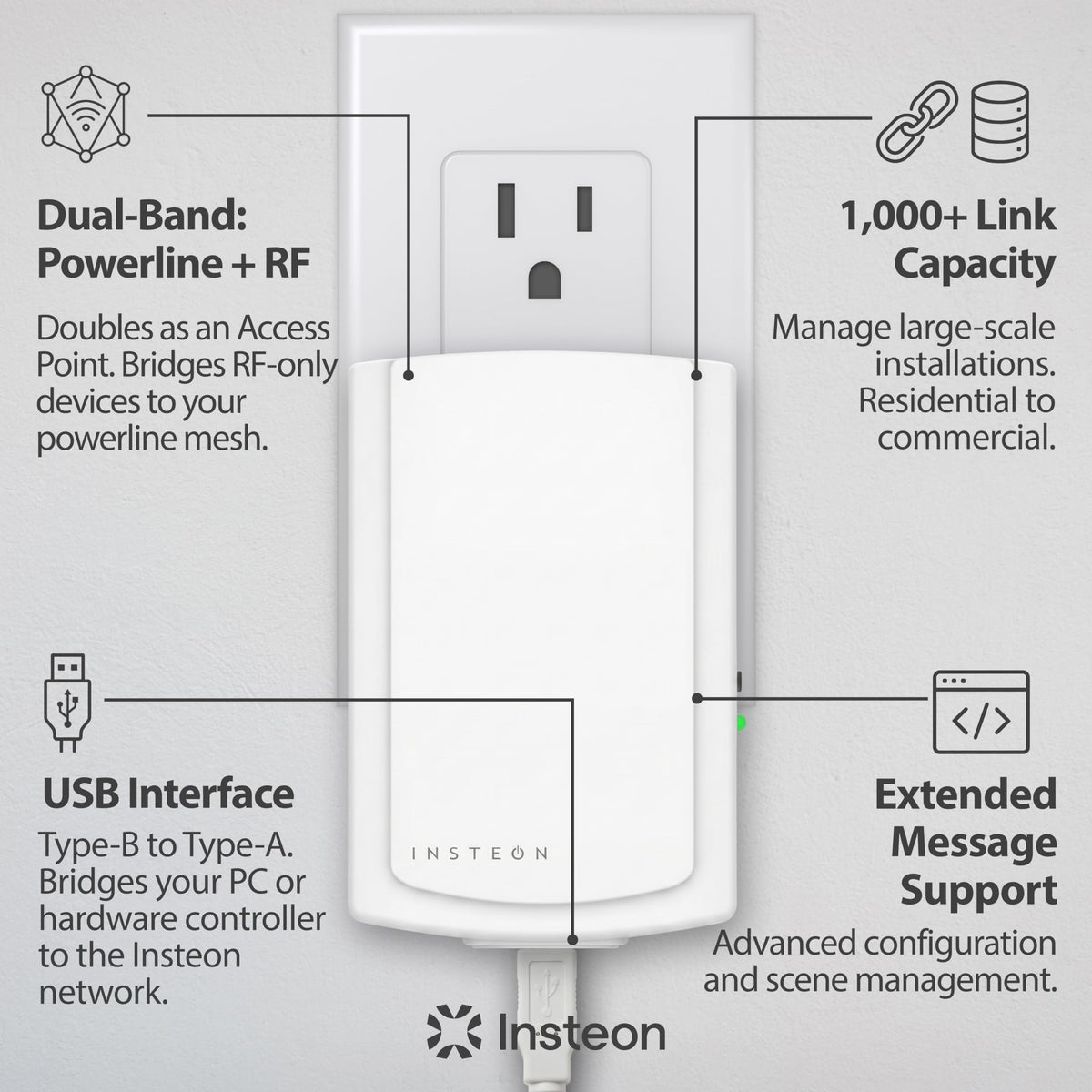

• USB Type-A physical connection to host computer
• Works with Home Assistant, HomeSeer, Indigo, EISY and other PC/Mac controllers
• Host software must remain running and computer must stay powered on
• No AC pass-through — modem requires no separate outlet

Why is dual-band (powerline + RF) important for my home or building?

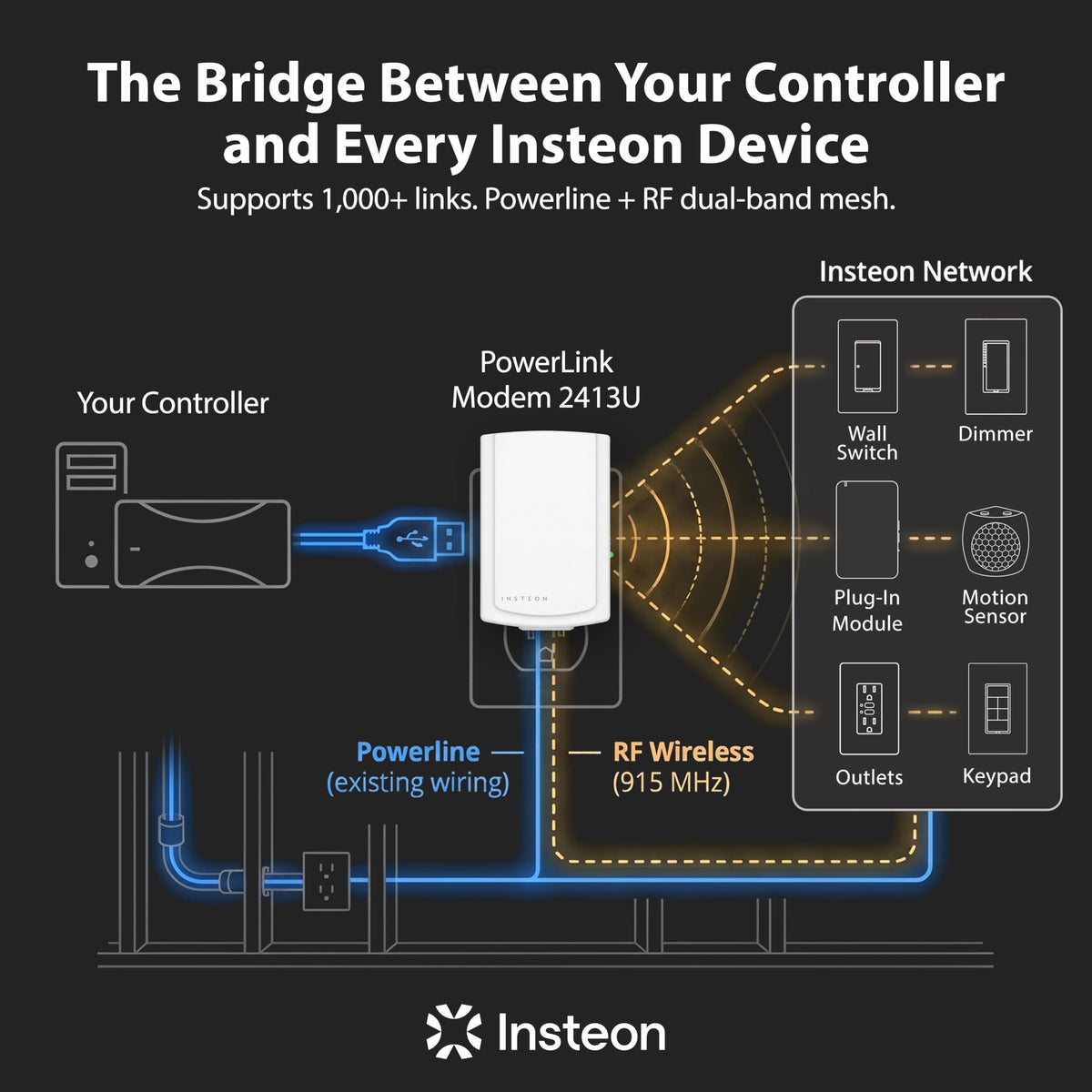

Dual-band operation means the modem sends and receives Insteon signals over both house wiring and radio frequency. The RF link can bypass electrical noise or attenuation, while the combined operation extends reach and reliability, especially in larger homes or commercial spaces.

• Powerline for direct wiring communication across electrical circuits
• RF to reach devices where wiring is noisy or weak
• Acts as an access point to pull distant devices one hop closer
• Improves mesh coverage for larger installations or multi-phase systems

Which Insteon devices and features does the modem control?

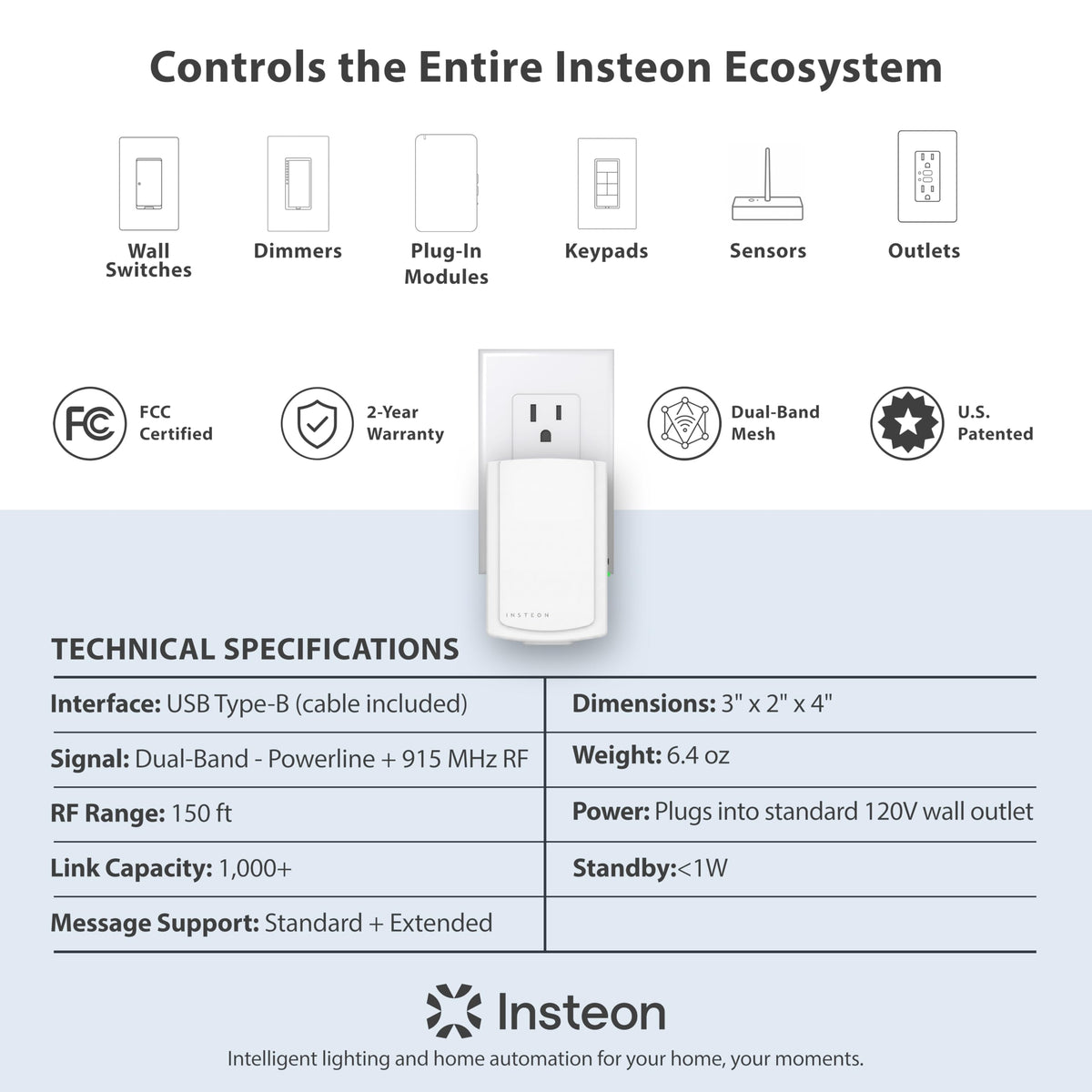

The PowerLinc Modem can address a wide variety of Insteon equipment including smart switches, dimmers, outlets, sensors, remotes and thermostats. It supports extended messaging and over 1,000 device links, so it scales from single-room setups to whole-home and small commercial deployments.

• Compatible with Insteon switches, dimmers, plug-in outlets and keypads
• Supports motion sensors, contact sensors, remotes and thermostats
• Handles extended Insteon messaging and 1,000+ links for large networks
• Includes diagnostic LED indicators and audible beep for status feedback

What do I need to plan for installation and daily operation?

Installation is straightforward: plug the modem into a USB port and configure it with your chosen controller software. For reliable operation, avoid USB connection through power strips or AC line filters, and ensure the host computer is continuously powered and running the controller program.

• USB Type-A port on PC or Mac with supported controller software
• Keep host computer powered on at all times during use
• Do not connect via power strip or AC line filter to avoid signal issues
• Modem does not supply power to external devices

Who is this for? The Insteon USB PowerLinc Modem 2413U is aimed at DIY smart-home integrators, hobbyists and small installers who run automation platforms on a computer and need a reliable link to Insteon devices. It suits users expanding existing Insteon networks, those adding RF-only sensors or remotes, and anyone building larger home or light-commercial Insteon deployments who want a dual-band bridge with robust link capacity and access-point functionality.
