HOME VISION Heavy Duty Fixed TV Wall Mount 48-120"

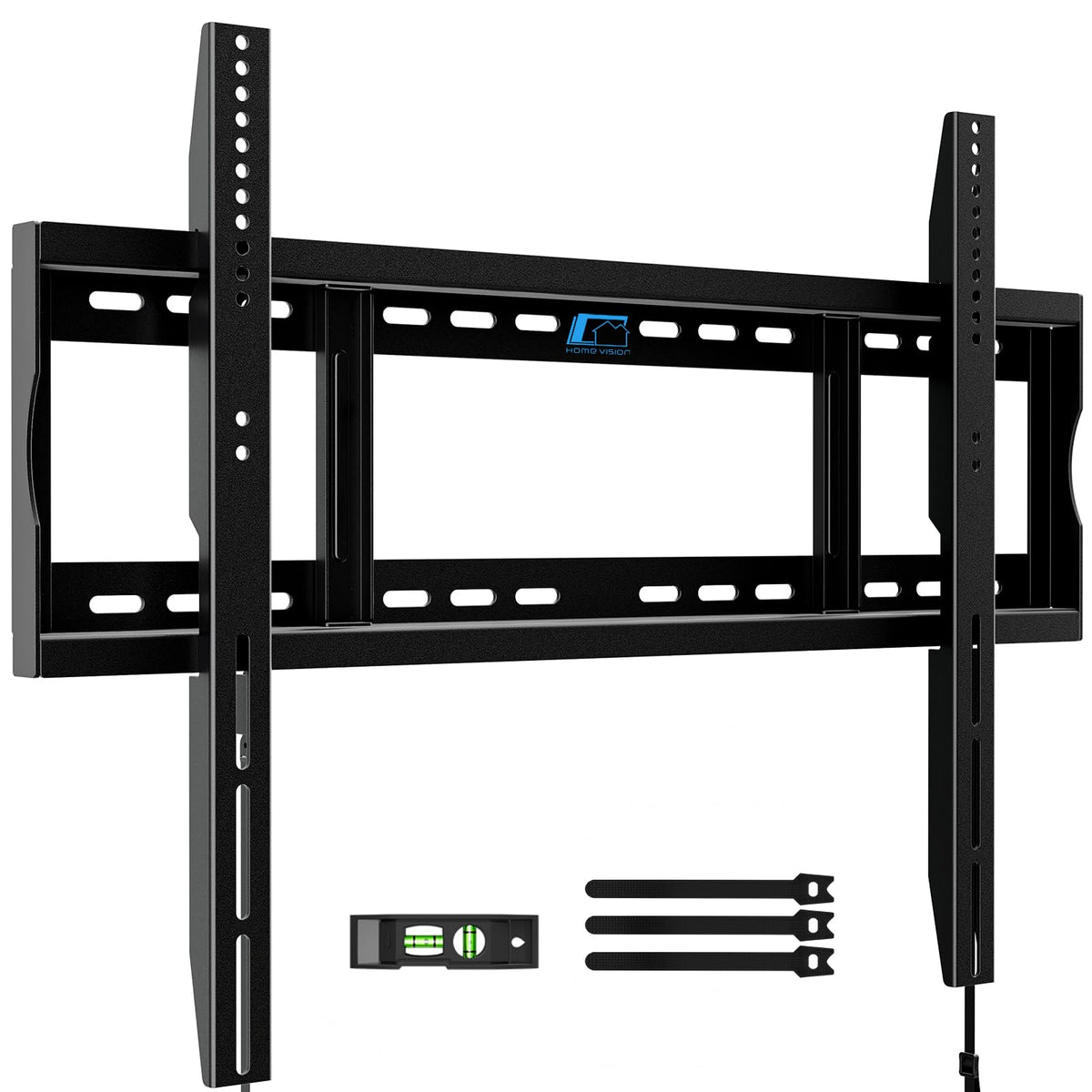

HOME VISION HV8801 is an ultra-strong fixed wall mount designed to hold extra-large 48–120" flat or curved TVs securely up to 264 lbs with a low-profile 1.26" clearance.

If you need a durable, space-saving solution to display a very large TV flush to the wall, the HV8801 gives heavy-duty engineering without complex tilting or articulating hardware. Constructed from cold-rolled steel and precision-welded, this stationary bracket prioritizes stability and a sleek, minimalist look. It supports wide VESA patterns and a broad range of stud spacings, so it’s suitable for most oversized living-room, media-room, or commercial installations when mounted to studs or masonry.

How does this mount keep a very large TV stable?

The HV8801 uses a broad, reinforced wall plate and heavy-gauge steel arms to distribute the load across a large surface. Robotic welding and high-strength materials minimize flex and wobble so the TV remains rigid over time.

• 264 lb (120 kg) rated lifting capacity for oversized screens
• Cold-rolled steel construction and robotic welds for strength
• Extra-wide wall plate spreads forces across studs or masonry
• Anti-drop safety locks secure the TV to the bracket

Will it fit my TV and wall layout?

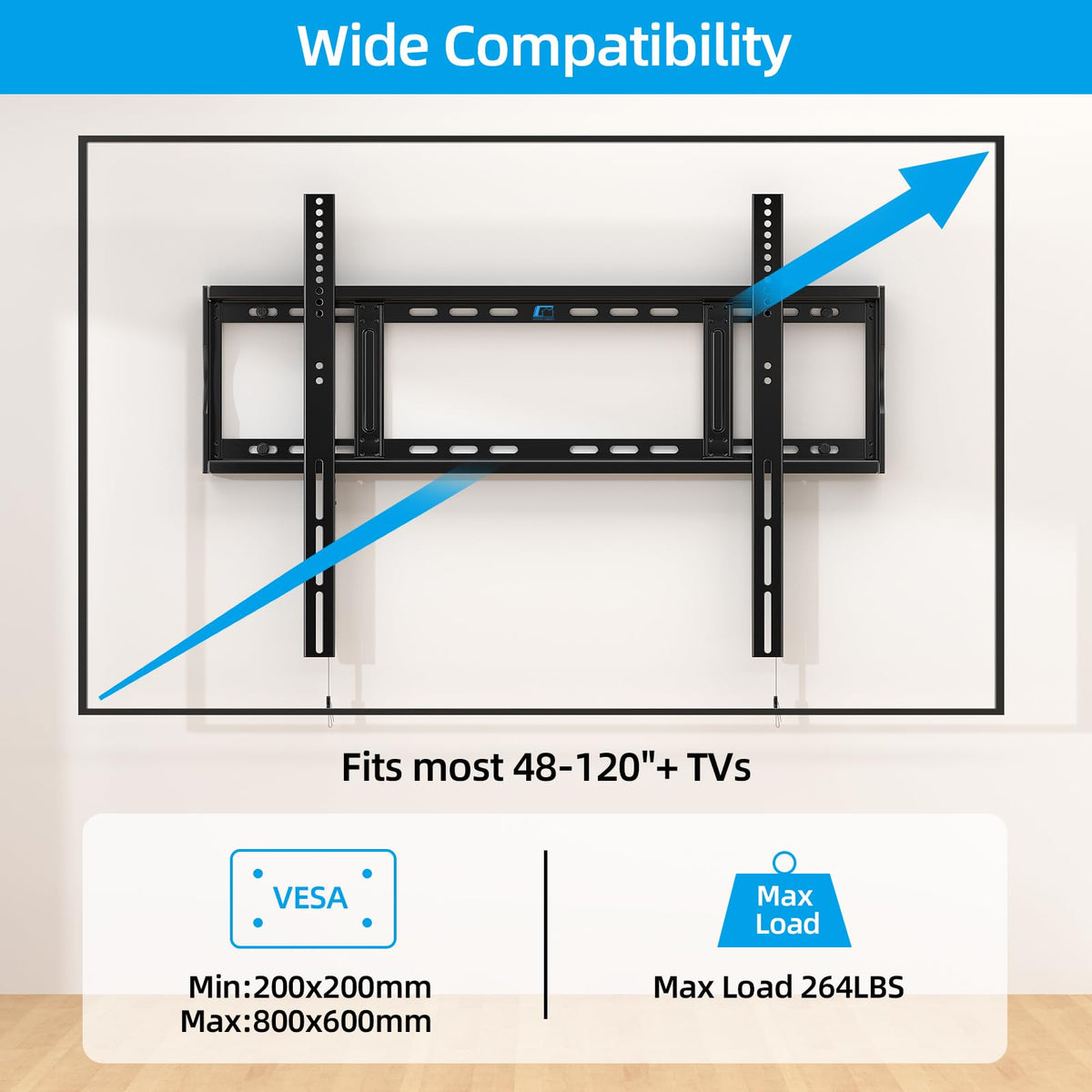

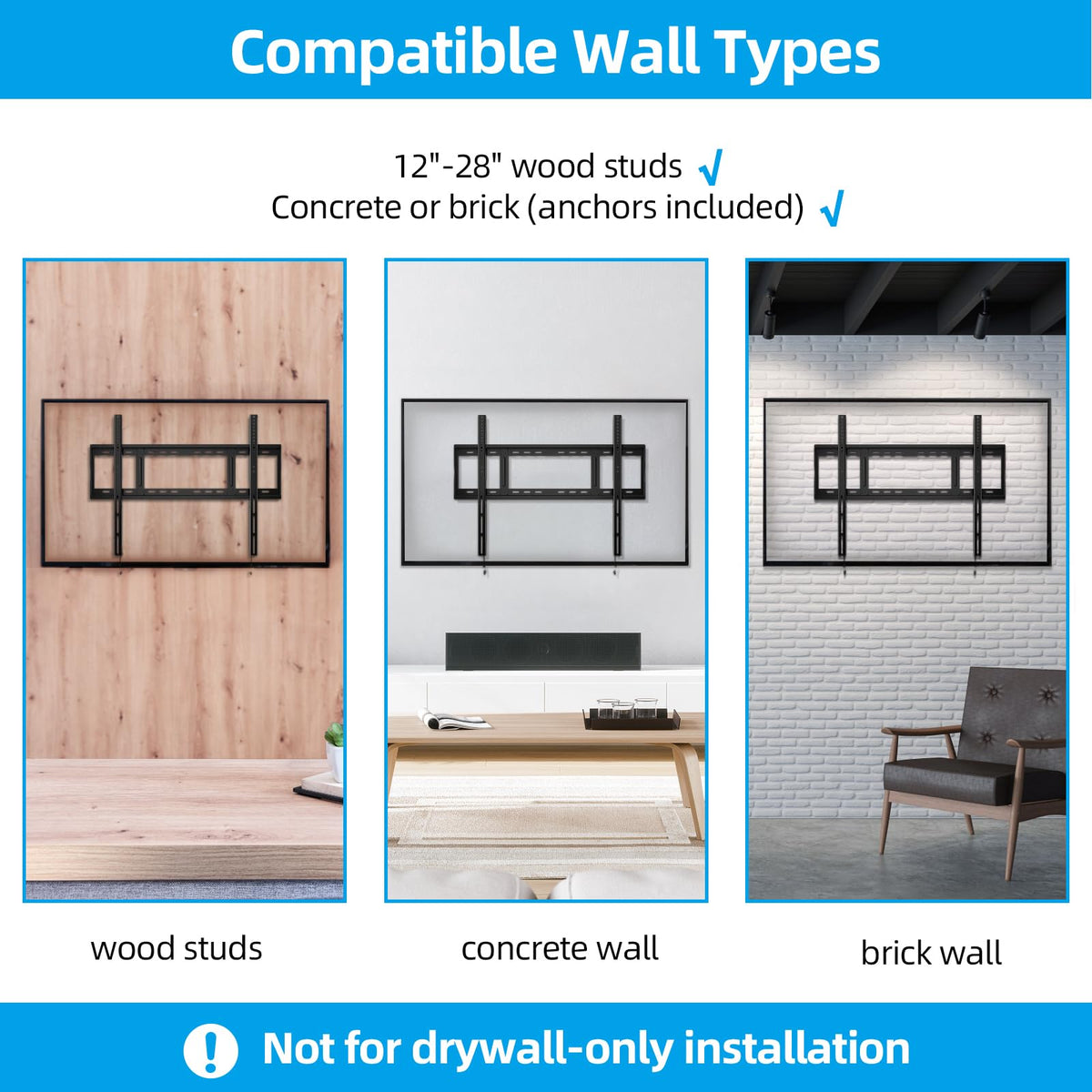

The bracket is engineered to accommodate most mainstream 48–120" TVs and VESA mount patterns up to 800 x 600 mm. It installs on wood studs spaced 12"–28" and can be anchored to concrete or brick using included hardware; drywall-only mounting is not supported.

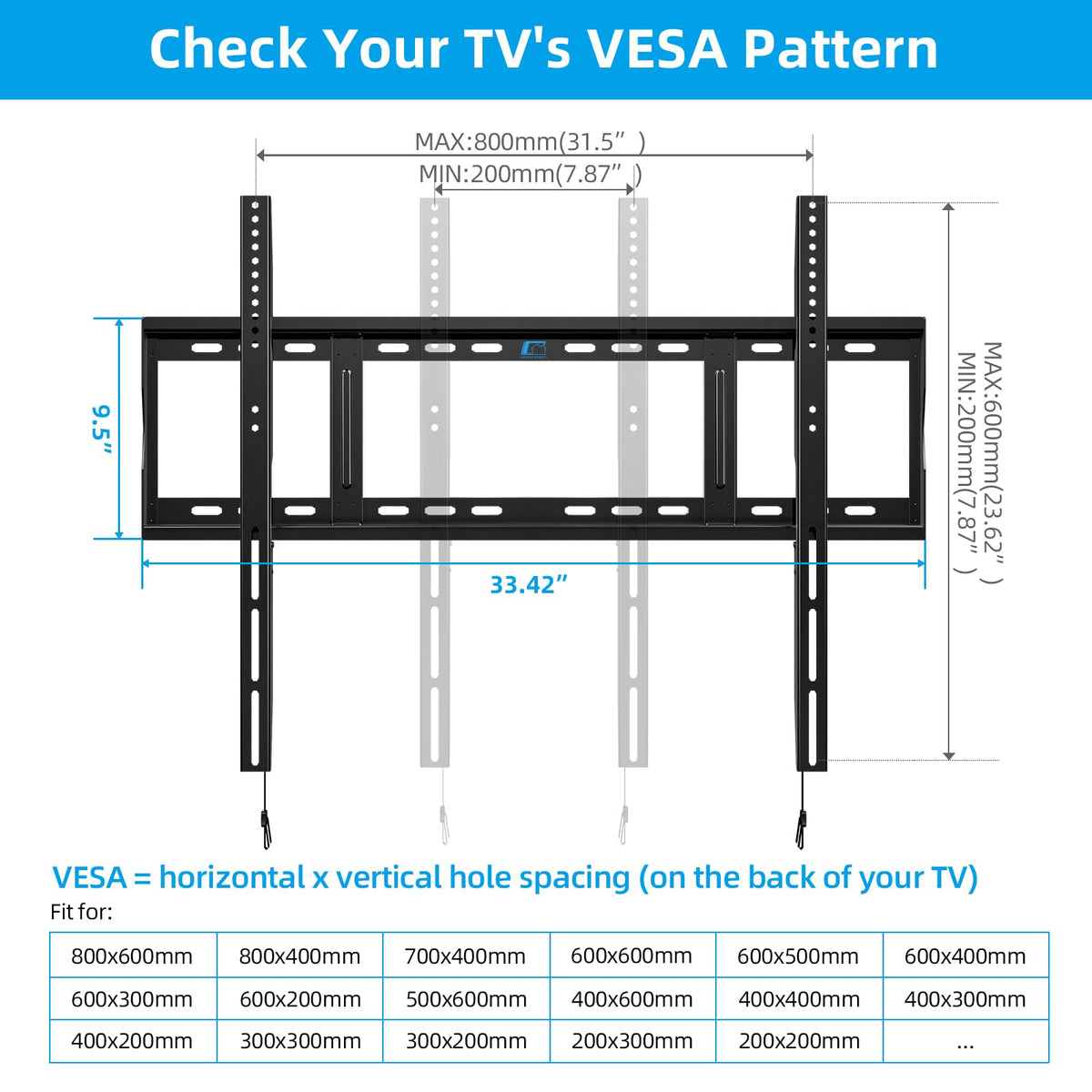

• Supports VESA up to 800 x 600 mm (31.5 x 23.6 in)
• Compatible with OLED, LED, LCD and plasma panels within size/weight limits
• Accepts stud spacing from 12" to 28" for flexible placement

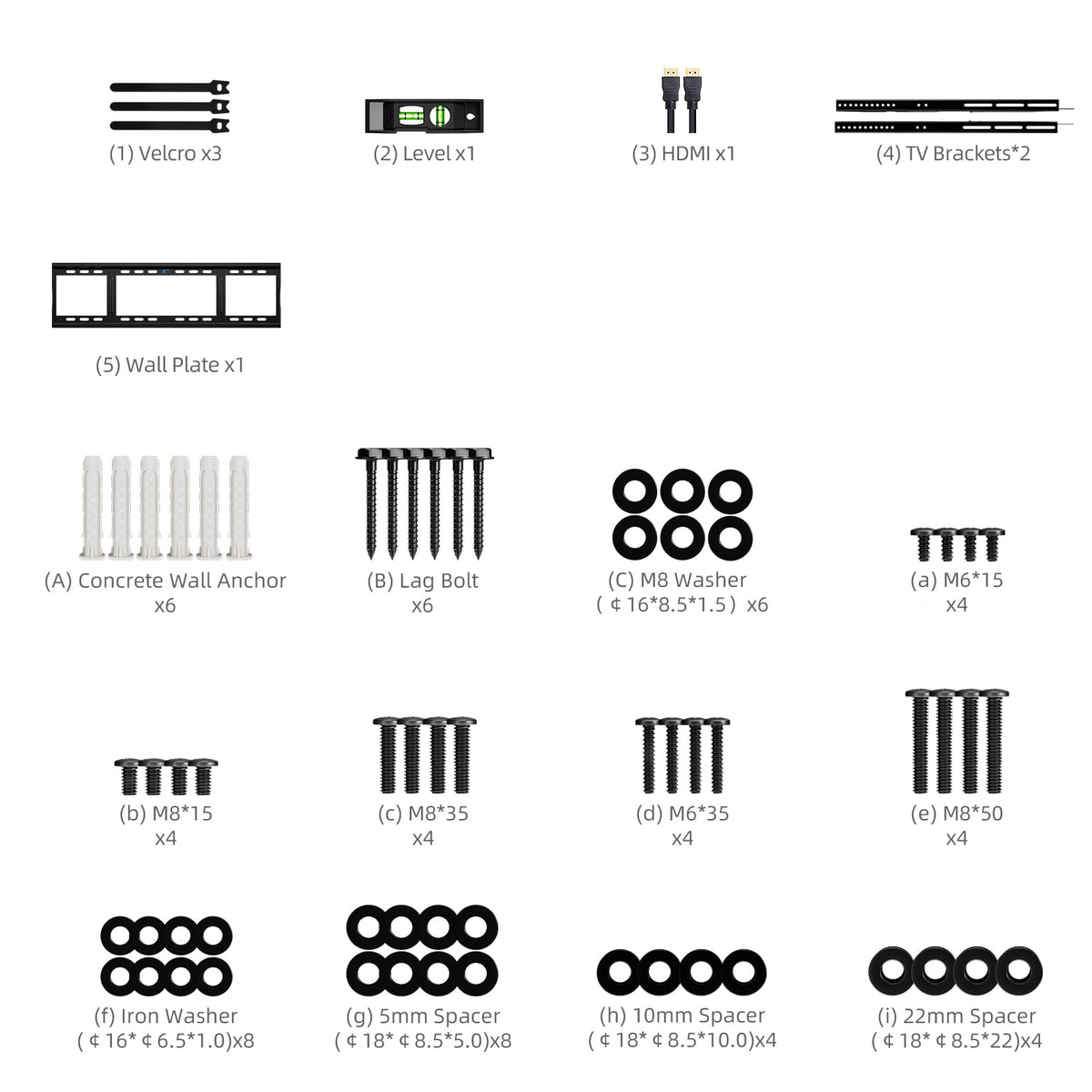

• All necessary mounting hardware and instructions provided

How does the low-profile design benefit my room?

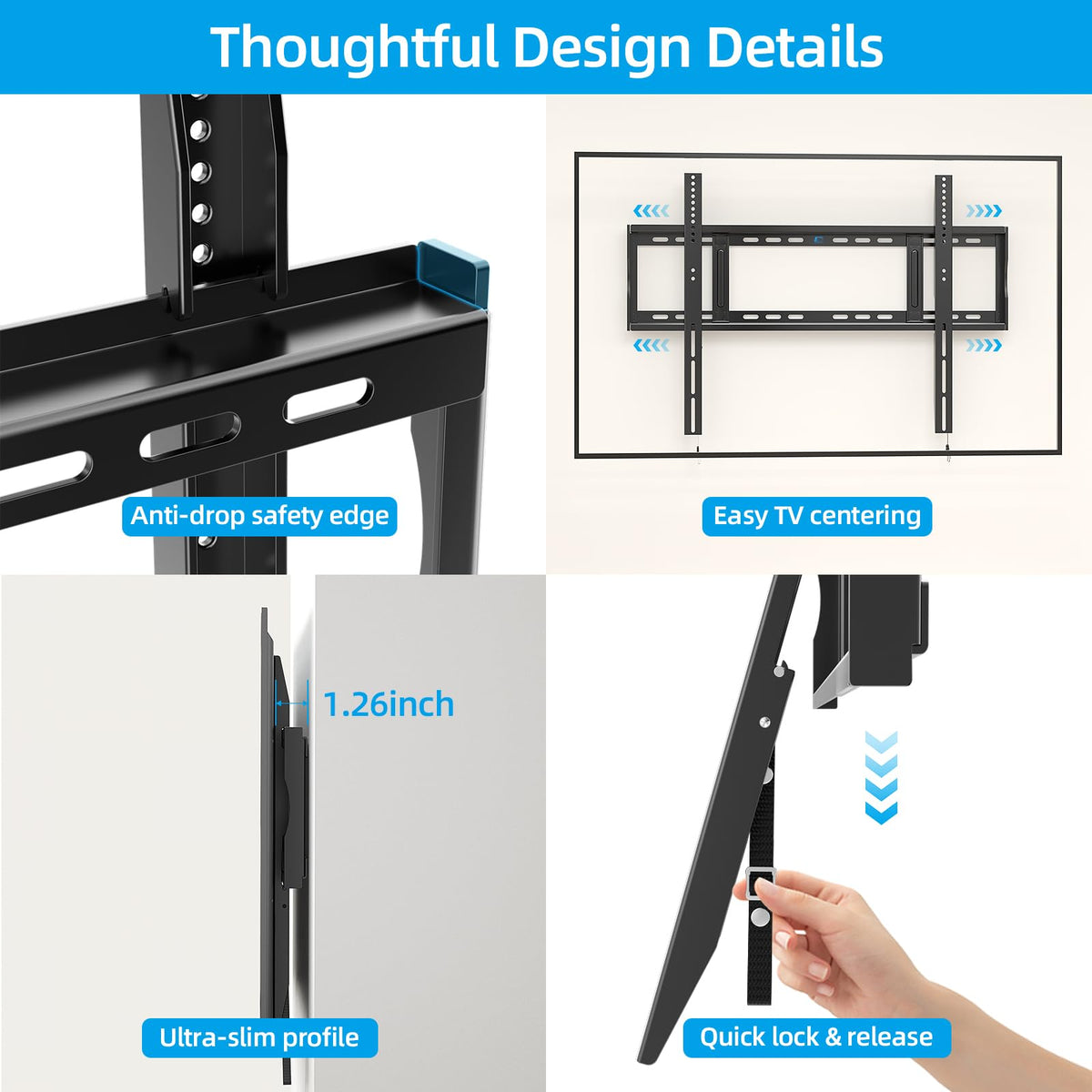

At just 1.26" from the wall, the HV8801 provides a clean, contemporary appearance while maximizing floor and furniture clearance. The slim profile reduces glare and visual bulk, creating a gallery-like presentation for the screen.

• Flush mount keeps TV close to the wall for minimalist aesthetics
• Thin depth preserves room circulation and sightlines
• Pull-down strap enables one-handed locking and easier installation
• Wide plate simplifies centering the TV during setup

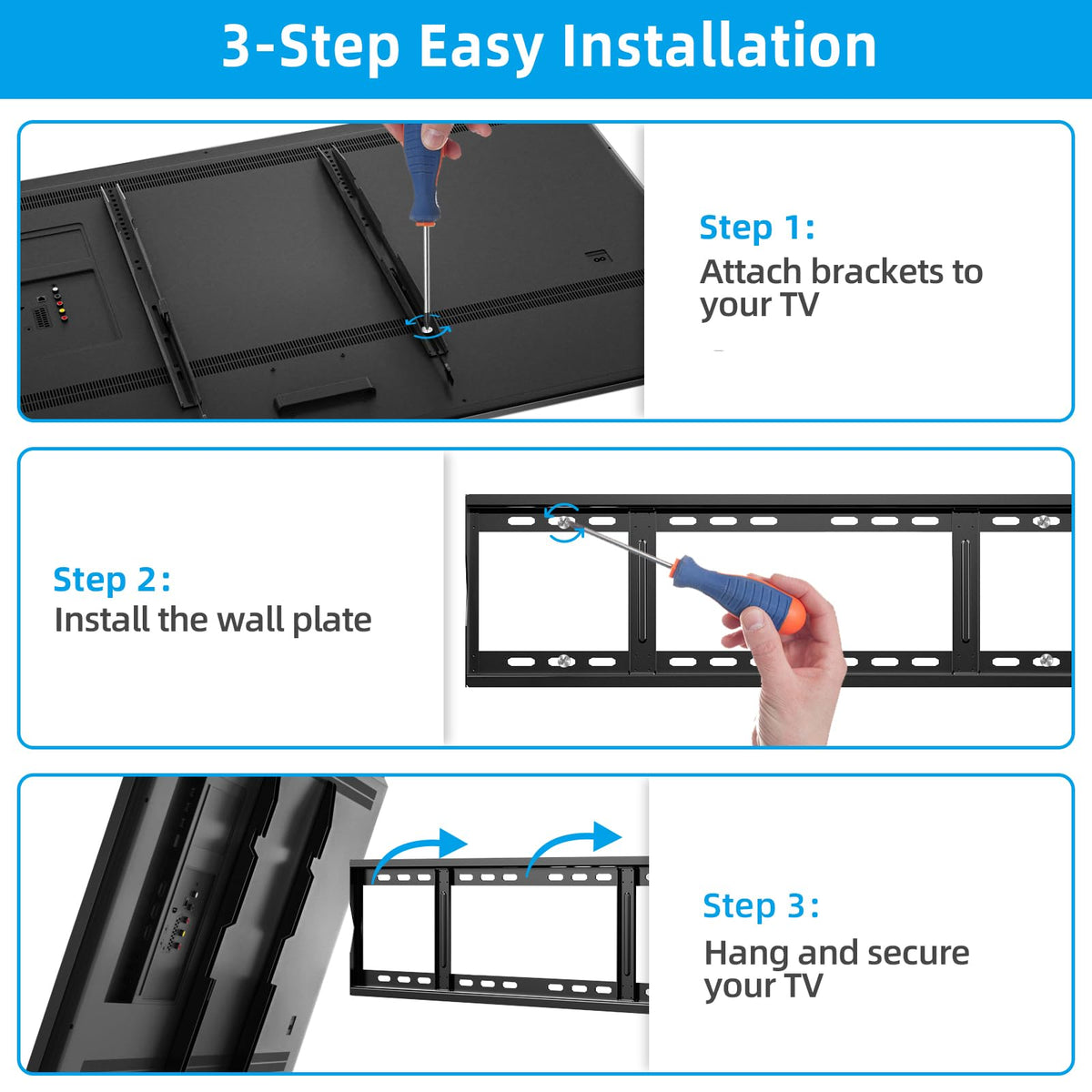

How easy is installation and what support is available?

HOME VISION built the HV8801 for straightforward, reliable mounting that most DIYers can complete in about 30 minutes with basic tools. Clear step-by-step instructions and a full hardware kit are included; the company’s support team is available for assistance if you run into questions.

• Estimated 30-minute installation for experienced installers
• Includes mounting hardware for studs, concrete, and brick
• Detailed instructions and customer support from the manufacturer
• Not designed for drywall-only installations without proper anchors

Who is this for? The HOME VISION HV8801 is aimed at homeowners, installers, and businesses that need a dependable, low-profile solution for very large TVs where strength and a clean look matter more than motion adjustments. It's a good fit for living rooms, home theaters, conference rooms, showrooms, and any space where a fixed, flush-mounted display is preferred. Verify your TV’s weight, VESA pattern, and wall type before purchasing to ensure compatibility and a safe installation.
