Herdio Bluetooth Wall Amplifier 4-Channel Volume Control

The Herdio HWA-16BT-4CH is an in-wall Bluetooth amplifier and four-channel volume controller that connects up to four passive speakers and accepts USB, microphone, and 3.5mm aux inputs for whole-room audio.

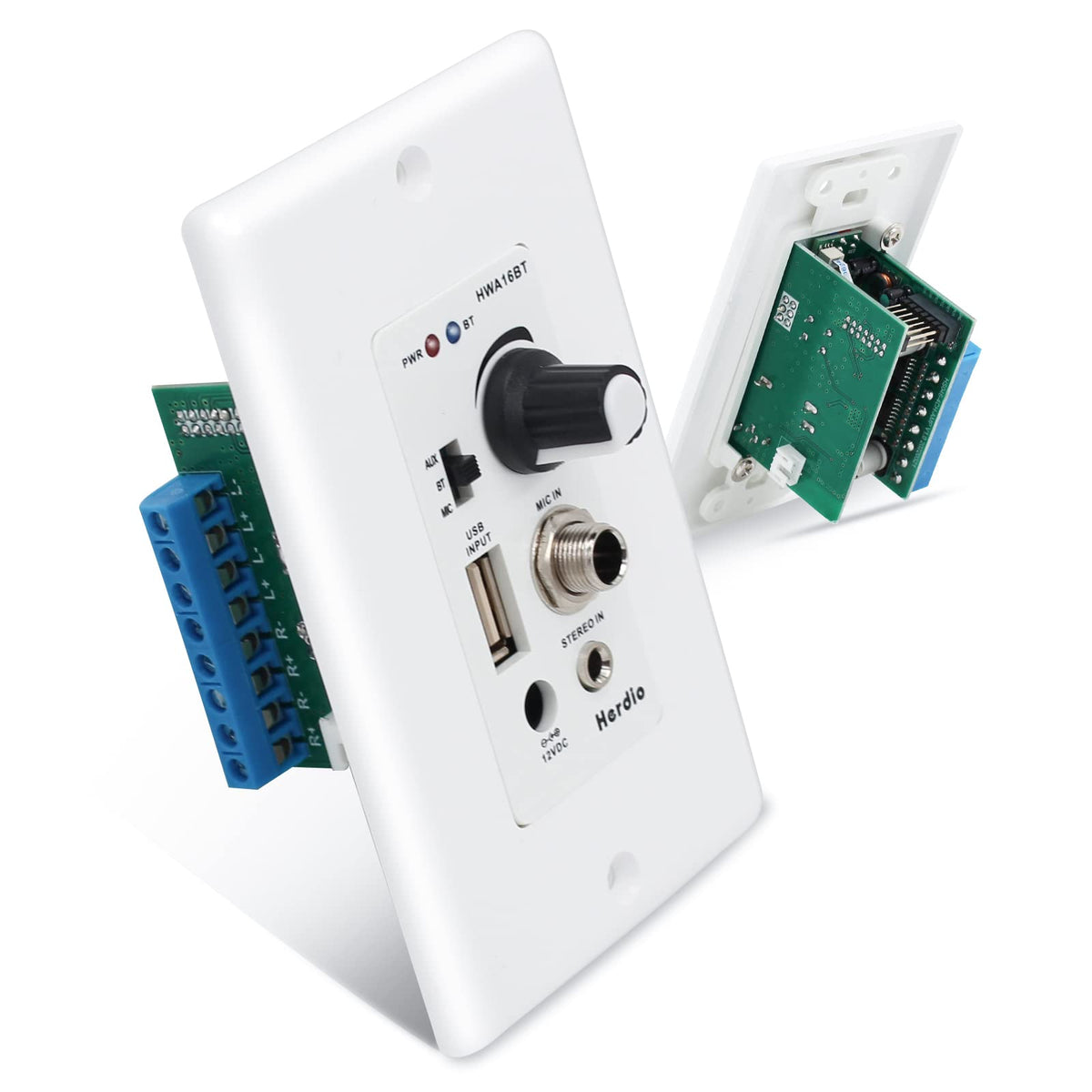

This slim wall-plate amplifier combines a compact form factor with versatile inputs and independent speaker outputs so you can add distributed audio control without bulky gear. It supports Bluetooth streaming up to about 30 feet, direct USB playback, paging via mic input, and simple aux/line-level connections — all powered by the included 12V 3A adapter. The plate mounts like a standard outlet and routes speaker connections to labeled terminals, making it a tidy option for home or small commercial installations.

How do I connect speakers and power the Herdio wall amplifier?

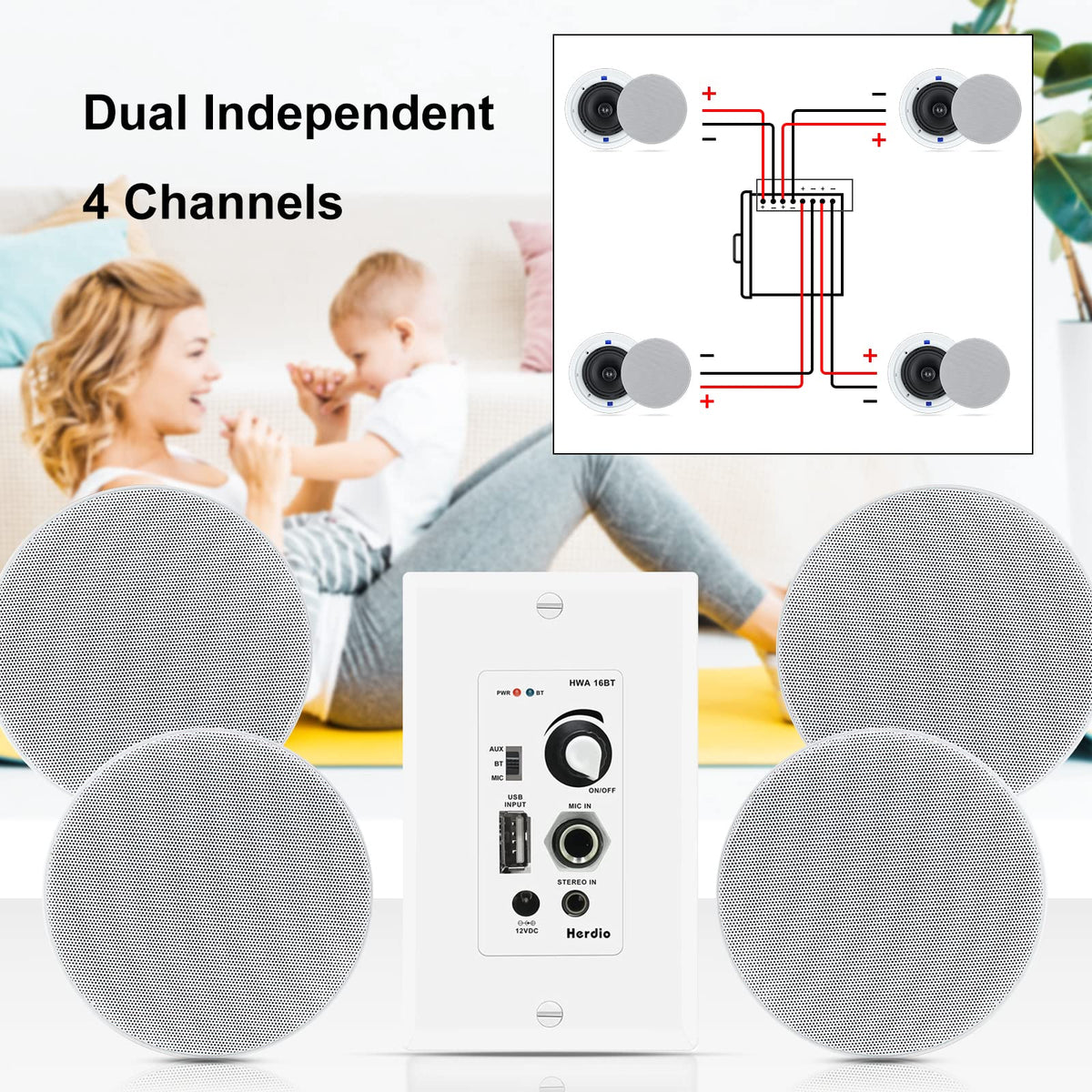

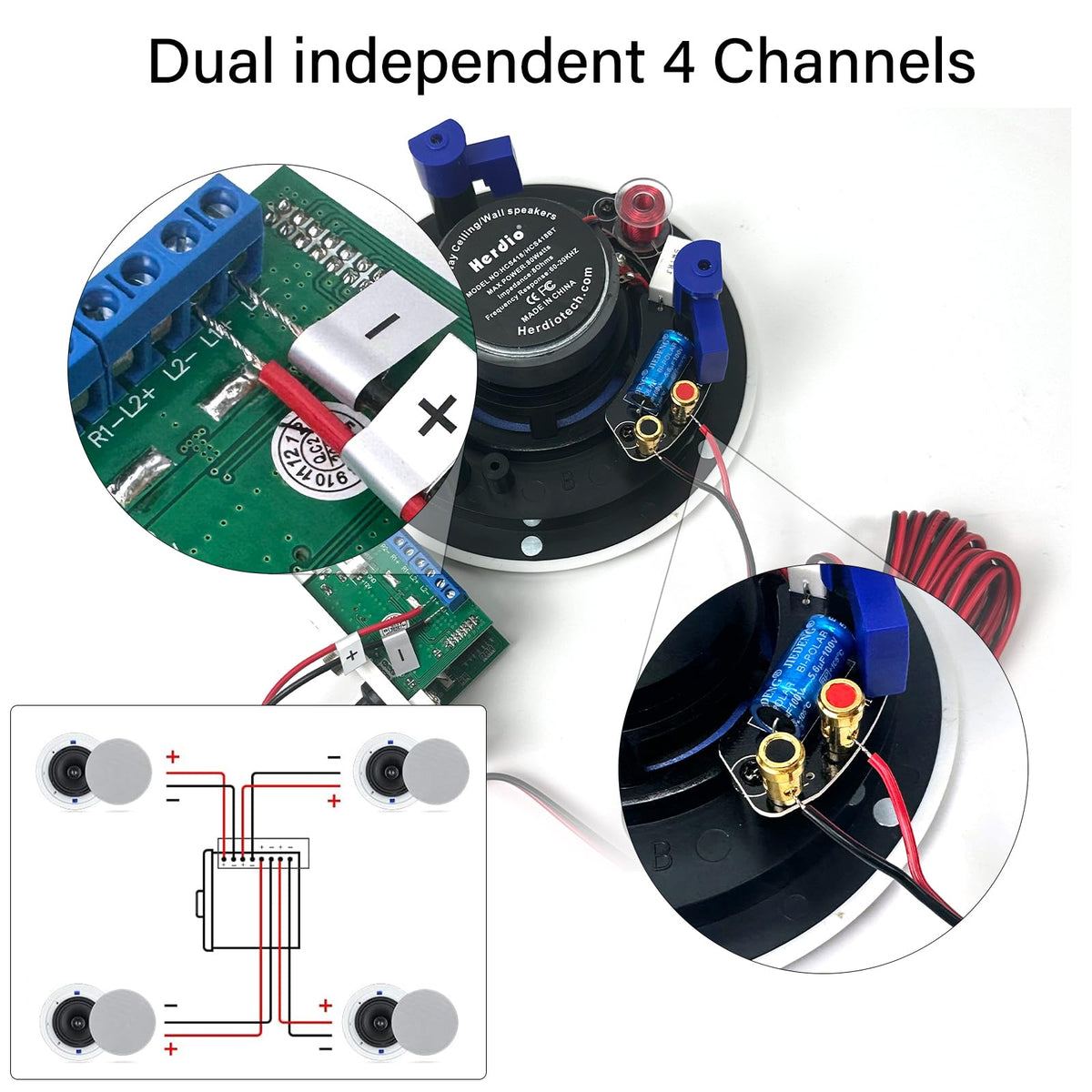

Wiring the unit is straightforward: attach each speaker pair to the corresponding positive and negative terminals on the amplifier plate, then plug the supplied 12V 3A adapter into the rear power jack. The amplifier supports two pairs or up to four individual speakers across its independent channels.

• Connect positive speaker wire to positive terminal, negative to negative terminal.
• Use the included AC adapter for stable 12V power supply.
• Tighten terminal screws to ensure secure contacts and avoid short circuits.
• Mount the plate in a single-gang box for a flush, finished look.

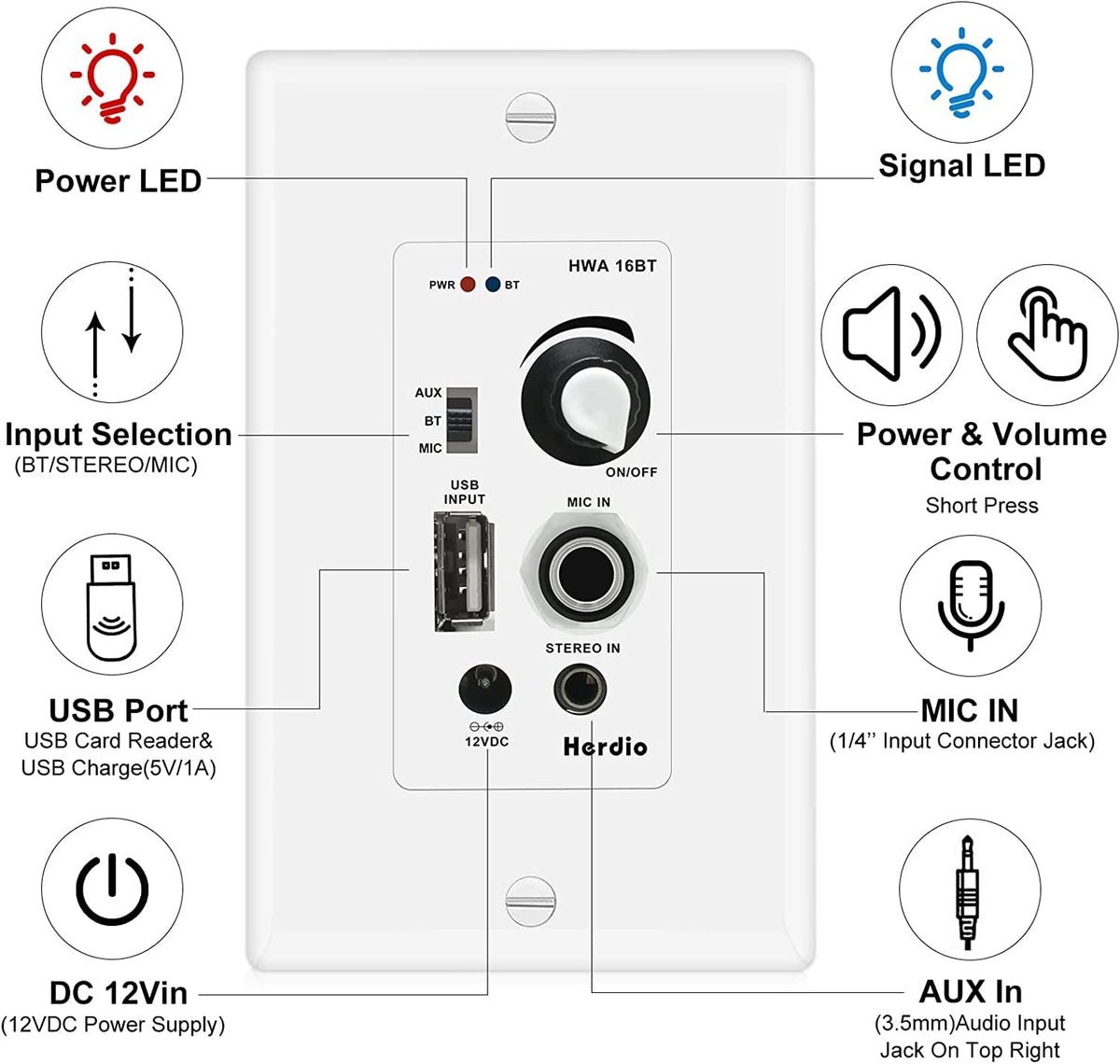

What audio sources can I play through the HWA-16BT-4CH and how do I switch them?

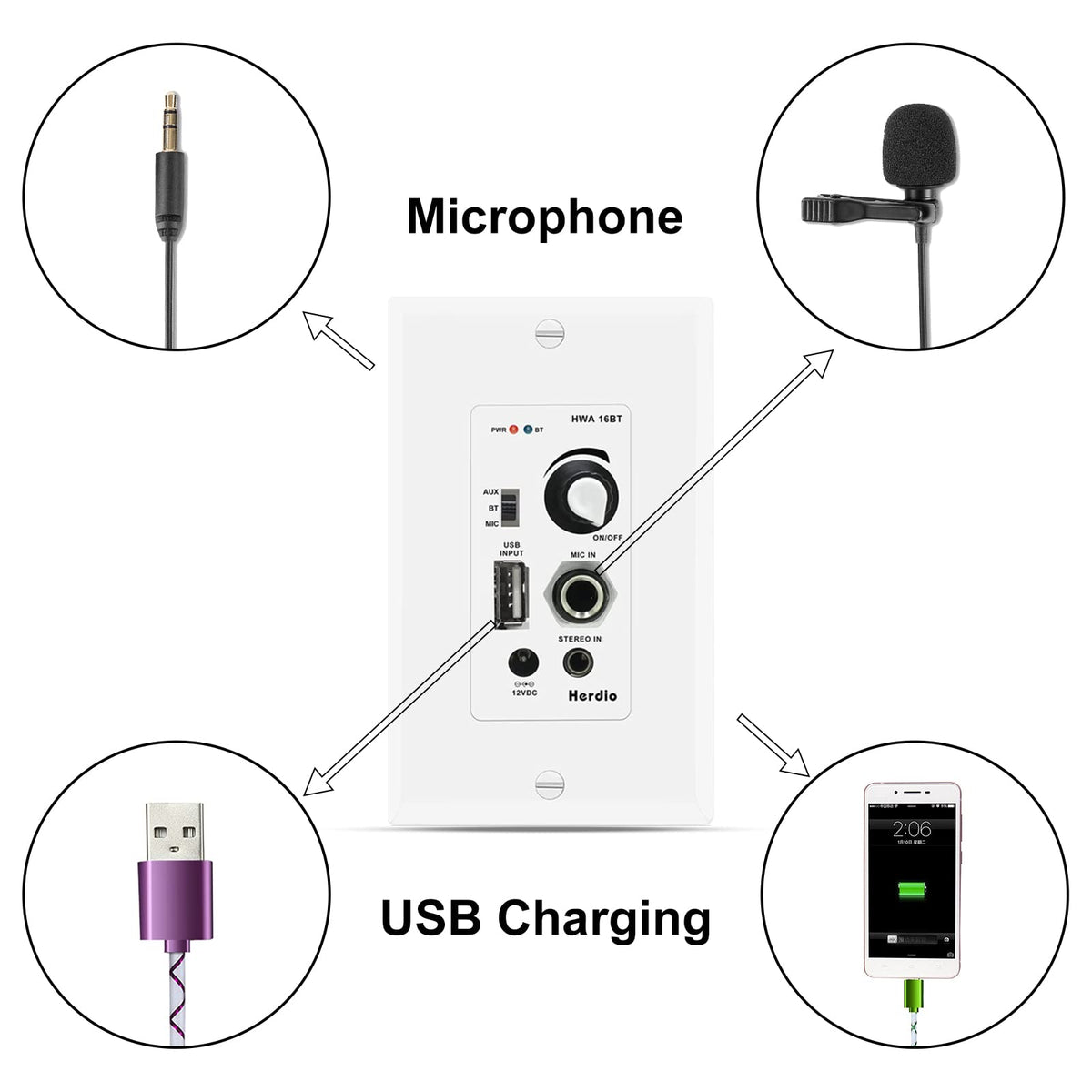

The Herdio plate accepts Bluetooth streams, USB flash drives, a front/ rear 3.5mm aux/line input, and a microphone for paging. Bluetooth is ideal for wireless streaming from phones or tablets, while USB and aux inputs provide direct local playback without pairing.

• Bluetooth: wireless playback from smartphones and tablets (approx. 30 ft / 10 m range).
• USB port: play MP3 files directly from a flash drive.
• 3.5mm aux: plug in phones, MP3 players, or line-level sources via cable.
• Mic input: connect a paging mic to announce audio over connected speakers.

How does the four-channel volume control work for multi-room setups?

Each channel has an independent volume control on the plate so you can balance levels across rooms or speaker zones without affecting the others. This lets you tailor volume per area while sharing a single audio source and amplifier power distribution.

• Individual rotary controls for each of the four outputs.
• Maintain one source while adjusting local listening levels by zone.
• Works with passive speakers; speaker impedance and power should match amplifier capability.
• Ideal for small multi-room audio where full matrix switching isn’t required.

What should I know about installation, compatibility, and maintenance?

Installation requires basic low-voltage speaker wiring and a single-gang electrical box for mounting. The unit is compatible with most passive speakers; however, match speaker impedance and power handling to avoid overdriving the amp. Regularly check terminal connections and keep the ventilation area clear for reliable operation.

• Mount in a standard single-gang box and secure with included screws.
• Confirm speaker impedance and combined load fall within amplifier specifications.
• Keep the USB and aux jacks dry and dust-free for consistent connections.
• Use quality speaker wire and label runs for easier system troubleshooting.

Who is this for: The Herdio Bluetooth Wall Amplifier HWA-16BT-4CH suits homeowners, small business owners, installers, and DIYers who want neat, in-wall distributed audio without a rack of equipment. It’s best for multi-zone background music, paging in small venues, and any situation that benefits from simple source switching, USB playback, and per-zone level control while keeping a low-profile, wall-mounted footprint.
