GreenYi BMW Trunk-Handle Backup Camera 170° Fisheye

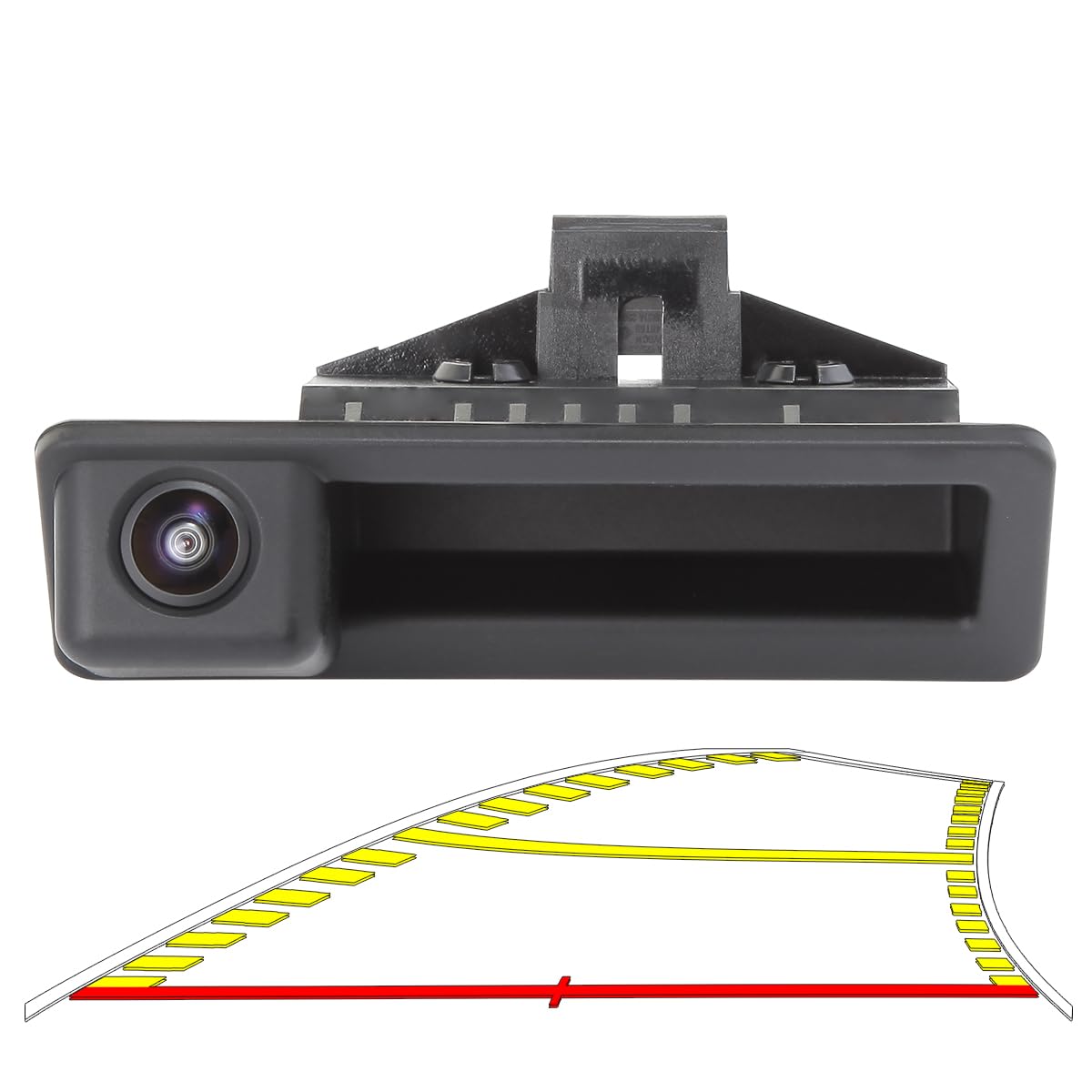

This OEM-style rear view camera fits into the trunk handle opening of select BMW E-series and X-series cars and delivers a wide-angle, high-resolution image to any monitor with an RCA video input. Designed for drivers who want a discreet, factory-like appearance, the unit uses a CCD sensor and glass lens to produce a clear picture in varied lighting and weather conditions. The camera includes an intelligent dynamic trajectory guideline function that visually shifts the guide lines as the vehicle turns, helping you judge direction while reversing. It is IP68-rated for water and dust resistance and offers a simple install when the camera size and RCA compatibility match your vehicle and monitor.

How does the dynamic trajectory guideline improve reversing?

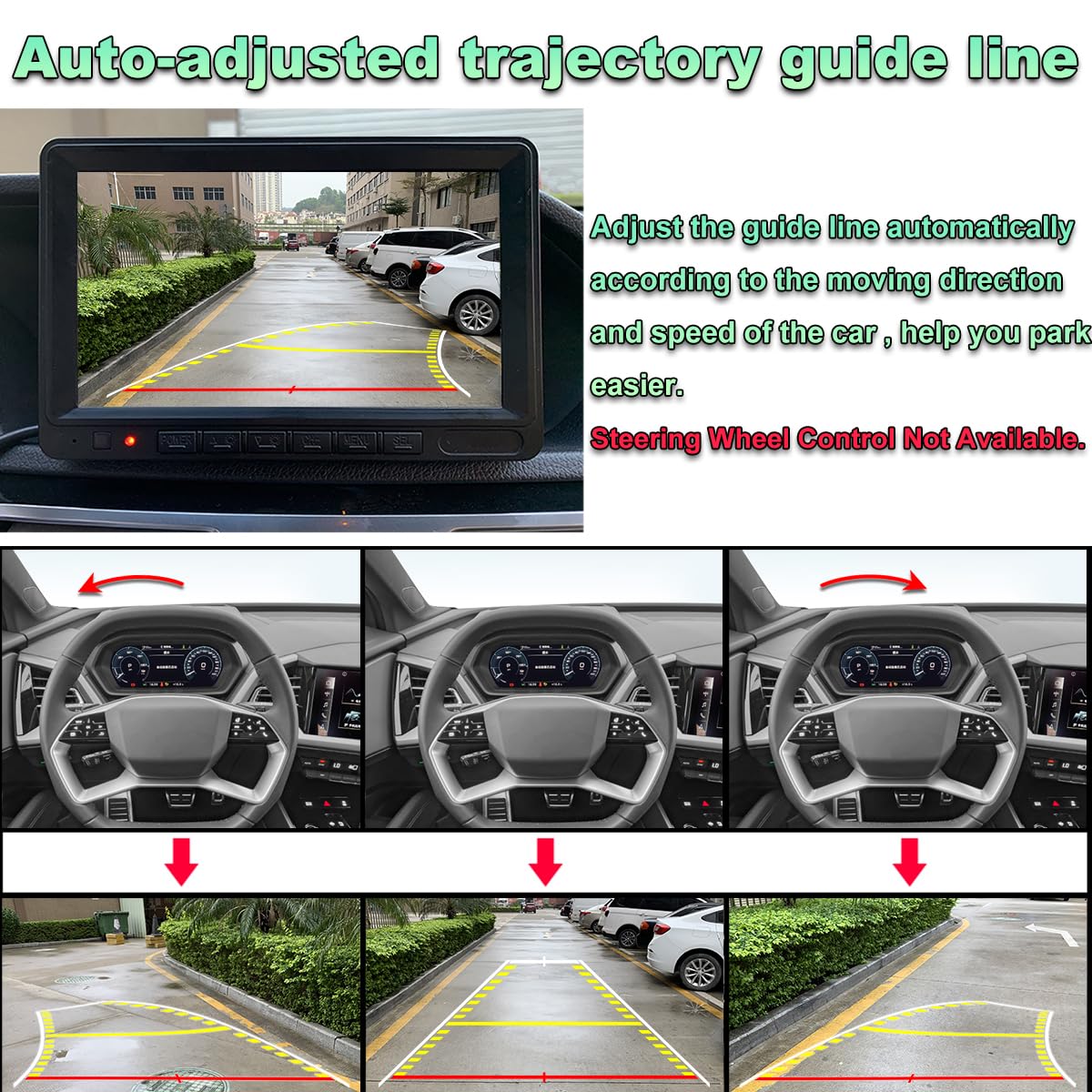

The moving guideline adjusts its path as the car changes direction, showing an approximate projected path behind the vehicle. It is a visual aid—not a steering control—so it helps with spatial awareness during low-speed maneuvers and parking. A built-in switcher cable allows disabling the dynamic lines if you prefer a static marker.

• Guidelines change direction with vehicle turns to reflect projected path
• Visual-only aid — does not interface with steering systems or CAN bus
• Switcher cable included to turn off dynamic guideline if desired

Will this camera fit my BMW and my monitor?

Compatibility depends on the trunk handle cutout size and whether your display accepts an RCA video input. The listing supports many BMW E82, E88, E84, E90, E91, E92, E93, E70, E60, E61, and E39 models as references, but you must measure the trunk handle recess and confirm RCA connectivity before purchase. This camera replaces the handle trim piece; it is not a universal butt-on camera for any location.

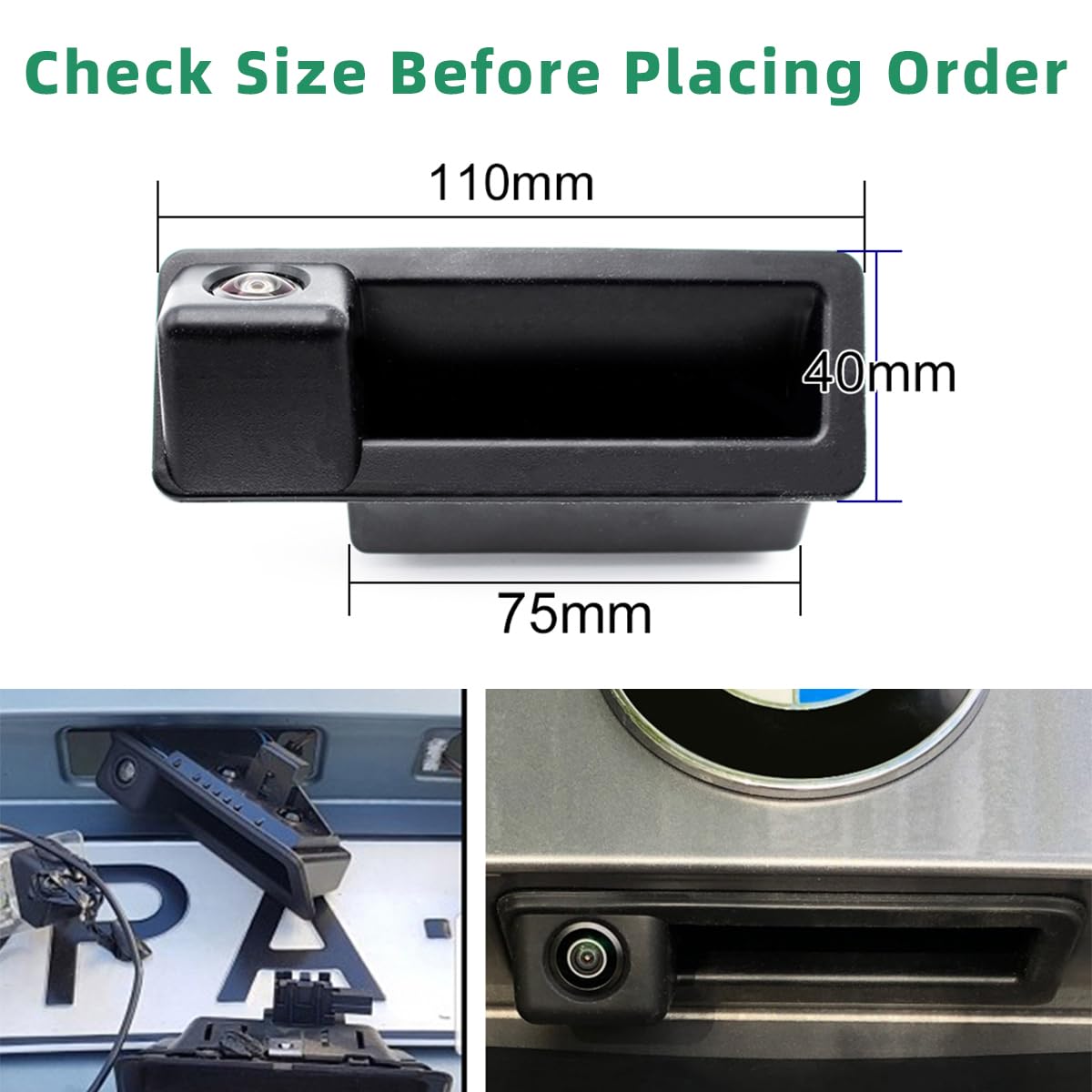

• Measure trunk handle opening to confirm physical fit
• Requires monitor with RCA video input — no digital-only adapters included
• Check model compatibility list as a guide, not a guarantee

What image quality and viewing options does it provide?

The camera captures 960 x 720 pixels through a CCD sensor and a glass fisheye lens that spans approximately 170 degrees, delivering a broad field of view ideal for reversing. Night performance is improved by the lens and sensor design, and the camera housing is IP68-rated to protect against water and dust exposure. Expect a wide, slightly curved perspective suited to parking and obstacle detection rather than precision distance measurement.

• High resolution 960×720 output with CCD imaging
• 170° fisheye glass lens for expansive rear coverage

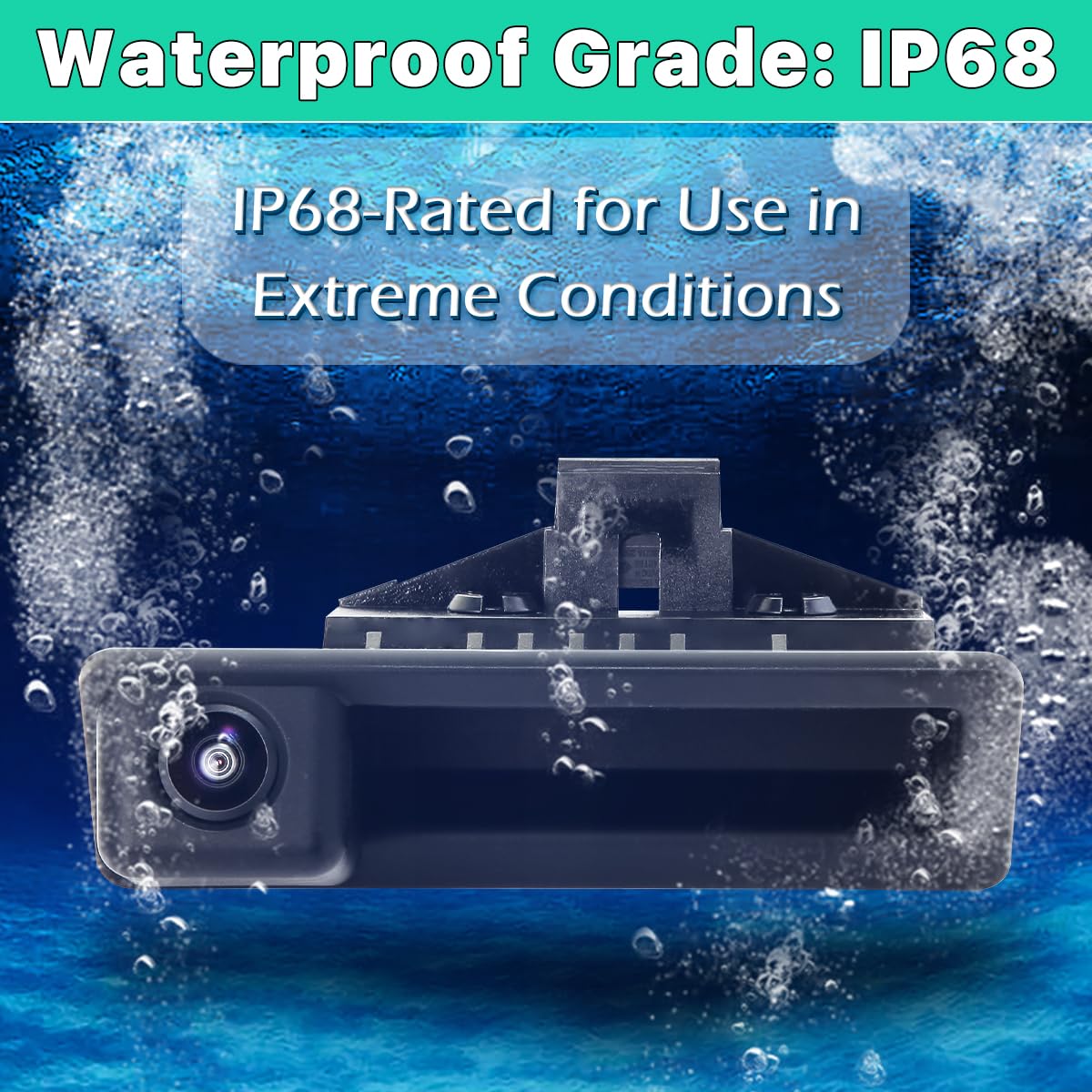

• IP68 waterproof rating for all-weather reliability

How do I install and operate this trunk handle camera?

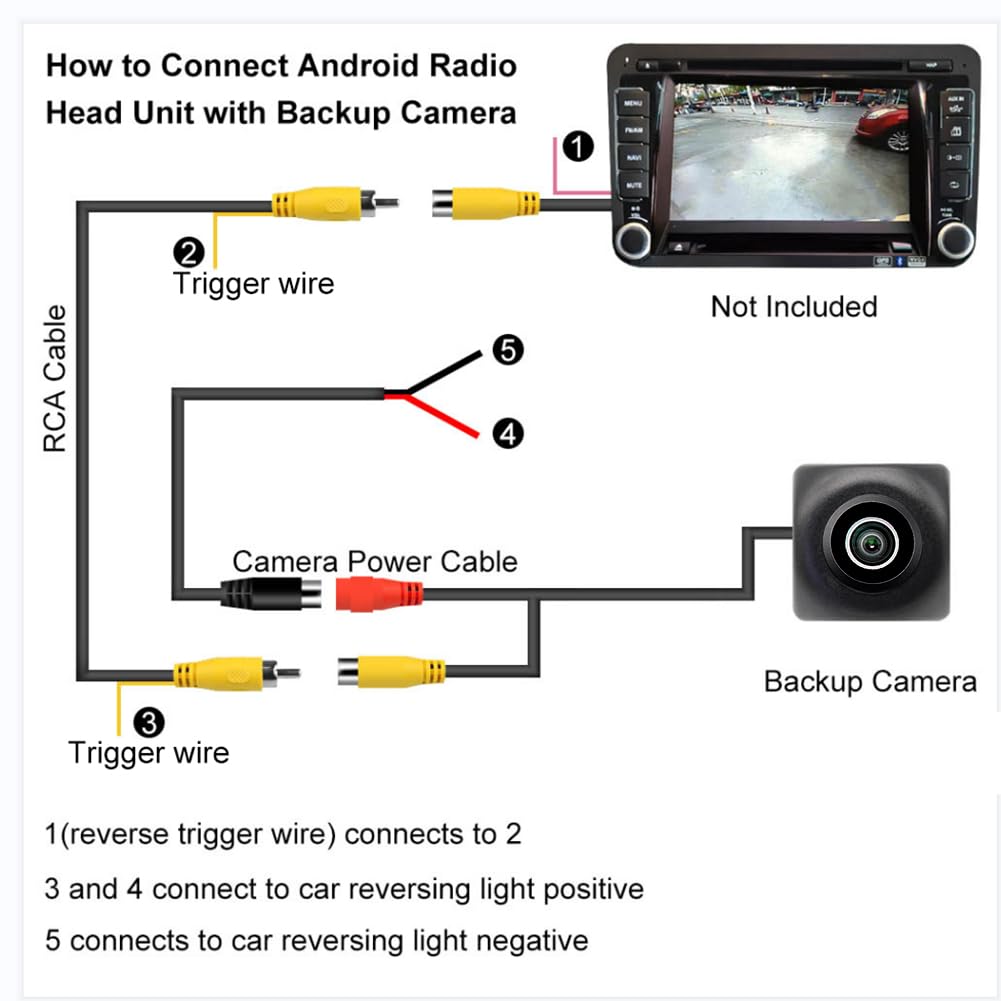

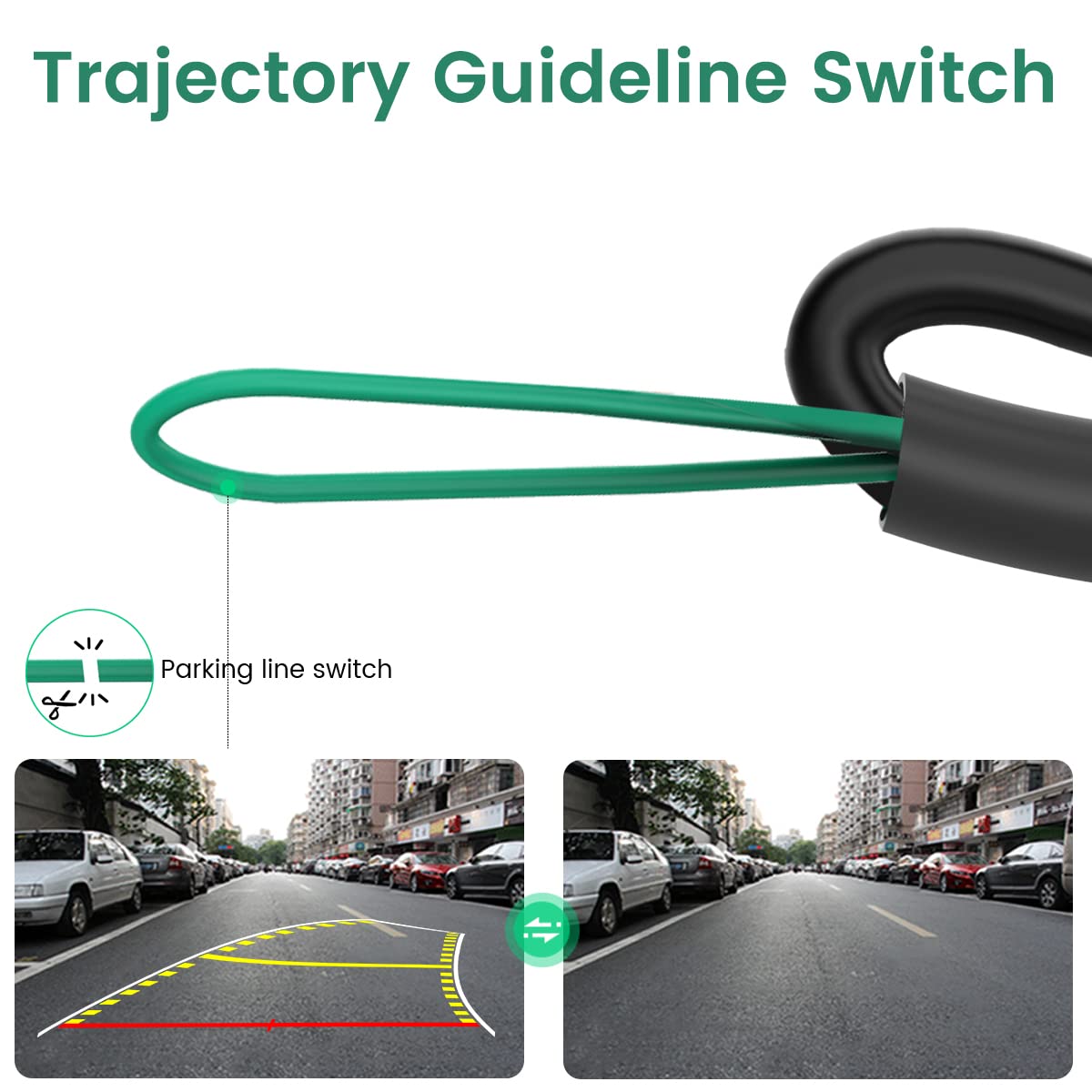

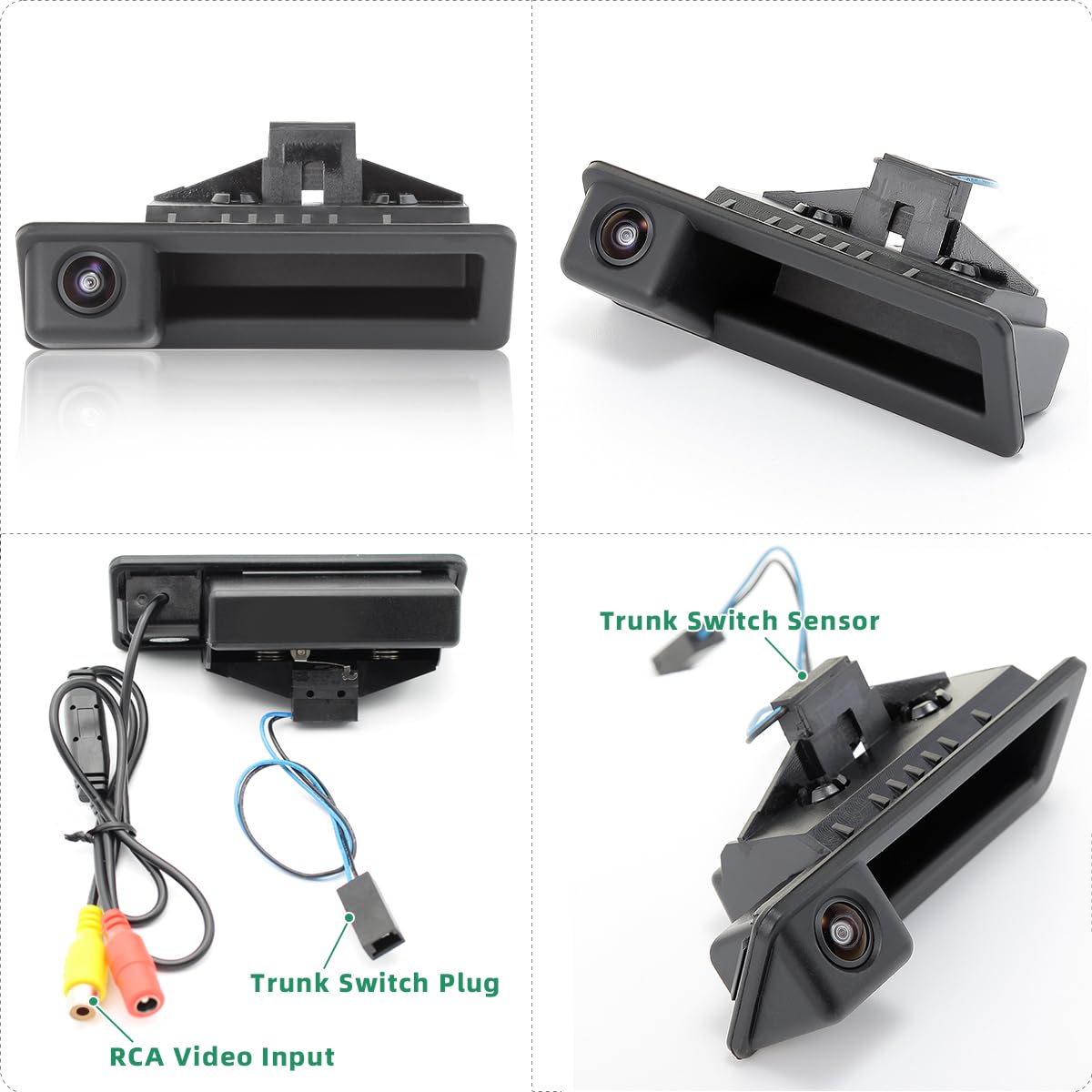

Installation replaces your existing trunk handle assembly and connects the camera’s RCA video cable to a compatible display; some wiring to reverse-light power may be needed for automatic activation when backing up. No extra CANbus module is required for the dynamic guideline function. If you want the camera image without moving guidelines, cut or disconnect the guideline switcher cable as instructed.

• Swap into trunk handle position—verify mechanical fit first
• Connect RCA video to monitor and wire power to reverse light for auto-activation
• No additional CANbus module required; guideline switcher available to disable lines

Who is this for? The GreenYi trunk-handle backup camera is made for BMW drivers seeking a near-factory replacement camera with a wide-angle view and an easy-to-hide installation. It suits owners who have a monitor with RCA input and who are comfortable measuring the trunk handle opening before purchase. Choose this camera if you want improved rear visibility, a discreet OEM appearance, and an IP68-rated unit that performs in various weather conditions.
