GreenYi AHD 720P Backup Camera with 170° Fisheye

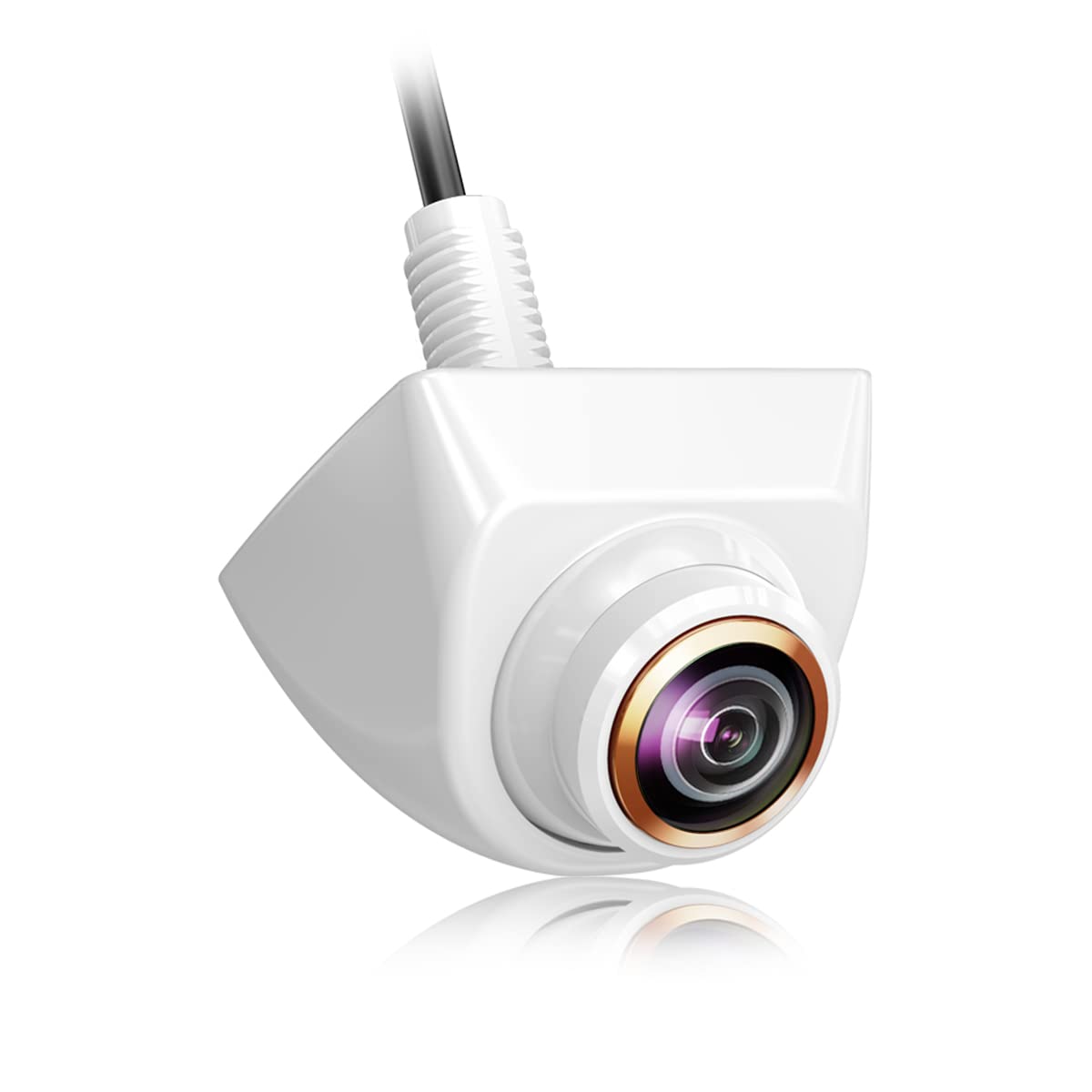

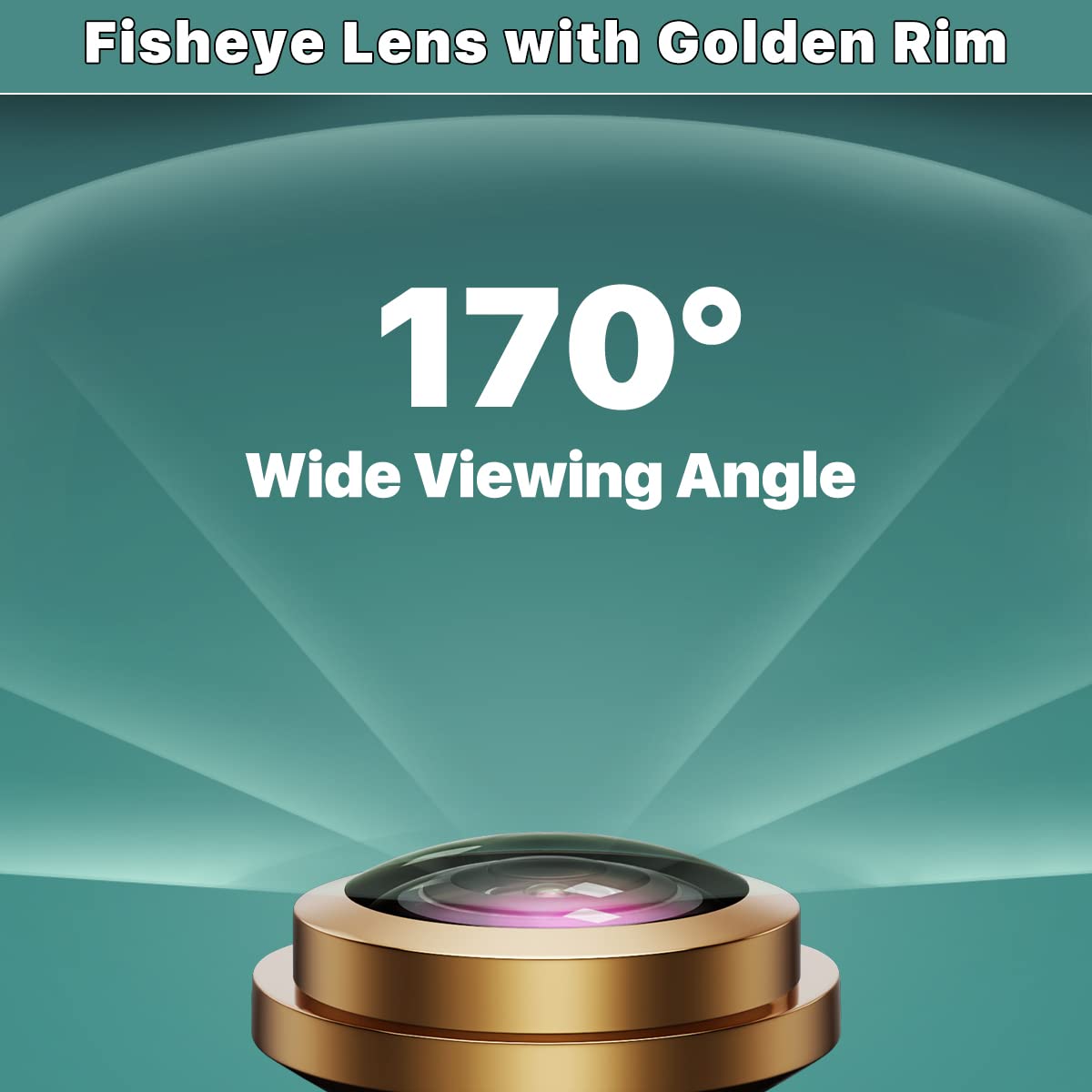

GreenYi AHD 720P Gold-Rim backup camera is a compact, metal-housed vehicle camera with a 170° adjustable fisheye lens designed for front, rear, or side mounting.

This low-profile camera blends a durable metal shell and a distinctive gold-rim lens with flexible configuration options so you can place it on a bumper, grille, mirror, tailgate or RV exterior to reduce blind spots. The unit outputs 1280×720p AHD or CVBS video (depending on monitor compatibility) and includes three switchable cables for mirror image, video mode and guideline control. A rotating camera body and included silicone sleeve let you fine-tune viewing angle and mounting style without bulky spacers.

How do I adjust the camera to get the best viewing angle?

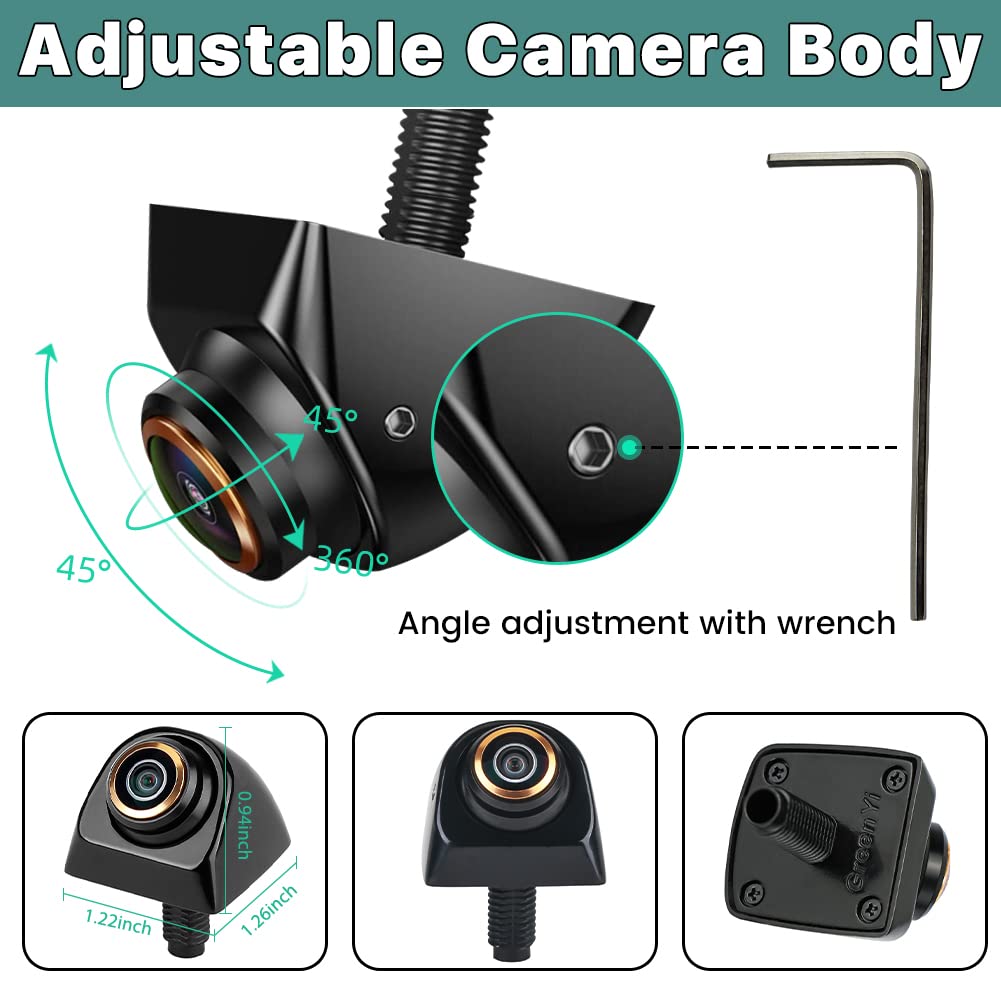

The GreenYi camera features a rotating metal body that lets you pivot the lens instead of using stacked gaskets. Use the small wrench provided to turn the lens housing until the image aligns correctly on your monitor. After any cable changes, reconnect power to confirm the display is as intended.

• Rotate the lens within the metal shell for vertical or horizontal alignment.
• Use the mini wrench to lock the lens at the desired angle.
• Silicone sleeve allows flush mount or low-profile installation without large drilling.

What video formats and monitors will this camera work with?

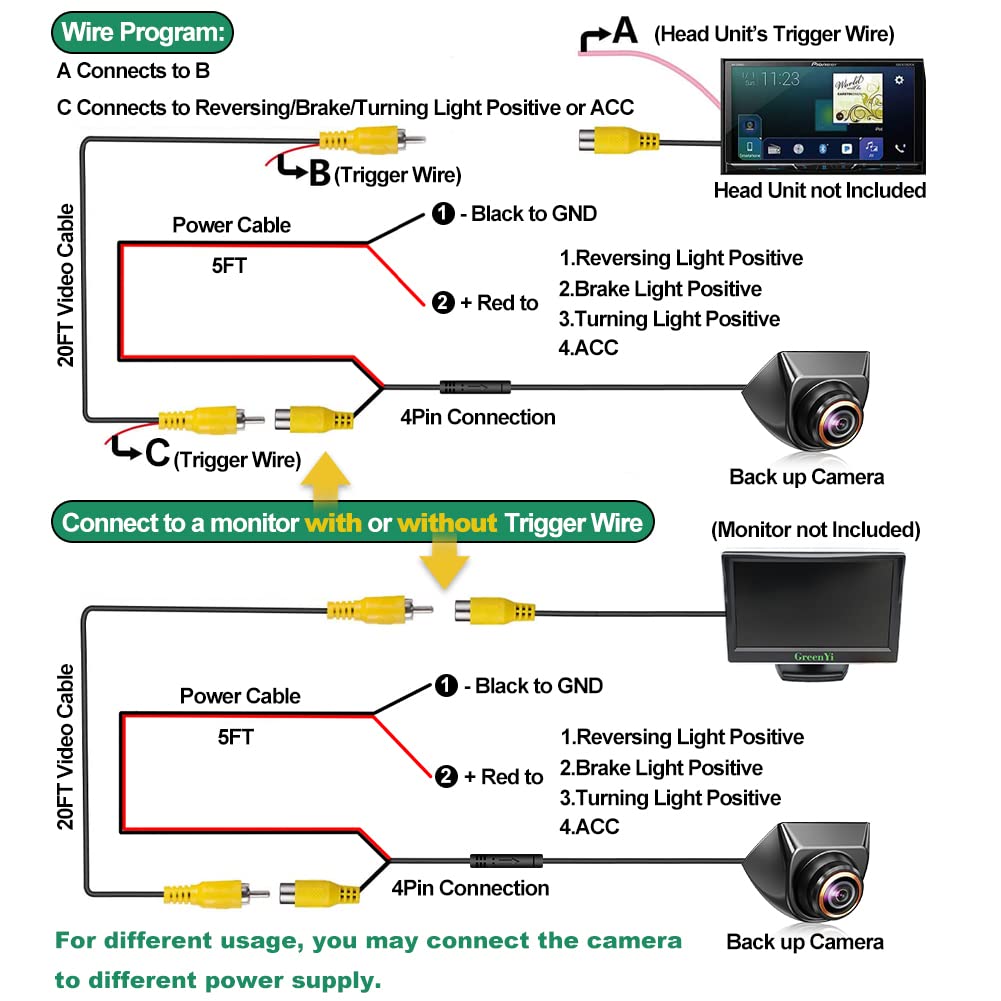

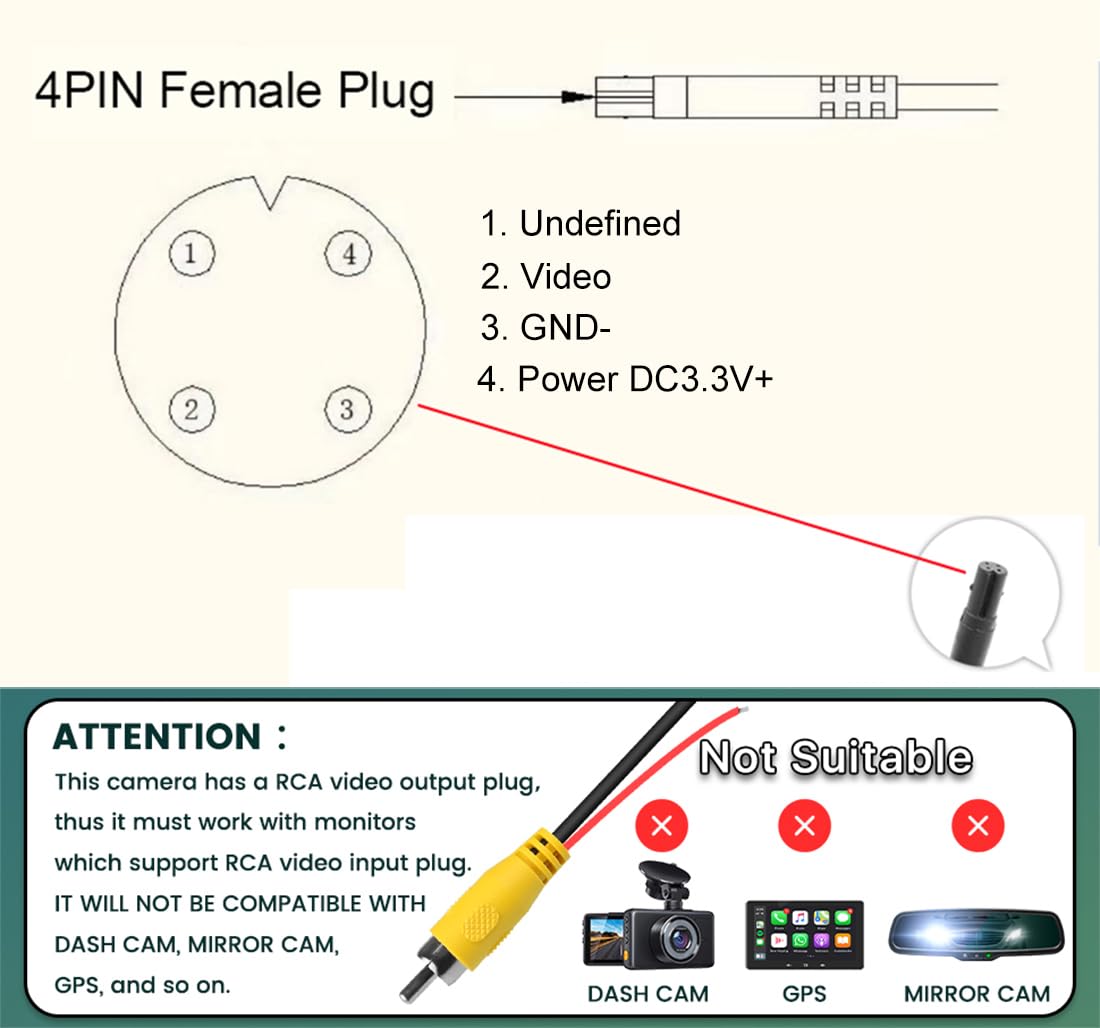

This camera supports both standard CVBS analog output and AHD 720P (NTSC 30Hz) for sharper images when paired with compatible displays. If your monitor accepts RCA video input, it can usually accept the camera’s CVBS signal; cut the orange cable to try AHD 720P if your monitor supports that format. Always test after wiring changes to ensure the output and frame rate match your display.

• 1280×720p AHD option for high-definition compatible monitors.
• CVBS analog output for broad compatibility with RCA-equipped displays.
• Works with double-din stereos, OEM navigation, rearview mirrors, and backup TFT LCD monitors.

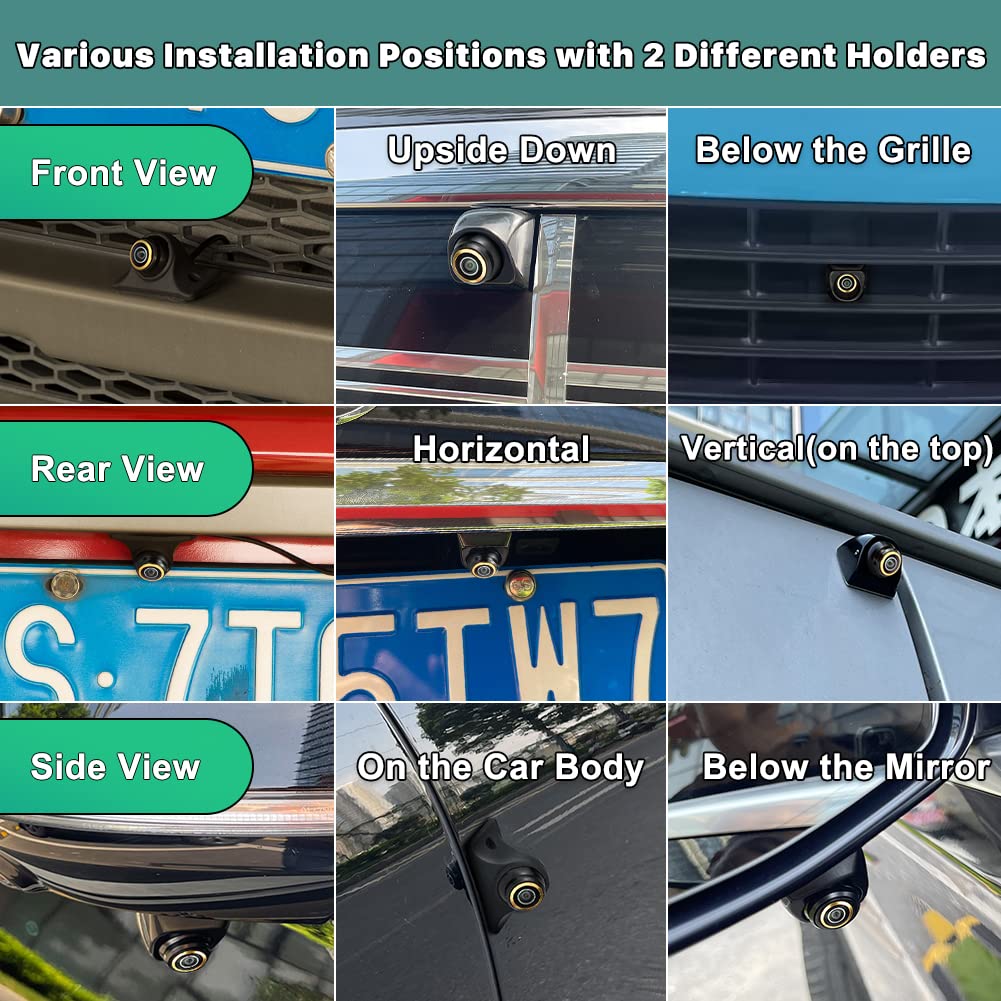

Which features help when installing on different vehicles like RVs, trailers, or pickup trucks?

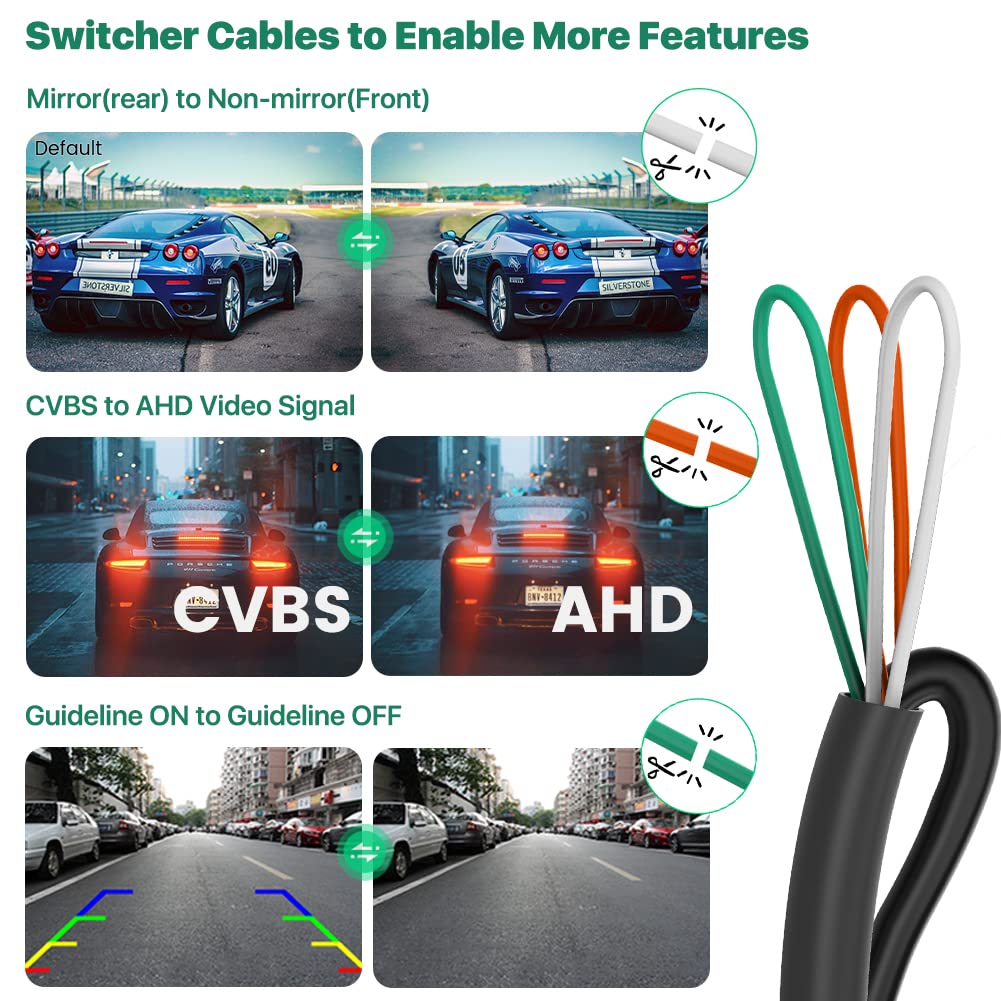

The compact, shock-resistant metal housing and 170° fisheye lens make this camera adaptable to many vehicle types and mounting locations. You can mount it upside down or right-side up, and the included silicone shell reduces the need to enlarge mounting holes. The three switcher cables let you toggle mirror view, video mode, and parking guidelines depending on installation and monitor setup.

• 360° rotatable body for flexible placement on bumper, tailgate, or side mirror.
• Shockproof metal construction suited for heavy-duty vehicles and trailers.
• Cuttable switcher wires let you enable/disable mirror, AHD mode, and guide lines.

How durable and reliable is the camera housing and lens?

Built with a solid metal shell, this camera resists impacts and vibration better than many plastic alternatives. The metal body is designed to extend service life in outdoor vehicle environments, while the sealed lens housing helps protect electronics from typical road conditions. The golden rim is primarily a visual accent that also aids in quick lens identification during installation.

• Robust metal shell for improved shock resistance and longevity.
• Sealed lens area to guard internal components from dust and moisture.
• Compact footprint and bright gold rim for easy placement and visual alignment.

Who is this for: The GreenYi AHD 720P gold-rim camera is intended for vehicle owners who want a durable, flexible external camera for cars, SUVs, RVs, trailers, campers, vans and pickups. It suits DIY installers and professional fitters who need a compact, adjustable wide-angle camera with selectable video output and easy fine-tuning for varied mounting positions.
