GreenYi AHD 720P Backup Camera 170° Gold Rim

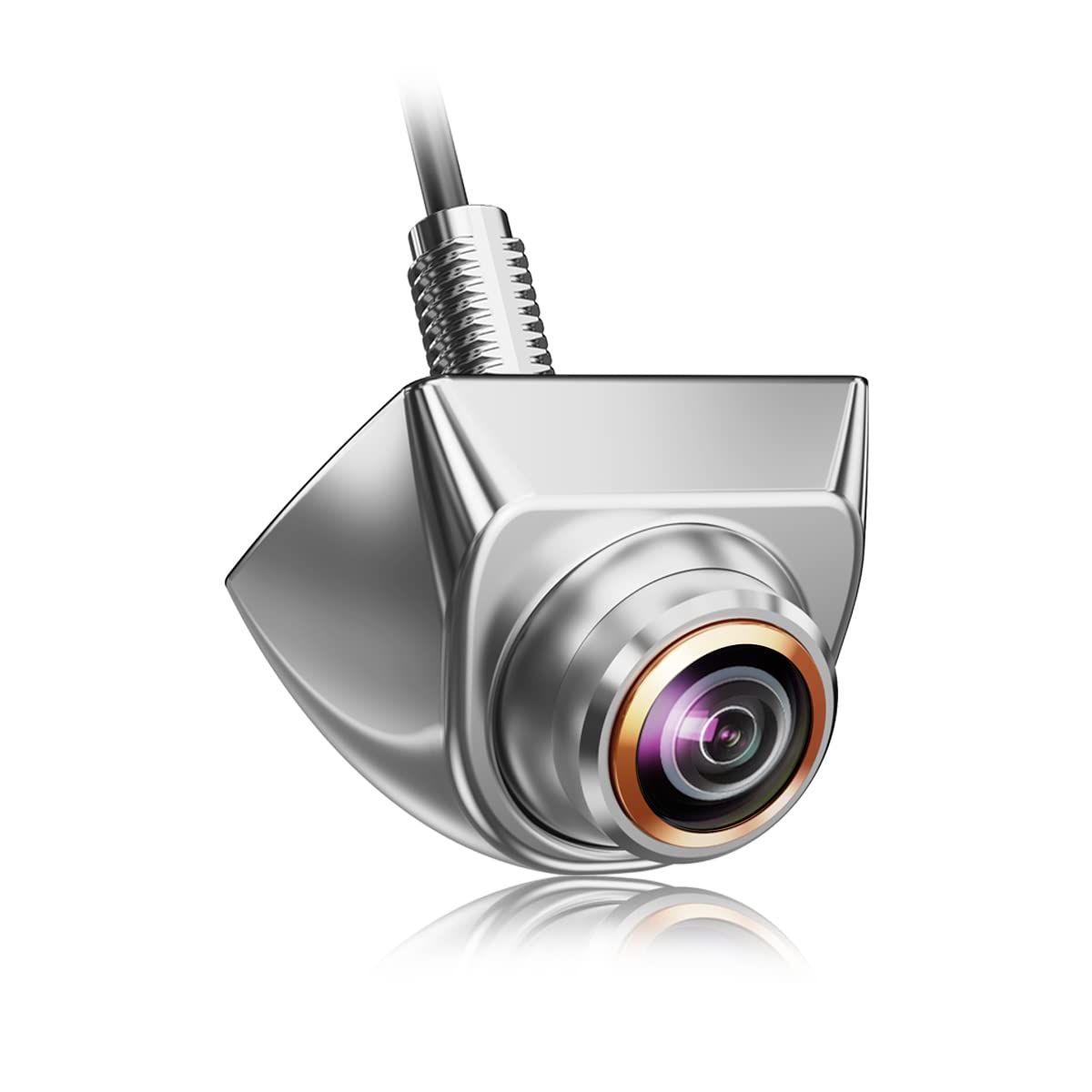

GreenYi AHD 720P backup camera is a versatile, metal‑shelled front/rear/side camera with an adjustable fisheye lens, 170° field of view, and a distinctive gold rim for clear wide-angle reversing and blind‑spot coverage.

This compact camera is built for drivers who need a rugged, high‑definition video feed for parking, maneuvering, or monitoring blind spots on cars, SUVs, RVs, trailers, campers, and pickups. It delivers 1280x720p AHD video over an RCA output and includes a rotating metal body so you can set the lens angle precisely. Several cut‑wire switches let you change mirror mode, AHD vs CVBS signal, and on/off parking guidelines without replacing the unit.

How does the Gold Rim fisheye lens improve visibility?

The gold‑rim fisheye lens provides an ultra‑wide 170° view that captures more of the area behind or beside your vehicle than standard lenses. That wide field reduces blind spots during low‑speed maneuvers and gives a more complete context for surrounding obstacles. The fisheye profile is especially useful when mounting on bumpers or high rear locations.

• 170° wide viewing angle covers most blind‑spot areas
• Fisheye lens yields broader horizontal coverage
• Gold rim increases lens visibility and aesthetic appeal
• 720P AHD resolution provides clearer detail on compatible monitors

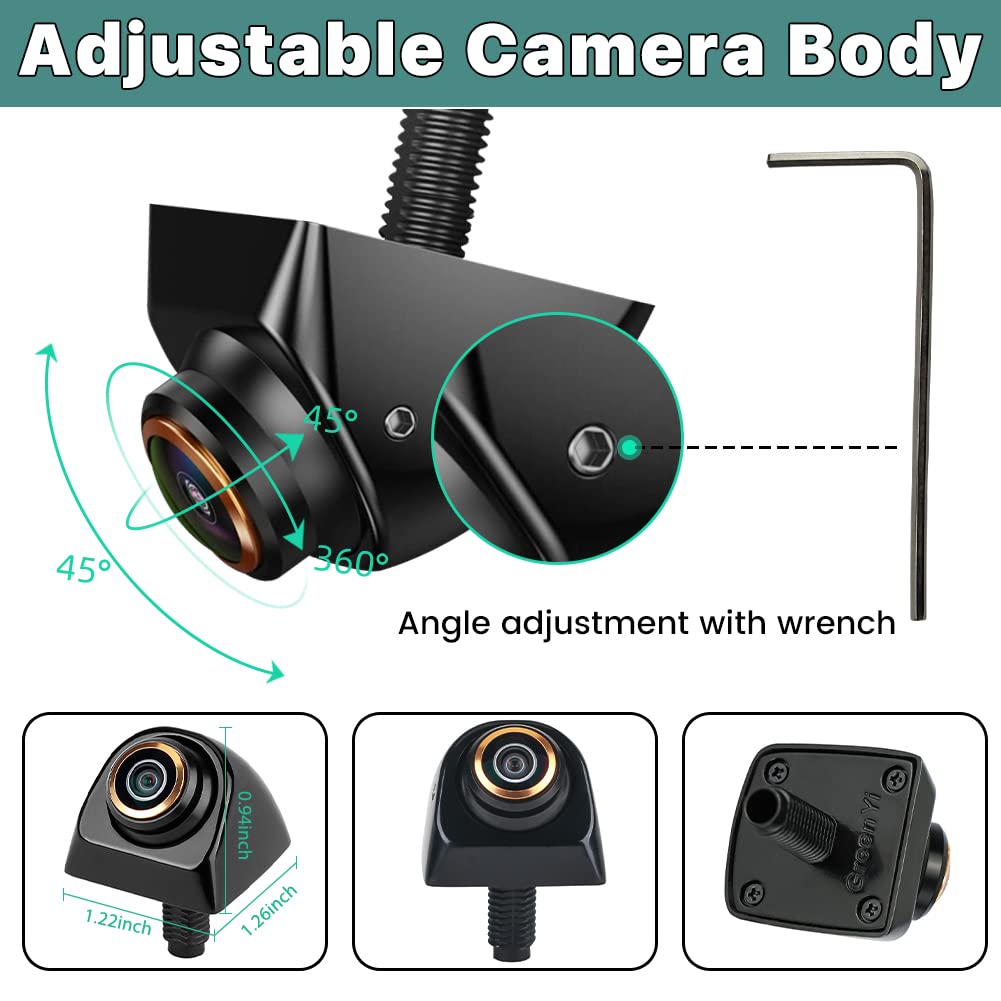

What mounting and angle adjustments are possible?

GreenYi’s camera uses a rotating metal body so you can physically pivot the lens to the ideal tilt without adding shims. The housing supports vertical or horizontal installation and includes a silicone shell option if you prefer a flush or lower‑profile mounting without large drilling. A small wrench is supplied for fast lens rotation and locking.

• 360° rotatable body for precise aiming
• Mounts upside‑down or right‑side up to suit placement
• Silicone shell for less invasive installation or seal protection
• Compact metal housing is shockproof and durable in outdoor conditions

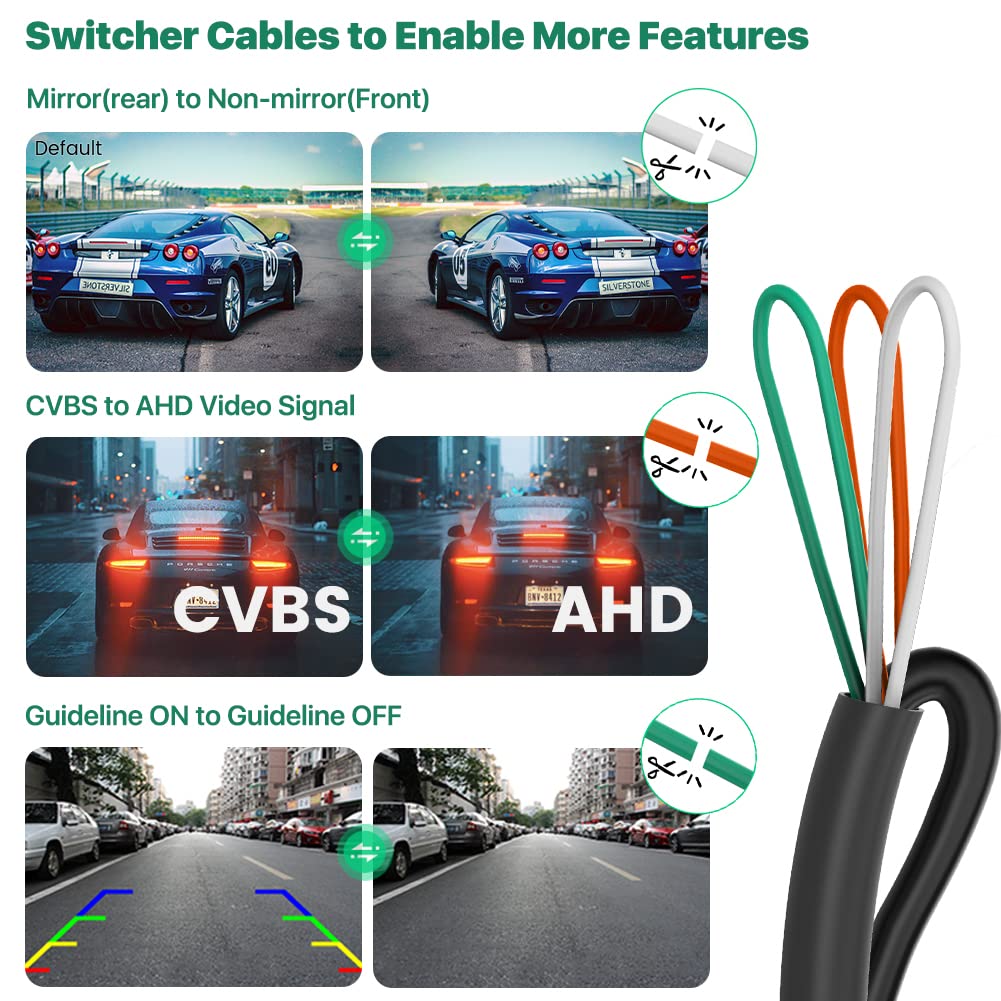

How do the three switcher cables change camera behavior?

The camera uses three simple cuttable cables to alter image output and overlays without internal reprogramming. Cut the white lead to toggle mirror (rear) vs non‑mirror (front) output, the orange to attempt AHD 720P signal when your monitor supports it, and the green to disable on‑screen guide lines. After any cable modification, reconnecting power completes the change; cables can be reattached if needed.

• White cable: switch between mirrored and non‑mirrored images
• Orange cable: toggle CVBS to AHD 720P output (monitor dependent)
• Green cable: enable/disable parking guide lines
• Changes reversible by re‑connecting cut leads if desired

Which vehicles and monitor types work with this camera?

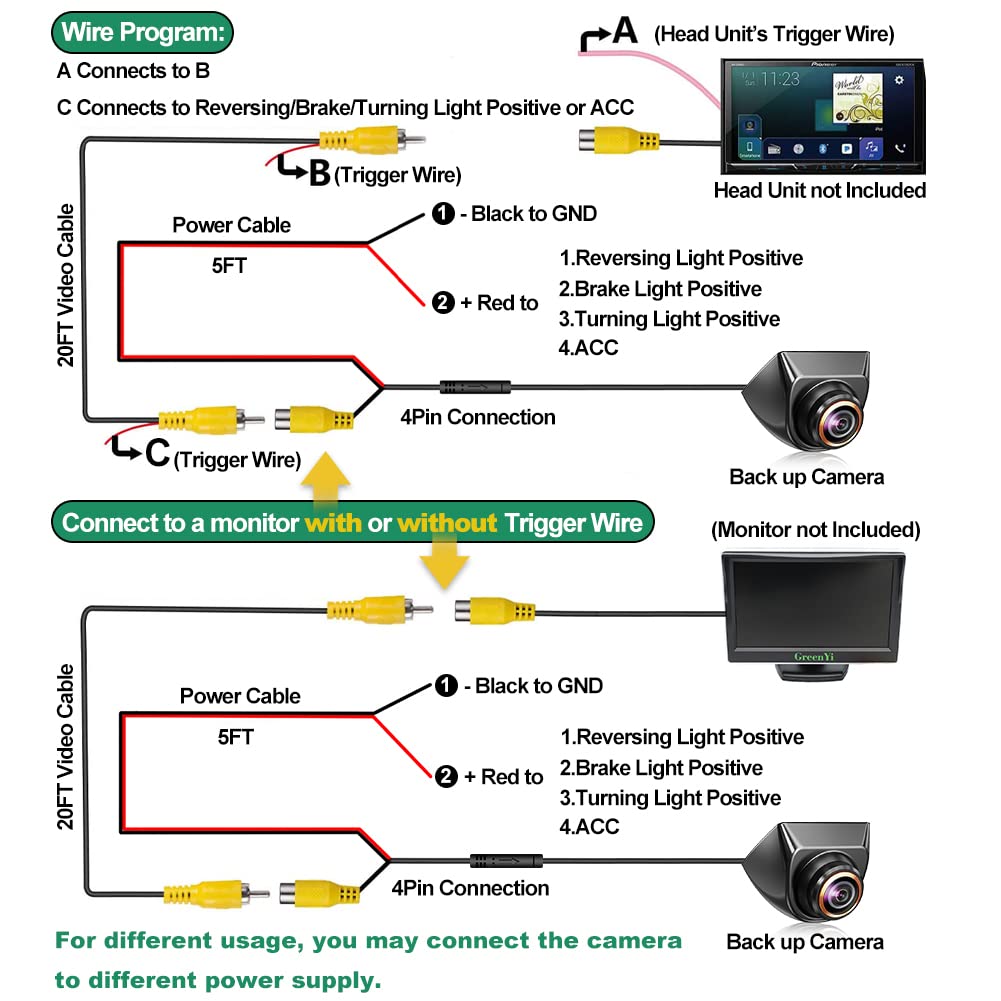

This camera is compatible with any display that accepts RCA video input, including double‑DIN head units, OEM navigation screens, Android players, rearview mirror monitors, and TFT LCD backup displays. It is suitable for passenger cars, trucks, RVs, trailers, and vans, and can be used as a front, side, or rear camera depending on mounting choice.

• Works with RCA‑input monitors and AHD‑capable displays (for 720P)
• Designed for cars, SUVs, vans, RVs, campers, trailers, and pickups

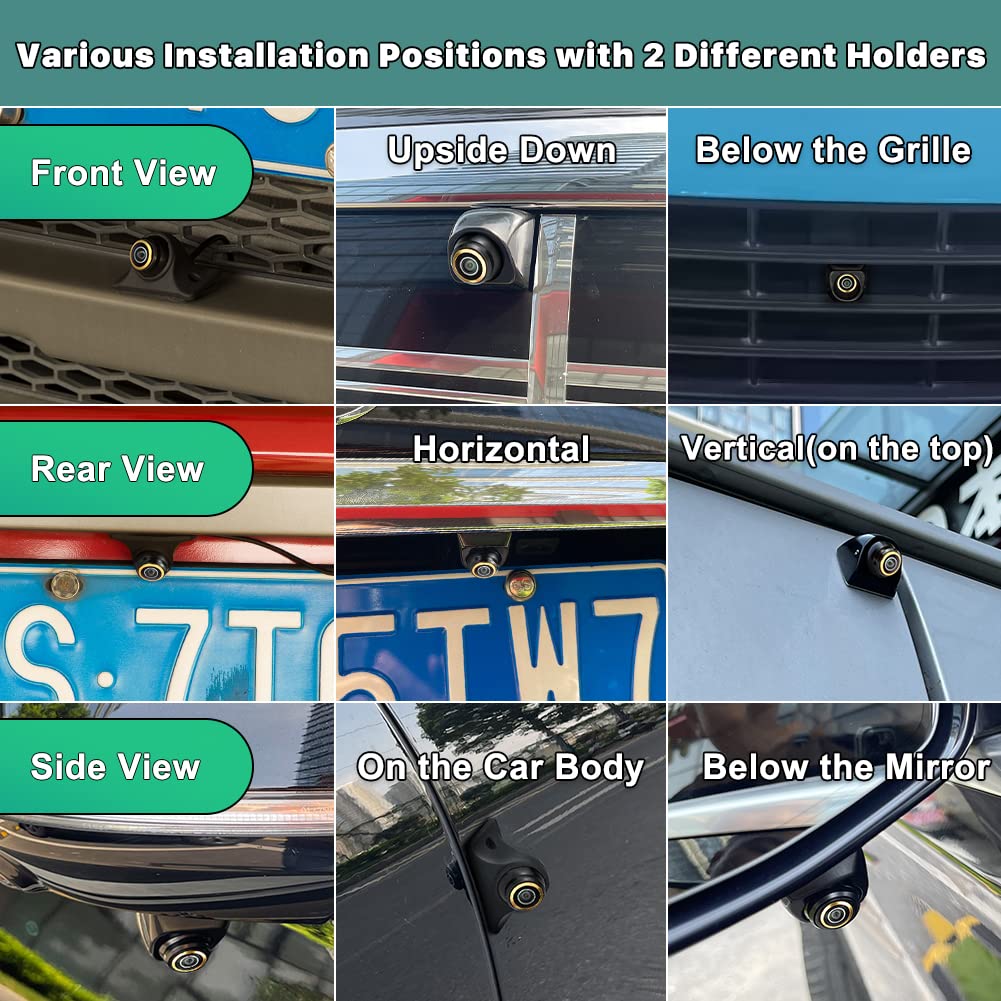

• Flexible mounting locations: bumper, trunk handle, grille, fender, or side mirror area
• Metal shell and shockproof design for long service life outdoors

Who is this for: Drivers who want a durable, easy‑to‑aim camera that expands rear and side visibility with a striking gold‑rimmed fisheye lens. It’s ideal for vehicle owners upgrading older backup cameras, people fitting cameras to trailers or RVs who need flexible mounting, and anyone using an RCA or AHD monitor seeking higher clarity around obstacles. Installers and DIYers will appreciate the rotating body and reversible cable options for quick customization.
