GreenYi AHD 1080P Backup Camera with Dynamic Guide

GreenYi AHD 1080P backup camera is a compact, waterproof reverse camera with an adjustable fisheye lens and automatic dynamic trajectory guidelines to make reversing and parking safer and clearer.

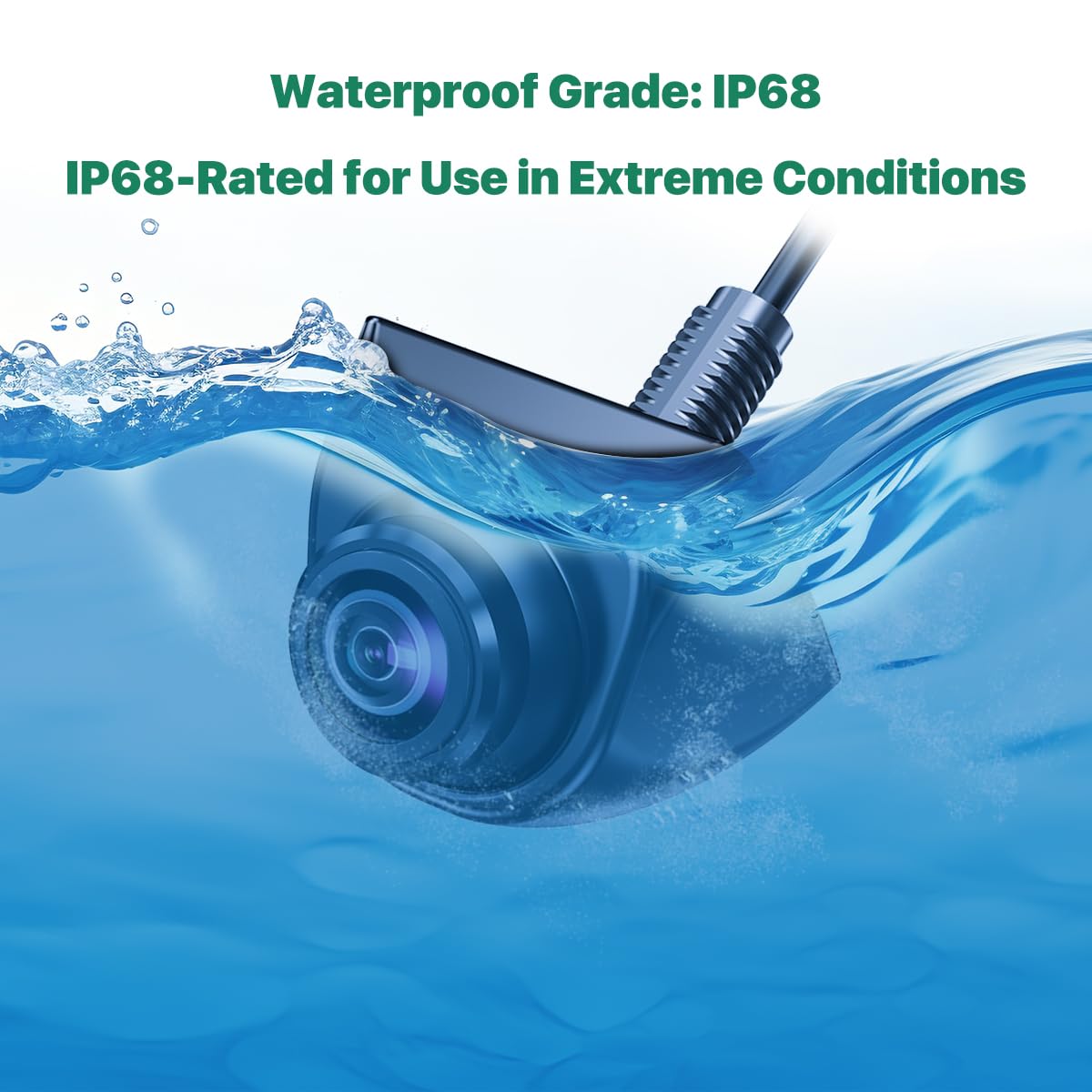

This compact flush-mount camera delivers high-resolution AHD video, a wide 170° field of view and a metal rotating body so you can fine-tune the viewing angle without extra spacers. It’s built for harsh conditions with an IP68-rated sealed body and enhanced low-light performance, and it outputs either AHD or analog CVBS signals depending on simple wire settings.

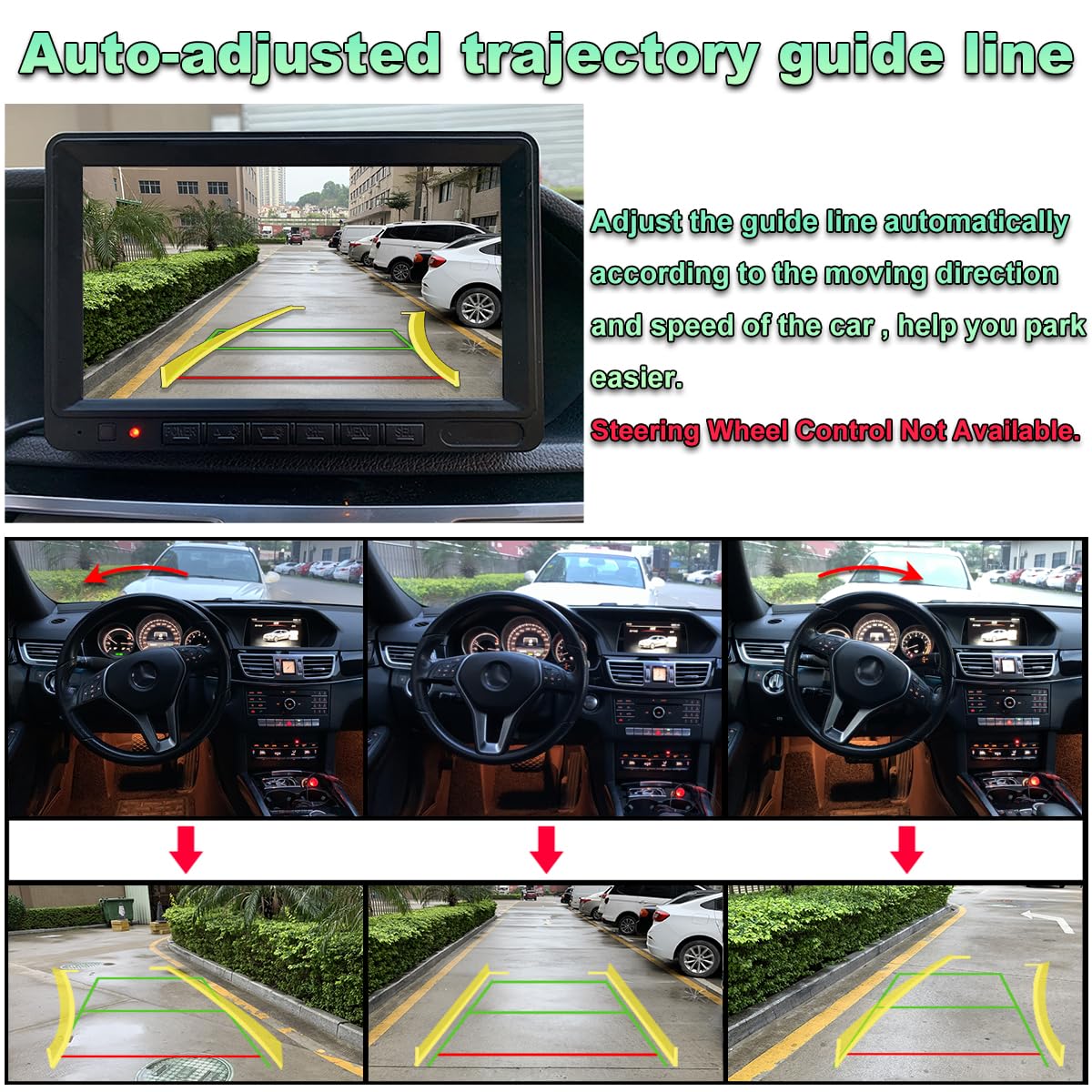

How does the dynamic trajectory guide line help when parking?

The camera produces on-screen guidance lines that move with the vehicle’s steering input so you see the predicted path in real time. That helps judge distances and angle during tight maneuvers without needing a separate processor or module.

• Built-in chip calculates trajectory and overlays guide lines on the video
• Guideline automatically updates as the car turns
• No extra external device required for dynamic lines

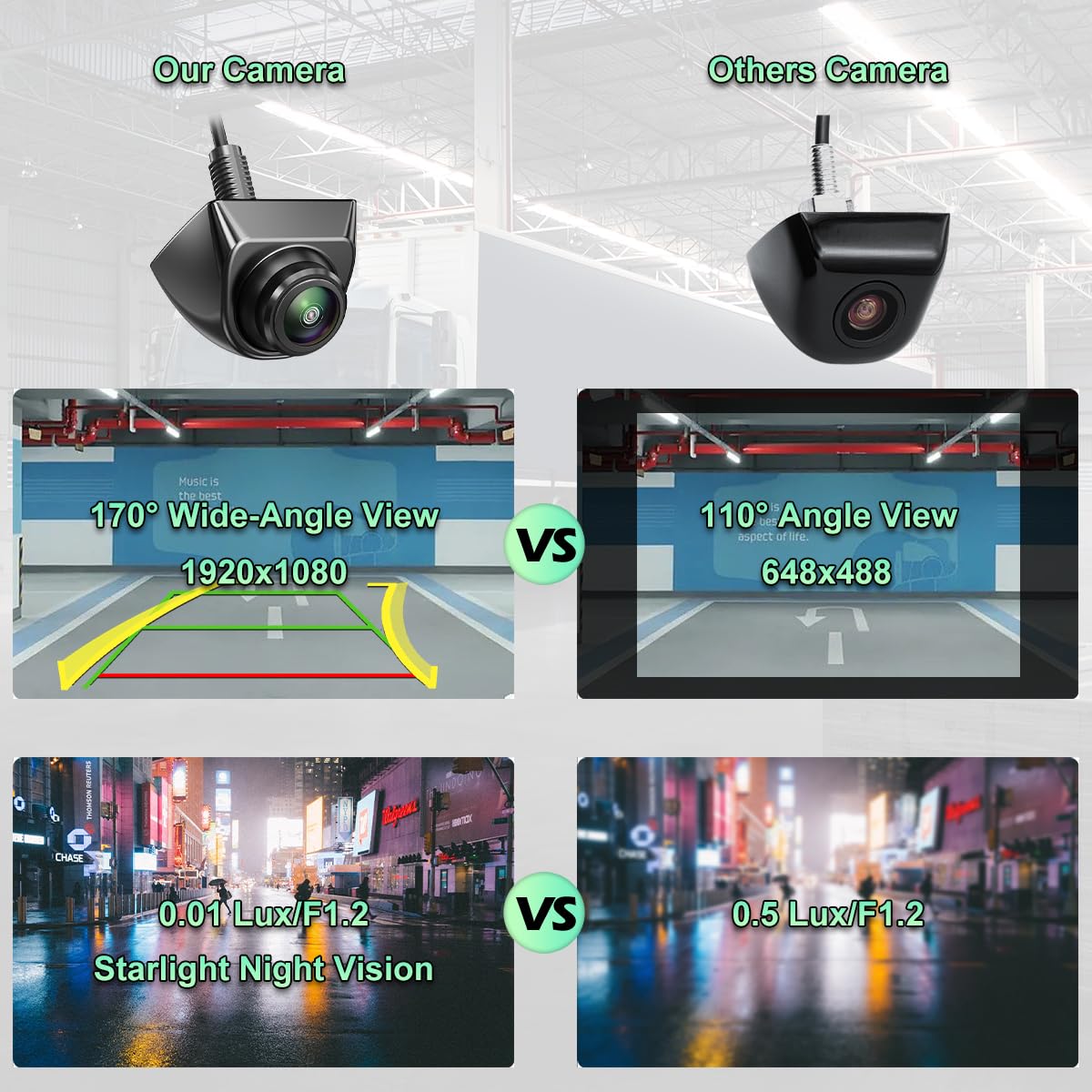

What image quality and night performance can I expect?

Equipped with an AHD 1080P-capable sensor and a wide-aperture fisheye, the camera produces sharp daytime images and improved low-light sensitivity. Night vision is supported through the sensor’s low-light capability rather than visible LEDs, which gives usable detail after dusk.

• 1054-series sensor with 1920×1080 resolution potential
• 0.01 lux sensitivity for clearer low-light visibility
• 170° fisheye lens covers most blind spots behind the vehicle

Will this camera fit my vehicle and monitor setup?

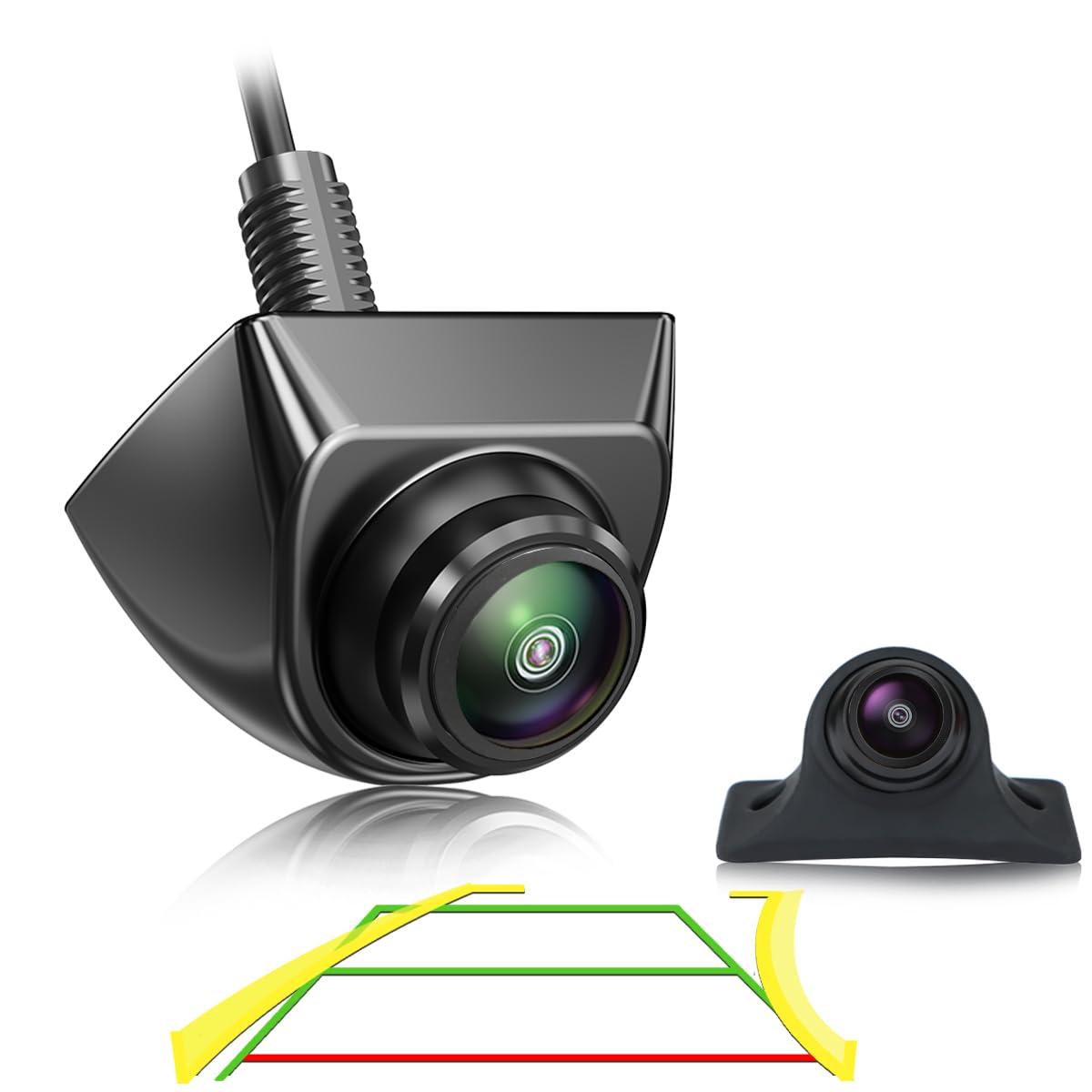

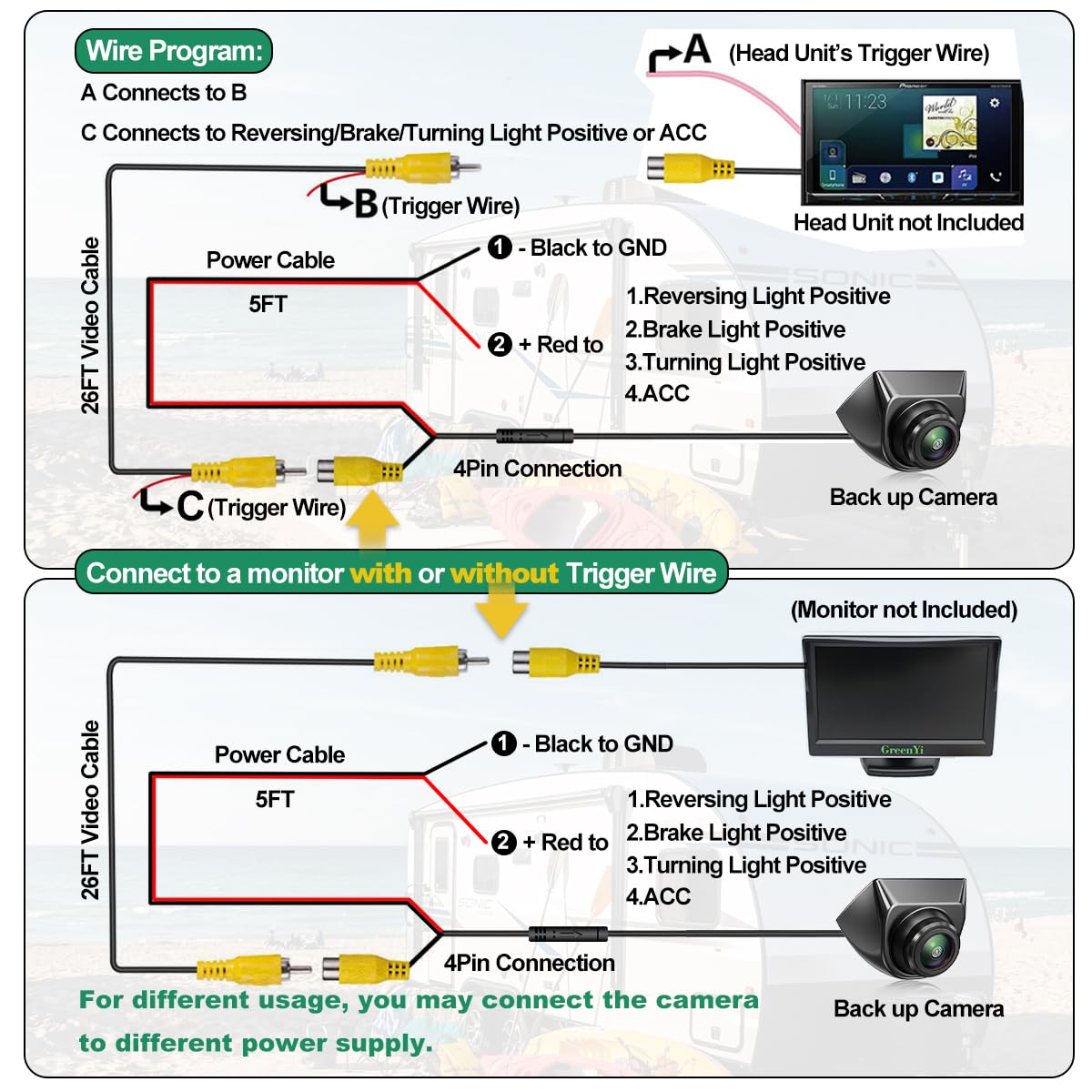

The GreenYi unit is a flush-mount design sized for common licence-plate or bumper installations and includes RCA output for broad monitor compatibility. It works with reverse monitors that accept CVBS/RCA; when pairing with head units, remember to hook up the trigger wire for auto-switching.

• Flush mount fits many bumper or plate locations
• RCA output for standard monitors and recorders
• Trigger wire required for some radio head units to auto-switch

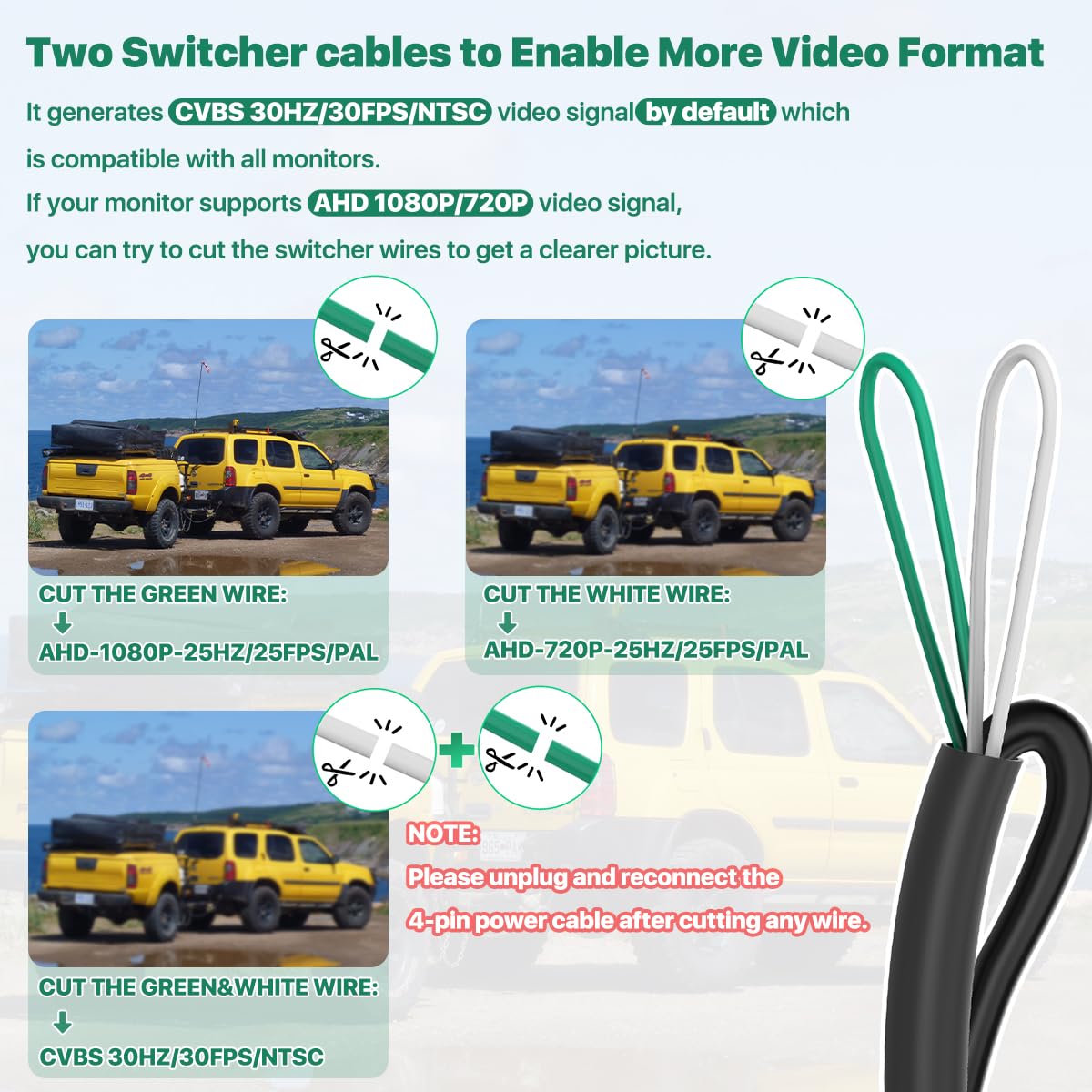

How do I change video format or adjust the viewing angle?

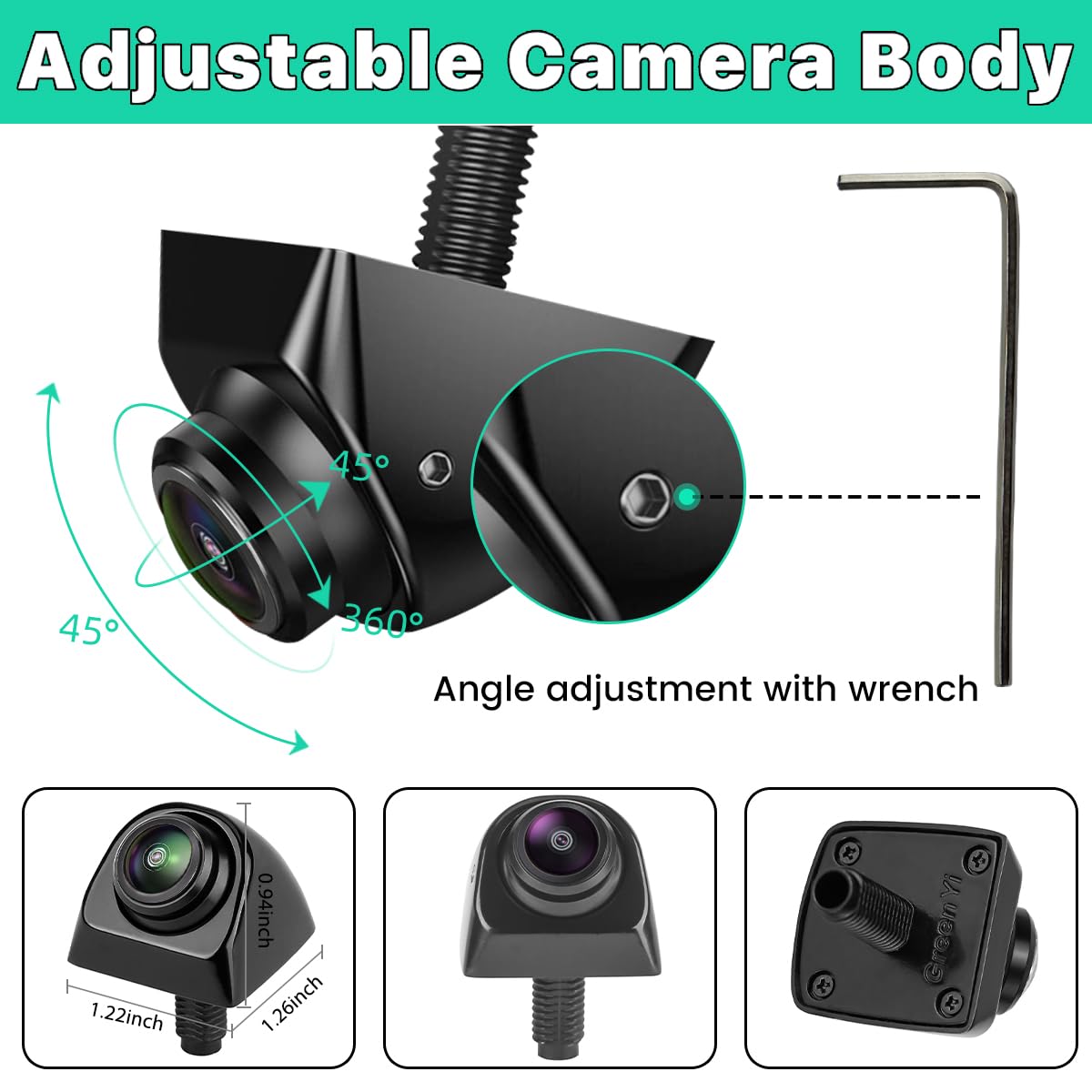

The camera offers simple hardware options to toggle video modes: cut specific internal switcher wires to select between NTSC/CVBS or different AHD formats, then reconnect power. For framing, the lens assembly rotates within its metal housing using the supplied mini wrench so you can set tilt without shims.

• Cut green or white wires to switch between CVBS/NTSC and AHD formats
• Unplug and reconnect the 4‑pin power after any wire change
• Rotating metal body with a mini wrench lets you set the perfect angle

Who this is for: drivers and installers who want a rugged, high-resolution reverse camera with built-in dynamic guidance and flexible installation options. It’s a good choice for people upgrading older analog systems to AHD-capable video, fleet vehicles that need durable hardware, or private owners who want a compact waterproof camera that can be precisely angled and used with a wide range of RCA-equipped monitors.
