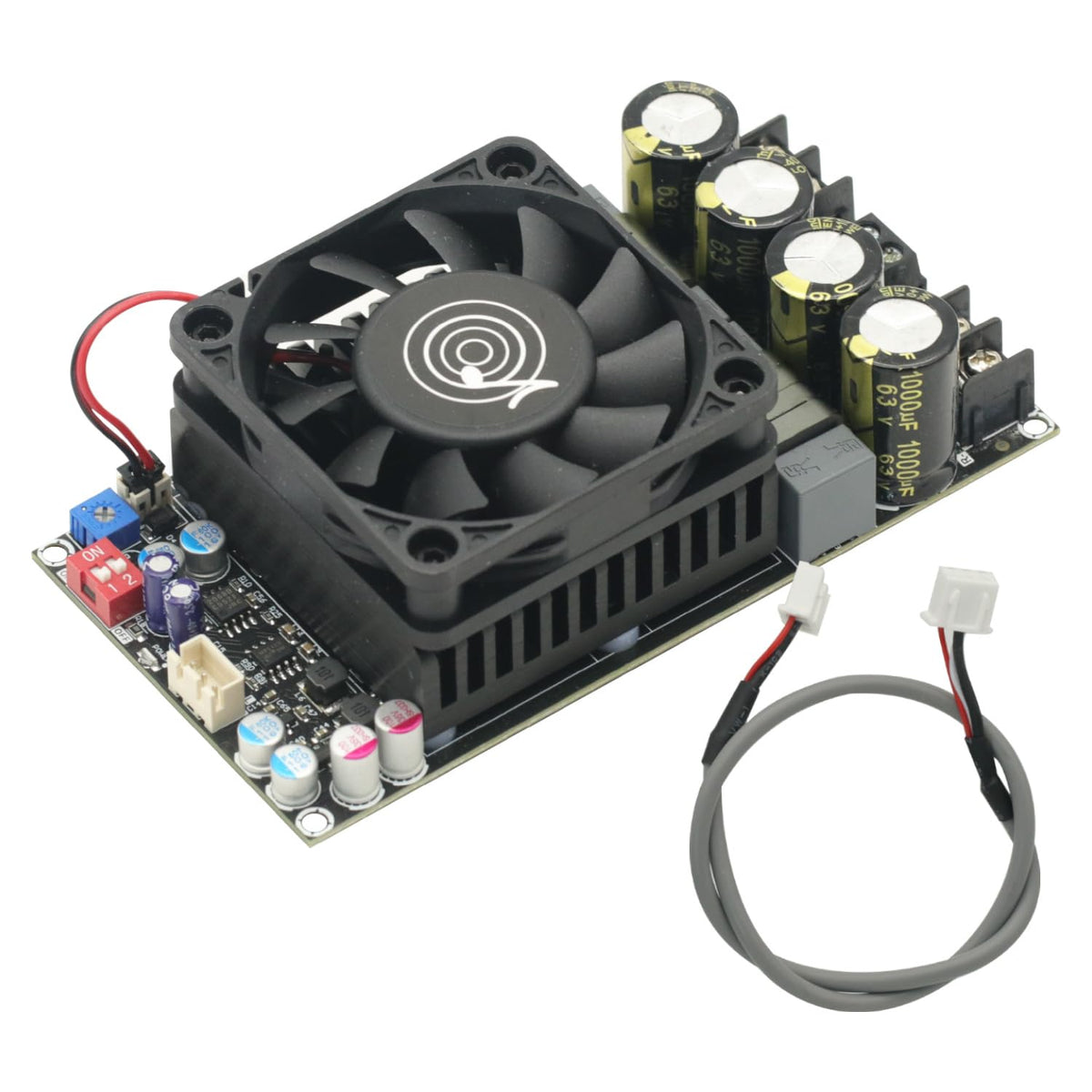

GODIYMODULES TPA3255 Digital Amplifier Board – 300W x 2 Stereo / 600W Mono Bridge

The GODIYMODULES TPA3255 Digital Amplifier Board is a compact, high‑performance heart for DIY audio projects. Built around the original TPA3255 chip, this board is designed to scale from intimate listening rooms to more demanding setups. Its versatile power options and careful protection features give builders a solid foundation for experimenting with sound without committing to a single configuration.

Whether you’re upgrading a home stereo, building a compact powered speaker, or integrating a small PA system, this board offers real flexibility. The design emphasizes clean signal handling, robust cooling, and clear, dynamic output that adapts to different speaker loads and room acoustics. The result is an adaptable platform that invites experimentation while remaining careful with power, heat, and polarity considerations.

Key specifications and performance

• 300W dual-channel or 600W mono output (depending on mode and impedance) with strong headroom for dynamic playback.
• Original TPA3255 amplifier chip for reliable, crisp sound across a wide volume range.

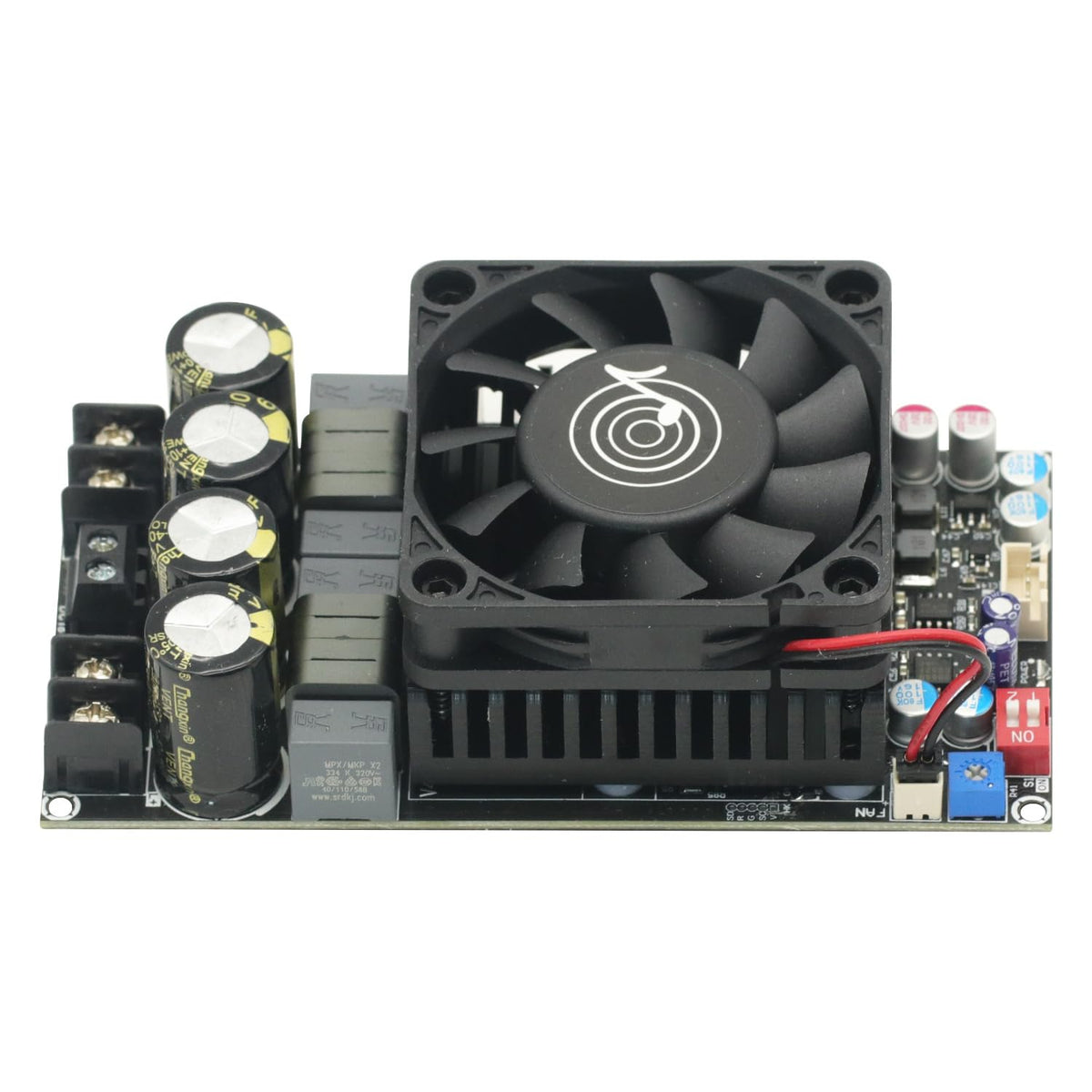

• Working voltage range 18–50V DC, with a 53V upper limit; 36–48V DC is recommended when you have a capable supply (10A+).
• Speaker compatibility: 3–8 ohms in BTL dual-channel mode; 2–8 ohms in PBTL mono mode.

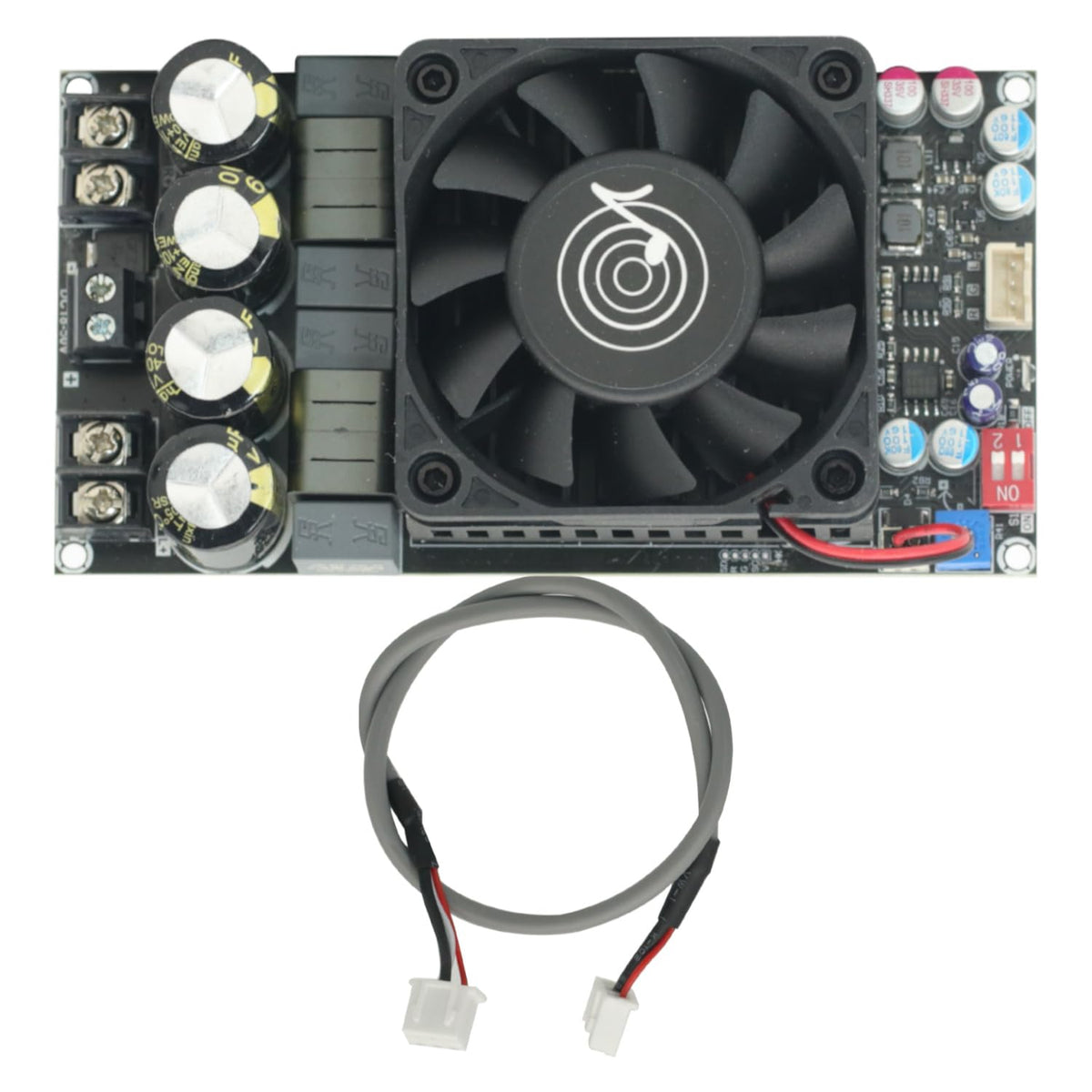

• Heat dissipation via temperature-controlled automatic cooling; an optional fan can keep airflow steady for demanding sessions.
• Gain adjustment with a 10‑position potentiometer, spanning 26dB to 36dB for precise input matching.

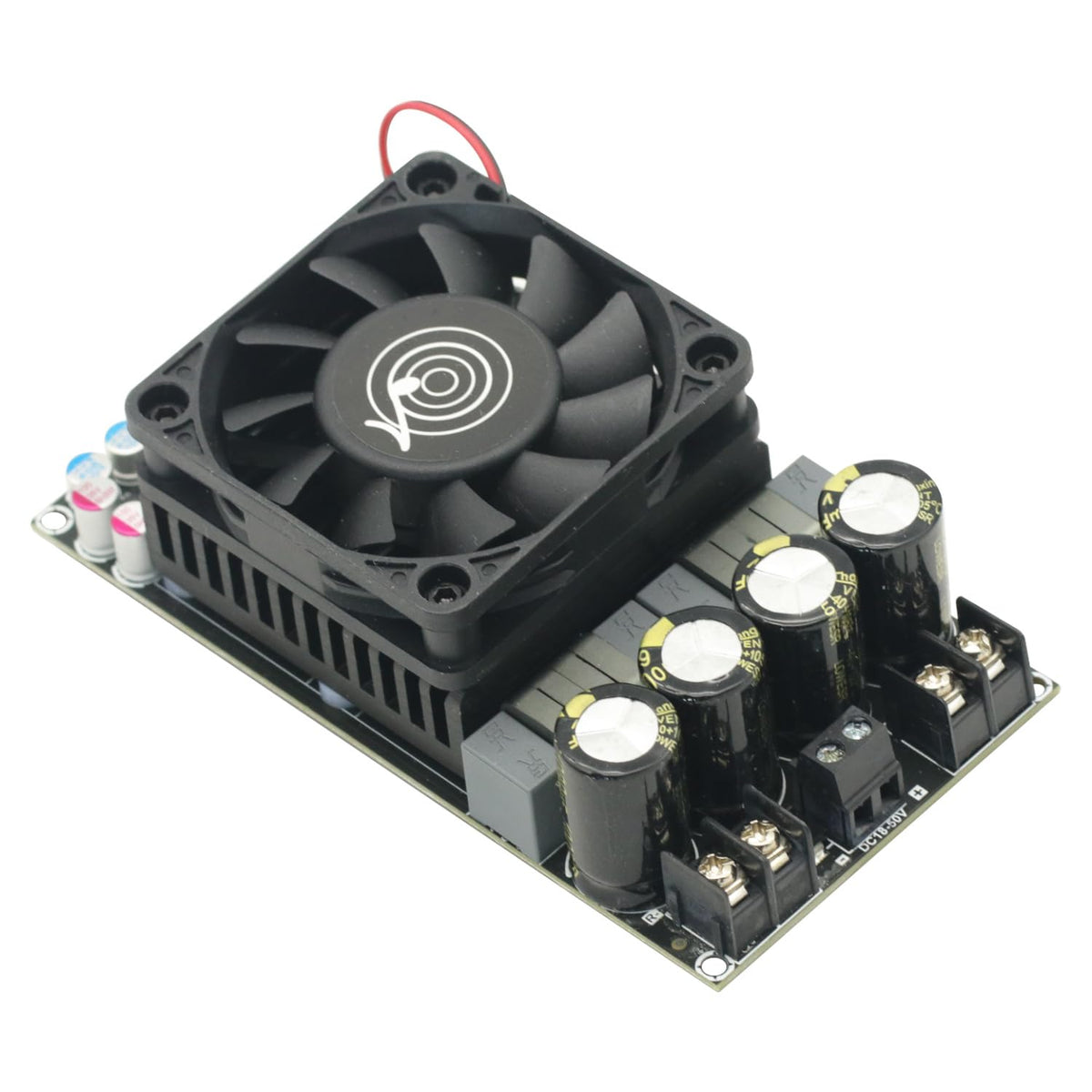

• Bridging option lets you parallel outputs for higher mono power; proper power-down is recommended before configuration changes.

Real-world use and protection features

In real-world builds, the board serves as a compact, power‑minded core that can drive modest to mid‑sized enclosures with confidence. The combination of BTL and PBTL modes means you can start with stereo listening and explore bridged mono configurations as your system evolves. The board’s form factor and simplified gain control make it approachable for both beginners and seasoned builders.

• Maximum power figures are highly dependent on supply voltage and speaker impedance: 2×300W @ 50V into 4Ω in BTL; 160W into 8Ω; in PBTL mode, up to 600W @ 50V into 2Ω, 300W into 4Ω, or 160W into 8Ω.
• Protection mechanisms cover input undervoltage, overheating, overcurrent, and short circuits to aid safe operation.
• Important polarity note: there is no input anti-reverse protection; observe correct positive and negative connections during setup.

With its compact footprint and flexible wiring options, the GODIYMODULES TPA3255 board opens up a world of DIY possibilities—from bookshelf systems to compact stage rigs—while keeping heat, power, and setup considerations in balance. It’s a practical option for builders who value a clear signal path, adjustable gain, and scalable output as their audio project grows.
