GESD Single Mode Fiber Enclosure Kit 12‑Fiber LC‑UPC

Complete wall-mount single-mode fiber enclosure kit with 12 LC-UPC pigtail strands and an LGX-loaded panel ready for immediate deployment.

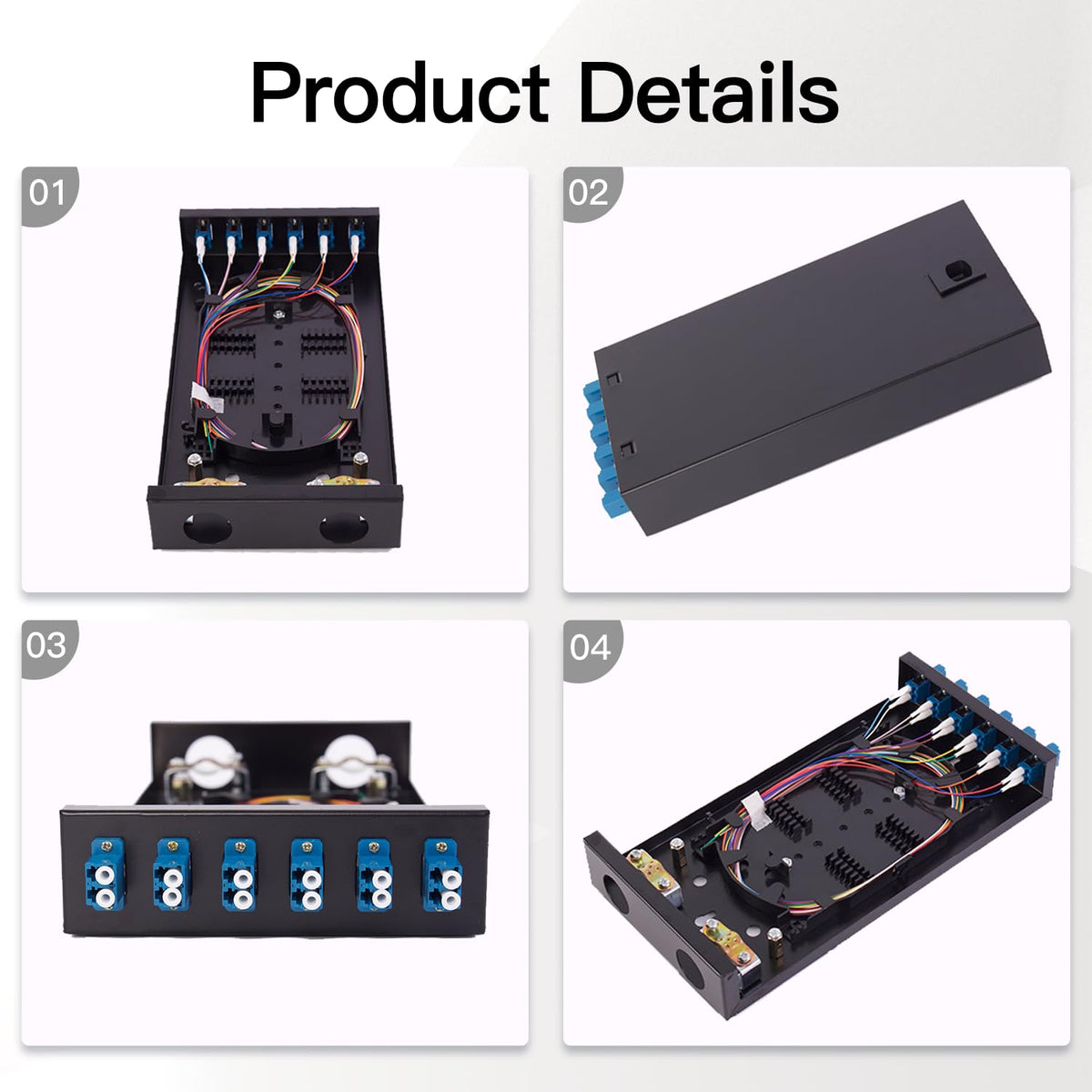

This GESD Single Mode Fiber Enclosure Kit bundles an LGX-compatible loaded panel, 12-strand LC-UPC pigtail cable, and pre-configured duplex couplers so installers can terminate, protect, and organize single-mode fiber runs quickly. Engineered for indoor telecom, datacom, and FTTx environments, the kit prioritizes neat routing, straightforward identification with color-coded fibers, and a compact wall-mount footprint for closets and small racks.

How does the enclosure protect and organize fiber in tight spaces?

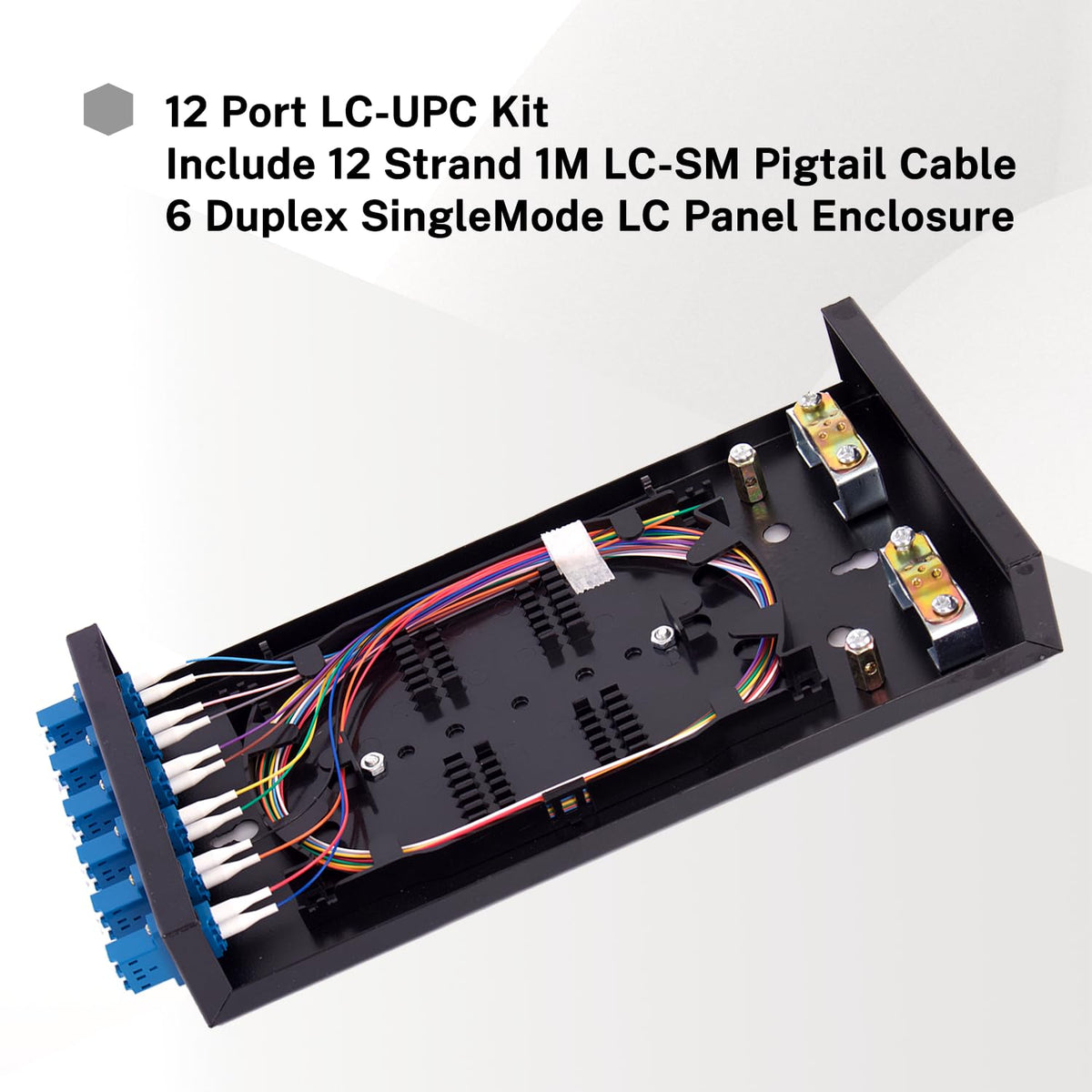

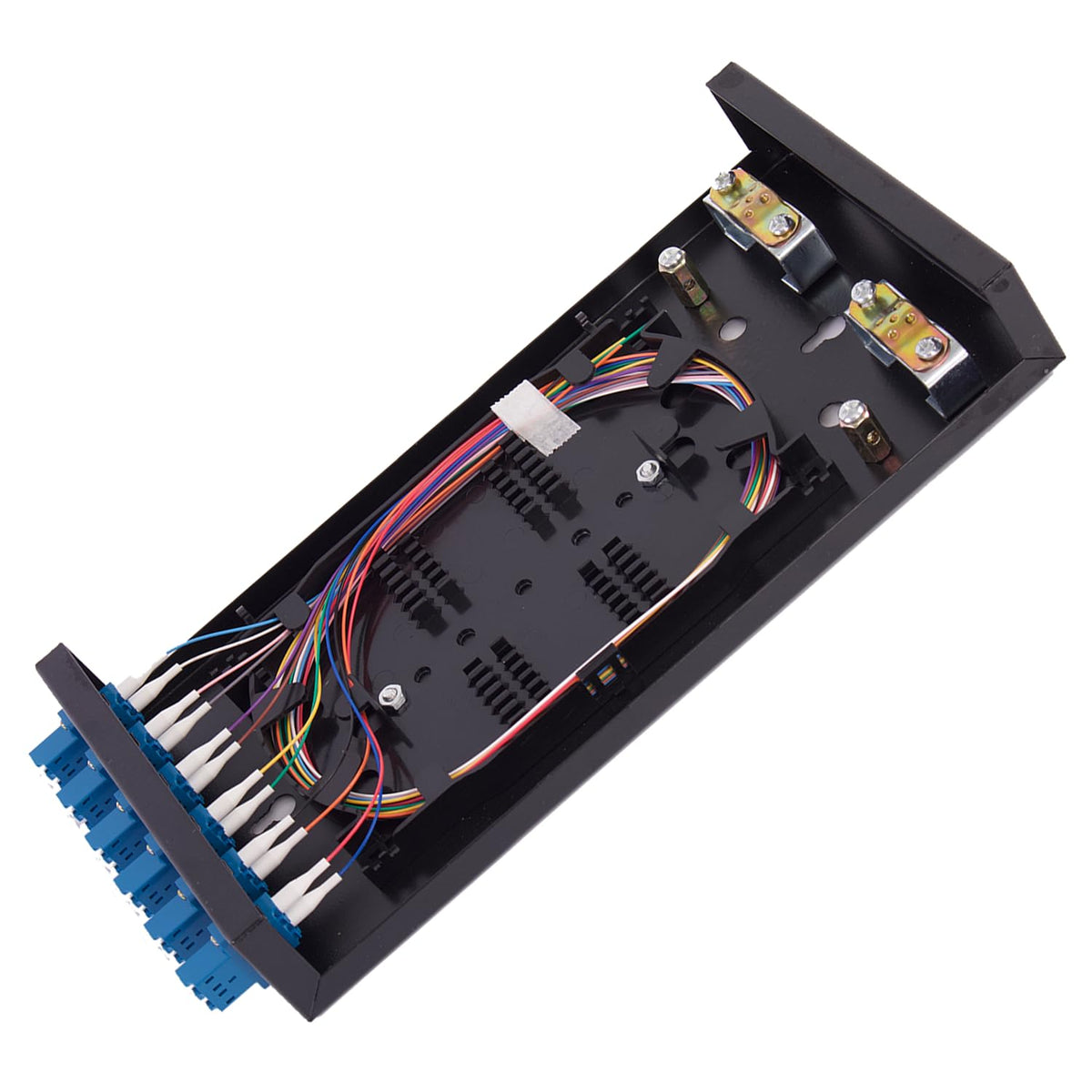

The enclosure provides a secure, compact housing that keeps splices, pigtails, and couplers protected while allowing vertical or horizontal mounting. Its internal routing and splice tray minimize stress on fibers and reduce bend points.

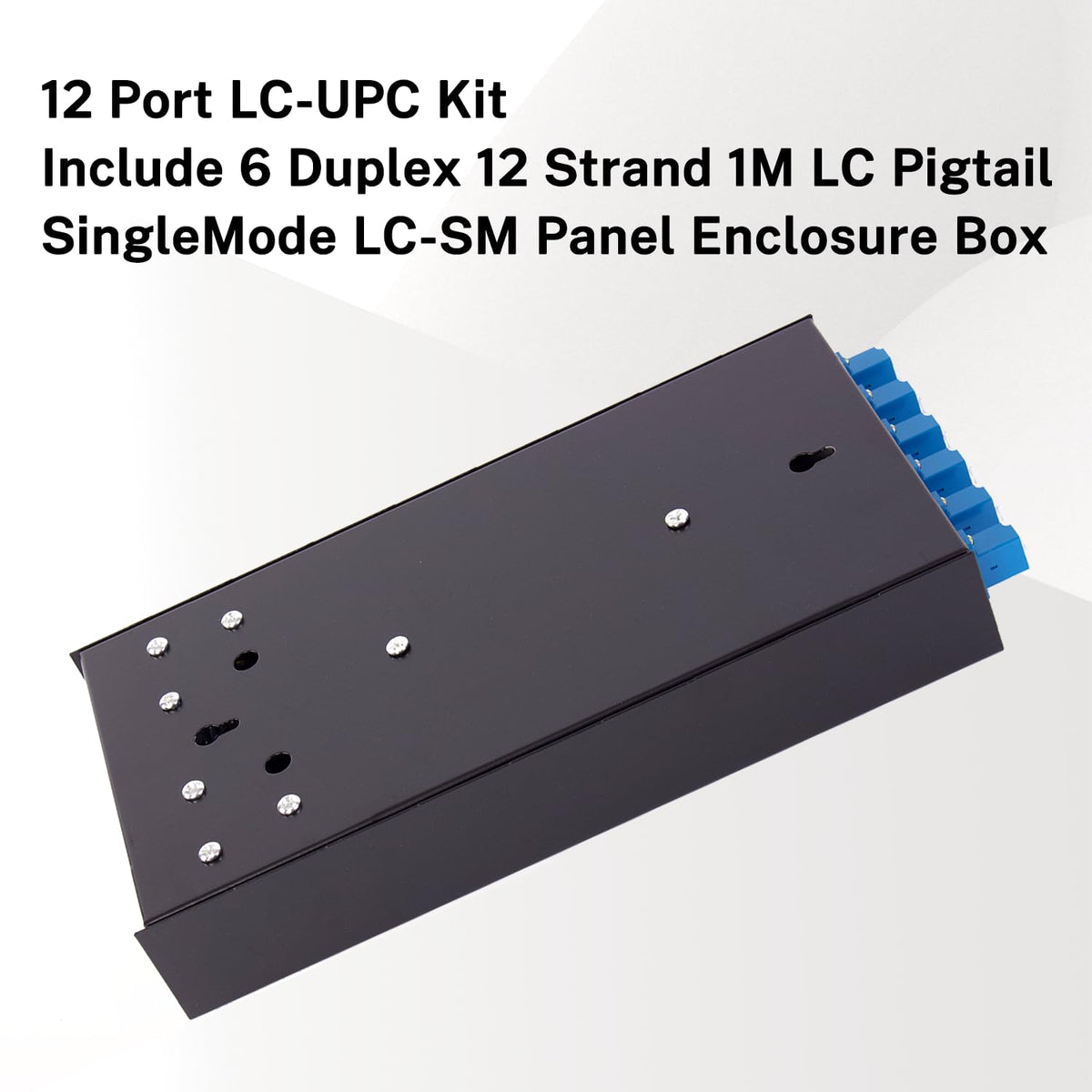

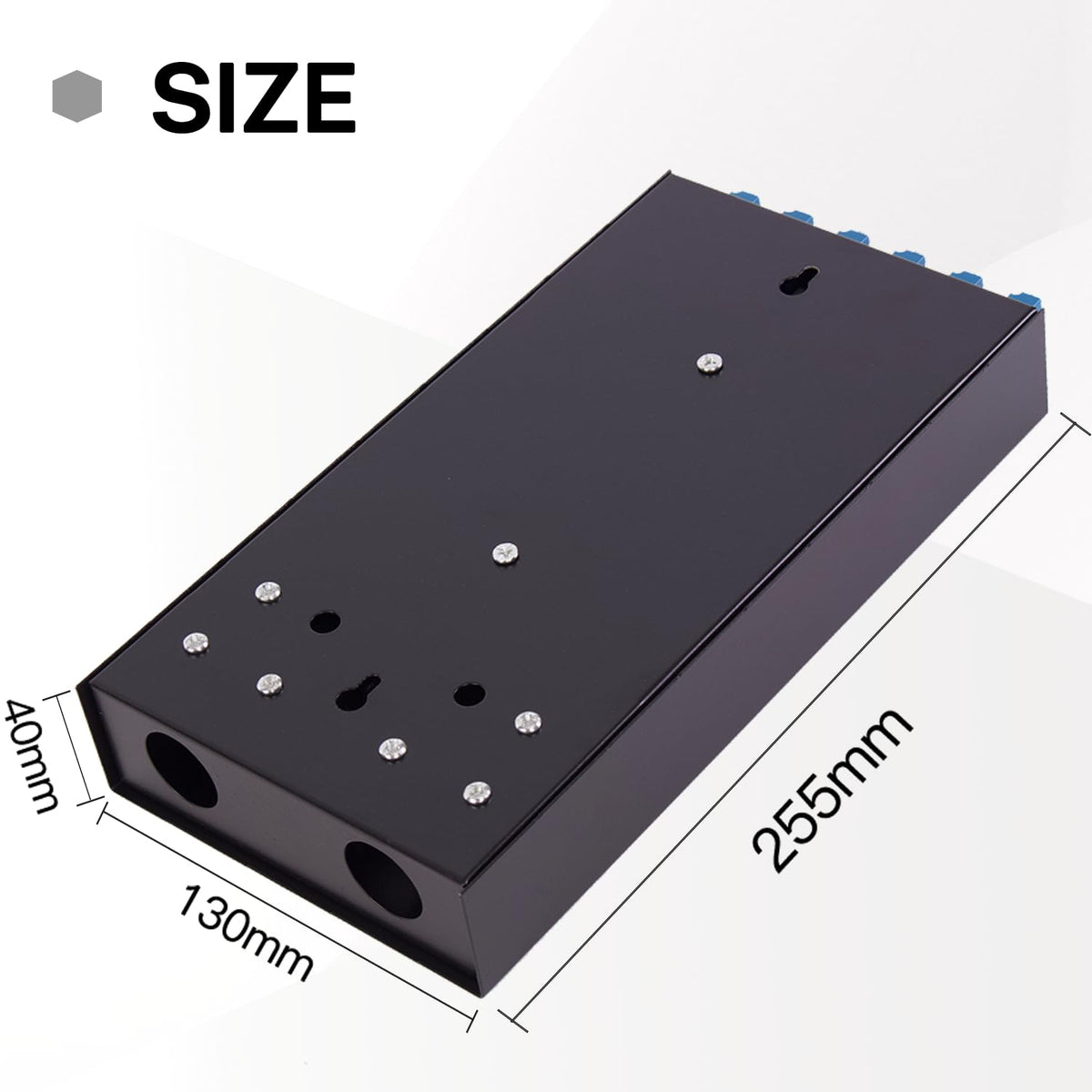

• Rigid metal/plastic housing sized 255mm x 130mm x 40mm for space-constrained installations
• Internal routing paths and splice area to prevent bend-induced signal issues
• Wall-mount design that blends into wiring closets and equipment rooms
• Removable cover for easy access during maintenance

What connectors and cables are included, and how easy is deployment?

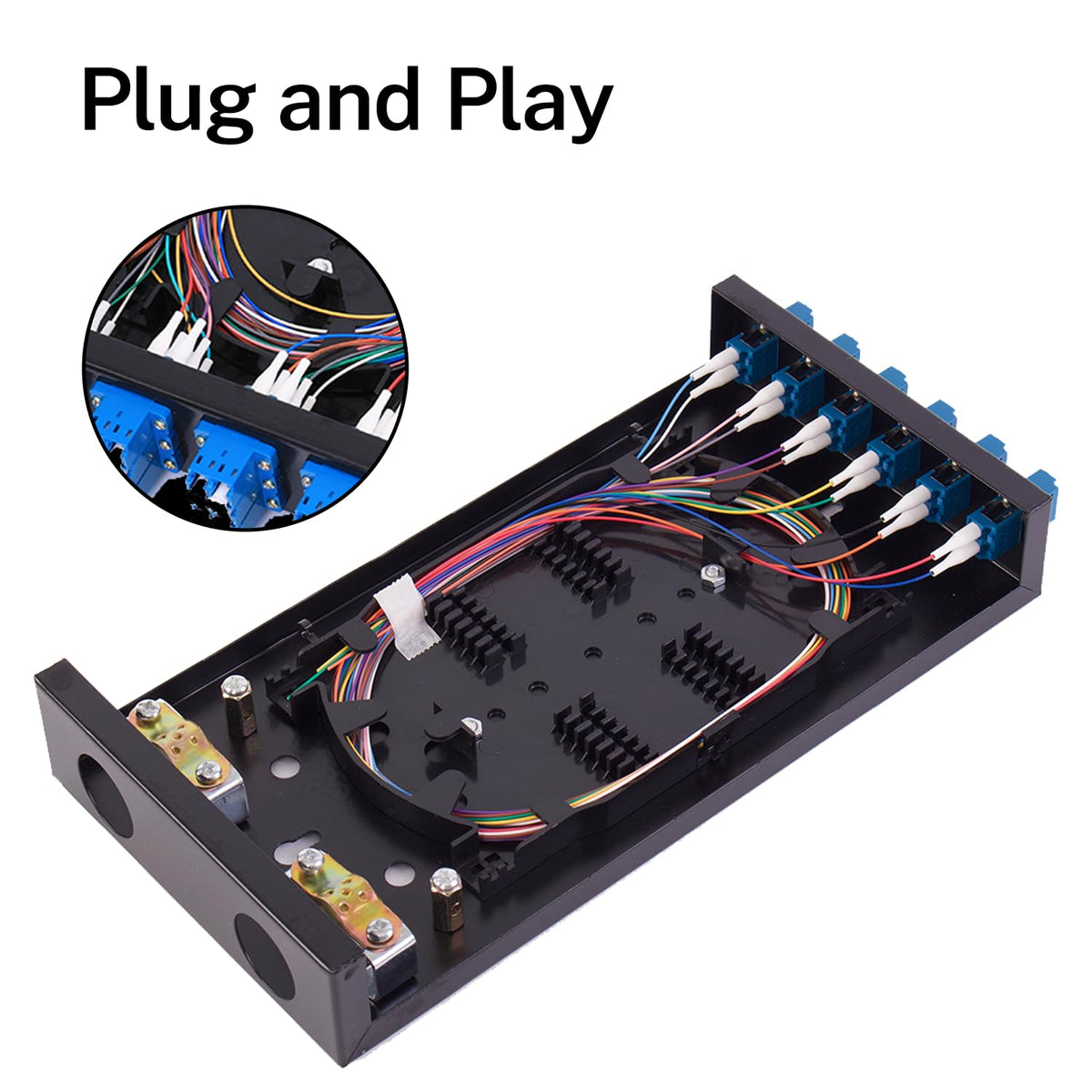

The kit ships with a 12-strand LC-UPC pigtail bundle and LGX panel pre-loaded with duplex LC couplers, enabling near plug-and-play termination. Color-coded strands simplify matching to patch panels or field terminations and reduce installation time.

• 12-strand single-mode LC-UPC pigtail, individually color-coded for fast identification
• Duplex LC couplers pre-installed in an LGX-compatible panel for immediate use
• Standard 2.0mm zipcord OFNR PVC jacket for indoor riser applications
• Compatible with SC/LC flanged couplers for flexible connector options

What performance and safety standards does the kit meet?

Designed to perform across typical telecom wavelengths and indoor temperature ranges, the components meet common industry safety and interoperability standards to ensure predictable behavior in enterprise and data center environments. The optical components are manufactured for low insertion loss and high return loss under normal operating conditions.

• Operates across 1310–1550 nm wavelengths suitable for single-mode systems
• Complies with ITU, UL, CE, IEC, TIA, RoHS and related standards
• Minimum bend radius maintained with removable outer jacket (5 cm specified)
• Rated indoor operating temperature from -4°F to 158°F (-20°C to 70°C)

Which environments and network types is this kit best suited for?

This kit is optimized for indoor telecom and data communications where a compact, reliable fiber termination point is required. It supports a variety of applications from premise cabling to small data center or FTTx distribution nodes without overbuilding infrastructure.

• Telecommunications and enterprise network closets
• Data center edge or small rack installations
• CATV, multimedia, and storage network interconnects
• FTTx testing and premises fiber distribution

Who is this for: Installers, network technicians, and system integrators who need a compact, standards-compliant single-mode termination solution for indoor environments. The GESD kit is especially useful for site builds where quick deployment, clear fiber identification, and reliable connector performance are priorities—ideal for businesses, small data centers, telco closets, and FTTx customer premises installations.
