GESD SC-UPC 6-Port Wall Mount Fiber Enclosure

GESD SC SM 6Port Box is a wall-mount fiber enclosure preloaded with a 6-port SC-UPC singlemode LGX panel, SC pigtails and couplers for organized, secure indoor fiber terminations.

This complete SC kit delivers a compact, durable wall-mount enclosure that houses six color-coded singlemode SC pigtails and preinstalled SC couplers on an LGX-style panel. Built for telecom rooms, small data closets, and FTTH handoffs, the unit balances high-density management with simple deployment: fibers are protected in a closed compartment, couplers are pre-configured, and the panel accepts common connector types when used with compatible adapters.

How does this enclosure simplify fiber termination and organization?

The enclosure provides a locked, enclosed fiber compartment to protect splices and pigtails from dust and handling, while the loaded LGX panel keeps connectors aligned and accessible. Color-coded pigtails reduce installation errors and streamline mapping across six ports.

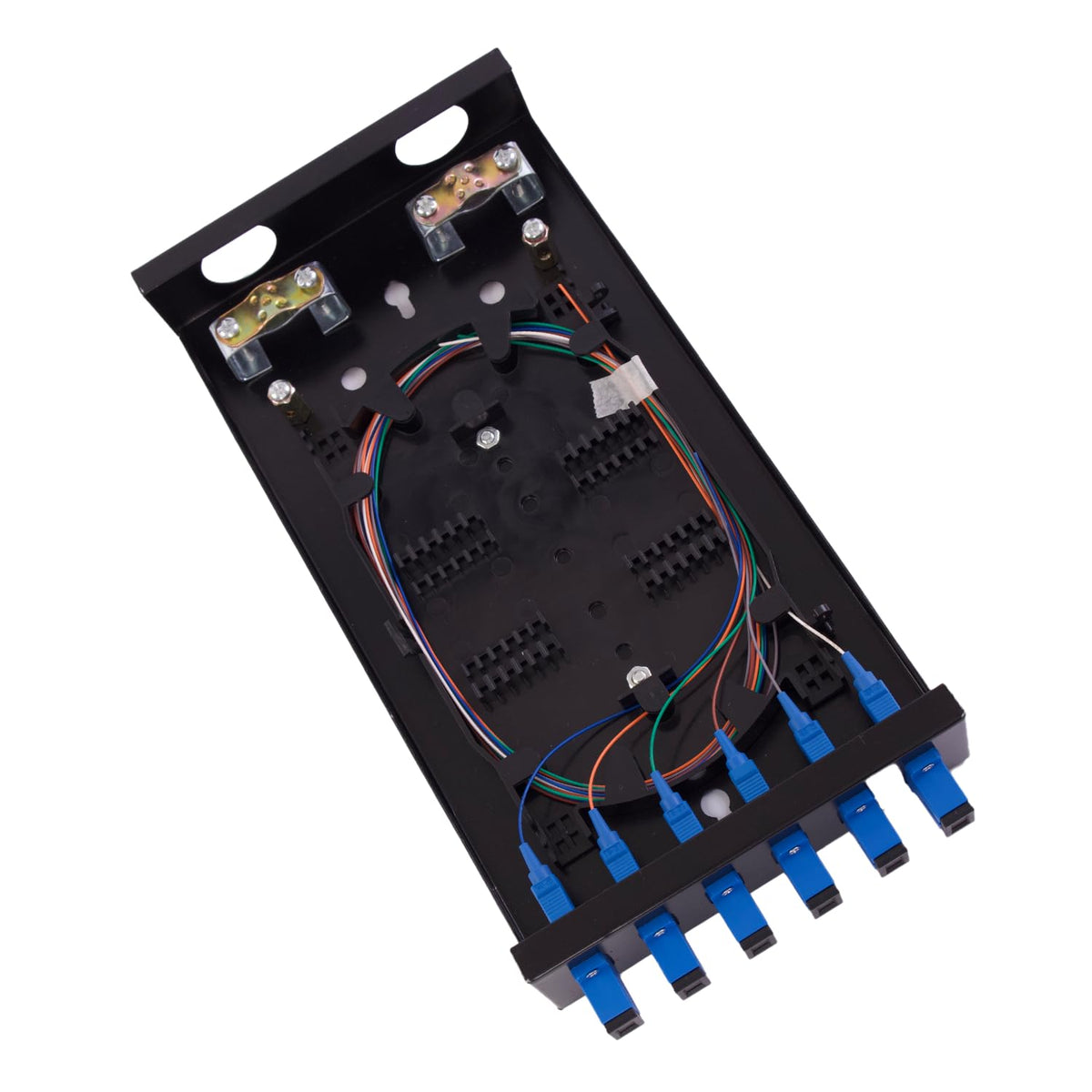

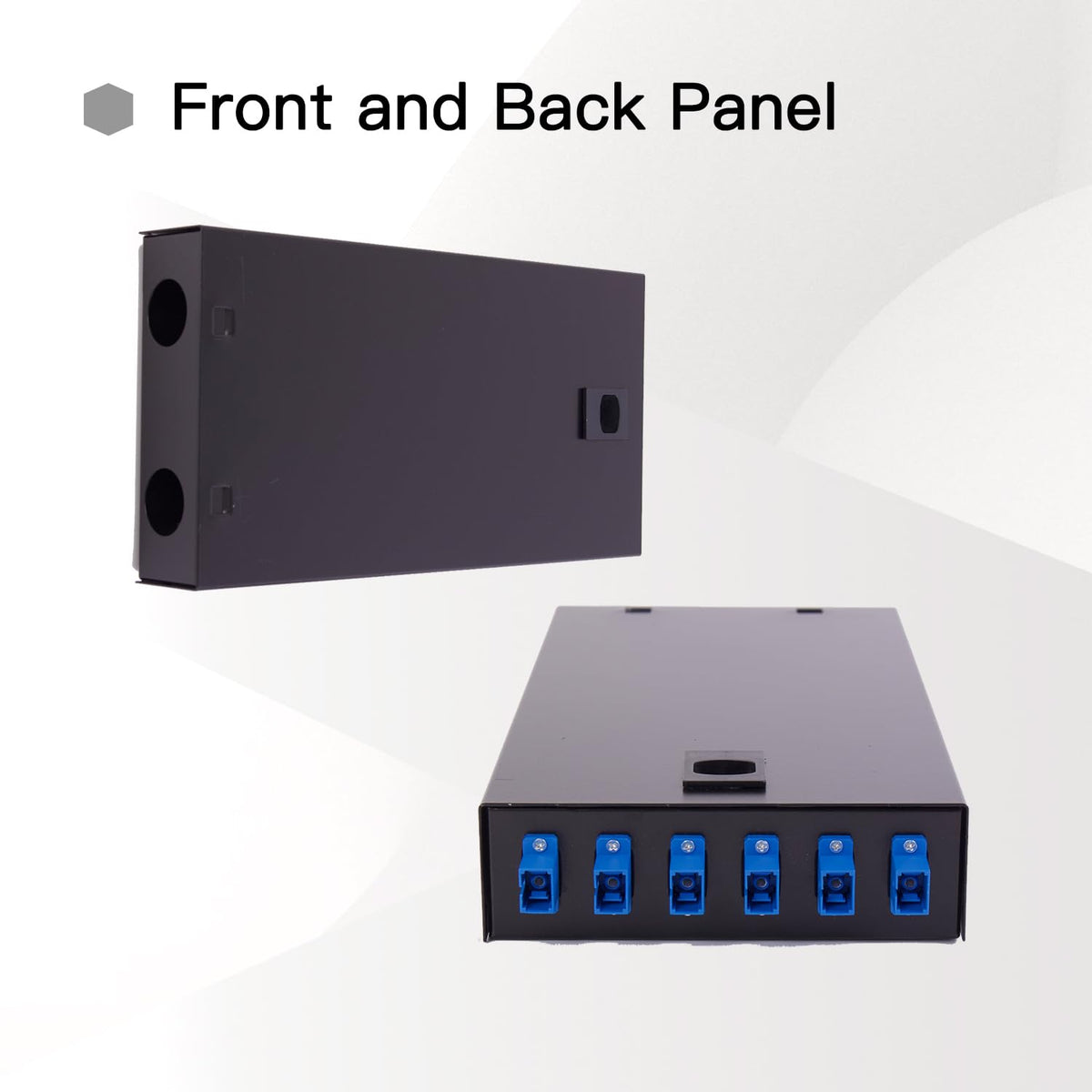

• Preloaded 6-port SC-UPC LGX panel for immediate use

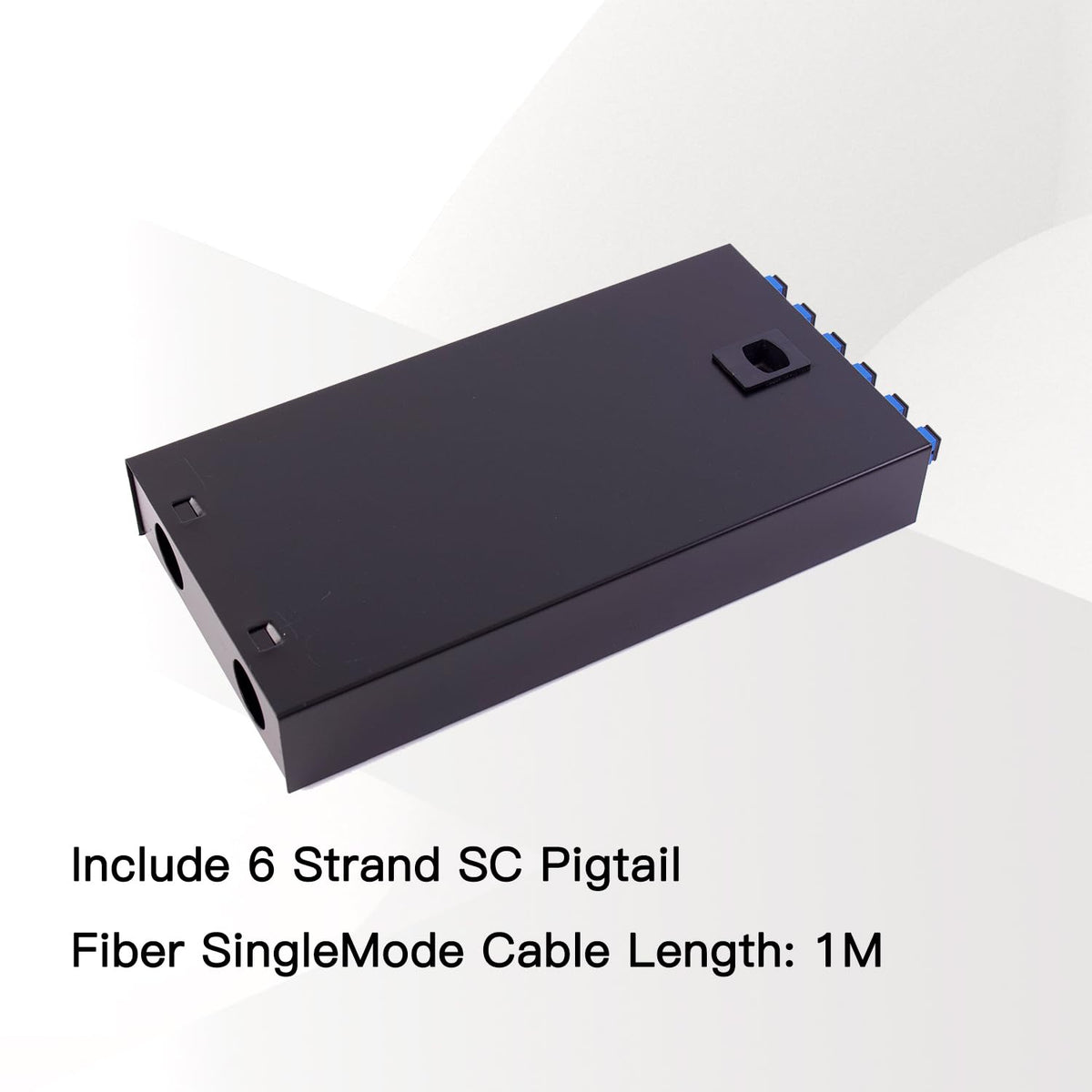

• Six individually color-coded 9/125 singlemode pigtails

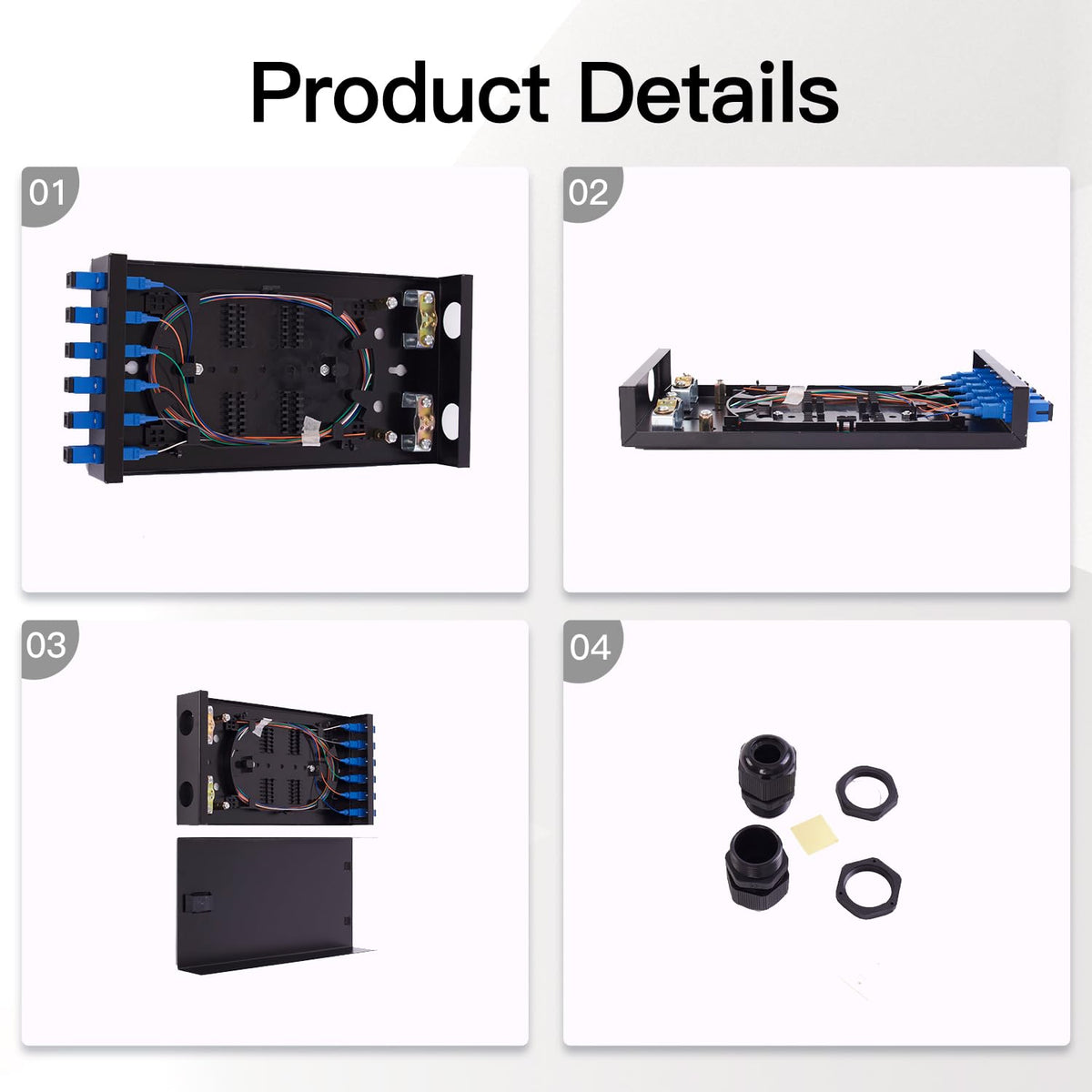

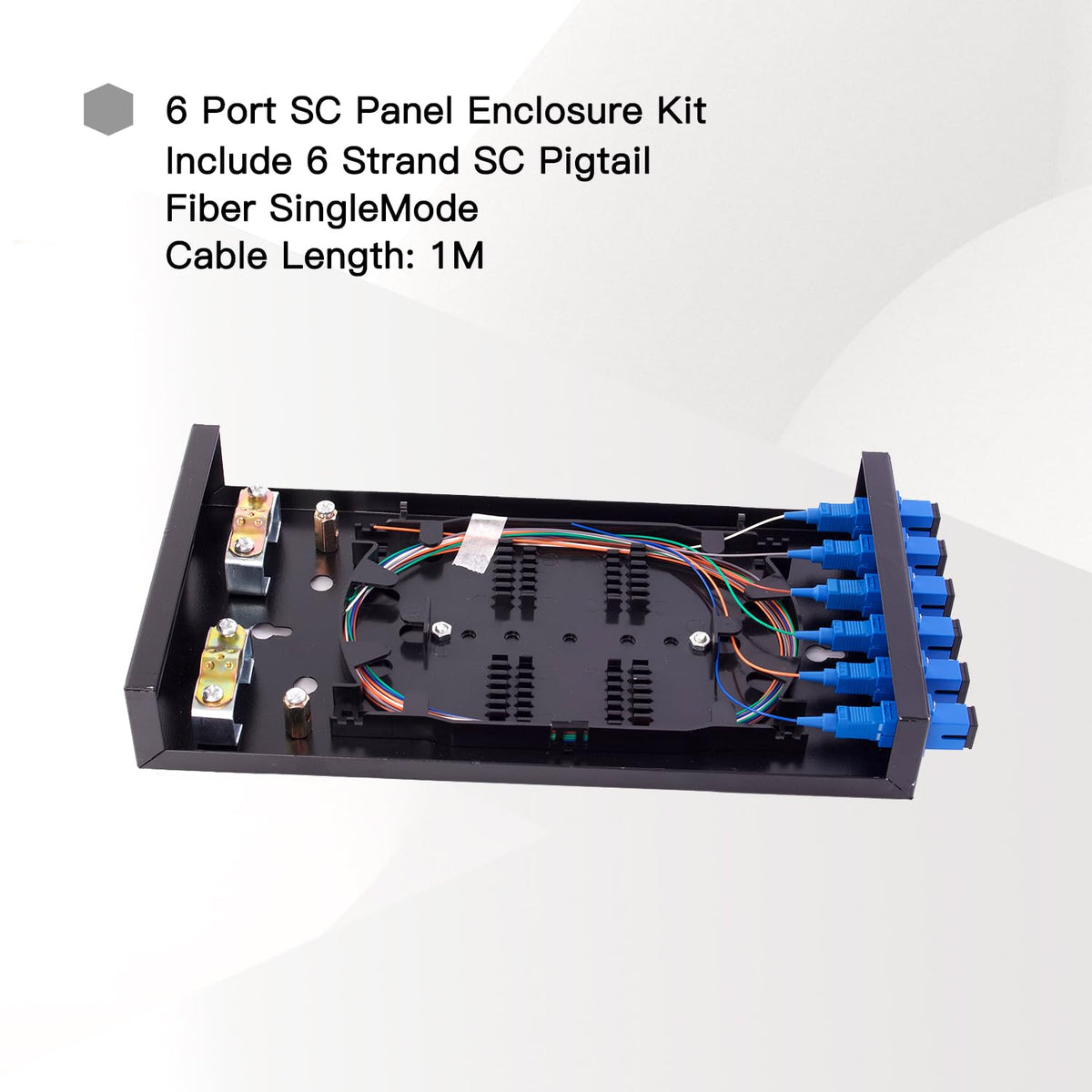

• Neat cable routing and protected splice module inside the box
• Wall-mount footprint fits wiring closets and modular racks

What connector types and compatibility does the kit support?

Out of the box the panel is populated with SC-UPC singlemode couplers and pigtails ready for SC terminations. The LGX form factor and flanged coupler compatibility let you swap or adapt ports for LC or other connector types if you install matching flanged adapters.

• Loaded with SC-UPC couplers and SC pigtails (singlemode 9/125)
• LGX-style panel accepts compatible flanged adapters for LC conversions
• Works with standard patch cords, distribution frames, and optical equipment
• Conforms to TIA/EIA, ISO/IEC and related industry interface standards

What are the performance, safety, and environmental specifications?

Components are manufactured to recognized telecom standards and factory-tested for low insertion loss and high return loss. The cable jackets use OFNR-rated PVC for indoor installations and the assembly operates across typical telecom wavelengths with defined bend-radius and temperature tolerances.

• Wavelength range 1310–1550 nm; low insertion loss and good back reflection
• OFNR PVC 2.0 mm zipcord jacket; minimum cable bend radius 15 mm
• Operational temperature roughly −4 to 158°F (−20 to 70°C) and 5 cm minimum bend radius for installed fiber
• Compliant with ITU, UL, CE, IEC, TIA and RoHS standards

How easy is installation and maintenance?

The enclosure is designed for quick wall mounting with both vertical and horizontal orientations, and the preinstalled couplers and neatly routed pigtails shorten field work. Removable covers and labeled ports make future moves, adds, and reconfigurations straightforward.

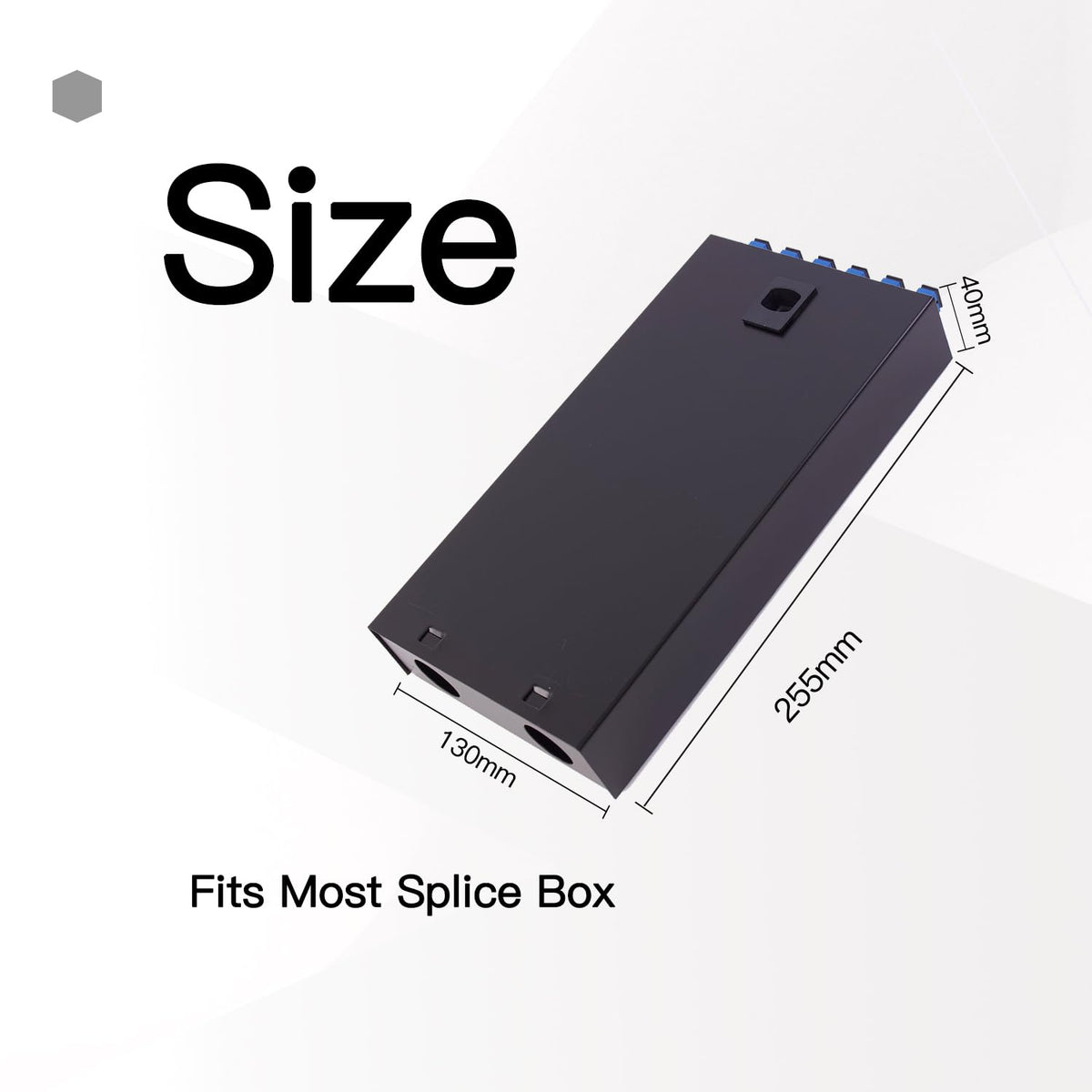

• Compact dimensions (255 × 130 × 40 mm) for constrained spaces
• Removable cover and simple internal routing for splice access
• Color-coded strands and labeled ports reduce troubleshooting time
• All components undergo 100% optical testing before shipping

Who is this for? Network installers, systems integrators, and IT teams that need a cost-effective, preloaded singlemode SC patching solution for small data closets, campus handoff points, FTTH demarcations, CATV head-ends, and storage network terminations will find this kit well suited. It’s aimed at projects requiring compact, standards-compliant fiber management with minimal onsite termination work.
