GESD 6-Port OM3 Wall Mount Fiber Enclosure Kit

GESD 6-Port Wall Mount Fiber Enclosure Kit is a compact, commercial-grade OM3 multimode solution that organizes and protects up to 12-strand LC connections with a loaded 6-port duplex LGX panel.

This all-in-one kit combines a slim wall-mount enclosure with internal spool, six duplex LGX couplers, and a 12-strand LC-UPC OM3 multimode pigtail to simplify indoor fiber terminations. Built for installation environments where space is tight and reliability is required, the kit uses OM3-rated multimode fiber, color-coded strands for fast identification, and zirconia ferrules for consistent optical performance. It’s manufactured to industry approvals and targets telecom, datacom, and enterprise premises where neat cable management and low insertion loss are essential.

How does this kit keep fiber organized in small spaces?

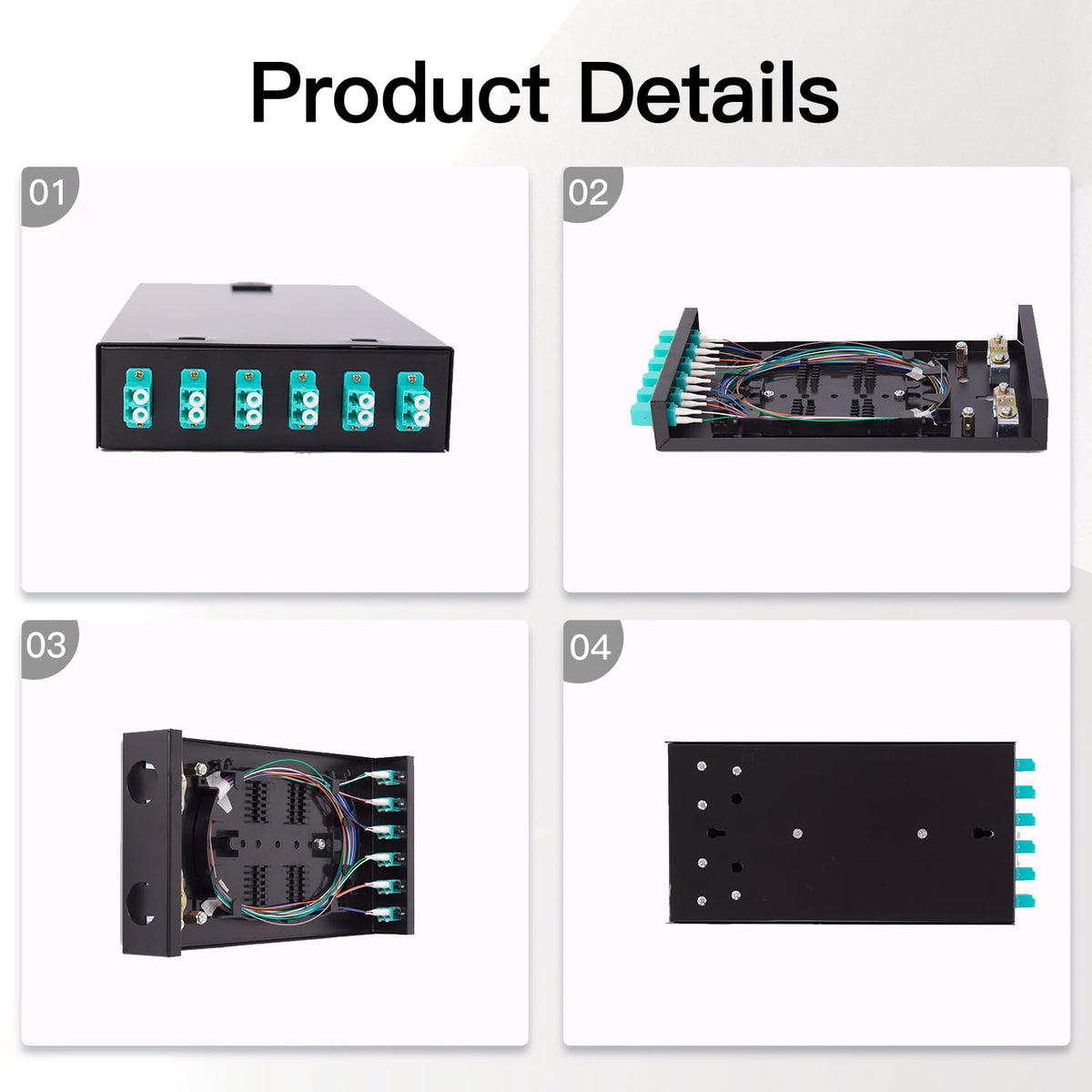

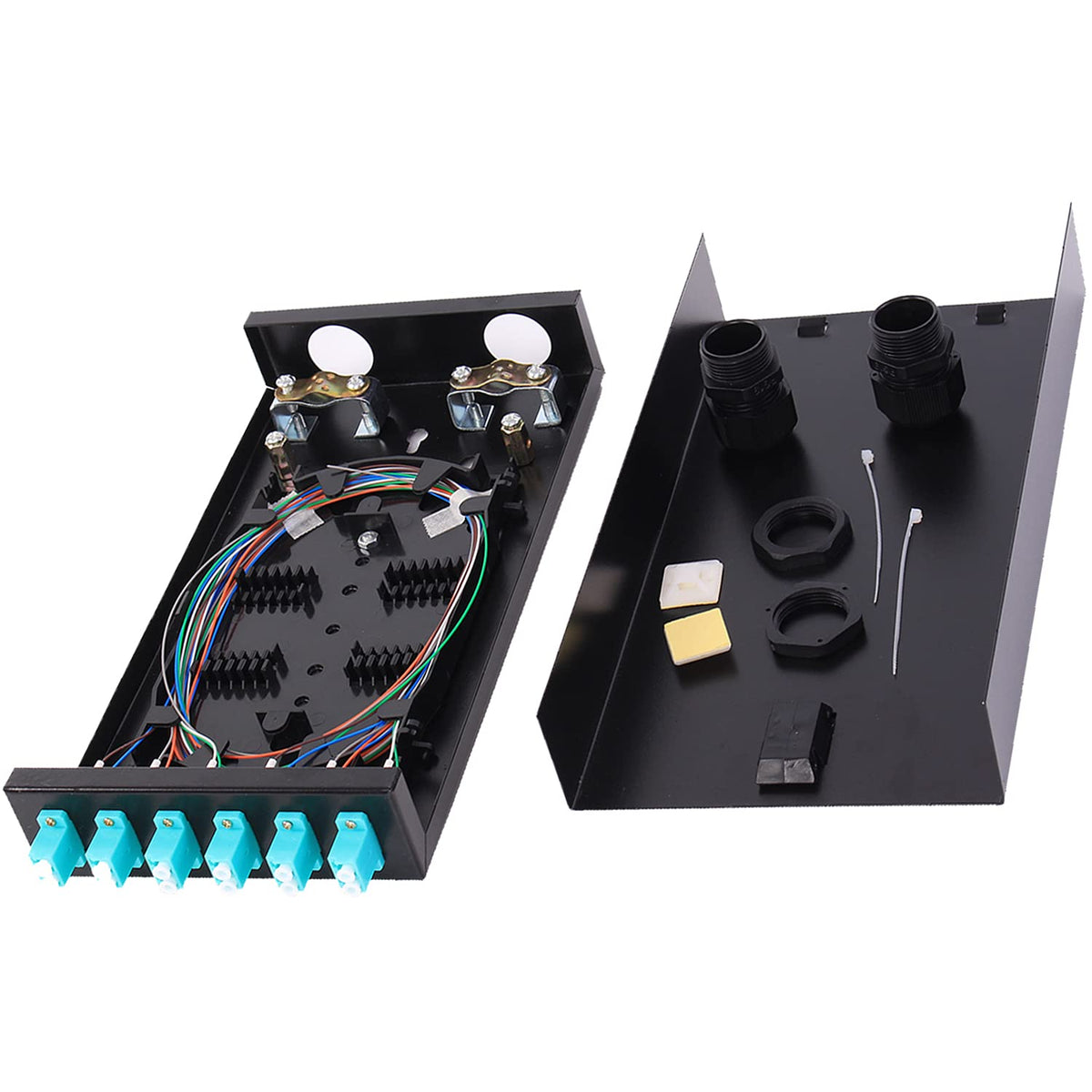

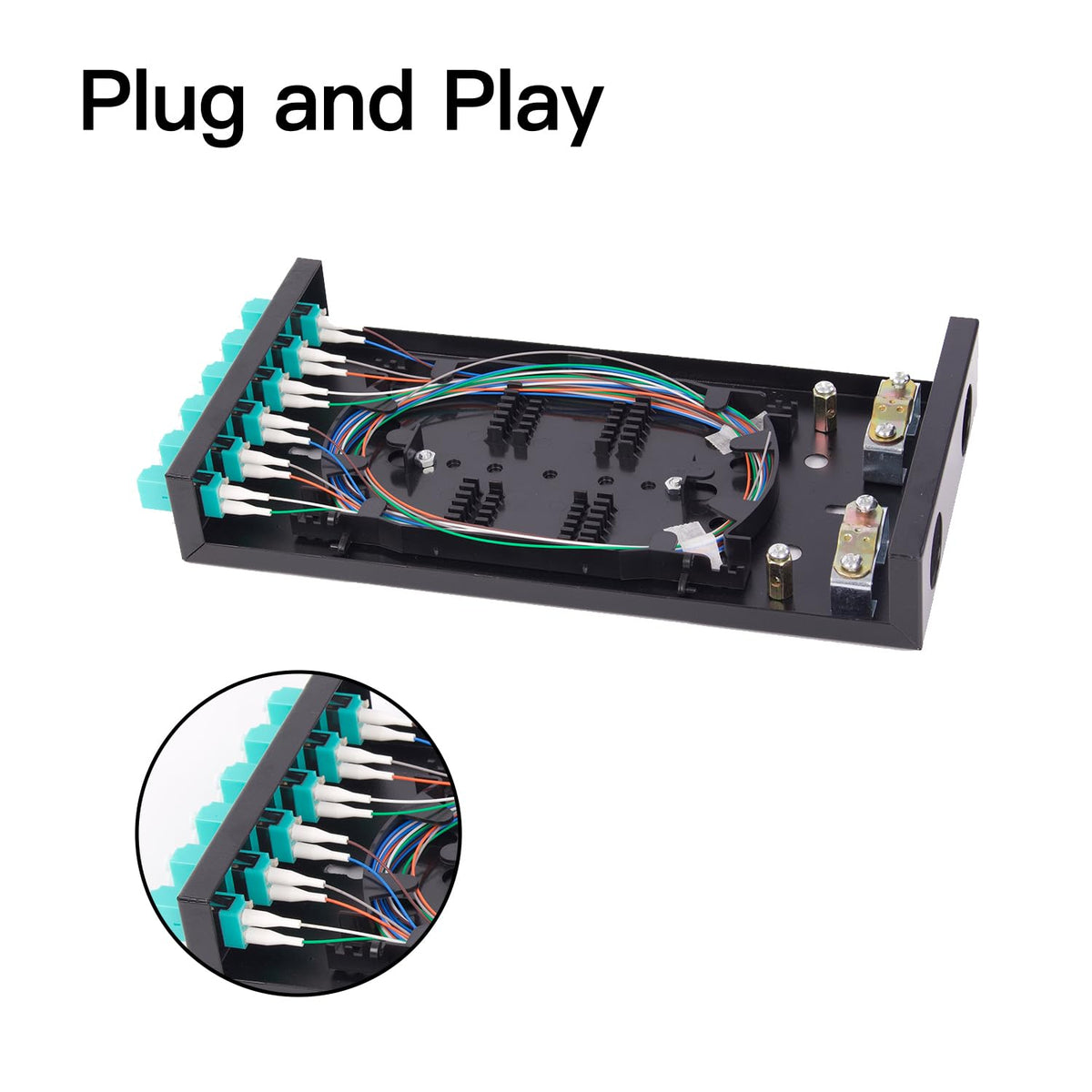

The wall-mount enclosure features an internal spool and a compact footprint so installers can route and secure fibers without excess bend or stress. Mountable vertically or horizontally, it provides a tidy termination point that prevents tangles and protects connectors from accidental strain.

• Compact dimensions (255mm x 130mm x 40mm) fit shallow racks and wall cavities.

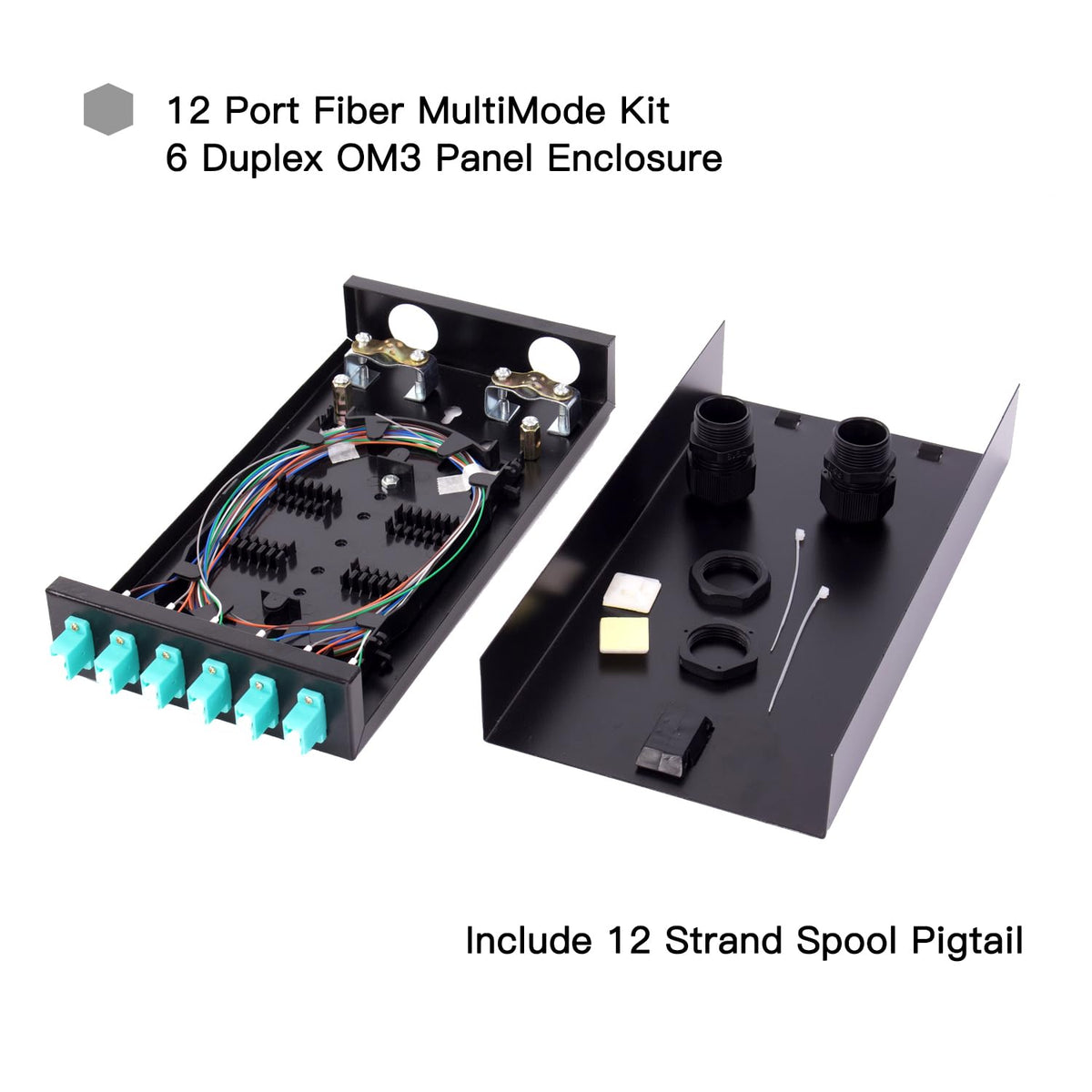

• Internal spool stores the 12-strand pigtail with a minimum bend radius to avoid attenuation.
• Six duplex LGX couplers allow neat front-access patching and quick swaps.
• Flanged coupler design supports both LC and SC compatibility through adapters.

What performance and standards does the OM3 pigtail deliver?

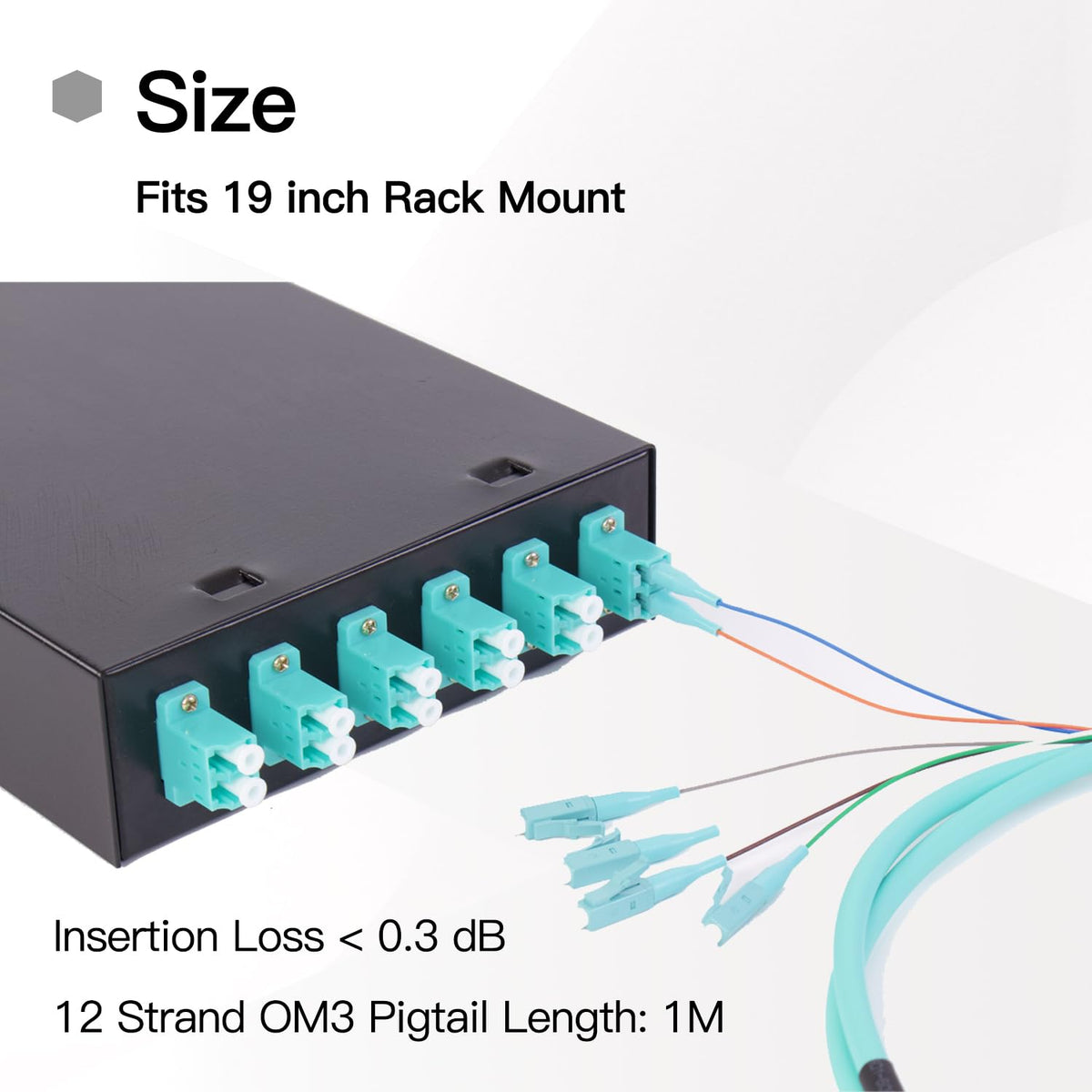

The included 12-strand LC multimode pigtail is OM3-rated, manufactured to meet TIA/EIA and ISO/IEC standards, and undergoes 100% optical testing for insertion loss and return loss. Zirconia ceramic ferrules ensure precise fiber alignment, which helps keep insertion loss low and connection repeatability high.

• OM3 multimode fiber optimized for 850nm applications and high-speed links.
• Zirconia ferrules for enhanced coaxial alignment and durability.
• Color-coded 12 strands for fast identification and correct mapping.
• Compliant with ITU, UL, CE, IEC, TIA, and RoHS for broad interoperability.

How simple is installation and everyday use?

The kit is designed for quick field deployment: pigtails arrive pre-terminated and couplers are loaded into an LGX-style panel for plug-and-play connectivity. The enclosure’s secure mounting points and removable jacket options make it straightforward to route trunk cables, terminate fibers, and label ports for easy maintenance.

• Pre-assembled pigtail and configured couplers reduce on-site termination time.
• Riser-rated PVC zipcord (2.0mm) with LSZH options for varied indoor codes.

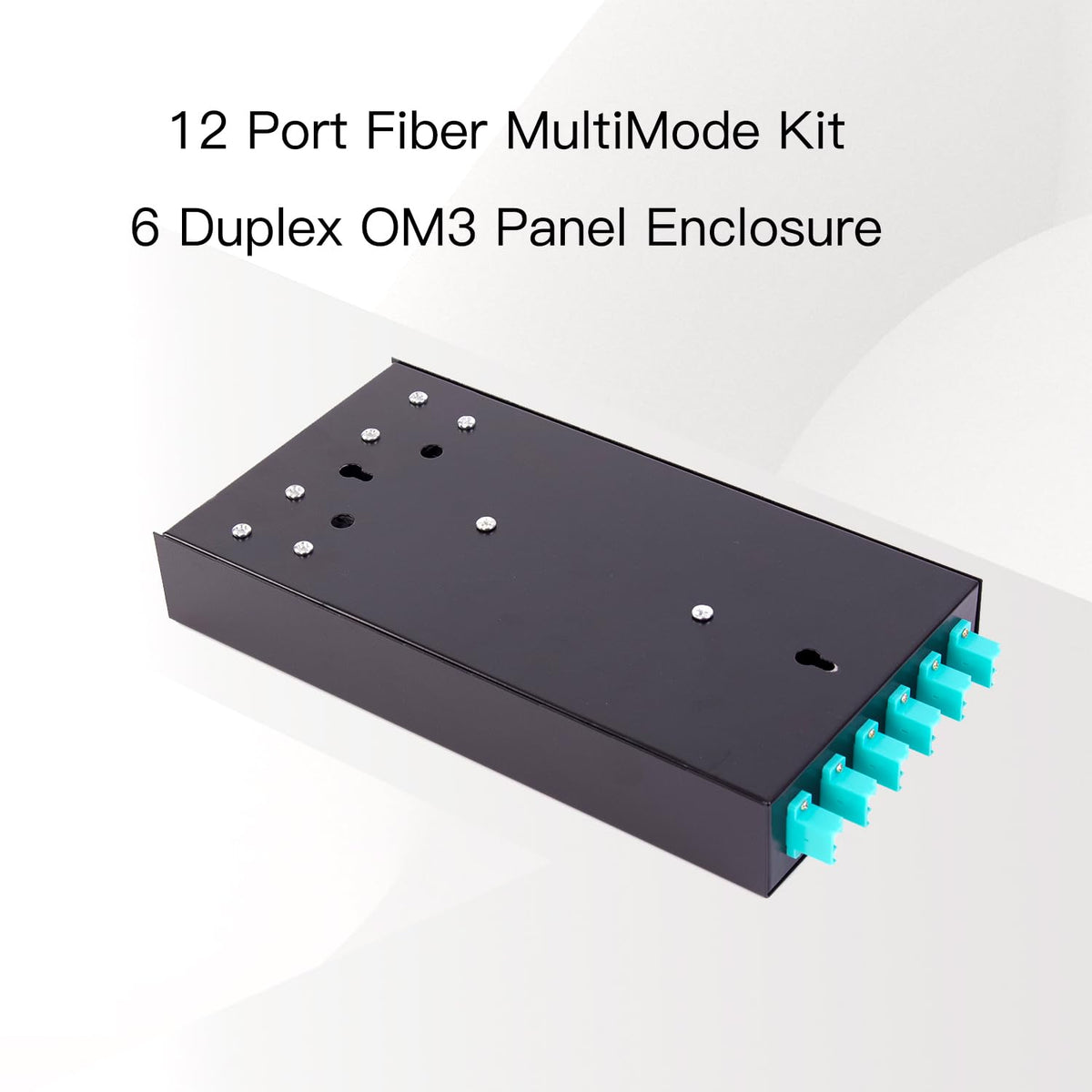

• Mounts vertically or horizontally to match closet or wall layouts.
• Neatly inserted fibers and strain relief prevent accidental shifts and damage.

Which applications is this enclosure kit best suited for?

This solution targets premise distribution points where compact, reliable multimode connections are needed. It works well in telecom closets, data closets, small server rooms, and FTTx termination points where 12-strand multimode terminations and six duplex output ports meet typical network requirements.

• Data centers and enterprise LAN/WAN backbone terminations.
• Telecom and CATV distribution panels in tight spaces.
• FTTx, metro, and access network handoff points.
• Instrument racks, storage networking, and multimedia installations.

Who is this for: Installers, network engineers, and facilities managers who need a compact, standards-compliant multimode fiber termination solution that balances space savings with professional cable management. If you require a pre-configured, low-insertion-loss enclosure that supports quick patching and clear strand identification for indoor telecom or datacom environments, this GESD kit is a practical choice.
