Garmin 18x LVC GPS Navigator Unit — WAAS-Enabled OEM Receiver

Overview

The Garmin 18x LVC GPS Navigator Unit is a compact GPS sensor designed for OEM use in automotive, fleet, and electronics projects. With a 12-channel WAAS-enabled receiver and a puck-style form factor, it fits into tight spaces while delivering reliable location data.

What makes it stand out

Engineered for demanding environments, this unit combines high sensitivity tracking with flexible connection options and programmable data formats, making it a versatile choice for developers and integrators who need precise timing and dependable positioning.

• High Sensitivity LVC sensor with bare-wire connection for compact OEM integration
• WAAS-enabled GPS receiver for enhanced positioning accuracy
• Included end-cable options to attach to CMOS for OEM applications
• Non-volatile memory stores configuration data for repeatable setups
• Raw measurement output data supports advanced customer applications

Data formats and outputs

Different variants provide different data outputs. The LVC/bare-wire and PC/serial versions default to NMEA 0183 data. The USB version outputs data in Garmin's proprietary format. All options combine with a real-time clock and non-volatile memory for reliable operation.

• PC and LVC variants output NMEA 0183 data by default
• USB variant outputs Garmin proprietary data format
• Real-time clock ensures time-stamping for logs
• Raw measurement output enables sophisticated telemetry or development work

Physical design and installation

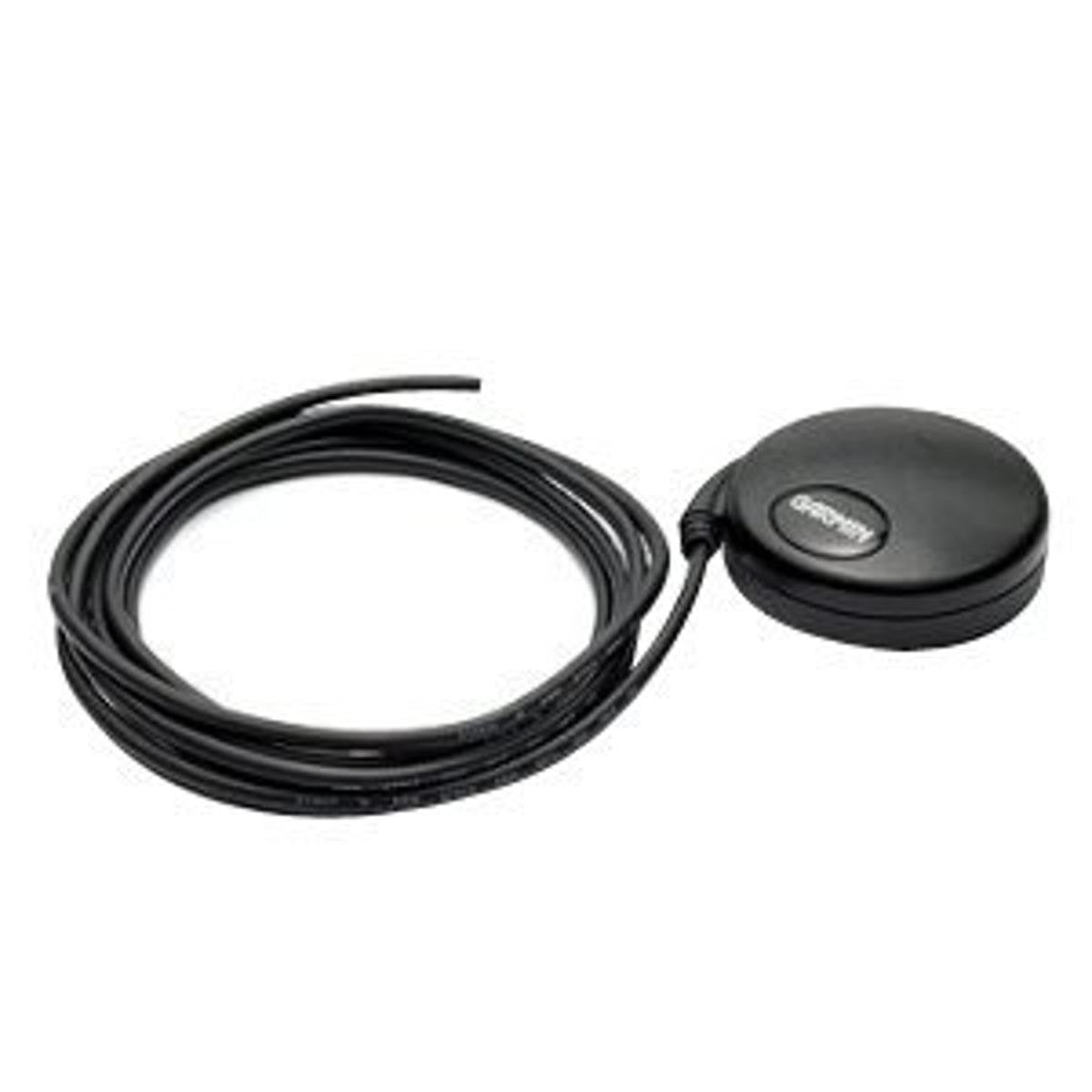

The puck-like receiver measures 2.4 inches in diameter and weighs only a few ounces, making it a practical solution when space is at a premium. It ships with an integrated magnetic base for quick mounting and accepts three cable configurations:

• USB A-style cable
• DB-9 serial cable with 12V cigarette lighter adapter
• Bare-wire/LVC configuration for custom wiring

USB 2.0 full-speed compatibility (with USB 1.1 support on older hosts) broadens host compatibility, while the LVC option adds a precise timing signal aligned to UTC seconds within 1 microsecond. For OEM developers, these features can help synchronize systems and improve timing accuracy in data streams.

Real-world use cases

Use cases span automotive dashboards, fleet management devices, marine electronics, and industrial control panels. The combination of compact size, flexible outputs, and raw data access supports a wide range of integration strategies without imposing space constraints.

Notes: This description summarizes available capabilities and variations without making guarantees about performance in every setup. Benefits described are potential outcomes based on the listed features.
