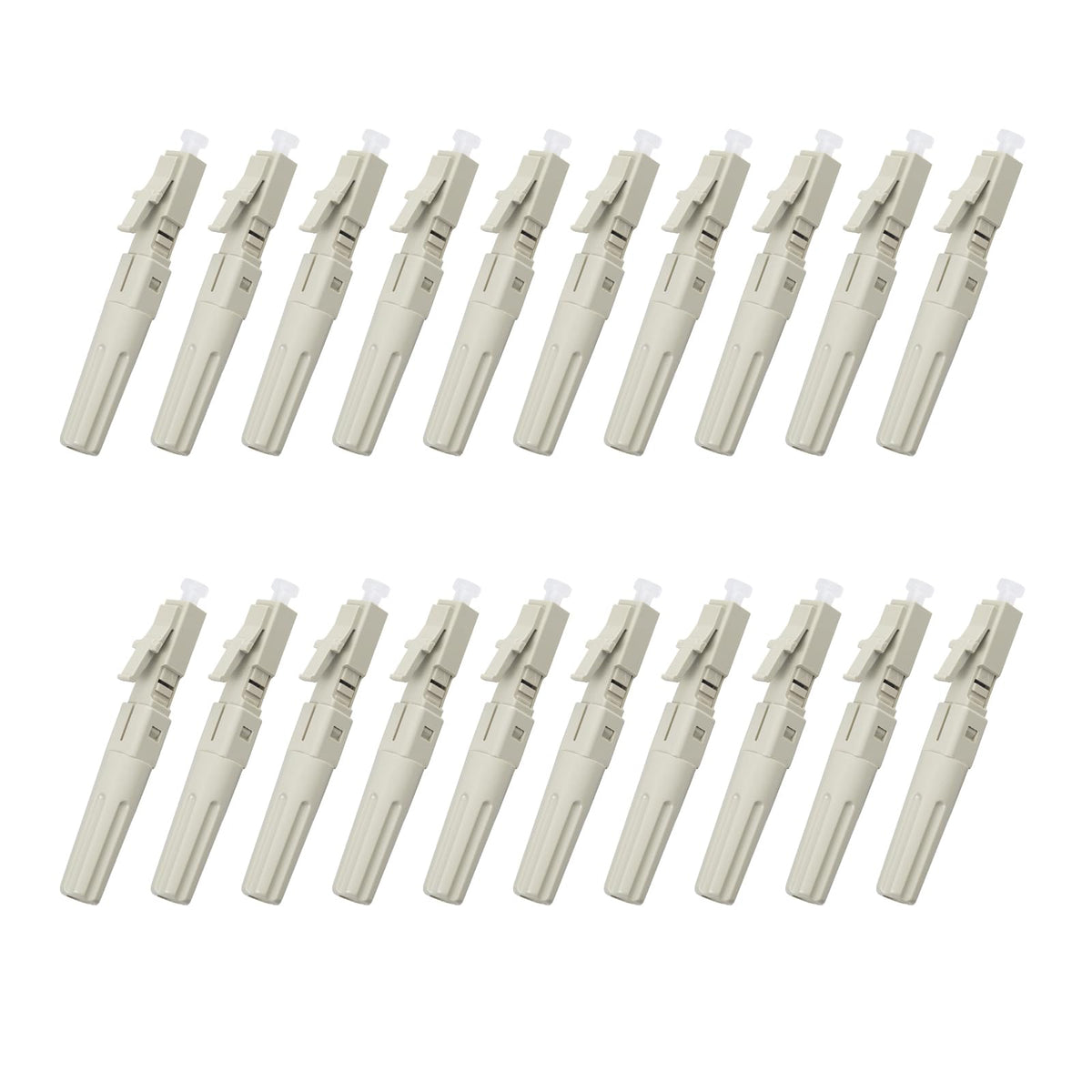

fyboptwu LC Multimode Quick Assembly Connectors 20 PCS

fyboptwu 20 PCS LC multimode quick assembly connectors are pre-assembled mechanical fiber connectors designed for fast termination of 50/125 multimode fiber with low loss and high durability.

These LC quick-connect adapters let technicians and installers terminate multimode fibers on site without polishing or epoxy, accelerating deployment for patch panels, local networks, and drop-cable repairs. Built with a ceramic ferrule core and a fiber guide mechanism, the kit supports several jacket diameters and provides consistent optical performance across repeated insertions.

What performance can I expect from these LC quick-assembly connectors?

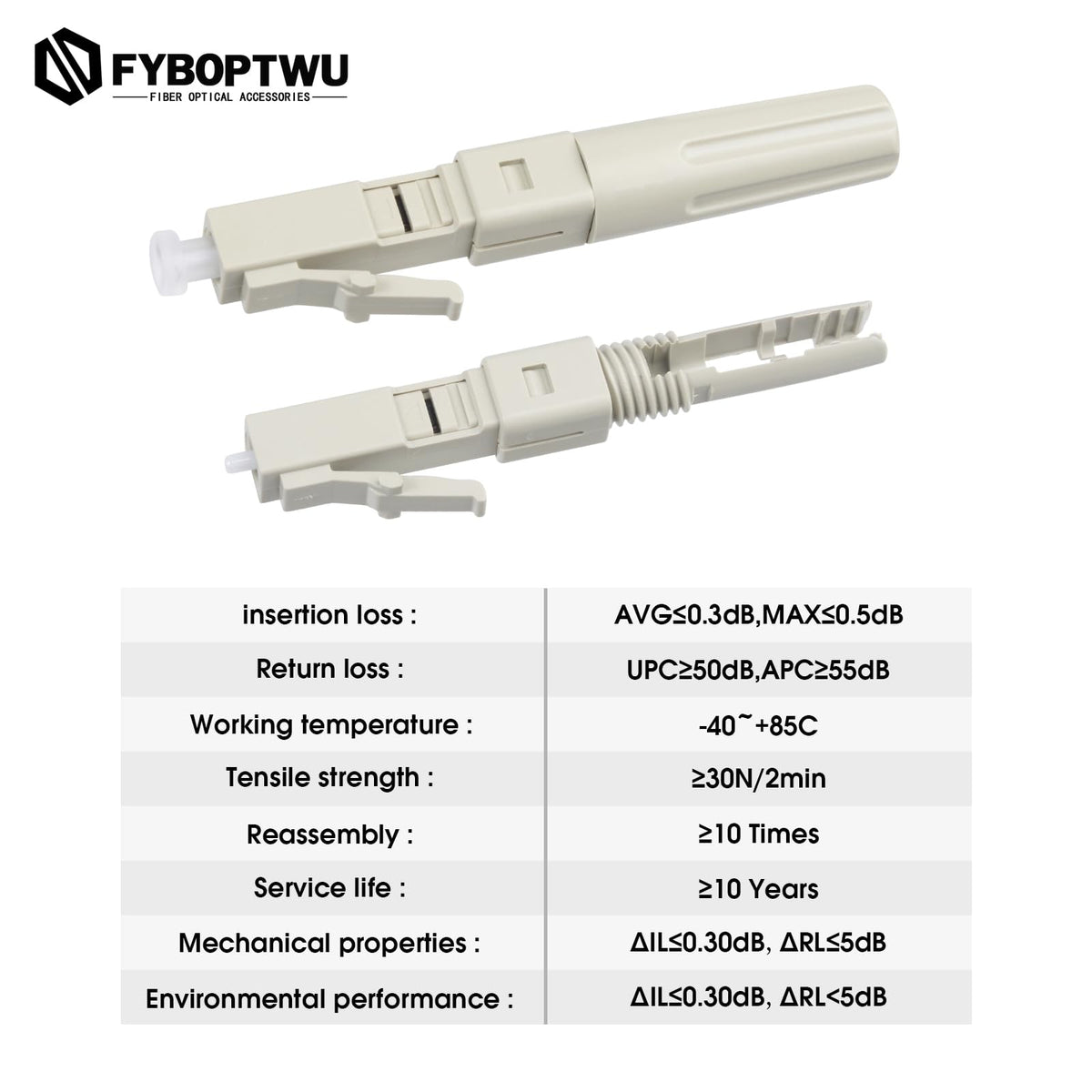

Each connector uses a ceramic ferrule to stabilize the fiber endface, delivering low insertion loss and strong return-loss performance typical of mechanical connectors. Measured insertion loss is under 0.3 dB and return loss exceeds 50 dB under proper installation and cleaning.

• Ceramic core for stable alignment and low optical loss
• Insertion loss: <0.3 dB under standard test conditions
• Return loss: >50 dB to minimize back-reflection
• Repeatability: withstands >500 insertions/extractions

How fast and easy is the installation process?

These connectors are mechanical splice-style quick assembly parts that remove the need for polishing or adhesive. A built-in fiber guide and straightforward clamping system make them practical for field use, and the kit includes step-by-step instructions so installers can achieve repeatable terminations.

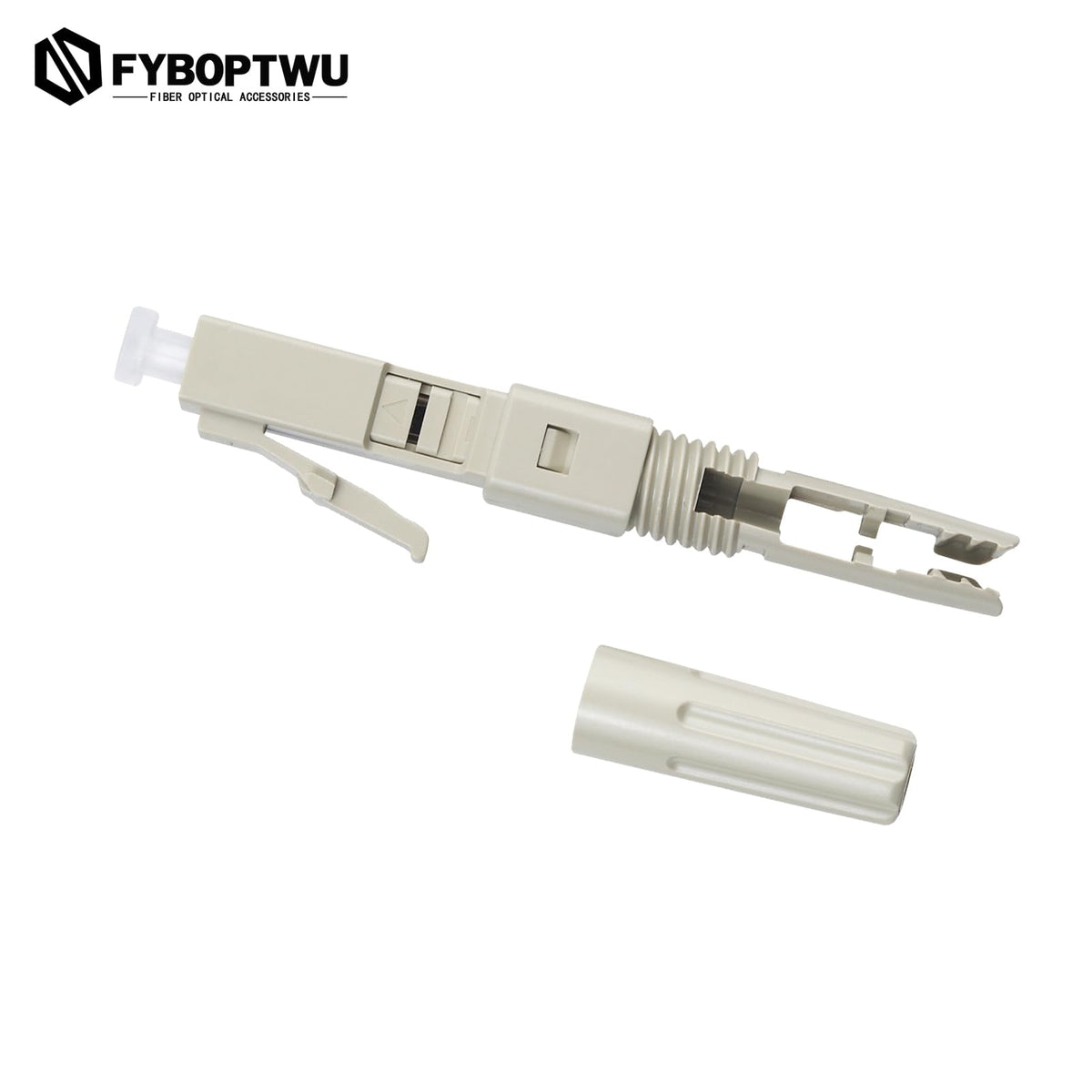

• Pre-polished ceramic ferrule—no epoxy or curing time required
• Fiber guide mechanism streamlines alignment and insertion
• Installation instructions included for consistent results
• Suitable for on-site repairs and rapid deployments

Which cable types and diameters are compatible with these connectors?

The set supports multiple round multimode cable sizes and common drop-cable formats, making it flexible for patch cords, distribution cables, and in-building runs. Confirm jacket diameter before terminating to ensure proper clamping and strain relief.

• Compatible with 50/125 multimode fiber
• Fits 0.9 mm, 2.0 mm, and 3.0 mm round fiber jackets
• Accepts 3.0 x 2.0 mm drop cable form factors
• Mechanical adapter design accommodates different jacket sizes with the included parts

How durable are these connectors under repeated use?

Constructed from high-performance materials and featuring a ceramic ferrule, the connectors resist temperature changes and mechanical stress better than low-grade plastic parts. They are rated for hundreds of mating cycles, giving reliable optical performance across panel reconfigurations and service calls.

• High-performance housing resists heat and mechanical wear
• Ceramic ferrule preserves endface integrity over time
• Tested for >500 insertion/extraction cycles for repeatability
• Robust design reduces downtime from connector failures

Who is this for? Network installers, fiber technicians, and IT teams who need a cost-effective, field-serviceable solution for terminating 50/125 multimode fiber will find these fyboptwu LC quick connectors especially useful. They suit rapid deployments, emergency repairs, and environments where speed and repeatability matter — from enterprise closets and campus backbone splices to multi-dwelling-unit drop connections. If you require polished or fusion-spliced terminations for ultra-low-loss applications, fusion splicing remains the higher-performance option; otherwise, these mechanical LC connectors offer an excellent balance of speed, compatibility, and optical performance.
