fyboptwu 12-Fiber SC UPC Singlemode Pigtail 1.2m (4-Pack)

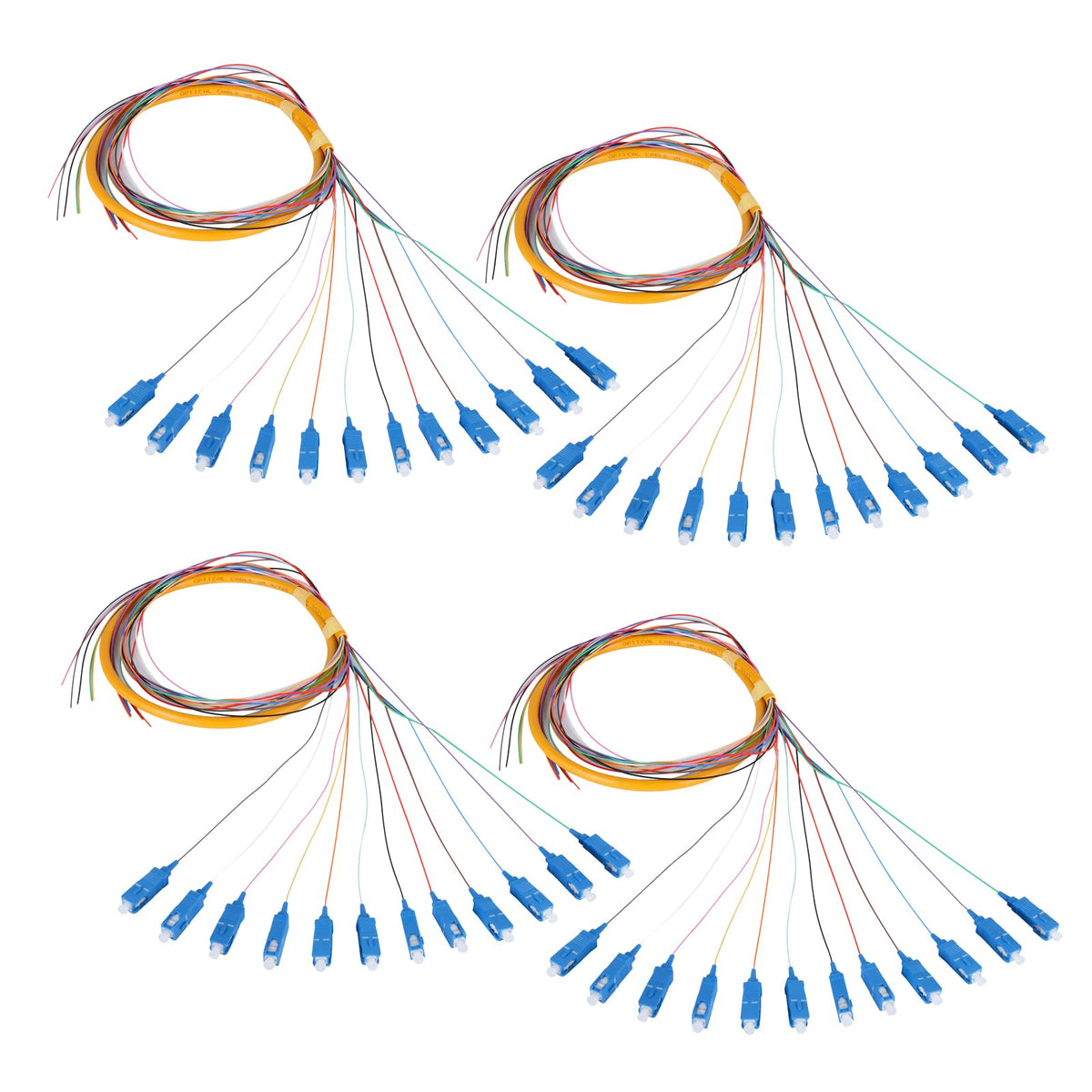

fyboptwu 12 Fibers SC UPC Singlemode pigtail is a 1.2 m, 12-core SC/UPC single-mode fiber cable bundle sold in a pack of four for reliable engineering and network fiber access connections.

This four-pack of fyboptwu SC/UPC single-mode 12-fiber pigtails delivers low insertion loss, high return loss and consistent performance for splicing and fiber termination work. Each pigtail comes with a 0.9 mm fiber diameter and PVC jacket, offering a tensile strength ≥200N and more than 1,000 mating cycles. Designed for use at 1310 nm and 1550 nm wavelengths, these pigtails are suited to point-to-point links, patch panels and fiber distribution enclosures where compact, multi-fiber terminations are required.

How does this pigtail maintain signal quality in installations?

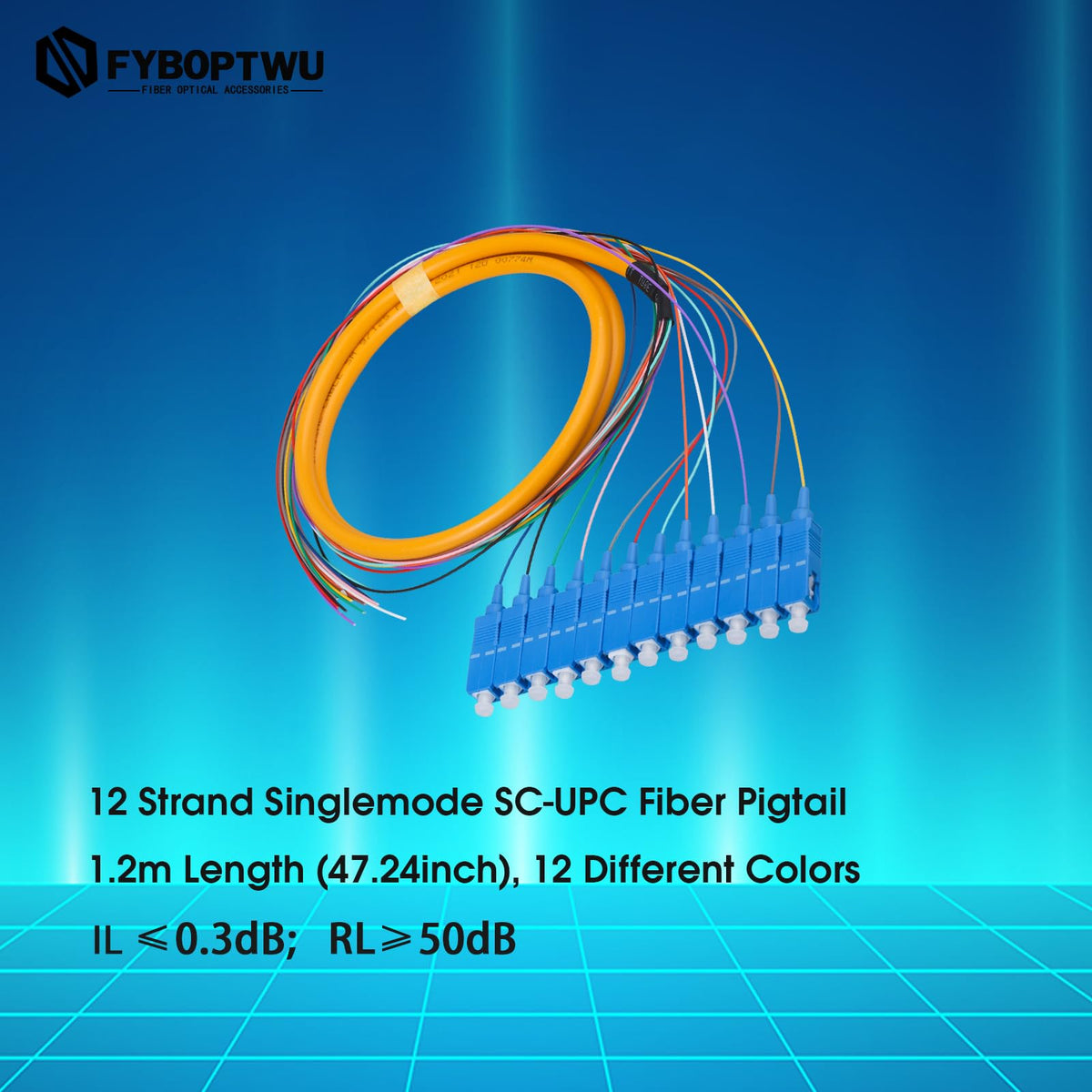

The fyboptwu SC UPC pigtail is built for low signal degradation and high stability. Its polished UPC connectors and strict manufacturing tolerance minimize insertion loss and maximize return loss, ensuring clean pass-through for single-mode signals.

• Insertion loss lL ≤ 0.3 dB for minimal attenuation
• Return loss RL ≥ 50 dB to reduce reflections
• Consistent connector geometry for reliable mating
• Designed for 1310 nm and 1550 nm telecom wavelengths

What are the physical specs and durability features?

These pigtails use a 0.9 mm fiber diameter inside a PVC jacket and measure 1.2 m (47.24 inches) long, giving installers a practical length for racks and splice trays. The assembly meets basic mechanical strength requirements and withstands repeated use.

• Tensile strength ≥ 200 N for secure handling and routing
• More than 1,000 insertion/extraction cycles for long life
• PVC outer jacket for abrasion and environmental protection
• Compact 12-fiber configuration to save rack space

Which applications and environments suit this multi-fiber pigtail?

This 12-core SC/UPC pigtail is tailored to engineering and network fiber access tasks where multiple single-mode cores are needed in a compact form. Typical uses include data center patching, fiber distribution frames, and splice closures where standardized SC connectors are required.

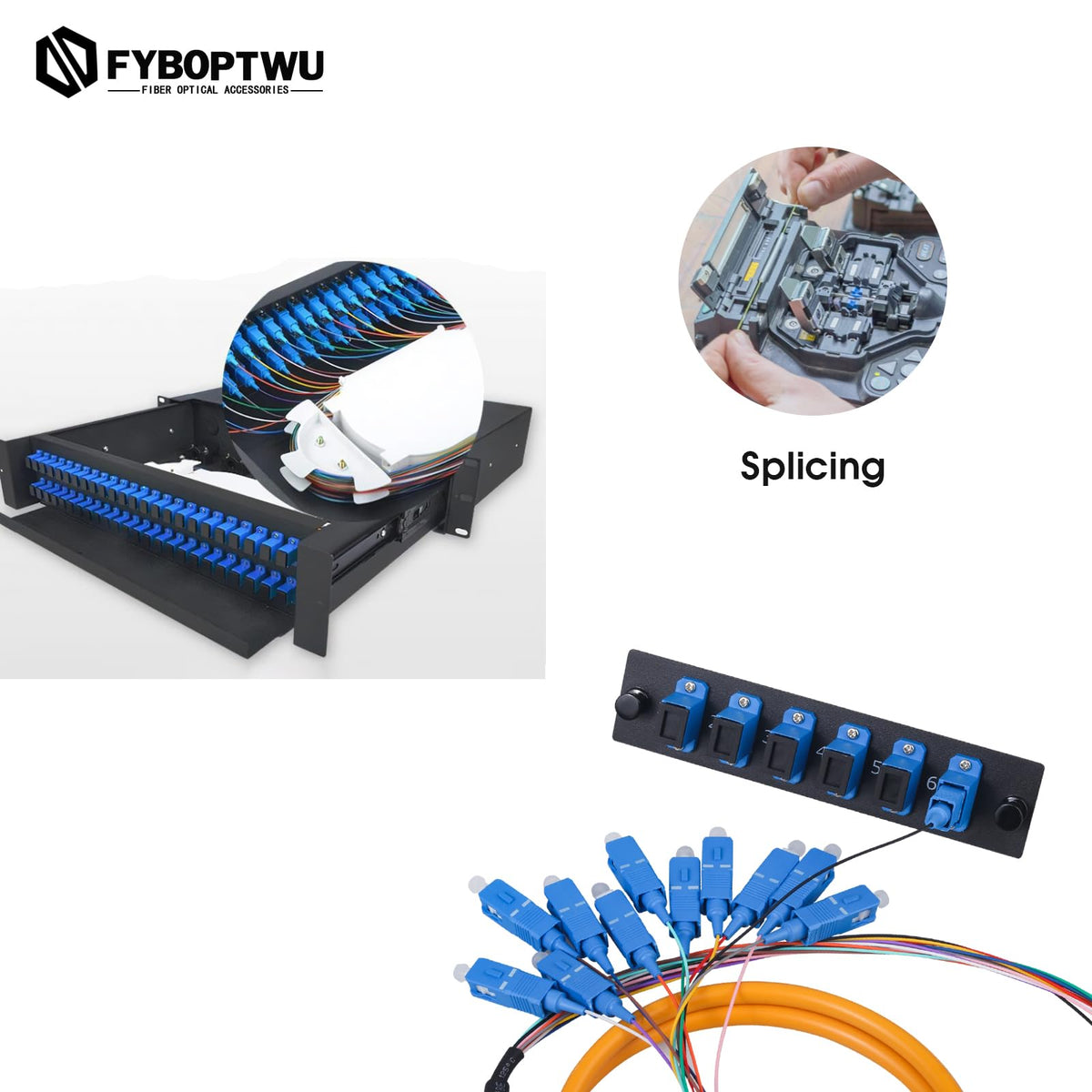

• Fiber distribution panels and patch panels in telecom rooms
• Splice trays and closures for field or cabinet installations
• Data center cross-connects requiring multi-fiber terminations
• Indoor structured cabling and equipment interconnects

Who is this for? Network engineers, fiber technicians and installation contractors who need a dependable, space-efficient multi-fiber pigtail will benefit from this product. The fyboptwu 12-fiber SC/UPC pigtail 1.2 m (4-pack) is helpful for projects that demand consistent optical performance, simple connector compatibility and durable mechanical construction. Choose this kit when you want standardized SC/UPC terminations with low insertion loss and high return loss for single-mode networks.
