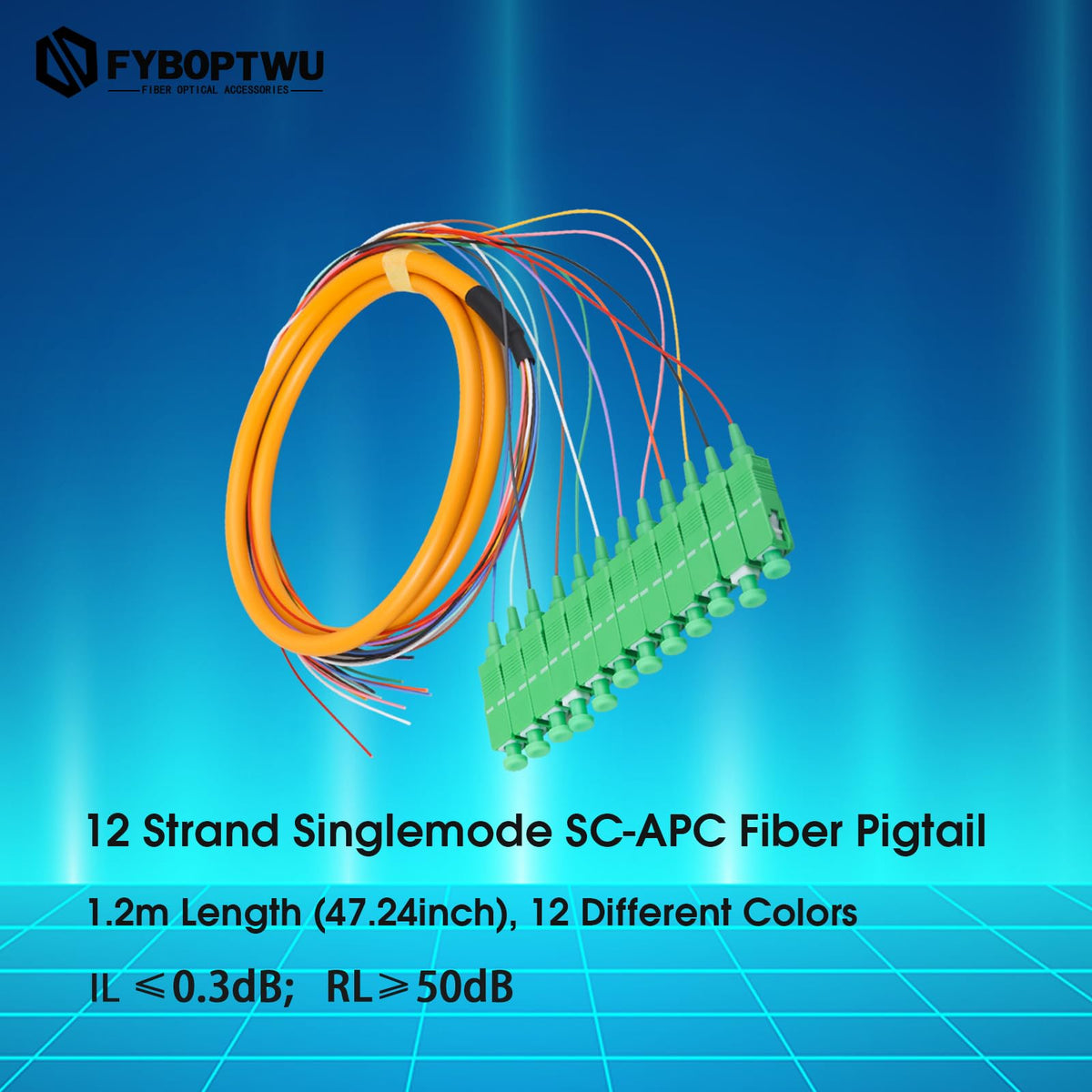

fyboptwu 12-Fiber SC APC Singlemode Fiber Pigtail 1.2m

fyboptwu 12 Fibers SC APC singlemode pigtails are pre-terminated 1.2 m fiber cable bundles designed to connect single-mode networks with low insertion loss and high return loss for engineering and access applications.

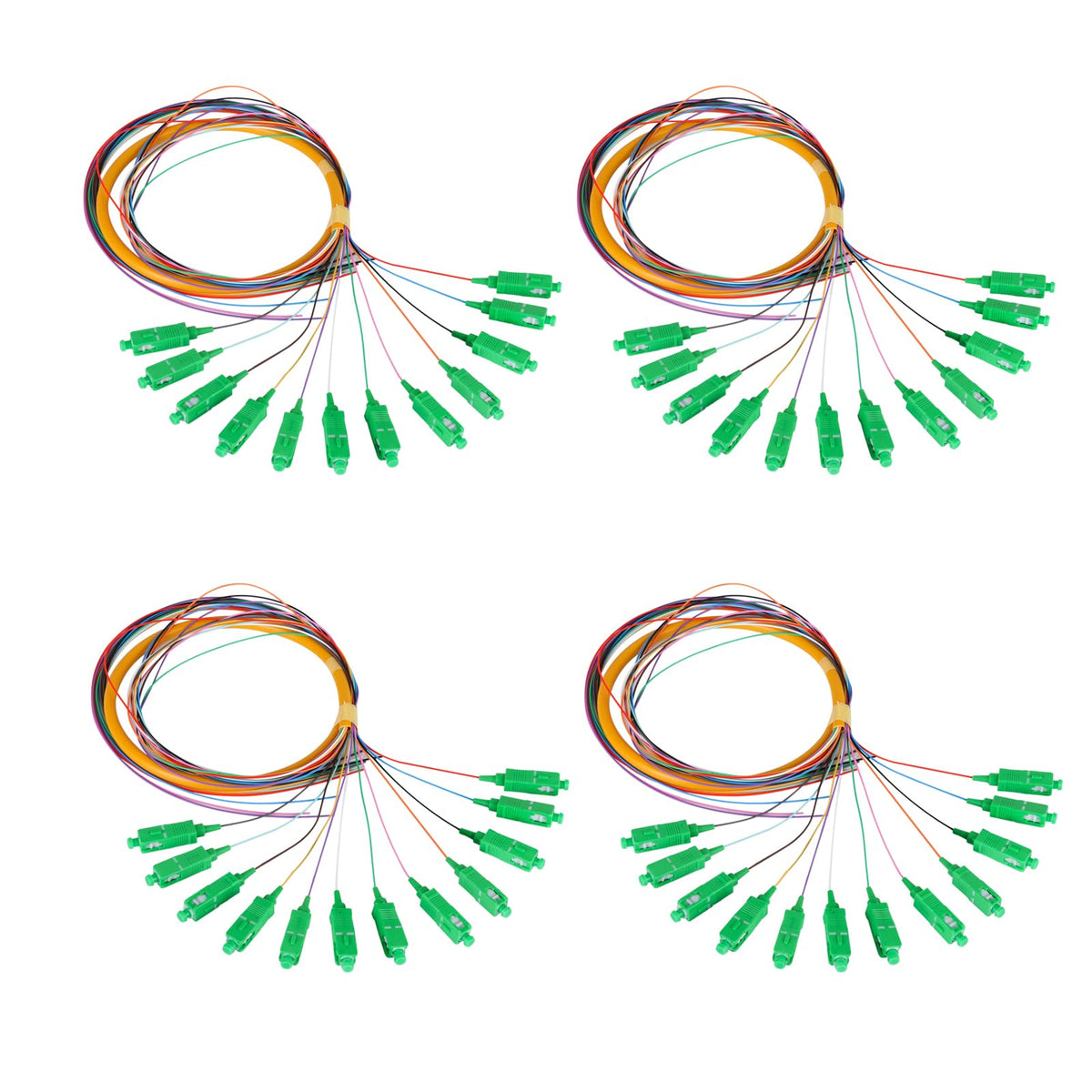

These four-pack pigtails bundle twelve SC/APC-terminated single-mode fibers in a compact PVC jacket. Each 1.2 meter assembly is built for repeated mating cycles and field termination environments where predictable optical performance, tensile strength and interchangeability matter. The design focuses on consistent low insertion loss (lL≤0.3dB), high return loss (RL≥50dB), and a minimum tensile rating of 200 N, making them suitable for distribution frames, splice enclosures and equipment patching in single-mode networks running 1310 nm and 1550 nm wavelengths.

How do these pigtails maintain low loss and high stability?

Precision connector endfaces and controlled fiber diameter combine to keep insertion loss low and return loss high. Factory polishing and APC ferrule alignment reduce back reflections and help maintain stability across repeated connections.

• Insertion loss rated lL ≤ 0.3 dB for minimal signal drop
• Return loss RL ≥ 50 dB to limit back-reflection
• 0.9 mm fiber diameter for consistent core alignment
• SC/APC connectors with angled polish for single-mode applications

What durability can I expect from a 1.2 m PVC pigtail?

The PVC outer jacket and robust construction provide physical protection while the fiber and connectors are rated for frequent use. These pigtails are manufactured to withstand common field stresses and repeated insertion cycles without performance degradation.

• Tensile strength ≥ 200 N to resist pulling during installation
• Over 1,000 insertion/extraction cycles for long-term reliability
• PVC jacket for abrasion resistance and flexible routing
• Sized at 1.2 m (47.24 in) for convenient routing in racks and enclosures

Which network scenarios are these 12-core SC/APC pigtails best suited for?

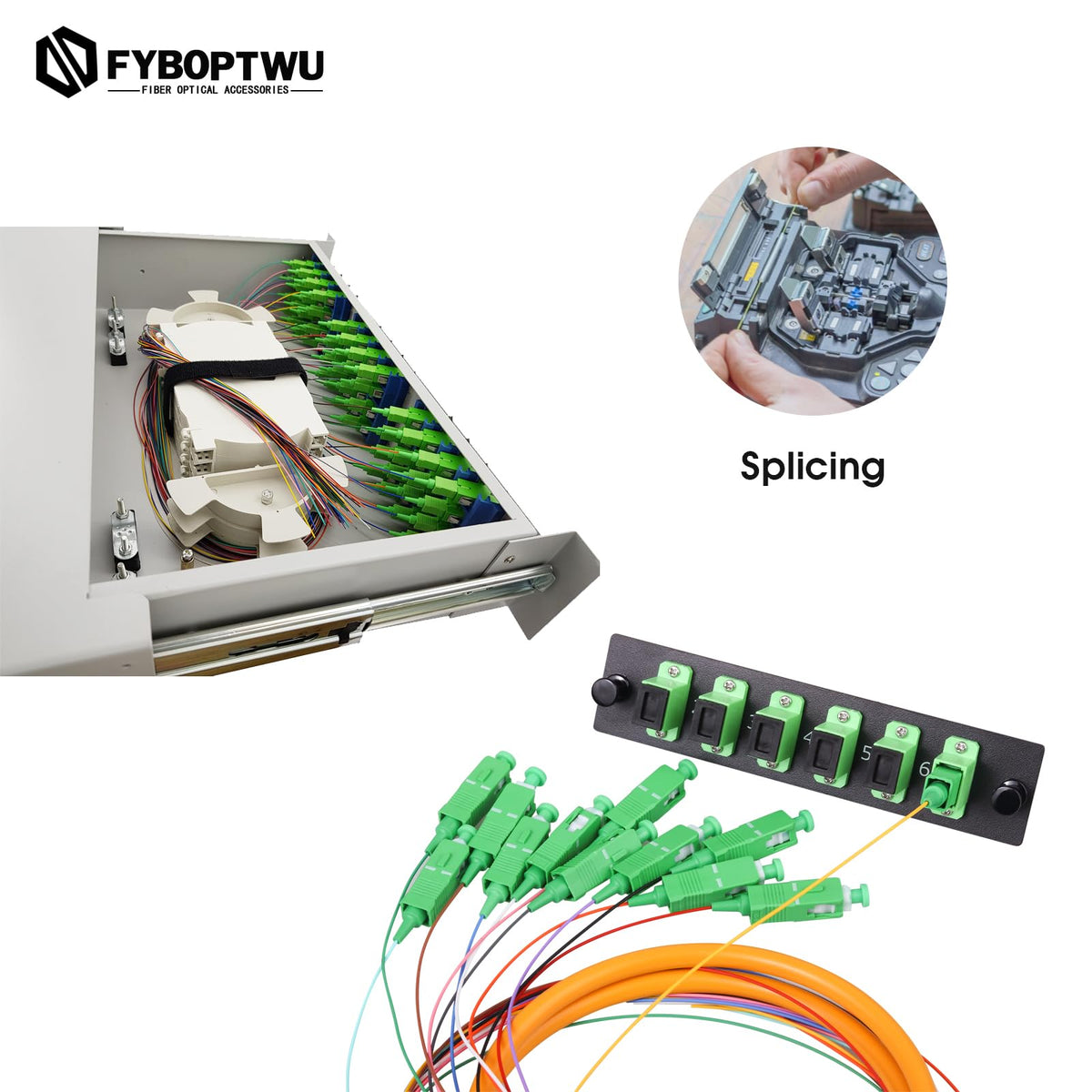

They are intended for single-mode fiber access and engineering tasks where multiple fibers need to be terminated or spliced in a compact bundle. Typical uses include splice trays, fiber distribution panels, and connecting transceivers to field terminations.

• Splice enclosure to patch panel transitions
• Fiber access networks and building backbones
• Pre-terminated wiring for engineering deployments
• Typical wavelengths supported: 1310 nm and 1550 nm

Who is this for: These fyboptwu 12-fiber SC APC singlemode pigtails are aimed at network engineers, fiber installers, telecom technicians and system integrators who need multi-fiber pre-terminated assemblies for reliable single-mode connections. If your project requires compact multi-core termination with consistent optical specs, frequent mating, and practical cable length for rack or enclosure routing, this four-pack offers a ready-to-install option that balances performance and field durability.
