Frienda LM2596S DC-DC Buck Converter 2A (4-Pack)

Frienda’s 4-pack LM2596S adjustable DC-DC buck converter modules provide efficient, compact voltage regulation from 4–40V input to 1.25–37V output, each module delivering a stable 2A continuous (3A peak) with an integrated digital voltmeter display.

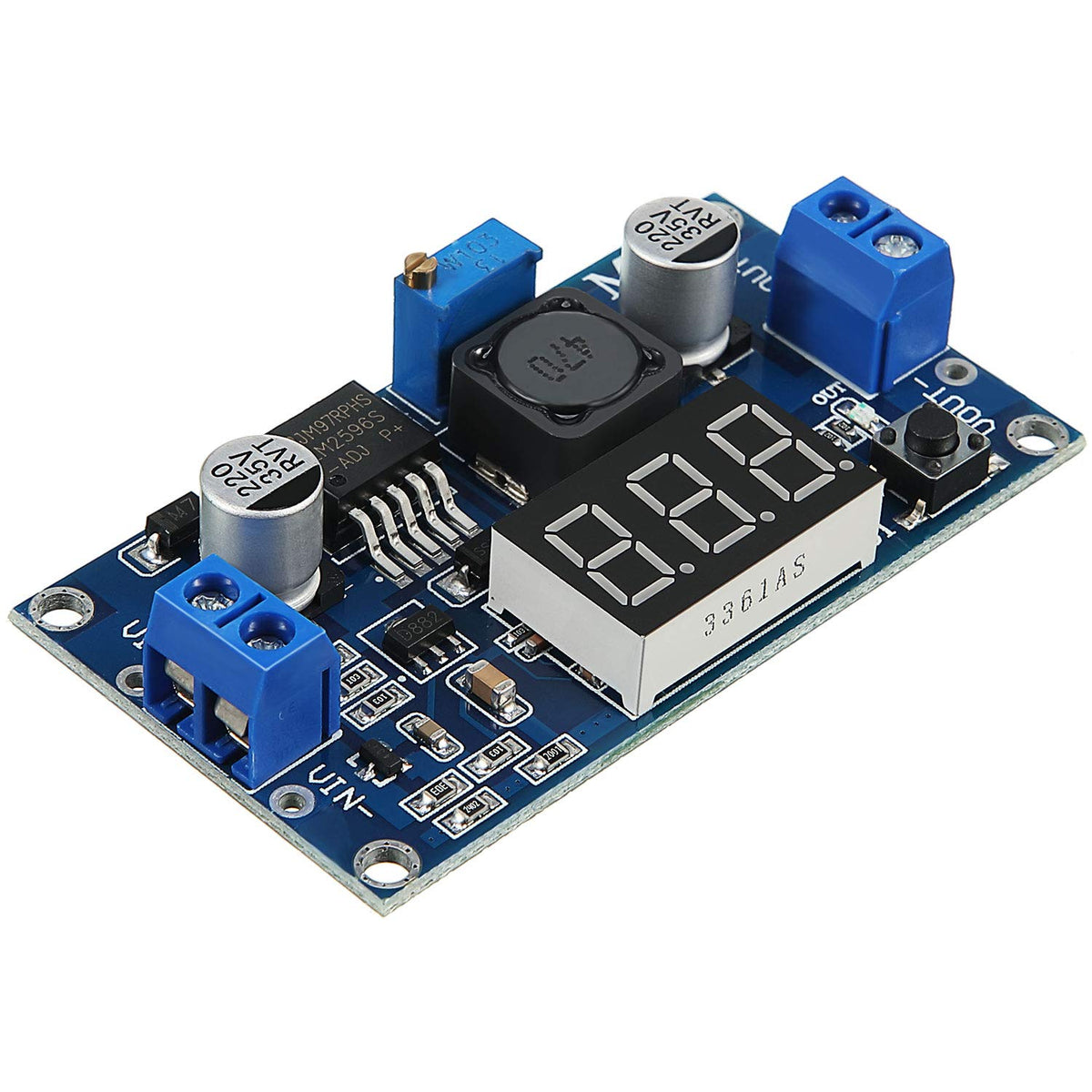

These compact power modules are built for makers, technicians, and hobbyists who need a reliable, high-efficiency step-down regulator that’s easy to adjust and install. Each board includes a terminal block for tool-free wiring, a user-configurable potentiometer for fine voltage setting, and an on-board voltmeter you can switch off to save power. The LM2596S chipset and 150 kHz switching frequency keep conversion losses low and output ripple under 30 mV, making the modules suited for many battery-powered and bench applications.

How do I set the output voltage safely?

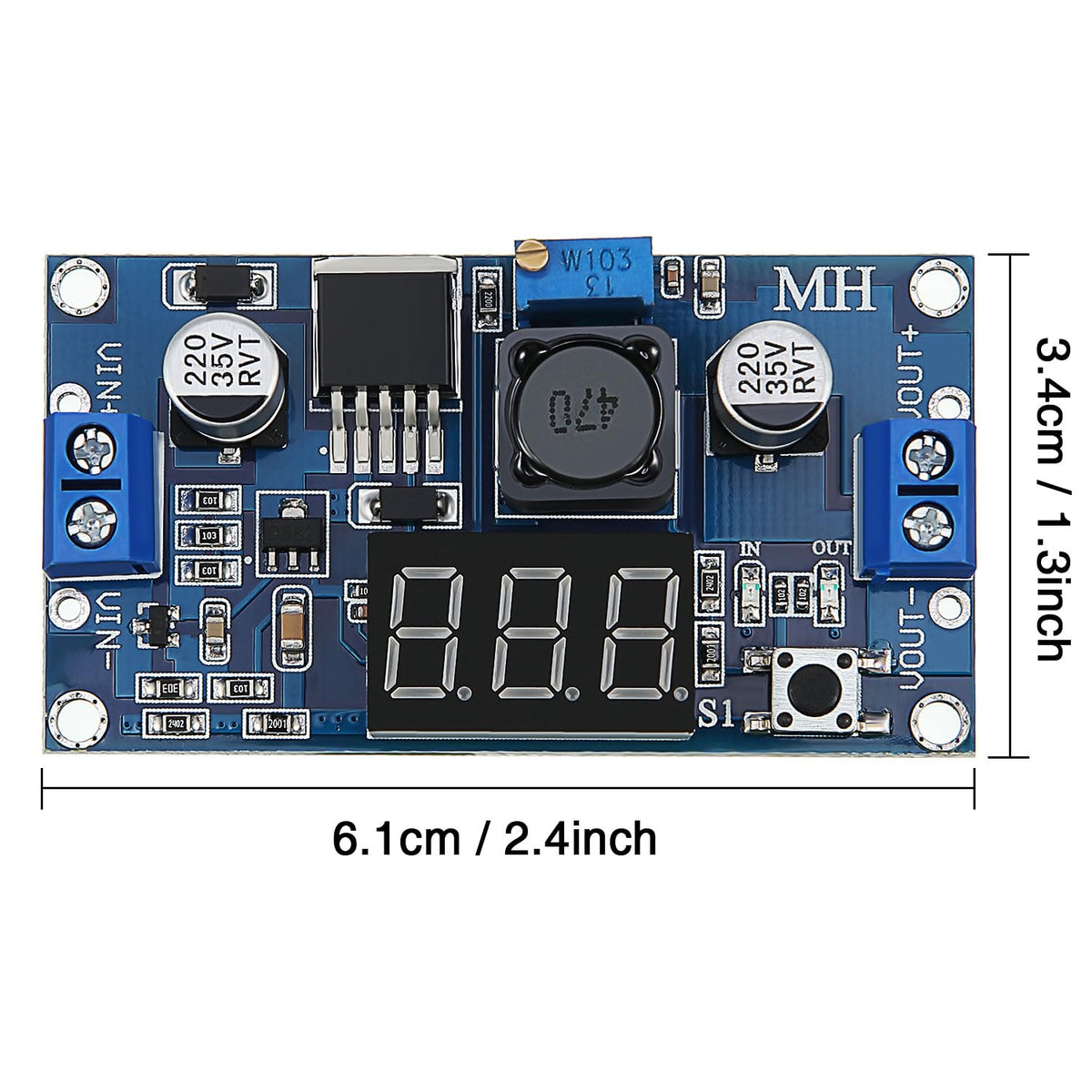

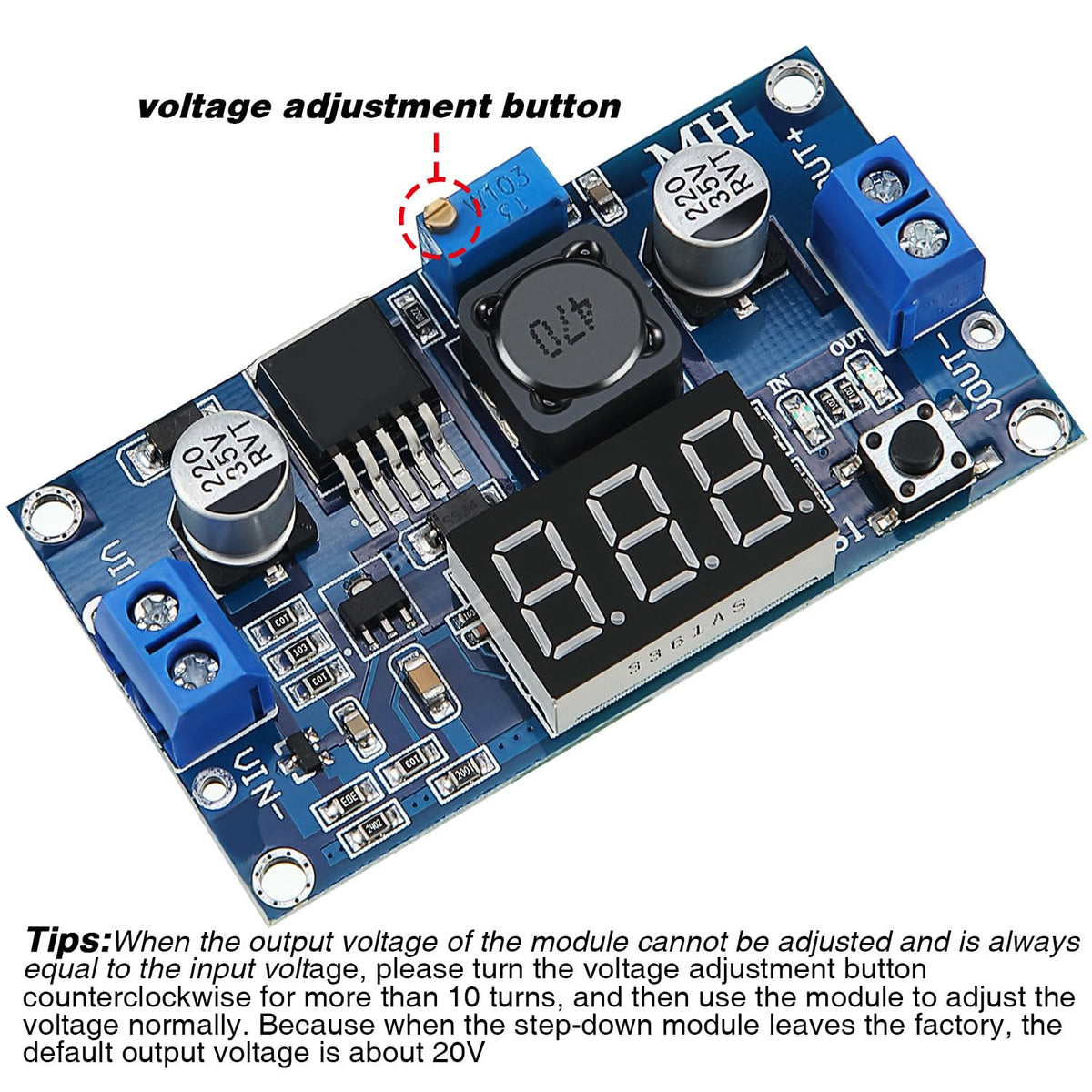

Adjust the small potentiometer on the board while monitoring the voltmeter display until you reach the desired output. If the output appears stuck at the input voltage, rotate the potentiometer fully counterclockwise for about 10 turns to reset to the adjustable range, then fine-tune back up.

• Ensure input voltage is at least 1V higher than your target output.
• Monitor voltage on the integrated digital display while adjusting.
• If necessary, power down and re-adjust the potentiometer as described above.

What current and thermal considerations should I know?

Each module is rated for a stable 2A continuous output and supports peaks up to 3A; running above 2A regularly requires adding a heat sink or active cooling. The module is optimized for efficiency (up to about 92%), but power dissipation increases with larger input-output differentials and higher current draw.

• Recommended continuous current: ~2A per module.
• Maximum short-term current: 3A (use cooling for sustained operation).
• Maintain airflow and consider a heatsink if your application draws >2A.

How do I install and connect the module?

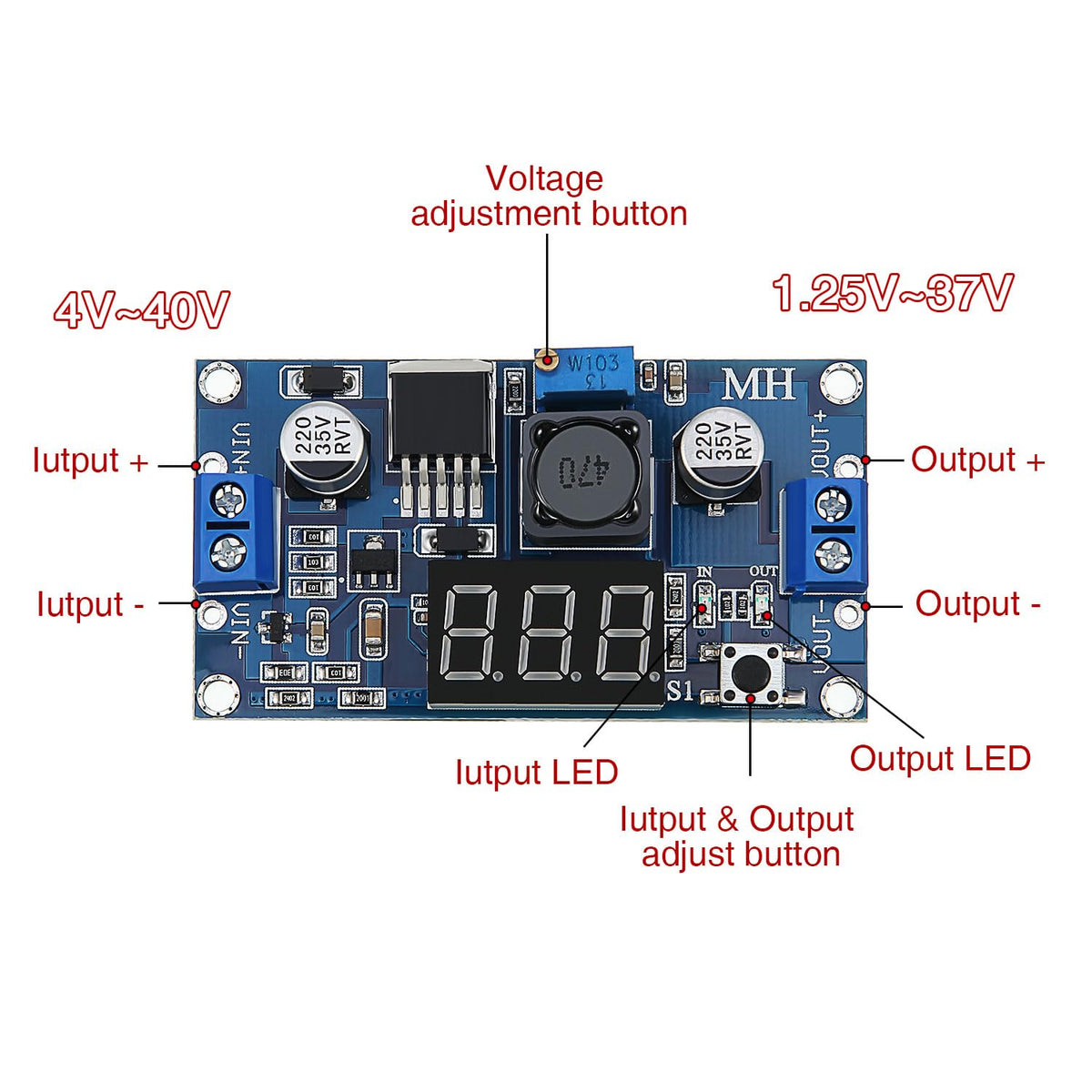

Wiring is straightforward via the removable terminal block — no soldering required unless you prefer soldered connections for permanent installs. Confirm polarity and that the input voltage exceeds the desired output by at least 1V to allow proper regulation.

• Use the terminal block for quick wiring or solder the pads for a permanent mount.
• Observe correct polarity: VIN and GND to the input, VOUT and GND to the load.
• Turn off the voltmeter with the on-board switch to save a small amount of power when measurement isn’t needed.

What performance and environmental limits apply?

The module operates across a wide temperature range and keeps output ripple low for sensitive electronics, but avoid exposing the board to extreme heat or moisture. The switching frequency and circuit design favor compactness and efficiency, but high ambient temperatures will still require attention to cooling when drawing heavier loads.

• Operating temperature range: −45°C to 85°C.
• Conversion efficiency up to ~92% with typical output ripple below 30 mV.
• Switching frequency: 150 kHz for compact inductive components.

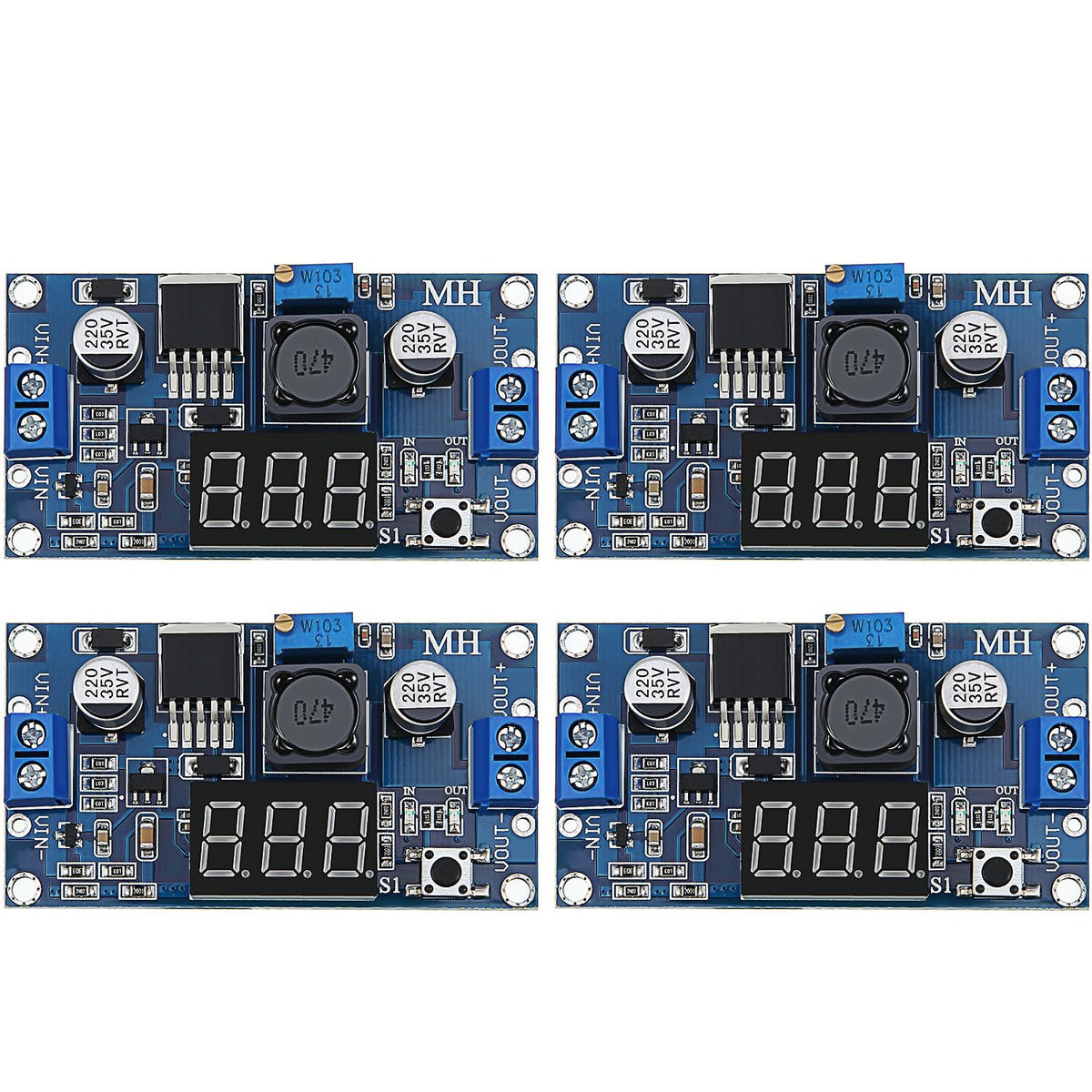

Who is this for? These Frienda LM2596S modules suit electronics hobbyists, prototypers, DIY EV and battery projects, bench power solutions, and technicians needing compact, adjustable step-down regulation. Buy the 4-piece set if you want spares for multiple projects, dedicated regulators for different rails, or a small stock for repairs and experimentation.
