FREENOVE 4.3in Touchscreen for Raspberry Pi MIPI DSI

FREENOVE 4.3-inch touchscreen: a compact IPS display with 800×480 resolution and 5-point capacitive touch made specifically for Raspberry Pi via the MIPI DSI port.

This compact monitor is engineered for makers, hobbyists, and embedded projects that need a responsive, driver-free display directly connected to the Raspberry Pi display port. It provides a crisp 800×480 IPS panel with wide viewing angles, a 60 Hz refresh rate, and multi-touch input so you can create control panels, handheld devices, or mini user interfaces without HDMI adapters or extra drivers on supported OS builds.

How do I connect this display to my Raspberry Pi?

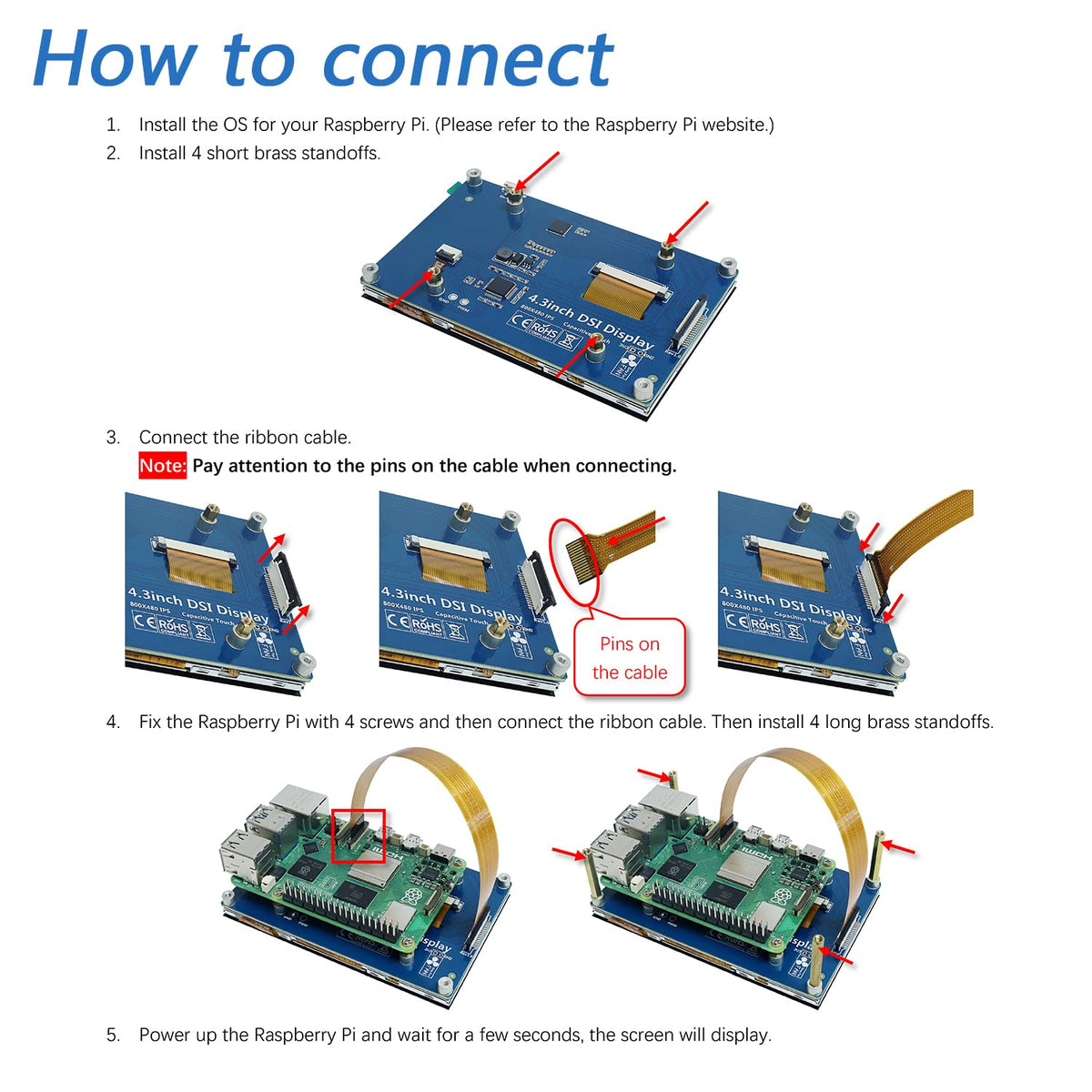

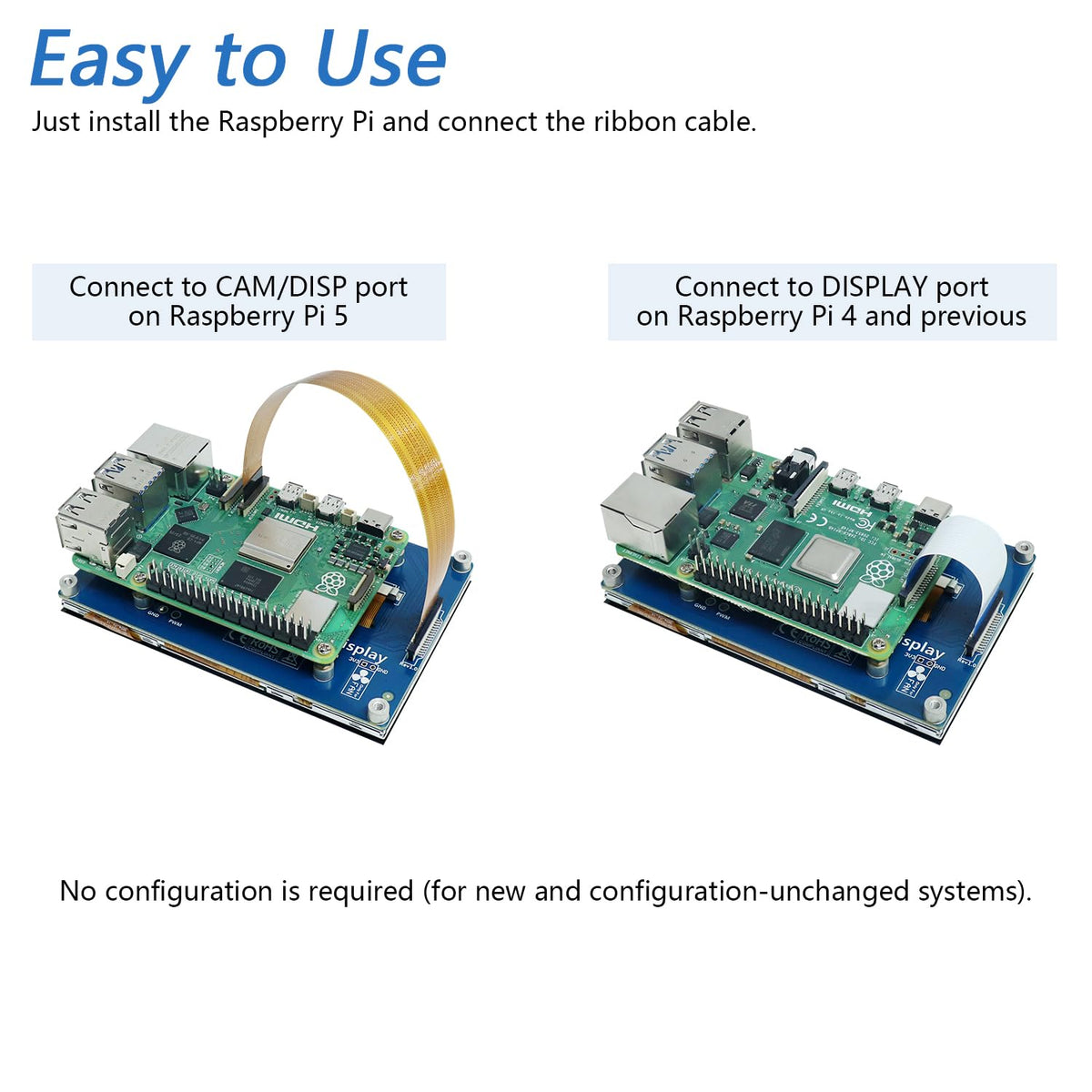

Connection is done through the Raspberry Pi's MIPI DSI display port—labeled CAM/DISP on Raspberry Pi 5 and DISPLAY on Pi 4 and earlier models. The kit includes three ribbon cables of different lengths to accommodate varied board-to-panel distances and mounting arrangements.

• Use the appropriate ribbon cable (5 cm, 10 cm, or 16 cm) supplied in the package.
• Plug the cable into the DISPLAY/CAM port on the Pi and the board on the back of the screen.
• No HDMI or separate power adapter required when powered from the Pi’s display interface.
• Follow the downloadable printed tutorial included in the box for step-by-step guidance.

Which Raspberry Pi models and operating systems are compatible?

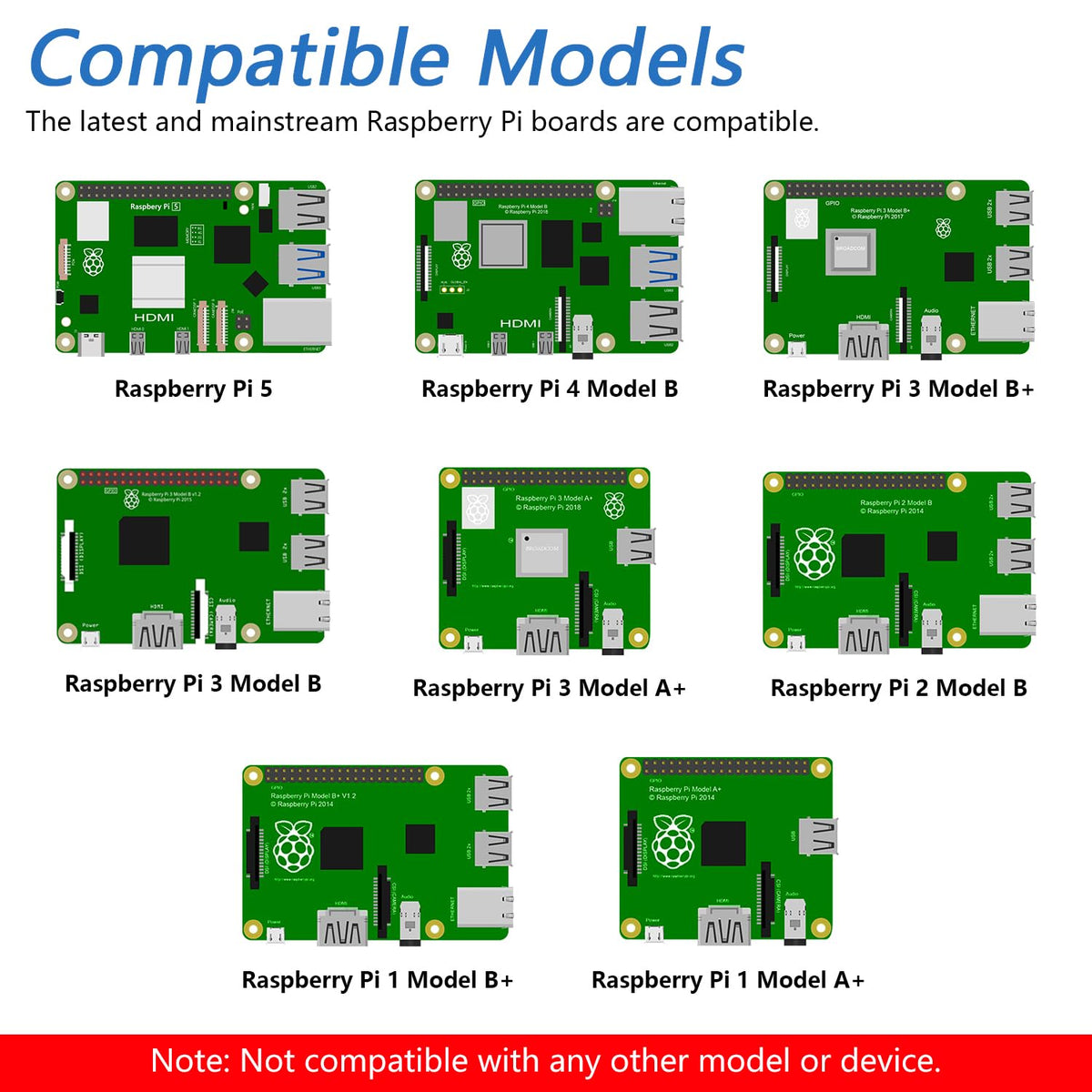

This display was developed solely for Raspberry Pi models with a MIPI DSI display interface; it is not an HDMI monitor and will not work with devices that lack a compatible DSI port. Supported Raspberry Pi models include Pi 5, 4B, 3B+, 3B, 3A+, 2B, 1B+, and 1A+.

• Compatible boards: Raspberry Pi 5 / 4B / 3B+ / 3B / 3A+ / 2B / 1B+ / 1A+.
• Compatible OS: Raspberry Pi OS with full multi-touch functionality.
• Ubuntu: touch input generally works but may be limited to single-touch depending on distribution and drivers.
• Not compatible with other devices—no HDMI input available.

What are the display specs and usability highlights?

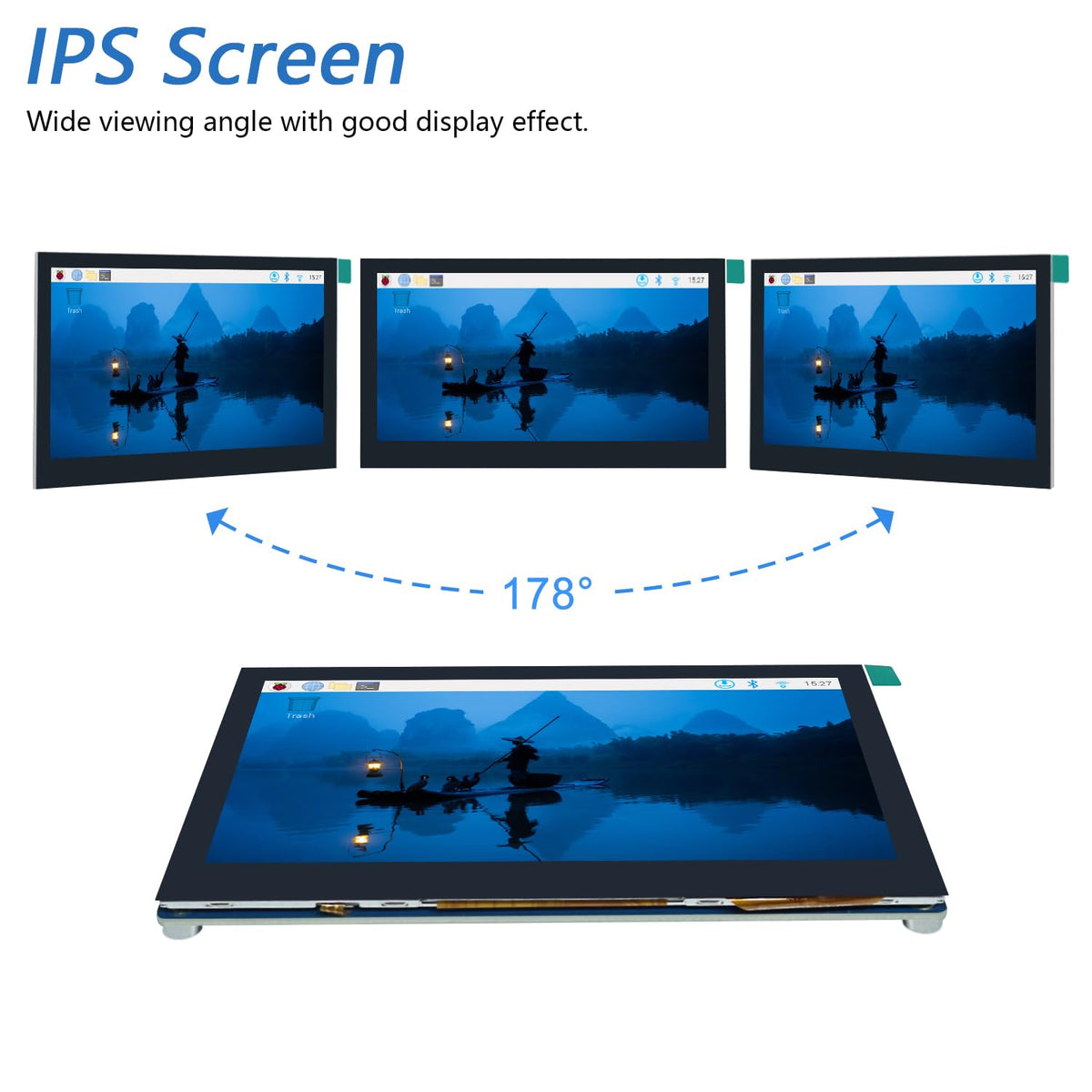

The screen delivers an IPS panel experience so colors and contrast remain consistent from off-axis viewing, useful for small control panels or portable consoles. Its 5-point capacitive touch supports intuitive gesture control for menus and simple on-screen interactions, and the 60 Hz refresh rate keeps motion smooth.

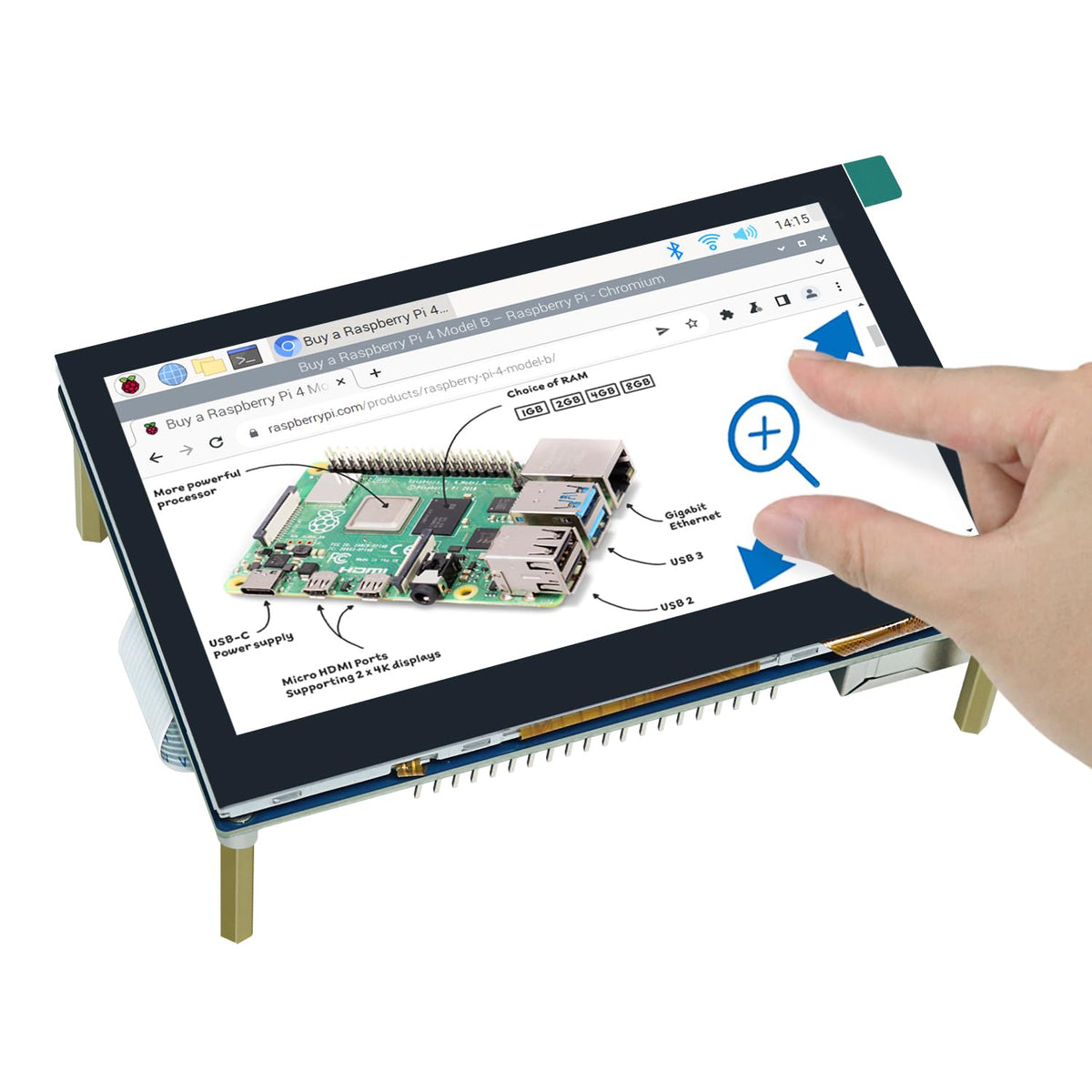

• Screen size: 4.3 inches with 800×480 pixel resolution.

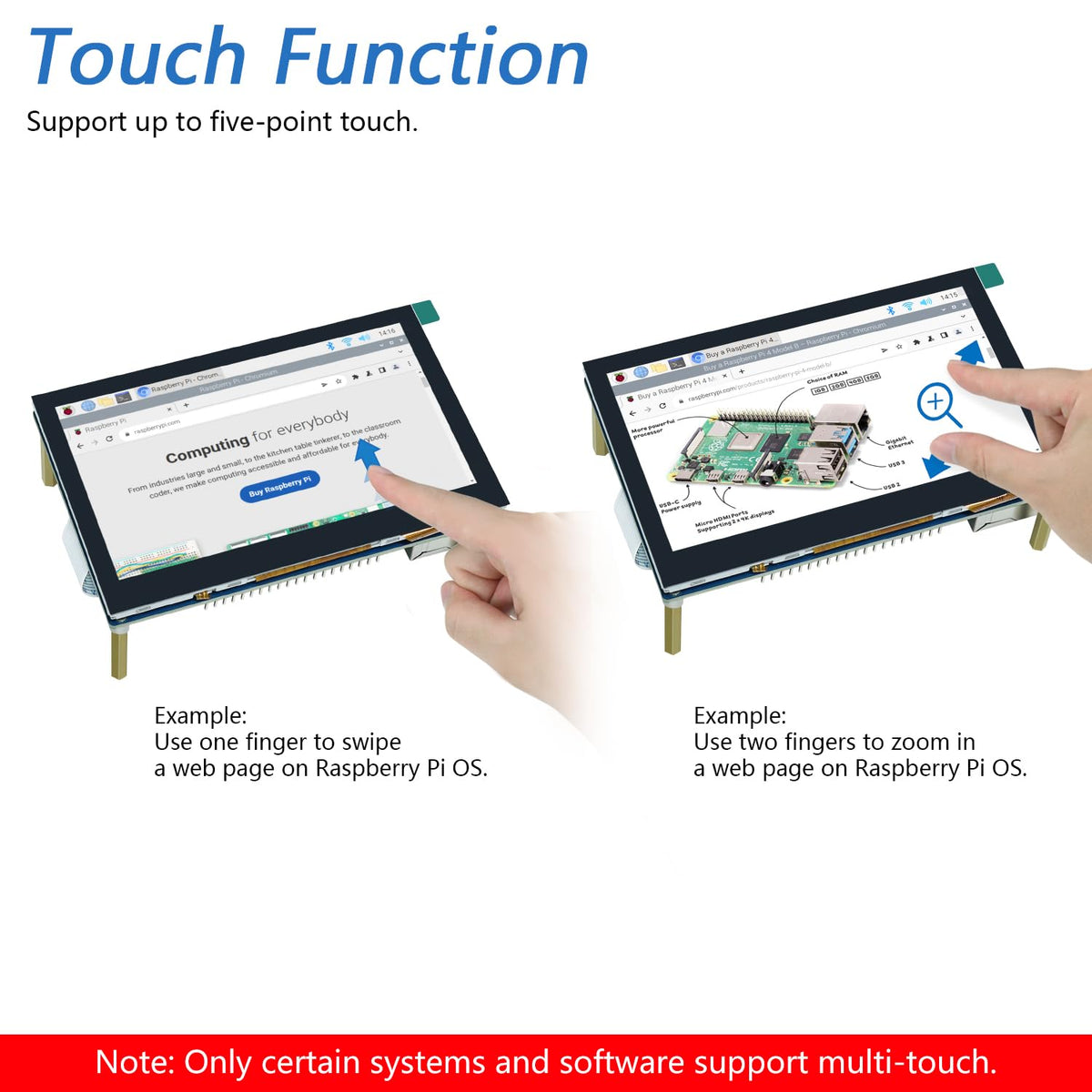

• Touch: 5-point capacitive touch for simultaneous inputs.
• Panel type: IPS for wide viewing angles and stable colors.
• Refresh rate: 60 Hz for responsive display updates.

What does the package include and how easy is setup?

The kit comes ready for assembly with mounting hardware and tools to secure the display to a case or project frame. A paper tutorial and downloadable guide are provided to help with installation and troubleshooting; FREENOVE also offers technical support if you run into issues.

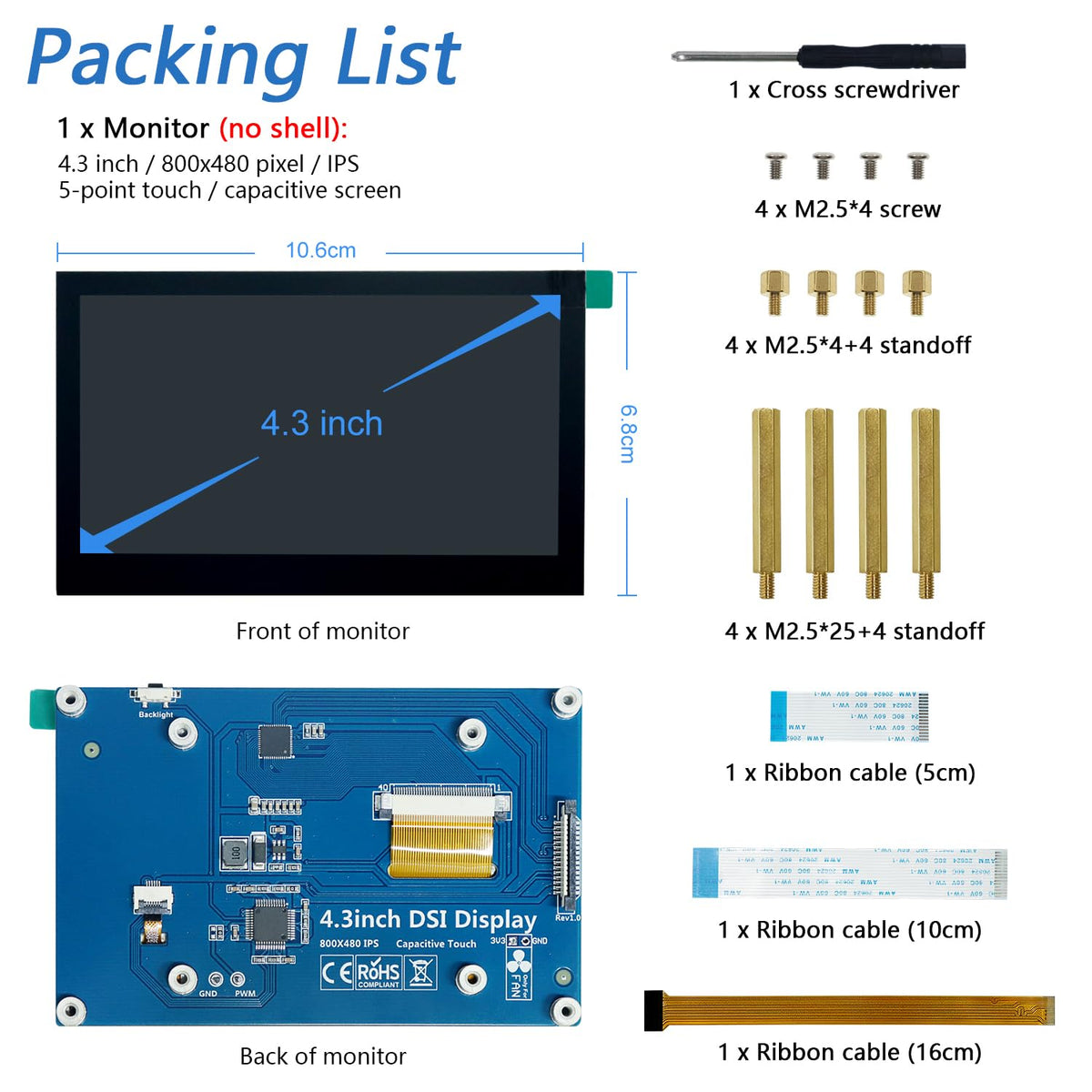

• Included: touchscreen monitor, three ribbon cables (5 cm, 10 cm, 16 cm), cross screwdriver.
• Mounting hardware: sets of M2.5 screws and standoffs for stable attachment.
• Tutorials: downloadable instructions linked on the product box and a printed quick-start sheet.
• Support: free technical assistance from FREENOVE for configuration help.

Who is this for: This FREENOVE display is aimed at Raspberry Pi users who need a compact, integrated touchscreen—ideal for portable projects, control panels, kiosks, handheld retro consoles, and educational setups. If you require an HDMI monitor or want to use the screen with non-Raspberry Pi hardware, this is not the right choice; otherwise it offers a convenient, driver-free solution for most Raspberry Pi builds that support the MIPI DSI interface.
